EF4002324-BUTTON KEYFOB REMOTE

2GIG-KEY2-345 PRINTER’S INSTRUCTIONS INSTR, INSTL, 2GIG-KEY2-345 GDR1 COMPATIBLE, (ENGLISH) - P/N: 10004962 Rev-C - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.5X11”, TOL. +/- 0.125, SCALE: 1:1, FRONT & BACK, FOLD TO FIT BOX 4-BUTTON KEYFOB REMOTE Installation Instructions The 2GIG ® 4-Button Keyfob Remote (2GIG-KEY2-345) communicates with the 2GIG Control Panel on the 345 MHz frequency. It gives users the ability to turn the security system ON and OFF before entering the home or after exiting. If there is an emergency, you can turn on the siren and automatically call the central monitoring station. Keyfobs can be programmed to operate the programmable output in the Control Panel. Use with the 2GIG Universal Garage Door Receiver. The keyfob remote is used with the (2GIG-GDR1-345) to open a garage door. The keyfob is a lithium coin battery-powered, wireless keyfob designed to fit on a key chain, in a pocket, or in a purse. It provides a convenient option for the following system operations: The four buttons provides a convenient option for the following system operations: •Arm the system (doors, windows, and motion sensors) •Arm the system with no entry delay (if programmed) •Disarm the system •Trigger panic alarms •Turn system-controlled lights on or off (via the open collector output) •Other open collector output functions (if applicable) •Use with the 2GIG-GDR1-345 to open a garage door. See the 2GIG- GDR1-345 Installation Instructions. C A D E B A Armed Away button B Disarm button C Stay button D Auxiliary button E Key Ring Contents Verify that the package includes the following: •(1) 4-Button Keyfob Remote •(1) Key Ring •(1) Lithium Coin Battery (included) Testing Refer to the Control Panel’s Installation & Programming Guide to learn how to initiate panel test mode. Test the keyfob by pressing each one of the keyfob buttons: •Disarm Button. Hold for two (2) seconds to disarm the Control Panel. Doors, windows, and motion sensors are disarmed. •Away Button. Hold for two (2) seconds to arm the Control Panel in Away mode. Doors, windows, and motion sensors are armed. •Stay Button. Hold for two (2) seconds to arm the Control Panel in Stay mode. Doors and windows are armed. •Auxiliary Button. If programmed, can trigger a preselected output. See the Control Panel’s Installation & Programming Guide for details. •Away & Disarm Buttons. If programmed, pressing BOTH the Away and Disarm buttons at the same time for five (5) seconds, will send one of four types of emergency signals: (1) silent panic; (2) audible alarm; (3) auxiliary alarm; or (4) fire. NOTE: It is recommended that a system test be performed per the Control Panel’s Installation & Programming Guide at least once a year. Inserting and Replacing the Battery The key fob arrives ready to use (batteries already installed). To replace the battery: 1 Remove the screw from the back of the keyfob. 2 Separate the keyfob’s faceplate from its backplate. 3 Slide the existing battery out from under the metal battery clip on the printed circuit board. IMPORTANT: Always dispose and/or recycle used batteries in accordance with the hazardous waste recovery and recycling regulations for your location. Your city, state, or country may also require you to comply with additional handling, recycling, and disposal requirements. 4 Insert the replacement battery into the metal battery clip on the printed circuit board. The plus (+) sign on the battery should be facing up and the minus (–) side facing down as illustrated below. Figure 1 4-Button Keyfob Remote—Battery Compartment Figure 1 4-Button Keyfob Remote Programming Use the following guidelines to add keyfobs to the system. For detailed instructions, refer to “Wireless (RF) Keyfob Programming” in the Control Panel’s Installation & Programming Guide: •Program (learn) the keyfobs into the control panel as non-supervised sensors. •Each learned keyfob uses one of the available sensor numbers. For more details, refer to the 2GIG-GDR1-345 Installation Instructions. Use the following guidelines to add keyfobs to the 2GIG-GDR1-345: •Press and release the learn button. •The learn indicator will light if there’s room in memory •Activate the * (Auxiliary) button on the transmitter while the indicator is lit (within 15 seconds) •Receiver indicator flashes •Repeat steps for additional transmitters (up to 10) NOTE: It is important that the proper equipment code be entered during the learning process. For the 2GIG-KEY2-345 the equipment code is 0866. 5 Replace the printed circuit board into the faceplate of the keyfob. 6 Replace the key ring in the space provided bottom of the fob. Then snap the keyfob faceplate and backplate closed. 7 Secure the screw into the back of the keyfob. WARNING: Failure to follow these warnings and instructions can lead to heat generation, rupture, leakage, explosion, fire, or other injury, or damage. Do not insert the battery into the compartment in the wrong direction. Always replace the battery with the same or equivalent type (see Specifications). Never recharge or disassemble the battery. Never place the battery in fire or water. Always keep batteries away from small children. If batteries are swallowed, promptly see a doctor. California Only: This perchlorate warning applies only to Manganese Dioxide Lithium cells sold or distributed ONLY in California, USA. Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate 4-Button Keyfob Remote | Installation Instructions Limited Warranty This Nice North America product is warranted against defects in material and workmanship for two (2) years. This warranty extends only to wholesale customers who buy direct from Nice North America LLC or through Nice North America LLC’s normal distribution channels. Nice North America LLC does not warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or li…

Text truncated - open the document above for the full version.

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Nice North America LLC Address: 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Product Name: 4-BUTTON KEYFOB REMOTE FCC ID: EF400232 Model(s): 2GIG-KEY2-345 2.911(d)(5)(i) EquipmentType We, [Nice North America LLC] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Horsen Ma Date: 3/1/2023 Title and Company name:Sr. Manager, Hardware Engineering of CIC / Nice North America LLC NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Nice North America LLC Address: 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Product Name: 4-BUTTON KEYFOB REMOTE FCC ID: EF400232 Model(s): 2GIG-KEY2-345 2.911(d)(5)(ii) Applicant filing We, [Nice North America LLC] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Your s sincerely, Name: Horsen Ma Date: 3/1/2023 Title and Company name: Sr.Manager, Hardware Engineering of CIC / Nice North America LLC NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist Ref erences; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to- the-communications-supply-chain-through-the

5919 Se a Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 03-06-2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID: EF400232 Nice North America LLC (“the applicant”) certifies that, as of the date of the filing of the application, Nice North America LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. Nice North America LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Nice North America LLC FRN: 0006674840 Address: 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Signature: Contact Person: Horsen Ma Tel: 86 755 2751 1888 Email:[email protected] Applicant Company Name: Nice North America LLC Address: 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Signature: Contact Person: Horsen Ma Tel: 86 755 2751 1888 Email: [email protected]

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Agent Authorization Company: Nice North America LLC Address: 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Product Name: 4-BUTTON KEYFOB REMOTE Model Number(s): 2GIG-KEY2-345 Product Description: 4-BUTTON KEYFOB REMOTE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 3/1/2023 Name: Horsen Ma Title: Sr. Manager, Hardware Engineering of CIC Company: Nice North America LLC

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 3/1/2023 Subject; Request for Confidentiality FCC ID: EF400232 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Horsen Ma Title: Sr.Manager, Hardware Engineering of CIC Email: [email protected]

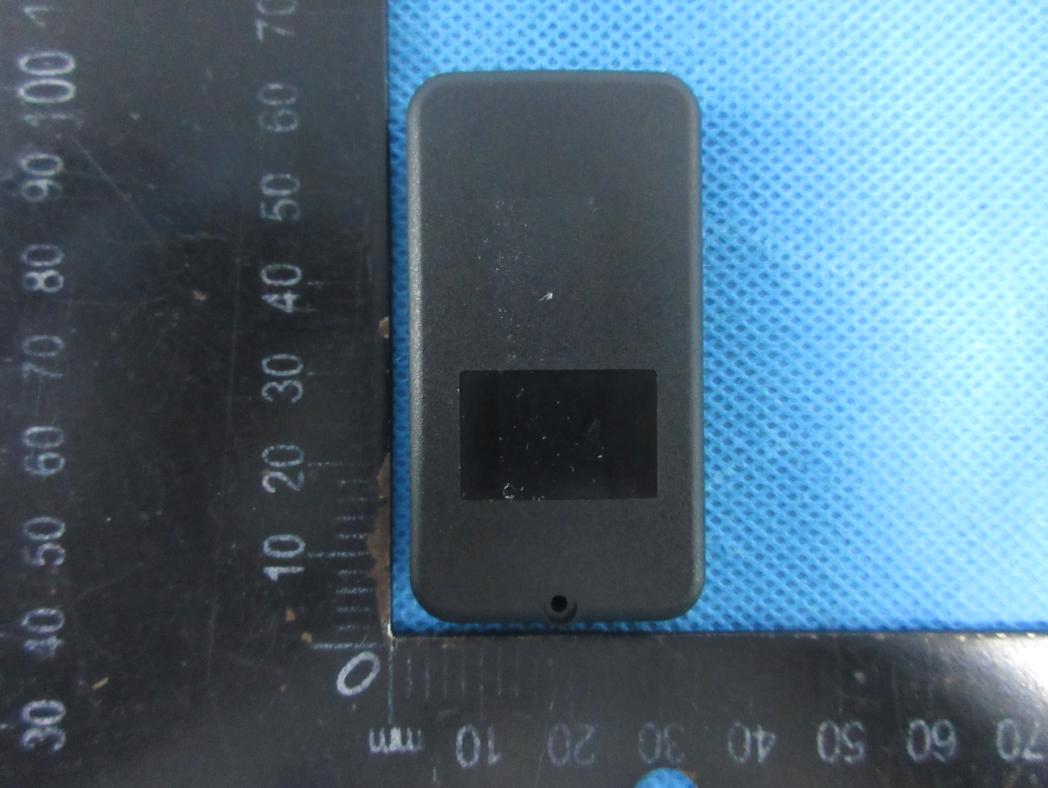

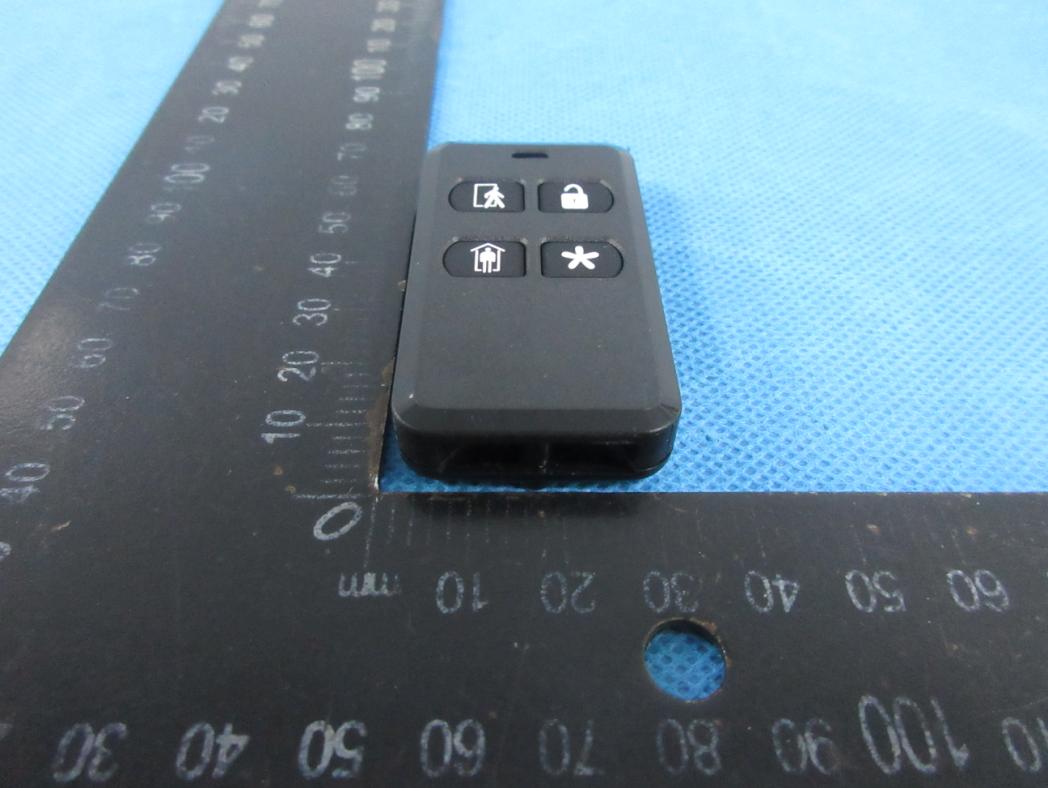

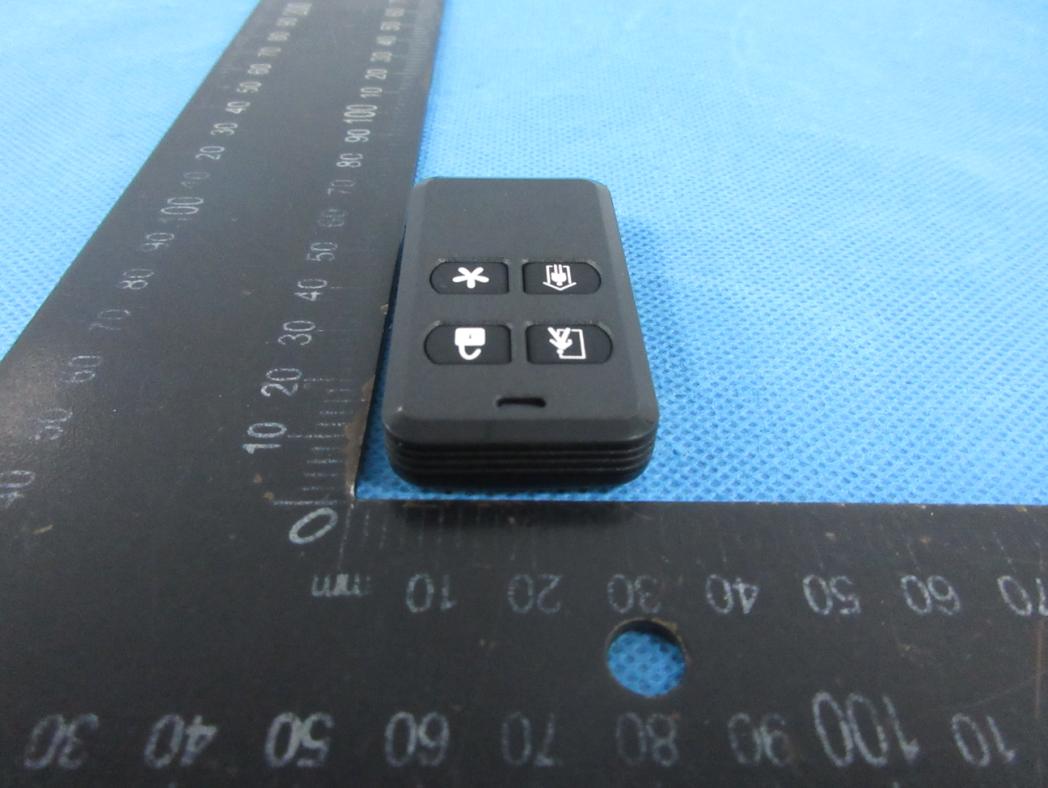

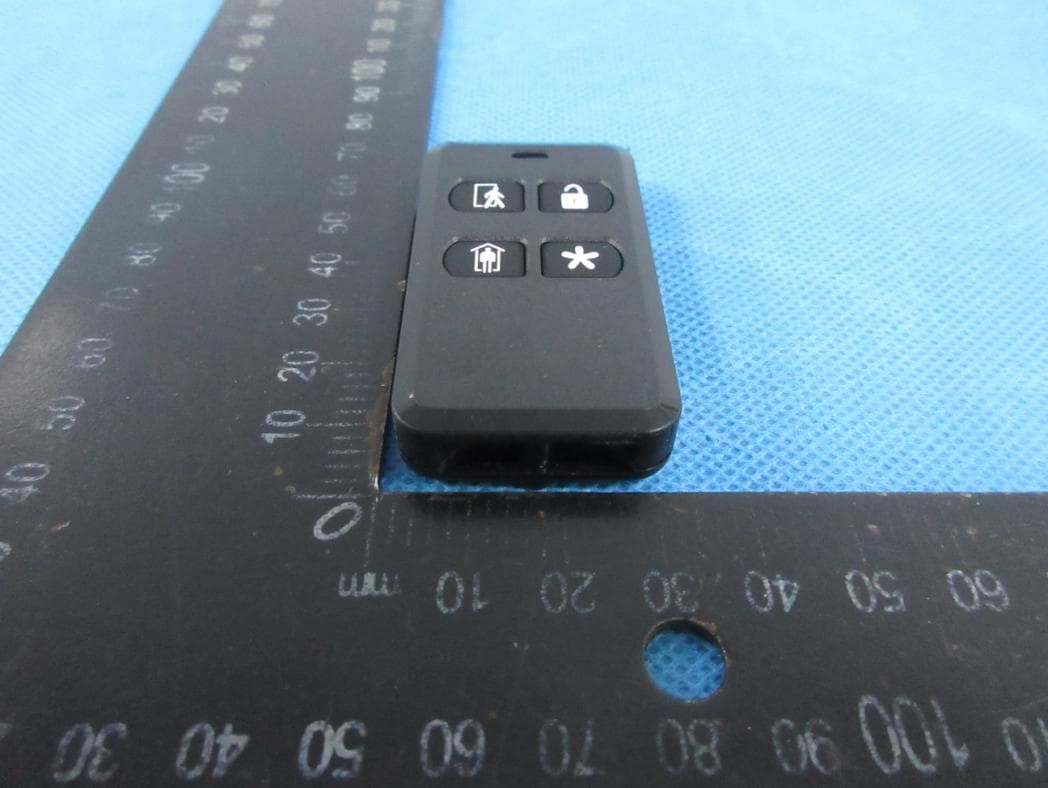

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

匡�.�,.,- label location

Photo 7 Photo 8 SRD ANT Photo 9 Photo 10

FCC ID:EF400232 Portable device According to §15.231 and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Antenna Type: PCB Antenna Antenna Gain:0 dBi Transmit power: Frequency (MHz) EIRP power (dBuV/m) EIRP power (dBm) EIRP power (mW) 345 93.3 -9.04 0.125 EIRP=E-104.8+20log(D) Maximum Permissible Exposure: Modulation Channel Freq. (GHz) Conducted power (dBm) Conducted power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n 1g SAR Exclusion threshold SAR test exclusion OOK345-9.040.125-9±1-8.00.158<50.5893.00YES Conclusion: For the max result : 0.589≤ 3.0 for 1-g SAR, No SAR is required. Signature: Date: 2023-03-10 NAME AND TITLE (Please print or type): Alex /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China

Nice North America Antenna Spec. 5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com 1. Antenna Name: 2GIG-KEY2-345/2GIG-KEY2E-345 antenna 2. Module Name: 2GIG-KEY2-345 and 2GIG-KEY2E-345 3. Antenna Photo: 4. Antenna Type: PCB Antenna 5. Technical specifications Main technical specifications Frequency Range (MHz) 345 Impedance(Ω) 50 Gain(dBi) 0 VSWR <2 Maximum power(mw) 50 Smith photo VSWR photo Nice North America Antenna Spec. 5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com 6. Manufacturer: Nice North America LLC

Report No.: S23010303002001 ` Page 1 of 27 RADIO TEST REPORT FCC ID:EF400232 Product: 4-BUTTON KEYFOB REMOTE Trade Mark: 2GIG Model No.: 2GIG-KEY2-345 Family Model: N/A Report No.: S23010303002001 Issue Date: 17 Jan. 2023 Prepared for Nice North America LLC 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23010303002001 ` Page 2 of 27 Table of Contents Page 1.TEST RESULT CERTIFICATION 3 2. SUMMARY OF TEST RESULTS 4 3.FACILITIES AND ACCREDITATIONS 5 3.1 FACILITIES 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS 5 3.3 MEASUREMENT UNCERTAINTY 5 4. GENERAL DESCRIPTION OF EUT 6 5. DESCRIPTION OF TEST MODES 8 6. SETUP OF EQUIPMENT UNDER TEST 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM 9 6.2 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 7. ANTENNA REQUIREMENT 12 7.1 STANDARD REQUIREMENT 12 7.2 EUT ANTENNA 12 8. CONDUCTED EMISSION MEASUREMENT 13 8.1 APPLICABLE STANDARD 13 8.2 CONFORMANCE LIMIT 13 8.3 MEASURING INSTRUMENTS 13 8.4 TEST CONFIGURATION 13 8.5 TEST PROCEDURE 13 8.6 TEST RESULTS 14 9. RADIATED EMISSION MEASUREMENT 15 9.1 APPLICABLE STANDARD 15 9.2 RADIATED EMISSION LIMITS 15 9.3 TEST PROCEDURE 17 9.4 TEST SETUP 19 9.5 TEST RESULTS 20 10. BANDWIDTH TEST 25 10.1 TEST PROCEDURE 25 10.2 DEVIATION FROM STANDARD 25 10.3 TEST SETUP 25 10.4 TEST RESULTS 26 11. TRANSMITTER TIMEOUT 27 11.1 REQUIREMENTS 27 Report No.: S23010303002001 ` Page 3 of 27 1.TEST RESULT CERTIFICATION Applicant’s name ......................... : Nice North America LLC Address ....................................... : 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Manufacturer's Name .................. : Nice North America LLC Address ....................................... : 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 USA Product description Product name .............................. : 4-BUTTON KEYFOB REMOTE Model and/or type reference ..... : 2GIG-KEY2-345 Family Model ............................... : N/A Sample number S230103030003 Measurement Procedure Used: APPLICABLE STANDARDS APPLICABLE STANDARD/ TEST PROCEDURE TEST RESULT FCC 47 CFR Part 15, Subpart C ANSI C63.10-2013 Complied This device described above has been tested by Shenzhen NTEK Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK Testing Technology Co., Ltd., this document may be altered or revised by Shenzhen NTEK Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. The test results of this report relate only to the tested sample identified in this report. Date of Test : 04 Jan. 2023 ~ 17 Jan. 2023 Testing Engineer : (Allen Liu) Authorized Signatory : (Alex Li) Report No.: S23010303002001 ` Page 4 of 27 2. SUMMARY OF TEST RESULTS FCC Part15 (15.231), Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231(b) 15.209 15.205 Radiated Spurious Emission Pass 15.231(c) Occupied Bandwidth Pass 15.231(a)(2) Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. (2) The EUT is using a new battery Report No.: S23010303002001 ` Page 5 of 27 3.FACILITIES AND ACCREDITATIONS 3.1 FACILITIES All measurement facilities used to collect the measurement data are located at 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.10 and CISPR Publication 22. 3.2 LABORATORY ACCREDITATIONS AND LISTINGS Site Description CNAS-Lab. : The Certificate Registration Number is L5516. IC-Registration The Certificate Registration Number is 9270A. CAB identifier:CN0074 FCC- Accredited Test Firm Registration Number: 463705. Designation Number: CN1184 A2LA-Lab. The Certificate Registration Number is 4298.01 This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2005 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated 8 January 2009). Name of Firm : Shenzhen NTEK Testing Technology Co., Ltd. Site Location : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. 3.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test ±2.80dB 2 RF power, conducted ±0.16dB 3 Spurious emissions, conducted ±0.21dB 4 All emissions, radiated(30MHz~1GHz) ±2.64dB 5 All emissions, radiated(1GHz~6GHz) ±2.40dB 6 All emissions, radiated(＞6GHz) ±2.52dB 7 Temperature ±0.5°C 8 Humidity ±2% Report No.: S23010303002001 ` Page 6 of 27 4. GENERAL DESCRIPTION OF EUT Equipment 4-BUTTON KEYFOB REMOTE Trade Name 2GIG Model Name 2GIG-KEY2-345 Family Model N/A Model Difference N/A Product Description The EUT is a 4-BUTTON KEYFOB REMOTE Operation Frequency: 345MHz Modulation Type: OOK Number Of Channel 1CH Antenna Designation: PCB Antenna Gain: 0dBi Field Strength: 86.22dBuV/m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT techni…

Text truncated - open the document above for the full version.

Radiated Measurement Photos END OF REPORT
