EF400234Residential Garage Door Operator

PRINTER’S INSTRUCTIONS: INSTR,HOMEOWNERS,LINEAR661 P/N: 10033066 Rev-X7; INK: BLACK; MATERIAL: 20 MEAD BOND WHT PAPER; SIZE: 8.5.000” x 11.000”; SCALE: 1-1; FOLD: SADDLE STITCH EN - User Guide Nice G.O. Smart Connected Smart Garage Door Operator 661 2 TABLE OF CONTENTS Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 For Residential Sectional Type Doors Only ..........................................................................3 Important Installation Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Using the Garage Door Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Opening the Door.............................................................................................4 Closing the Door .............................................................................................4 Stopping the Door Mid-travel....................................................................................4 Vacation Lock for Additional Security ..............................................................................5 Controlling the Light Panel......................................................................................5 Disconnecting the Door from the Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Adjusting the Open and Close Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Adjusting the Open Limit .......................................................................................6 Adjusting the Close Limit .......................................................................................6 Automatic Door Force Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Safety Reversal System Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Adjusting the Force Factor (Installation Option, Normally Not Used) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Changing the Force Factor Setting ................................................................................7 Remote Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 To Add or Remove a Remote Control ..............................................................................8 To Remove All Remote Control and Keypads.........................................................................8 Testing.....................................................................................................9 Replacing a Remote Control’s Batteries ............................................................................9 Programming Wireless Keypad Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 To Add or Remove a Wireless Keypad Code .........................................................................10 Replacing the Keypad’s Batteries.................................................................................10 Nice G .O . Homeowner Smartphone App Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Download, Register and Activate Application ........................................................................10 Connect your Opener to the Nice G.O. app ..........................................................................10 Test Wi-Fi Signal Strength with Your Smart Phone ....................................................................11 LEDs on the Wall Station .......................................................................................11 Garage Door Operator Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Aligning the Infrared Safety Beam ................................................................................12 Safety Beam ................................................................................................12 Checking for Reversal .........................................................................................13 Checking Forced Closure Feature.................................................................................13 After Servicing the Operator.....................................................................................13 Every 6 Months ..............................................................................................13 Chain Adjustment.............................................................................................14 Belt Adjustment ..............................................................................................14 Disconnect the Operator .......................................................................................14 Field Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Attestation Statement Letter II Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 3.28.2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC Application for FCC ID: EF400234 Nice North America LLC certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, ________________________ Josh Hansen Engineering Manager, Regulatory & Compliance

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Attestation Statement Letter II Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 3.28.2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC Application for FCC ID: EF400234 Nice North America LLC certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, ______________________ Josh Hansen Engineering Manager, Regulatory & Compliance

FCC Attestation Statement US Agent For Service Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: __________________ Ref: Attestation Statements Part 2.911(d)(7) Filing FCC Application for FCC ID: _______________________________ ________________________________ certifies that, as of the date of the filing of the application, ________________________________ is our designated U.S. agent for service of process for the above reference FCC ID: ___________________. ________________________________ agrees to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceedings involving the equipment. _______________________________ accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for above referenced FCC ID. Designated U.S. Agent Information: Name: Address: Contact Person: Telephone: Email: FRN : Sincerely, Applicant’s Signature: Agent’s Signature: Applicant’s Name: Agent’s Name:

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com FCC Agent Authorization Letter Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 3.28.2023 SUBJECT: FCC Application for FCC ID: EF400234 To Whom It May Concern: We, the undersigned, hereby authorize David Zhang of Vista Laboratories, Inc. located at 1261 Puerta Del Sol, San Clemente, CA 92673, to apply to the Federal Communications Commission for our equipment. Any and all acts carried out by David Zhang of Vista Laboratories, Inc on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ________________________________ Josh Hansen Engineering Manager, Regulatory & Compliance

5919 Sea Otter Place • Carlsbad, CA 92010 • 800.421.1587 • niceforyou.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EF400234 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type Short Term X Permanent Block Diagrams Short Term X Permanent Operation Description Short Term X Permanent Schematics The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________________ Josh Hansen Engineering Manager, Regulatory & Compliance

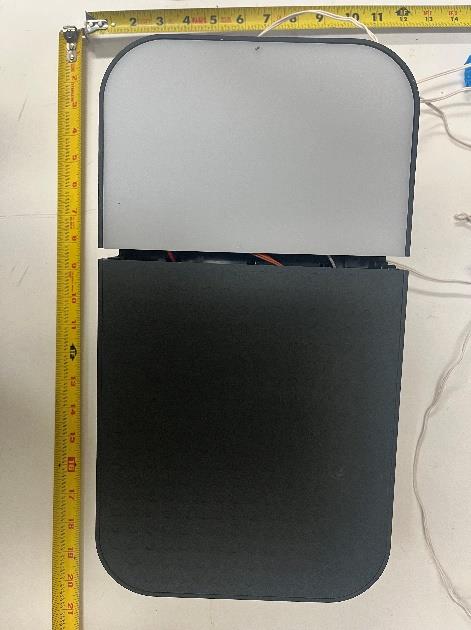

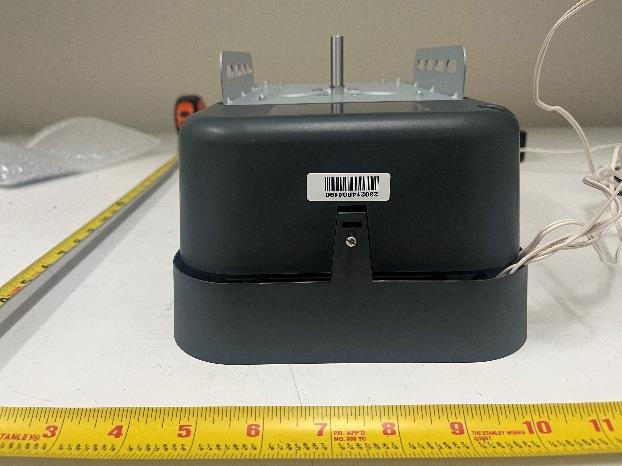

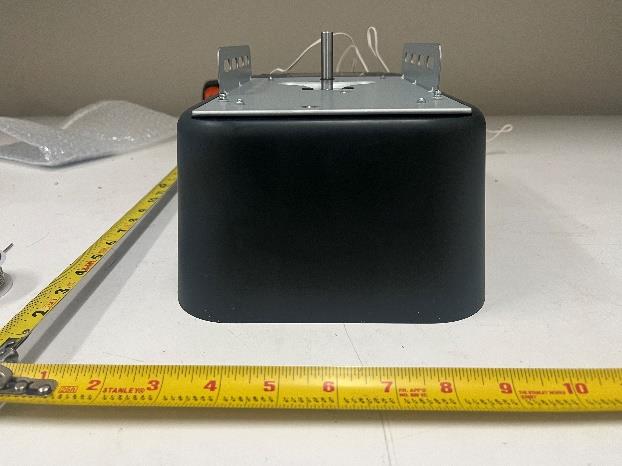

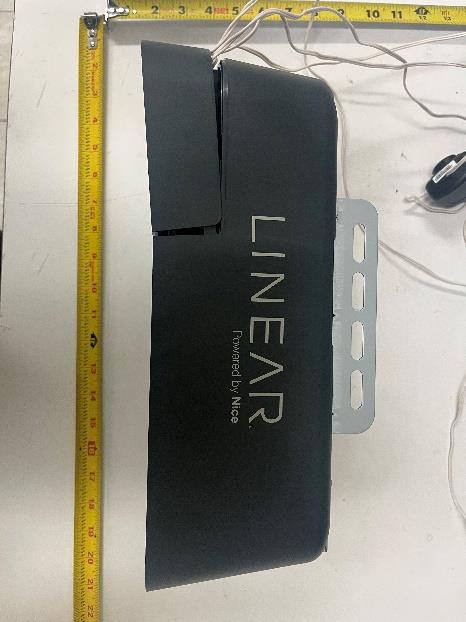

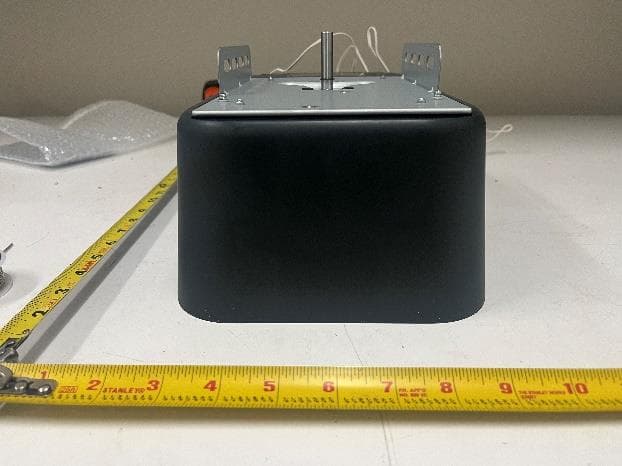

EUT Top View EUT Bottom View EUT Front View EUT Rear View EUT Left View EUT Right View

2.00 50.80 3.00 76.20 4X R.051.27 WARNING : RISK OF ENTRAPMENT. AFTER ADJUSTING EITHER THE FORCE OR LIMITS OF TRAVEL ADJUSTMENTS, CONFIRM THAT THE DOOR REVERSES ON A 38mm (1 1/2 inch) HIGH OBSTRUCTION (OR A 2 x 4 BOARD LAID FLAT) ON THE FLOOR. AVERTISSEMENT : RISQUE DE HAPPEMENT. APRÈS TOUT RÉGLAGE DE LA FORCE DE DÉCLENCHEMENT OU DES SEUILS DE FIN DE COURSE, S’ASSURER QUE LE SENS DE LA COURSE S’INVERSE LORSQUE LA PORTE ENTRE EN CONTACT AVEC UN OBJET DE 38 MM (1 1/2 PO) DE HAUTEUR (OU UN MADRIER DE 2 × 4 PO DE SECTION, À PLAT) POSÉ SUR LE SOL THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND INDUSTRY CANADA LICENSE EXEMPT STANDARD(s). OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE RECEIVED THAT MAY CAUSE UNDESIRED OPERATION. MADE IN MEXICO - P/N 10022076 REV X2 NICE NORTH AMERICA LLC RESIDENTIAL GARAGE DOOR OPENER MODEL: LINEAR600 INPUT RATING: 19VDC 2.0 A MAX .002 0.05 MATERIAL: WHITE MYLAR .002 0.05 WITH MYLAR LAMINATE, 1. ADHESIVE BACKED. INK: PERMANENT BLACK.2. ALL MATERIALS MUST BE UL GRADE AND PRINTER MUST BE UL3. RECOGNIZED. FCC ID: EF400234 IC: 1078A-00234 REVISIONS REV.DESCRIPTIONDATEAPPROVED X1INITIAL RELEASE1/10/2023 X2ADD FCC ID/IC4/3/2023 .XXX±.005 [.13] .XX±.01 [.3] DECIMALS ANGLES: ±0.5° TOLERANCES: DIMENSIONS ARE INCHES [MM]: UNLESS OTHERWISE NOTED ALL CONCENTRICITY:±.005 [.13] MATERIAL: A 8 B 765 FINISH: (UNLESS OTHERWISE SPECIFIED) C 8 D NOTES: 765 DO NOT SCALE DRAWING 4 APPROVED: APPROVED: CHECKED: CAD OPERATOR: SCALE: 3 DATE DATE B SIZE: DATE DATE TITLE: 2 PROJECT: A SHEET: DRAWING NO.: REV.: 1 B 423 C D 1 1 OF 1 ROUNDNESS:±.005 [.13] FLATNESS: ±.005 [.13] LABEL,RATING,UL/FCC,LINEAR600 10033076 X2 M.LAWRENCE 1/10/2023 SEE NOTES N/A THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF Nice. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION OF Nice IS PROHIBITED. © 2022 Nice. TORQUE REQUIREMENTS FOR SCREWS:1 A) 6 IN-LBS [6.91 KGF-CM] 20% B) 12 IN-LBS [13.825 KGF-CM] 10% C) 15 IN-LBS [17.282 KGF-CM] 10% PLACE LABELS AS SHOWN. ENSURE TEXT IS READABLE.2 FLAT OF SPROCKET SHAFT (PART OF ITEM 2) TO BE ORIENTATED TOWARDS BATTERY 3 (ITEM 11). ROUTE MOTOR ENCODER HARNESS (PART OF ITEM 2) THROUGH GAP OF PCBA 4 HOLDER (PART OF ITEM 6) AND ATTACH ON HOOK OF PCBA HOLDER(PART OF ITEM 6) AS SHOWN. ROUTE MOTOR POWER HARNESS (PART OF ITEM 2) AROUND PCBA HOLDER (ITEM 6) 5 AND ATTACH ON HOOK OF PCBA HOLDER (PART OF ITEM 6) AS SHOWN. ROUTE BATTERY HARNESS (ITEM 12) THROUGH GAP OF PCBA HOLDER (PART OF 6 ITEM 6) AND ATTACH ON HOOK OF PCBA HOLDER (PART OF ITEM 6) AS SHOWN. REMOVE ADHESIVE PROTECTION AND ADHERE FOAM PAD (ITEM 10) ON HOUSING 7 (ITEM 3). ENSURE FOAM (ITEM 10) IS CENTERED ON FLAT SURFACE OF HOUSING (ITEM 3). INSTALL HINGES OF ACCESS COVER(ITEM 5) ON PINS OF HOUSING (ITEM 3). 8 CONNECT OPEN WIRE HARNESSES (PART OF ITEM 2 AND ITEM 12) TO PCBA (ITEM 1) 9 AS SEEN IN INTERCONNECT DIAGRAM. INSTALL PCBA (ITEM 1) UNDER SNAP HOOKS OF PCBA HOLDER (ITEM 6). 10 INSTALL SCREW (ITEM 15) IN THREADED INSERT OF PCBA HOLDER (PART OF ITEM 6) 11 THROUGH HOLD OF ACCESS COVER (ITEM 5). ROUTE ANTENNA (PART OF ITEM 1) THROUGH HOLE OF PCBA (ITEM 1) AND HOLE OF 12 PCBA HOLDER (ITEM 6), SECURE AT BOTTOM OF MAIN HOUSING (ITEM 3) WITH TAPE (ITEM 21). REVISIONS REVDESCRIPTIONDATEAPPROVED X1INITIAL RELEASE3/9/2022 X2INC ECO-029154 - CB4/8/2022 X3INC ECO-09273 - LL7/15/2022 TOLERANCES: UNLESS OTHERWISE NOTED ALL DIMENSIONS ARE INCHES [MM]: DECIMALS ANGLES: ± 0.5° CONCENTRICITY:±.005 [.13] A 8 B 765 C 8 (UNLESS OTHERWISE SPECIFIED) D NOTES: 765 D DO NOT SCALE DRAWING FINISH: MATERIAL: 4 APPROVED: APPROVED: APPROVED: APPROVED: CAD OPERATOR: PROJECT: CHECKED: 3 DATE 2 DATE DATE DATE DATE DATE A SCALE: SIZE:DRAWING NO.: TITLE: SHEET: 1 REV.: B 43 2 C D 1 1 OF 3 FLATNESS: ±.005 [.13] ROUNDNESS:±.005 [.13] .XXX±.005 [.13] .XX±.01 [.3] 5 : 8 ASSY, MECH, GDO, LDCO600 10032972 X3 C. BENNETT 3/9/2022 SEE SEPARATE PARTS LIST TOLERANCES: UNLESS OTHERWISE NOTED ALL DIMENSIONS ARE INCHES [MM]: DECIMALS ANGLES: ± 0.5° CONCENTRICITY:±.005 [.13] A 8 B 765 C 8 (UNLESS OTHERWISE SPECIFIED) D NOTES: 765 D DO NOT SCALE DRAWING FINISH: MATERIAL: 4 APPROVED: APPROVED: APPROVED: APPROVED: CAD OPERATOR: PROJECT: CHECKED: 3 DATE 2 DATE DATE DATE DATE DATE A SCALE: SIZE:DRAWING NO.: TITLE: SHEET: 1 REV.: B 43 2 C D 1 1 OF 3 FLATNESS: ±.005 [.13] ROUNDNESS:±.005 [.13] .XXX±.005 [.13] .XX±.01 [.3] 5 : 8 ASSY, MECH, GDO, LDCO600 10032972 C. BENNETT 3/9/2022 SEE SEPARATE PARTS LIST THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF NORTEK SECURITY & CONTROL. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION OF NORTEK SECURITY & CONTROL IS PROHIBITED. © 2020 Nortek Security & Control LLC. NICE North America LLC

EUT cover view -1 EUT cover view -2 EUT Main PCBA Top View EUT Main PCBA Bottom View

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] MPE Report Test Report Number NSC-22100853-L-FCC-IC-MPE FCC ID 2A8IP-efuseA9X Applicant Nice North America LLC Applicant Address 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 Product Name Residential Garage Door Opener Model (s) LINEAR600 Date of Receipt 03/16/2023 Date of Test 03/16/2023 – 03/24/2023 Report Issue Date 07/20/2022 Test Standards 47 CFR §1.1307(b), 47 CFR §1.1310 RSS-102 Issue 5 Amendment 1 (February 2, 2021) Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Zach Peng (Test Technician) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# NSC-22100853-L-FCC-IC-MPE Page 2 of 8 REVISION HISTORY Report Number Version Description Issued Date NSC-22100853-L-FCC-IC-MPE 01 Initial report 03/24/2023 Report# NSC-22100853-L-FCC-IC-MPE Page 3 of 8 TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................................... 4 1.1 Applicant .......................................................................................................................................................... 4 1.2 Product information ...................................................................................................................................... 4 1.3 Test standard and method .......................................................................................................................... 4 2 TEST SITE INFORMATION ..................................................................................................................................... 5 3 RF EXPOSURE .......................................................................................................................................................... 6 3.1 Limits for Maximum Permissible Exposure (MPE) .................................................................................. 6 3.2 MPE Calculation Formula ............................................................................................................................. 6 3.3 Classification ................................................................................................................................................... 6 3.4 Antenna Gain .................................................................................................................................................. 6 4 TEST RESULTS .......................................................................................................................................................... 6 Report# NSC-22100853-L-FCC-IC-MPE Page 4 of 8 1 General Information 1.1 Applicant Applicant Nice North America LLC Applicant Address 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 Manufacturer Nice North America LLC Manufacturer Address 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 1.2 Product information Product Name Residential Garage Door Opener Model Number LINEAR600 Family Model Number N/A Serial Number 230214B04190 Operational Frequency 2402-2480MHz (BLE), 318 MHz (Receiver) Type of Modulation GFSK (BLE) Equipment Class Emission Class B Antenna Information Internal PCB trace antenna, 0.95 dBi peak gain Clock Frequencies N/A Port/Connectors N/A Input Power 19V DC Power Adapter Manu/Model Model: MKS-1902000H Power Adapter SN N/A Hardware version N/A Software version N/A Simultaneous Transmission N/A Additional Info N/A 1.3 Test standard and method Test standard 47 CFR §1.1307(b), 47 CFR §1.1310 47 CFR §2.1093 Test method 47 CFR §1.1307(b), 47 CFR §1.1310 47 CFR §2.1093 Report# NSC-22100853-L-FCC-IC-MPE Page 5 of 8 2 Test Site Information Lab performing tests Vista Laboratories, Inc. Lab Address 1261 Puerta Del Sol, San Clemente, CA 92673 USA Phone Number +1 (949) 393-1123 Website www.vista-compliance.com Test Condition Temperature Humidity Atmospheric Pressure RF Testing 23.2°C 57.5% 996 mbar Radiated Emission Testing 23.2°C 57.5% 996 mbar Report# NSC-22100853-L-FCC-IC-MPE Page 6 of 8 3 FCC RF Exposure 3.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time…

Text truncated - open the document above for the full version.

Phone: +1 (949) 393-1123 Web: www.vista-compliance.com Email: [email protected] FCC ISED RF Test Report Test Report Number NSC-22100853-L-FCC-IC-RF Applicant Nice North America LLC Applicant Address 5919 Sea Otter Place, Suite 100, Carlsbad, CA 92010 Product Name Residential Garage Door Opener Model (s) LINEAR600 Date of Receipt 03/16/2023 Date of Test 03/16/2023 – 03/24/2023 Report Issue Date 03/24/2023 Test Standards 47 CFR Part 15.247 RSS 247 Issue2, February 2017 Test Result PASS Issued by: Vista Compliance Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Zach Peng (Test Technician) David Zhang (Technical Manager) This report is for the exclusive use of the applicant. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Note that the results contained in this report pertain only to the test samples identified herein, and the results relate only to the items tested and the results that were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested and the results thereof based upon the information provided to us. The applicant has 60 days from date of issuance of this report to notify us of any material error or omission. Failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Report# NSC-22100853-L-FCC-IC-RF Page 2 of 37 REVISION HISTORY Report Number Version Description Issued Date NSC-22100853-L-FCC-IC-RF 01 Initial report 03/24/2023 Report# NSC-22100853-L-FCC-IC-RF Page 3 of 37 TABLE OF CONTENTS 1 TEST SUMMARY ...................................................................................................................................................... 4 2 GENERAL INFORMATION ..................................................................................................................................... 5 2.1 Applicant .......................................................................................................................................................... 5 2.2 Product information ...................................................................................................................................... 5 2.3 Test standard and method .......................................................................................................................... 5 3 TEST SITE INFORMATION ..................................................................................................................................... 6 4 MODIFICATION OF EUT / DEVIATIONS FROM STANDARDS ....................................................................... 6 5 TEST CONFIGURATION AND OPERATION ....................................................................................................... 6 5.1 EUT Test Configuration ................................................................................................................................. 6 5.2 Supporting Equipment ................................................................................................................................. 7 6 UNCERTAINTY OF MEASUREMENT ................................................................................................................... 7 7 TEST RESULTS .......................................................................................................................................................... 8 7.1 Antenna Requirement .................................................................................................................................. 8 7.2 DTS (6 dB) Bandwidth ................................................................................................................................... 9 7.3 Occupied Bandwidth (99%) ........................................................................................................................ 12 7.4 Maximum Output Power............................................................................................................................ 15 7.5 Power Spectral Density ............................................................................................................................... 18 7.6 Conducted Band-Edge & Unwanted Emissions ....................................................................................... 21 7.7 Radiated Band-Edge & Spurious Emissions into Restricted Frequency Bands .............................. 23 7.8 Conducted Emissions .................................................................................................................................. 32 8 EUT AND TEST SETUP PHOTOS ......................................................................................................................... 36 9 TEST INSTRUMENT LIST ..................................................................................................................................... 37 Report# NSC-22100853-L-FCC-IC-RF Page 4 of 37 1 Test Summa…

Text truncated - open the document above for the full version.

Antenna Information Manufacturer Nice North America LLC Manufacturer address 5919 Sea Otter Place, STE 100, Carlsbad, CA 92010 Antenna Type Internal PCB trace antenna Antenna Model LINEAR600 antenna Antenna Part Number N/A Antenna Frequency Range 2402-2480MHz Antenna Input Power Limitation <1W Antenna Peak Gain 0.95 dBi Antenna Dimension (LxHxW) 19 mm (L) x 10 mm (H) Antenna Photo Antenna Top View [With Ruler] Antenna Gain Result Frequency (MHz) Max RF Conducted power (dBm) Orientation Max Field Strength (dBuV/m @ 3m) Converted EIRP (dBm) Calculated peak antenna gain (dBi) 2402-2480 7.62 Horizontal 98.37 3.07 -4.55 2402-2480 7.62 Vertical 103.87 8.57 0.95 Test Setup Radiated Emission-Above 1GHz-Front Radiated Emission-Above 1GHz-Back Test Method ANSI C63.10 – 2013 - Conducted power and EIRP measurement Test Instrument List Equipment Manufacturer Model Instrument Number Cal. Date Cal. Due Semi-Anechoic Chamber ETS-Lindgren 10M VL001 10/18/2022 10/18/2023 Spectrum Analyzer Keysight N9020A MY50110074 06/17/2022 06/17/2023 Bi-Log Antenna ETS-Lindgren 3142E 217921 11/15/2022 11/15/2023 Horn Antenna (1-18GHz) Electro-Metrics EM-6961 6292 05/14/2022 05/14/2023 Preamplifier RF Bay, Inc. LPA-10-20 11180621 07/16/2022 07/16/2023 Temp / Humidity / Pressure Meter PCE Instruments PCE-THB 40 R062028 05/15/2022 05/15/2023 RF Attenuator Pasternack PE7005-3 VL061 07/16/2022 07/16/2023 EM Center Control ETS-Lindgren 7006-001 160136 N/A N/A Turn Table ETS-Lindgren 2181-3.03 VL002 N/A N/A Boresight Antenna Tower ETS-Lindgren 2171B VL003 N/A N/A

Radiated Emission-Below 1GHz-Front Radiated Emission-Below 1GHz-Back Radiated Emission-Above 1GHz-Front Radiated Emission-Above 1GHz-Back Conducted Emission-Front Conducted Emission-Side
