LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 13 December 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID: EF4CRX Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 2210 Faraday Ave, STE 150, Carlsbad, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Linear L:LC, 1950 Camino Vida Roble, Suite 150, Carlsbad, CA. 92008-6517, USA. This appointment is in effect until December 31, 2014. Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer
LINEAR LLC 1950 CAMINO VIDA ROBLE, SUITE 150, CARLSBAD, CA 92008-6517 PHONE (760) 438-7000 ● (800) 421-1587 ● ENG. FAX (760) 438-7043 MAIL: P.O. BOX 9003 ● CARLSBAD, CA 92018-9003 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Re: Request of Confidentiality for FCC ID: EF4CRX Pursuant to Sections 0.457(d)(I)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: NONE OF THE DOCUMENTS NEED TO BE CONSIDERED CONFIDENTIAL. The Applicant understands that pursuant to Rule 0.457(d)(I)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Dated this 13th Day of December 2013 Sincerely, John W. Kuivinen, P.E. Regulatory Compliance Engineer, Linear LLC
CK REV. DESCRIPTION DATE APPROVED X3 Initial Production CARLSBAD, CA TITLE SPECIFICATIONS, CX-LRC, CX-65 DRAWN D. Sanderson DATE 06/28/2013 NEXT ASSY USED ON ENGINEER D. Sanderson 06/28/2013 SCALE NONE SIZE A DRAWING NO. 234998 REV. X3 APPLICATION CHECKED FILE NAME SHEET 1 OF 4 SPECIFICATIONS, CX-LRC 234998 REV X3 SHEET 2 OF 4 1.0 DESCRIPTION The CX-LRC and CX-65 are low power emergency alarm transmitters operating at a frequency of 433.92 MHZ. They are designed as compatible transmitter replacements for Climax Signaling Protocol V2 transmitters for an Alert One Emergency response system. The RF signal is a binary coded, pulse-width type A1 modulated transmission which has an information rate of approximately 540 bits per second (bps). The CX- LRC is tested for water-resistance at the factory. The CX-65 is designed to be wall mounted in a single location and as such is not tested for water resistance. The CX-LRC model is designed to be worn on the wrist when fitted with the wrist strap or around the neck with the nylon cord provided. The CX-LRC transmitter is designed to work with Climax Protocol V2 code compatible receivers, primarily the Alert One console. The CX-65 is the wall-mounted version of the CX-LRC. Aside from a different housing for wall-mounted operation and no water-resistant properties, the overall functionality of the CX-65 is exactly the same as the CX-LRC. 2.0 OPERATION The transmitter is activated by depressing switch S1. Light emitting diode (LED), DS1, is illuminated during transmission. The LED illumination stops when the switch is released. The complete transmission length is 1.65 seconds consisting of 9 messages which are composed of 6 data packets each. A green LED indicates a good battery, a red LED indicates the battery is low and the transmitter needs to be replaced. When the battery voltage goes below 2.5 volts under load at the start of a transmission, the LED color will be red. The microprocessor wakes up and tests the battery every two hours. Transmissions will be sent if the button is manually pressed or if the battery shows a low battery during one of the automatic (every 2 hour) tests. When the battery is close to its end of life, the LED can be Green when the button is pressed indicating the battery passed the test at the start of the transmission, if the voltage falls below 2.5V by the end of the transmission, the LED will flash Red 3 times after the button is released to indicate the battery is close to a low battery condition. No low battery transmission signal is sent until the battery is low on the first test and the LED is Red for the whole time the button is pressed. SPECIFICATIONS, CX-LRC 234998 REV X3 SHEET 3 OF 4 BT1 - 3.0V Lithium Battery is always connected to the circuit to enable timer operations. Expected life is over 3 years under normal use before the Low Battery signal is sent and the transmitter should be replaced. S1 - Allows manual activation of the transmitter for up to 30 seconds per press. U1 - Microprocessor controls the data output, timer operations, LED, etc. An internal, factory calibrated clock provides timing reference for the microprocessor and RF data stream. Internal non-volatile memory is programmed with a unique ID for each transmitter. A Watch Dog timer is always enabled internally. Power brown-out detect (BOD) is enabled only when the microprocessor is awake and active. BOD is disabled during sleep mode to conserve battery life. U2 - Low voltage detector controlled by U1 measures the battery voltage under the maximum transmitter current draw. Less than 2.5V under test load conditions will report a low battery. DS1 - Green / Red Dual LED indicates transmitter operation and battery status during user initiated transmissions (button presses). Y1 - Crystal provides a PLL frequency reference to U3 for the RF center frequency of 433.92 MHZ. The Y1 crystal frequency RF/32 =13.560 MHZ. U3 - RF transmitter IC Generates the RF output signal which is pulse coded by the data from the microprocessor U1. C12 - adjustable capacitor tunes the antenna for maximum RF output. Once the microprocessor is awake for a status transmission or a manually activated transmission. The Low Battery Test is performed first by turning the transmitter output on and transmitting a 5mS RF pulse to bleed off any surface charge and put the battery under the highest load that will be applied during normal operation. The LED is disabled during the actual data pulse to minimize the peak load on the battery. This test is done 2mS before the first data word is sent to avoid conflicting with the data pulse timing. Once the battery status is determined all data words and the LED color are set the same for as long as the transmitter button is pressed (or status messages are sent). Battery Life: The battery life is calculated from the production date to the low battery indication. The battery shall have a three year battery life with low battery test, reporting every 2 hours and with a 2 second button press once per week. The transmitter should be replaced once the battery reports a low battery. Based on current measurements and a de-rated battery capacity of 120mAHr (vs. the 190mAHr listed capacity) due to high peak currents, and accelerated life testing, we expect a typical transmitter to last 4.7 years before a low battery message is sent. SPECIFICATIONS, CX-LRC 234998 REV X3 SHEET 4 OF 4 3.0 SPECIFICATIONS Model Names: CX-LRC, CX-65 Function Emergency transmitter, Climax Version 2 Signaling Code Compatible Protocol Encoding Technique: RTZ Pulse-Width Modulation @ 540 bits/sec Number of Codes: 16,777,200 RF Carrier Frequency: 433.92 MHz +/- 50 ppm (+/- 22KHz) Data Timing: Internal uP clock, 1 MHz +/- 2% over temp Power Requirements: 3.0 VDC battery (Lithium Type 2032 with leads) DC Current loads: 3uA sleep / standby, 10 mA typical, average while transmitting, (12mA maximum, average, while transmitting) 28mA peak during RF data pulses Low Battery Test Threshol…
Text truncated - open the document above for the full version.

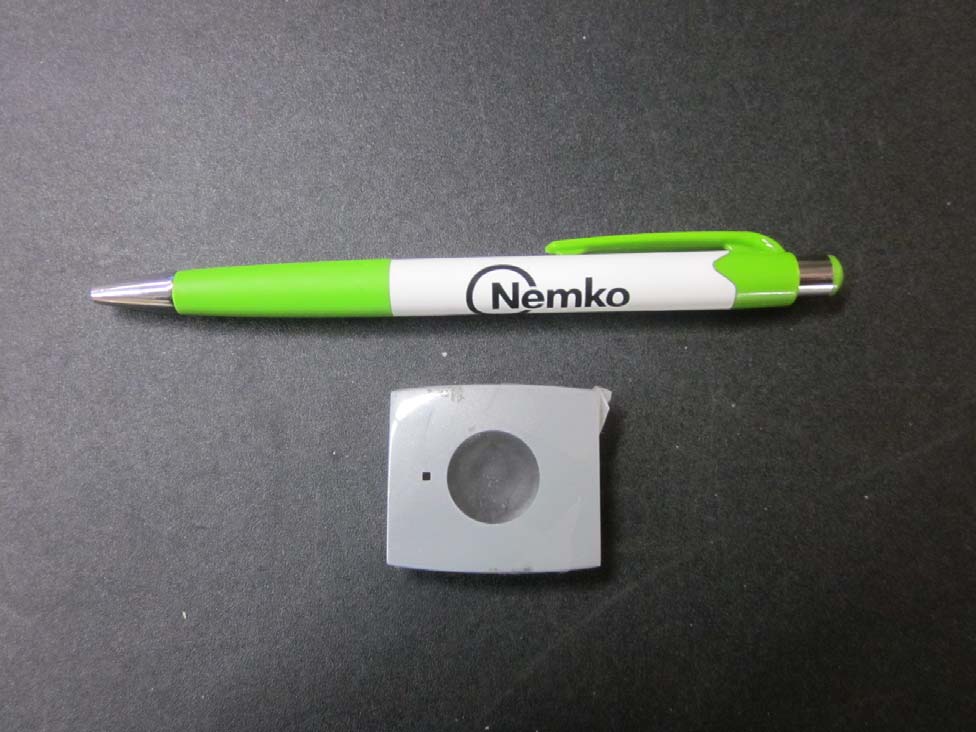

Nemko USA, Inc. 2210 Faraday Ave, Suite 150 Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 Certification Test Report: 2013 11245966 FCC Applicant: Linear LLC 1950 Camino Vida Roble Carlsbad, CA 92008 USA Equipment Under Test: Body Worn Emergency Alarm Transmitter (E.U.T.) Model: CX-LRC FCC ID: EF4CRX IC: 1078A-CRX In Accordance With: FCC Part 15, Subpart C 15.247 and Industry Canada RSS-210 Issue 8 For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz and Above 70 MHz Tested By: Nemko USA, Inc. 2210 Faraday Ave. Suite 150 Carlsbad, CA 92008 TESTED BY: DATE: 19 November 2013 David Light, Wireless Engineer APPROVED BY: DATE: 21 November 2013 Senior RF/EMC Engineer Total Number of Pages: 19 Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: EF4CRX IC: 1078A-CRX FCC Part 15, Subpart C Industry Canada RSS-210 Issue 8 REPORT NO.:2013 11245966 FCC Page 2 of 19 Applicant Affirmation John Kuivinen representing Linear Corporation hereby affirms: a) That he/she has reviewed and concurs that the test shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That all changes (in hardware and software/firmware) to the subject device will be reviewed. d) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving (certifying) the subject equipment. John Kuivinen Printed name of official Signature of official 1950 Camino Vida Roble March 8, 2013 Address Date 760-438-7138 [email protected] Telephone number Email address of official NOTE—This affirmation must be signed by the responsible party before it is submitted to a regulatory body for approval. Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: EF4CRX IC: 1078A-CRX FCC Part 15, Subpart C Industry Canada RSS-210 Issue 8 REPORT NO.:2013 11245966 FCC Page 3 of 19 TABLE OF CONTENTS APPLICANT AFFIRMATION 2 SECTION 1. SUMMARY OF TEST RESULTS 4 SECTION 2. EQUIPMENT UNDER TEST (E.U.T.) 6 SECTION 3. TRANSMISSION REQUIREMENTS 7 SECTION 4. RADIATED EMISSIONS 9 SECTION 5. OCCUPIED BANDWIDTH 14 SECTION 6. EQUIPMENT LIST 16 SECTION 7. BLOCK DIAGRAMS 17 ANNEX A - RESTRICTED BANDS 19 Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: EF4CRX IC: 1078A-CRX FCC Part 15, Subpart C Industry Canada RSS-210 Issue 8 REPORT NO.:2013 11245966 FCC Page 4 of 19 Section 1. Summary of Test Results Manufacturer: Linear Corporation Model No.: CX-LRC General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231 and Industry Canada RSS-210 Issue 8. All tests were conducted using measurement procedure ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Organization Registration and Recognition numbers Federal Communications Commission 0013750831 / US5058 Industry Canada 2040B-3 Nemko USA Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: EF4CRX IC: 1078A-CRX FCC Part 15, Subpart C Industry Canada RSS-210 Issue 8 REPORT NO.:2013 11245966 FCC Page 5 of 19 Summary Of Test Data Name of Test Paragraph No. Results Transmission Requirements 15.231(a) / A1.1.1 Complies Radiated Emissions 15.231(b) / A1.1 Complies Occupied Bandwidth 15.231(c) / A1.1.3 Complies Frequency Tolerance 15.231(d) / A1.1.4 NA Alternate Field Strength Requirements 15.231(e) / A1.1.5 NA Powerline Conducted Emissions 15.207 / RSS-Gen 7.2.4 NA Receiver Conducted Emissions 15.107 (a) / RSS-Gen 7.2.4 NA Receiver Radiated Emissions 15.109 (a) / RSS-Gen 6.1 NA Footnotes: 1) The device does not operate between 40.66 to 40.70 MHz 2) The device is battery powered. 3) The device does not receive. Observations No modifications were performed during assessment. No technical judgements were made during the assessment. The user of the apparatus could not alter parameters that would affect compliance. No Tests were deleted from this assessment. There were no additional observations made during this assessment. No deviations from Laboratory Test Procedures Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 FCC ID: EF4CRX IC: 1078A-CRX FCC Part 15, Subpart C Industry Canada RSS-210 Issue 8 REPORT NO.:2013 11245966 FCC Page 6 of 19 Section 2. Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 433.92 MHz Operating Frequency(ies) of Sample: 433.92 MHz Type of Emission: OOK Supply Power Requirement: 3.0 Vdc batteries (Lithium ion) Emissions Designator: 45KA1D Antenna Data: integral circuit board t…
