EF4LRPEmergency Signaling Pendant / Wrist Transmitter

DXS-LRP TRANSMITTER FCC ID:EF4LRP

LINEAR LLC FCC ID:EF4LRP

STATEMENT OF ATTESTATION DXS-LRP - Remote Control Transmitter FCCID:EF4LRP The equipment under test is a low powered portable transmitter that is typically used as an emergency signaling transmitter for security systems. Optional supervisory signals may be provided by this transmitter. This equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission's regulations, will conform to the sample(s) tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by Linear LLC, 1950 Camino Vida Roble, Suite 150, Carlsbad, California. 92008. Certified by: __________________________ _ August 12, 2010 _ John W. Kuivinen, P.E. Date Regulatory Compliance Engineer FCC IDENTIFICATION LABEL LABEL FACSIMILE FCC IDENTIFICATION LABEL FCC ID:EF4LRP IC:1078A-LRP Linear LLC requests authority to use the label as depicted, in accord with Section 2.925(e) of the Commission's Rules, follows herein. Request for Authorization of Section 2.925(e) The device for which Linear seeks authority is small in size and does not lend itself to the placement of a label, with associated warnings and instructions, in accord with the FCC labeling requirements. For Linear to produce such a label, the type size would be too small as to be useful to purchasers of the device. Accordingly, Linear LLC requests authority to place upon the device an identification label such as the one depicted herein identified as LABEL FACSIMILE. The additional information which is normally required to be included with the FCC Identification Number in accord with Part 15 of the Commission's Rules shall be located herein as portion of the draft manual attached hereto. Accordingly, in accord with Section 2.925(e) of the Commission's Rules and past Commission decisions, Linear hereby requests authority to label its devices in the manner described herein. The user instruction manual will have the full text of the FCC disclaimer printed in a prominent location at the end of the instruction sheet. This device complies with FCC Part 15 and Industry Canada Rules and Regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including interference that may cause undesired operation. LINEAR LLC Summary of Test Results in accord with FCC Rules Part 15 and C63.4-2003 Equipment Model: SST00122 Transmitter Tested to C63.4-2003 Section: FCC Rules 15.231 Field Strength at a distance of 3 meters: 3320 uV/Mtr (- 5.2 dB below limit) @ 315 MHz Peak to Average Ratio: 20 dB - Fixed Duty Cycle Test Conditions: Radiated (Sections 11 & 13) Transmitter: Transmitter Frequency: 315.0 MHz Nominal (Factory Tuned Only) Bandwidth (20 dB down) < 0.020% of Center Freq. Frequency Tolerance: N/A (Nominal +/- 0.02 MHz) Frequency Stability: N/A (Nominal +/- 0.02 MHz) Transmitter Spurious at 3 meters: 130 uV/Mtr (- 13.5 dB below limit) (Worst Harmonic) Frequency: 2835 MHz Momentary Operation (Yes/No) Yes Holdover time after manual release: 0.8 seconds (maximum), 8 data words on any short (>120 mSec. activation) Duration of transmission after activation: 30 seconds (maximum) on any single manual activation Attestation: The radio apparatus identified in the application has been subject to all the applicable test conditions specified in FCC Rules Part 15 and all of the requirements of the Standard have been met. Regulatory Compliance Engineer John W. Kuivinen, P.E. ___________________________ Date: August 12, 2010 Radio Standard Specification Low Power Communication Devices C63.4-2003 and FCC Rules Part 15 1.0 General: 1.2, Exclusions to TV Broadcast Freq. Complies 2.0 Related Documents: Reference Documents for Application: CFR 47, FCC Rules Part 15 3.0 Test Equipment: Supply Voltage: One 2032 - 3 volt lithium battery Test Equipment List See Test Equipment Signal Detector: Peak with 20 dB peak to average conversion. 4.0 Certification and Test Results: Summary of Results per FCC and Industry Canada Rules and Regulations 5.0 General Technical Requirements: 5.1 Testing Methods: Peak Signal pulse position modulated A1D signal. 5.1 Reference Standard: C63.4-2003 (FCC Procedure) 5.2 Modulation: Pulse Position 10K0 A1D, AM Modulation 5.3 Type of Antenna: Integral to Transmitter Case - Tuned Loop 5.4 External Controls: One Push Button No user serviceable parts. 5.5 Accessories: NONE 5.6 TX Bandwidth: <0.020 %, See Test Measurements 5.7 Equipment Labels: See Label Faxsimilie 5.8 Manual Disclaimer: Provided in attached draft copy of manual 5.9 Usage Restrictions: Digital Pulse Code Only 6.0 Transmitter Characteristics and Tests: 6.1 Momentary Operated Devices: Complies 6.1(a) Types of Signals: Manual Push to Transmit 6.1(a) Automatic Activation: Optional 6.1(a) Five Second Max. upon release: Complies 6.1(b) Field Strengths: Per 15.231, 315 MHz = 6042 uV/Mtr maximum at 3 meters. 6.1(c) Bandwidth (20 dB down) <0.020 % Complies 6.1(d) Frequency Stability N/A per regulations +/- 0.02 MHz Crystal Controlled Oscillator 6.1(e) Reduced Field Strength N/A 6.2 Non-Momentary Operated Devices: N/A 6.2.1 Frequency Bands: Complies 6.3 Restricted Bands: Complies 6.5 Pulsed Operation: Complies (20 dB Peak/Average) See Test Measurements 6.6 Wireline Conducted Emissions: N/A 7.0 Receivers N/A 8.0 Self Certification: N/A 9.0 AC Wireline Conducted Emissions: N/A 10.0 Terminated Measurement Method: N/A 11.0 Radiated Measurement Method: See Test Equipment Report 11.1 Measuring Distance: Complies 11.2 Open Field Test Site: Complies, C63.4-2003 11.3 Equipment Test Pl…

Text truncated - open the document above for the full version.

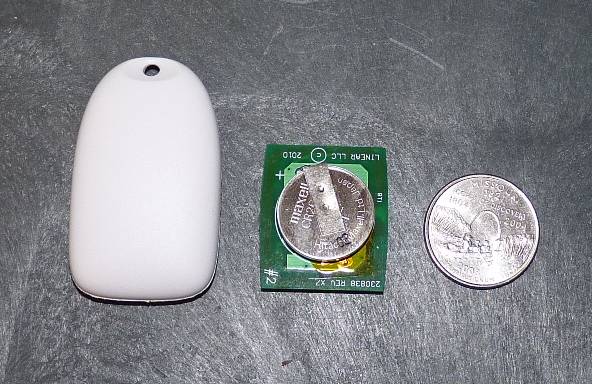

[ Component Side View, PCB Battery Side View, Battery is soldered to PCB Assembly FCC/IC ID CODES HERE

LINEAR LLC FCC ID:EF4LRP FCC IDENTIFICATION LABEL LABEL FACSIMILE FCC IDENTIFICATION LABEL FCC ID:EF4LRP IC:1078A-LRP Linear LLC requests authority to use the label as depicted, in accord with Section 2.925(e) of the Commission's Rules, follows herein. Request for Authorization of Section 2.925(e) The device for which Linear seeks authority is small in size and does not lend itself to the placement of a label, with associated warnings and instructions, in accord with the FCC labeling requirements. For Linear to produce such a label, the type size would be too small as to be useful to purchasers of the device. Accordingly, Linear LLC requests authority to place upon the device an identification label such as the one depicted herein identified as LABEL FACSIMILE. The additional information which is normally required to be included with the FCC Identification Number in accord with Part 15 of the Commission's Rules shall be located herein as portion of the draft manual attached hereto. Accordingly, in accord with Section 2.925(e) of the Commission's Rules and past Commission decisions, Linear hereby requests authority to label its devices in the manner described herein. The user instruction manual will have the full text of the FCC disclaimer printed in a prominent location at the end of the instruction sheet. This device complies with FCC Part 15 and Industry Canada Rules and Regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including interference that may cause undesired operation. LINEAR LLC

[ Component Side View, PCB Battery Side View, Battery is soldered to PCB Assembly FCC/IC ID CODES HERE

LINEAR LLC FCC ID:EF4LRP FUNCTIONAL DESCRIPTION 1.0 DESCRIPTION The DXS-LRP is a one channel, fixed or semi portable emergency signaling transmitter operating as a low power communication device. The center frequency is crystal stabilized at 315.00 MHz. The data output is Linear DX Code formatted. The DXS-LRP and the DX Code format are designed for use with Linear DX format 315 MHz receivers and consoles. Typical receivers that could be used with this transmitter are the DXR-701, DXS-702, DXSR-1504/8, DVS-1200/2400, Dual 824 and PERS-3600. Each DXS-LRP is programmed with a DX format factory ID code. The DX format code gives over 1 million possible transmitter IDs. One lithium coin cell batteries, type 2032 is included. The battery should last about 4 years under normal use. If the transmit push button is pressed four times during a time of 4 seconds, the DXS- LRP will go into a supervisory mode. It will thereafter send status transmissions every 2.0 hours. This supervisory signal will continue until the transmitter’s battery is exhausted. 2.0 FUNCTION When the push button is depressed, U1-4 becomes low and activates U1's program. The program provides a latch signal to keep the microprocessor alive until a minimum of 8 words (800 milli second duration) are transmitted. After the 8 words are transmitted and if the switch is now open, the processor turns off. If the button is held down for more than 30 seconds, the transmitter's output is disabled. When U1 wakes up, it outputs signals to turn on the oscillator IC U3 and to provide DX coded data. The frequency of oscillator U3 is stabilized at 315 MHz by a divide by 32 crystal time base, Y1. Data output at U1-6 modulates U3 which transmits the pulse- modulated carrier via the antenna. The battery voltage is supervised by voltage detector U2. If the nominal 3.0 Volt battery Voltage drops below 2.7 Volts the transmissions will include a low battery signal. 3.0 SPECIFICATIONS Product Identification: DXS-LRP transmitter (SST00122). Encoding Format: Linear DX Code. Encoding Technique: Transmitters are factory coded with a sequential transmitter ID number. LINEAR LLC FCC ID:EF4LRP Number of Channels: One Timing: Transmission stops after 30 seconds when button is held on. When momentarily activated the transmitter sends a minimum of 8 data words (800 milli seconds transmission). RF Carrier Frequency: 315.00 MHz  20 KHz. Power Requirements: One 2032 3 volt battery. Visual Indicator: Dual color display, green / red LEDs Green Steady – Battery OK Red Steady – Low Battery Green or red blinking (at end of a transmission – Tx is in supervisory mode . Operating Temperature: 0 C to +70 C. Tested –30 C to 70 C. Size: 1.2" x 2.0" x 0.3” Current Consumption: 10 mA (average) transmitting. <5 uA Standby. All specifications are nominal unless otherwise noted.

LINEAR LLC FCC ID:EF4LRP

LINEAR LLC FCC ID:EF4LRP LINEAR LLC FCC ID:EF4LRP

REPORT OF MEASUREMENTS LINEAR LLC FCC ID:EF4LRP Model: DXS-LRP Remote Control Transmitter The enclosed documents reflect the requirements contained generally within the code of Federal Regulations, Title 47, Parts 2 and 15 as most recently published October 1, 2009 and all other applicable revisions made by the Commission since that time. The specific rule sections for which the enclosed documents demonstrate compliance or rely upon to demonstrate compliance with the Commission's application and technical standards are as follows: 15.201-15.207, 15.231, Subpart C, Intentional Radiators. Test Procedure C63.4-2003, Section 13, Measurement of Intentional Radiators was used for the testing of this device. In accord with Section 2.948 of the Commission's Rules, a Test Site submittal is on file with the commission and a Letter of Acceptance dated March 31, 2009 (File 90767) is a portion of the Commission's records. A test site submittal is on file with Industry Canada. The Industry Canada file number is 1078A-1. The file is dated August 4, 2010. All of the information contained within this documentation is true, correct, and complete to the best of my knowledge. __________________________ __ August 12, 2010 _ John W. Kuivinen, P.E. Date Regulatory Compliance Engineer DURATION OF RF TRANSMISSIONS LRP REMOTE CONTROL TRANSMITTER This transmitter is manually activated. Typically, it is used for remote control of a security system. As such, it may be operated continuously by the user (FCC Rules 15.231(a)(4)). However, due to battery constraints and an accidental continuous activation causing interference to the system, the maximum manually activated transmission for a single press of a pushbutton is 30 seconds. When a push button is quickly pressed but then released, the transmitter will cease transmitting only after a minimum of 8 data words (8 words X 100 milli-second/word = 800 milli-seconds minimum transmission) have been sent. FCC Rules 15.231 (a)(1) allows no longer than 5 seconds upon the release of a manually activated transmitter. Signed: John W. Kuivinen, P.E. Regulatory Compliance Engineer TESTING INSTRUMENTATION AND EQUIPMENT LIST SPECTRUM ANALYZERS: H.P. HP8594EM 9 KHz to 2.9 GHz S/N 3649A00246 Calibrated 01/22/2010 Due 01/22/2011 H.P. HP8562A 1 KHz to 22GHz S/N 2913A03742 Calibrated 07/10 Due 01/11 (Required for emissions > 2.9 GHz) ANTENNAS: (2) Ailtech DM105A T1 20-200 MHz Tuned Dipole S/N 93412-105 and 93412-114 Calibrated 7/10 Due: 7/11 (2) Ailtech DM105A T2 140-400 MHz Tuned Dipole S/N 93413-113 and 93413-117 Calibrated 7/10 Due: 7/11 (2) Ailtech DM105A T3 400-1000 MHz Tuned Dipole S/N 93413-105 and 93414-111 Calibrated 7/10 Due: 7/11 (2) AH Systems SAS-200/511 1-12.4 GHz Log Periodic S/N 118 and 124, P/Ns 2069 (1) AH Systems SAS-200/540 20-330 MHz Biconical S/N 367 P/N 2052 INSTRUMENTATION: H.P. HP8656B RF Generator 100 KHz - 990 MHz S/N A4229590 Calibrated 7/10 Due 7/11 Solar Electronics Line Impedance Stabilization Network, Type 8012-50-R-24-BNC Calibrated: 7/10 S/N 8379585 Due: 7/11 HP 8447D Broadband preamplifier, 0.1-1300 MHz S/N 2443A03660 Calibrated: 7/10 Due: 7/11 Mini-Circuits ZFL-2000 broadband preamplifier, 10-3000 MHz S/N Lin 001 Calibrated: 7/10 Due: 7/11 ACCESSORIES: (2) Ailtech Rulers calibrated in MHz 4 Meter ABS Antenna Mast and Trolley Eighty Centimeter Tall, Motorized Wooden Turntable BNC to BNC Cables - as-required (2) 25' RG-214/U Low-loss Coaxial Cable S/N- LIN001 & LIN002 Calibrated: 7/10 Due: 7/11 (2) 3' RG-400E Low-loss Coaxial Cable, calibarated as part of the preamplifiers. Automatically taken into account when used with the above itemized range preamplifiers. MEASUREMENT OF RADIO FREQUENCY EMISSION OF CONTROL AND SECURITY ALARM DEVICES FCC RULES PART 15, C63.4-2003 TEST PROCEDURE I. INTRODUCTION As part of a continuing series of quality control tests to ensure compliance with all applicable Rules and Regulations, this enclosure details the test procedures for certain radio control devices. Testing was performed at a test site located on the property of Linear LLC, 1950 Camino Vida Roble, Suite 150, Carlsbad, California 92008-6517. II. MEASUREMENT FACILITY DESCRIPTION The test facility is a specially prepared area adequately combining the desirability of an interference free location with the convenience of nearby 120 volt power outlets, thus completely eliminating the incidence of inverter hash, so often a problem with field measurements. III. DESCRIPTION OF SUPPORTING STRUCTURES For Measuring Equipment - The antenna is supported on a trolley that can be raised and lowered on a mast by means of remote control to any level between 1 meter and 4 meters above the ground. For measurements at 3 meters, an antenna height (center of dipole) of about 1 meter generally yields the greatest field strength. For measurements at 1 meter, an antenna height equal to the device under test generally yields the greatest field strength. Usually, horizontal polarization yields the greatest field strength for both 1 and 3 meter measurements. For Equipment Under Test (EUT) : The equipment to be tested is supported by a wooden turntable at a height of eighty centimeters. A two axis swivel at the top of the turntable permits the unit under test to be manually oriented in the position of maximum received signal strength. The turntable can be rotated by remote control. Test Configuration - All transmitters were located eighty centimeters above ground, at a distance of three meters from the antenna. They were each oriented for maximum radiation by rotating the turntable. The antenna was then moved vertically along the mast for optimum reception in both horizontal and vertical planes. Where no emissions were found, the antenna was also moved to one meter distance to improve system sensitivity. All receivers were located eighty centimeters above ground, at a distance of three meters from the antenna. They were each oriented for maximum radiation by rotating the turntable. The ante…

Text truncated - open the document above for the full version.

LINEAR LLC FCC ID:EF4LRP Fundamental Emissions, 3 Meters LINEAR LLC FCC ID:EF4LRP Non-conductive test fixture, vertical or horizontal polarization. LINEAR LLC FCC ID:EF4LRP [ Component Side View, PCB Battery Side View, Battery is soldered to PCB Assembly LINEAR LLC FCC ID:EF4LRP Spurious Emissions, >1 GHZ, zero distance to antenna. LINEAR LLC FCC ID:EF4LRP 630 and 945 MHz, Spurious Emissions Testing.
