EF4RFI00002FRS Radio Transceiver

WIRELESS INTERCOM SYSTEM 5-CHANNEL RADIO INTERCOM Installation & Operation Instructions (760) 438-7000 • FAX (760) 438-7043 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com PRINTER’S INSTRUCTIONS: INSTRL,INSTL,RI-C - LINEAR P/N: 214601 X1 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.500” X 5.500” - SCALE: 1-1 - FOLDING: ALBUM FOLD - BINDING: SADDLE-STITCH 214601 X1 - IMAGE 1 CONSOLE DESCRIPTION Novi’s 5-channel Wireless Intercom Consoles provide a wireless audio communication link between up to five Console stations and one or two remote Wireless Doorbell Intercom units. The intercom uses digital signals to control the stations called and provide a unique “security code” that prevents other nearby Novi 5-channel intercoms from accessing the system. Either of two radio frequencies can be selected for the intercoms to further eliminate the chance of interference from adjacent systems. The Console features five station number pushbuttons for selecting the party to call. The ALL CALL button can be used to call all five stations. Pressing the TALK button calls the selected station(s), then controls the direction of the conversation. Each intercom user presses their TALK button to activate the microphone during the conversation. The Doorbell works with Console stations 4 or 5. Pressing the Doorbell’s TALK button sounds a “ding-dong” (station 5), or “dong” (station 4) at the Console, then the conversation begins by pressing the units’ talk buttons. For privacy, a MUTE switch on each Console can be set to prevent Wireless Doorbell tones and ALL CALL messages from sounding through that Console’s speaker. The Console can be placed on a table or shelf, or mounted to a wall with the screws provided. The small, antenna adjusts for Console table or wall mounting. Power for the Console is provided by a small plug-in transformer. The Doorbell attaches to a wall with the mounting plate provided. Two 9-volt alkaline batteries power the Doorbell intercom. TABLE OF CONTENTS CONSOLE DESCRIPTION..........................................................................................a CONSOLE FEATURES...............................................................................................b DOORBELL FEATURES.............................................................................................1 CONSOLE ANTENNA...............................................................................................2 PROGRAMMING THE STATIONS............................................................................3-4 WALL MOUNTING THE DOORBELL...........................................................................5 WALL MOUNTING THE CONSOLE............................................................................6 OPERATING THE DOORBELL & CONSOLE.................................................................7 OPERATING MULTIPLE CONSOLES.........................................................................8-9 TROUBLESHOOTING.............................................................................................10 CHANGING SYSTEM SETTINGS..............................................................................11 LINEAR LIMITED WARRANTY.................................................................................12 214601 X1 - IMAGE 2214601 X1 - IMAGE 3 1 CONSOLE FEATURES 1. STATION INDICATORS Indicators light when a station number button is pressed to show the station(s) that will be called. Indicators blink to show a call in progress. Indicators flash during conversation to show the busy stations. 2. STATION BUTTONS Press a button to select the intercom station(s) to be called. Pressing again de-selects the station. 3. STATION LABEL AREAS For applying labels that identify the intercom station locations. 4. ANTENNA Receives and sends the wireless intercom signals. Antenna pivots for Console horizontal and vertical mounting. 5. SPEAKER Sounds audio from the calling station. Volume is adjustable with the volume control. 6. POWER INDICATOR Lights to show that Console power is switched on. 7. VOLUME CONTROL - POWER SWITCH Switches Console power ON & OFF. Adjusts the volume of the Console’s speaker. 8. MICROPHONE High-gain microphone monitors audio from the calling station while the Console’s TALK button is pressed. 9. TALK BUTTON Press and release to call selected station(s). During conversation, press and hold when talking. 10. ALL CALL BUTTON Press to select all stations for calling. Press again to de-select all stations. 11. MUTE SWITCH When ON, the Console will not sound Doorbell Intercom chime tones or respond to All Call signals. 12. FREQUENCY SWITCH Selects frequency A or B. All intercoms used in the same system must be set to the same frequency. 3 1 2 4 5 6 7 8 9 10 11 12 214601 X1 - IMAGE 2214601 X1 - IMAGE 3 2 DOORBELL FEATURES 1. MICROPHONE High-gain microphone monitors audio while the Doorbell’s TALK button is pressed. 2. SPEAKER Sounds audio from the intercom Console. Volume is adjustable with the volume control (see Item #6). 3. POWER INDICATOR Lights to show that Doorbell power is on. Doorbell power automatically switches ON when TALK button is pressed. The power automatically switches OFF 15 seconds after the last intercom communication. 4. DOORBELL-TALK BUTTON Press to turn ON the Doorbell power and sound the chime at all of the intercom Consoles (Consoles with their MUTE switch ON will not sound the Doorbell chime). During intercom conversation, press and hold the DOORBELL-TALK button while speaking. 5. BATTERY CLIPS For connection to two 9-volt alkaline batteries. 6. VOLUME CONTROL Sets the volume level of the Doorbell’s speaker. 7. BATTERY DOOR Slides off rear case to expose the battery compartment, CHANNEL switch, and FREQUENCY switch. 8. PROGRAM BUTTON Press until two beeps sound to cause the Doorbell to enter program mode. 9. FREQUENCY SWITCH Sets the Doorbell to frequency “A” or “B”. All intercoms used in the same syst…

Text truncated - open the document above for the full version.

LINEAR CORPORATION FCC ID: EF4 RFI00002 STATEMENT OF ATTESTATION RFI00002 Radio Transceiver FCC ID: EF4 RFI00002 This device is a radio transceiver to be used as a wireless intercom in a residential or commercial installation. It is compatible with any of the Linear Family Radio System (FRS) transceivers. The device is to be normally used in outdoor environments but must be protected from wet spray and direct contact with water. This equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission's regulations, will conform to the sample(s) tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by Linear Corporation, 2055 Corte Del Nogal, Carlsbad, CA., 92009. Certified by: _____________________________January 25, 2002___ John W. Kuivinen, P.E.Date Regulatory Compliance Engineer LINEAR CORPORATION FCC ID: EF4 RFI00002 Summary of Test Results in accord with FCC Part 15, Subpart B Equipment Model:RFI00002 Tranmitter Transceiver Tested to 15.101(b):Complies Test Conditions:Conducted Section 95.631 Receiver Spurious at 3 meters:-42.6 dBc (- 2.6 dB below limit) (Highest Emission) Frequency:1402 MHz (3d Harmonic of Fundamental) Attestation: The radio apparatus identified in the application has been subject to all the applicable test conditions specified in Parts 2, 15 and 95 of the FCC Rules and Regulations and all of the requirements of the Rules and Regulations have been met. Regulatory Compliance Engineer John W. Kuivinen, P.E._________________Date:_ December 21, 2001_ LINEAR CORPORATION FCC ID: EF4 RFI00002 Radio Standard Specification Family Radio Service FCC Rules Part 95, Subpart B, FRS Radios and FCC Rules Part 15, Unintentional Radiators 1.0 General: 1.2, Exclusions to TV Broadcast Freq. N/A 2.0 Related Documents: Reference Documents for Application:CFR 47, Parts 2, 15 and 95 ANSI/IEEE C63.4-1992 3.0 Test Equipment: Supply Voltage:9 volts DC, battery operated Device Test Equipment ListSee Report of Measurements Signal Detector:Peak Signal Reported 4.0 Notification and Test Results: Summary of ResultsSee Page 1 of this section 5.0 General Technical Requirements: 5.1 Testing Methods:Peak Signal 5.1 Reference Standard:C63.4-1992 (IEEE Procedure) 5.3 External Controls:No user serviceable parts 5.4 Accessories:None Required 5.5 Detector Bandwidth:< 1 GHz = 100 KHz (minimum) > = 1 GHz = 1 MHz (minimum) 5.6 Equipment Labels:See Label Facsimile 5.7 Manual Disclaimer:Complies LINEAR CORPORATION FCC ID: EF4 RFI00002 5.9 Usage Restrictions:Voice or Digital Control Codes Only 6.0 Receiver Characteristics and Tests: 7.1Freq. of Operation:467.6875 or 467.5625 MHz 7.3Receiver Radiated Spurious:Complies - See Report of Emissions 7.4Conducted Emissions:Complies - See Report of Emissions 8.0 Self Notification:N/A 9.0 AC Wireline Conducted Emissions:Not Applicable, Battery Operated 10.0 Terminated Measurement Method:Complies - See Report of Emissions 11.0 Radiated Measurement Method:C63.4-1992 11.1 Measuring Distance:3 meters 11.2 Open Field Test Site:Complies, FCC Site Acceptance dated 4/2001 11.3 Equipment Test Platform:0.8 meters, rotary turntable 12.0 DC Power Consumption Methods:N/A 13.0 Near Field Measurement for < 30 MHz:N/A 14.0 Test Report Submission:See Attached LINEAR CORPORATION FCC ID: EF4 RFI00002

LINEAR CORPORATION FCC ID: EF4 RFI00002 217140 X2 BLOCK DIAGRAM,RI-D B 11 Friday, November 30, 20 01 TitleS iz e Doc ument Number Rev Date: Sheet of B ATTE RY 9V POWERGA TE MICROPROCESSOR LINEAR CORPORATION 5V REGULATOR AMP AND LIM ITE R MICROPHONE LOWPASSFILTER TR AN SM IT VCO TRANSMITTE R POWER AMP TRANSMIT/ RECEIVE ANTENNA RF AMPLIFIER 1ST MIXER 1S T LOCA L OS CILLA TOR DUAL PLL TRANSMITTER RECEIVER/ SELECT U6 2ND LOCAL OSCILLATOR,IF, MIXER, DESCRIMINATOR FRONT/ BACK DOOR SELECT SELECT FREQUENCY AUDIO AMPLIFIER LOUDSPEAKER DOORBELL TON E U4 EEPROM MIC ENA BLE 5V REGULATOR TRANSMIT ENABLE RECEIVE ENABLE 3.3V REGULATOR TH RE SHOLD DETECTOR DATA IN VCC RX VCC TX BEEP TONE SQUELCH TONE FILTER V SUPPLY CALL/TALK PROGRAM S1 S2 PLL DATAPLL CLOCKPLL ENABLE MUTE X2 P RO DUCTION RE LEA S E PE R ECO # REVISIONS DESCRIPTION REV DATE APPD DATA OUT LOWPASSFILTER Fc =467.6875 MHz 467.6875 MHz Fc - 50 MHz Fc = 467.6875 MHz 50 MHz 49.550 MHz - 2ndLOCAL OSC. INTERNAL2ND IF FREQ.455 KHZ DETECTEDAUDIO 4.00 MHz XTAL TIME BASE 4.00 MHzRESONATORCLOCK FREQUENCIES SHOWN (Fc) ARE FOR 467.6875FREQUENCY. ALTERNATE CHANNEL WILL BE467.5625 MHz.

LINEAR CORPORATION FCC ID: EF4 RFI00002 LINEAR CORPORATION FCC ID: EF4 RFI00002 FCC ID: EF4 RFI00002PRODUCT ID: RFI00002FAMILY RADIO SYSTEM WIRELESS DOORBELLPART 15 / PART 95DISCLAIMER TEXTLINEAR CORPORATIONMADE IN CHINA LINEAR CORPORATION FCC ID: EF4 RFI00002

LINEAR CORPORATION FCC ID: EF4 RFI00002 FCC ID: EF4 RFI00002PRODUCT ID: RFI00002FAMILY RADIO SYSTEM WIRELESS DOORBELLPART 15 / PART 95DISCLAIMER TEXTLINEAR CORPORATIONMADE IN CHINA

Add to FCC Warnings in Rear Panel of Unit FCC RF EXPOSURE REQUIREMENTS: This device and its antenna must not be co- located or operating in conjunction with any other antenna or transmitter.

LINEAR CORPORATION FCC ID: EF4 RFI00002 LINEAR CORPORATION FCC ID: EF4 RFI00002

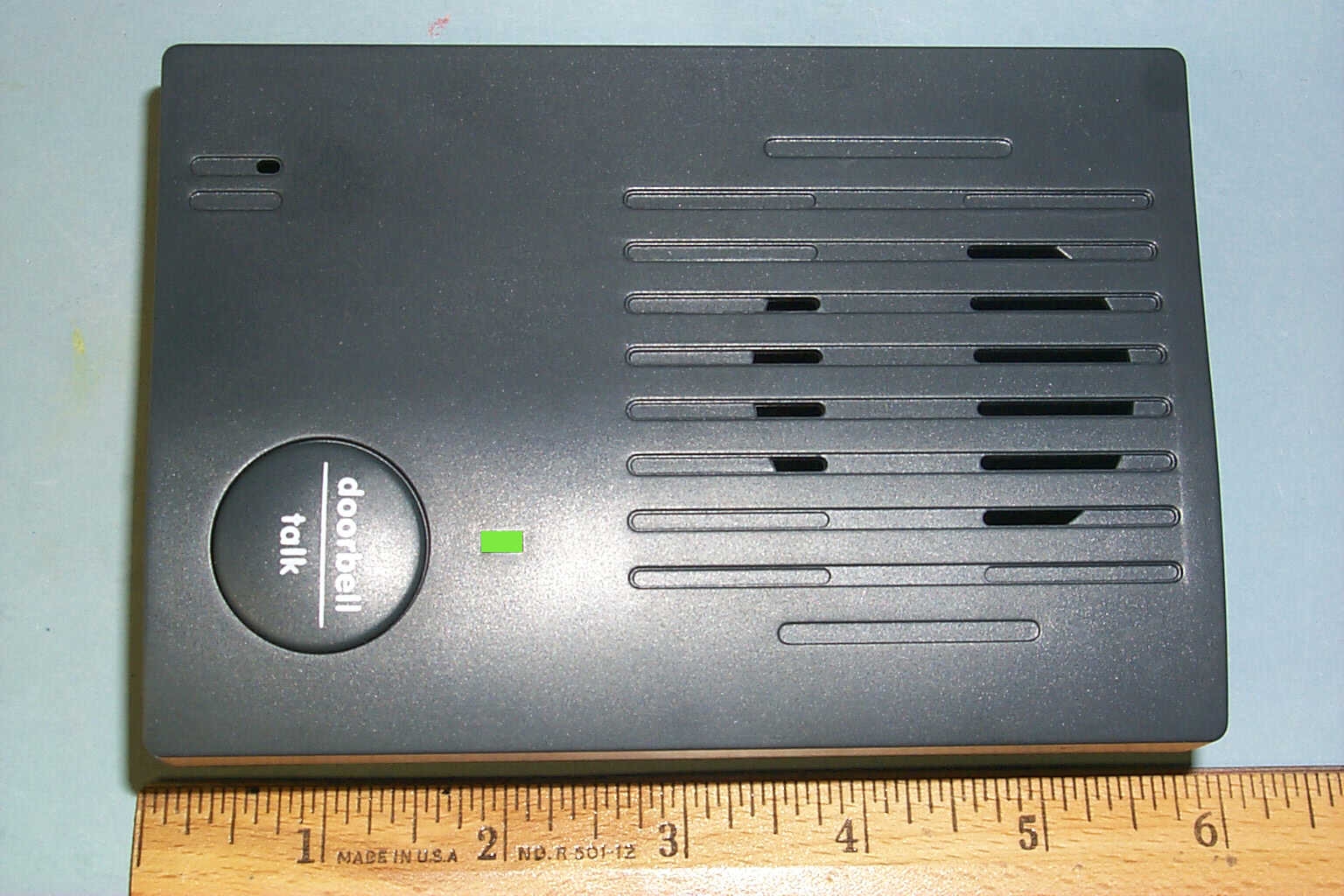

LINEAR CORPORATION FCC ID: EF4 RFI00002 1.0PRODUCT DESCRIPTION The RF Intercom Doorbell (RI-D) is a five-channel intercom unit, which allows half-duplex conversation over either a 467.6875 MHz or a 467.5625 narrow band FM signal. Key features include: 15 house codes to reduce interference from units in other systems. 2 station codes: front door/ back door (programmable via a switch). A Call/Talk button to turn the unit on and send the bell tones/voice over RF. A Program button to program a house code into the unit. Power on LED. Digital Calling to activate the unit only when the house and station codes match. Tone squelch. Internal volume control. Internal speaker & microphone. Internal antenna. 2.0HARDWARE/SOFTWARE SPECIFICATIONS 2.1MECHANICAL All electronics shall be contained in a plastic enclosure with the dimensions 5.5 x 3.75 x 1.75 inches. The body and button colors shall be PMS 427 and PMS 432, respectively. 2.2ELECTRICAL 2.2.1 DC CHARACTERISTICS Input Power:9VDC supplied by battery on board Input Current:50 mA receive, 120 mA transmit 2.2.2 RF CHARACTERISTICS System Frequency:467.6875 MHz or 467.5625 MHz (+/- 2.5 PPM) Modulation Type: Narrow Band FM Receiver Sensitivity: -90 dBm minimum Transmitter Power Output: 100 mW nominal 2.3 REGULATORY AGENCIES The unit shall comply with FCC part 95 regulations (FRS) and Part 15 for unintentional radiators. 2.4 ENVIRONMENTAL Temperature: -20°C to +60°C LINEAR CORPORATION FCC ID: EF4 RFI00002 2.5USER INTERFACE 2.5.1CALL/TALK BUTTON The Wireless DoorBell unit is normally powered down when not in use. At the press of the Call/Talk button, the unit powers up and sends out the house code, the station code (“5” or “4”), the receiving stations code (All Call). Then the bell tones are sent out. The bell tones consist of a 550 Hz (“ding”) and a 450Hz (“dong”) signals. Each bell tone is faded over a one-second period. If the station code is “4”, “dong” is sent out only. The bell tones will be sent once per button press and release. The unit shuts off automatically after 20 seconds of inactivity. If there is an answer from the residence, the button will then function as a Press- to-Talk. The user may press the Talk button to initiate RF data and voice transmission. At the press of the button, with the microphone disabled, the unit sends out the house code, the station code (“5” or “4”), and the receiving stations code (All Call) continously. The unit enables the microphone and allows the user to transmit voice over RF. When the button is released, the unit disables voice transmission and sends out subaudible tone sequence to tell the receiving station to shut off its speaker. The unit then goes into a Receive Mode and waits for a response. The unit shuts off automatically after 20 seconds of inactivity. 2.5.2STATION CODE JUMPER The station code is programmable via a slide switch on-board. If the switch is in position 1, the station code will be “5”. Otherwise, the station code will be “4”. The two station codes are used to differentiate between the units installed at the front door and back door. 2.5.3POWER ON LED A green LED is used to indicate that the power is on. 2.5.4VOLUME CONTROL POTENTIOMETER An internal potentiometer is used to adjust the speaker volume. 2.5.5POWER INPUT The power to the unit is supplied via two 9V batteries on-board. 2.6MICROCONTROLLER All programming and control functions are performed via a microcontroller on- board. 2.7RF TRANSMITTER The RF Transmitter Circuitry transmits FM data and audio over either a 467.6875 MHz or a 467.5625 MHz carrier signal. The Transmitter is disabled when its supply is shut off by the microcontroller. LINEAR CORPORATION FCC ID: EF4 RFI00002 2.8RF RECEIVER The RF Receiver Circuitry receives FM signals and converts them to audio and data that is usable by the microcontroller. 2.9MICROPHONE An internal microphone, which is enabled or disabled by the microcontroller, is used for audio input. 2.10SPEAKER An internal speaker, which is enabled or disabled by the microcontroller, is used for audio output. 2.11SQUELCH To reduce the noise that is generated on the speaker when either the Talk button or the DoorBell button is released, the unit sends out a subaudible tone sequence to the receiver before it shuts off RF. The receiver disables its speaker before RF goes away. If the tone gets corrupted for some reason, a squelch signal that is generated by the RF Receiver is sent to the microcontroller. 2.12CALLING STATION DATA FORMAT The transmitting station sends out a continuous subaudible tone sequence when the Press-to-Talk or All Call is pressed. The code consists of the following: House Code first digit (1 - 5) House Code second digit (6 - 8) Calling station number (1 - 5) Called station number (1 - 6) (6 is for an All Call) 3.0PROGRAMMING The default station code at the factory, will be “5”. To change the code to “4”, the slide switch on the back of the unit must be toggled by the user. To program the house code, the unit must be in the program mode. To place the unit in Program Mode, with the power to the unit off, the user must press and hold the Program button until the unit beeps the house code. Then the Program button must be released. The unit will then be in Program Mode. The Talk button is pressed until the desired house code is set. The unit will beep the house code after each press of the Talk button. The Program button may be pressed to exit the Program Mode or the unit will power down after 20 seconds. 4.0 TRANSMITTER ALIGNMENT / MICROPHONE / TRANSMIT DATA TEST Pressing the Call/Talk button will cause the unit to transmit a carrier on the selected RF frequency (slide switch) with the microphone enabled. 4.1 RECEIVER ALIGNMENT / SPEAKER / SQUELCH / DATA RECEIVE TEST LINEAR CORPORATION FCC ID: EF4 RFI00002 Releasing the Call/Talk button will place the unit into the Receive Mode allowing the receiver section to be aligned. The speaker shall be turned off if RF is not detected. If valid data …

Text truncated - open the document above for the full version.

POWER AMPLIFER - CURRENT / VOLTAGES Q1 is Class C, FM Transmitter VSUPPLY = 9.5 VOLTS MAXIMUM - ASSUME FRESH ALKALINE BATTERIES Measured voltage drop across R8 = 4.46 volts I = E/R = 4.46 / 100 OHM = 45 mA peak current to collector of Q1 Power input to Q1 = I * E = 45E-3 * (9.5 - 4.5) = 225 mW VSUPPLY E1 Q1 MMBR 9 11 C1 7 3.3pF C2 9 4.7pF L4 14nH L2 150nH R8 100 C1 220pF L6 30nH L7 30nH L20 30nH C2 7 6.8pF C28 6.8pF C1 8 220pF C12 220pF R1 0 100 C26 2.2pF C20 42.7pF 1/8W +5V VSUPPLY + C4 220 16V BT2 9V BT1 9V R5 100K Q10 MMBT3904 Q4 MMBT4403 R4422K R384.7K R34 100K VR2 XC62FP5002P 2 3 1 IN OUT GND C213 0.01 C13 220pF BC1+BC1- BC2+BC2- TOMICROPROCESSORWAKE UP/POWERINPUT FROM MICROPROCESSOR WAKEUP/POWER INPUT

S I N G L E L E V E L B I L L S O F M A T E R I A L PARENT PART: RFI00002F/G RI-D IITEMPARTQNTYDESCRIPTION 00012171361 EAASSY,MECH,RI-D 00037106291 EALABEL,UPC,SINGLE BOX,RI-D 00072146011 EAINSTR,INSTL,RI-DC 09902171350 EAF/G RI-D REFERENCE ONLY 09912171390 EASPECS,RI-D REFERENCE ONLY 09922171400 EABLOCK DIAGRAM,RI-D REFERENCE ONLY PARENT PART: 217136-01ASSY,MECH,RI-D IITEMPART NUMBERNODESCRIPTION / REMARKS 0001217138-011 EAASSY,PCB,RI-D 00022171511 EACASE,BOTTOM,RI-D 00032171501 EACASE,TOP,RI-D 00042171531 EADOOR,BATTERY,RI-D 00052171521 EABUTTON,TALK,RI-D 00062171541 EABRACKET,WALL MOUNT,RI-D 00072136012 EACLIP,SPEAKER MTG,NOVI,WI-2R 00081035805 EASCR,TPG,TF,4X3/16,PNH,PH,TYPE B 00092171481 EALABEL,FCC,RI-D 00102171621 EAGASKET,MICROPHONE,RI-D 00112050822 EABATT,9V,ALKALINE BT1,2 0012105648-0011 EALABEL,WARR/DATE,1 YEAR,WHITE 00132189741 EAFOAM,SPEAKER BACKING,RI-D 09902171360 EAASSY,MECH,RI-D REFERENCE ONLY 09912171750 EAARTWORK,RI-D,TALK BUTTON REFERENCE ONLY PARENT PART: 217138-01ASSY,PCB,RI-D IITEMPART NUMBERNODESCRIPTION /-REMARKS 00012171371 EAPCB,RI-D 000221339020 EACAP,CER,C,50V103P,X7R,10%,0603 C6,9,32,47,49,50, 58,64,68,75,81,83, 84,88,96,209,213, 214,217,221 00032133918 EACAP,CER,C,50V102P,X7R,10%,0603 C14,53,61,94,99,101, 111,201 00042121073 EACAP,AL,CHIP,50V105P,4X5.7,20% C23,77,86 00052137813 EACAP,AL,CHIP,16V227P,6.3X8,20% C4,98,220 00062139366 EACAP,AL,CHIP,16V106P,3X5.5,20% C3,5,10,85,103,105 0007213430-0274 EACAP,CER,C,50V2R7P,COG,.5PF,0603 C15,67,204,206 000821341919 EACAP,CER,C,16V104P,X7R,10%,0603 C11,16,33,57,59,66, 69,70,87,89,91,92, 95,102,106,107,109, 110,208 0009213430-22118 EACAP,CER,C,50V221P,COG,0603,+/-5% C1,2,7,8,12,13, 18,37,39,42,44,45, 115,203,210,211, 222,223 0010213430-0223 EACAP,CER,C,50V2R2P,COG,.5PF,0603 C26,27,41 0011213430-0333 EACAP,CER,C,50V3R3P,COG,.5PF,0603 C17,19,35 00122134181 EACAP,CER,C,50V1R0P,NPO,0603,+/-.25PF C34 00132134441 EACAP,CER,C,50V1R5P,NPO,.25PF,0603 C38 0014213430-0391 EACAP,CER,C,50V3R9P,COG,.5PF,0603 C46 00152050392 EACAP,TANT,C,10V475P,20%,3528 C82,114 00162134432 EACAP,CER,C,50V8R2P,NPO,.25PF,0603 C74,79 00172133922 EACAP,CER,C,50V6R8P,NPO,.25PF,0603 C54,60 00182134528 EACAP,CER,C,50V100P,NPO,5%,0603 C21,22,25,43, 51,52,72,73 00192138325 EACAP,CER,C,50V471P,X7R,0603,10% C48,215,216,218,219 00202138352 EACAP,CER,C,25V473P,X7R,0603,10% C100,104 0021213430-1211 EACAP,CER,C,50V121P,COG,0603,+/-5% C90 0022213430-1501 EACAP,CER,C,50V150P,NPO,5%,0603 C65 0023203691-0011 EACAP,VAR,2.5-10PF,SMD C76 0024213430-2701 EACAP,CER,C,50V270P,COG,0603,5% C78 0025213430-0562 EACAP,CER,C,50V5R6P,COG,.5PF,0603 C20,80 00262190984 EACAP,CER,C,100V331P,NPO,5%,0603 C40,56,71,112 0028213430-1011 EACAP,CER,C,50V101P,COG,5%,0603 C212 00292133933 EACAP,CER,C,50V4R7P,NPO,.25PF,0603 C28,29,36 0030202747-1001 EACAP,CER,C,50V100P,COG,.5PF,1206 C24 00312190992 EACAP,AL,CHIP,50V105P,3X5.4,20% C55,97 00332134892 EADIODE,MMBV3102LT1,VARICAP,30V,SOT23 D5,6 0034205011-0061 EADIODE,BAV70,DUAL,COM CATH,SOT-23 D9 0035205011-0014 EADIODE,MMBD914,SWITCH,SOT-23 D2,10,12,13 0036205011-0032 EADIODE,BAV99,DUAL,SOT-23 D3,4 00392134421 EALED,GRN,RECTANGULAR D8 00402134881 EAFILTER,CER,455KHZ,MULTI-ELEM FR1 00412060745 EAINDCTR,10 TURN,26AWG,.038 CORE L5,6,7,14,20 0042203689-1511 EAINDCTR,150NH,CER,SMD,1008CS,10% L2 00432089902 EAINDCTR,1TURN,.141ID,#22AWG,20NH L10,11 00442138421 EAINDCTR,VAR,14-16NH,BRN,SHIELDED,5MM L12 00452131501 EAINDCTR,.47UH,SMD,1008CS L16 00462137771 EAINDCTR,VAR,.1-1.0UH,SHLDED,5.6MM L17 00472076944 EAINDCTR,FERRITE BEAD,80 OHMS,1806 L21,22,23,24 00482138651 EADISCRIMINATOR,455KHZ,VAR,680UH REF L18 00492142995 EAINDCTR,3 TURN,0.085,22AWG L1,4,9,15,19 00512134927 EAXSTR,MMBR911LT1,SOT-23 Q1,2,3,5,6,7,8 00541045072 EAXSTR,NPN,MMBT3904,SOT-23 Q9,10 00562051461 EAXSTR,PNP,MMBT4403,SOT-23 Q4 0058205144-1002 EARES,CHIP,1/8W,10,5%,1206 R1,126 0059205144-1011 EARES,CHIP,1/8W,100,5%,1206 R8 0060213383-1002 EARES,CHIP,1/16W,10.0,0603,5% R70,101 0061213383-1017 EARES,CHIP,1/16W,100,0603,5% R2,4,10,78,123, 124,125 0062213383-10324 EARES,CHIP,1/16W,10K,0603,5% R9,13,15,16,19,31, 40,46,48,67,72, 77,80,82,85,88,98, 99,102,103,106,112, 120,128 0063213383-1026 EARES,CHIP,1/16W,1.0K,0603,5% R3,65,84,104,108,121 0065213383-4724 EARES,CHIP,1/16W,4.7K,0603,5% R12,17,38,114 0066213383-1513 EARES,CHIP,1/16W,150,0603,5% R11,14,36 0067213383-1054 EARES,CHIP,1/16W,1.0M,0603,5% R6,23,25,27 0068213383-3925 EARES,CHIP,1/16W,3.9K,5% R20,22,24,29,43 0069213383-2733 EARES,CHIP,1/16W,27K,0603,5% R21,63 0070213383-3323 EARES,CHIP,1/16W,3.3K,0603,5% R42,45,51 0071213383-1047 EARES,CHIP,1/16W,100K,0603,5% R5,26,32,34,56, 81,95 0072213383-3332 EARES,CHIP,1/16W,33K,0603,5% R37,61 0073213383-56010 EA RES,CHIP,1/16W,56,0603,5% R7,30,33,35,52,55, 64,115,116,127 0075213383-1522 EARES,CHIP,1/16W,1.5K,0603,5% R41,107 0076213383-2233 EARES,CHIP,1/16W,22K,0603,5% R39,44,100 0077213383-2221 EARES,CHIP,1/16W,2.2K,0603,5% R109 0078213383-1211 EARES,CHIP,1/16W,120,0603,5% R97 0079213383-1241 EARES,CHIP,1/16W,120K,0603,5% R93 0081213383-8221 EARES,CHIP,1/16W,8.2K,0603,5% R68 0082213383-4751 EARES,CHIP,1/16W,4.7M,0603,5% R71 0083213383-6831 EARES,CHIP,1/16W,68K,0603,5% R54 0084213383-47310 EARES,CHIP,1/16W,47K,0603,5% R18,28,47,49,62,86, 96,118,119,122 0085213383-5634 EARES,CHIP,1/16W,56K,0603,5% R50,91,92,113 0086213383-2032 EARES,CHIP,1/16W,20K,0603,5% R57,94 00872131621 EARES,VAR,20K,1/10W,HRZ MT,CROSS SLOT R75 00882100781 EARES,VAR,10K,W/SHAFT R66 0089213383-6822 EARES,CHIP,1/16W,6.8K,0603,5% R105,111 0090213383-4741 EARES,CHIP,1/16W,470K,0603,5% R110 00942136201 EASWITCH,PUSH,DPST,12X12MM,EXTND KNOB S1 00952135711 EASWITCH,PUSH,160GF,17MM KNOB LGTH S2 00962137832 EASWITCH,SLIDE,SPDT,0.1IN SP,6MM SHFT S3,4 01002171451 EAASSY,UP,RI-D U1 0101 2093451 EAIC,24LC01,SO-8,1K EE,SERIAL U2 01022138291 EAIC,LMV324,QUAD OPAMP,R-R,LV,SO-14 U3 01032137771 EAIC,MC145220,DUAL PLL,1.1GHZ,SO20 U4 01042076221 EAIC,LM386,AUDIO,POWER,AMP,MSOP-8 U5 01052190961 EAIC,S1T3361D01,LOW,VOLT,FM,IF,SOP-16 U6 01062134931 E…

Text truncated - open the document above for the full version.

RI-D PCB LEVEL, TEST PROCEDURE 1.0OVERVIEW This is a bench test for the RI-D PCB assembly. This test should be completed before the PCB is used in higher assemblies. 2.0EQUIPMENT REQUIRED Note: Equivalent equipment may be substituted. MODELMANUFACTURER DESCRIPTION N/AAny9 Volt DC Power Supply 300 mA 87FlukeDVM 8640BHewlett PackardRF Signal Generator 8590AHewlett PackardSpectrum Analyzer 5386AHewlett PackardRF Frequency Counter RI-CLinear CorpCompleted RF Intercom Console (See Appendix 1) 3.0PCB ASSEMBLY TEST CONNECTIONS Connect TP1 to ground (factory test mode). Connect 9 volt power to one of the battery connectors using the same polarity as a 9 volt battery. Press S1 (DOORBELL/TALK) button to power up the unit under test in the test mode. 4.0RF ALIGNMENT 4.1Connect the frequency counter to E1 (Antenna connection). Note: Make sure that the frequency counter can accept +20 dBm of input power. If not, place an attenuator on the input of the frequency counter to bring the power level within the tolerance of the counter. 4.2Place S3 (DOOR SELECT) in the FRONT position (switch toward S4). Place S4 (FREQUENCY) in the "A" position (Switch toward S3). 4.3Power up unit in test mode (TP1 grounded) by pressing S1 (DOORBELL/TALK). Note: The unit under test will come up in the transmit mode while S1 (DOORBELL/TALK) is pressed. 4.4Verify that the current from the 9 VDC power supply is between 75 and 125 mA while S1 (DOORBELL/TALK) is pressed. 4.5Adjust L12 until the voltage at TP2 is 3.5 volts DC (+/- 0.2 volts) while S1 (DOORBELL/TALK) is pressed. 4.6Adjust C76 until the frequency at E1 is 467.6875 MHz (+/- 0.00025MHz) on the frequency counter while S1 (DOORBELL/TALK) is pressed. Release S1 (DOORBELL/TALK) when finished. 4.7Press and release S2 (PROGRAM) to perform the EEPROM test and set the house code to factory default. The speaker will beep once if the EEPROM is OK. The speaker will beep 5 times if the EEPROM test has failed. 4.8Place S4 (FREQUENCY) in the "B" position (away from S3). 4.9Press S1 (DOORBELL/TALK) and verify that the frequency counter now reads 467.5625 MHz (+/- 0.00025 MHz). 4.10Release S1 (DOORBELL/TALK) and place S4 (FREQUENCY) in the "A" position (Switch toward S3). 4.11Disconnect the frequency counter and connect the spectrum analyzer to E1 (Antenna connection). Set the spectrum analyzer to a center frequency of 467.6875 MHz and a span of 100 KHz. 4.12Press S1 (DOORBELL/TALK) and verify that the bandwidth of the signal on the spectrum analyzer is less than 12.5 KHz and greater than 6 KHz. 4.13Release S1 (DOORBELL/TALK) and verify that the current from the 9 VDC power supply is between 30 and 75 mA. 4.14Verify that the voltage at TP4 is between 1 and 4 volts DC. 4.15Remove the spectrum analyzer from E1 (Antenna). Connect the signal generator to E1 (Antenna). 4.16Set the signal generator to 467.6875 MHz (+/- 0.0005 MHz) at -67 dBm. 4.17Adjust L18 until the voltage at TP9 is 2.5 volts DC (+/- 0.1 volt). 4.18Turn the RF output of the signal generator OFF. 4.19Turn R75 fully counter-clockwise. 4.20Adjust the R66 (VOLUME) so that the hissing noise from the test fixture speaker can be heard. 4.21Adjust R75 clockwise to the point where the hissing noise stops. 4.22Turn ON the signal generator and set its output to -87 dBm with 2 KHz deviation of FM modulation at 400Hz. Note: The 400Hz tone should be heard on the speaker. 4.23Adjust R75 clockwise until the 400 Hz tone can no longer be heard. 4.24Set R75 half way between its current position and the position it was in after step 6.20. The squelch will now be at the optimal setting. 4.25Turn ON the RI-C test console. 4.26Press S1 (DOORBELL/TALK) and verify that the RF Intercomm test console beeps while S1 (DOORBELL/TALK) is pressed. (Data encode test.) 4.27Press the TALK button on the RF Intercom test console and verify that the speaker of the unit under test beeps. (Data decode test.) 4.28Remove the ground from TP1. 4.29Remove power from the PCB. 4.30Secure L12 and L15 with wax (Item 121). This concludes the test procedure. APPENDIX 1 A completed RF Intercom console unit is used to perform the data communications test. This unit is modified by soldering a 1K resistor from TP1 to GROUND. This resistor will cause the unit to power on in the data test mode.

LINEAR CORPORATION FCC ID: EF4 RFI00002 217142 X36 L I N E A R C O R P O R A T I O N D 11 Monday, February 04, 2002 SCHEMATIC, RI-D TitleSize Document Number Rev Date: Sheet of APPROVALS DRAWNCHECKEDENGINEER VSUPPLY +5V +5V +5V +5V +5V +5V VCCRX VSUPPLY VSUPPLY VCCRX +5V VCCRX VSUPPLY +2.5V +2.5V VSUPPLY +5V +5V MUTE SQUELCH INDATA IN ENBL RX MUTE ENBL TX ENBL RX ENBL TX DATA IN SQUELCH IN +5V VCCRX R26100K X1 MICROPHONE C70 0.1 R120 27K R48100K R47 47K C104 0.047 C102 0.1 C40 330pF R101 10 C500.01 C69 0.1 C49 0.01 R124.7K C96 0.01 R32 100K U2 24LC01B 8765 1234 VCCWPSCLSDA A0A1A2 VSS R56 100K R77 10K R99 100K C211220pF C33 0.1 R21 27K C16 0.1 R8010K C58 0.01 C57 0.1 R3922KC640.01 C36 4.7pF R24 10K C20 6.8pF Q5 MMBR911 R293.9K R31 10K C41 2.2pF L11 20nH L10 20nH C31 5.6pF C30 2.2pF E1 C19 10pF R7210K R6710K Q9MMBT3904 U7 UPC2748 1 4 62 5 3 C48 470pF C47 0.01 L14 30nH C53 0.001 C81 0.01 R68 8.2K C65 15pF L16 470nH R8510K R81 100K R84 1K R95 100K C91 0.1 C100 0.047 C68 0.01 R57 20K C87 0.1 C78 27pF C61 0.001 R41 1.5K R100 22K Y1 4.0MHz R54 68K Q8 MMBR911 C54 6.8pF C51 10pF C92 0.1 C80 5.6pF C38 1.5pF R52 1K D6 MMBV3102LT1 C52 10pF C72 10pF Y2 49.545MHZ Q6 MMBR911 C75 0.01 C89 0.1 C74 8.2pF R86 47K C43 10pF R78100 R70100 C84 0.01 C83 0.01 D5 MMBV3102LT1 R1 100 R7520K R17 4.7K R15 10K R9647K R102 10K R9420K R9156K R92 56K C99 0.001 C94.001 R1847K R11150 R1910K C14 0.001 R93120K VR4 LP2982IM5-3.3 1 5 2 3 4 Vin Vout GND CE BYP C88 …

Text truncated - open the document above for the full version.
