Este dispositivo cumple con la Parte 15 de los Reglamentos de la Comisión Federal de Comunicaciones (FCC). Su fun- cionamiento está sujeto a las dos condi- ciones siguientes: (1) Este dispositivo no podrá causar interferencia perjudicial, y (2) este dispositivo debe aceptar cualquier inte rferencia que reciba, incluidas interfer- encias que podrían causar un fun- cionamiento no deseado. Los cambios o modificaciones que no estén expresamente aprobados por la parte responsable del cumplimiento podrían anular la autoridad del usuario para usar el equipo. NO TA:Este equipo se ha probado y se ha determinado que cumple con los límites para un dispositivo digital Clase B, de con- formidad con la Parte 15 de los Reglamentos de la FCC. Estos límites están diseñados para proporcionar protección razonable contra interferencia perjudicial en instalaciones residenciales. Este equipo genera, usa y puede emitir energía de radiofrecuencia y, si no se instala y usa de acuerdo con las instrucciones, podría causar interferencia perjudicial a las radio- comunicaciones. Sin embargo, no existe garantía de que no ocurrirán interferen- cias en una instalación en particular. Si este equipo causa interferencia perjudicial a la recepción de radio o televisión, lo cual puede determinarse al encender y apagar el equipo, se recomienda al usuario que intente corregir la interferencia mediante una o más de las medidas siguientes: •Volver a orientar o cambiar de lugar la antena receptora. • Aumentar la separación entre el equipo y el receptor. • Conectar el equipo a un enchufe en un ci rcuito diferente al que está conectado el receptor. • Consultar con el distribuidor o con un técnico de radio o televisión experimen- tado para obtener ayuda. ADVERTENCIA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including inte rference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip- ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inte rference to radio communications. Howeve r, there is no guarantee that inte rference will not occur in a particu- lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an out- let on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio TV technician for help. Cet appareil est en conformité avec l’article 15 du règlement de la FCC. Son fonction- nement est sujet aux deux conditions suiv- antes : (1) Cet appareil ne doit pas provo- quer d’interférences nuisibles et (2) il doit accepter toute interférence reçue, y compris celles risquant d’engendrer un fonction- nement indésirable. Toute modification de ce produit n’ayant pas été expressément approuvée par l’au- torité responsable de la conformité à la réglementation peut annuler le droit de l’utilisateur à exploiter l’équipement. REMARQUE :Cet équipement a été testé et déclaré conforme aux limitations prévues dans le cadre de la catégorie B des appareils numériques, définie par l’article 15 du règle- ment de la FCC. Ces limitations sont stip- ulées aux fins de garantir une protection raisonnable contre les interférences nuisibles en installation résidentielle. Cet équipement engendre, utilise et peut émettre de l'énergie radioélectrique par rayonnement et, s'il n'est pas installé et utilisé conformément aux instructions, peut occasionner des inter- férences préjudiciables aux communications radio. Cependant, nous ne pouvons pas garantir qu’aucune interférence ne se pro- duira dans une installation particulière. Si cet équipement produit des interférences importantes lors de réceptions radio ou télévisées, qui peuvent être détectées en éteignant puis en rallumant l’appareil, essayer de corriger l’interférence au moyen de l’une ou de plusieurs des mesures suiv- antes : •Réorienter ou déplacer l’antenne récep- trice . •Augmenter la distance entre l’équipement et le récepteur. •Brancher l’équipement dans la prise élec- trique d’un circuit différent de celui auquel le récepteur est relié. •Contacter le revendeur ou un technicien radio/télévision qualifié pour toute assis- tance . WARNING AVERTISSEMENT Answers. Advice. Affirmation.™ •www.evenflo.com • USA: 1-800-233-5921, 8 AM – 5 PM EST • Canada: 1-937-773-3971 • México: 01-800-706-12-00

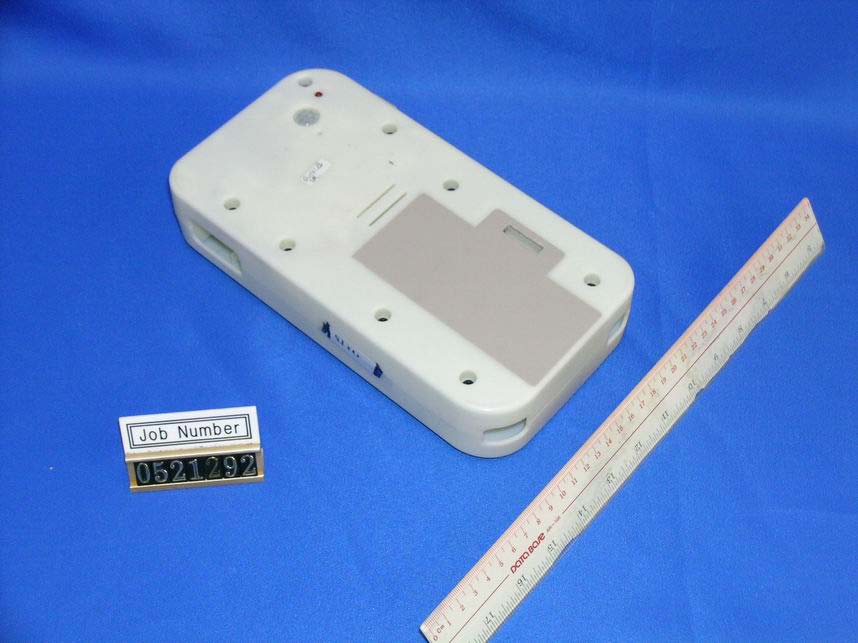

Test Setup FCC ID : EHK315463GMMPGATE External Photo - Front External Photo - Rear

Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 5 Internal Photo - 6 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 7 Internal Photo - 8 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 9 Internal Photo - 10 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 11 Internal Photo - 12 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 13 Internal Photo - 14 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 15 Internal Photo - 16 Test Setup FCC ID : EHK315463GMMPGATE Internal Photo - 17

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Evenflo Company, Inc. Application For Certification (FCC ID: EHK315463GMMPGATE) Superregenerative Receiver 0521292 TL/ Sandy Lee November 28, 2005 INTERTEK TESTING SERVICES FCC ID: EHK315463GMMPGATE i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: EHK315463GMMPGATE ii MEASUREMENT/TECHNICAL REPORT Evenflo Company, Inc. - MODEL: evenflo 4631020 FCC ID: EHK315463GMMPGATE This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [10-01-04 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: EHK315463GMMPGATE iii Table of Contents 1.0 General Description .......................................................................................... 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................ 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration ............................................................................... 5 2.1 Justification ......................................................................................................... 5 2.2 EUT Exercising Software .................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty ................................................................................... 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results .............................................................................................. 8 3.1 Field Strength Calculation ................................................................................... 9 3.2 Radiated Emission Configuration Photograph ................................................... 10 3.3 Radiated Emission Data.................................................................................... 11 4.0 Equipment Photographs ................................................................................. 14 5.0 Product Labelling ............................................................................................ 16 6.0 Technical Specifications ................................................................................ 18 7.0 Instruction Manual .......................................................................................... 20 8.0 Miscellaneous Information ............................................................................. 22 8.1 Stabilization Waveform...................................................................................... 23 8.2 Discussion of Pulse Desensitization .................................................................. 24 8.3 Calculation of Average Factor ........................................................................... 25 8.4 Emissions Test Procedures............................................................................... 26 INTERTEK TESTING SERVICES FCC ID: EHK315463GMMPGATE iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Stabilization Waveform superreg.pdf INTERTEK TESTING SERVICES FCC ID: EHK315463GMMPGATE 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: EHK315463GMMPGATE 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Receiver operating at 315MHz. The EUT is powered by 6V d.c. (4 x 1.5V “C” battery). It receives control signal from remote transmitter. It will unlock the gate after receiving the contr…

Text truncated - open the document above for the full version.

Test Setup FCC ID : EHK315463GMMPGATE Radiated Photo - Front Radiated Photo - Rear
