EJE-BT0003Wearable Keyboard, Model - IOT002

1 Instruction Manual Head Mounted Display Wearable Keyboard 2 3 Unpacking and checking the device Unpack all the individual parts. If any of the parts are missing, please notify your local sales representative immediately. Below is the list of included items. ■Head Mounted Display □microUSB cable □mono earphones □warranty □instruction manual (This manual) □Head Mounted Display main unit (A strap is attached to the battery cap) □display cushion x1 □knurled screw x4 (Use a flat blade screwdriver or a coin to turn) ■Fitting belt These are used when wearing HMD on your head. □Left head adjuster □Right head adjuster 4 □Left belt attachment □Right belt attachment □side cushion x2 □top band □front band ■Clip to a helmet These are used when attaching HMD to a helmet. □Left helmet clip □Right helmet clip ■Battery pack □battery pack x1 ■Battery charger □battery charger x1 □AC adaptor □power cable 5 ■Wearable keyboard □wearable keyboard □wearable keyboard belt □AAA alkaline battery x2 Before using this product --------------------------------------------------------------------------------------- About the warranty  Be sure to fill in the necessary information on the warranty and read its contents. After that, keep it in a safe place.  Be sure to have the warranty on hand whenever requesting servicing.  Malfunctions that occur within the warranty period while the product is being used correctly will be repaired without charge.  Even if malfunction occurs during the warranty period, repair will be subjected to charges in the case the warranty is not presented, if the malfunction is due to natural causes, improper use of the product, etc. Refer to the warranty for details.  This product and its accessories are subject to change, in part or in their entirety, without notice. Using the Product in Applications that Require a High Degree of Safety This product is intended for general use, such as general office use, personal use, household use, and normal industrial use, but it is not designed, manufactured or intended for applications that require a high degree of safety. Do not use this product without first adequately ensuring the level of safety required by the application. An application that requires a high degree of safety is one that is accompanied by a serious direct risk of death or personal injury unless an extremely high degree of safety is ensured, such as those applications noted below.  Nuclear reaction control, aircraft auto pilot control, air traffic control, mass transport system operation control, medical life support, military weapons system missile launch control, etc. 6 About the limited-life components ・The battery pack and dry cell batteries are consumable parts, so they need to be replaced on a timely basis in order to maintain performance. Furthermore, purchasing and replacing batteries must be done by yourself regardless of warranty period. ・The battery pack typically have a lifespan of between 300 and 500 cycles. Battery pack’s service life will depend on the environment temperature and usage. About the terms "power plug" and "power outlet" The power plug of the AC adapter that comes with the product is a flat-blade 2-pole plug. The manual refers to such a plug as "power plug." Connect the power plug to a power outlet that accepts a flat-blade 2-pole plug (125 V, 15 A). The manual refers to such a power outlet as "outlet." Product License Agreement Fujitsu Limited (hereafter Fujitsu) grants you a limited, non-exclusive license to use the software installed on this product (Software) provided that you agree to the "Software Terms of Use" below. By starting to use this Software you are agreeing to be bound by this End-User License Agreement (this Agreement), so be sure to read the "Software Terms of Use" before using this Software. However, note that this Agreement takes priority over any other "Terms of Use," "End-User License Agreement," or other similar documents that are separately appended to any parts of this software. Software License Agreement 1. License and Copyrights Fujitsu grants you a limited, non-exclusive license to use this software on this product only. By purchasing this product, you the purchaser are granted the license only for the use of this software, and the rights to this software continue to revert to Fujitsu or third-party developers. 2. Transfer to a Third Party When transferring the Software (including the manual that comes with this product) to a third party, you shall transfer the software in its entirety along with the product on which the software is installed. 3. Modification You are not allowed to modify or reverse engineer this software, such as by reverse 7 compiling, or reverse assembling. 4. Limited Warranty (1) Fujitsu will not be liable in any way for any damages (including but not restricted to lost profits, work stoppages, loss of business data, or other monetary damages) that result from the use of or the inability to use the software. This also applies even if Fujitsu knew or should have known about the possibility of such damages. (2) Even if the Software includes software developed by a third party, the third party developer makes no guarantees whatsoever about the software. 5. High degree of safety This software is intended for general use, such as general office use, personal use, and household use, but it is not designed, manufactured or intended for applications that require a high degree of safety. The user must adequately implement measures to ensure the level of safety required by any such applications to use this software. An application that requires a high level of safety is one that is accompanied by a serious direct risk of death or personal injury unless safety is temporarily and appropriately ensured, such as the following examples that require an extremely high degree of safety. Nuclear power core control, aircraft control, air traffic control, mass transport system operation control, medical life support, milita…

Text truncated - open the document above for the full version.

Fujitsu Limited 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: April 23, 2015 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: EJE-BT0003 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Tsuyoshi Uchihara [email protected]

Fujitsu Limited 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: April 23, 2015 Power of Attorney To w h om it may concern, Please be notified that I, Tsuyoshi Uchihara, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: EJE-BT0003 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Tsuyoshi Uchihara [email protected]

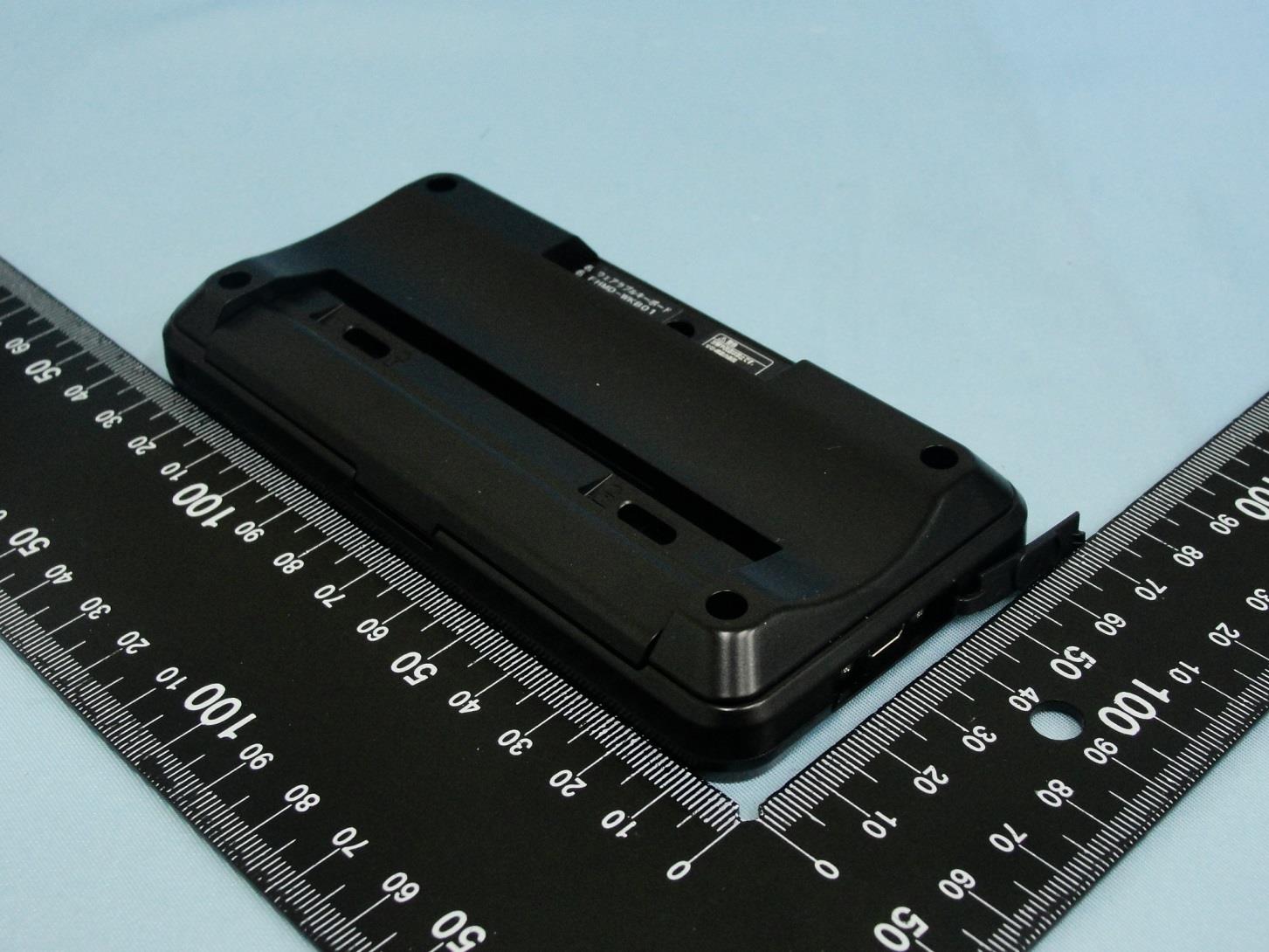

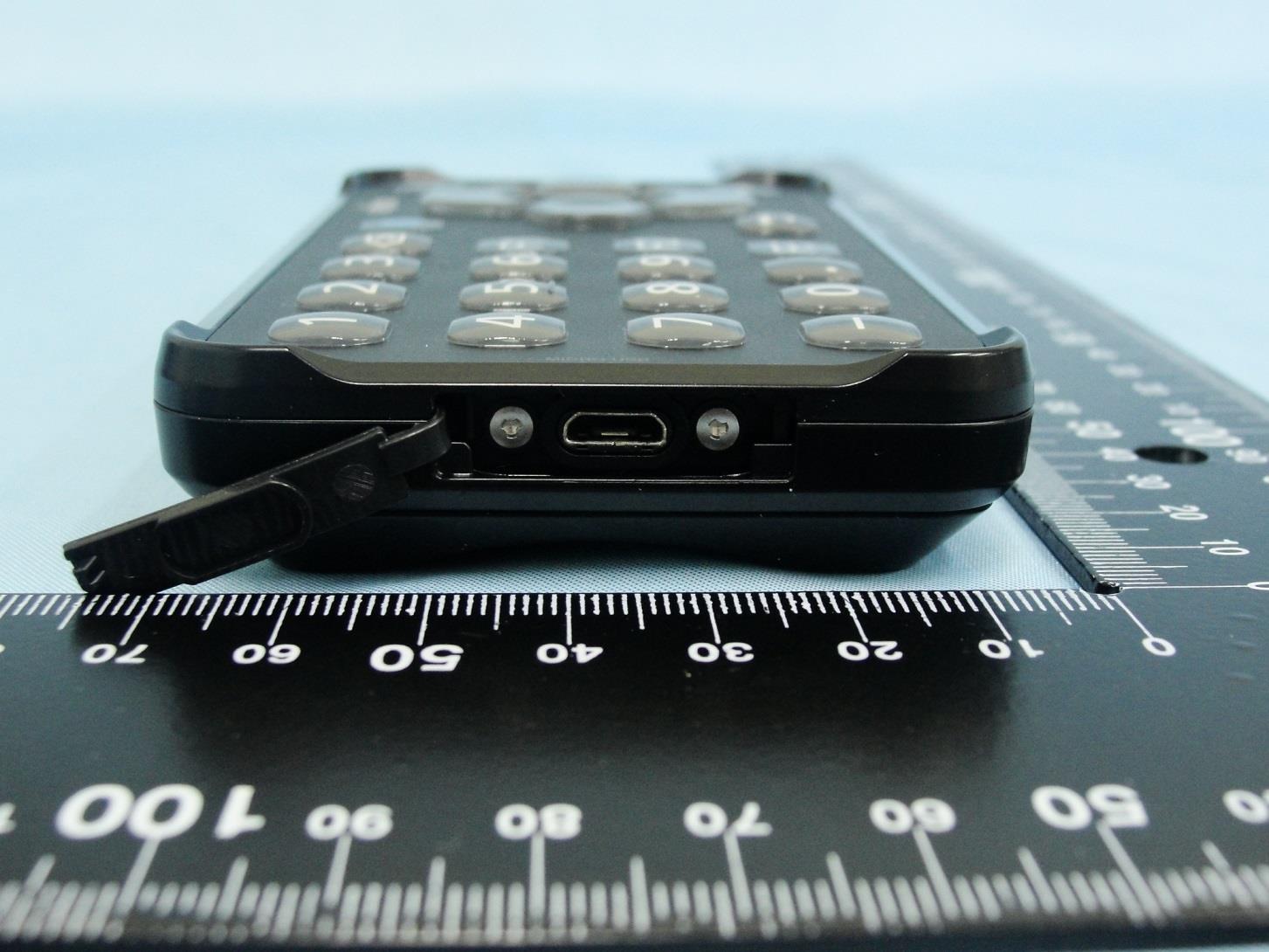

Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 1 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 2 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 3 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510

Label Location Back of the Device

Copyright 2015 FUJITSU LIMITED Label 1 Destination (Wearable Keyboard) FCC – IC Label

Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 4 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 2. Internal Photograph of EUT Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 5 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 6 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 7 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 8 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 9 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 10 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Photographs of EUT Report No.: EP521045-01 Brand Name: FUJITSU / Model Name: IOT002 SPORTON INTERNATIONAL INC. Page Number : 11 of 11 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: EJE-BT0003 IC: 337J-BT0003 720510 Bluetooth Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 RF Exposure Evaluation Report Report No. : FA521045-01 RF Exposure Evaluation Report APPLICANT : FUJITSU LIMITED EQUIPMENT : Wearable Keyboard BRAND NAME : FUJITSU MODEL NAME : IOT002 FCC ID : EJE-BT0003 STANDARD : 47 CFR Part 2.1093 FCC KDB 447498 D01 v05r02 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093 and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 RF Exposure Evaluation Report Report No. : FA521045-01 Table of Contents 1. Administration Data ........................................................................................................................... 3 2. General Information ........................................................................................................................... 3 2.1 Description of Device Under Test (DUT) ........................................................................................... 3 3. Maximum RF output power among production units ......................................................................... 4 4. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA521045-01 Rev. 01 Initial issue of report Apr. 08, 2015 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 RF Exposure Evaluation Report Report No. : FA521045-01 1. Administration Data Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name FUJITSU LIMITED Address 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588 Japan Manufacturer Company Name FUJITSU LIMITED Address 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588 Japan 2. General Information 2.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type Wearable Keyboard Brand Name FUJITSU Model Name IOT002 FCC ID EJE-BT0003 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode •Bluetooth v3.0+EDR DUT Stage Pre Production Unit Remark: The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 RF Exposure Evaluation Report Report No. : FA521045-01 3. Maximum RF output power among production units Mode / Band Average Power (dBm) 1Mbps 2Mbps 3Mbps (GFSK) π/4-DQPSK (8-DPSK) 2.4GHz Bluetooth 10.0 8.0 8.0 4. RF Exposure Evaluation Bluetooth Max Power (dBm) mW Separation Distance (mm) Frequency (GHz) Exclusion Thresholds 10.0 10.0 < 5mm 2.48 3.15 Note: 1. Per KDB 447498 D01v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: Per KDB 447498 D01v05r02, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 3.15 which is <= 7.5, SAR testing is not required.

SPORTON INTERNATIONAL INC. Page Number : 1 of 61 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR521045-01 FCC RF Test Report APPLICANT : FUJITSU LIMITED EQUIPMENT : Wearable Keyboard BRAND NAME : FUJITSU MODEL NAME : IOT002 FCC ID : EJE-BT0003 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Feb. 11, 2015 and testing was completed on Mar. 02, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 61 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR521045-01 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 5 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Descriptions of Test Mode ................................................................................................................. 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 8 2.4 Support Unit used in test configuration and system .......................................................................... 9 2.5 EUT Operation Test Setup ................................................................................................................ 9 2.6 Measurement Results Explanation Example ..................................................................................... 9 3 TEST RESULT .......................................................................................................................................... 10 3.1 Number of Channel Measurement .................................................................................................. 10 3.2 Hopping Channel Separation Measurement ................................................................................... 12 3.3 Dwell Time Measurement ................................................................................................................ 19 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 21 3.5 Peak Output Power Measurement .................................................................................................. 34 3.6 Conducted Band Edges Measurement............................................................................................ 36 3.7 Conducted Spurious Emission Measurement ................................................................................. 43 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 53 3.9 Antenna Requirements .................................................................................................................... 59 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 60 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 61 APPENDIX A. RADIATED TEST RESULTS APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 61 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR521045-01 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR521045-01 Rev. 01 Initial issue of report Apr. 09, 2015 SPORTON INTERNATIONAL INC. P…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A1 of A6 FCC RF Test Report Report No. : FR521045-01 Appendix A. Radiated Spurious Emission Test Engineer : Stan Hsieh, Nick Tu, and Ken Wu Temperature : 21~23°C Relative Humidity : 47~49% 15C 2.4GHz 2400~2483.5MHz BT (Band Edge @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH00 2402MHz 2336.91 56.85 -17.15 74 51.36 32.11 7.6 34.22 100 316 P H 2336.91 32.09 -21.91 54 - - - - - - A H * 2402.17 105.7 - - 100.07 32.18 7.75 34.3 100 316 P H * 2402.17 80.94 - - - - - - - - A H H H 2382.67 58.89 -15.11 74 53.25 32.16 7.75 34.27 300 245 P V 2382.67 34.13 -19.87 54 - - - - - - A V * 2402.17 106.68 - - 101.05 32.18 7.75 34.3 300 245 P V * 2402.17 81.92 - - - - - - - - A V V V BT CH 39 2441MHz 2386.57 56.03 -17.97 74 50.37 32.18 7.75 34.27 100 20 P H 2386.57 31.27 -22.73 54 - - - - - - A H * 2441.1 103.87 - - 98.19 32.24 7.83 34.39 100 20 P H * 2441.1 79.11 - - - - - - - - A H 2486.7 46.78 -27.22 74 41.02 32.28 7.91 34.43 100 20 P H 2486.7 22.02 -31.98 54 - - - - - - A H 2386 52.53 -21.47 74 46.87 32.18 7.75 34.27 125 335 P V 2386 27.77 -26.23 54 - - - - - - A V * 2441.1 106.17 - - 100.49 32.24 7.83 34.39 125 335 P V * 2441.1 81.41 - - - - - - - - A V 2492.21 49.37 -24.63 74 43.64 32.3 7.91 34.48 125 335 P V 2492.21 24.61 -29.39 54 - - - - - - A V SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A2 of A6 FCC RF Test Report Report No. : FR521045-01 BT CH 78 2480MHz * 2480.05 104.26 - - 98.5 32.28 7.91 34.43 105 304 P H * 2480.05 79.5 - - - - - - - - A H 2483.5 59.27 -14.73 74 53.51 32.28 7.91 34.43 105 304 P H 2483.5 34.51 -19.49 54 - - - - - - A H H H * 2480.05 108.58 - - 102.82 32.28 7.91 34.43 293 282 P V * 2480.05 83.82 - - - - - - - - A V 2483.5 64.16 -9.84 74 58.4 32.28 7.91 34.43 293 282 P V 2483.5 39.4 -14.6 54 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A3 of A6 FCC RF Test Report Report No. : FR521045-01 15C 2.4GHz 2400~2483.5MHz BT (Harmonic @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 00 2402MHz 4806 55.67 -18.33 74 69.27 34.25 11.11 58.96 100 0 P H 4806 30.91 -23.09 54 - - - - - - A H H H 4806 57.71 -16.29 74 71.31 34.25 11.11 58.96 100 0 P V 4806 32.95 -21.05 54 - - - - - - A V V V BT CH 39 2441MHz 4884 55.25 -18.75 74 68.57 34.3 11.21 58.83 100 0 P H 4884 30.49 -23.51 54 - - - - - - A H 7320 57.78 -16.22 74 64.84 35.6 15.08 57.74 100 0 P H 7320 33.02 -20.98 54 - - - - - - A H 4884 57.28 -16.72 74 70.6 34.3 11.21 58.83 100 0 P V 4884 32.52 -21.48 54 - - - - - - A V 7320 58.31 -15.69 74 65.37 35.6 15.08 57.74 100 0 P V 7320 33.55 -20.45 54 - - - - - - A V BT CH 78 2480MHz 4962 60.88 -13.12 74 73.85 34.37 11.32 58.66 100 0 P H 4962 36.12 -17.88 54 - - - - - - A H 7440 60.73 -13.27 74 67.85 35.6 15.13 57.85 100 0 P H 7440 35.97 -18.03 54 - - - - - - A H 4962 60.29 -13.71 74 73.26 34.37 11.32 58.66 100 0 P V 4962 35.53 -18.47 54 - - - - - - A V 7440 60.4 -13.6 74 67.52 35.6 15.13 57.85 100 0 P V 7440 35.64 -18.36 54 - - - - - - A V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A4 of A6 FCC RF Test Report Report No. : FR521045-01 15C Emission below 1GHz 2.4GHz BT (LF) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) (dBμV) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 2.4GHz BT LF 38.64 22.31 -17.69 40 37.32 14.44 1.77 31.22 - - P H 52.68 18.8 -21.2 40 40.63 7.6 1.77 31.2 - - P H 220.89 19.09 -26.91 46 37.75 9.38 2.96 31 - - P H 454 20.39 -25.61 46 30.19 17.34 3.63 30.77 - - P H 659.8 24.27 -21.73 46 30.23 20.3 4.22 30.48 - - P H 951 28.95 -17.05 46 29.98 24.43 4.94 30.4 119 266 P H H H H H H H 39.18 28.97 -11.03 40 43.96 14.44 1.77 31.2 - - P V 57.81 31.7 -8.3 40 55.03 6.16 1.77 31.26 188 55 P V 90.75 23.31 -20.19 43.5 43.55 8.8 2.06 31.1 - - P V 481.3 20.79 -25.21 46 30.18 17.63 3.77 30.79 - - P V 748.7 26.79 -19.21 46 30.6 22.11 4.48 30.4 - - P V 934.2 28.88 -17.12 46 30.15 24.3 4.8 30.37 - - P V V V V V V V Remark 1. No other spurious found. 2. All results are PASS against limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A5 of A6 FCC RF Test Report Report No. : FR521045-01 Note symbol * Fundamental Frequency which can be ignored. However, the level of any unwanted emissions shall not exceed the level of the fundamental frequency per 15.209(c). ! Test result is over limit line. P/A Peak or Average H/V Horizontal or Vertical SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A6 of A6 FCC RF Test Report Report No. : FR521045-01 A calculation example for radiated spurious emission is shown as below: WIFI Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Ant. Limit Line Level Factor Loss Factor Pos Pos Avg. 1+2 ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 802.11b CH 01 2412MHz 2390 55.45 -18.55 74 54.51 32.22 4.58 35.86 103 308 P H 2390 43.54 -10.46 54 42.6 32.22 4.58 35.86 103 308 A H 1. Level(dBμV/m) = Antenna Factor(dB/m) + Cable Loss(dB) + Read Level(dBμV) - Preamp Factor(dB) 2. Over Limit(dB) = Level(dBμV/m) – Limit Line(dBμV/m) For Peak Limit @ 2390MHz: 1. Level(dBμV/m) = Antenna Factor(dB/m) + Cable Loss(dB) + Read Level(dBμV) - Preamp Fa…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B1 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-BT0003 Report Template No.: BU5-FR15CBT Version 1.0 FCC RF Test Report Report No. : FR521045-01 Appendix B. Setup Photographs <Radiated Emission> Y Plane LF HF
