EJE-HMD01Head Mounted Display (HMD), Model - IOT001

1 Instruction Manual Head Mounted Display Wearable Keyboard 2 3 Unpacking and checking the device Unpack all the individual parts. If any of the parts are missing, please notify your local sales representative immediately. Below is the list of included items. ■Head Mounted Display □microUSB cable □mono earphones □warranty □instruction manual (This manual) □Head Mounted Display main unit (A strap is attached to the battery cap) □display cushion x1 □knurled screw x4 (Use a flat blade screwdriver or a coin to turn) ■Fitting belt These are used when wearing HMD on your head. □Left head adjuster □Right head adjuster 4 □Left belt attachment □Right belt attachment □side cushion x2 □top band □front band ■Clip to a helmet These are used when attaching HMD to a helmet. □Left helmet clip □Right helmet clip ■Battery pack □battery pack x1 ■Battery charger □battery charger x1 □AC adaptor □power cable 5 ■Wearable keyboard □wearable keyboard □wearable keyboard belt □AAA alkaline battery x2 Before using this product --------------------------------------------------------------------------------------- About the warranty  Be sure to fill in the necessary information on the warranty and read its contents. After that, keep it in a safe place.  Be sure to have the warranty on hand whenever requesting servicing.  Malfunctions that occur within the warranty period while the product is being used correctly will be repaired without charge.  Even if malfunction occurs during the warranty period, repair will be subjected to charges in the case the warranty is not presented, if the malfunction is due to natural causes, improper use of the product, etc. Refer to the warranty for details.  This product and its accessories are subject to change, in part or in their entirety, without notice. Using the Product in Applications that Require a High Degree of Safety This product is intended for general use, such as general office use, personal use, household use, and normal industrial use, but it is not designed, manufactured or intended for applications that require a high degree of safety. Do not use this product without first adequately ensuring the level of safety required by the application. An application that requires a high degree of safety is one that is accompanied by a serious direct risk of death or personal injury unless an extremely high degree of safety is ensured, such as those applications noted below.  Nuclear reaction control, aircraft auto pilot control, air traffic control, mass transport system operation control, medical life support, military weapons system missile launch control, etc. 6 About the limited-life components ・The battery pack and dry cell batteries are consumable parts, so they need to be replaced on a timely basis in order to maintain performance. Furthermore, purchasing and replacing batteries must be done by yourself regardless of warranty period. ・The battery pack typically have a lifespan of between 300 and 500 cycles. Battery pack’s service life will depend on the environment temperature and usage. About the terms "power plug" and "power outlet" The power plug of the AC adapter that comes with the product is a flat-blade 2-pole plug. The manual refers to such a plug as "power plug." Connect the power plug to a power outlet that accepts a flat-blade 2-pole plug (125 V, 15 A). The manual refers to such a power outlet as "outlet." Product License Agreement Fujitsu Limited (hereafter Fujitsu) grants you a limited, non-exclusive license to use the software installed on this product (Software) provided that you agree to the "Software Terms of Use" below. By starting to use this Software you are agreeing to be bound by this End-User License Agreement (this Agreement), so be sure to read the "Software Terms of Use" before using this Software. However, note that this Agreement takes priority over any other "Terms of Use," "End-User License Agreement," or other similar documents that are separately appended to any parts of this software. Software License Agreement 1. License and Copyrights Fujitsu grants you a limited, non-exclusive license to use this software on this product only. By purchasing this product, you the purchaser are granted the license only for the use of this software, and the rights to this software continue to revert to Fujitsu or third-party developers. 2. Transfer to a Third Party When transferring the Software (including the manual that comes with this product) to a third party, you shall transfer the software in its entirety along with the product on which the software is installed. 3. Modification You are not allowed to modify or reverse engineer this software, such as by reverse 7 compiling, or reverse assembling. 4. Limited Warranty (1) Fujitsu will not be liable in any way for any damages (including but not restricted to lost profits, work stoppages, loss of business data, or other monetary damages) that result from the use of or the inability to use the software. This also applies even if Fujitsu knew or should have known about the possibility of such damages. (2) Even if the Software includes software developed by a third party, the third party developer makes no guarantees whatsoever about the software. 5. High degree of safety This software is intended for general use, such as general office use, personal use, and household use, but it is not designed, manufactured or intended for applications that require a high degree of safety. The user must adequately implement measures to ensure the level of safety required by any such applications to use this software. An application that requires a high level of safety is one that is accompanied by a serious direct risk of death or personal injury unless safety is temporarily and appropriately ensured, such as the following examples that require an extremely high degree of safety. Nuclear power core control, aircraft control, air traffic control, mass transport system operation control, medical life support, milita…

Text truncated - open the document above for the full version.

Fujitsu Limited 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 We have declared below featured for device identified as FCC ID: EJE-HMD01 IC: 337J-HMD01 (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Scanning Plan Ad Hoc Mode capability Access point capability WiFi Direct Group Owner WiFi Direct Group Client 2412 – 2462 Active No No Yes Yes 5180 – 5240 Passive No No No Yes 5260 – 5320 Passive No No No Yes 5500 – 5700 Passive No No No Yes (3) Country code selection cability to end user- Yes , No If yes, pls explain how it was implemented : (pls also help to provide detail of options for each country selection) (4) Transmission in 5600 MHz to 5650 MHz is notched - Yes , No (5) Meet Part 15.202 requirement - Yes , No , * A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices * A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (6) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on it was implement , and how software was controlled) Contact Person: Tsuyoshi Uchihara E-mail: [email protected]

Fujitsu Limited 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: March 19, 2015 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: EJE-HMD01 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagrams  Block Diagram  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Tsuyoshi Uchihara [email protected]

Fujitsu Limited 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: March 23, 2015 Power of Attorney To w h om it may concern, Please be notified that I, Tsuyoshi Uchihara, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: EJE-HMD01 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Tsuyoshi Uchihara [email protected]

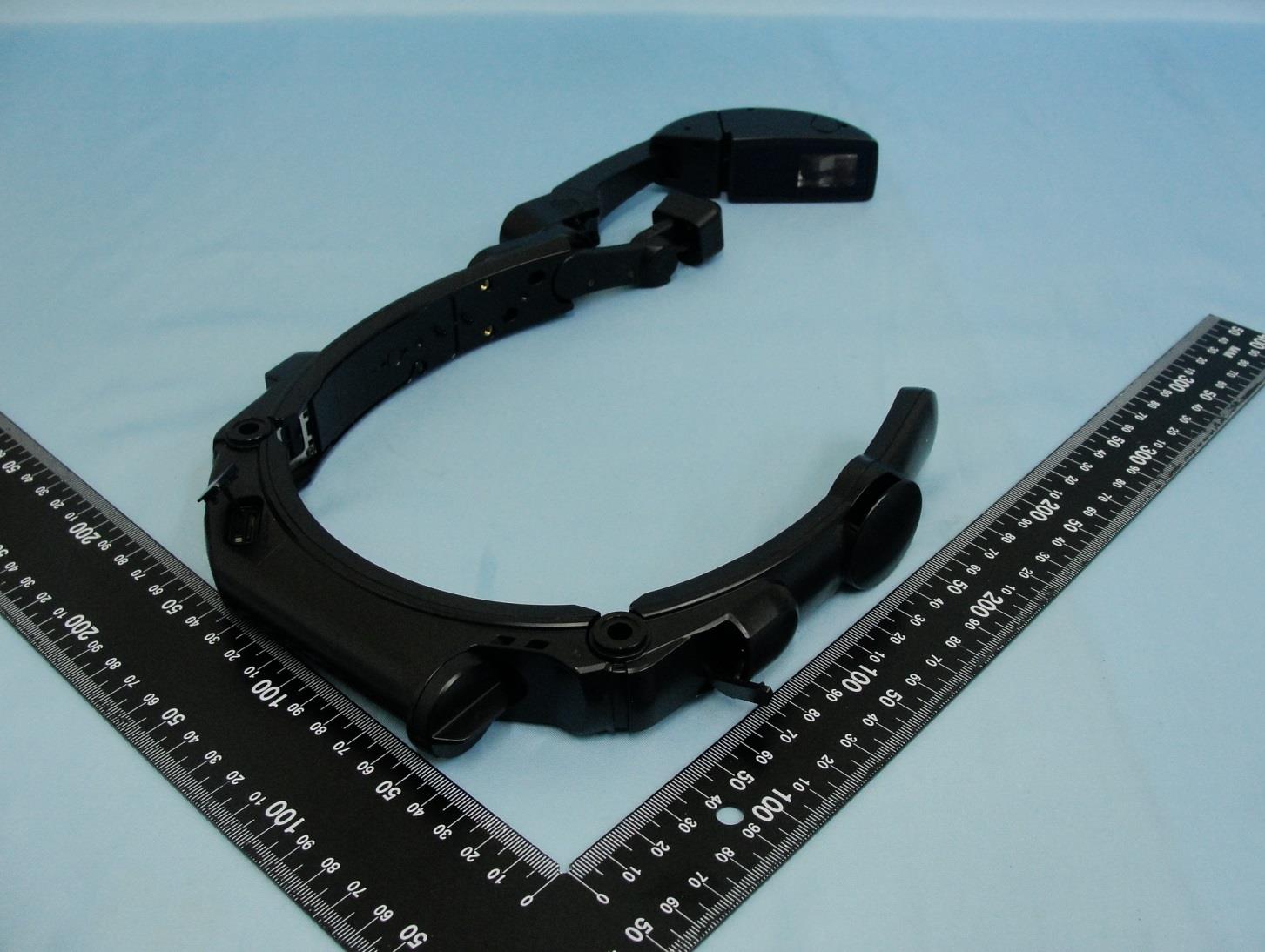

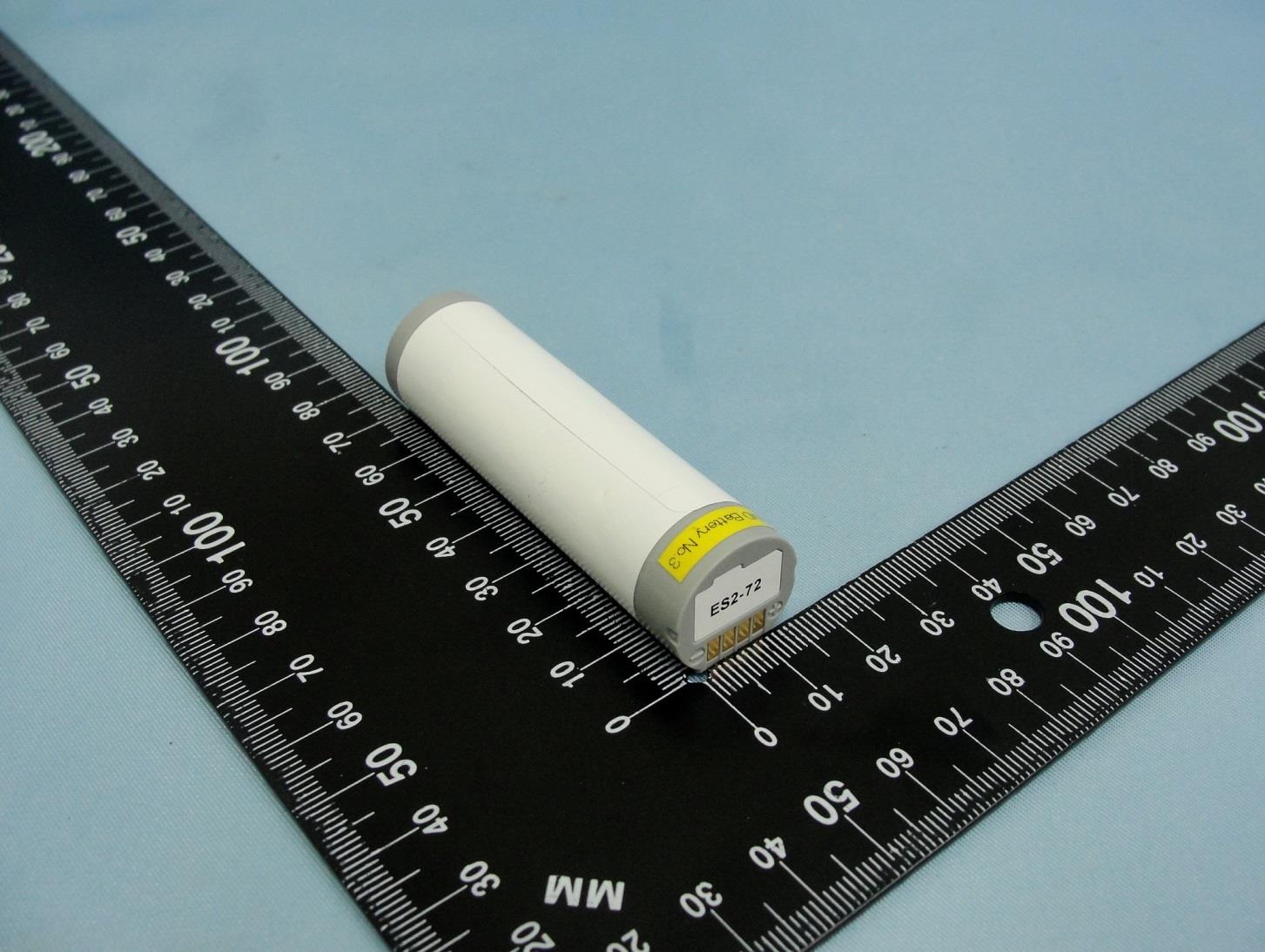

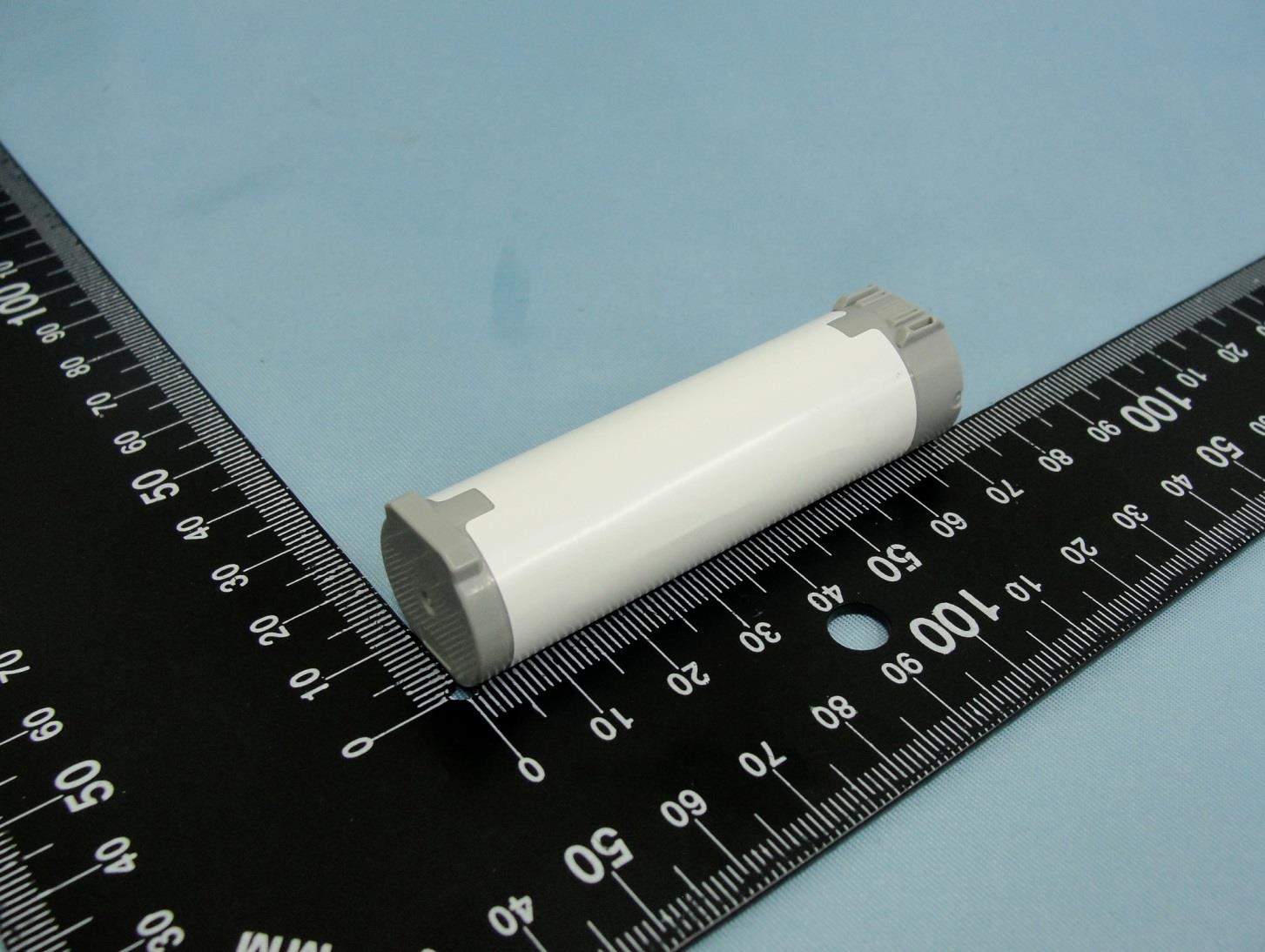

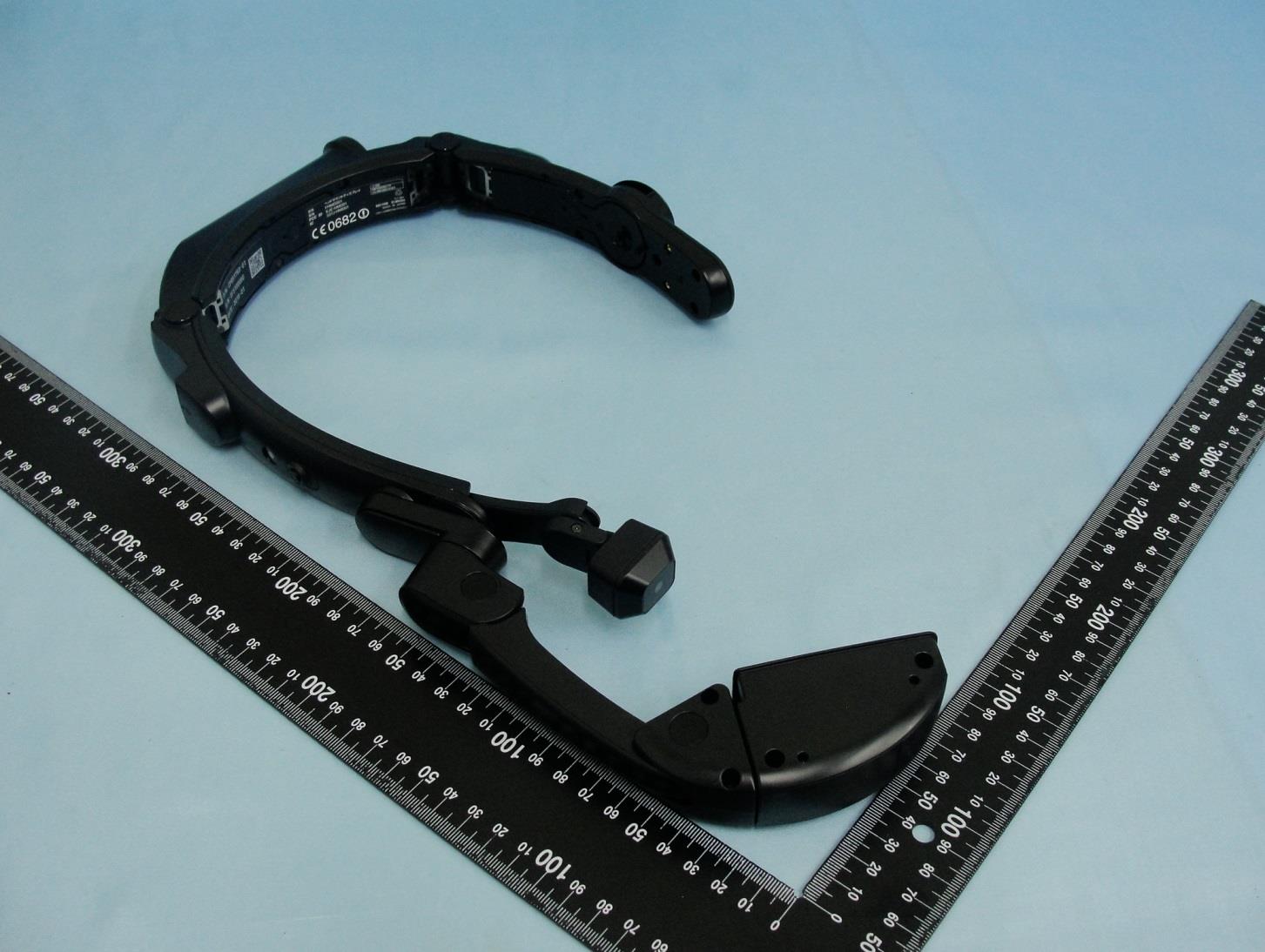

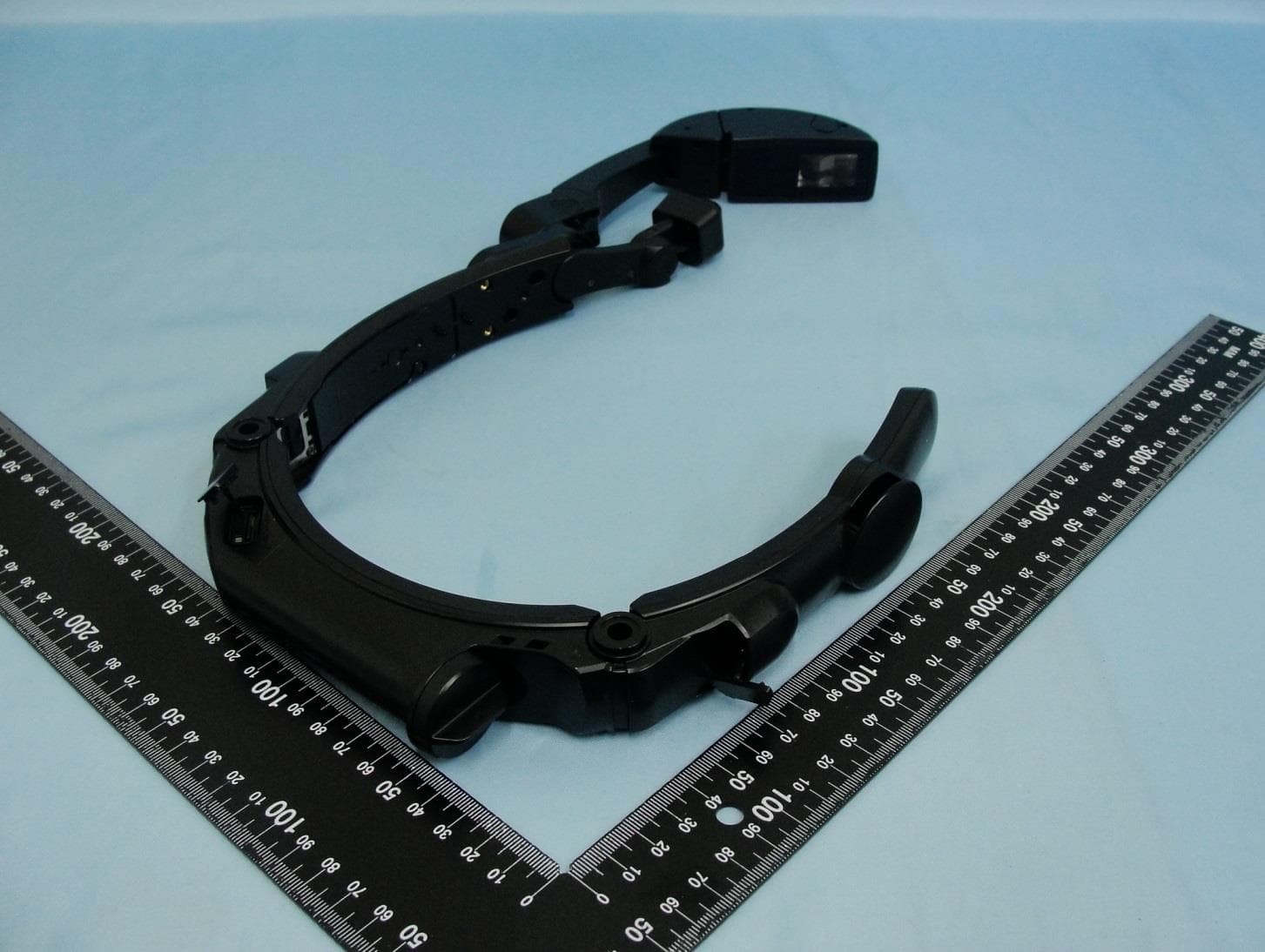

Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 1. External Photograph of EUT Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 3 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 4 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 5 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 6 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 7 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 8 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 9 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 720510 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 10 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Specification of Accessory Battery Brand Name N/A Model Name ES2-72 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 11 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 12 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Battery Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 13 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 720510

Side view of the device

Copyright 2015 FUJITSU LIMITED Label 1 HMD Label① BRACCA Label② FCC IC Label

Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 14 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 3. Internal Photograph of EUT Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 15 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 16 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 17 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 18 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 19 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 20 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 21 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 22 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 23 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 24 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 25 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 26 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 27 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 28 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 29 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 30 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 31 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 32 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 33 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 34 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 Photographs of EUT Report No.: EP521045 Brand Name: FUJITSU / Model Name: IOT001 SPORTON INTERNATIONAL INC. Page Number : 35 of 35 TEL : 886-3-327-3456 Report Issued Date : Apr. 08, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-HMD01 IC : 337J-HMD01 720510 WLAN & Bluetooth Antenna

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Apr. 08, 2015 FCC ID : EJE-HMD01 Page 1 of 23 Form version. : 141020 FCC SAR Test Report Report No. : FA521045 FCC SAR Test Report APPLICANT : FUJITSU LIMITED EQUIPMENT : Head Mounted Display (HMD) BRAND NAME : FUJITSU MODEL NAME : IOT001 FCC ID : EJE-HMD01 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Apr. 08, 2015 FCC ID : EJE-HMD01 Page 2 of 23 Form version. : 141020 FCC SAR Test Report Report No. : FA521045 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 5 5. RF Exposure Limits....................................................................................................................................................... 6 5.1 Uncontrolled Environment ...................................................................................................................................... 6 5.2 Controlled Environment .......................................................................................................................................... 6 6. Specific Absorption Rate (SAR) ................................................................................................................................... 7 6.1 Introduction ............................................................................................................................................................ 7 6.2 SAR Definition ........................................................................................................................................................ 7 7. System Description and Setup .................................................................................................................................... 8 8. Measurement Procedures ............................................................................................................................................ 9 8.1 Spatial Peak SAR Evaluation ................................................................................................................................. 9 8.2 Power Reference Measurement............................................................................................................................10 8.3 Area Scan .............................................................................................................................................................10 8.4 Zoom Scan ............................................................................................................................................................ 11 8.5 Volume Scan Procedures ...................................................................................................................................... 11 8.6 Power Drift Monitoring ........................................................................................................................................... 11 9. Test Equipment List .....................................................................................................................................................12 10. System Verification ....................................................................................................................................................13 10.1 Tissue Verification ...............................................................................................................................................13 10.2 System Performance Check Results ...................................................................................................................14 11. Conducted RF Output Power (Unit: dBm) ................................................................................................................15 12. Bluetooth Exclusions Applied ..................................................................................................................................17 13. Antenna Location .......................................................................................................................................................18 14. SAR Test Results .......................................................................................................................................................19 14.1 Head SAR ......................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/2/24 System Check_Head_2450MHz_150224 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_150224 Medium parameters used: f = 2450 MHz; σ = 1.864 S/m; ε r = 38.239; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(7.46, 7.46, 7.46); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.9 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 116.5 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 28.5 W/kg SAR(1 g) = 13.5 W/kg; SAR(10 g) = 6.14 W/kg Maximum value of SAR (measured) = 22.7 W/kg 0 dB = 22.7 W/kg = 13.56 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/3/3 System Check_Head_2450MHz_150303 DUT: D2450V2-924 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_150303 Medium parameters used: f = 2450 MHz; σ = 1.87 S/m; ε r = 38.658; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(6.85, 6.85, 6.85); Calibrated: 2014/5/15; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1388; Calibrated: 2014/9/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.2 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 103.1 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 25.6 W/kg SAR(1 g) = 12.4 W/kg; SAR(10 g) = 5.7 W/kg Maximum value of SAR (measured) = 19.1 W/kg 0 dB = 19.1 W/kg = 12.81 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/2/24 System Check_Head_5200MHz_150224 DUT: D5GHzV2-1006 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: HSL_5G_150224 Medium parameters used: f = 5200 MHz; σ = 4.649 S/m; ε r = 37.133; ρ = 1000 kg/m 3 23.5 22.5 DASY5 Configuration: - Probe: EX3DV4 - SN3955; ConvF(5.13, 5.13, 5.13); Calibrated: 2014/11/21; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1399; Calibrated: 2014/11/13 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 21.9 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference …
