EJE-WB0008ST Series Tablet PC with WM3B2200BG and UGXZ5-102A

Copyright Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. Because ongoing development efforts are made to continually improve the capabilities of our prod- ucts, however, the data contained herein represents Fujitsu design objectives and is provided for comparative purposes; actual results may vary based on a variety of factors. This product data does not constitute a warranty. Specifications are subject to change without knowledge. Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited; Stylistic is a registered trademark of Fujitsu Computer Systems Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Associa- tion. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Atheros is a registered trademark of Atheros Communi- cations, Inc. PowerQuest and Drive Image are registered trademarks of PowerQuest Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. SanDisk and the SanDisk logo are registered trademarks of SanDisk Corporation. Memory Stick is a registered trademark of Sony Corpora- tion and/or its affiliates Wi-Fi is a trademark of the Wireless Ethernet Compati- bility Alliance (WECA). All other products are trademarks or registered trade- marks of their respective companies. Copyright 2004-Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Fujitsu Computer Systems Corpora- tion. No part of this publication may be stored or trans- mitted in any electronic form without the prior consent of Fujitsu Computer Systems Corporation. B6FH-0561-02EN-00 Note:For more detailed information about the FCC rules and their applicability to the Stylistic ST5000 Series Tablet PC, refer to Chapter 5 of this document. Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address:1250 E. Arques Avenue, MS 122 Sunnyvale, CA 954085 Telephone:408-746-6000 Declares that product:Model Series: Stylistic® ST5000 Tablet PC Complies with Part 15 of the FCC Rules This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. Stylistic ST5000 Series Tablet PC - User’s Guide Table of Contents Table of Contents PREFACE About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . v Fujitsu Contact Information . . . . . . . . . . . . . . . . . v Warranty Information . . . . . . . . . . . . . . . . . . . . . v 1 GETTING STARTED WITH YOUR TABLET PC Getting Started In-box Items for the Stylistic ST5000 Series Tablet PC . . . . . . . . . . . . . . . . . . 1 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2 Stylistic Tablet PC Features. . . . . . . . . . . . . . . . . . 3 Status Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Application Buttons . . . . . . . . . . . . . . . . . . . . . . 10 Navigation Buttons. . . . . . . . . . . . . . . . . . . . . . . 12 Tertiary Functions of Application and Navigation Buttons. . . . . . . . . . . . . . . . . . 13 Security Functions of Application Buttons. . . . . . 14 Setting up the Security Panel . . . . . . . . . . . . . . . 14 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Your Security Panel . . . . . . . . . . . . . . . . . 15 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Uninstalling the Security Panel Application . . . . . 15 Connectors and Peripheral Interfaces . . . . . . . . . 17 2 USING YOUR TABLET PC Using the Stylistic ST5000 Series Tablet PC System States . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Powering Up the Tablet PC . . . . . . . . . . . . . . . . 22 Shutting Down the System. . . . . . . . . . . . . . . . . 22 Suspending System Operation . . . . . . . . . . . . . . 22 Resuming System Operation . . . . . . . . . . . . . . . 24 Adjusting the Display Brightness. . . . . . . . . . . . . 24 Using the Pen. . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Calibrating the Pen . . . . . . . . . . . . . . . . . . . . . . 25 Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . 25 Replacing the Pen Tip . . . . . . . . . . . . . . . . . . . . 25 Charging the Battery . . . . . . . . . . . . . . . . . . . . . 26 Removing and Installing the Battery. . . . . . . . . . 26 Tips for Conserving Battery Power . . . . . . . . . . . 27 Modem Connection . . . . . . . . . . . . . . . . . . . . . 27 Memory Stick/SD Card Slot . . . . . . . . . . . . . . . . 27 PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Removing and Installing Memory Modules . . . . 28 3 CARE AND MAINTENANCE Care and Maintenance Caring for Your Tablet PC . . . . . . . . . . . . . . . . . 33 Protecting the Display Screen. . . . . . . . . . . . . . . 33 Storing the Tablet PC . . . . . . . . . . . . . . . . . . . . . 34 Avoiding Overheating . . . . . . . . . . . . . . . . . . . . 34 Cleaning the Display Screen . . . . . . . . . . . . . . . . 34 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 34 Restoring Your Pre-Installed Software . . . . . . . . 35 Drive Image Special Edition (DISE) . . . . . . . . . . . 36 4 SPECIFICATIONS Stylistic ST5000 Series Hardware Specifications Physical Specifications . . . . . . . . . . . . . . . . . . . . 41 Processing Specifications . . . . . . . . . . . . . . . . . . 41 Memory/Storage Spec…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Company: Fujitsu Limited Test Sample: Stylistic ST Series Pentablet PC (Ocampa3) installed with a Mini-PCI WLAN module (WM3B2200BG) & Bluetooth (UGXZ5-102A). Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Limited, requests that prior to the equipment authorization grant for the test sample the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Limited and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Fujitsu Limited, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Operation Description, Antenna Information Sincerely Yours,

Response to TCB Findings 1. The peak antenna gain is listed as 2.08dBi in the antenna specifications (first page) and the gain for WLAN antenna is listed as 0.69dBi in the report. Please clarify. [Donna] The peak antenna gain of 2.08dBi is the original antenna manufacturer specification (isotropic gain, when NOT installed in a host). The antenna gain for WLAN Ae is 0.69dBi as listed in the test report is specific for this antenna installed in this particular host. Ideally the first 2 pages are NOT relevant to the submission. Please see attached reviewed Appendix F. 2. The antenna gain listed for the BT radio in the report is 0.12dBi, different from the WLAN antenna. They appaear to be the same antenna in the report. Please clarify the difference. [Donna] The antenna for BT radio used is the Right-Side antenna document. The highest antenna gain of the Right-Side Antenna was 0.12dBi (2.4GHz). Refer to Appendix B3 for antenna location. The antenna for WLAN radio used is the Under-Left antenna (next to WLAN module). The highest antenna gain of the Under-Left Antenna was 0.69dBi (2.4GHz). Both BT (Right-Side) and WLAN (Under-Left) antennas are Monopole Ceramic Chip, Model YCE-5008. As explained in item 3 above, the antenna gains measured are specific for this host and based on their location, the antenna gain is different. 3. The antenna location pictures for both radios show only one of the antenna's location, but not the other. (For example, where does the cable connected to the AUX port of the WLAN go to ? and same issue for the BT radio) Please clarify how the other antenna ports are being used on the modules. If they are used as well, the pictures of their corresponding antenna locations are required. Please clarify. [Donna] WLAN module main antenna port is connected to WLAN mains antenna (Ae next to the WLAN as shown in the photo). The WLAN module Aux Antenna port is connected to WLAN Aux Antenna via Bluetooth circuitry. This is to disable the WLAN Aux Antenna for WLAN transmission when Bluetooth is used. Bluetooth is only connected to the Bluetooth Antenna/WLAN Aux Antenna. There are only 2 antennas in total for both WLAN and Bluetooth operation. Both antennas are shown in the supplied photos.

EMC Technologies Pty. Ltd., 57 Assembly Dve., Tullamarine, Vic., 3043, Australia. Phone : +61 3 9335 3333 Fax: +61 3 9338 9260 www.emctech.com.au FCC ID: EJE-WB0008 Date: 14 th July 2004 EMC Reference: M040631 Subject: Response to TCB Queries Q1. The FCC ID listed in the SAR report (EJE-WL0008) is different from the rest of the application. Please clarify. This is a typographical error and should read EJE-WB0008. See updated report. Q2 The "Turbo" mode mentioned for 802.11g on Table 2 of the SAR Report has not been addressed in the EMC report or the SAR report itself. Please clarify. There is no TURBO mode for Calexico2 WLAN. See updated report. Q3. In section 2.2.1, the battery model is not listed and in Appendix A3, two battery pictures are shown. Were they both used during SAR testing? See attached report. Both batteries (identical types) were used in the testing. Q4 For conducted peak power measurements at the antenna terminal, please specify the Coax Cable loss (dB). This is needed to make a comparison of the adjusted reading with the EMC report. The cable loss was mentioned in the EMC test report. Q5. Please specify the probe tip diameter. The probe tip diameter is 6.8mm. EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0008 14 th July 2004 Page 2 of 2 Q6. The probe calibration sheet should also address isotropy error, linearity, frequency response, dynamic range etc. Please supply additional calibration data. See below: ET3DV6 / ET3DV6R ISOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS Construction Symmetrical design with triangular core Built-in optical fiber for surface detection system (ET3DV6 only) Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g., DGBE) Calibration Basic Broad Band Calibration in air: 10-3000 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 Additional CF for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces (ET3DV6 only) Dimensions Overall length: 330 mm (Tip: 16 mm) Tip diameter: 6.8 mm (Body: 12 mm) Distance from probe tip to dipole centers: 2.7 mm Application General dosimetric measurements up to 2.5GHz Compliance tests of mobile phones Fast automatic scanning in arbitrary phantoms FCC ID: EJE-WB0008 14 th July 2004 Page 3 of 3 Q7 On Table 21 of the report the antenna listed is called as "B". Is this the same "Main" antenna listed for others? Please clarify. See Revised report. Antenna Main is the used for the WLAN module. Q8 Please provide a justification for the difference noted between the 1g-SAR values on Plots 1 & 8. Why is there a major difference between 802.11g and b 1g-SAR values for the same test position? The average (source based) power of the Calexico module in OFDM mode is much lower than the average power of the Calexico module in DSSS mode this is the reason for the difference.

FCC ID: 337J-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au FCC DoC Stylistic ST Series Pentablet PC (Ocampa3)

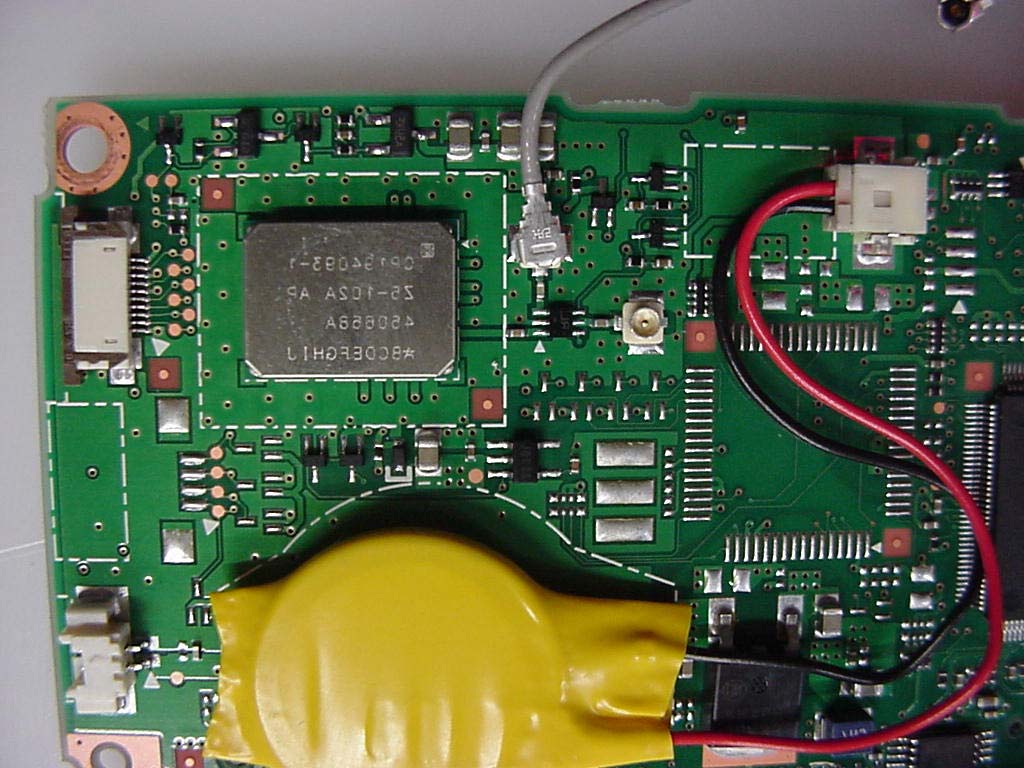

FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040603_Cert_Ocampa3_Calexico2_BT APPENDIX B1 - Test Sample External Photographs FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – Calexico2 (11b/g), Model WM3B2200BG FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth – UGXZ5-102A (on Mother board) - Front Bluetooth (on Motherboard) - Rear FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth – UGXZ5-102A (Exploded view) FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC Stylistic ST Series Pentablet PC, Model ST5021 / ST5020 / ST5022 (Ocampa3) FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC Stylistic ST Series Pentablet PC, Model ST5021 / ST5020 / ST5022 (Ocampa3)

FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040603_Cert_Ocampa3_ Calexico2_BT APPENDIX H – FCC LABELLING Label Material: Mylar (permanent adhesive)

FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040603_Cert_Ocampa3_Calexico2_BT APPENDIX B3 WLAN, Bluetooth and Antenna Location Photographs FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – WLAN, BT & Antenna Location Calexico2 WLAN & Antenna Location – Exploded view Calexico2 WLAN WLAN Antenna Location FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – WLAN, BT & Antenna Location BT LOCATION BT ANTENNA LOCATION FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – WLAN, BT & Antenna Location BT Antenna location – exploded view

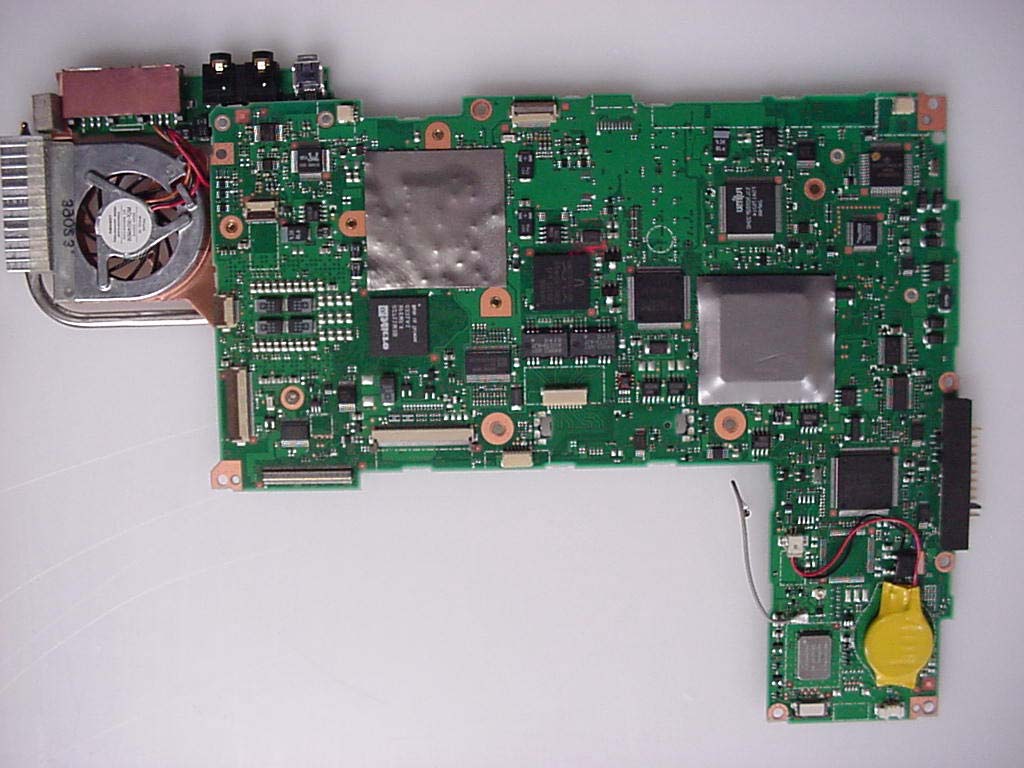

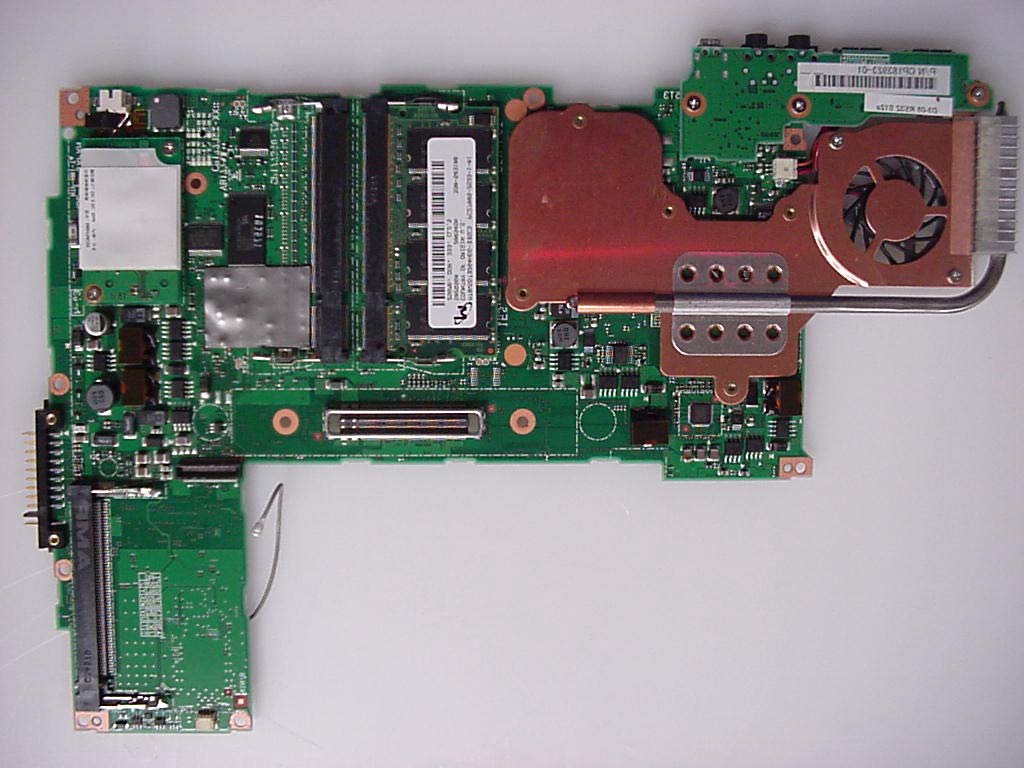

FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040603_Cert_Ocampa3_Calexico2_BT APPENDIX B4 – Test Sample Photographs (internal) FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – Calexico2 (11b/g), Model WM3B2200BG FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth – UGXZ5-102A (on Mother board) - Front Bluetooth (on Motherboard) - Rear FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth – UGXZ5-102A (Exploded view) FCC ID: EJE-WB0008 (IC: 337J-WB0008) Report No. M040603_Cert_Ocampa3_Calexico2_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC Stylistic ST Series Pentablet PC, Model ST5021 / ST5020 / ST5022 (Ocampa3)

FCC ID: EJE-WB0008 IC: 337J-WB0008 EMC Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 1 of 44 EMC Technologies is a NATA Accredited Laboratory complying with the requirements specified in ISO/IEC 17025 and results produced are traceable to national standards of measurement. This document shall not be reproduced, except in full. Nata Accredited Laboratory Number: 5292 SAR Test Report Report Number: M040631_ OCAMPA3_CALEXICO2_SAR_2.4 Test Sample: Portable Tablet Computer Wireless LAN Model Number: WM3B2200BG Tested For: Fujitsu Australia Pty Ltd FCC ID: EJE-WB0008 IC: 337J-WB0008 Date of Issue: 14 th July 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0008 IC: 337J-WB0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 2 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au CONTENTS 1.0 GENERAL INFORMATION........................................................................................................... 3 2.0 DESCRIPTION OF DEVICE..........................................................................................................4 2.1 Description of Test Sample .................................................................................................. 4 2.1.1 Summary of EUT Details .................................................................................................. 4 2.1.2 EUT Host Details .............................................................................................................. 5 2.2 Test sample Accessories ..................................................................................................... 5 2.2.1 Battery Types ...................................................................................................................5 2.3 Test Signal, Frequency and Output Power........................................................................... 6 2.4 Battery Status....................................................................................................................... 6 2.5 Details of Test Laboratory .................................................................................................... 7 2.5.1 Location............................................................................................................................ 7 2.5.2 Accreditations ................................................................................................................... 7 2.5.3 Environmental Factors...................................................................................................... 8 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ................................................................... 8 3.1 Probe Positioning System .................................................................................................... 8 3.2 E-Field Probe Type and Performance .................................................................................. 8 3.3 Data Acquisition Electronics ................................................................................................. 8 3.4 Calibration and Validation Procedures and Data .................................................................. 8 3.4.1 Validation Results @ 2450MHz ........................................................................................ 9 3.4.2 Deviation from reference validation values ....................................................................... 9 3.4.3 Liquid Depth 15cm.......................................................................................................... 10 3.5 Phantom Properties (Size, Shape, Shell Thickness) .......................................................... 11 3.6 Tissue Material Properties.................................................................................................. 12 3.6.1 Liquid Temperature and Humidity................................................................................... 12 3.7 Simulated Tissue Composition Used for SAR Test ............................................................ 13 3.8 Device Holder for Laptops and P 10.1 Phantom ................................................................ 13 4.0 SAR MEASUREMENT PROCEDURE USING DASY4 ............................................................... 14 5.0 MEASUREMENT UNCERTAINTY.............................................................................................. 15 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS .................................................................... 17 7.0 OET BULLETIN 65 – SUPPLEMENT C TEST METHOD ........................................................... 18 7.1.1 “Tablet” Position Definition (0mm spacing) ..................................................................... 18 7.1.2 “Lap Arm Held” Position (0mm spacing) ......................................................................... 18 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes) ............................ 19 7.3 FCC RF Exposure Limits for Occupational/ Controlled Exposure....................................... 19 7.4 FCC RF Exposure Limits for Un-controlled/Non–occupational ........................................... 19 8.0 SAR MEASUREM…

Text truncated - open the document above for the full version.

FCC ID: EJE-WL0008 IC: 337J-WL0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 27 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for the “Lap Arm Held” and “Tablet” tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table 22: 2450 MHz DSSS Band SAR Measurement Plot Numbers Plot 1 Tablet Position No Blue tooth CH#01 Page 28 – 29 Plot 2 Tablet Position No Blue tooth CH#06 Page 30 – 31 Plot 3 Tablet Position No Blue tooth CH#11 Page 32 Z-Axis Graphs Z-Axis graphs for Plots 1 to 3 Page 33 Plot 4 Tablet Position With Blue tooth BTCH#2402 Page 34 Plot 5 Tablet Position With Blue tooth BTCH#2441 Page 35 Plot 6 Tablet Position With Blue tooth BTCH#2441 Page 36 Z-Axis Graphs Z-Axis graphs for Plots 4 to 6 Page 37 Plot 7 Arm Held Position With Blue Tooth BTCH#2441 Page 38 Z-Axis Graphs Z-Axis graphs for Plots 7 to 9 Page 39 Plot 8 Tablet Position - OFDM - No Bluetooth CH#06 Page 40 Plot 9 Validation 18 th June 2004 Page 41 Plot 10 Validation 21 st June 2004 Page 42 Z-Axis Graphs Z-Axis graphs for plots 9 to 10 Page 43 FCC ID: EJE-WL0008 IC: 337J-WL0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 28 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Test Date: 18 June 2004 File Name: Tablet DSSS 2.45 GHz No Bluetooth Batt 4400MAh 18-06-04.da4 DUT: Fujitsu Tablet Ocampa B1 with WLAN; Type: Calexico 11bg Module; Serial: No.37 * Communication System: DSSS 2450 MHz; Frequency: 2412 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.9652; mho/m, ε r = 51.2063; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.5, 4.5, 4.5) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 01 Test/Area Scan (101x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 0.355 mW/g Channel 01 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.660 mW/g Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.565 mW/g; SAR(10 g) = 0.246 mW/g 0 dB = 0.660mW/g FCC ID: EJE-WL0008 IC: 337J-WL0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 29 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au 2D Area Scan 0 dB = 0.600mW/g Zoom scan slice in plane of maximum SAR 0 dB = 0.600mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 20.0 Degrees Celsius Liquid Temperature 19.5 Degrees Celsius Humidity 43 % FCC ID: EJE-WL0008 IC: 337J-WL0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 30 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Test Date: 18 June 2004 File Name: Tablet DSSS 2.45 GHz No Bluetooth Batt 4400MAh 18-06-04.da4 DUT: Fujitsu Tablet Ocampa B1 with WLAN; Type: Calexico 11bg Module; Serial: No.37 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.99767; mho/m, ε r = 51.0933; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.5, 4.5, 4.5) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 06 Test/Area Scan (101x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12.1 V/m; Power Drift = 0.0 dB Maximum value of SAR (interpolated) = 0.320 mW/g Channel 06 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.600 mW/g Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.510 mW/g; SAR(10 g) = 0.224 mW/g 0 dB = 0.600mW/g FCC ID: EJE-WL0008 IC: 337J-WL0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 31 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au 0 dB = 0.570mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 20.0 Degrees Celsius Liquid Temperature 19.5 Degrees Celsius Humidity 43 % FCC ID: EJE-WL0008 IC: 337J-WL0008 Report No. M040631_Ocampa3_Calexico2_SAR_2.4 Page 32 of 44 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Test Date: 18 June 2004 File Name: Tablet DSSS 2.45 GHz No Bluetooth Batt 4400MAh 18-06-04.da4 DUT: Fujitsu Tablet Ocampa B1 with WLAN; Type: Calexico 11bg Module; Serial: No.37 * Communication System: DSSS 2450 MHz; Frequency: 2462 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 2.03074; mho/m, ε r = 50.937; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.5, 4.5, 4.5) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 11 Test/Area Scan (101x81x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.9 V/m; Power Drift = -0.2 dB Maximum value of SAR (interpolated) = 0.285 mW/g Channel 11 Test/Zo…
