EJE-WB0016LIFEBOOK E SERIES WITH CAL2 11ABG WLAN & BT

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M041106_Cert_Eton_BT_Cal2_11abg APPENDIX O – User Manual Pt1 Copyr ight C opyright Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. T he following are registered trademarks of I BM Corporation: I BM, I BM PC AT, I BM PS/2. T he following are registered trademarks of Microsoft Corporation: MS, MS-DOS, Windows. PC MC I A is a trademark of the Personal C omputer Memory Card International Association. Earthlink is a registered trademark of EarthLink Network, Inc. Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. T he Bluetooth trademark is owned by Bluetooth SI G, Inc., U SA. Adobe Acrobat Reader is a registered trademark of Adobe Systems, Inc. Netscape 7.0 is a registered trademark of Netscape Communications Corporation. PowerQuest and Drive Image are registered trademarks of PowerQuest C orporation. Norton AntiVirus is a registered trademark of Symantec C orporation. BayManager is a registered trademark of Softex, Inc. T he DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disas- sembly is prohibited. Dolby Headphone manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Copy- rights 1992-1999 Dolby Laboratories. All rights reserved. All other trademarks mentioned herein are the property of their respective owner s. © Copyright 2004 Fujitsu Computer Systems Corpora- tion. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FH - 1931- 01EN - 00 (DR AFT) Warning H andling the cord on this product will expose you to lead, a chemical known to the State of C alifornia to cause birth defects or other reproductive harm. Wa s h ha nds after ha ndling. DEC LAR ATIO N O F C O N FO R MITY according to FCC Part 15 Responsible Party Name:Fujitsu C omputer Systems C orporation Address: 1250 E. Arques Avenue, M/S 122 Sunnyvale, C A 94085 Telephone:( 408) 746-6000 Declares that product:Base Model Configurations: LifeBook E8020 notebook LifeBook E8020D notebook Complies with Part 15 of the FC C Rules. T his device complies with Part 15 of the FC C rules. Operations are subject to the following two conditions: ( 1) T his device must not be allowed to cause harmful interference, ( 2) T his device must accept any interference received, including interference that may cause undesired operation. E Series.book Page 1 Wednesday, April 14, 2004 10:28 AM LifeBook E8000 Notebook E Series.book Page 2 Wednesday, April 14, 2004 10:28 AM Table of Contents Fujitsu LifeBook ® E8000 Notebook Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 1 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 1 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 GETTING TO KNOW YOUR LIFEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Locating the Controls and Connectors Top and Front Components . . . . . . . . . . . . . . . . . 6 Left-Side Panel Components . . . . . . . . . . . . . . . . 7 Right-Side Panel Components . . . . . . . . . . . . . . . 8 Back Panel Components . . . . . . . . . . . . . . . . . . . . 9 Bottom Components . . . . . . . . . . . . . . . . . . . . . 10 Status Indicator Panel Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 11 AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . 11 Battery Level Indicators . . . . . . . . . . . . . . . . . . . 11 Battery Charging Indicators . . . . . . . . . . . . . . . . 12 DVD/CD-RW/CD-ROM Drive Access Indicator . 12 Hard Drive or Removable Media Drive Access Indicator . . . . . . . . . . . . 12 PC Card Access Indicators . . . . . . . . . . . . . . . . . 12 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 12 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 12 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . 12 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 13 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 13 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Touchpad Pointing Device Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . 15 Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Touchpad Control Adjustment . . . . . . . . . . . . . . 16 Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Optional Quick Point Feature . . . . . . . . . . …

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M041106_Cert_Eton_BT_Cal2_11abg APPENDIX O – User Manual Pt2 25 3 Getting Started E Series.book Page 25 Wednesday, April 14, 2004 10:28 AM 26 LifeBook E8000 Notebook E Series.book Page 26 Wednesday, April 14, 2004 10:28 AM 27 Getting Started Figure 3-1 Connecting the AC Adapter Power Sources Your Fujitsu LifeBook notebook has three possible power sources: a primary Lithium ion battery, an AC adapter or an optional Auto/Airline adapter. CONNECTING THE POWER ADAPTERS The AC adapter or optional Auto/Airline adapter provides power for operating your notebook and charging the batteries. Connecting the AC Adapter 1. Plug the DC output cable into the DC power jack of your LifeBook notebook. 2. Plug the AC adapter into an AC electrical outlet. (Figure 3-1) Connecting the Optional Auto/Airline Adapter 1. Plug the DC output cable into the DC power jack on your notebook. 2. Plug the Auto/Airline adapter into the cigarette lighter of an automobile with the ignition key in the On or Accessories position. OR 3. Plug the Auto/Airline adapter into the DC power jack on an airplane seat. Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power 1. Be sure that you have at least one charged battery installed. 2. Remove the AC adapter or the Auto/Airline adapter. DC Power DC Output Cable AC Adapter AC Cable Jack The Lithium ion battery is not charged upon purchase. Initially, you will need to connect either the AC adapter or the Auto/Airline adapter to use your notebook. E Series.book Page 27 Wednesday, April 14, 2004 10:28 AM 28 LifeBook E8000 Notebook Figure 3-2 Opening the Display Panel Display Panel Your Fujitsu LifeBook notebook contains a display panel that is backlit for easier viewing in bright environments and maintains top resolution through the use of active- matrix technology. OPENING THE DISPLAY PANEL 1. Press the Display Panel latch. This releases the locking mechanism and raises the display slightly. 2. Lift the display backwards, being careful not to touch the screen, until it is at a comfortable viewing angle. (Figure 3-2) ADJUSTING DISPLAY PANEL BRIGHTNESS Once you have turned on your LifeBook notebook, you may want to adjust the brightness level of the screen to a more comfortable viewing level. There are two ways to adjust the brightness, by using the keyboard or the power management utility. Using the Keyboard Adjusting the brightness using the keyboard changes the setting only temporarily. ■ [Fn+F6]: Pressing repeatedly will lower the brightness of your display. ■ [Fn+F7]: Pressing repeatedly will increase the brightness of the display. CLOSING THE DISPLAY PANEL 1. Holding the edge of your display panel, pull it forward until it is flush with the body of your Life- Book notebook. 2. Push down until you hear a click. This will engage the locking mechanism and prevent your display panel from opening unexpectedly. Display Panel Latch ■ When using AC power your brightness setting is set to its highest level by default. When using battery power your brightness setting is set to approximately mid-level by default. ■ The higher the brightness level, the more power the notebook will consume and the faster your batteries will dis- charge. For maximum battery life, make sure that the brightness is set as low as possible. E Series.book Page 28 Wednesday, April 14, 2004 10:28 AM 29 Getting Started Starting Your LifeBook Notebook POWER ON Power/Suspend/Resume Button The Power/Suspend/Resume button is used to turn on your LifeBook notebook from its off state. Once you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your LifeBook notebook. (See figure 2-3 on page 6 for location) To turn on your LifeBook notebook from its off state, press the Power/Suspend/Resume button, located above the keyboard. When you are done working you can either leave your LifeBook notebook in Suspend mode, (See Suspend Mode on page 32 for more information), or you can turn it off (See Power Off on page 33 for more information). When you power on your LifeBook, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your LifeBook notebook will emit an audio warning and/ or an error message will be displayed. (See Power On Self Test Messages on page 64 for more information) Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings. After satisfactory completion of the Power On Self Test (POST), your notebook will load your operating system. BOOT SEQUENCE The procedure for starting up your notebook is called the Bootup sequence and involves your notebook’s BIOS. When your LifeBook notebook is first turned on, the main system memory is empty, and it needs to find instructions to start up your notebook. This information is in the BIOS program. Each time you power up or restart your notebook, it goes through a boot sequence which displays a Fujitsu logo until your operating system is loaded. During booting, your notebook is performing a standard boot sequence including a Power On Self Test (POST). If the sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen. The boot sequence is executed when: ■ You turn on the power to your LifeBook notebook. ■ You restart your notebook from the Windows Shut Down dialog box. ■ The software initiates a system restart. Example: When you install a new application. ■ You reset the system by pressing [CTRL+ALT+DEL]. BIOS SETUP UTILITY The BIOS Setup Utility is a program that sets up the operating environment for your LifeBook notebook. Your BIOS is set at …

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M041106_Cert_Eton_BT_Cal2_11abg APPENDIX O – User Manual Pt3 75 7 Specifications E Series.book Page 75 Wednesday, April 14, 2004 10:28 AM 76 LifeBook E8000 Notebook E Series.book Page 76 Wednesday, April 14, 2004 10:28 AM 77 Specific a tions Specifications T his section provides the hardware and environmental specifications for your Fujitsu LifeBook notebook. Spec- ifications of particular configurations will vary. C O N FIGU R ATIO N LAB EL T here is a configuration label located on the bottom of your LifeBook notebook. ( See Figure2-7 on page10 for location) This label contains specific information regarding the options you’ve chosen for your notebook. Following is an example label and information on how to read your own configuration label. Figure 7-1 C onfiguration Label MIC R O PR O C ESSO R Intel Pentium M processor ( Refer to the system label to determine the speed of your processor) . C H IPSET
Intel 855GME
I /O Controller Hub 4 Mobile ( I C H 4-M) MEMOR Y System Memory DDR 333 MH z SDR AM memory module. Two DI MM slots; upgradeable to 2 GB of total memory ( 1 GB x 2) C ache Memory L2 on-die, 1 MB or 2 MB depending upon system configuration V IDEO Built-in color flat-panel T FT active matrix LCD display with simultaneous display capability Video C olor and Resolution 15" T FT XGA model:
Internal: 1024 x 768 pixel resolution, 16M colors
External: 1600 x 1200 pixel resolution, 16M colors
Simultaneous Video: 1024 x 768, 16M colors. XGA, SVGA and VGA compatible 15” SXGA+ model:
Internal: 1400 x 1050 pixel resolution, 16M colors
External: 1600 x 1200 pixel resolution, 16M colors
Simultaneous Video: 1400 x 1050 pixel resolution, 16M colors V ideo RAM Intel® 855GME video graphics chip with integrated 32- bit 3D/2D gfx core with Accelerated Graphics Port ( AGP) support. Up to 64 MB shared video memory using Dynamic Video Memory Technology ( DV MT). AU DIO
Sigmatel ST 9751T codec
Stereo headphone jack, 3.5 mm, 1 V rms or less, minimum impedance 32 Ohms
Mono microphone jack, 3.5 mm, 100 mV p-p or less, minimum impedance 10K Ohms
Two built-in stereo speakers, 20 mm diameter MASS STORAGE DEV IC E OPTIONS H ard Drive
5400 rpm: 40 GB, 60 GB, or 80 GB fixed hard drive, U ltra DMA 100, 2.5”, 9.5 mm
4200 rpm: 40 GB or 30 GB fixed hard drive, U ltra DMA 100, 2.5”, 9.5 mm Media Player Depending upon the configuration of your system, one of the following is installed.
C D Drive ( modular 24x maximum) , or,
Combo DVD/CD-RW Drive ( modular 8x maximum DVD/24x maximum write, 10x maximum rewrite, 24x maximum read C D-RW combo drive) , or,
Super-Multi DVD Drive ( modular 4x DVD-R , 2x DVD-RW, 2.4x DVD+R , 2.4x DVD+RW, 2x DVD- RAM, 8x DVD-ROM, 16x C D-R , 8x C D-RW, 24x C D-ROM) AS WX X X X X X X X X X X X E 8020, P M 1. 7G , X P P, DVD/C D-RW, 256M, 40G , WL AN , 15X G A F P C P /N : F P C MX X X X X C onfigura tion P /N : O perating H ard Drive C onfiguration ID Part N umber ProcessorModel #Screen SizeMemory System C ommunications Media Drive E Series.book Page 77 Wednesday, April 14, 2004 10:28 AM 78 LifeBook E8000 Notebook FEATU R ES Integrated Pointing Device
Touchpad pointing device with scroll button
Optional Quick Point cursor control button C ommunications Modem: Internal V.92 standard 56K fax/modem ( I T U V.90, 56K data, 14.4K fax) Gigabit LAN : Internal wired 10Base-T /100Base-T x/ 1000Base-T /T x Ethernet LAN Wireless LAN: Certain configurations of the Lifebook E8000 notebook have an optional Wireless LAN device installed. I f you have an IntelPRO device installed, your system is classified as a Centrino product. If you have no wireless device or a Wireless LAN device other than IntelPRO, your system is classified as a Pentium M product. ( For additional infor- mation about the Wireless LAN device, refer to the Wireless LAN User’s Guide on page93) .
E8020 Model: Integrated Intel PRO Set Wireless LAN ( 802.11a+b/g) , Wi-Fi-compliant
E8020D Model: Optional integrated Atheros Wireless LAN ( 802.11a+b/g) , Wi-Fi-compliant
Optional Bluetooth device for wireless personal area network communication L ifeBook Security/Application Panel T he Application Launcher buttons on your LifeBook notebook default to the following applications: T heft Prevention L ock Lock slot for use with security restraint systems. T he Kensington locking system is recommended. DEV IC E PO R TS O n the LifeB ook notebook:
PC C ard slots for two Type I or Type II cards or one Type I I I card: PC MCI A Standard 2.1 with CardBus support
Memory Stick/SD C ard slot
One 15-pin D-SU B connector for VGA external monitor ( see Display specifications)
T hree U SB 2.0 ( Universal Serial Bus) connectors for input/output devices
One serial port ( R S-232, D-Sub 9-pin)
One parallel port ( ECP, D-Sub 25-pin)
One I EEE 1394 ( 4-pin type) jack
One SPDI F jack
Infrared port ( IrDA1.1, 4 Mbps max.)
One 7-pin video out jack
One modular modem ( R J-11) connector
One LAN ( R J-45) connector
Docking port ( 100-pin, to dock with port replicator)
One stereo headphone jack. ( See Audio specifications)
One mono microphone jack. ( See Audio specifications)
Embedded Smart Card Reader ( requires third-party application)
Wireless LAN antenna with pre-installed on/off switch
Optional Bluetooth module with antenna O n the Optional Port R eplicator:
One 6-pin mini DI N PS/2 compatible connectors for external keyboard or mouse
One 25-pin D-SU B connector for parallel input/ output devices; Bi-directional, output only or EC P
One 15-pin D-SU B connector for VGA external monitor ( see Display specifications)
One 9-pin D-SU B connector for R S-232C serial input/output devices
Four U SB 2.0 ( Universal Serial Bus) connectors for input/output devices
One LAN ( R J-45) con…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Rd 45 Newberry, Florida 32669 Ph: 888 472 2424 Fax: 352 472 2030 Subject: Request for Confidentiality for FCC Certification Application Company: Fujitsu Limited Test Sample: LifeBook E Series, Model E8020 (Eton) installed with a Mini-PCI WLAN module (Calexico2, WM3B2915ABG) & Bluetooth (UGXZ5-102A). Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Limited, requests that prior to the equipment authorization grant for the (test sample) the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Limited and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Fujitsu Limited, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Operational Description, Antenna Information Sincerely Yours,

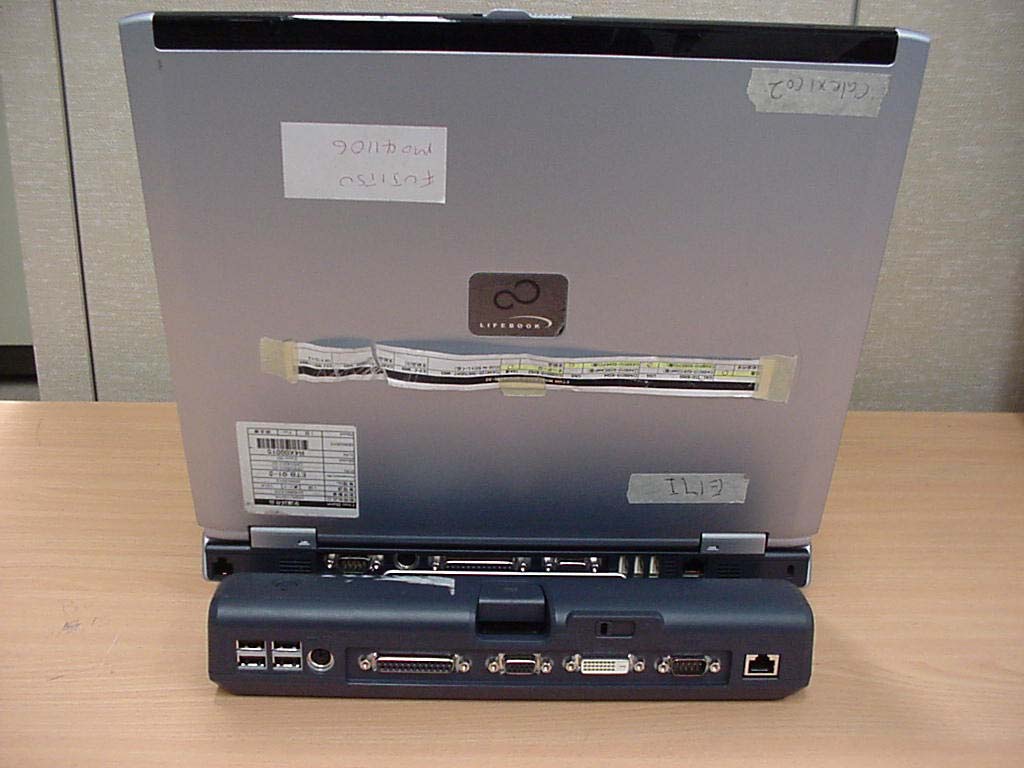

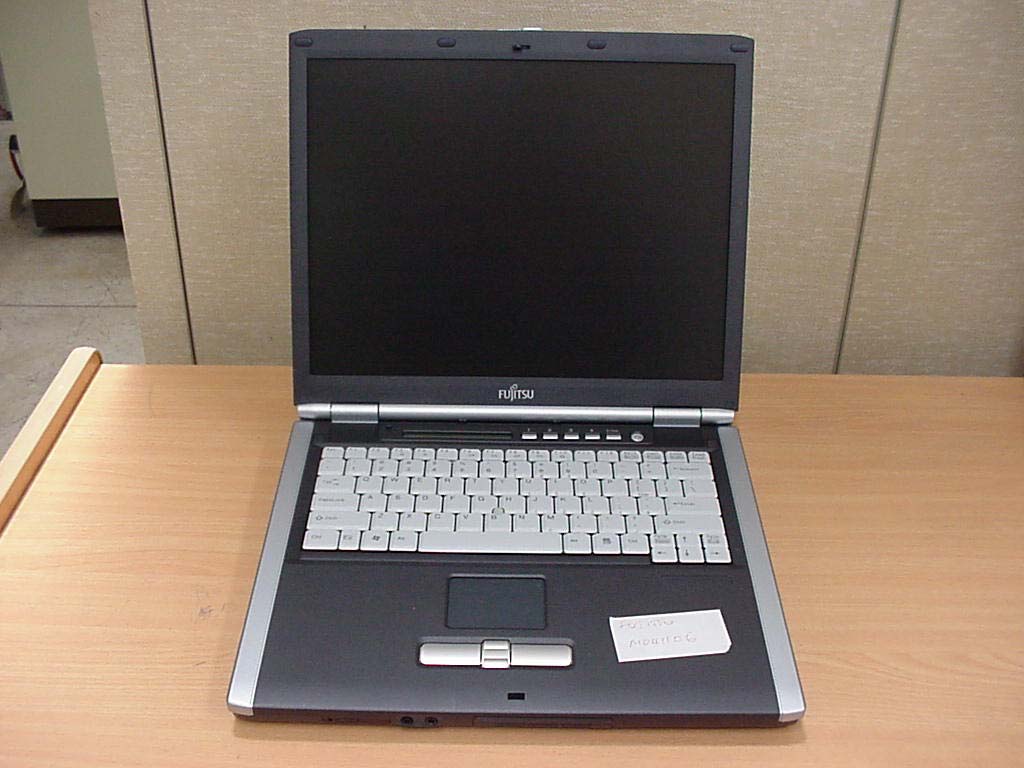

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M041106_Cert_Eton_BT_Cal2_11abg APPENDIX B1 – Test Sample Photographs (external) FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth, Model UGXZ5-102A FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – LifeBook E Series (Eton)

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M041106_Cert_Eton_BT_Cal2_11abg APPENDIX G – FCC Labelling

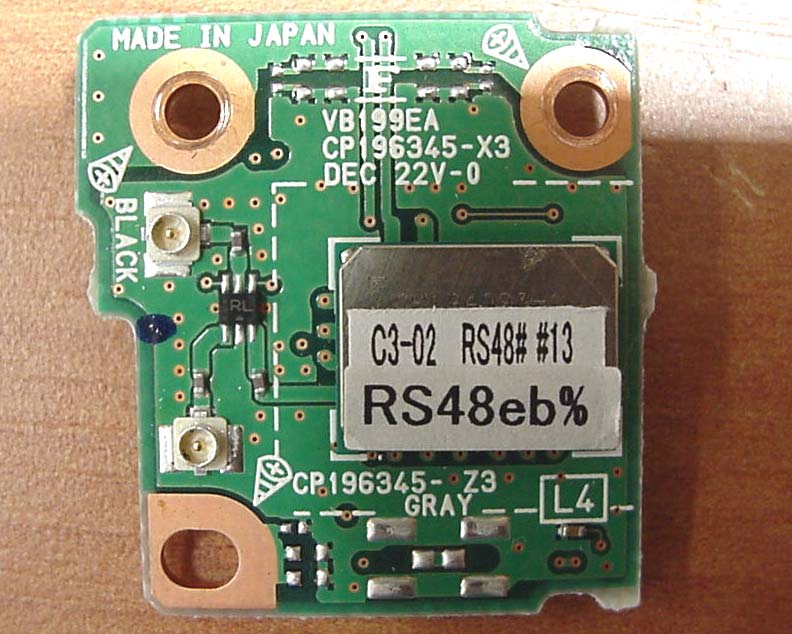

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M041106_Cert_Eton_BT_Cal2_11abg APPENDIX B4 – Test Sample Photographs (internal) FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth, Model UGXZ5-102A Exploded view – Shielding removed FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC - LifeBook E Series (Eton)

FCC ID: 337J-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1: RF EXPOSURE INFORMATION FCC ID: 337J-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(b)(5) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). The WLAN is a mobile device. The antennas are located on the top edge of LCD screen (2 antennas left and right) projected distance of greater than 20cm from user. The Bluetooth is a portable device. The antenna is located on the right hinge of the LCD screen projected distance of greater than 2.5cm from the bottom of the laptop. The separation distance between the WLAN and BT antennas is greater than 20cm. Therefore, they are not co-located transmitters. MPE calculation for Bluetooth is not applicable and SAR is not required as the power for BT is below the low threshold. The MPE calculation shown below is for the WLAN mobile device for a separation distance of greater than 20cm. In accordance with Section 1.1310, the Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure of 1.0 has been applied, i.e 1mW/cm 2 . Friis transmission formula: Pd = (P*G) / (4*π*r 2 ) where: Pd = power density (mW/cm 2 ) P = power input to the antenna (mW) G = antenna gain (numeric) r = distance to the center of radiation of the antenna (cm) The result was extracted from section 3.0 of EMC Technologies Report No: M041106_Cert_Eton_Cal2_11abg_DTS_BT (WLAN Module) Maximum peak output power = 18.0dBm = 63.1mW Antenna (Inverted F) gain (typical) = 1.06 dBi = 1.28 numeric Prediction distance = 20 cm Prediction frequency = 2462 MHz MPE limit for uncontrolled exposure at prediction frequency = 1 mW/cm 2 The power density calculated = 0.016 mW/cm 2 Results: Calculations show that the Radio devices with described antennas complied with Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure

FCC ID: EJE-WB0016 (IC: 337J-WB0016) Report No. M041106_Cert_Eton_BT_Cal2_11abg This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 01/03/04 01/03/05 1 YEAR *2 EMI RECEIVER HP 8546A, Sn: 3549A00290 13/02/04 13/02/05 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/04 20/07/05 1 YEAR *3 EMI RECEIVER Rohde & Schwarz, Model FSET22 SN 1080 3508, 100 Hz – 22 GHz 10/02/04 10/02/05 1 YEAR *3 RF PRE-SELECTOR Rohde & Schwarz, Model FSETZ22 SN 1070 2009, 100 Hz – 22 GHz 10/02/04 10/02/05 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 26/07/04 260/07/05 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 19/07/04 19/07/05 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *4 ETS Standard Gain Horn, M/N: 3160-05 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 LISN EMCO 3825/2 50ohm / 50 microH 31/03/04 31/03/05 1 YEAR *1 0.009 – 30MHz Sn.9607-2567 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz Note *4. Manufacturer’s Calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Feb 04 N/A N/A N/A Feb 05 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/04 11/02/05 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

1 Part A RADIO SPECIFICATION Core System Package [Controller volume] CONTENTS 1 Scope ..................................................................................................2 2 Frequency Bands and Channel Arrangement .................................3 3 Transmitter Characteristics...............................................................4 3.1 Modulation Characteristics...............................................................5 3.2 Spurious Emissions..........................................................................6 3.2.1 In-band spurious emission ............................................ ...............6 3.3 Radio Frequency Tolerance .............................................................7 4 Receiver Characteristics ...................................................................8 4.1 Actual Sensitivity Level ....................................................................8 4.2 Interference Performance ................................................................8 4.3 Out-of-Band Blocking........................................................................9 4.4 Intermodulation Characteristics.........................................................9 4.5 Maximum Usable Level...................................................................10 4.6 Receiver Signal Strength Indicator..................................................10 4.7 Reference Signal Definition.............................................................10 5 Appendix A .........................................................................................11 6 Appendix B .........................................................................................13 2 1 SCOPE Bluetooth devices operate in the unlicensed 2.4 GHz ISM (Industrial Scientific Medical) band. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. For full duplex transmission, a Time- Division Duplex (TDD) scheme is used. This specification defines the requirements for a Bluetooth radio. Requirements are defined for two reasons: • Provide compatibility between radios used in the system • Define the quality of the system The Bluetooth radio shall fulfil the stated requirements under the operating conditions specified in Appendix A and Appendix B. The radio parameters shall be measured according to the methods described in the RF Test Specification. This specification is based on the established regulations for Europe, Japan and North America. The standard documents listed below are only for information, and are subject to change or revision at any time. Europe: Approval Standards: European Telecommunications Standards Institute, ETSI Documents: EN 300 328, ETS 300-826 Approval Authority: National Type Approval Authorities Japan: Approval Standards: Association of Radio Industries and Businesses, ARIB Documents: ARIB STD-T66 Approval Authority: Ministry of Post and Telecommunications, MPT. North America: Approval Standards: Federal Communications Commission, FCC, USA Documents: CFR47, Part 15, Sections 15.205, 15.209, 15.247 and 15.249 Approval Standards: Industry Canada, IC, Canada Documents: GL36 Approval Authority: FCC (USA), Industry Canada (Canada…
