EJE-WB0018LIFEBOOK E SERIES WITH WLL4070 11ABG WLAN & BT

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050215_Cert_BT_WLL4070_11abg APPENDIX O – User Manual Pt 1 Copyr ight C opyright Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. T he following are registered trademarks of I BM Corporation: I BM, I BM PC AT, I BM PS/2. T he following are registered trademarks of Microsoft Corporation: MS, MS-DOS, Windows. PC MC I A is a trademark of the Personal C omputer Memory Card International Association. Earthlink is a registered trademark of EarthLink Network, Inc. Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. T he Bluetooth trademark is owned by Bluetooth SI G, Inc., U SA. Adobe Acrobat Reader is a registered trademark of Adobe Systems, Inc. Netscape 7.0 is a registered trademark of Netscape Communications Corporation. PowerQuest and Drive Image are registered trademarks of PowerQuest C orporation. Norton AntiVirus is a registered trademark of Symantec C orporation. BayManager is a registered trademark of Softex, Inc. T he DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disas- sembly is prohibited. Dolby Headphone manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Copy- rights 1992-1999 Dolby Laboratories. All rights reserved. All other trademarks mentioned herein are the property of their respective owner s. © Copyright 2004 Fujitsu Computer Systems Corpora- tion. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FH - 1931- 01EN - 00 (DR AFT) Warning H andling the cord on this product will expose you to lead, a chemical known to the State of C alifornia to cause birth defects or other reproductive harm. Wa s h ha nds after ha ndling. DEC LAR ATIO N O F C O N FO R MITY according to FCC Part 15 Responsible Party Name:Fujitsu C omputer Systems C orporation Address: 1250 E. Arques Avenue, M/S 122 Sunnyvale, C A 94085 Telephone:( 408) 746-6000 Declares that product:Base Model Configurations: LifeBook E8020 notebook LifeBook E8020D notebook Complies with Part 15 of the FC C Rules. T his device complies with Part 15 of the FC C rules. Operations are subject to the following two conditions: ( 1) T his device must not be allowed to cause harmful interference, ( 2) T his device must accept any interference received, including interference that may cause undesired operation. E Series.book Page 1 Wednesday, April 14, 2004 10:28 AM LifeBook E8000 Notebook E Series.book Page 2 Wednesday, April 14, 2004 10:28 AM Table of Contents Fujitsu LifeBook ® E8000 Notebook Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 1 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 1 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 GETTING TO KNOW YOUR LIFEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Locating the Controls and Connectors Top and Front Components . . . . . . . . . . . . . . . . . 6 Left-Side Panel Components . . . . . . . . . . . . . . . . 7 Right-Side Panel Components . . . . . . . . . . . . . . . 8 Back Panel Components . . . . . . . . . . . . . . . . . . . . 9 Bottom Components . . . . . . . . . . . . . . . . . . . . . 10 Status Indicator Panel Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 11 AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . 11 Battery Level Indicators . . . . . . . . . . . . . . . . . . . 11 Battery Charging Indicators . . . . . . . . . . . . . . . . 12 DVD/CD-RW/CD-ROM Drive Access Indicator . 12 Hard Drive or Removable Media Drive Access Indicator . . . . . . . . . . . . 12 PC Card Access Indicators . . . . . . . . . . . . . . . . . 12 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 12 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 12 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . 12 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 13 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 13 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Touchpad Pointing Device Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . 15 Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Touchpad Control Adjustment . . . . . . . . . . . . . . 16 Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Optional Quick Point Feature . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050215_Cert_BT_WLL4070_11abg APPENDIX O – User Manual Pt 2 53 5 Troubleshooting E Series.book Page 53 Wednesday, April 14, 2004 10:28 AM 54 LifeBook E8000 Notebook E Series.book Page 54 Wednesday, April 14, 2004 10:28 AM 55 Troubleshooting Troubleshooting Your Fujitsu LifeBook notebook is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service. IDENTIFYING THE PROBLEM If you encounter a problem, go through the following procedure before pursuing complex troubleshooting: 1. Turn off your LifeBook notebook. 2. Make sure the AC adapter is plugged into your note- book and to an active AC power source. 3. Make sure that any card installed in the PC Card slot is seated properly. You can also remove the card from the slot, thus eliminating it as a possible cause of failure. 4. Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure. 5. Turn on your notebook. Make sure it has been off at least 10 seconds before you turn it back on. 6. Go through the boot sequence. 7. If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed troubleshooting information. 8. If you have tried the solutions suggested in the Trou- bleshooting Table without success, contact your support representative: Toll free: 1-800-8Fujitsu (1-800-838-5487) E-mail: [email protected] Web site: us.fujitsu.com/computers. Before you place the call, you should have the following information ready so that the customer support represen- tative can provide you with the fastest possible solution: ■ Product name ■ Product configuration number ■ Product serial number ■ Purchase date ■ Conditions under which the problem occurred ■ Any error messages that have occurred ■ Hardware configuration ■ Type of device connected, if any See the Configuration Label on the bottom of your notebook for configuration and serial numbers. (See figure 2-7 on page 10 for location) SPECIFIC PROBLEMS Using the Troubleshooting Table When you have problems with your LifeBook notebook, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your notebook. If you keep notes about what you have tried, your support representative may be able to help you more quickly by giving additional suggestions over the phone. E Series.book Page 55 Wednesday, April 14, 2004 10:28 AM 56 LifeBook E8000 Notebook TR O U B L E S H O O T I N G TA B L E ProblemPage Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 56 DVD/CD-ROM Drive Problems. . . . . . . . . . . . . page 56 Port Replicator Problems. . . . . . . . . . . . . . . . . . . page 57 Floppy Disk Drive Problems . . . . . . . . . . . . . . . . page 57 Hard Drive Problems . . . . . . . . . . . . . . . . . . . . . . page 57 Keyboard or Mouse Problems . . . . . . . . . . . . . . . page 58 Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . page 58 ProblemPage Modem Problems. . . . . . . . . . . . . . . . . . . . . . . . . page 58 Parallel, Serial and USB Device Problems . . . . . page 58 PC Card Problems . . . . . . . . . . . . . . . . . . . . . . . . page 59 Power Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 59 Shutdown and Startup Problems . . . . . . . . . . . . page 61 Video Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 62 Miscellaneous Problems . . . . . . . . . . . . . . . . . . . page 63 ProblemPossible CausePossible Solutions Audio Problems There is no sound coming from the built-in speakers. The volume is turned too low.Adjust the volume control on your notebook. The software volume control is set too low. Adjust the sound volume control settings in your software, operating system and applications. Headphones are plugged into your notebook. Plugging in headphones disables the built-in speakers, remove the headphones. BIOS audio settings are incorrect. Set the BIOS setup utility to the default values within the Multimedia Device Configuration menu. (See BIOS Setup Utility on page 29 for more information) Software driver is not configured correctly. Refer to your application and operating system documentation for help. The speakers have been muted using the Volume icon in the system tray. Click on the Volume icon in the tool tray on the bottom right of the screen. (It looks like a speaker). If the Mute box is checked, click on it to uncheck it. DVD/CD-RW/CD-ROM Drive Problems LifeBook notebook fails to recognize DVD/CD-RW/ CD-ROM’s. Protective sheet is still in the DVD/CD-RW/CD-ROM drive tray. Replace DVD/CD-RW/CD-ROM in tray. DVD/CD-RW/CD-ROM is not pushed down onto raised center circle of the drive. Open DVD/CD-RW/CD-ROM tray and re-install DVD/CD-RW/CD-ROM properly. DVD/CD-RW/CD-ROM tray is not latched shut. Push on the front of the DVD/CD-RW/CD-ROM tray until it latches. Incorrect DVD Player or no DVD Player software is installed. Install DVD Player software. (See “Media Player Software” on page 39 for more information.) Wrong drive designator was used for DVD/CD-RW/CD- ROM in the application. Verify the drive designator used by the application is the same as the one used by the …

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Rd 45 Newberry, Florida 32669 Ph: 888 472 2424 Fax: 352 472 2030 Subject: Request for Confidentiality for FCC Certification Application Company: Fujitsu Limited Test Sample: LifeBook E Series, Model E8020D installed with a Mini-PCI WLAN module (Atheros 11a+b/g, WLL4070) & Bluetooth (UGXZ5-102A). Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Limited, requests that prior to the equipment authorization grant for the (test sample) the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Limited and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Fujitsu Limited, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Operational Description, Antenna Information Sincerely Yours,

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO ENGINEERING INC. Attention: Certification Manager No. of pages: 1 From: Donna Cleary Date: 4 th March 2005 EMC Ref: M050215_Cert_BT_WLL4070_11abg Subject: FCC & IC APPROVAL – FCC ID: EJE-WB0018, IC ID: 337J-WB0018 Please receive EMC Technologies’ Report M050215_Cert_BT_WLL4070_11abg for review. The EUT is a LifeBook E Series PC, Model: E8020D installed with a Mini-PCI Wireless LAN (WLAN) Module (Atheros 11a+b/g, Model WLL4070) & Bluetooth, Model UGXZ5-102A. The *WLAN module is an OEM product from Askey Computer Corp. and Bluetooth is an ALPS Bluetooth. The intention of this application is to FCC & IC certify Atheros (11a+b/g) WLAN, Model WLL4070 (with Inverted F Antenna) & Bluetooth with (Monopole Ceramic Antenna) in host – LifeBook E Series, Model E8020D. The ALPS Bluetooth (with Monopole Ceramic Antenna) was also previously certified by the LifeBook manufacturer, Fujitsu Ltd under FCC ID: EJE-WB0015 (IC: 337J-WB0015). *WLAN report and results are submitted separately. Test results are recorded as follows: This is a composite submission. DSS Submission EMC Technologies Report – M050215_Cert_BT_WLL4070_11abg Test results - FCC Part 15.247 (Part C) & RSS 210 - (Bluetooth results). Documents submitted: Report Number: M050215_Cert_BT_WLL4070_11abg & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request, Form 731. The 802.11b, 802.11g and 802.11a (DTS) and 802.11a (U-NII) sections of the WLAN transmitter results are submitted separately under DTS & UNII submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRN is 0009379173. The FCC ID & IC ID for this composite application is EJE-WB0018 & IC ID: 337J-WB0018. Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050215_Cert_BT_WLL4070_11abg APPENDIX B1 – Test Sample Photographs (external) FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth, Model UGXZ5-102A FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – LifeBook E Series

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050215_Cert_ BT_WLL4070_11abg APPENDIX H – FCC Labelling

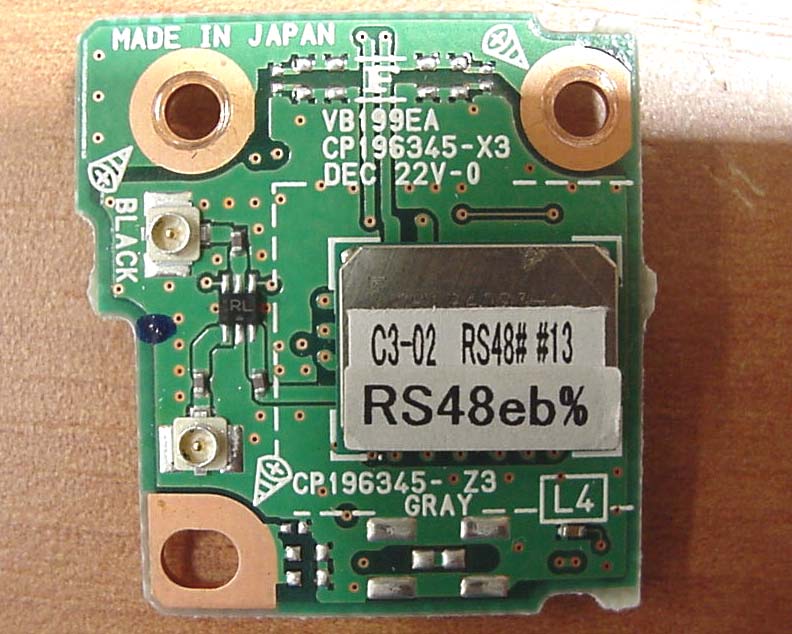

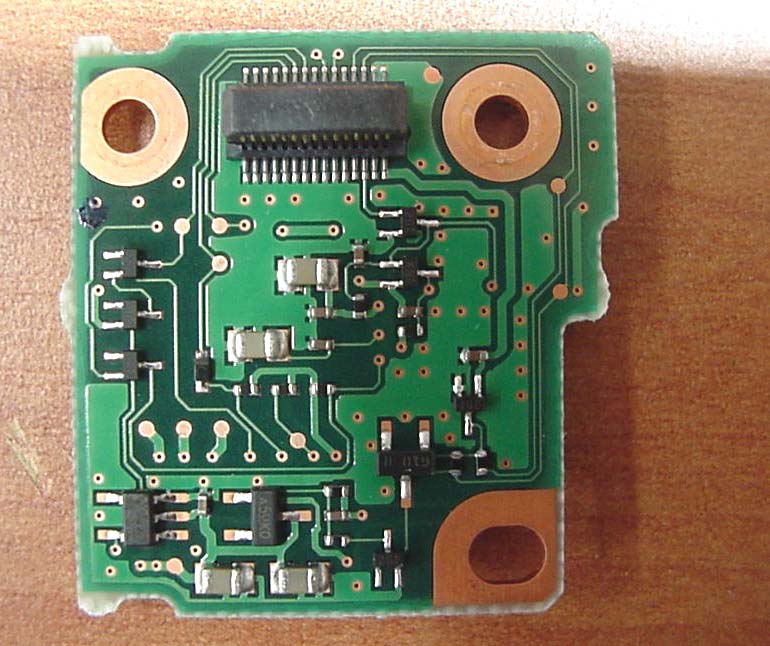

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050215_Cert_BT_WLL4070_11abg APPENDIX B4 – Test Sample Photographs (internal) FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth, Model UGXZ5-102A Exploded view – Shielding removed FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC - LifeBook E Series, Model E8020D

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1: RF EXPOSURE INFORMATION FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(b)(5) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). The WLAN is a mobile device. The antennas are located on the top edge of LCD screen (2 antennas left and right) projected distance of greater than 20cm from user. The Bluetooth is a portable device. The antenna is located on the right hinge of the LCD screen projected distance of greater than 2.5cm from the bottom of the laptop. The separation distance between the WLAN and BT antennas is greater than 20cm. Therefore, they are not co-located transmitters. MPE calculation for Bluetooth is not applicable and SAR is not required as the power for BT is below the low threshold. The MPE calculation shown below is for the WLAN mobile device for a separation distance of greater than 20cm. In accordance with Section 1.1310, the Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure of 1.0 has been applied, i.e 1mW/cm 2 . Friis transmission formula: Pd = (P*G) / (4*π*r 2 ) where: Pd = power density (mW/cm 2 ) P = power input to the antenna (mW) G = antenna gain (numeric) r = distance to the center of radiation of the antenna (cm) The result was extracted from section 5.0 of EMC Technologies Report No: M050215_Cert_WLL4070_11abg_DTS_BT (WLAN Module): Maximum peak output power = 20.1 dBm = 102.3 mW Antenna (Inverted F) gain (typical) = 1.06 dBi = 1.28 numeric Prediction distance = 20 cm Prediction frequency = 2462 MHz MPE limit for uncontrolled exposure at prediction frequency = 1 mW/cm 2 The power density calculated = 0.026 mW/cm 2 Results: Calculations show that the Radio devices with described antennas complied with Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure

Page 1 of 26 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 FCC ID: EJE-WB0018 Industry Canada ID: 337J-WB0018 Test Sample: LifeBook E Series Model: E8020D Radio Modules: Bluetooth, Model: UGXZ5-102A & Mini-PCI WLAN (Atheros 11a+b/g), Model: WLL4070 Report Number M050215_Cert_BT_WLL4070_11abg Tested for: Fujitsu Australia Ltd. Issue Date: 4 th March 2005 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg Page 2 of 26 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 EMC Technologies Report No. M050215_Cert_BT_WLL4070_11abg Issue Date: 4 th March 2005 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION RESULTS – Bluetooth, UGXZ5-102A 3.0 CONDUCTED EMI MEASUREMENTS 4.0 SPURIOUS EMI MEASUREMENTS 5.0 PEAK OUTPUT POWER 6.0 CHANNEL BANDWIDTH & CHANNEL OCCUPANCY 7.0 RADIO FREQUENCY EXPOSURE 8.0 ANTENNA REQUIREMENT 9.0 COMPLIANCE STATEMENT RESULTS – WLAN, WLL4070 (Atheros 11a+b/g): Refer to Report No: M050215_Cert_WLL4070_11abg_DTS_BT (802.11b/g and 802.11a (DTS)) Refer to Report No: M050215_Cert_WLL4070_11abg_NII_BT (802.11a (NII)) APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: REPORT PHOTOGRAPHS APPENDIX C: FUNCTIONAL DESCRIPTION APPENDIX D: BLOCK DIAGRAM APPENDIX E: SCHEMATICS APPENDIX F: ANTENNA DETAILS APPENDIX G: SPECIFICATIONS APPENDIX H: FCC LABELLING DETAILS APPENDIX I: GRAPHS of EMI MEASUREMENTS APPENDIX J: CHANNEL BANDWIDTH PLOTS APPENDIX K: HARMONICS PLOTS APPENDIX L: BANDEDGE PLOTS APPENDIX M: PEAK POWER OUTPUT PLOTS APPENDIX N BLUETOOTH CHANNEL OCCUPANCY PLOTS APPENDIX O: USER MANUAL Attachment 1: RF Exposure Information Attachment 2: FCC DOC for LifeBook E Series FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg Page 3 of 26 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 Report Number: M050215_Cert_BT_WLL4070_11abg Test Sample: LifeBook E Series Model: E8020D Radio Modules: Bluetooth, Model: UGXZ5-102A (Fujitsu Ltd) Mini-PCI WLAN, Model: WLL4070 (Askey Computer Corp.) FCC ID: EJE-WB0018 Industry Canada ID: 337J-WB0018 Equipment Type: Intentional Radiator (Transceiver) Manufacturer (LifeBook): Fujitsu Ltd Address: 1405, Ohamaru, Inagi-shi, Tokyo 206-8503, Japan Contact: Mr. Hirotaka Yakame Tested for: Fujitsu Australia Ltd Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.247, 2400 – 2483.5 MHz Operation Band ANSI C63.4 – 2003 OET Bulletin No. 65 RSS-210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices: 6.2.2 (o) 2400 – 2483.5 MHz Spread Spectrum RSS-102 Issue 1 (Provisional), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields Test Dates: 15 th February – 2 nd March 2005 Test Officers: Chieu Huynh B.Eng (Hons) Electronics Janath Gunakesera BScEng., MTelcomEng, MIEEE Jorge Lara Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg Page 4 of 26 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 1.0 INTRODUCTION EMI testing was performed on test sample LifeBook E Series, Model: E8020D with Mini-PCI Wireless LAN Module (Atheros 11a+b/g), Model WLL4070 & Bluetooth, Model UGXZ5-102A. The WLAN supports IEEE 802.11b, IEEE 802.11g and IEEE 802.11a (DTS & U-NII) configurations. Tests were performed in all three configurations and also on the Bluetooth. The results for the Bluetooth are reported in this test report. The results for the WLAN Atheros module are reported separately. Refer to EMC Technologies’ test reports: M050215_Cert_WLL4070_11abg_DTS_BT (DTS) and M050215_Cert_WLL4070_11abg_NII_BT (U-NII). Test results and procedures were performed in accordance with the following Federal Communications Commission (FCC) standards/regulations: 47 CFR, Part 15, Subpart C: Rules for intentiona…

Text truncated - open the document above for the full version.

FCC ID: 337J-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 01/03/04 01/03/05 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/04 20/07/05 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 26/07/04 260/07/05 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 19/07/04 19/07/05 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *4 ETS Standard Gain Horn, M/N: 3160-05 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 LISN EMCO 3825/2 50ohm / 50 microH 31/03/04 31/03/05 1 YEAR *1 0.009 – 30MHz Sn.9607-2567 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz Note *4. Manufacturer’s Calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Jan 05 N/A N/A N/A Jan 06 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/05 11/02/06 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: EJE-WB0018 (IC: 337J-WB0018) Report No. M050215_Cert_BT_WLL4070_11abg EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050215_Cert_BT_WLL4070_11abg APPENDIX I – Graphs of EMI Measurement EMC Technologies Pty. Ltd. - Global Product Certification Job No:M050215 Test Date: 20/02/05 GRAPH No. 1 p:\PCF\M050215F_1.PCF EMC Technologies (Melbourne) 57 Assembly Drv Tullamarine, 3043, Vic, Australia Phone+(613) 9335 3333 Fax+(613) 9338 9260 Fujitsu Australia Ltd LifeBook E Series - E8020, E8020D Conducted Emissions - Active Line Conducted Emissions (dBuV) M050215c Limits: Legend: Source: _ FCC_BQPN FCC PART 15 CLASS B CONDUCTED QP LIMITS (2002) _ FCC_BAVN FCC PART 15 CLASS B CONDUCTED AVERAGE LIMIT (2002) __ Active Line 7 8 9 Ver 5.5 Build 104conducted lab 1 three phase L016 lisn t:L0220405 c1:C1500605 c2:C1521205 p:NONE a:L0180705Site ID: Room#1,57 Assembly Drv. Tullamarine, VIC Test Officer:Janath Gunasekera Peaks:No Freq Peak Qp Val FCC_BQPN dL1 Av Val FCC_BAVN dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.207 53.3 50.9 63.3 -12.5 45.1 53.3 -8.2 2 17.40 50.4 45.7 60.0 -14.3 34.7 50.0 -15.3 3 0.309 48.1 44.2 60.0 -15.8 34.1 50.0 -15.9 4 0.611 43.0 40.9 56.0 -15.1 26.9 46.0 -19.1 5 0.502 41.1 38.1 56.0 -17.9 26.5 46.0 -19.5 6 0.423 40.3 38.6 57.4 -18.8 26.6 47.4 -20.8 7 3.533 40.6 37.1 56.0 -18.9 22.4 46.0 -23.6 8 0.722 39.7 36.3 56.0 -19.7 21.8 46.0 -24.2 Frequency (MHz) 1 10 .15 30 10 20 30 …
