EJE-WB0021Lifebook S series w/ WLL4070 11ABG WL & BT

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX I USER MANUAL Copyright Copyright and Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. The following are registered trademarks of IBM Corporation: IBM, IBM PC AT, IBM PS/2. MS, MS-DOS, and Windows are either registered trade- marks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. The Bluetooth trademark is owned by Bluetooth SIG, Inc., USA. Adobe, Acrobat, and Acrobat Reader are either regis- tered trademarks or trademarks of Adobe Systems Inc. in the United States and/or other countries. Dolby Headphone is manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Quicken® is a registered trademark of Intuit, Inc., or one of its subsidiaries, in the United States and other countries. Norton AntiVirus is a registered trademark of Symantec Corporation in the United States and other countries. WinDVD is a registered trademark of InterVideo, Inc. BayManager is a registered trademark of Softex, Inc. This product incorporates copyright protection tech- nology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be autho- rized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless other- wise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2004 Fujitsu Computer Systems Corpora- tion. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FH-3161-01EN-00 WARNING Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, M/S 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Base Model Configurations: LifeBook S7020 notebook LifeBook S7020D notebook Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. S7010.book Page 1 Wednesday, October 20, 2004 9:14 AM LifeBook S7000 Notebook .UL Notice This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 19 VDC, with a current of 3.16 A. AC Adapter output polarity: ■ When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + ■ For continued protection against risk of fire, replace only with the same type and rating fuse. ■ Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dis- pose of used batteries according to the manufacturer’s instructi on. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. S7010.book Page 2 Wednesday, October 20, 2004 9:14 AM Table of Contents Fujitsu LifeBook ® S7000 Notebook Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 1 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 1 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 GETTING TO KNOW YOUR LIFEBOOK S7000 NOTEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Locating the Controls/Connectors Top and Front Components . . . . . . . . . . . . . . . . . 6 Left-Side Panel Components . . . . . . . . . . . . . . . . 7 Right-Side Panel Components . . . . . . . . . . . . . . . 8 Back Panel Components . . . . . . . . . . . . . . . . . . . . 9 Bot…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX I USER MANUAL 35 4 User-Installable Features S7010.book Page 35 Wednesday, October 20, 2004 9:14 AM 36 LifeBook S7000 Notebook S7010.book Page 36 Wednesday, October 20, 2004 9:14 AM 37 User Installable Features Figure 4-1. Optical Drive Optical Drive There is a variety of media available to use with your system, depending upon the system configuration you have selected. Multi-Format DVD Writer, DVD/CD-RW Combo drives, and CD-ROM drives are known as “optical drives”. A CD-R or DVD-R disc can only be written to once; CD-RW or DVD-RW discs can be written to over and over. CD-R and CD-RW discs hold up to 700MB of data. DVD-R and DVD-RW discs hold up to 4.7 GB of data. Depending upon the configuration of your LifeBook notebook, you may have one of the following drives: ■ Multi-Format DVD Writer: The Multi-Format DVD Writer combines seven recordable formats in a single drive (DVD-R, DVD+R, DVD-RW, DVD+RW, DVD- RAM, CD-R, and CD-RW), making it the most versa- tile drive to date. ■ DVD/CD-RW combo: A DVD/CD-RW combo drive allows you to access movie, software, data, or audio DVD/CDs, and to write data onto recordable CD-R and CD-RW discs. ■ CD-ROM: A CD-ROM drive allows you to access soft- ware, data, or audio CDs. MEDIA PLAYER SOFTWARE Multi-Format DVD Writer model only: With the Multi- Format DVD Writer and media player software you can play DVD movies and music CDs on your LifeBook notebook. The media player includes controls which allow you to take full advantage of the features of a DVD movie, as well as standard features such as fast forward, fast reverse, pause, etc. With this drive you can also burn onto recordable DVD-R/RW, DVD+R/RW, or CD-R/ RW discs. DVD/CD-RW Combo model only: With the combo drive, you can play DVD movies, read audio CDs, and write data onto recordable CD-R or CD-RW discs. CD-ROM model only: With the CD-ROM drive, you can read software, audio, or data CD discs. LOADING MEDIA ON YOUR DRIVE To load a disc into your optical drive: 1. Push and release the eject button on the front of the optical drive to open the holder tray. The tray will come out of the LifeBook notebook a short distance. 2. Gently pull the tray out until a media disc can easily be placed in the tray. Media Holder Tray Media Eject Button The Multi-Format DVD Writer also supports burning and reading DVD-RAM. Windows XP supports burning and reading of DVD-RAM as a standard feature. ■ Do not operate your optical drive unless your LifeBook notebook is sitting on a flat surface. Using a drive when the system is not level may damage the drive or prevent proper operation. ■ Prolonged use of the optical drive, such as watching a DVD movie, will substantially reduce your battery life if no other power source is attached. There may be a protective sheet in the tray from when it was shipped; please make sure it is removed before operating the drive. S7010.book Page 37 Wednesday, October 20, 2004 9:14 AM 38 LifeBook S7000 Notebook 3. Place the media into the tray, label side up, with the hole in the center of the disc. Snap the disc onto the raised circle in the center of the tray. 4. Gently push the holder tray back in until you hear a click. (Figure 4-2) Figure 4-2. Loading/Ejecting Media REMOVING MEDIA 1. Push and release the eject button on the front of the optical drive. This will stop the drive and the holder tray will come out of the LifeBook notebook a short distance. 2. Gently pull the tray out until the disc can easily be removed from the tray. 3. Carefully remove the media disc from the holder tray. 4. Gently push the holder tray back in until you hear a click. USING THE MEDIA PLAYER SOFTWARE Starting a DVD Movie (DVD Models only) 1. Insert the DVD movie into the optical drive of your notebook. If the CD AutoRun feature activates, skip Step 2. 2. The first time you insert a movie into the DVD/CD- RW tray, you will be prompted to select what you want the system to do when discs are inserted (e.g., start automatically or wait for a prompt). Until you make a selection, you will receive the same prompt whenever you insert a disc. 3. Click OK to close the About DVD Player Performance dialog box and the movie will begin. Opening the Media Player Control Panel With most DVD-ROMs, you have the option of altering how the movie should play and what you wish to view. You can do this by using the media player control panel and the mouse. 1. Right-click on the movie screen to open a dropdown menu for options. 2. Select View, then Player for all the controls available. This will open the control panel into the bottom of the screen. Using the Media Player Control Panel The media player software allows you to watch the movie much like a VCR player. You can pause, rewind, fast-forward and stop the movie at any point. 1. To Pause the movie, click the on-screen button. 2. To Rewind the movie, click the  button to rewind to a specific portion of the movie, or the  button to return to the opening screen. ■ You should periodically check the Fujitsu web site at us.fujitsu.com/ computers for current updated drivers. ■ All LifeBook DVD players are set to play DVD titles with region code number 1 which is specified for the North American market. The region number is a regional restriction code defined by the DVD Forum acting on Hollywood requirements. Different region codes are recorded on video DVD titles for publication in different areas of the world. If the regional code of the DVD player does not match the regional codes on the titles, then play- back is impossible. ■ You can change the region code on the DVD player using the Properties menu of the DVD software. Note, however, that you can only change the region code up to four …

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX I USER MANUAL 91 Appendix A Integrated Wireless LAN* User’s Guide * Optional device S7010.book Page 91 Wednesday, October 20, 2004 9:14 AM 92 LifeBook S7000 Notebook S7010.book Page 92 Wednesday, October 20, 2004 9:14 AM 93 WIreless LAN User’s Guide FCC REGULATORY INFORMATION Please note the following regulatory information related to the wireless LAN device. Regulatory Notes and Statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wire- less LAN devices. The energy levels of these emissions, however, are far much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Wireless LAN devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments, such as:
On board an airplane, or
In an explosive environment, or
In situations where the interference risk to other devices or services is perceived or identified as harmful. In cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the equipment. Regulatory Information/Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. The manufacturer and its autho- rized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines. This device must not be co-located or operated in conjunction with any other antenna or transmitter. For Atheros and Intel PRO Set Wireless LAN: For operation within 5.15~5.25 GHz frequency range, it is restricted to indoor environments, and the antenna of this device must be integral. Federal Communications Commission statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and, (2) This device must accept any interference, including interference that may cause undesired operation of this device. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the distance between the equipment and the receiver. 3.Connect the equipment to an outlet on a circuit different from the one the receiver is connected to. 4.Consult the dealer or an experienced radio/TV technician for help. FCC Radio Frequency Exposure statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cms from the WLAN antennas located on the top edge of the LCD screen. The Bluetooth antenna is located on the left side of the keyboard and is exempt from minimum distance criteria due to its low power. The transmitters in this device must not be co-located or operated in conjunction with any other antenna or transmitter. Export restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. This device complies with Part 15 of FCC Rules., as well as ICES 003 B / NMB 003 B. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Modifications not expressly authorized by Fujitsu PC Corpora- tion may invalidate the user's right to operate this equipment. Canadian Notice To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. S Series.book Page 93 Wednesday, April 14, 2004 10:28 AM High power radars are allocated as primary users of 5250 - 5350 MHz and 5650 - 5850 MHz and these radars cause interference and/or damage to LELAN(license exempt LAN) devices operating in these bands. 94 LifeBook S …

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO ENGINEERING INC. Attention: Certification Manager No. of pages: 1 From: Donna Cleary Date: 4 th April 2005 EMC Ref: M050322_Cert_WLL4070_11abg_DTS_BT Subject: FCC & IC APPROVAL – FCC ID: EJE-WB0021, IC ID: 337J-WB0021 Please receive EMC Technologies’ Report M050322_Cert_WLL4070_11abg_DTS_BT for review. The EUT is a LifeBook “S” Series PC, Model: S7020D installed with a Mini-PCI Wireless LAN (WLAN) Module (Atheros 11a+b/g, Model WLL4070) & Bluetooth, Model UGXZ5-102A. The WLAN module is an OEM product from Askey Computer Corp. and Bluetooth is an ALPS Bluetooth. The same WLAN radio module and Bluetooth combination has been previously certified by Fujitsu under FCC ID: EJE-WB0018 and IC: 337J-WB0018 in a different host. The intention of this application is to FCC & IC certify Atheros (11a+b/g) WLAN, Model WLL4070 (with Yokowo Monopole Ceramic Antenna) & Bluetooth with (Monopole Ceramic Antenna) in host – LifeBook “S” Series, Model S7020D. Test results are recorded as follows: This is a composite submission. DTS Submission EMC Technologies Report – M050322_Cert_WLL4070_11abg_DTS_BT Test results - FCC Part 15.247 (Part C) & RSS 210 - (Atheros 802.11b, 802.11g & 802.11a DTS results). Documents submitted: Report Number: M050322_Cert_WLL4070_11abg_DTS_BT & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request, Form 731. The 802.11a (U-NII) section of the WLAN transmitter & the Bluetooth results are submitted separately under UNII & DSS submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRN are 0009379173 and 0013134713. The FCC ID for this composite application is EJE-WB0021 & IC ID: 337J-WB0021. Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

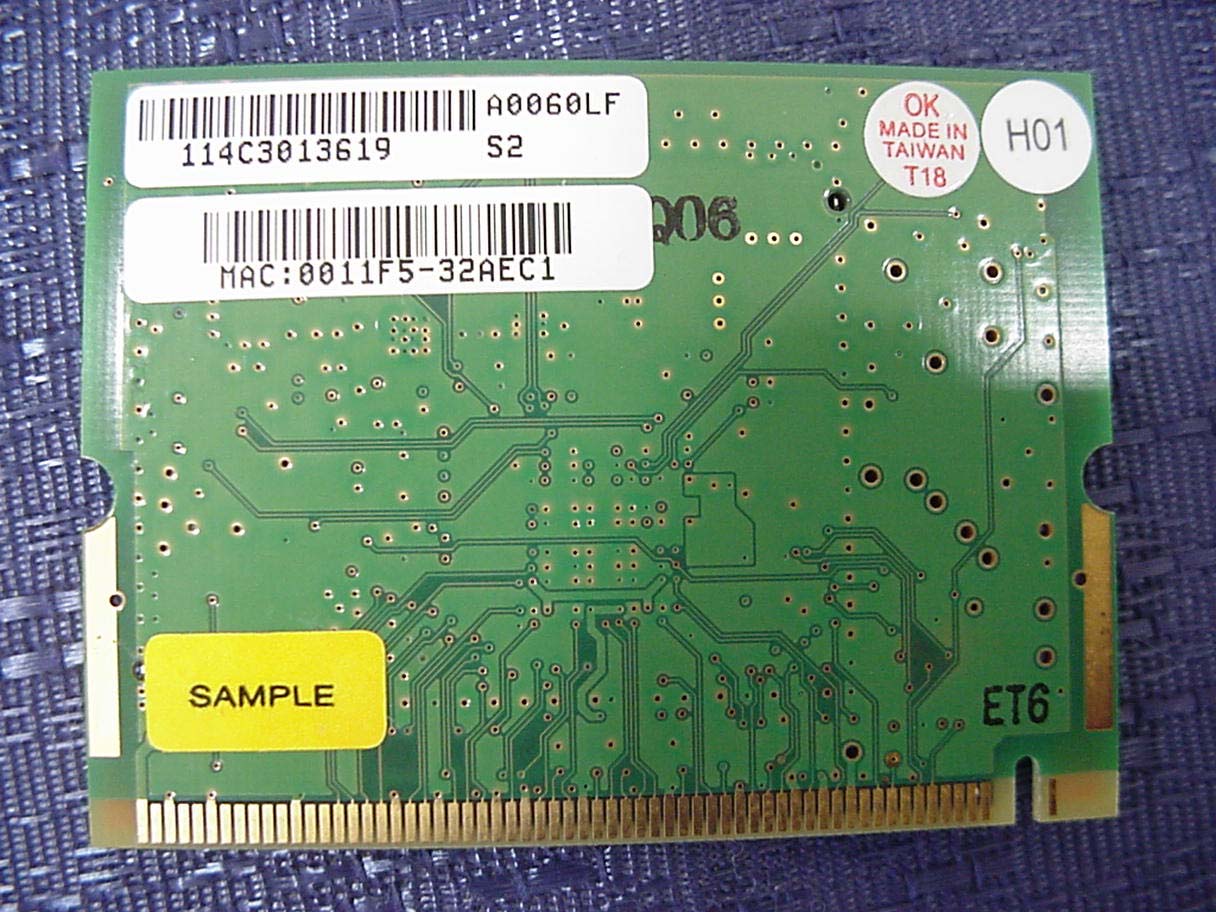

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050322_Cert_WLL4070_11abg_DTS_BT APPENDIX B1 – Test Sample Photographs (external) FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – WLL4070 (11a+b/g), Model WLL4070 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC – LifeBook S Series, Model S7020D

FCC ID: 337J-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX H FCC LABELLING DETAILS

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050322_Cert_WLL4070_11abg_DTS_BT APPENDIX B3 WLAN Module and Antenna Location Photographs FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – WLAN & Antenna Location Atheros (WLL4070) WLAN Location Atheros (WLL4070) WLAN Location – exploded view Atheros WLAN FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – WLAN & Antenna Location WLAN Antenna Location WLAN Antenna WLAN Module FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3 – WLAN & Antenna Location WLAN Antenna Location – Exploded view

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050322_Cert_WLL4070_11abg_DTS_BT APPENDIX B4 – Test Sample Photographs (internal) FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – Atheros (11a+b/g), Model WLL4070 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC - LifeBook S Series, Model S7020D

FCC ID: 337J-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1: RF EXPOSURE INFORMATION FCC ID: 337J-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(b)(5) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). The WLAN is a mobile device. The antennas are located on the top edge of LCD screen (2 antennas left and right) projected distance of greater than 20cm from user. The Bluetooth is a portable device. The antenna is located on left side of keyboard near the TAB key projected distance of greater than 1.5cm from the bottom of the laptop. The separation distance between the WLAN and BT antennas is greater than 20cm. Therefore, they are not co-located transmitters. MPE calculation for Bluetooth is not applicable and SAR is not required as the power for BT is below the low threshold. The MPE calculation shown below is for the WLAN mobile device for a separation distance of greater than 20cm. In accordance with Section 1.1310, the Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure of 1.0 has been applied, i.e 1mW/cm 2 . Friis transmission formula: Pd = (P*G) / (4*π*r 2 ) where: Pd = power density (mW/cm 2 ) P = power input to the antenna (mW) G = antenna gain (numeric) r = distance to the center of radiation of the antenna (cm) The result was extracted from section 5.0 of EMC Technologies Report No: M050322_Cert_WLL4070_11abg_DTS_BT (WLAN Module): Maximum peak output power = 19.9 dBm = 97.7 mW Antenna (Monopole Ceramic) gain (typical) = 2.08 dBi = 1.61 numeric Prediction distance = 20 cm Prediction frequency = 2412 MHz MPE limit for uncontrolled exposure at prediction frequency = 1 mW/cm 2 The power density calculated = 0.031 mW/cm 2 Results: Calculations show that the Radio devices with described antennas complied with Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure

FCC ID: 337J-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/04 20/07/05 1 YEAR *3 ANTENNAS EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *2 ETS Standard Gain Horn, M/N: 3160-05 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. Manufacturer’s Calibration Note *3. NATA calibration by Rohde & Schwarz TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Jan 05 N/A N/A N/A Jan 06 N/A N/A N/A 1 Year *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/05 11/02/06 1 Year *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050322_Cert_WLL4070_11abg_DTS_BT APPENDIX J1 BANDWIDTH - Atheros 802.11a FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 149 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6 dB Bandwidth – Channel 157 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 165 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 152 Turbo FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 160 Turbo

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050322_Cert_WLL4070_11abg_DTS_BT APPENDIX J2 BANDWIDTH - Atheros 802.11b FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 1 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6 dB Bandwidth – Channel 6 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 11

FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050322_Cert_WLL4070_11abg_DTS_BT APPENDIX J3 BANDWIDTH - Atheros 802.11g FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 6dB Bandwidth – Channel 1 FCC ID: EJE-WB0021 (IC: 337J-WB0021) Report No. M050322_Cert_WLL4070_11abg_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emcte…
