EJE-WB0022Lifebook B Series w/ WM3B2915ABG 11ABG WLAN & BT

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_ BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX I USER MANUAL (PART 1) Copyright Copyright and Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. Microsoft, MS-DOS, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Netscape is a registered trademark of Netscape Communications Corporation. Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2005 Fujitsu Computer Systems Corporation All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu Computer Systems Corporation. No part of this publi- cation may be stored or transmitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation. B6FH-6061-01EN-00 Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash ha nds a fter ha ndling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, M/S 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Model Configurations: LifeBook B6110 Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. B Series.book Page 1 Friday, April 22, 2005 2:51 PM LifeBook B Series IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 16 V DC, with a current of 3.75 A. AC Adapter output polarity: When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + Danger of explosion if Lithium (clock) bat- tery is incorrectly replaced. Replace only with the same or equivalent type recom- mended by the manufacturer. Dispose of used batteries according to the manufac- turer’s instruction. For continued protection against risk of fire, replace only with the same type and rating fuse. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. B Series.book Page 2 Friday, April 22, 2005 2:51 PM Table of Contents Fujitsu LifeBook ® B Series Notebook Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 3 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 GETTING TO KNOW YOUR LIFEBOOK NOTEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Locating the Controls and Connectors Top and Front Components . . . . . . . . . . . . . . . . . 8 Left-Side Panel Components . . . . . . . . . . . . . . . . 9 Right-Side Panel Components . . . . . . . . . . . . . . 10 Bottom Components . . . . . . . . . . . . . . . . . . . . . 11 Rear Panel Components . . . . . . . . . . . . . . . . . . . 12 Status Indicator Panel Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 13 AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . 13 Battery Level Indicators . . . . . . . . . . . . . . . . . . . 13 Battery Charging Indicator . . . . . . . . . . . . . . . . . 14 HDD/Removable Media Drive Indicator . . . . . . . 14 PC Card Access Indicators . . . . . . . . . . . . . . . . . 14 Compact Flash (CF) Card Access Indicators . . . . 14 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 14 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 14 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . 14 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 15 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 15 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Fun…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_ BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX I USER MANUAL (PART 2) 55 Troubleshooting You cannot access your hard drive. (continued) The wrong drive designator was used by an application when a bootable CD-ROM was used to start the notebook. Verify drive designator used by application is in use by the operating system. When the operating system is booted from a CD, drive designations are automatically adjusted. Security is set so your oper- ating system cannot be started without a password. Verify your password and security settings. Keyboard or Mouse Problems The built-in keyboard does not seem to work. The notebook has gone into Standby mode. Push the Suspend/Resume button. Your application has locked out your keyboard. Try to use your integrated pointing device to restart your system. If this fails, turn your notebook off, wait 10 seconds or more, and then turn it back on. You have installed an external keyboard or mouse, and it does not seem to work. Your external device is not properly installed. Re-install your device. See “Device Ports” on page 48. Your operating system soft- ware is not setup with the correct software driver for that device. Check your device and operating system docu- mentation and activate the proper driver. You have connected an external keyboard or a mouse and it seems to be locking up the system. Your operating system soft- ware is not set up with the correct software driver for that device. Check your device and operating system documentation and activate the proper driver. Your system has crashed.Try to restart your notebook. If that fails, turn off power, wait at least 10 seconds, then re-apply power. Memory Problems Your Power On screen, or Main menu of the BIOS setup utility information, does not show the correct amount of installed memory. Your memory upgrade module is not properly installed. Turn off your notebook. Remove and re-install your memory upgrade module. See “Memory Upgrade Module” on page 44. You have a memory failure.Check for Power On Self Test (POST) messages. If you are unclear on the message, contact your support representative. See “Power On Self Test Messages” on page 61. Modem Problems Messages about modem operation. Messages about modem operation are generated by whichever modem application is in use. See your application software documentation for additional information. The modem driver has not been properly initialized. Go to Start -> Control Panel -> System. Select the Hardware tab and click the [Device Manager] button. Click on Modems and verify that your modem is listed. ProblemPossible CausePossible Solutions B Series.book Page 55 Friday, April 22, 2005 2:51 PM 56 LifeBook B Series – Section Five USB Device Problems You have installed a USB device but your LifeBook notebook does not recog- nize the device, or the device does not seem to work properly. The device is not properly installed. Remove and re-install the device. See “Device Ports” on page 48. The device may have been installed while an application was running, so your notebook is not aware of its installation. Close the application and restart your notebook. Your software may not have the correct driver active. See your software documentation and activate the correct driver. You may have the wrong I/O address selected for your device. See your device documentation and software docu- mentation to determine the required I/O address. Change the settings in the BIOS setup utility. See “BIOS Setup Utility” on page 29. PC/CF Card Problems A card inserted in the PC or CF Card slot does not work or is locking up the system. The card is not properly installed. Remove and re-install the card. See “PC Cards” on page 41. The card may have been installed while an application was running, so your notebook is not aware of its installation. Close the application and restart your notebook. Your software may not have the correct software driver active. See your software documentation and activate the correct driver. Power Failures You turn on your LifeBook notebook and nothing seems to happen. The installed battery is completely discharged or there is no power adapter (AC or Auto/Airline) installed. Check the Status Indicator Panel to determine the presence and condition of the battery. See “Status Indicator Panel” on page 13. Install a charged battery or a power adapter. The primary battery is installed but is faulty. Use the Status Indicator Panel to verify the presence and condition of the battery. See “Status Indicator Panel” on page 13. If a battery is indicating a short, remove that battery and operate from another power source or replace that battery. The battery is low.Check the Status Indicator Panel to determine the presence and condition of the battery. See “Status Indicator Panel” on page 13. Use a power adapter until a battery is charged or install a charged battery. The AC or auto/airline adapter is not plugged in properly. Verify that your adapter is connected correctly. See “Power Sources” on page 27. Power adapter (AC or auto/ airline) has no power from the AC outlet, airplane seat jack, or the car’s cigarette lighter. Move AC cord to a different outlet, check for a line switch or tripped circuit breaker for the AC outlet. If you are using an adapter in a car, make sure the igni- tion switch is in the On or Accessories position. The Power adapter (AC or auto/airline) is faulty. Try a different Power adapter. ProblemPossible CausePossible Solutions B Series.book Page 56 Friday, April 22, 2005 2:51 PM 57 Troubleshooting Your LifeBook notebook turns off all by itself. The power management parameters are set for auto timeouts which are too short for your operating needs. Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Suspend/Resume button. Check your power management settings, or clos…

Text truncated - open the document above for the full version.

12th September 2005

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO Engineering Inc. Attention: Certification Manager No. of pages: 1 From: Donna Lennon Date: 12 th September 2005 EMC Ref: M050754_Cert_BT_WM3B2915ABG Subject: FCC & IC APPROVAL – FCC ID: EJE-WB0022, IC: 337J-WB0022 Please receive EMC Technologies’ Report M050754_Cert_BT_WM3B2915ABG for review. The EUT is a LifeBook B Series, Model: B6110 installed with a Mini-PCI Wireless LAN (WLAN) Module (Calexico2 11a+b/g, Model WM3B2915ABG) & Bluetooth, Model UGXZ5-102A. The WLAN module is an OEM product from Intel Corp. and Bluetooth is an ALPS Bluetooth. The same WLAN radio module and Bluetooth combination (with different antennas) has been previously certified by Fujitsu under FCC ID: EJE-WB0035 and IC: 337J-WB0035 in a different host. The intention of this application is to FCC & IC certify Calexico2 (11a+b/g) WLAN, Model WM3B2915ABG & Bluetooth, Model UGXZ5-102A in host – LifeBook B Series, Model B6110. WLAN & BT antenna: Taiyo Yuden Monopole, Model: AH104N2450D2-T - Located on top edge of LCD screen (in three positions). Test results are recorded as follows: This is a composite submission. DSS Submission EMC Technologies Report – M050754_Cert_BT_WM3B2915ABG Test results - FCC Part 15.247 (Part C), RSS-210 - (Bluetooth results). Documents submitted: Report Number: M050754_Cert_BT_WM3B2915ABG & all appendices. Required FCC Forms: Form 731, Agent Authority, Confidentiality Request, Required IC Forms: IC Application form, Agent Authority, Confidentiality request, IC Listing, RF Exposure Statement The 802.11a, 802.11b, 802.11g (DTS) and 802.11a (U-NII) sections of the WLAN transmitter results are submitted separately under DTS & NII submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The IDs for this composite application are FCC ID: EJE-WB0022 & IC: 337J-WB0022. Regards ______________ Donna Lennon Report Secretary EMC Technologies Pty Ltd

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX B1 – External Test Sample Photographs FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth – UGXZ5-102A

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_ BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX H FCC LABELLING DETAILS

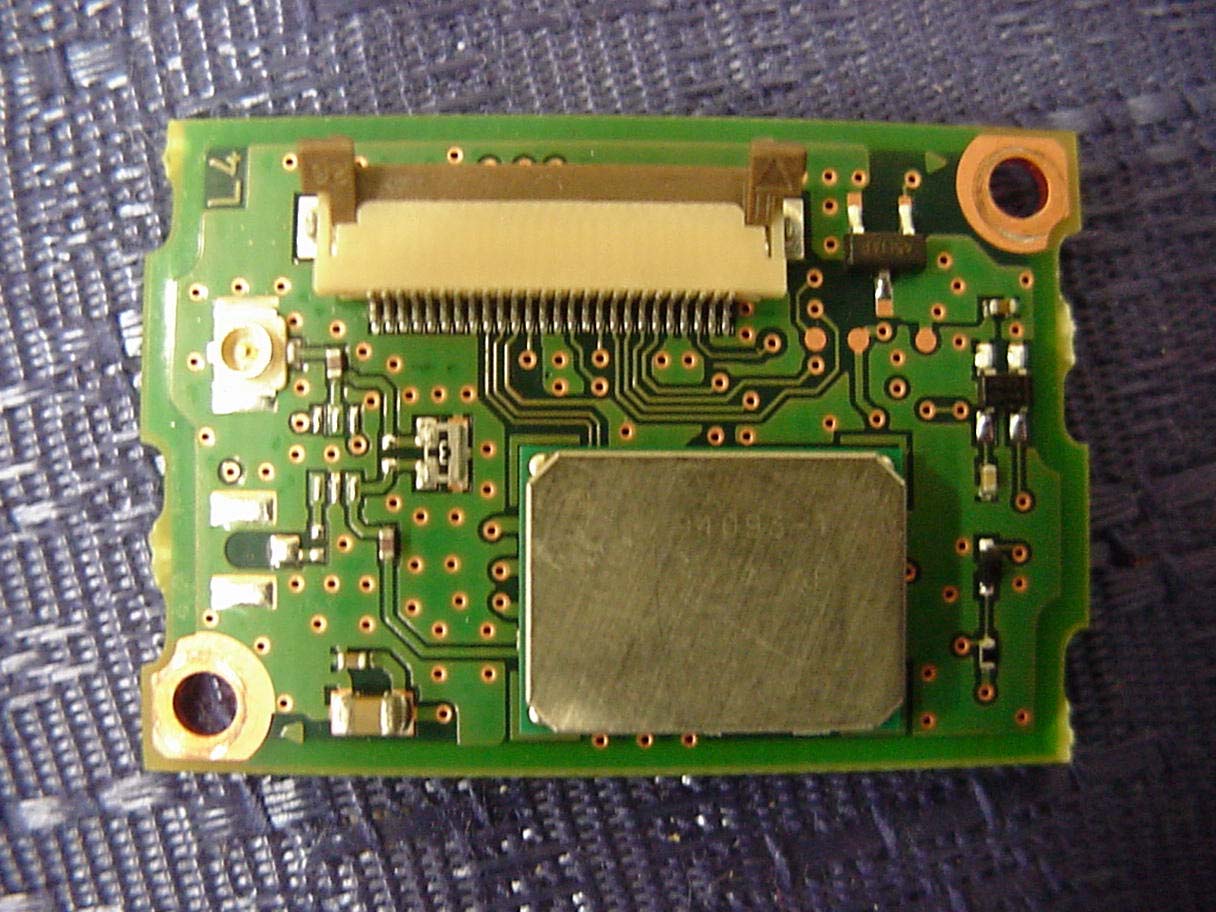

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX B4 – Test Sample Photographs (internal) FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample Bluetooth, Model UGXZ5-102A Exploded view – Shielding removed

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1: RF EXPOSURE INFORMATION FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1: The WLAN is a mobile device. The antennas are located on the top edge of LCD screen (2 antennas left and right) projected distance of greater than 20cm from user. Transmitter # 2: The Bluetooth is a mobile device. The antenna is located on the top center of LCD screen projected distance of greater than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. SAR is not required as both transmitters are mobile devices. The MPE calculation shown below is the aggregate of WLAN and BT power densities for mobile devices for a separation distance of greater than 20cm. In accordance with Section 1.1310, the Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure of 1.0 has been applied, i.e 1mW/cm 2 . Friis transmission formula: Pd = (P*G) / (4*π*r 2 ) where: Pd = power density (mW/cm 2 ) P = power input to the antenna (mW) G = antenna gain (numeric) r = distance to the center of radiation of the antenna (cm) The result was extracted from section 5.0 of M050574_Cert_BT_WM3B2915ABG (BT report): Maximum peak output power = 10.2 dBm = 10.5 mW Antenna (Taiyo Yuden Monopole) gain (max) = -1.3 dBi = 0.741 numeric Prediction distance = 20 cm Prediction frequency = 2441 MHz MPE limit for uncontrolled exposure at prediction frequency = 1 mW/cm 2 The power density calculated = 0.0016 mW/cm 2 The result was extracted from section 5.0 of M050574_Cert_WM3B2915ABG_DTS_BT (WLAN report): Maximum peak output power = 14.8 dBm = 30.2 mW Antenna (Taiyo Yuden Monopole) gain (max) = -1.3 dBi = 0.741 numeric Prediction distance = 20 cm Prediction frequency = 2412 MHz MPE limit for uncontrolled exposure at prediction frequency = 1 mW/cm 2 The power density calculated = 0.0045 mW/cm 2 Therefore, the power density (WLAN + BT) = 0.0061 mW/cm 2 Results: Calculations show that the Radio devices with described antennas complied with Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 31/03/05 31/03/06 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 11/08/05 11/08/06 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 03/03/05 03/03/06 1 YEAR *1 20 - 300 MHz Sn. 9208 1205 EMCO 93146A LOG PERIODIC 24/06/05 24/06/06 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *4 ETS Standard Gain Horn, M/N: 3160-05 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz Note *4. Manufacturer’s Calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Jan 05 N/A N/A N/A Jan 06 N/A N/A N/A 1 YEAR *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/05 11/02/06 1 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX J 20dB Bandwidth - Bluetooth FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20dB Bandwidth – Channel 1 FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20dB Bandwidth – Channel 40 FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20dB Bandwidth – Channel 79

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX K Harmonics - Bluetooth FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 1 (low) FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 40 (Middle) FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 79 (High)

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX L BAND EDGE - Bluetooth FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band Edge – Low FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band Edge – High

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX M PEAK POWER - Bluetooth FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power- Channel 1: 2402 MHz FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power - Channel 40: 2441 MHz FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power - Channel 79: 2480 MHz

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050754_Cert_BT_WM3B2915ABG APPENDIX N Channel Occupancy - Bluetooth FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Number of Channels FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Carrier_Frequency_Separation FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Dwell Time

FCC ID: EJE-WB0022 (IC: 337J-WB0022) Report No. M050754_Cert_BT_WM3B2915ABG EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 3: TEST REPORT FG05-042EAL (PART 1) No. FG05-073EAL (2/9) The EUT: P7120 series personal computer using Pentium-M 1.2GHz ULV/ Celeron-M 1.2GHz ULV microprocessor has a system disk (60 GB). The EUT has the interface to extend for, RGB 18 , MIC IN, Phone out, Sperker out 17 , LAN 10 , TEL 7 , USB6 - 6 21 22 23 ,Multi memory (SD/ xD/ MS) card slot, PC card slot, BT and wireless LAN. The following typecode are given according to the Centrino (CPU, Intel753 chipset). Type CPU, Chipset and Wireless LAN P7120 Centrino P7120D Non-Centrino Internal clock frequency 4.000 MHz, 8.000 MHz, 12.000 MHz, 14.318 MHz, 24.576 MHz, 30.000 MHz, 25.000 MHz, 33.300 MHz, 48.300 MHz, 96.000 MHz, 100.000 MHz Input power AC 100 - 230V, 50 / 60 Hz, Single-phase 2 wires The EUT is intended to general use in the residential / domestic area or commercial and light industrial area; category class B. The measurement was performed using P7120 (Pentium-M 1.2GHz ULV) with FPCPR62 as a maximum personal computer system with all related equipment shown in figure-1. The EUT was selected from the pre-product line. The following EUT and dependent devices were tested using “EMC.exe” and “SPBEST” program for continuously operating and to obtain maximize emission. PC-1 LCD-1: Display “H” character on screen (Maximum contrast / Luminescence/ (Display resolution 1280768 / Refresh rate 60Hz) LAN: Continuous transmission and reception of the “H” character (1000 Mbps) Modem: Continuous transmission of the test data (56 kbps) HDD-1: Read/write the test data DVD: Play the test disk SD card: Connecting only PC card: Connecting only USB2.0 Memory: Read/write the test data (480 Mbps) LCD-2: Display “H” character on screen (Maximum contrast / Luminescence) Headset: Connecting only USB mouse: Connecting only PC-2: Read/write “H” character and receiving serial data. No. FG05-073EAL (3/9) Applied standard: EN55022(1994), +A1(1995), +A2(1997) Limit value: Class B The test samples met the class B limit of EN55022(1994), +A1(1995), +A2(1997) / CISPR22(1993), +A1(1995), +A2(1996) and applicable following regulations as shown following highest 6 points of each emission profiles. Australia, New Zealand: AS/NZS CISPR22(2002) FCC Part-15(2004), Canada: CAN/CSA-CEI/IEC CISPR22-02 Japan: VCCI(2005), Taiwan: CSN 13438(1997) This test was done without deviation from the standard. The test result effective only for the EUT. < AC 230 V / 50 Hz single phase > Freq. pol. Noise level Class B limit Margin (MHz) (dBV/m) (dBV/m) (dB) 162.59 Horiz 25.1 30.0 4.9 166.56 Horiz 25.7 30.0 4.3 168.00 Horiz 27.0 30.0 3.0 168.00 Ve r t 28.0 30.0 2.0 957.90 Horiz 35.7 37.0 1.3 957.90 Ve r t 32.9 37.0 4.1 Limit value ; EN55022(1994) / CISPR 22(1993) Measurement uncertainty 3.3 dBK=2, 95 % < AC 120 V / 60 Hz single phase > Freq. pol. Noise level Class B limit Margin (MHz) (dBV/m) (dBV/m) (dB) 166.56 Horiz 25.5 30.0 4.5 168.00 Horiz 25.8 30.0 4.2 168.00 Vert 26.6 30.0 3.4 638.71 Vert 31.9 37.0 5.1 957.90 Horiz 35.7 37.0 1.3 957.90 Vert 32.9 37.0 4.1 Limit value ; FCC Part-15. Measurement uncertainty 3.3 dBK=2, 95 % FCC Part-15 Freq. Pol Noise level Class B limit Margin (GHz) (dBV/m) (dBV/m) (dB to AV) Peak Peak 1.3586 Vert 44.6 74.0 54.0 9.4 1.4343 Vert 47.2 74.0 54.0 6.8 1.5129 Vert 44.1 74.0 54.0 12.9 1.5929 Vert 40.7 74.0 54.0 13.3 1.7557 Vert 41.2 74.0 54.0 12.8 1.8300 Vert 44.5 74.0 54.0 13.6 No. FG05-073EAL (4/9) < AC 100 V / 50 Hz single phase > Freq. Line # Noise level Class B limit Margin (MHz) (dBV) (dBV) (dB) 0.193 # 1 52.5 43.5 63.9 53.9 11.4 10.4 0.290 # 1 41.9 34.0 60.5 50.5 18.6 16.5 0.567 # 1 39.8 27.9 56.0 46.0 16.2 18.1 0.684 # 1 37.8 29.7 56.0 46.0 18.2 16.3 17.693 # 2 38.6 34.1 60.0 50.0 21.4 15.9 18.245 # 2 38.1 33.3 60.0 50.0 21.9 16.7 < AC 120 V / 60 Hz single phase > Freq. Line # Noise level Class B limit Margin (MHz) (dBV) (dBV) (dB) 0.180 # 1 52.4 45.1 64.5 54.5 12.1 9.4 0.180 # 2 53.7 43.0 64.5 54.5 10.8 11.5 0.269 # 1 44.5 38.1 61.2 51.2 16.7 13.1 0.612 # 1 40.6 27.5 56.0 46.0 15.4 18.5 0.612 # 2 40.0 32.2 56.0 46.0 16.0 13.8 0.794 # 1 35.6 32.1 56.0 46.0 20.4 13.9 < AC 230 V / 50 Hz single phase > Freq. Line # Noise level Class B limit Margin (MHz) (dBV) (dBV) (dB) 0.186 # 2 47.8 34.4 64.2 54.2 16.4 19.8 0.200 # 2 46.6 35.4 63.6 53.6 17.0 18.2 0.664 # 1 34.4 30.5 56.0 46.0 21.6 15.5 0.732 # 1 39.5 39.2 56.0 46.0 16.5 6.8 0.732 # 2 40.7 39.8 56.0 46.0 15.3 6.2 16.046 # 2 39.0 32.9 60.0 50.0 21.0 17.1 Limit value ; EN55022(1994) / CISPR 22(1993) and FCC Part-15. Measurement uncertainty 2.5 dBK=2, 95 % None No. FG05-073EAL (5/9) 4.1.1 Radiated emission (30MHz1,000MHz) The EUT was set on the turntable in the 10 m RF semi-anechoic chamber. The PC-2 and HUB were placed at outside of the chamber to make usual installation at the different place. The maximum noise level in the frequency range from 30 MHz to 1,000 MHz were measured by 10 m method with scanning the antenna height from 1 m to 4 m above the ground plane and rotates the EUT through 360 degrees for both horizontal and vertical polarization. Preliminary measurement using spectrum analyzer peak detection was performed to arrange the minimum margin spectrum. The settings of the interface cables and the mouse were adjusted to obtain maximum level at the minimum margin spectrum. The final measurement was performed using the RFI receiver (CISPR Quasi-peak, 120 kHz band width) and calibrated broadband antennas or dipole antennas about the main spectrum that is obtained by the preliminary measurement. Test equipment Manufacturer Type S/…
