EJE-WB0030Lifebook C Series with WM3B2915ABG 11ABG WLAN & BT

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX H USER MANUAL (PART 1) Copyright Copyright Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. The following are registered trademarks of IBM Corporation: IBM, IBM PC AT, IBM PS/2. The following are registered trademarks of Microsoft Corporation: MS, MS-DOS, Windows. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Earthlink is a registered trademark of EarthLink Network, Inc. Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. The Bluetooth trademark is owned by Bluetooth SIG, Inc., USA. Adobe Acrobat Reader is a registered trademark of Adobe Systems, Inc. Netscape 7.0 is a registered trademark of Netscape Communications Corporation. PowerQuest and Drive Image are registered trademarks of PowerQuest Corporation. Norton AntiVirus is a registered trademark of Symantec Corporation. BayManager is a registered trademark of Softex, Inc. The DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disas- sembly is prohibited. Dolby Headphone manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Copy- rights 1992-1999 Dolby Laboratories. All rights reserved. All other trademarks mentioned herein are the property of their respective owner s. © Copyright 2004 Fujitsu Computer Systems Corpora- tion. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FH-1931-01EN-00 (DRAFT) Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wa s h ha nds after ha ndling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, M/S 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Base Model Configurations: LifeBook C1320 notebook LifeBook C1320D notebook Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. E Series.book Page 1 Wednesday, April 14, 2004 10:28 AM LifeBook E8000 Notebook E Series.book Page 2 Wednesday, April 14, 2004 10:28 AM Table of Contents Fujitsu LifeBook ® E8000 Notebook Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 1 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 1 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 GETTING TO KNOW YOUR LIFEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Locating the Controls and Connectors Top and Front Components . . . . . . . . . . . . . . . . . 6 Left-Side Panel Components . . . . . . . . . . . . . . . . 7 Right-Side Panel Components . . . . . . . . . . . . . . . 8 Back Panel Components . . . . . . . . . . . . . . . . . . . . 9 Bottom Components . . . . . . . . . . . . . . . . . . . . . 10 Status Indicator Panel Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 11 AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . 11 Battery Level Indicators . . . . . . . . . . . . . . . . . . . 11 Battery Charging Indicators . . . . . . . . . . . . . . . . 12 DVD/CD-RW/CD-ROM Drive Access Indicator . 12 Hard Drive or Removable Media Drive Access Indicator . . . . . . . . . . . . 12 PC Card Access Indicators . . . . . . . . . . . . . . . . . 12 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 12 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 12 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . 12 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 13 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 13 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Touchpad Pointing Device Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . 15 Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Touchpad Control Adjustment . . . . . . . . . . . . . . 16 Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Optional Quick Point Feature . . . . .…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX H USER MANUAL (PART 2) 33 Getting Started HIBERNATION (SAVE-TO-DISK) FEATURE The Hibernation feature saves the contents of your LifeBook notebook’s system memor y to the hard drive as a part of the Suspend/Resume mode. You can enable or disable this feature. Enable or Disable the Hibernation Feature The default settings is not enabled. To enable or disable the Hibernation feature follow these easy steps: 1. From the Start menu, select Settings, and then select Control Panel. 2. From the Control Panel select Power Options. 3. Select the Hibernation tab. Select the box to enable or disable this feature. Using the Hibernation Feature 1. From the Start menu, select Settings, and then select Control Panel. 2. From the Control Panel select Power Options. 3. Select the Advanced tab. Select Hibernate from the pull down menu for Power buttons. DISPLAY TIMEOUT The Video Timeout is one of the power management parameters. This feature saves power by turning off the display if there is no keyboard or pointer activity for the user selected timeout period. Any keyboard or pointer activity will cause the display to restart automatically. This feature is independent of the Power/Suspend/ Resume button and can be enabled and disabled in Windows and BIOS setup utility. (See BIOS Setup Utility on page 29 for more information) HARD DISK TIMEOUT The Hard Disk Timeout is another one of the power management parameters. This feature saves power by turning off the hard drive if there is no hard drive activity for the user selected timeout period. Any attempt to access the hard drive will cause it to restart automatically. This feature is independent of the Power/ Suspend/Resume button and can be enabled and disabled in Windows and BIOS setup utility. (See BIOS Setup Utility on page 29 for more information) WINDOWS POWER MANAGEMENT Power Management The Power Management icon located in the Windows Control Panel allows you to configure some power management settings. For example, you can use Power Management to set the timeout values for turning off the display and hard disks whether you are running the notebook on battery power or one of the adapters. The settings may also be changed in the BIOS. (See BIOS Setup Utility on page 29 for more information) RESTARTING THE SYSTEM If your system is on and you need to restart it, be sure that you use the following procedure. 1. Click the Start button, and then click Shut Down. 2. Select the Restart option from within the Windows Shut Down dialog box. 3. Click OK to restart your notebook. Your notebook will shut down and then reboot. POWER OFF Before turning off the power, check that the Hard Drive, optical drive, PC Card, and Floppy Disk indicators are all Off. (See figure 2-3 on page 6). If you power-off while accessing a disk or PC Card there is a risk of data loss. To ensure that the notebook shuts down without error, use the Windows shutdown procedure. Using the correct procedure to shut down from Windows allows your notebook to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is: 1. Click the Start button, and then click Shut Down or Tu r n O f f C o m p u t e r. 2. Select the Shut Down option from within the Windows Shut Down dialog box. 3. Click OK to shut down your notebook. If you are going to store your notebook for a month or more see Care and Maintenance Section. Turning off your notebook without exiting Windows, or turning it on within 10 seconds of being shut off may cause an error when you start the next time. Be sure to close all files, exit all applications, and shut down your operating system prior to turning off the power. If files are open when you turn the power off, you will lose any changes that have not been saved, and may cause disk errors. E Series.book Page 33 Wednesday, April 14, 2004 10:28 AM 34 LifeBook E8000 Notebook E Series.book Page 34 Wednesday, April 14, 2004 10:28 AM 35 4 User-Installable Features E Series.book Page 35 Wednesday, April 14, 2004 10:28 AM 36 LifeBook E8000 Notebook E Series.book Page 36 Wednesday, April 14, 2004 10:28 AM 37 User Installable Features Lithium ion Battery Your LifeBook notebook has a Lithium ion battery that provides power for operating your notebook when no external power source is available. The battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals or other hazards. The Lithium ion battery operating time may become shorter if it is used under the following conditions: ■ When used at temperatures that exceeds a low of 5°C or a high of 35°C. Extreme temperatures not only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status Indi- cator panel will flash when you try to charge a battery that is outside its operating temperature range. (See Battery Charging Indicators on page 12 for more information) ■ When using a high current device such as a modem, Super-Multi DVD drive, CD-ROM drive, DVD/CD- RW combo drive, or the hard drive, using the AC adapter will conserve your battery life. RECHARGING THE BATTERIES If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator located on the Status Indicator panel. The indicator changes as the battery level changes. The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery make sure the battery that needs to be charged is installed in your LifeBook notebook and connect the AC or Auto/Airline adapter . There is no memory effect on the Lithium ion battery therefore you do not need to discharge the battery completely …

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX H USER MANUAL (PART 3) 73 Care and Maintenance Caring for your Optical Drive Your optical drive is durable but you must treat it with care. Please pay attention to the following points: ■ The drive rotates the compact disc at a very high speed. Do not carry it around or subject it to shock or vibration with the power on. ■ Avoid using or storing the drive where it will be exposed to extreme temperatures. ■ Avoid using or storing the drive where it is damp or dusty. ■ Avoid using or storing the drive near magnets or devices that generate strong magnetic fields. ■ Avoid using or storing the drive where it will be subjected to shock or vibration. ■ Do not disassemble or dismantle the optical drive. ■ Use of a commercially available lens cleaner is recommended for regular maintenance of your drive. PC CARDS Caring for your PC Cards PC Cards are durable, but you must treat them with care. The documentation supplied with your PC Card will provide specific information, but you should pay attention to the following points: ■ To keep out dust and dirt, store PC Cards in their protective sleeves when they are not installed in your LifeBook notebook. ■ Avoid prolonged exposure to direct sunlight or excessive heat. ■ Keep the cards dry. ■ Do not flex or bend the cards, and do not place heavy objects on top of them. ■ Do not force cards into the slot. ■ Avoid dropping cards, or subjecting them to excessive vibration. E Series.book Page 73 Wednesday, April 14, 2004 10:28 AM 74 LifeBook E8000 Notebook E Series.book Page 74 Wednesday, April 14, 2004 10:28 AM 75 7 Specifications E Series.book Page 75 Wednesday, April 14, 2004 10:28 AM 76 LifeBook E8000 Notebook E Series.book Page 76 Wednesday, April 14, 2004 10:28 AM 77 Specific a tions Specifications T his section provides the hardware and environmental specifications for your Fujitsu LifeBook notebook. Spec- ifications of particular configurations will vary. C O N FIGU R ATIO N LAB EL T here is a configuration label located on the bottom of your LifeBook notebook. ( See Figure2-7 on page10 for location) This label contains specific information regarding the options you’ve chosen for your notebook. Following is an example label and information on how to read your own configuration label. Figure 7-1 C onfiguration Label MIC R O PR O C ESSO R Intel Pentium M processor ( Refer to the system label to determine the speed of your processor) . C H IPSET
Intel 855GME
I /O Controller Hub 4 Mobile ( I C H 4-M) MEMOR Y System Memory DDR 333 MH z SDR AM memory module. Two DI MM slots; upgradeable to 2 GB of total memory ( 1 GB x 2) C ache Memory L2 on-die, 1 MB or 2 MB depending upon system configuration V IDEO Built-in color flat-panel T FT active matrix LCD display with simultaneous display capability Video C olor and Resolution 15" T FT XGA model:
Internal: 1024 x 768 pixel resolution, 16M colors
External: 1600 x 1200 pixel resolution, 16M colors
Simultaneous Video: 1024 x 768, 16M colors. XGA, SVGA and VGA compatible 15” SXGA+ model:
Internal: 1400 x 1050 pixel resolution, 16M colors
External: 1600 x 1200 pixel resolution, 16M colors
Simultaneous Video: 1400 x 1050 pixel resolution, 16M colors V ideo RAM Intel® 855GME video graphics chip with integrated 32- bit 3D/2D gfx core with Accelerated Graphics Port ( AGP) support. Up to 64 MB shared video memory using Dynamic Video Memory Technology ( DV MT). AU DIO
Sigmatel ST 9751T codec
Stereo headphone jack, 3.5 mm, 1 V rms or less, minimum impedance 32 Ohms
Mono microphone jack, 3.5 mm, 100 mV p-p or less, minimum impedance 10K Ohms
Two built-in stereo speakers, 20 mm diameter MASS STORAGE DEV IC E OPTIONS H ard Drive
5400 rpm: 40 GB, 60 GB, or 80 GB fixed hard drive, U ltra DMA 100, 2.5”, 9.5 mm
4200 rpm: 40 GB or 30 GB fixed hard drive, U ltra DMA 100, 2.5”, 9.5 mm Media Player Depending upon the configuration of your system, one of the following is installed.
C D Drive ( modular 24x maximum) , or,
Combo DVD/CD-RW Drive ( modular 8x maximum DVD/24x maximum write, 10x maximum rewrite, 24x maximum read C D-RW combo drive) , or,
Super-Multi DVD Drive ( modular 4x DVD-R , 2x DVD-RW, 2.4x DVD+R , 2.4x DVD+RW, 2x DVD- RAM, 8x DVD-ROM, 16x C D-R , 8x C D-RW, 24x C D-ROM) AS WX X X X X X X X X X X X E 8020, P M 1. 7G , X P P, DVD/C D-RW, 256M, 40G , WL AN , 15X G A F P C P /N : F P C MX X X X X C onfigura tion P /N : O perating H ard Drive C onfiguration ID Part N umber ProcessorModel #Screen SizeMemory System C ommunications Media Drive E Series.book Page 77 Wednesday, April 14, 2004 10:28 AM 78 LifeBook E8000 Notebook FEATURES Integrated Pointing Device
Touchpad pointing device with scroll button
Optional Quick Point cursor control button Communications Modem: Internal V.92 standard 56K fax/modem (ITU V.90, 56K data, 14.4K fax) Gigabit LAN: Internal wired 10Base-T/100Base-Tx/ 1000Base-T/Tx Ethernet LAN Wireless LAN: Certain configurations of the Lifebook C1320 notebook have an optional Wireless LAN device installed. If you have an IntelPRO device installed, your system is classified as a Centrino product. If you have no wireless device or a Wireless LAN device other than IntelPRO, your system is classified as a Pentium M product. (For additional infor- mation about the Wireless LAN device, refer to the Wireless LAN User’s Guide on page93).
C1320 Model: Integrated Intel PRO Set Wireless LAN (802.11a+b/g), Wi-Fi-compliant
C1320D Model: Optional integrated Atheros Wireless LAN (802.11a+b/g), Wi-Fi-compliant
Optional Bluetooth device for wireless personal area network communication LifeBook Security/Application Panel The Application Launcher buttons on your LifeBook notebook default…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO ENGINEERING INC. Attention: Certification Manager No. of pages: 1 From: Donna Cleary Date: 3 rd June 2005 EMC Ref: M050533_Cert_WM3B2915ABG_11abg_NII_BT Subject: FCC & IC APPROVAL – FCC ID: EJE-WB0030, IC ID: 337J-WB0030 Please receive EMC Technologies’ Report M050533_Cert_WM3B2915ABG_11abg_NII_BT for review. The EUT is a LifeBook C Series PC, Model: C1320 installed with a Mini-PCI Wireless LAN (WLAN) Module (Calexico2 11a+b/g, Model WM3B2915ABG) & Bluetooth, Model UGXZ5-102A. The WLAN module is an OEM product from Intel Corp. and Bluetooth is an ALPS Bluetooth. The same WLAN radio module and Bluetooth combination has been previously certified by Fujitsu under FCC ID: EJE-WB0019 and IC: 337J-WB0019 in a different host. The intention of this application is to FCC & IC certify Calexico2 (11a+b/g) WLAN, Model WM3B2915ABG (with Inverted F Antenna) & Bluetooth with (Yokowa YCE-5250 Antenna) in host – LifeBook C Series, Model C1320. Test results are recorded as follows: This is a composite submission. U-NII Submission EMC Technologies Report – M050533_Cert_WM3B2915ABG_11abg_NII_BT Test results - FCC Part 15.407 (Part E) & RSS 210 - (Atheros 802.11a NII results Documents submitted: Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request, Form 731. The 802.11b, 802.11g and 802.11a (DTS) sections of the WLAN transmitter & the Bluetooth results are submitted separately under DTS & DSS submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRN are 0009379173 and 0013134713. The FCC ID for this composite application is EJE-WB0030 & IC ID: 337J-WB0030. Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

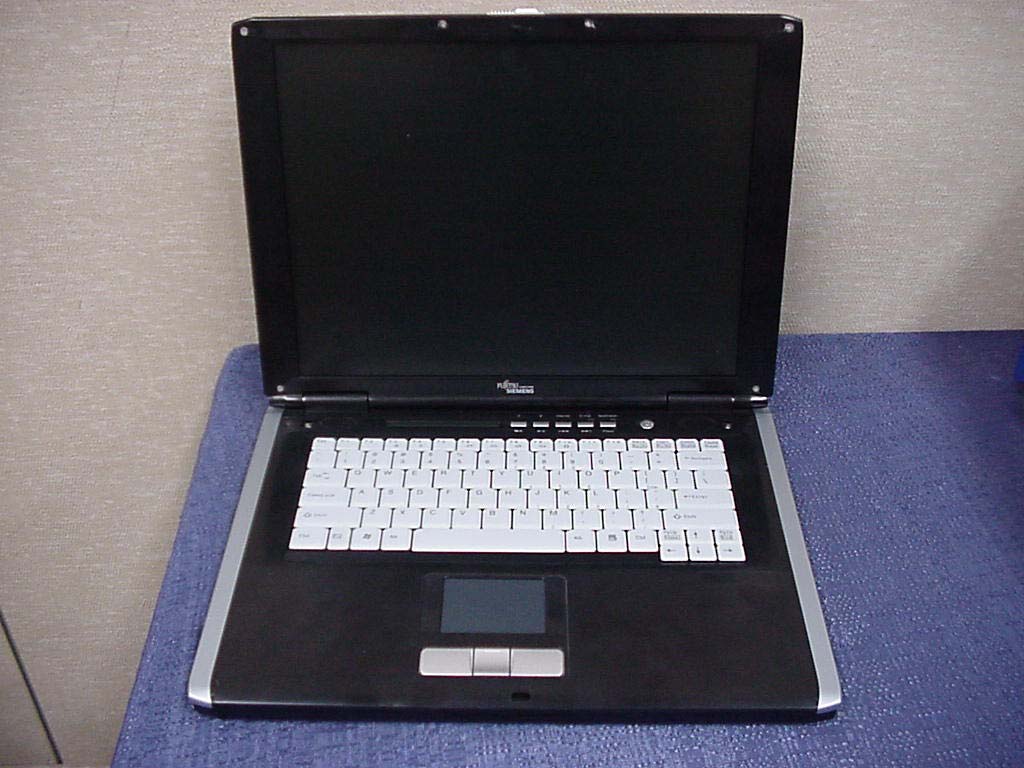

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_ WM3B2915ABG_11abg_NII_BT APPENDIX B1 – Test Sample Photographs (external) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – Calexico2 (11a+b/g), Model WM3B2915ABG FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – LifeBook C Series, Model C1320

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX G – FCC Labelling

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX B4 – Test Sample Photographs (internal) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – Calexico2 (11a+b/g), Model WM3B2915ABG

FCC ID: 337J-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1: RF EXPOSURE INFORMATION FCC ID: 337J-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.407(f) Spread spectrum transmitters operating in the 5.150 – 5.350 GHz and 5.725 – 5.825 GHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1: The WLAN is a mobile device. The antennas are located on the top edge of LCD screen (2 antennas left and right) projected distance of greater than 20cm from the user. Transmitter # 2: The Bluetooth is a portable device. The antenna is located on the right hinge of LCD screen projected distance of greater than 2.5cm from the bottom of the laptop. The separation distance between the WLAN and BT antennas is greater than 20cm. Therefore, they are not co-located transmitters. MPE calculation for Bluetooth is not applicable and SAR is not required as the power for BT is below the low threshold. The MPE calculation shown below is for the WLAN mobile device for a separation distance of greater than 20cm. In accordance with Section 1.1310, the Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure of 1.0 has been applied, i.e 1mW/cm 2 . Friis transmission formula: Pd = (P*G) / (4*π*r 2 ) where: Pd = power density (mW/cm 2 ) P = power input to the antenna (mW) G = antenna gain (numeric) r = distance to the center of radiation of the antenna (cm) The result was extracted from section 5.0 of EMC Technologies Report No: M050533_Cert_WM3B2915ABG_11abg_NII_BT (WLAN Module): Maximum peak output power = 16.6 dBm = 45.7 mW Antenna (Inverted F) gain (typical) = 2.01 dBi = 1.59 numeric Prediction distance = 20 cm Prediction frequency = 5320 MHz MPE limit for uncontrolled exposure at prediction frequency = 1 mW/cm 2 The power density calculated = 0.015 mW/cm 2 Results: Calculations show that the Radio devices with described antennas complied with Maximum Permissible Exposure (MPE) limit for the General Population/Uncontrolled Exposure

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER HP 8574B System Components 31/03/05 31/03/06 1 YEAR *2 EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 20/07/04 20/07/05 1 YEAR *3 ANTENNAS EMCO 93110B BICONICAL 26/07/04 26/07/05 1 YEAR *1 20 - 300 MHz Sn. 9804-3092 EMCO 93146A LOG PERIODIC 19/07/04 19/07/05 1 YEAR *1 200 -1000MHz Sn. 5033 EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 29/01/03 29/01/06 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *4 ETS Standard Gain Horn, M/N: 3160-05 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Agilent Technologies (Aust) Pty Ltd Note *3. NATA calibration by Rohde & Schwarz Note *4. Manufacturer’s Calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Jan 05 N/A N/A N/A Jan 06 N/A N/A N/A 1 YEAR *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/05 11/02/06 1 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX I CHANNEL BANDWIDTH - WM3B2915ABG 802.11a (NII) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26 dB Bandwidth – Channel 36 FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26 dB Bandwidth – Channel 52 FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26 dB Bandwidth – Channel 64

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX J Harmonics - WM3B2915ABG 802.11a (NII) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 36 FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 52 FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 64

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX K BAND EDGE - WM3B2915ABG 802.11a (NII) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band Edge – Low FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band Edge – High

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX L SPECTRAL DENSITY - WM3B2915ABG 802.11a (NII) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power Spectral Density- Channel 36 FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power Spectral Density – Channel 52 FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power Spectral Density – Channel 64

FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M050533_Cert_WM3B2915ABG_11abg_NII_BT APPENDIX M PEAK EXCURSION - WM3B2915ABG 802.11a (NII) FCC ID: EJE-WB0030 (IC: 337J-WB0030) Report No. M050533_Cert_WM3B2915ABG_11abg_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.…
