EJE-WB0038LifeBook T Series with WM3945ABG 11 ABG WLAN & BT

Copyright Copyright & Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. Microsoft, MS-DOS, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2005 Fujitsu Computer Systems Corpora- tion. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu Computer Systems Corpora- tion. No part of this publication may be stored or trans- mitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation. B6FH-6901-01EN-00 WARNING Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, MS 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Model Configuration: LifeBook T4210 Tablet PC Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. T Series.book Page 1 Thursday, July 14, 2005 2:24 PM LifeBook T Series Tablet PC IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed Adapters with an output rating of 19 VDC, with a current of 3.15 A. AC Adapter output polarity: When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + Danger of explosion if Lithium (clock) bat- tery is incorrectly replaced. Replace only with the same or equivalent type recom- mended by the manufacturer. Dispose of used batteries according to the manufac- turer’s instruction. For continued protection against risk of fire, replace only with the same type and rating fuse. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. T Series.book Page 2 Thursday, July 14, 2005 2:24 PM Table of Contents Fujitsu LifeBook ® T Series Tablet PC Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 3 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 GETTING TO KNOW YOUR TABLET PC Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 8 Locating the Controls/Connectors Top and Front Components . . . . . . . . . . . . . . . . 11 Left-Side Panel Components . . . . . . . . . . . . . . . 13 Right-Side Panel Components . . . . . . . . . . . . . . 14 Rear Panel Components . . . . . . . . . . . . . . . . . . . 15 Bottom Components . . . . . . . . . . . . . . . . . . . . . 16 Status Indicator Panel Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 17 External Power Indicator. . . . . . . . . . . . . . . . . . . 17 Battery Charging/Level Indicators. . . . . . . . . . . . 17 Optical Drive Access Indicator . . . . . . . . . . . . . . 18 Hard Drive Access Indicator . . . . . . . . . . . . . . . . 18 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 18 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 18 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . 18 Display Panel Opening the Display Panel . . . . . . . . . . . . . . . . . 19 Using the System as a Tablet . . . . . . . . . . . . . . . 19 Adjusting Display Panel Brightness . . . . . . . . . . . 20 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 21 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 21 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Function Keys. . . . . . .…

Text truncated - open the document above for the full version.

65 Troubleshooting Your Tablet PC appears to change setup parameters when you start it. BIOS setup changes were not saved when you made them and exited the BIOS setup utility returning it to previous settings. Make sure you select Save Changes And Exit when exiting the BIOS setup utility. The BIOS CMOS back-up battery has failed. Contact your support representative for repairs. This is not a user-serviceable part. Video Problems The built-in display is blank when you turn on your Tablet PC. The angle of the display and the brightness settings are not adequate for your lighting conditions. Move the display and the brightness control until you have adequate visibility. The optional Port Replicator is attached, an external monitor is plugged in, and the Tablet PC is set for an external monitor only. Pressing [F10] while holding down the [Fn] key allows you to change your selection of where to send your display video. Each time you press the combination of keys you will step to the next choice. The choices, in order are: built-in display only, external monitor only, both built-in display and external monitor. The power management timeouts may be set for very short intervals and you failed to notice the display come on and go off again. Press any button the keyboard, or move the mouse to restore operation. If that fails, push the Suspend/ Resume button. (The display may be shut off by Standby mode, Auto Suspend or Video Timeout) The Tablet PC turned on with a series of beeps and your built-in display is blank. Power On Self Test (POST) has detected a failure which does not allow the display to operate. Contact your support representative. Your system display won’t turn on when the system is turned on or when the system has resumed. The system may be password- protected. Check the status indicator panel to verify that the Security icon is blinking. If it is blinking, enter your password. The display goes blank by itself after you have been using it. The Tablet PC has gone into Video Timeout, Standby Mode, or Hibernate Mode because you have not used it for a period of time. Press a button on the keyboard, or move the mouse to restore operation. If that fails, push the Suspend/ Resume button. Check your power management settings, or close your applications and go to the Power Savings menu of the setup utility to adjust the timeout values to better suit your operation needs. See “BIOS Setup Utility” on page 36. The power management time- outs may be set for very short intervals and you failed to notice the display come on and go off again. Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Suspend/ Resume button. (The display may be shut off by Standby Mode, Auto Suspend or Video Timeout) The display does not close.A foreign object, such as a paper clip, is stuck between the display and the keyboard. Remove all foreign objects from the keyboard. ProblemPossible CausePossible Solutions T Series.book Page 65 Thursday, July 14, 2005 2:24 PM 66 LifeBook T Series Tablet PC - Section Five The display has bright or dark spots. If the spots are very tiny and few in number, this is normal for a large LCD display. This is normal; do nothing. If the spots are numerous or large enough to interfere with your operation needs. The display needs technical diagnosis; contact your support representative. The application display uses only a portion of your screen and is surrounded by a dark frame. You are running an application that does not support 800 x 600/1024 x 768 pixel resolution display and display compres- sion is enabled. When compensation is disabled, a clearer but smaller display for applications that do not support 800 x 600/1024 x 768 pixel resolution will result. You can fill the screen but have less resolution by changing your compensation setting. (See the Video Features submenu, located within the Advanced menu of the BIOS. See “BIOS Setup Utility” on page 36. You have connected an external monitor and it does not display any information. Your BIOS setup is not set to enable your external monitor. Try toggling the video destination by pressing [Fn] and [F10] together, or check your BIOS setup and enable your external monitor. (See the Video Features submenu, located within the Advanced Menu of the BIOS. See “BIOS Setup Utility” on page 36. Your external monitor is not properly installed. Reinstall your device. See “External Video Port” on page 55. Your operating system soft- ware is not set up with the correct software driver for that device. Check your device and operating system documentation and activate the proper driver. You have connected an external monitor and it does not come on. Your external monitor may not be compatible with your Tablet PC. See your monitor documentation and the External Monitor Support portions of the Specifications section. See “Specifications” on page 79. Miscellaneous Problems An error message is displayed on the screen during the operation of an application. Application software often has its own set of error message displays. See your application manual and help displays screens for more information. Not all messages are errors some may simply be status. ProblemPossible CausePossible Solutions T Series.book Page 66 Thursday, July 14, 2005 2:24 PM 67 Troubleshooting POWER ON SELF TEST MESSAGES The following is an alphabetic list of error-and-status messages that Phoenix BIOS and/or your operating system can generate and an explanation of each message. Error messages are marked with an *. If an error message is displayed that is not in this list, write it down and check your operating system documentation both on screen and in the manual. If you can find no reference to the message and its meaning is not clear, contact your support representative for assistance. nnnn Cache SRAM Passed Where nnnn is the amount of system cache in kilobytes successfully tested by the Power On Self Test. (This can only appear if you have a…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: Federal Communications Commission Attention: Certification Manager, OET No. of pages: 1 From: Donna Cleary Date: 18 th March 2006 EMC Ref: M060244_Cert_WM3945ABG_NII_BT Subject: FCC APPROVAL – FCC ID: EJE-WB0038 Please receive EMC Technologies’ Report M060244_Cert_WM3945ABG_NII_BT for review. The EUT is a Fujitsu notebook PC, Model: T4210 with INTEL Mini-PCI Wireless LAN Module (GOLAN 11a+b/g), Model: WM3945ABG & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT. The GOLAN WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD9WM3945ABG (Canada ID: 1000M-WM3945ABG). The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The intention of this application is to FCC certify INTEL Mini-PCI Wireless LAN Module (GOLAN 11a+b/g), Model: WM3945ABG & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT installed in Fujitsu notebook PC, Model: T4210 This is a composite submission. Test results are recorded as follows: NII Submission EMC Technologies Report – M060244_Cert_WM3945ABG_NII_BT Test results - FCC Part 15.401 (Part E), RSS-210 - (802.11a NII results). Documents submitted: Report Number: M060244_Cert_WM3945ABG_NII_BT & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request. The 802.11a and 802.11b/g (DTS) section of the WLAN transmitter & the Bluetooth results are submitted separately under DTS & DSS submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The FCC ID for this composite application is EJE-WB0038 Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

18th March 2006

Federal Communications Commission Date:18 th March 2006 Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Company: Fujitsu Limited Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Limited requests that prior to the equipment authorization grant for the (test sample) the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Limited and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Fujitsu Limited, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Operational Description, Antenna Information, Appendix B3 – WLAN Location Photographs Sincerely Yours,

FCC ID: EJE-WB0038 (IC: 337J-WB0038) Report No. M060244_Cert_WM3945ABG_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060244_Cert_WM3945ABG_NII_BT APPENDIX H FCC LABELLING DETAILS

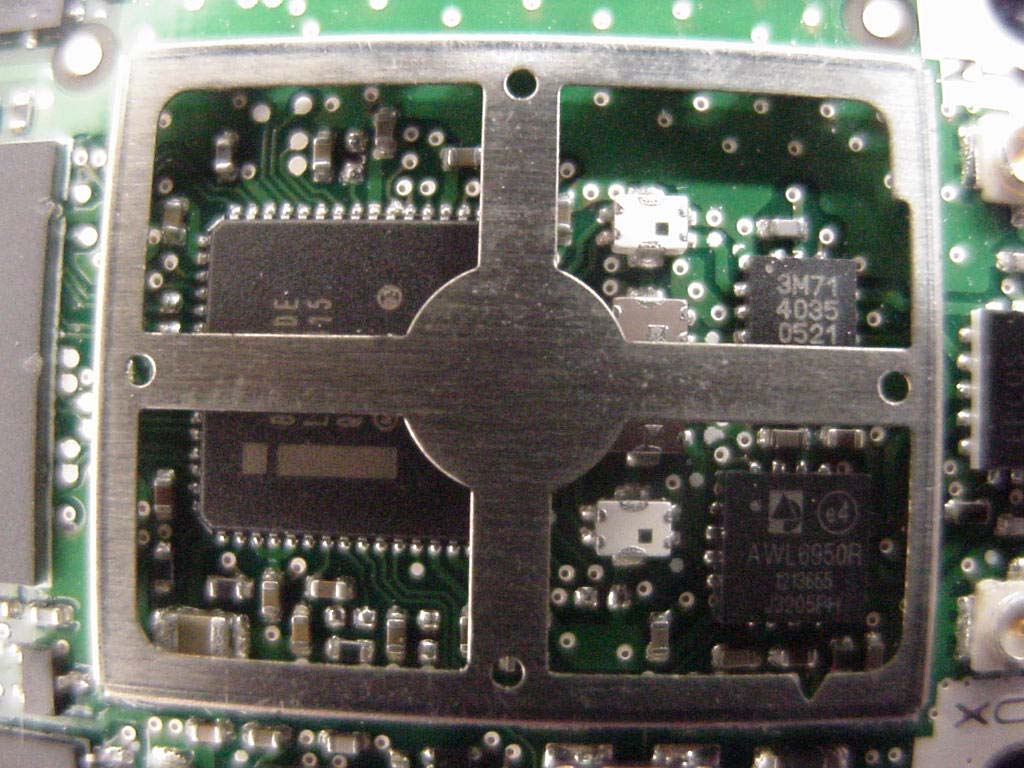

FCC ID: EJE-WB0038 (IC: 337J-WB0038) Report No. M060244_Cert_WM3945ABG_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060244_Cert_WM3945ABG_NII_BT APPENDIX B4 Test Sample Internal Photographs FCC ID: EJE-WB0038 (IC: 337J-WB0038) Report No. M060244_Cert_WM3945ABG_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au GOLAN WLAN – WM3945ABG

FCC ID: EJE-WB0038 (IC: 337J-WB0038) Report No. M060244_Cert_WM3945ABG_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION FCC ID: EJE-WB0038 (IC: 337J-WB0038) Report No. M060244_Cert_WM3945ABG_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.407(f) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5.150 – 5.350 GHz are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1 (WLAN): The antennas are located on the top edge of LCD screen (left and right hand side) and projected distance of less than 20cm from user. Transmitter # 2 (Bluetooth): The antenna is located at the middle of top edge of LCD screen projected distance of less than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. In accordance with this section and also section 2.1093 this device has been defined as a portable device. SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M060245_Cert_WM3945ABG_SAR_2.4 and M060245_Cert_WM3945ABG_SAR_5.2. The highest SAR value is 1.51 mW/g which complies with the FCC human exposure requirements of 47 CFR 2.1093 (d).

FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 1 of 70 EMC Technologies is a NATA Accredited Laboratory complying with the requirements specified in ISO/IEC 17025 and results produced are traceable to national standards of measurement. This document shall not be reproduced, except in full. Nata Accredited Laboratory Number: 5292 SAR Test Report Report No: M060245_Cert_WM3945ABG_SAR_5.2 Test Sample: Portable Tablet Computer Wireless LAN Model: WM3945ABG Tested For: Fujitsu Australia Pty Ltd FCC ID: EJE-WB0038 IC: 337J-WB0038 Date of Issue: 29 th March 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 2 of 70 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au CONTENTS 1.0 General Information ................................................................................................................3 2.0 Description of Device .............................................................................................................4 2.1 Description of Test Sample .......................................................................................................4 2.1.1 Summary of EUT Details .................................................................................................. 4 2.1.2 EUT Host Details .............................................................................................................. 4 2.2 Test sample Accessories ..........................................................................................................5 2.2.1 Battery Types ...................................................................................................................5 2.3 Test Signal, Frequency and Output Power................................................................................5 2.4 Battery Status ...........................................................................................................................6 2.5 Details of Test Laboratory .........................................................................................................7 2.5.1 Location............................................................................................................................ 7 2.5.2 Accreditations ................................................................................................................... 7 2.5.3 Environmental Factors...................................................................................................... 8 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM...............................................................8 3.1 Probe Positioning System .........................................................................................................8 3.2 E-Field Probe Type and Performance .......................................................................................8 3.3 Data Acquisition Electronics......................................................................................................8 3.4 Calibration and Validation Procedures and Data.......................................................................8 3.4.1 Validation Results @ 5GHz .............................................................................................. 9 3.4.2 Deviation from reference validation values ....................................................................... 9 3.4.3 Liquid Depth 15cm.......................................................................................................... 10 3.5 Phantom Properties (Size, Shape, Shell Thickness) ...............................................................11 3.6 Tissue Material Properties ......................................................................................................12 3.6.1 Liquid Temperature and Humidity................................................................................... 13 3.7 Simulated Tissue Composition Used for SAR Test .................................................................13 3.8 Device Holder for Laptops and P 10.1 Phantom .....................................................................13 4.0 SAR Measurement Procedure Using DASY4 ......................................................................14 5.0 MEASUREMENT UNCERTAINTY .........................................................................................15 6.0 Equipment List and Calibration Details...............................................................................17 7.0 OET Bulletin 65 – Supplement C Test Method....................................................................18 7.1 Description of the Test Positions (Lap Top) ............................................................................18 7.1.1 “Tablet” Position Definition (0mm spacing) ..................................................................... 18 7.1.2 “Lap Arm Held” Position (0mm spacing) ......................................................................... 18 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes).................................19 7.3 FCC RF Exposure Limits for Occupational/ Controlle…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 28 of 70 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for the “Lap Arm Held”, “Tablet” and “Edge On” tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table 15: 5800 MHz Band SAR Measurement Plot Numbers Plot 1 Lap Arm Held Position – Ant Aux -- Prescan CH#157 Plot 2 Lap Arm Held Position – Ant Main -- Prescan CH#157 Plot 3 Lap Arm Held Position – Ant Aux CH#149 Plot 4 Lap Arm Held Position – Ant Aux CH#157 Plot 5 Lap Arm Held Position – Ant Aux CH#165 Z-Axis graphs Z-Axis graphs for Plots 3 to 5 Plot 6 Lap Arm Held Position – Ant Main CH#149 Plot 7 Lap Arm Held Position – Ant Main CH#157 Plot 8 Lap Arm Held Position – Ant Main CH#165 Z-axis graphs Z-Axis graphs for Plots 6 to 8 Plot 9 Edge On Position – Ant Main CH#149 Plot 10 Edge On Position – Ant Main CH#157 Plot 11 Edge On Position – Ant Main CH#165 Plot 12 Edge On Position – Ant Aux CH#157 Z-axis graphs Z-Axis graphs for Plots 9 to 12 WLAN with Bluetooth On Plot 13 Lap Arm Held Position – Ant Main CH#165 Plot 14 Lap Arm Held Position – Ant Aux CH#157 Plot 15 Edge On Position – Ant Main CH#157 Plot 16 Tablet Position – Ant Main CH#157 Z-Axis graphs Z-Axis graphs for Plots 13 to 16 FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 29 of 70 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Table 16: 5200 MHz Band SAR Measurement Plot Numbers Plot 17 Lap Arm Held Position – Ant Aux CH#36 Plot 18 Lap Arm Held Position – Ant Aux CH#52 Plot 19 Lap Arm Held Position – Ant Aux CH#64 Z-axis graphs Z-Axis graphs for Plots 17 to 19 Plot 20 Lap Arm Held Position – Ant Main CH#36 Plot 21 Lap Arm Held Position – Ant Main CH#52 Plot 22 Lap Arm Held Position – Ant Main CH#64 Z-axis graphs Z-Axis graphs for Plots 20 to 22 Plot 23 Edge On Position – Ant Main CH#36 Plot 24 Edge On Position – Ant Main CH#52 Plot 25 Edge On Position – Ant Main CH#64 Plot 26 Edge On Position – Ant Aux CH#52 Z-axis graphs Z-Axis graphs for Plots 23 to 26 WLAN with Bluetooth On Plot 27 Lap Arm Position With Blue tooth Ant Aux BTCH#01 CH#64 Plot 28 Lap Arm Position With Blue tooth Ant Main BTCH#40 CH#36 Plot 29 Edge On Position With Blue tooth Ant Main BTCH#79 CH#36 Z-axis graphs Z-Axis graphs for Plots 27 to 29 Table 17: 2450MHz Validation Plot Plot 30 Validation 5800 MHz 1 st March 2006 Plot 31 Validation 5800 MHz 2 nd March 2006 Plot 32 Validation 5800 MHz 3 rd March 2006 Z-Axis Graphs Z-Axis graphs for Plots 30 & 32 FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 30 of 70 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Test Date: 1 March 2006 File Name: Arm Held OFDM 5.77 GHz Versalius Antenna Aux Bluetooth Off Prescan 01-03-06.da4 DUT: Fujitsu Tablet Versalius with Golan 11abg and Bluetooth; Type: WM3945ABG; Serial: 028CCF455CVD26533003 * Communication System: OFDM 5770 MHz; Frequency: 5785 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 6.17624 mho/m, ε r = 47.5805; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.99, 3.99, 3.99) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 157 Test/Area Scan (141x161x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.82 mW/g 0 dB = 4.65mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 20.4 Degrees Celsius Liquid Temperature 19.8 Degrees Celsius Humidity 56.0 % FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 31 of 70 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Test Date: 1 March 2006 File Name: Arm Held OFDM 5.77 GHz Versalius Antenna Main Bluetooth Off Prescan 01-03-06.da4 DUT: Fujitsu Tablet Versalius with Golan 11abg and Bluetooth; Type: WM3945ABG; Serial: 028CCF455CVD26533003 * Communication System: OFDM 5770 MHz; Frequency: 5785 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 6.17624 mho/m, ε r = 47.5805; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.99, 3.99, 3.99) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 157 Test/Area Scan (141x161x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.18 mW/g 0 dB = 2.38mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 20.4 Degrees Celsius Liquid Temperature 19.8 Degrees Celsius Humidity 56.0 % FCC ID: EJE-WB0038 IC: 337J-WB0038 Report No. M060245_Cert_WM3945ABG_SAR_5.2 Page 32 of 70 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au Test D…

Text truncated - open the document above for the full version.
