EJE-WB0040LIFEBOOK P SERIES WITH WM3945ABG 11ABG WLAN & BT

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX I1 FUJITSU NOTEBOOK USER MANUAL (Part 1) Copyright Copyright & Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. Microsoft, MS-DOS, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Atheros and Super AG are registered trademarks of Atheros Communications, Inc. Adobe, Acrobat, and Acrobat Reader are either regis- tered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other coun- tries. Realtek is a trademark of Realtek Semiconductor Corpo- ration. Bluetooth is a registered trademark of Bluetooth SIG, Inc. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2006 Fujitsu Computer Systems Corpora- tion. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu Computer Systems Corpora- tion. No part of this publication may be stored or trans- mitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation. B6FH-8231-02EN-00 WARNING Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address:1250 E. Arques Avenue, MS 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Model Configuration: LifeBook P1610 Notebook LifeBook P1610 Tablet PC Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device ma y not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. P Series.book Page 1 Tuesday, February 21, 2006 1:44 PM LifeBook P Series Notebook/Tablet PC IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 16 VDC, with a minimum current of 2.5 A. AC adapter output polarity: When using your notebook/Tablet PC equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + Danger of explosion if Lithium (clock) bat- tery is incorrectly replaced. Replace only with the same or equivalent type recom- mended by the manufacturer. Dispose of used batteries according to the manufac- turer’s instruction. For continued protection against risk of fire, replace only with the same type and rating fuse. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. P Series.book Page 2 Tuesday, February 21, 2006 1:44 PM Table of Contents Fujitsu LifeBook ® P Series Notebook/Tablet PC Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 3 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 GETTING TO KNOW YOUR LIFEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 7 Locating the Controls and Connectors Front and Display Components . . . . . . . . . . . . . . 9 Left-Side Panel Components . . . . . . . . . . . . . . . 10 Right-Side Panel Components . . . . . . . . . . . . . . 11 Rear Panel Components . . . . . . . . . . . . . . . . . . . 12 Bottom Components . . . . . . . . . . . . . . . . . . . . . 13 Status Indicators Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 14 AC Adapter/Battery Charging Indicator . . . . . . . 14 Battery Level Indicator . . . . . . . . . . . . . . . . . . . . 14 Hard Drive Access Indicator . . . . . . . . . . . . . . . . 14 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 15 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 15 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Display Panel Opening the Display Panel . . . . . . . . . . . . . . . . . 16 Using the System as a Tablet . . . . . . . . . . . . . . . 16 Adjusting Display Panel Brightness . . . . . . . . . . . 17 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 18 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 18 Windows Keys . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX I2 FUJITSU NOTEBOOK USER MANUAL (Part 2) 49 5 Troubleshooting P Series.book Page 49 Tuesday, February 21, 2006 1:44 PM 50 LifeBook P Series Notebook/Tablet PC P Series.book Page 50 Tuesday, February 21, 2006 1:44 PM 51 Troubleshooting Troubleshooting Your LifeBook P Series notebook/Tablet PC is sturdy and subject to few problems in the field. However, you may encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices, that you can solve by replacing the device. The information in this section helps you isolate and resolve some of these straightforward problems and identify failures that require service. IDENTIFYING THE PROBLEM If you encounter a problem that you are having diffi- culty in solving, go through the following procedure before pursuing further troubleshooting: 1. Turn off your notebook/Tablet PC. 2. Make sure the AC adapter is plugged into your system and to an active AC power source. 3. Make sure that any card inserted in the PC Card slot is seated properly. You can also remove the card from the slot, thus eliminating it as a possible cause of failure. 4. Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect such devices, thus eliminating them as possible causes of failure. 5. Turn on your notebook/Tablet PC. Make sure it has been off at least 10 seconds before you turn it on. 6. Go through the boot sequence. 7. If the problem has not been resolved, refer to the Troubleshooting Table, that follows, for more detailed troubleshooting information. 8. If you still have the problem after taking all of the above approaches, please check our support website athttp://www.computers.us.fujitsu.com/support for possible known support issues. 9. If you have tried the solutions suggested in the Troubleshooting Table and checked our website for possible solutions without success, contact your support representative: Toll free: 1-800-8Fujitsu E-mail: [email protected] We b s i t e : http://www.computers.us.fujitsu.com/support Before you place the call, you should have the following information ready so that the customer support repre- sentative can provide you with the fastest possible solu- tion: ■ Product name ■ Product configuration number ■ Product serial number ■ Purchase date ■ Conditions under which the problem occurred ■ Any error messages that have occurred ■ Type of device connected, if any See the Configuration Label on the bottom of your notebook/Tablet PC for configuration and serial numbers. (See figure 2-8 on page 13 for location) SPECIFIC PROBLEMS Using the Troubleshooting Table When you have problems with your notebook/Tablet PC, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your notebook/Tablet PC. ■ If you keep notes about what you have tried, your support representative may be able to help you more quickly by giv- ing additional suggestions over the phone. ■ Do not return a failed notebook/Tablet PC to your supplier until you have talked to a support representative. P Series.book Page 51 Tuesday, February 21, 2006 1:44 PM 52 LifeBook P Series Notebook/Tablet PC TROUBLESHOOTING TABLE ProblemPage Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 52 Docking Problems . . . . . . . . . . . . . . . . . . . . . . . . page 52 Hard Drive Problems . . . . . . . . . . . . . . . . . . . . . . page 52 Keyboard or Mouse Problems . . . . . . . . . . . . . . . page 52 Pen Input Problems . . . . . . . . . . . . . . . . . . . . . . . page 53 Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . page 53 ProblemPage Modem Problems. . . . . . . . . . . . . . . . . . . . . . . . . page 53 USB Device Problems . . . . . . . . . . . . . . . . . . . . . page 53 Power Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 54 Shutdown and Startup Problems . . . . . . . . . . . . page 55 Video Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 56 Miscellaneous Problems . . . . . . . . . . . . . . . . . . . page 57 ProblemPossible CausePossible Solutions Audio Problems There is no sound coming from the built-in speakers. The software volume control is set too low. Adjust the sound volume control settings in your software, operating system and applications. Headphones are plugged into your notebook/Tablet PC. Plugging in headphones disables the built-in speakers, remove the headphones. Software driver is not configured correctly. Refer to your application and operating system documentation for help. Sound could have been muted with function keys. Press [F3] while holding the [Fn] key to toggle the sound on and off. Port Replicator Problems System does not turn on when installed in optional Port Replicator Port Replicator AC adapter is not plugged in. Provide power to the Port Replicator. LifeBook is not properly seated in the Port Replicator. Remove and re-dock your notebook/Tablet PC. Hard Drive Problems You cannot access your hard drive. The setup utility is incorrectly set for your internal (Primary Master) hard drive. Revise BIOS settings to set the Primary Master correctly. See “BIOS Setup Utility” on page 30. The wrong drive designator was used by an application when a bootable CD-ROM was used to start the system. Verify drive designator used by application is in use by the operating system. When the operating system is booted from a CD, drive designations are automatically adjusted. Secu…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 2 FCC DoC for LifeBook P Series

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO Engineering Inc Attention: Certification Manager No. of pages: 1 From: Donna Cleary Date: 12 th September 2006 EMC Ref: M060758_Cert_EYTF3CSFT_WLAN Subject: FCC APPROVAL – FCC ID: EJE-WB0040 Please receive EMC Technologies’ Report M060758_Cert_EYTF3CSFT_WLAN for review. The EUT is a Fujitsu notebook PC, Model: P1610 with INTEL Mini-PCI Wireless LAN Module (GOLAN 11a+b/g), Model: WM3945ABG & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT. The GOLAN WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD9WM3945ABG (Canada ID: 1000M-WM3945ABG). The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The intention of this application is to FCC certify INTEL Mini-PCI Wireless LAN Module (GOLAN 11a+b/g), Model: WM3945ABG & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT installed in Fujitsu notebook PC, Model: P1610 This is a composite submission. Test results are recorded as follows: DSS Submission EMC Technologies Report – M060758_Cert_EYTF3CSFT_WLAN Test results - FCC Part 15.247 (Part C), RSS-210 - (Bluetooth results). Documents submitted: Report Number: M060758_Cert_EYTF3CSFT_WLAN & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request and Form 731. The WLAN transmitter results are submitted separately under DTS & UNII submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The FCC ID for this composite application is EJE-WB0040 Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EJE-WB0040 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational Description Block Diagram, Schematics, Operational Description Internal photos Appendix C Operational Description.pdf Appendix D Block Diagram.pdf Appendix E Schematics.pd Appendix F Antenna Details.pdf Appendix B3 WLAN location photos.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

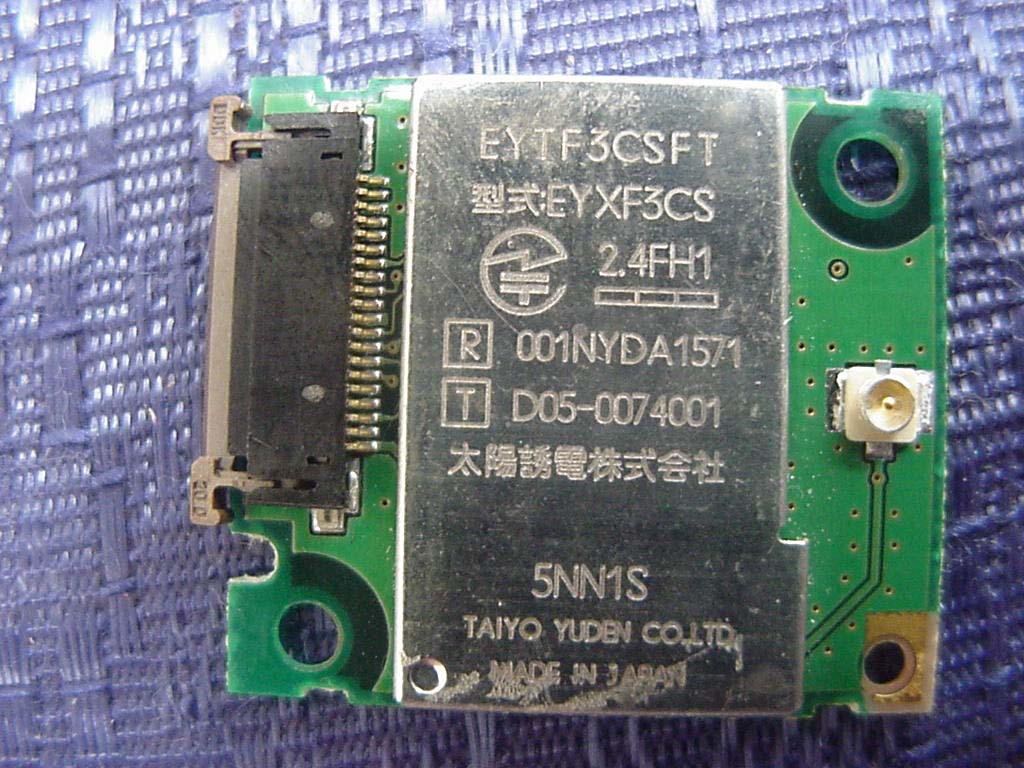

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX B1 Test Sample External Photographs FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth – EYTF3CSFT

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX H FCC LABELLING DETAILS

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX B4 Test Sample Internal Photographs FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth - EYTF3CSFT Bluetooth – Shield removed

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1 (WLAN): The antennas are located on the top edge of LCD screen (left and right hand side) and projected distance of less than 20cm from user. Transmitter # 2 (Bluetooth): The antenna is located under right palm rest corner and projected distance of less than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. In accordance with this section and also section 2.1093 this device has been defined as a portable device. SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M060759_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G and M060759_Cert_WM3945ABG_SAR_NII_5.2G. The highest SAR value is 1.42 mW/g which complies with the FCC human exposure requirements of 47 CFR 2.1093 (d).

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 23/06/06 23/06/07 1 YEAR *2 ANTENNAS EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 24/02/06 24/02/09 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *3 ETS Standard Gain Horn, M/N: 3160-02 21/11/03 21/11/06 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-03 25/06/04 25/06/07 3 YEAR *1 Narda Standard Gain Horn, M/N: 644 28/10/03 28/10/06 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-05 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Vicom Note *3. Manufacturer’s Calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Jan 06 N/A N/A N/A Jan 07 N/A N/A N/A 1 YEAR *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/06 11/02/07 1 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX J 20dB Bandwidth FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20dB Bandwidth – Channel 1 FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20dB Bandwidth – Channel 40 FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 20dB Bandwidth – Channel 79

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX K HARMONICS FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 1, Range 1 (1 to 7 GHz) FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 1, Range 2 (7 to 25 GHz) FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 40, Range 1 (1 to 7 GHz) FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 40, Range 2 (7 to 25 GHz) FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 79, Range 1 (1 to 7 GHz) FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 79, Range 2 (7 to 25 GHz)

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX L BAND EDGE FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band Edge – Low FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band Edge – High

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX M PEAK POWER FCC ID: EJE-WB004 0 (IC: 337J-WB004 0 ) Report No. M0607 58 _Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power- Channel 1: 2402 MHz FCC ID: EJE-WB004 0 (IC: 337J-WB004 0 ) Report No. M0607 58 _Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power - Channel 40: 2441 MHz FCC ID: EJE-WB004 0 (IC: 337J-WB004 0 ) Report No. M0607 58 _Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Peak Power - Channel 79: 2480 MHz

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060758_Cert_EYTF3CSFT_WLAN APPENDIX N Channel Occupancy FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Number of Channels FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Carrier_Frequency_Separation FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Dwell Time

FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 3 FCC Part 15B Test Report (FG06-084EAL)

Page 1 of 17 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 FCC ID: EJE-WB0040 Industry Canada ID: 337J-WB0040 Test Sample: LifeBook P Series Model: P1610 Radio Modules: EYTF3CSFT Bluetooth Module & WM3945ABG GOLAN INTEL Mini-PCI WLAN Module Report Number: M060758_Cert_EYTF3CSFT_WLAN Tested for: Fujitsu Australia Ltd. Issue Date: 12 th September 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. The certificate on page 3 may be reproduced in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN Page 2 of 17 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 EMC Technologies Report No. M060758_Cert_EYTF3CSFT_WLAN Issue Date: 12 th September 2006 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION RESULTS – Bluetooth, EYTF3CSFT 3.0 CONDUCTED EMI MEASUREMENTS 4.0 SPURIOUS EMI MEASUREMENTS 5.0 PEAK OUTPUT POWER 6.0 CHANNEL BANDWIDTH & CHANNEL OCCUPANCY 7.0 RADIO FREQUENCY EXPOSURE 8.0 ANTENNA REQUIREMENT 9.0 COMPLIANCE STATEMENT RESULTS – WLAN, WM3945ABG: Refer to Report No: M060758_Cert_WM3945ABG_DTS_BT (802.11b/g and 802.11a (DTS)) Refer to Report No: M060758_Cert_WM3945ABG_NII_BT (802.11a (NII)) APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: REPORT PHOTOGRAPHS APPENDIX C: FUNCTIONAL DESCRIPTION APPENDIX D: BLOCK DIAGRAM APPENDIX E: SCHEMATICS APPENDIX F: ANTENNA DETAILS APPENDIX G: SPECIFICATIONS APPENDIX H: FCC LABELLING DETAILS APPENDIX I: USER MANUAL APPENDIX J: CHANNEL BANDWIDTH PLOTS APPENDIX K: HARMONICS PLOTS APPENDIX L: BANDEDGE PLOTS APPENDIX M: PEAK POWER OUTPUT PLOTS APPENDIX N: BLUETOOTH CHANNEL OCCUPANCY PLOTS Attachment 1: RF Exposure Information Attachment 2: FCC DOC for LifeBook P Series Attachment 3: FCC Part 15B Test Report (Report: FG06-084EAL) FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN Page 3 of 17 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 Report Number: M060758_Cert_EYTF3CSFT_WLAN Test Sample: LifeBook P Series Model: P1610 Radio Modules: Bluetooth Module, Model: EYTF3CSFT (TAIYO YUDEN) GOLAN INTEL Mini-PCI WLAN Module, Model: WM3945ABG (Intel Corp.) FCC ID: EJE-WB0040 Industry Canada ID: 337J-WB0040 Equipment Type: Intentional Radiator (Transceiver) LifeBook Manufacturer: Fujitsu Ltd - Mobile Computing Division Address: 1-1 Kamikodanaka 4-Chome, Nakahara-Ku, Kawasaki, Japan Contact: Mr. Tsuyoshi Uchihara Tested for: Fujitsu Australia Ltd Test Standards: FCC Part 15, Subpart C – Intentional Radiators FCC Part 15.247, 2400 – 2483.5 MHz Operation Band ANSI C63.4 – 2003 OET Bulletin No. 65 RSS-210 Issue 6 Low Power Licence-Exempt RadioCommunication Devices: 6.2.2 (o) 2400 – 2483.5 MHz Spread Spectrum RSS-102 Issue 1 (Provisional), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields Test Dates: 18 th August to 5 th September 2006 Test Engineer: Chieu Huynh - B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: EJE-WB0040 (IC: 337J-WB0040) Report No. M060758_Cert_EYTF3CSFT_WLAN Page 4 of 17 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION …
