EJE-WB0042STYLISTIC ST SERIES W/ WM3945ABG 11ABG WLAN & BT

FCC ID: EJE-WB0042 (IC: 337J-WB0042) Report No. M060762_Cert_WM3945ABG_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060762_Cert_WM3945ABG_DTS_BT APPENDIX I FUJITSU NOTEBOOK USER MANUAL Copyright Copyright and Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. Because ongoing development efforts are made to continually improve the capabilities of our prod- ucts, however, the data contained herein represents Fujitsu design objectives and is provided for comparative purposes; actual results may vary based on a variety of factors. This product data does not constitute a warranty. Specifications are subject to change without knowledge. Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited; Stylistic is a registered trademark of Fujitsu Computer Systems Corporation. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Associa- tion. Intel, Pentium, and SpeedStep are trademarks or regis- tered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Atheros is a registered trademark of Atheros Communications, Inc. Bluetooth and the Bluetooth logo are registered trade- marks of Bluetooth SIG, Inc. Memory Stick is a registered trademark of Sony Corpora- tion and/or its affiliates Wi-Fi is a trademark of the Wireless Ethernet Compati- bility Alliance (WECA). All other products are trademarks or registered trade- marks of their respective companies. Copyright 2005 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Fujitsu Computer Systems Corporation. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Fujitsu Computer Systems Corporation. B6FH-6891-01EN-00 Note:For more detailed information about the FCC rules and their applicability to the Stylistic ST5110 Series Tablet PC, refer to Chapter 5 of this document. Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address:1250 E. Arques Avenue, MS 122 Sunnyvale, CA 94085 Telephone:408-746-6000 Declares that product:Model Series: Stylistic® ST5110 Tablet PC Complies with Part 15 of the FCC Rules This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. Niechen_UG.book Page i Thursday, July 14, 2005 3:52 PM Stylistic ST5000 Series Tablet PC - User’s Guide IMPORTANT SAFETY INSTRUCTIONS ■ This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 16 VDC, with a current of 3.75A minimum. AC Adapter output polarity: ■ When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + Danger of explosion if Lithium (clock) bat- tery is incorrectly replaced. Replace only with the same or equivalent type recom- mended by the manufacturer. Dispose of used batteries according to the manufac- turer’s instruction. For continued protection against risk of fire, replace only with the same type and rating fuse. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. Niechen_UG.book Page ii Thursday, July 14, 2005 3:52 PM Table of Contents Table of Contents PREFACE About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . v Fujitsu Contact Information . . . . . . . . . . . . . . . . . v Limited Warranty Information . . . . . . . . . . . . . . . v 1 GETTING STARTED Getting Started with Your Tablet PC In-box Items for the Stylistic ST5000 Series Tablet PC. . . . . . . . . . . . . . . . . . . . 1 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2 Stylistic Tablet PC Features. . . . . . . . . . . . . . . . . . 3 Status Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Application Buttons . . . . . . . . . . . . . . . . . . . . . . 10 Navigation Buttons. . . . . . . . . . . . . . . . . . . . . . . 12 Tertiary Functions of Buttons . . . . . . . . . . . . . . . 13 Security Functions of Application Buttons. . . . . . 14 Setting up the Security Panel . . . . . . . . . . . . . . . 14 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Your Security Panel . . . . . . . . . . . . . . . . . 15 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Uninstalling the Security Panel Application . . . . . 15 Connectors and Peripheral Interfaces…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: TIMCO Engineering Inc Attention: Certification Manager No. of pages: 1 From: Donna Lennon Date: 5 th September 2006 EMC Ref: M060762_Cert_WM3945ABG_DTS_BT Subject: FCC APPROVAL – FCC ID: EJE-WB0042 Please receive EMC Technologies’ Report M060762_Cert_WM3945ABG_DTS_BT for review. The EUT is a Fujitsu Stylistic ST Series, Model: ST5110 with INTEL Mini-PCI Wireless LAN Module (GOLAN 11a+b/g), Model: WM3945ABG & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT. The GOLAN WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD9WM3945ABG (Canada ID: 1000M-WM3945ABG). The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The intention of this application is to FCC certify INTEL Mini-PCI Wireless LAN Module (GOLAN 11a+b/g), Model: WM3945ABG & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT installed in Fujitsu Stylistic ST Series, Model: ST5110. This is a composite submission. Test results are recorded as follows: DTS Submission EMC Technologies Report – M060762_Cert_WM3945ABG_DTS_BT Test results - FCC Part 15.247 (Part C) - (802.11b, 802.11g & 802.11a DTS results). Documents submitted: Report Number: M060762_Cert_WM3945ABG_DTS_BT & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request and Form 731. The 802.11a (U-NII) section of the WLAN transmitter & the Bluetooth results are submitted separately under UNII & DSS submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The FCC ID for this composite application is EJE-WB0042 Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EJE-WB0042 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Operational Description Block Diagram, Schematics, Operational Description Internal photos Appendix C Operational Description.pdf Appendix D Block Diagram.pdf Appendix E Schematics.pd Appendix F Antenna Details.pdf Appendix B3 WLAN location photos.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

FCC ID: EJE-WB0042 (IC: 337J-WB0042) Report No. M060762_Cert_WM3945ABG_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060762_Cert_WM3945ABG_DTS_BT APPENDIX B1 Test Sample External Photographs FCC ID: EJE-WB0042 (IC: 337J-WB0042) Report No. M060762_Cert_WM3945ABG_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au GOLAN WLAN – WM3945ABG

FCC ID: EJE-WB0042 (IC: 337J-WB0042) Report No. M060762_Cert_WM3945ABG_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060762_Cert_WM3945ABG_DTS_BT APPENDIX H FCC LABELLING DETAILS

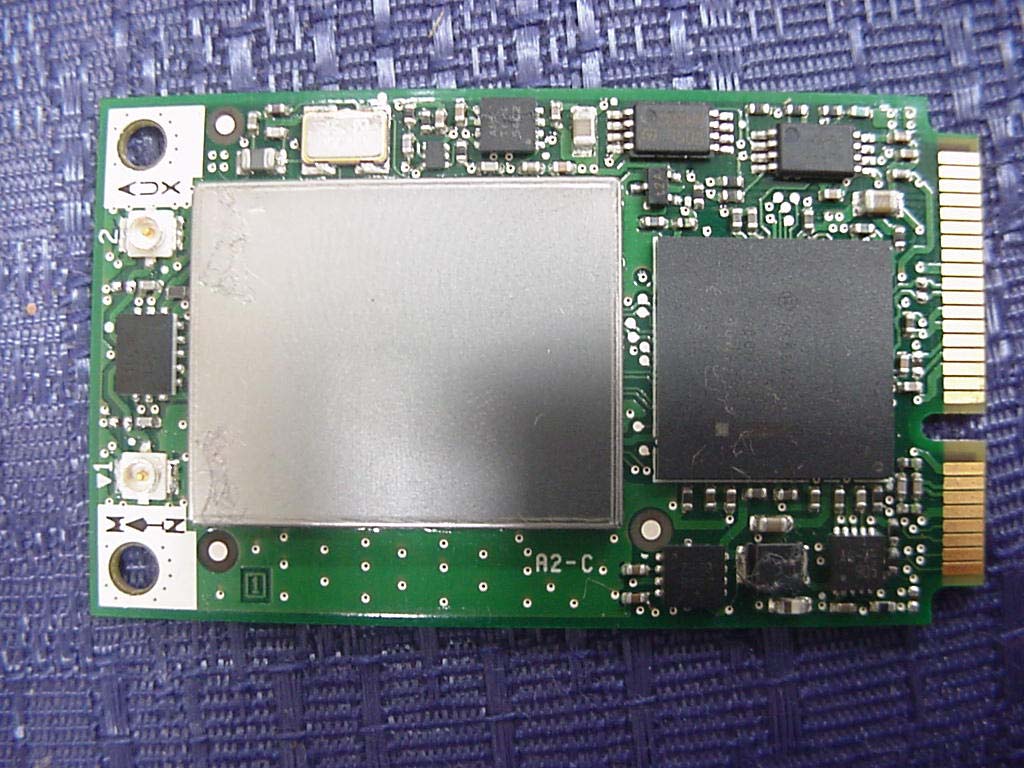

FCC ID: EJE-WB0042 (IC: 337J-WB0042) Report No. M060762_Cert_WM3945ABG_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060762_Cert_WM3945ABG_DTS_BT APPENDIX B4 Test Sample Internal Photographs FCC ID: EJE-WB0042 (IC: 337J-WB0042) Report No. M060762_Cert_WM3945ABG_DTS_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au GOLAN WLAN – WM3945ABG

FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 1 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au SAR Test Report Report Number: M060763_CERT_WM3945ABG_SAR_DTS_2.4G_5.8G Test Sample: Portable Tablet Computer Wireless LAN Model Number: WM3945ABG Tested For: Fujitsu Australia Pty Ltd FCC ID: EJE-WB0042 IC: 337J-WB0042 Date of Issue: 30 th October 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 2 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au CONTENTS 1.0 GENERAL INFORMATION........................................................................................................... 3 2.0 DESCRIPTION OF DEVICE..........................................................................................................4 2.1 Description of Test Sample .................................................................................................. 4 2.1.1 Summary of EUT Details .................................................................................................. 4 2.1.2 EUT Host Details .............................................................................................................. 5 2.2 Test sample Accessories ..................................................................................................... 5 2.2.1 Battery Types ...................................................................................................................5 2.3 Test Signal, Frequency and Output Power........................................................................... 6 2.4 Battery Status....................................................................................................................... 7 2.5 Details of Test Laboratory .................................................................................................... 7 2.5.1 Location............................................................................................................................ 7 2.5.2 Accreditations ................................................................................................................... 7 2.5.3 Environmental Factors...................................................................................................... 8 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ................................................................... 8 3.1 Probe Positioning System .................................................................................................... 8 3.2 E-Field Probe Type and Performance .................................................................................. 8 3.3 Data Acquisition Electronics ................................................................................................. 8 3.4 Calibration and Validation Procedures and Data .................................................................. 8 3.4.1 Validation Results @ 2450MHz ........................................................................................ 9 3.4.2 2.4GHz deviation from reference validation values........................................................... 9 3.4.3 Validation Results @ 5800MHz ........................................................................................ 9 3.4.2 5.8GHz deviation from reference validation values......................................................... 10 3.4.3 Liquid Depth 15cm.......................................................................................................... 11 3.5 Phantom Properties (Size, Shape, Shell Thickness) .......................................................... 12 3.6 Tissue Material Properties.................................................................................................. 13 3.6.1 Liquid Temperature and Humidity................................................................................... 13 3.7 Simulated Tissue Composition Used for SAR Test ............................................................ 14 3.8 Device Holder for Laptops and P 10.1 Phantom ................................................................ 14 4.0 SAR MEASUREMENT PROCEDURE USING DASY4 ............................................................... 15 5.0 MEASUREMENT UNCERTAINTY.............................................................................................. 16 7.0 OET BULLETIN 65 – SUPPLEMENT C TEST METHOD ........................................................... 21 7.1.1 “Tablet” Position Definition (0mm spacing) ..................................................................... 21 7.1.2 “Lap Arm Held” Position (0mm spacing) ......................................................................... 21 7.1.3 “Edge On” Position (0mm spacing)................................................................................. 21 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes) ............................ 22 7.3 FCC RF Exposure Limits for Occupational/ Controlled Exposure....................................... 23 7…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 32 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for the “Lap Arm Held”, “Edge On” and “Tablet” tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table 30: 2450 MHz DSSS Band SAR Measurement Plot Numbers Plot 1 Lap Arm Held Position – Ant Aux – Pre-scan CH#06 Plot 2 Lap Arm Held Position – Ant Main – Pre-scan CH#06 Plot 3 Lap Arm Held Position – Ant Aux CH#01 Plot 4 Lap Arm Held Position – Ant Aux CH#06 Plot 5 Lap Arm Held Position – Ant Aux CH#11 Z-Axis Graphs Z-Axis graphs for Plots 3 to 5 Plot 6 Tablet Position – Ant A – Pre-scan CH#06 Plot 7 Tablet Position – Ant Main CH#01 Plot 8 Tablet Position – Ant Main CH#06 Plot 9 Tablet Position – Ant Main CH#11 Z-Axis Graphs Z-Axis graphs for Plots 7 to 9 Plot 10 Edge On Position – Ant Aux CH#01 Plot 11 Edge On Position – Ant Aux CH#06 Plot 12 Edge On Position – Ant Aux CH#11 Z-Axis Graphs Z-Axis graphs for Plots 10 – 12 Plot 13 Edge On Position – Ant Main CH#01 Plot 14 Edge On Position – Ant Main CH#06 Plot 15 Edge On Position – Ant Main CH#11 Z-Axis Graphs Z-Axis graphs for Plots 13 – 15 FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 33 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au WLAN with Bluetooth On Plot 16 Edge On Position With Blue tooth Ant Main CH#06 Table 31: 2450 MHz OFDM Band SAR Measurement Plot Numbers Plot 17 Tablet Position With Blue tooth Ant Main CH#06 Plot 18 Lap Arm Held Position With Blue tooth Ant Aux CH#06 Z-Axis Graphs Z-Axis graphs for Plot 16 - 18 Table 32: 5800 MHz Band SAR Measurement Plot Numbers Plot 19 Lap Arm Held Position – Ant Aux CH#149 Plot 20 Lap Arm Held Position – Ant Aux CH#157 Plot 21 Lap Arm Held Position – Ant Aux CH#165 Z-Axis graphs Z-Axis graphs for Plots 19 to 21 Plot 22 Tablet Position – Ant Main CH#149 Plot 23 Tablet Position – Ant Main CH#157 Plot 24 Tablet Position – Ant Main CH#165 Z-Axis graphs Z-Axis graphs for Plots 22 to 24 Plot 25 Edge On Position – Ant Aux CH#157 Plot 26 Edge On Position – Ant Main CH#157 Z-Axis graphs Z-Axis graphs for Plots 25 to 26 Plot 27 Edge On Position – Ant Aux CH#149 Plot 28 Edge On Position – Ant Aux CH#157 Plot 29 Edge On Position – Ant Aux CH#165 Z-Axis graphs Z-Axis graphs for Plots 27 – 29 Plot 30 Edge On Position – Ant Main CH#149 Plot 31 Edge On Position – Ant Main CH#157 Plot 32 Edge On Position – Ant Main CH#165 Z-Axis graphs Z-Axis graphs for Plots 30 to 32 FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 34 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au WLAN with Bluetooth On Plot 33 Tablet Position With Blue tooth Ant Main CH#149 Plot 34 Edge On Position With Blue tooth Ant Aux CH#165 Plot 35 Edge On Position With Blue tooth Ant Main CH#165 Z-Axis graphs Z-Axis graphs for Plots 33 to 35 Table 33: Validation Plot Plot 36 Validation 2450 MHz 2 nd September 2006 Plot 37 Validation 2450 MHz 4 th September 2006 Plot 38 Validation 5800 MHz 21 st August 2006 Z-Axis graphs Z-Axis graphs for Plots 36 to 38 Plot 39 Validation 5800 MHz 22 nd August 2006 Plot 40 Validation 5800 MHz 24 th August 2006 Z-Axis Graphs Z-Axis graphs for Plots 39 to 40 FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 35 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 04 September 2006 File Name: Arm Held DSSS 2.45 GHz Antenna Aux Bluetooth Off Prescan 04-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.90878 mho/m, ε r = 54.1369; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(4.2, 4.2, 4.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section 0 dB = 0.693mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.5 Degrees Celsius Liquid Temperature 21.2 Degrees Celsius Humidity 40.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 36 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 04 September 2006 File Name: Arm Held DSSS 2.45 GHz Antenna Main Bluetooth On Prescan 04-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.90878 mho/m, ε r = 54.1369; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(4.2, 4.2, 4.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section 0 dB = 0.086mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.5 Degrees Celsius Liquid Temperature 21.2 Degrees Celsius Humidity 40.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 37 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 04 September 2006 File Name: Arm Held DSSS 2.45 GHz Antenna Aux Bluetooth Off 04-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Commun…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 46 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 02 September 2006 File Name: Edge On DSSS 2.45 GHz Antenna Aux Bluetooth Off 02-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2412 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.92277 mho/m, ε r = 51.2123; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(4.2, 4.2, 4.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 01 Test/Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.077 mW/g Channel 01 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.71 V/m; Power Drift = -0.388 dB Peak SAR (extrapolated) = 0.441 W/kg SAR(1 g) = 0.147 mW/g; SAR(10 g) = 0.049 mW/g Maximum value of SAR (measured) = 0.174 mW/g 0 dB = 0.174mW/g SAR MEASUREMENT PLOT 10 Ambient Temperature 20.6 Degrees Celsius Liquid Temperature 20.1 Degrees Celsius Humidity 47.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 47 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 02 September 2006 File Name: Edge On DSSS 2.45 GHz Antenna Aux Bluetooth Off 02-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.96174 mho/m, ε r = 51.093; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(4.2, 4.2, 4.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 06 Test/Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.100 mW/g Channel 06 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.71 V/m; Power Drift = -0.403 dB Peak SAR (extrapolated) = 0.589 W/kg SAR(1 g) = 0.191 mW/g; SAR(10 g) = 0.065 mW/g Maximum value of SAR (measured) = 0.225 mW/g 0 dB = 0.225mW/g SAR MEASUREMENT PLOT 11 Ambient Temperature 20.6 Degrees Celsius Liquid Temperature 20.1 Degrees Celsius Humidity 47.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 48 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 02 September 2006 File Name: Edge On DSSS 2.45 GHz Antenna Aux Bluetooth Off 02-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2462 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.99904 mho/m, ε r = 50.9571; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(4.2, 4.2, 4.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 11 Test/Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.107 mW/g Channel 11 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.94 V/m; Power Drift = -0.262 dB Peak SAR (extrapolated) = 0.645 W/kg SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.071 mW/g Maximum value of SAR (measured) = 0.244 mW/g 0 dB = 0.244mW/g SAR MEASUREMENT PLOT 12 Ambient Temperature 20.6 Degrees Celsius Liquid Temperature 20.1 Degrees Celsius Humidity 47.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 49 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Z-Axis Graph for Plot 10 Z-Axis Graph for Plot 11 Z-Axis Graph for Plot 12 FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 50 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 02 September 2006 File Name: Edge On DSSS 2.45 GHz Antenna Main Bluetooth Off 02-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2412 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.92277 mho/m, ε r = 51.2123; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1377; ConvF(4.2, 4.2, 4.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 01 Test/Area Scan (81x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.276 mW/g Channel 01 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.05 V/m; Power Drift = 0.426 dB Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.413 mW/g; SAR(10 g) = 0.156 mW/g Maximum value of SAR (measured) = 0.479 mW/g 0 dB = 0.479mW/g SAR MEASUREMENT PLOT 13 Ambient Temperature 20.6 Degrees Celsius Liquid Temperature 20.1 Degrees Celsius Humidity 47.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 51 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 02 September 2006 File Name: Edge On DSSS 2.45 GHz Antenna Main Bluetooth Off 02-09-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.9617…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 58 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 22 August 2006 File Name: Arm Held OFDM 5.6 GHz Antenna Aux Bluetooth Off 22-08-06.da4 DUT: Fujitsu Tablet Osian with Golan 11abg Module; Type: 3945 AG; Serial: 00EFAF365CVD26533002 * Communication System: OFDM 5770 MHz; Frequency: 5745 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 6.1308 mho/m, ε r = 44.2552; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.64, 3.64, 3.64) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 149 Test/Area Scan (121x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.31 mW/g Channel 149 Test/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 13.6 V/m; Power Drift = -0.051 dB Peak SAR (extrapolated) = 6.10 W/kg SAR(1 g) = 0.692 mW/g; SAR(10 g) = 0.180 mW/g Maximum value of SAR (measured) = 1.51 mW/g 0 dB = 1.51mW/g SAR MEASUREMENT PLOT 19 Ambient Temperature 20.2 Degrees Celsius Liquid Temperature 19.8 Degrees Celsius Humidity 43.0 % FCC ID: EJE-WB0042 IC: 337J-WB0042 Report No. M060763_Cert_WM3945ABG_SAR_DTS_2.4G_5.8G Page 59 of 88 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au Test Date: 22 August 2006 File Name: Arm Held OFDM 5.6 GHz Antenna Aux Bluetooth Off 22-08-06.da4 DUT: Fujitsu Tablet Osian with Gol…

Text truncated - open the document above for the full version.
