EJE-WB0043Stylistic ST series with AR5BXB6 WLAN & Bluetooth

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060760_Cert_EYTF3CSFT_WLAN APPENDIX I1 FUJITSU NOTEBOOK USER MANUAL (part 1) Copyright Copyright and Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. Because ongoing development efforts are made to continually improve the capabilities of our prod- ucts, however, the data contained herein represents Fujitsu design objectives and is provided for comparative purposes; actual results may vary based on a variety of factors. This product data does not constitute a warranty. Specifications are subject to change without knowledge. Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited; Stylistic is a registered trademark of Fujitsu Computer Systems Corporation. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Associa- tion. Intel, Pentium, and SpeedStep are trademarks or regis- tered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Atheros is a registered trademark of Atheros Communications, Inc. Bluetooth and the Bluetooth logo are registered trade- marks of Bluetooth SIG, Inc. Memory Stick is a registered trademark of Sony Corpora- tion and/or its affiliates Wi-Fi is a trademark of the Wireless Ethernet Compati- bility Alliance (WECA). All other products are trademarks or registered trade- marks of their respective companies. Copyright 2005 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Fujitsu Computer Systems Corporation. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Fujitsu Computer Systems Corporation. B6FH-6891-01EN-00 Note:For more detailed information about the FCC rules and their applicability to the Stylistic ST5110 Series Tablet PC, refer to Chapter 5 of this document. Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address:1250 E. Arques Avenue, MS 122 Sunnyvale, CA 94085 Telephone:408-746-6000 Declares that product:Model Series: Stylistic® ST5110 Tablet PC Complies with Part 15 of the FCC Rules This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. Niechen_UG.book Page i Thursday, July 14, 2005 3:52 PM Stylistic ST5000 Series Tablet PC - User’s Guide IMPORTANT SAFETY INSTRUCTIONS ■ This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 16 VDC, with a current of 3.75A minimum. AC Adapter output polarity: ■ When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + Danger of explosion if Lithium (clock) bat- tery is incorrectly replaced. Replace only with the same or equivalent type recom- mended by the manufacturer. Dispose of used batteries according to the manufac- turer’s instruction. For continued protection against risk of fire, replace only with the same type and rating fuse. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. Niechen_UG.book Page ii Thursday, July 14, 2005 3:52 PM Table of Contents Table of Contents PREFACE About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . v Fujitsu Contact Information . . . . . . . . . . . . . . . . . v Limited Warranty Information . . . . . . . . . . . . . . . v 1 GETTING STARTED Getting Started with Your Tablet PC In-box Items for the Stylistic ST5000 Series Tablet PC. . . . . . . . . . . . . . . . . . . . 1 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2 Stylistic Tablet PC Features. . . . . . . . . . . . . . . . . . 3 Status Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Application Buttons . . . . . . . . . . . . . . . . . . . . . . 10 Navigation Buttons. . . . . . . . . . . . . . . . . . . . . . . 12 Tertiary Functions of Buttons . . . . . . . . . . . . . . . 13 Security Functions of Application Buttons. . . . . . 14 Setting up the Security Panel . . . . . . . . . . . . . . . 14 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Your Security Panel . . . . . . . . . . . . . . . . . 15 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Uninstalling the Security Panel Application . . . . . 15 Connectors and Peripheral Inte…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060760_Cert_EYTF3CSFT_WLAN APPENDIX I2 FUJITSU NOTEBOOK USER MANUAL (part 2) 39 4 Specifications Niechen_UG.book Page 39 Thursday, July 14, 2005 3:52 PM 40 Stylistic ST5000 Series Tablet PC User’s Guide – Section Four Niechen_UG.book Page 40 Thursday, July 14, 2005 3:52 PM 41 System Specifications Stylistic ST5000 Series Hardware Specifications The following table provides general hardware specifica- tions of the Stylistic ST5000 Series Tablet PC by category. Stylistic ST5000 Specifications Processing Specifications CPUIntel® Pentium® M Processor ULV 753* Chip setIntel 915GM - 400 MHz FSB Processor Speed 1.2 GHz* Memory/Storage Specifications Main RAM• 2 DIMM slots available • 200-pin SO DIMM modules • DDR2 400 MHz • 256 MB, 512 MB, and 1 GB module configurations available, with a system maximum of 2 GB. L1 cache (CPU) 32 KB on-die L2 cache2 MB on-die BIOS ROM 1 MB (FWH) Hard disk drive • 2.5” HDD • Minimum 40 GB IDE HDD* •ATA 100 • 5400 rpm • Shock-mounted Display Specifications Depending on the configuration of your system, it has either a 12.1" transmissive or a 10.4" reflective display 12.1" Display • Transmissive Color LCD • Active Digitizer • 16-bit color • 12.1” TFT XGA (1024 x 768), 16M colors • Brightness: 8 levels • Viewing Angle: Horizontal: 80 degrees (max.) Vertical: 80 degrees (max.) • Contrast Ratio: Typ. 250, Min. 100 * The specifications for your particular model may vary. To determine the specifications for your system, please visit our Web site at: us.fujitsu.com/computers. 10.4" Display • Reflective Color LCD • Active Digitizer • Outdoor-viewable • 16-bit color • 10.4” TFT XGA (1024 x 768), 16M colors • Brightness: 8 levels VRAMUp to 128 MB of shared memory using Unified Memory Architecture (UMA). Dynamically responds to application requirements and allocates the proper amount of memory for optimal graphics and performance. Physical Specifications Dimensions12.1" Display (Active Digitizer): 8.66" w x 12.77" d x 0.82"-0.88" h (220 mm x 324.4 mm x 20.9-22.3 mm) 10.4" Display (Reflective Digitizer): 8.66" x 12.76" x 0.91"-0.98" (220 mm x 324.1 mm x 23.0-24.9 mm) Weight3.5 lbs. (1.59 Kg) (with battery) Interface Specifications Card Slots• PCMCIA: One Type I or Type II, PCMCIA CardBus version 3.0 • Secure Digital (SD)/ Memory Stick slot •Smart Card slot Integrated Interfaces • Modem (RJ-11) • LAN (RJ-45) • IEEE 1394 (S400 4-pin) • USB 2.0 (Qty. 2) •DC-In •IrDA • 15-pin D-SUB connector for external VGA monitor • Docking connector InfraredIrDA version 1.1 (FIR, 4Mbps) Keyboard/ Mouse support Keyboard/Mouse IR Port (Qty. 2) Stylistic ST5000 Specifications (Continued) Niechen_UG.book Page 41 Thursday, July 14, 2005 3:52 PM 42 Stylistic ST5000 Series Tablet PC User’s Guide – Section Four Wireless LAN Your system may have one of the two following Wireless LAN devices installed: • Integrated Intel PRO/Wireless 2915ABG Network Connections (802.11a+b/g) • Integrated Atheros Super AG Wireless LAN (802.11a/b/g) Audio• Sigmatel STAC9753A codec • Internal mono microphone and speaker • Dual microphones (12.1" model only) • Stereo headphone jacks User Controls • Application Buttons, each with primary, secondary, tertiary, and security functions • Fingerprint swipe sensor for biometric security (12.1" model only) • Power On/Suspend/Resume button • Emergency Shutoff Button (Power Off button) • Two Navigation buttons Status Indicators (LEDs) • Power •Charge/DC-In • Battery level •HDD •Security Power Specifications Main Battery• 6-cell (standard), 10.8V, 5200 mAh, 56 Wh • 9-cell (optional), 10.8V, 7800 mAh, 84 Wh • Removable, Lithium ion • Warm-swappable Bridge Battery • 6-cell NiMH, 35 mAh • Life (with Suspend-to-RAM on bridge battery only): 5 minutes from full charge AC Adapter • Autosensing 100 - 240V, supplying 16 VDC, with a current of 3.75 A Environmental Specifications Temperature Operating: 41 o - 95 o F (5 o - 35 o C) Non-operational: 5 o - 140 o F (-15 o - 60 o C) Stylistic ST5000 Specifications (Continued) Humidity Operating: 20 - 85% non-condensing Non-operating: 8 - 85% non- condensing Agency Approval Specifications Emissions • EN55022 (CISPR22) Class B • FCC 15/15E, Class B • VCCI Class B Immunity • EN55024 (1998) Safety • UL and cUL Listed, UL 60950, 3rd edition • CB Report, IEC 60950, 3rd Edition Specific Absorption Rate (SAR) • FCC/RSS • ACA/EN Wireless • EN300328 • EN301489 • EN301893 • FCC 15E • RSS210 • RSS220 Te l e c o m • FCC Part 68 • IC CS-03 Other • Energy Star Additional Specifications Security Features • Security Panel • Fingerprint Swipe Sensor (12.1" model only) • Trusted Platform Module (TPM) Operating Systems •Microsoft ® Windows ® XP Tablet PC Edition 2005 * Optional feature Stylistic ST5000 Specifications (Continued) Niechen_UG.book Page 42 Thursday, July 14, 2005 3:52 PM 43 System Specifications Regulatory Information NOTICE Changes or modifications not expressly approved by Fujitsu could void this user’s authority to operate the equipment. FCC NOTICES Notice to Users of Radios and Television This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the foll…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 2 FCC DoC for LifeBook ST Series

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: Federal Communications Commission Attention: Certification Manager, OET No. of pages: 1 From: Donna Cleary Date: 19 th August 2006 EMC Ref: M060760_Cert_EYTF3CSFT_WLAN Subject: FCC APPROVAL – FCC ID: EJE-WB0043 Please receive EMC Technologies’ Report M060760_Cert_EYTF3CSFT_WLAN for review. The EUT is a Fujitsu Stylistic ST Series, Model: ST5110 with Atheros Mini-PCI Wireless LAN Module (XB62 11a+b/g), Model: AR5BXB6 & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT. The Atheros WLAN module was originally certified by Atheros as a modular approval under FCC ID: PPD-AR5BXB6-M (Canada ID: 4104A-AR5BXB6). The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The intention of this application is to FCC certify Atheros Mini-PCI Wireless LAN Module (XB62 11a+b/g), Model: AR5BXB6 & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT installed in Fujitsu Stylistic ST Series, Model: ST5110. This is a composite submission. Test results are recorded as follows: DSS Submission EMC Technologies Report – M060760_Cert_EYTF3CSFT_WLAN Test results - FCC Part 15.247 (Part C), RSS-210 - (Bluetooth results). Documents submitted: Report Number: M060760_Cert_EYTF3CSFT_WLAN & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request The WLAN transmitter results are submitted separately under DTS & UNII submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The FCC ID for this composite application is EJE-WB0043 Regards ______________ Donna Cleary Report Secretary EMC Technologies Pty Ltd

16th August 2006

Federal Communications Commission Date: 16 th August 2006 Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Company: Fujitsu Limited Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Limited requests that prior to the equipment authorization grant for the (test sample) the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Limited and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Fujitsu Limited, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Schematics, Block Diagram, Operational Description, Antenna Information, Sincerely Yours,

EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: FCC Equipment Authorisation Branch Attention: Andrew Leimer From: EMC Technologies Pty Ltd No of pages: 1 EMC Ref: M060760 Date: 20 th October 2006 Subject: FCC ID: EJE-WB0043 - Information Request (Correspondence Ref No. 31844) Applicant: Fujitsu Limited FCC ID: EJE-WB0043 CRN: 31844 1) The configuration is not clear. The external photo shows a card. The antenna exhibit lists two antennas and shows pictures that indicate that it may be installed in two devices but I cannot fully tell from the photos. Clarify the configuration(s)? You may be referring to the DFS test report photos in the DFS test report submitted as part of the NII exhibits for this composite application File name: Attachment 4: AR5BXB6_FCC_DFS Report). This report was submitted ONLY to show compliance with DFS requirement (section 7.3 page 72 onwards) – NII exhibits. It is attached for your interest – Attachment 4: AR5BXB6_FCC_DFS Report. The submitted application is for a specific tablet PC (model: ST5110) which uses this same internal PCI WLAN module AR5BXB6. This is a full application and not a LMA. So, the grant conditions for this AR5BXB6 application is ONLY for use in Fujitsu tablet PC ST5110. The modules are assembled in a factory environment and is not readily accessible by the user. The antenna exhibits show two antennas because the module uses 'Diversity Antenna' technique 2) Is this a limited modular approval? If so demonstrate how it meets the minimum gain antenna requirements for DFS? FYI: Once the configuration(s) are clarified there will be a full review, including SAR. Pre-Grant sample(s) will be requested at this time for full DFS testing in accordance to the agreement with NTIA. Please refer answer to question 1 above. This application is not for a LMA approval. Also, please note that: ** The internal Mini-PCI WLAN module AR5BXB6 is a client device WITHOUT DFS capability. Please see attached updated DFS test report for this module (Attachment 4: AR5BXB6_FCC_DFS Report). This new report reflects DFS test results of this client device AR5BXB6 when tested with the final version s/w for the Atheros AP30. Please refer to section 7.3 page 71 onwards for the DFS portion of the test results. The manufacturer "Atheros" have advised that the Access point AP30 is currently being tested and reviewed by FCC and is at the last stage of the approval. ** The Ad-Hoc operation of this client device is limited to channels 1 to 11 in 2.4GHz band. Ad-Hoc operation cannot be enabled in the frequency bands, 5.25 to 5.35 GHz and 5.470 to 5.725 GHz.

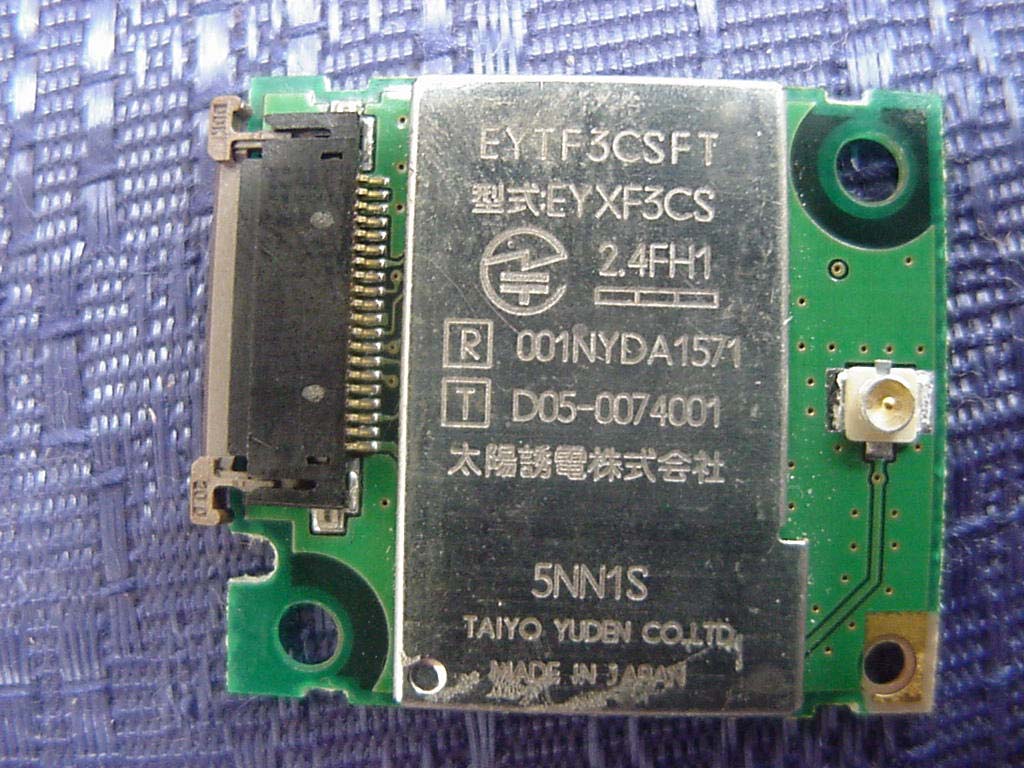

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060760_Cert_EYTF3CSFT_WLAN APPENDIX B1 Test Sample External Photographs FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth – EYTF3CSFT

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060760_Cert_EYTF3CSFT_WLAN APPENDIX H FCC LABELLING DETAILS

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060760_Cert_EYTF3CSFT-WLAN APPENDIX B3 Bluetooth and Antenna Location Photographs FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth and Antenna Location Bluetooth Location (exploded view) Bluetooth Antenna Bluetooth Module

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M060760_Cert_EYTF3CSFT_WLAN APPENDIX B4 Test Sample Internal Photographs FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Bluetooth - EYTF3CSFT Bluetooth – Shield removed

FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION FCC ID: EJE-WB0043 (IC: 337J-WB0043) Report No. M060760_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1 (WLAN): The antennas location: one is above SD card opening; another is below WLAN on/off switch and projected distance of less than 20cm from user. Transmitter # 2 (Bluetooth): The antenna is located below FN button and projected distance of less than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. In accordance with this section and also section 2.1093 this device has been defined as a portable device. SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M060761_Cert_AR5BXB6_SAR_DTS_2.4, M060761_Cert_AR5BXB6_SAR_DTS_5.8 and M060761_Cert_AR5BXB6_SAR_NII. The highest SAR value is 1.57 mW/g which complies with the FCC human exposure requirements of 47 CFR 2.1093 (d).

FCC ID: EJE-WB0043 IC: 337J-WB0043 EMC Report No.M060761_CERT_AR5BXB6_SAR_2.4 Page 1 of 93 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au SAR Test Report Report Number: M060761_CERT_AR5BXB6_SAR_2.4 Test Sample: Portable Tablet Computer Wireless LAN Model Number: AR5BXB6 Tested For: Fujitsu Australia Pty Ltd FCC ID: EJE-WB0043 IC: 337J-WB0043 Date of Issue: 31 st August 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0043 IC: 337J-WB0043 Report No. M060761_CERT_AR5BXB6_SAR_2.4 Page 2 of 93 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au CONTENTS 1.0 GENERAL INFORMATION........................................................................................................... 3 2.0 DESCRIPTION OF DEVICE..........................................................................................................4 2.1 Description of Test Sample .................................................................................................. 4 2.1.1 Summary of EUT Details .................................................................................................. 4 2.1.2 EUT Host Details .............................................................................................................. 5 2.2 Test sample Accessories ..................................................................................................... 5 2.2.1 Battery Types ...................................................................................................................5 2.3 Test Signal, Frequency and Output Power........................................................................... 5 2.4 Battery Status....................................................................................................................... 7 2.5 Details of Test Laboratory .................................................................................................... 8 2.5.1 Location............................................................................................................................ 8 2.5.2 Accreditations ................................................................................................................... 8 2.5.3 Environmental Factors...................................................................................................... 8 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ................................................................... 9 3.1 Probe Positioning System .................................................................................................... 9 3.2 E-Field Probe Type and Performance .................................................................................. 9 3.3 Data Acquisition Electronics ................................................................................................. 9 3.4 Calibration and Validation Procedures and Data .................................................................. 9 3.4.1 Validation Results @ 2450MHz & 5800MHz .................................................................... 9 3.4.2 Deviation from reference validation values ..................................................................... 10 3.4.3 Liquid Depth 15cm.......................................................................................................... 11 3.5 Phantom Properties (Size, Shape, Shell Thickness) .......................................................... 12 3.6 Tissue Material Properties.................................................................................................. 13 3.6.1 Liquid Temperature and Humidity................................................................................... 13 3.7 Simulated Tissue Composition Used for SAR Test ............................................................ 14 3.8 Device Holder for Laptops and P 10.1 Phantom ................................................................ 14 4.0 SAR MEASUREMENT PROCEDURE USING DASY4 ............................................................... 15 5.0 MEASUREMENT UNCERTAINTY.............................................................................................. 16 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS .................................................................... 20 7.0 OET BULLETIN 65 – SUPPLEMENT C TEST METHOD ........................................................... 21 7.1.1 “Tablet” Position Definition (0mm spacing) ..................................................................... 21 7.1.2 “Lap Arm Held” Position (0mm spacing) ......................................................................... 21 7.1.3 “Edge On Side” Position Definition (0mm spacing) ......................................................... 21 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes) ............................ 22 7.3 FCC RF Exposure Limits for Occupational/ Controlled Exposure....................................... 23 7.4 FCC RF Exposure Limits for Un-controlled/Non–occupational ........................................... 23 8.0 SAR MEASUREMENT RESULTS .......................................…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0043 IC: 337J-WB0043 Report No. M060761_CERT_AR5BXB6_SAR_2.4 Page 32 of 93 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd www.emctech.com.au APPENDIX B PLOTS OF THE 2450MHZ SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for the “Lap Arm Held” and “Tablet” tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table 30: 2450 MHz DSSS Band SAR Measurement Plot Numbers Plot 1 Lap Arm Held Position – Ant A – Pre-scan CH#06 Plot 2 Lap Arm Held Position – Ant B – Pre-scan CH#06 Plot 3 Lap Arm Held Position – Ant B CH#01 Plot 4 Lap Arm Held Position – Ant B CH#06 Plot 5 Lap Arm Held Position – Ant B CH#11 Z-Axis Graphs Z-Axis graphs for Plots 3 to 5 Plot 6 Tablet – Ant B – Pre-scan CH#06 Plot 7 Tablet Position – Ant A CH#01 Plot 8 Tablet Position – Ant A CH#06 Plot 9 Tablet Position – Ant A CH#11 Z-Axis Graphs Z-Axis graphs for Plots 7 to 9 Plot 10 Edge On Position – Ant A CH#01 Plot 11 Edge On Position – Ant A CH#06 Plot 12 Edge On Position – Ant A CH#11 Z-Axis Graphs Z-Axis graphs for Plots 10 – 12 Plot 13 Edge On Position – Ant B CH#01 Plot 14 Edge On Position – Ant B CH#06 Plot 15 Edge On Position – Ant B CH#11 Z-Axis Graphs Z-Axis graphs fo…

Text truncated - open the document above for the full version.
