EJE-WB0045LIFEBOOK P SERIES WITH AR5BXB6 11ABG WLAN & BT

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX I1 FUJITSU NOTEBOOK USER MANUAL (part 1) Copyright Copyright and Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. The absence of a product or service name, slogan, or logo does not constitute a waiver of any trademark or other intellectual property rights relating to that name, slogan, or logo owned by Fujitsu Computer Systems Corporation, its parent, subsidiaries, and affiliated companies. Fujitsu, the Fujitsu logo, and LifeBook are registered trade- marks of Fujitsu Limited. Intel and Pentium are registered trademarks and Centrino is a trademark of Intel Corporation or its subsidiaries in the United States and other countries. IBM, IBM PC AT, and IBM PS/2 are registered trademarks of IBM Corporation in the United States, other countries, or both. MS, MS-DOS, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Memory Stick and Memory Stick Duo are trademarks of Sony, its parent, and/or its affiliates. Adobe, Acrobat, and Acrobat Reader are either registered trade- marks or trademarks of Adobe Systems, Incorporated in the United States and/or other countries. Dolby Headphone manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Quicken is a registered trademark and/or registered service mark of Intuit, Inc. or one of its subsidiaries in the United States and other countries. InterVideo and WinDVD are registered trademarks of Inter- video, Inc. Realtek is a registered trademark of Realtek Semiconductor Corporation. Norton AntiVirus is a registered trademark of Symantec Corporation in the United States and other countries. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection tech- nology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2005 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, translated, stored, or transmitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation. B6FH-7661-01EN-00 Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash ha nds a fter ha ndling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Base Model Configurations: LifeBook P7230 notebook Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. P7120.book Page 1 Monday, October 10, 2005 4:38 PM LifeBook P7000 Notebook UL Notice This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 16 VDC, with a current of 3.75A minimum. AC Adapter output polarity: ■ When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + ■ For continued protection against risk of fire, replace only with the same type and rating fuse. ■ Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dis- pose of used batteries according to the manufacturer’s instructi on. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. P7120.book Page 2 Monday, October 10, 2005 4:38 PM Table of Contents Fujitsu LifeBook ® P7000 Notebook Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 1 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 1 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2 GETTING TO KNOW YOUR LIFEBOOK NOTEBOOK Overview Unpacking . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX I2 FUJITSU NOTEBOOK USER MANUAL (part 2) 48 LifeBook P7000 Series Notebook - Section Five Before Using the Wireless LAN This manual describes the procedures required to prop- erly set up and configure the optional integrated Wire- less LAN Mini-PCI device (referred to as "WLAN”). Before using the WLAN device, read this manual care- fully to ensure it's correct operation. Keep this manual in a safe place for future reference. Wireless LAN Devices Covered by this Document This document is applicable to systems containing one of the following devices. Most of the procedures are identical. Sections that differ between the devices have been noted in the text:
Intel PRO/Wireless 3945ABG Network Connections (WM3945ABG)
Atheros AR5006EXS Mini-Card Wireless network card (AR5BXB6) Characteristics of the WLAN Device
The WLAN device is a Mini-PCI card attached to the main board of the mobile computer.
The WLAN devices operate in license-free RF bands, therefore eliminating the need to procure an FCC license to operate. The WLAN devices operate in the 2.4GHz Industrial, Scientific, and Medical (ISM) RF band and in the lower and middle bands of the 5GHz Unlicensed National Information Infrastructure (UNII) bands.
The WLAN devices are capable of three operating modes, IEEE802.11a, IEEE802.11b and IEEE802.11g.
Encoding of data is modulated using Direct Sequence Spread Spectrum (DSSS) and Complementary Code Keying (CCK) when the WLAN device is operating in IEEE 802.11b mode and Orthogonal Frequency Divi- sion Multiplexing (OFDM) when operating in IEEE802.11a or IEEE802.11g mode.
The WLAN device is Wi-Fi certified and operates at the maximum data transfer rate of 54 Mbps in IEEE802.11a or IEEE802.11g mode and 11 Mbps in IEEE802.11b mode.
The maximum communication range indoors is approximately 80 feet (25 meters). However, that range will increase or decrease depending on factors such as number of walls, reflective material, or inter- ference from external RF sources.
The WLAN device supports the following encryption methods - WEP, CKIP, TKIP, and AES encryption. WIRELESS LAN MODES USING THIS DEVICE Ad Hoc Mode (See Figure 5-1) "Ad Hoc Mode" refers to a wireless network architecture where wireless network connectivity between multiple computers is established without a central wireless network device, typically known as Access Point(s). Connectivity is accomplished using only client devices in a peer-to-peer fashion. That is why Ad Hoc networks are also known as peer-to-peer networks. Ad Hoc networks are an easy and inexpensive method for establishing network connectivity between multiple computers. Ad Hoc mode requires that the SSID, network authenti- cation, and encryption key settings are identically configured on all computers in the Ad Hoc network. Prior to using the wireless LAN device, be sure to run the Click Me! utility, as detailed in “Installing Click Me!” on page26. Figure 5-1. Ad Hoc Mode Network P7120.book Page 48 Monday, October 10, 2005 4:38 PM 49 WIreless LAN User’s Guide Access Point (Infrastructure) Mode (See Figure 5-2) Infrastructure mode refers to a wireless network archi- tecture in which devices communicate with wireless or wired network devices by communicating through an Access Point. In infrastructure mode, wireless devices can communicate with each other or can communicate with a wired network. Corporate wireless networks operate in infrastructure mode because they require access to the wired LAN in order to access computers, devices, and services such as file servers, printers, and databases. How to Handle This Device The WLAN device comes pre-installed in your mobile computer. Under normal circumstances, it should not be necessary for you to remove or re-install it. The Oper- ating System that your mobile computer comes with has been pre-configured to support the WLAN device. WIRELESS NETWORK CONSIDERATIONS ■ The Intel PRO/Wireless 2915ABG and Atheros AR5002X WLAN devices support IEEE802.11a, IEEE802.11b and IEEE802.11g. ■ The WLAN devices operate in the 2.4GHz ISM band and the 5 GHz lower, middle, and upper UNII bands. ■ The maximum range of the WLAN device indoors is typically 80 feet (25 meters). Please note that the max- imum range you achieve may be shorter or longer than 80 feet, depending on factors such as access point transmit power, number and density of obstructions, or external RF interference. ■ Microwave ovens will interfere with the operation of WLAN device as microwave ovens operate in the same 2.4GHz frequency range that IEEE802.11b/g devices operate in. Interference by microwaves does not occur with IEEE802.11a radio which operates in the 5 GHz RF band. ■ Wireless devices that transmit in the 2.4GHz fre- quency range may interfere with the operation of WLAN devices in IEEE802.11b/g modes. Symptoms of interference include reduced throughput, intermittent disconnects, and large amounts of frame errors. It is HIGHLY recommended that these interfering devices be powered off to ensure the proper operation of the WLAN device. DEACTIVATING THE WLAN DEVICE Deactivation of the WLAN device may be desired in certain circumstances (to extend battery life) or where certain environments require it (i.e. hospitals, clinics, airplanes, etc.). Fujitsu mobile computers employ two methods with which to deactivate the WLAN device: ■ Using the Wireless On/Off Switch ■ In Windows, using the Intel PROSet Software or Atheros Client Utility software. Figure 5-2. Access Point (Infrastructure) Mode Network ADSL modem, cable modem, or similar Internet Wired LAN Access Point* Wireless LAN *An optional hub for a wired LAN may be required depending upon the type of access point used. P7120.book Page 49 Monday, October 10, 2005 4:38 PM…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 2 FCC DoC for LifeBook P Series

Federal Communications Commission Date: 16th October 2006 Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Company: Fujitsu Limited Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Limited requests that prior to the equipment authorization grant for the (test sample) the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Limited and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to Fujitsu Limited, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Limited requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: Appendix C Operational Description.pdf, Appendix D Block Diagram.pdf Sincerely Yours, Appendix E Schematics.pdf, Appendix F Antenna Details.pdf, Appendix B3 WLAN Location photos.pdf (internal photos).pdf

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX B1 Test Sample External Photographs FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au WLAN – AR5BXB6

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX H FCC LABELLING DETAILS

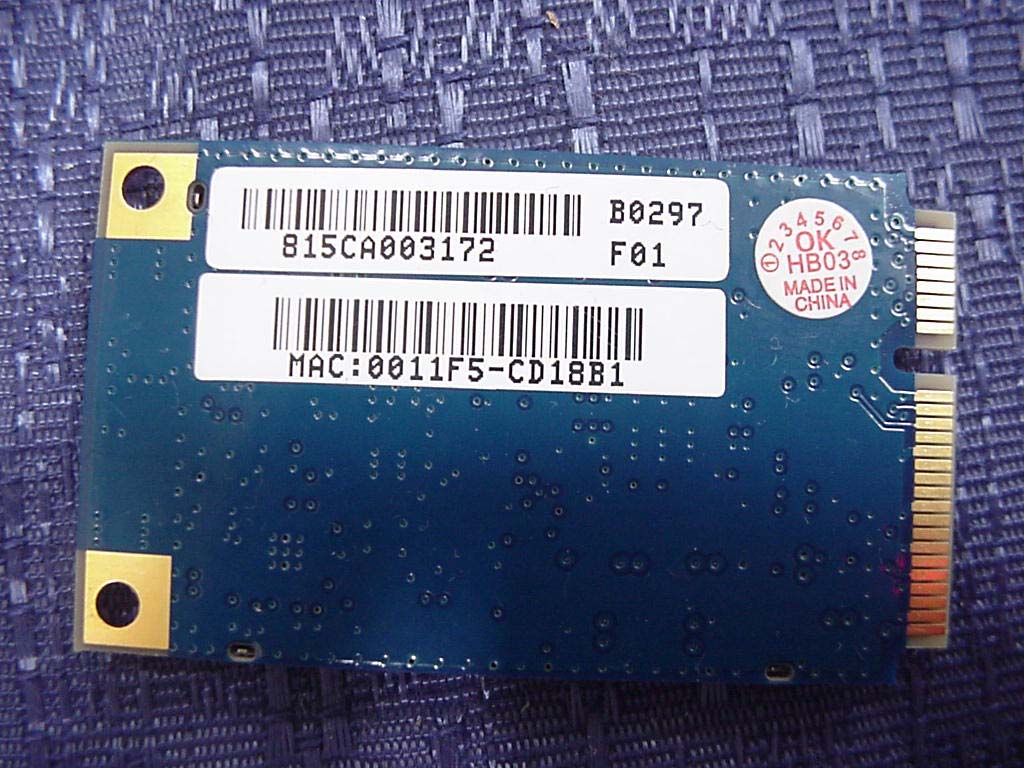

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX B4 Test Sample Internal Photographs FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au WLAN – AR5BXB6

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.407(f) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz, 5.150 – 5.350 GHz and 5.47 – 5725 GHz are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1 (WLAN): The antennas location: Top edge of LCD screen and projected distance of less than 20cm from user. Transmitter # 2 (Bluetooth): The antenna location: Right palm rest area and projected distance of less than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. In accordance with this section and also section 2.1093 this device has been defined as a portable device. SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M061026_Cert_AR5BXB6_SAR_DTS_2.4G_5.8G and M061026_Cert_AR5BXB6_SAR_NII_5.2G. The highest SAR value is 0.212 mW/g which complies with the FCC human exposure requirements of 47 CFR 2.1093 (d).

FCC ID: EJE-WB0045 IC: 337J- WB0045 EMC Report No. M061026_CERT_AR5BXB6_SAR_5.6G Page 1 of 29 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au SAR Test Report Report Number: M061026_CERT_AR5BXB6_SAR_5.6G Test Sample: LifeBook P Series Model Number: Radio Modules P7230 AR5BXB6 Tested For: Fujitsu Australia Pty Ltd FCC ID: EJE-WB0045 IC: 337J- WB0045 Date of Issue: 30 th October 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd A.C.N. 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: EJE-WB0045 IC: 337J- WB0045 Report No. M061026_CERT_AR5BXB6_SAR_5.6G Page 2 of 29 This document shall not be copied or reproduced, except in full without the written permission of the Technical Director , EMC Technologies Pty. Ltd. www. emctech.com.au CONTENTS 1.0 GENERAL INFORMATION........................................................................................................... 3 2.0 DESCRIPTION OF DEVICE..........................................................................................................4 2.1 Description of Test Sample .................................................................................................. 4 2.1.1 Summary of EUT Details .................................................................................................. 4 2.1.2 EUT Host Details .............................................................................................................. 5 2.2 Test sample Accessories ..................................................................................................... 5 2.2.1 Battery Types ...................................................................................................................5 2.3 Test Signal, Frequency and Output Power........................................................................... 6 2.4 Battery Status....................................................................................................................... 7 2.5 Details of Test Laboratory .................................................................................................... 7 2.5.1 Location............................................................................................................................ 7 2.5.2 Accreditations ................................................................................................................... 7 2.5.3 Environmental Factors...................................................................................................... 8 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ................................................................... 8 3.1 Probe Positioning System .................................................................................................... 8 3.2 E-Field Probe Type and Performance .................................................................................. 8 3.3 Data Acquisition Electronics ................................................................................................. 8 3.4 Calibration and Validation Procedures and Data .................................................................. 8 3.4.1 Validation Results @ 5GHz .............................................................................................. 9 3.4.2 Deviation from reference validation values ....................................................................... 9 3.4.3 Liquid Depth 15cm.......................................................................................................... 10 3.5 Phantom Properties (Size, Shape, Shell Thickness) .......................................................... 11 3.6 Tissue Material Properties.................................................................................................. 12 3.6.1 Liquid Temperature and Humidity................................................................................... 13 3.7 Simulated Tissue Composition Used for SAR Test ............................................................ 13 3.8 Device Holder for Laptops and P 10.1 Phantom ................................................................ 13 4.0 SAR MEASUREMENT PROCEDURE USING DASY4 ............................................................... 14 5.0 MEASUREMENT UNCERTAINTY.............................................................................................. 15 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS .................................................................... 17 7.0 OET BULLETIN 65 – SUPPLEMENT C TEST METHOD ........................................................... 18 7.1.1 “Notebook” Position Definition (0mm spacing)................................................................ 18 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes) ............................ 19 7.3 FCC RF Exposure Limits for Occupational/ Controlled Exposure....................................... 19 7.4 FCC RF Exposure Limits for Un-controlled/Non–occupational ........................................... 19 8.0 SAR MEASUREMENT RESULTS .............................................................................................. 20 8.1 5.6 GHz Band SAR Results ............................................................................................... 20 …

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE/MODEL SERIAL NUMBER LAST CAL. DD/MM/YY DUE DATE DD/MM/YY CAL. INTERVAL EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 22/06/06 22/06/07 1 YEAR *2 ANTENNAS EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 24/02/06 24/02/09 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *3 ETS Standard Gain Horn, M/N: 3160-03 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-04 28/10/03 28/10/06 3 YEAR *1 Narda Standard Gain Horn, M/N: 644 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 ENVIRONMENTAL CHAMBER Heraeus votsch, Type: HT 4033 Order number: 60884376 Temperature range: -40 to +180 degrees Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Vicom Note *3. Manufacturer’s Calibration TEST SITES Shielded Room Test Laboratory Melbourne 11m x 8m x 4m Chamber-semi-anechoic 8.8m x 5.8m x 3.1m Test Chamber 3.4m x 6.1m x 2.5m Test Chamber 3.4m x 7.3m x 7.5m Test Chamber Jan 06 N/A N/A N/A Jan 07 N/A N/A N/A 1 YEAR *1 N/A N/A N/A Open Area Test Site Melbourne 3/10 Metre site. 1-4 metre antenna mast. 1.2 metre/400 kg Turntable. (Situated at Lerderderg Gorge, near Bacchus Marsh, Victoria) 11/02/06 11/02/07 1 YEAR *1 Note *1. In-house calibration. Refer to Quality Manual.

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX G WLAN Specifications Page 1 of 4 BPF FEM ANT_CON ANT_CON BALUN BALUN Control Voltage PCI EXPRESS BPF MINICARD CONNECTOR EEPROM OPB XLNA OPB : OUTPUT POWER BOOSTER BPF : BAND PASS FILTER PDET : POWER DETECTOR ANT_CON : ANTENNA CONNECTOR XLNA : EXTERNAL LOW NOISE AMPLIFIER 40MHz XTAL AR5424A PNP 3.3V SUPPLY 1.8V LPF LPF FEM : FRONT END MODULE 3.3V 5GHz PDET 2GHz PDET 5GHz Rx 2GHz Rx 5GHz Tx 2GHz Tx 2GHz Tx 5GHz Tx AR5BXB6 Specification: 1. Model: AR5BXB6 2. Description: 802.11a/b/g PCI Express Module 3. Radio Frequency Bandwidth, also known as operating frequencies: 2400-2.483.5MHz 5150-5350MHz 5470-5725MHz 5725-5.850MHz (NOTE: Product will be configured for each country according to allowed legal frequency allocation). 4. Classification of Emission: 15M0G2D (802.11b mode).& 20M0W7D for 11a/b/g 5. RF Channel Spacing: 5MHz.in 2.4Ghz band and 20MHz in 5Ghz band 6. Nominal Voltage – 3.3V 7. Modulation: DSSS, OFDM, CCK 8. Channel Access Protocol: Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) 9. Duty Cycle : High 10. ITU Emission Classification: 15M02G2D and 20M0W7D For more information, please refer FCC Part 15, EN300328, EN301893, EN301489 and EN60950.

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX J BANDWIDTH FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26dB Bandwidth – Channel 36 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26 dB Bandwidth – Channel 52 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26dB Bandwidth – Channel 64 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26dB Bandwidth – Channel 100 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26dB Bandwidth – Channel 120 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au 26dB Bandwidth – Channel 140

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX K HARMONICS FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics – Channel 36 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 52 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 64 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 100 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 120 FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Harmonics - Channel 140

FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M061025_Cert_AR5BXB6_NII_BT APPENDIX L BAND EDGE FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Band 1: Band Edge – Low (Peak) FCC ID: EJE-WB0045 (IC: 337J-WB0045) Report No. M061025_Cert_AR5BXB6_NII_BT EMC Technologies Pty Ltd – 57 Assembly Drive, T…
