EJE-WB0046LIFEBOOK P7230 SERIES WITH 4965AGN WLAN & EYTF3CSF

Fujitsu Client Computing Limited (FCCL)

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: May 24, 2007
Application Purpose: Original Equipment
Date of Application: May 22, 2007
Equipment Note: LIFEBOOK P7230 SERIES WITH 4965AGN WLAN & EYTF3CSF
Frequency Range: 2402.00000000 - 2480.00000000
Company: Fujitsu Client Computing Limited (FCCL)
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070228_Cert_EYTF3CSFT_WLAN APPENDIX I FUJITSU USER MANUAL User’s Guide Learn how to use your LifeBook ® P7230 Notebook Fujitsu LifeBook ® P7230 Notebook User’s Guide Copyright Copyright & Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this docu- ment. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trade- marks of Fujitsu Limited. Microsoft, Windows and Windows Vista are either regis- tered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Centrino, Intel, and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. OmniPass is a trademark of Softex, Inc. Atheros and Super AG are registered trademarks of Atheros Communications, Inc. Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Sigmatel is a registered trademark of Sigmatel, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc. All other trademarks mentioned herein are the property of their respective owners. The DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovi- sion Corporation and other rights users. Use of this copy- right protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disas- sembly is prohibited. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2007 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu Computer Systems Corporation. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation. B5FJ-2471-01EN-00 WARNING Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, MS 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Model Configuration: LifeBook P7230 Notebook Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. LifeBook P7000 Series Notebook IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Adapters with an output rating of 16 VDC, with a minimum current of 3.75 A. AC adapter output polarity: When using your notebook, basic safety precautions should always be followed to reduce the risk of fire, elec- tric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunica- tion Line Cord. ■ For TV Tuner Models: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of the coaxial cable is con- nected to earth (grounded) at the building premises as close to the point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installa- tion, contact your service provider. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only RECYCLING YOUR BATTERY Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain mate- rials that could cause environmental damage if disposed of improperly. Fujitsu is very concerned with envi- ronmental protection, and has enlisted the services of the Recharge- able Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by recy- cling old batteries at no cost to you. RBRC has drop-off points at tens of thousands of loca- tions throughout the United States and Canada. To find the location nearest you, go to www.RBRC.org or call 1- 800-822-8837. If there are no convenient RBRC locations near yo…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Attachment 2 FCC DOC for LIFEBOOK P SERIES

Cover Letter(s)

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EJE-WB0047 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Internal Photos Operational Description Block Diagram Schematics Operational Description Appendix B3_BT Location Photos.pdf Appendix C_Operational Description.pdf Appendix D_Block Diagram.pdf Appendix E_Schematics.pdf Appendix F_Antenna Details.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SIGNATURE Name: Tsuyoshi Uchihara Title: Engineer

Cover Letter(s)

EMC Technologies Pty Ltd, 176 Harrick Road, Keilor Park VIC 3042 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: TIMCO Engineering Inc. Attention: Certification Manager No. of pages: 1 From: Donna Lennon Date: 15 th May 2007 EMC Ref: M070228_Cert_EYTF3CSFT_WLAN Subject: FCC APPROVAL – FCC ID: EJE-WB0046 Please receive EMC Technologies’ Report M070228_Cert_EYTF3CSFT_WLAN for review. The EUT is a Fujitsu LifeBook, Model: P7230 with INTEL Mini-PCI Wireless LAN Module (Kedron 11a/b/g/n), Model: 4965AGN & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT. The KEDRON WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD94965AGN (Canada ID: 1000M-4965AGN). The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The intention of this application is to FCC certify INTEL Mini-PCI Wireless LAN Module (KEDRON 11a/b/g/n), Model: 4965AGN & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT installed in Fujitsu LifeBook, Model: P7230 This is a composite submission. Test results are recorded as follows: DSS Submission EMC Technologies Report – M070228_Cert_EYTF3CSFT_WLAN Test results - FCC Part 15.247 (Part C), RSS-210 - (Bluetooth results). Documents submitted: Report Number: M070228_Cert_EYTF3CSFT_WLAN & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request and Form 731. The WLAN transmitter results are submitted separately under DTS & UNII submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The FCC ID for this composite application is FCC ID: EJE-WB0046 Regards _____________ Donna Lennon Report Secretary EMC Technologies Pty Ltd

External Photos

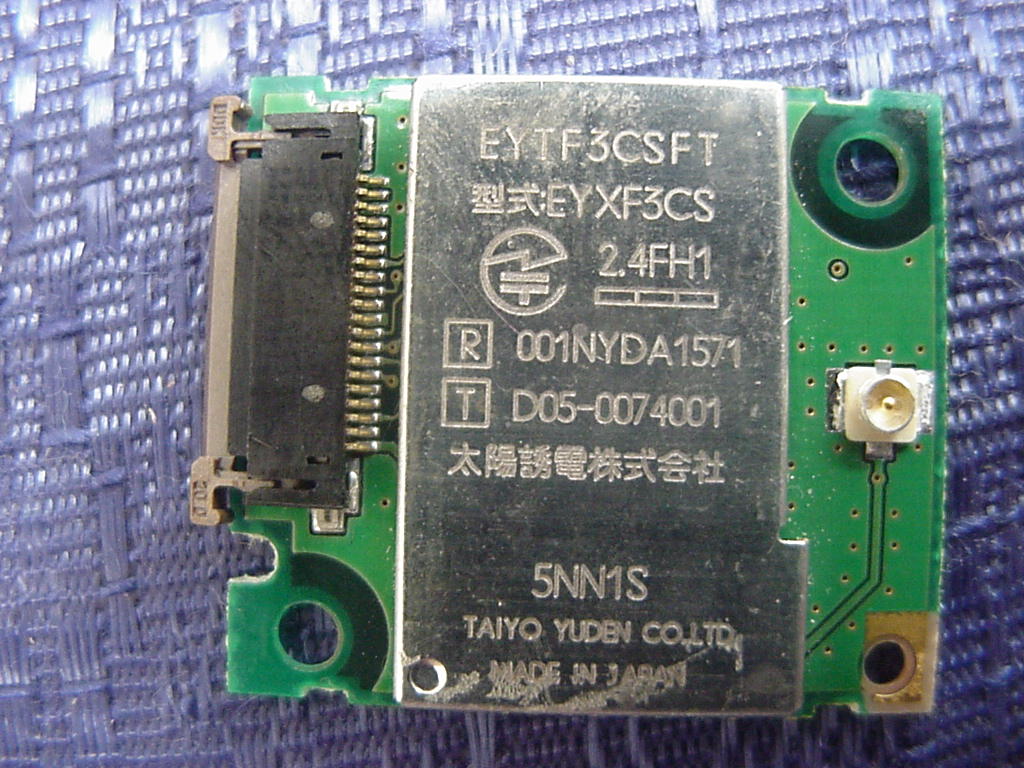

F FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070228_Cert_EYTF3CSFT_WLAN APPENDIX B1 Test Sample External Photographs FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Bluetooth – EYTF3CSFT

ID Label/Location Info

Internal Photos

RF Exposure Info

FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN _________________________________________________________________ EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1 (WLAN): The antennas location: Top edge of LCD screen and projected distance of less than 20cm from user. Transmitter # 2 (Bluetooth): The antenna location: Right palm rest area and projected distance of less than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. In accordance with this section and also section 2.1093 this device has been defined as a portable device. SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M070235_Cert_4965AGN_SAR_2.4 and M070235_Cert_4965AGN_SAR_5.6. The highest SAR value is 0.04 mW/g which complies with the FCC human exposure requirements of 47 CFR 2.1093 (d).

Test Report

FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070228_Cert_EYTF3CSFT_WLAN APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE, MODEL, SERIAL NUMBER LAST CAL. DD/MM/YY DUE CAL DD/MM/YY CAL. INTERVAL EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 22/06/06 22/06/07 1 YEAR *2 ANTENNAS EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 24/02/06 24/02/09 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-03 25/06/04 25/06/07 3 YEAR *1 Narda Standard Gain Horn, M/N: 644 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-04 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *3 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Vicom Note *3. Manufacturer’s Calibration

Test Report

Page 1 of 16 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 FCC ID: EJE-WB0046 Industry Canada ID: 337J-WB0046 Test Sample: LifeBook P Series Model: P7230 Radio Modules: EYTF3CSFT Bluetooth Module & 4965AGN Kedron INTEL Mini-PCI WLAN Module Report Number: M070228_Cert_EYTF3CSFT_WLAN Tested for: Fujitsu Australia Ltd. Issue Date: 14 th May 2007 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements (FCC Part 15 unintentional and intentional emitters in the frequency range 9kHz to 18 GHz) which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. The certificate on page 3 may be reproduced in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN Page 2 of 16 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 EMC Technologies Report No. M070228_Cert_EYTF3CSFT_WLAN Issue Date: 14 th May 2007 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION FCC 15.247 (DTS) RESULTS - Bluetooth 3.0 CONDUCTED EMI MEASUREMENTS 4.0 SPURIOUS EMI MEASUREMENTS 5.0 PEAK OUTPUT POWER 6.0 CHANNEL BANDWIDTH & CHANNEL OCCUPANCY 7.0 RADIO FREQUENCY EXPOSURE 8.0 ANTENNA REQUIREMENT 9.0 COMPLIANCE STATEMENT FCC 15.407 (U-NII) RESULTS - WLAN Refer to Report No: M070228_Cert_4965AGN_NII_BT FCC 15.247 (DTS) RESULTS – WLAN Refer to Report No: M070228_Cert_4965AGN_DTS_BT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: REPORT PHOTOGRAPHS APPENDIX C: OPERATIONAL DESCRIPTION APPENDIX D: BLOCK DIAGRAM APPENDIX E: SCHEMATICS APPENDIX F: ANTENNA DETAILS APPENDIX G: SPECIFICATIONS APPENDIX H: FCC LABELLING DETAILS APPENDIX I: USER MANUAL APPENDIX J: CHANNEL BANDWIDTH PLOTS APPENDIX K: HARMONICS PLOTS APPENDIX L: BANDEDGE PLOTS APPENDIX M: PEAK POWER OUTPUT PLOTS APPENDIX N: BLUETOOTH CHANNEL OCCUPANCY PLOTS Attachment 1: RF Exposure Information Attachment 2: FCC DOC for LifeBook P Series Attachment 3: FCC Part 15B Test Report (Report: FG06-142EAL-2) FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN Page 3 of 16 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 Report Number: M070228_Cert_EYTF3CSFT_WLAN Test Sample: LifeBook P Series Model: P7230 Radio Modules: Bluetooth Module, Model: EYTF3CSFT (TAIYO YUDEN) Kedron INTEL Mini-PCI WLAN Module, Model: 4965AGN (Intel Corp.) FCC ID: EJE-WB0046 Industry Canada ID: 337J-WB0046 Equipment Type: Intentional Radiator (Transceiver) LifeBook Manufacturer: Fujitsu Ltd - Mobile Computing Division Address: 1-1 Kamikodanaka 4-Chome, Nakahara-Ku, Kawasaki, Japan Contact: Mr. Tsuyoshi Uchihara Tested for: Fujitsu Australia Ltd Test Standards: FCC Part 15 – Radio Frequency Devices (August 2006) FCC Part 15 Subpart C - Intentional Radiators Section 15.247: 2400 – 2483.5 MHz & 5725 – 5850 MHz Operation Bands ANSI C63.4 – 2003 OET Bulletin No. 65 RSS-210 Issue 6 Low Power Licence-Exempt RadioCommunication Devices: 6.2.2 (o) 2400 – 2483.5 MHz Spread Spectrum RSS-102 Issue 1 (Provisional), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields Test Dates: 14 th March to 11 th May 2007 Senior Test Engineer: Chieu Huynh - B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN Page 4 of 16 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 1.0 INTRODUCTION EMI testing was performed on the Fujitsu notebook PC, Model: T4220 with TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT and INTEL Mini-PCI Wireless LAN Module (Kedron 802.11a/b/g/n), Model: 4965AGN. The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The Radio modules are installed in a controlled environment at the Fujitsu notebook production/assembly factory. The Kedron WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD94965AGN (Canada ID: 1000M-4965AGN). The Radio modul…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070228_Cert_EYTF3CSFT_WLAN APPENDIX B2 Test Setup Photograph FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Radiated Spurious Emissions Test Setup FCC ID: EJE-WB0046 (IC: 337J-WB0046) Report No. M070228_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au FCC Part 15 class B test set up photos Photos extracted from report FG06-142EAL-2 #06-142Ｅ(1/8） Photo-L1Radiatedemissionmeasurementlbr30-1000MHz(Front)Firstedition ililliiillli1il1iiiilillii1lil,ｌｉＬＯＤ－２ＢＵＴ:ＡＯ－１ＬＬＢＵＴ:ＰＯ１ＢＵＴ:ＰＯ１ ' 」」 II lVs型'園'，ＵＳＢ－３ＵＳＢ－４ＨｇＵＳＢ－ＭＨＤＤ‐ ＵＳＢ－１ＵＳＢ－２２蚕が＝琴ＰＯ■ ■二￣・ＨＵＢａｎｄＰＣ－２ｗｅｒｅｓｅｔａｔｏｕｔｓｉｄｅｏｆｔｈｅｃｈａｍｂｅｒ． Photo-12Radiatedemissionmeasurementlbr30-1000MHz(Back)Firstedition 図 ■ #O6-142E(2/8） Photo-L3Radiatedemissionmeasurementfbrl-6GHz(Front)Firstedition ､露ご亀ニニ JllEuT:Ａｏ１－＝前１ 1. 」‐Ｉ哩画,酌Ｉ〉凸▲ 凶▲ ＬＣＤ-２ -２ ⑨ 『|EUT:PO1ll -－ III 四興しと “鯨`州匹蠅》悪一 ■ 可 JMTlnrlv7U riiv匝魎ＵＳＢ－１ＵＳＢ－２ＵＳＢ－４、蕊！］、一汗》 ■■■ ＩＢＢ佃仙川咀圷 ■ ￣巴 ■Ｍ▲ ４▲Ａ２ ●】 Photo-L4Radiatedemissionmeasurementfbr30-1000MR7H(Front)Secondedition Ｌ ■ ＬＬＣＤ-２」 △ 可ＬＨＤＤ-２ＵＳＢ－１ＵＳＢ－２ＵＳＢ－３ＵＳＢ－ＭＵＳＢ‐ ＨＳ４ } IｈＦ＝￣ I観ロ■■ ■ ’ 霧口ＵＰ。ＬロＨＵＢａｎｄＰＯ２ｗｅｒｅｓｅｔａｔｏｕｔｓｉｄｅｏｆｔｈｅchamber． #O6-142E(3/8） Photo-L5RadiatedemissionmeasurementIbr30-1000MHz(Back)Secondedition 一鱒 FHB ＬＯＤ－２ノＬ－－伊Ｐ竜＝＿￣￣￣円 ■ ■凸 Photo-210onductedemissionmeasurementFirstedition Ｉ！跡」 ,垂,三fii寵議雨満F言'三|震茎ｒ－ｒ；『」則巨ＵＳＢ－２ＨＳ ■■■■ ＵＳＢ－３ＵＳＢ－４ＵＳＢ－ＭＨＤＩｍＩ -２印 'VII ＵＳＢ－１ ril iii,111<I ＡＭＮｆｏＴ､ＡＩＵＡＭＮｆｂＴＦ】ＵＴ掴ハ II #06-142Ｅ(4/8） Photo-2o2ConductedemissionmeasurementforTelecomport 、ＰＯ２ＴＥＬＬＡＮ－－－「灘Ｆ１『］｛里一 Photo－２．３０onductedemissionmeasurementfbrＬＡＮｐｏｒｔＵＳ lNDUD EＵｎＡＯ－１ AＶ ,、 #O6-142E(5/8） Photo-24ConductedemissionmeaSurementSecondedition 「匝ＩＥＵＴ:ＡＣ-１ ...'’１，と’ ＥＵＴ:ＰＣ-１ＨＤＤ-２ |】ヨ／ＵＳＢ－１ ( 、鐵、ＡIVINfor翻り蝋ＡＭＮｆｂｒＥＵ 00 ■ ｝Ｐｈｏｔｏ－３１ＬＥｌｂｅｌ:Ｐ７２３０ lModelName Ｐ7２３０｜S/N Pre-productionsample #O6-142E(6/8） Photo-3.2Label:ACadapter:ＳＥＤ８０Ｎ３－１６Ｄ Photo-33Label:ACadapter:ＳＥＤ８０Ｎ2-16.0 騨．』艀111m`III１１＝■弓孟一画＝ v八田デ』 ■ !！Y>(M「III,川，,fＭ ■ Ｖｈ７［Ａ』 L 1Ｖ《・卜'（１１，，１｜()７｜),ＭＭｈＪ()Ｍｊ（)｢）’ 墨VWn隅lVlADElNJAPAl1 L 釦山 ■ S {町－－－－Ｂ－－－ｄ止一！彼 ■( 可』￣ |処しＡ便ＡｎＡＰＴＥＲ鞄源遣配器 'UT1細；F1CIM lik Hf1名 IIＩ I砿５鰹Ｆ ■B １‐ 宮内」ｕＴ￣■午I 卿ロ j＄１６Ｎ XIl華極劉’ 2006.08 ＸＶＩＤ II III ■ { 缶咀貯V百m iii）ＩＭＭＭｈＪ繍１口胴Ｉ９ｆＰｌ,0１ HU lj畠狙鯵 MI11砥ＨＩＡｌＯ１ p八ICp3118(ルO1FPCAC52 111illlllllllll'''''''''''''''''''''''''''''''''''''''''''''''''''''''''''’ 06800002A llllll1llllllllllllllllllllII'''1111111111111111111111111111 蝋 jiiiiiiiiiiiii #O6-142E(7/8） Photo-a4Label:ACadapter:SEO80N2-16oO ｒ‐■■ ｊII l■ ■ 岬醐煙RliIl届1WXl帆翻轤冒､風《鯛福門Ｐ/NCP235918-01Fi9l()Al鵠317 11111111111111111111111111illlllllllllllllllIlllIllllIlllllllllllllllllll IO6830107C 1llllllllllllllllllllllllllllllllI1ll'''111111111111111111111 ロ巾 □ 種碑II蝿蜘叩閥脚爬 DRUSEwmllMFoF JNlll鱸:iIMIll『熱蝋 ①△△ Photo-a5Labe1:AOadapter:ＰＸＷ１６３７Ｎ、一一一一 11鯛網調１８\Ａｌ蕊蝋鱗＜E凸、 Xｌ蝋田m5 iibMi InnN 子ＡＩＨ、’ Ｙ脚則亡Ｅ凸 1M1iilM:1忽Klj 1１Ｉﾛ･羽。IoDl 心WuIA7BIYlIMsUIOmFno'１１７Ｍ１蝿Iml ZH国司pIIINA nm7弛用II用njq~GIIlnn 陣､卿HRIIR咽予IwR MO(M1MR1IlIml1IMm7Fl WzMwwUmHb18uI8u 、駒0.1ｍ (ｍＦｎＯＤＭｏＩ鯛ImlTNOP′Ng O---ロー｜・＿＿･wllno liWM9M脚ﾄﾞル－－－－』 w１ｍｌ、;ﾆﾖ調Ｊ８且ｍＬｇｌ=当〒I:』鼎WUl脚IYlIMSUNmFnoDM。洲I蝿ImlTNo‘竺坦-＝こ｣ﾖﾋﾞﾆさ1-単型二ｇｌＬ－１Ｍ国司ｑＩＩ１ＮＡｌ－－－－－－－－－－j nm7R他用II用njq-GIIlM 陣､剛ﾛ鯛R烟予IW11Ml勅ドルごﾆﾆﾆ薮:＝二:」ＦＩｌＷ１Ｏ３２戸一一一一一一一一一°C￣~￣■￣￣￣且（二Ｐヨ１１Ｕｗ１－･’ －－~￣~￣~－－－－．１，－ロー－．二一■－－－－Ｊ￣ぬ●⑥￣◆~●⑤⑪０凸-----」ＦＩｌＷ１Ｏ３２Ａｌ１(2949391---.-」」期III #06-142Ｅ(8/8） Photo-4jInternalview（Firstedition） ■ ▲ 」 Photo-421nternalview(Secondedition）Ｉ ■ 帛宅、 IIIｎ°CIII州１‐１０■ －－擬ｑ ■ '■ '1 ⑩ ｌｕＢＬ仔吐■ 全日凸IIIIII削泗 ■ＲＰＶ＿別趾鰯ｒｊＩＩｌ６ＩＨＰ、穴５ｓＰ
