EJE-WB0047LIFEBOOK T4220 SERIES W/ 4965AGN WLAN & EYTF3CSFT

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX I FUJITSU NOTEBOOK USER MANUAL Fujitsu LifeBook ® T4220 Tablet PC User’s Guide T Series.book Page 1 Thursday, April 26, 2007 9:11 AM T Series.book Page 2 Thursday, April 26, 2007 9:11 AM Copyright Copyright & Trademark Information Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. Microsoft, Windows, and Windows Vista are either trade- marks or registered trademarks of Microsoft Corporation in the United States and/or other countries. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Centrino, Intel, and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. The DVD player found in some models of the LifeBook notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2007 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu Computer Systems Corporation. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu Computer Systems Corporation. B5FJ-4091-01EN-00 WARNING Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu Computer Systems Corporation Address: 1250 E. Arques Avenue, MS 122 Sunnyvale, CA 94085 Telephone:(408) 746-6000 Declares that product:Model Configuration: LifeBook T4220 Tablet PC Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interferences, (2) This device must accept any interference received, including interference that may cause undesired operation. T Series.book Page 3 Thursday, April 26, 2007 9:11 AM LifeBook T4200 Series Tablet PC IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed Adapters with an output rating of 19 VDC, with a current of 4.22 A. AC Adapter output polarity: When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: ■ Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. ■ Avoid using the modem during an electrical storm. There may be a remote risk of electric shock from lightning. ■ Do not use the modem to report a gas leak in the vicinity of the leak. ■ Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. ■ To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. ■ For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of the coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installa- tion, contact your service provider. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only System Disposal + Danger of explosion if Lithium (clock) bat- tery is incorrectly replaced. Replace only with the same or equivalent type recom- mended by the manufacturer. Dispose of used batteries according to the manufac- turer’s instruction. For continued protection against risk of fire, replace only with the same type and rating fuse. Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE, OR FEDERAL LAWS. T Series.book Page 4 Thursday, April 26, 2007 9:11 AM Table of Contents Fujitsu LifeBook ® T4220 Series Tablet PC Table of Contents 1 PREFACE About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 3 Fujitsu Contact Information . . . . . . . . . . . . . . . . . 3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 GETTING TO KNOW YOUR TABLET PC Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Locating the Controls/Connectors Top and Front Components . . . . . . . . . . . . . . . . 10 Left-Side Panel Components . . . . . . . . . . . . . . . 12 Right-Side Panel Components . .…

Text truncated - open the document above for the full version.

F FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Attachment 2 FCC DOC for LIFEBOOK T SERIES

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EJE-WB0047 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Internal Photos Operational Description Block Diagram Schematics Operational Description Appendix B3_BT Location Photos.pdf Appendix C_Operational Description.pdf Appendix D_Block Diagram.pdf Appendix E_Schematics.pdf Appendix F_Antenna Details.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SIGNATURE Name: Tsuyoshi Uchihara Title: Engineer

EMC Technologies Pty Ltd, 176 Harrick Road, Keilor Park VIC 3042 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: TIMCO Engineering Inc. Attention: Certification Manager No. of pages: 1 From: Donna Lennon Date: 7 th May 2007 EMC Ref: M070237_Cert_EYTF3CSFT_WLAN Subject: FCC APPROVAL – FCC ID: EJE-WB0047 Please receive EMC Technologies’ Report M070237_Cert_EYTF3CSFT_WLAN for review. The EUT is a Fujitsu LifeBook, Model: T4220 with INTEL Mini-PCI Wireless LAN Module (Kedron 11a/b/g/n), Model: 4965AGN & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT. The KEDRON WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD94965AGN (Canada ID: 1000M-4965AGN). The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The intention of this application is to FCC certify INTEL Mini-PCI Wireless LAN Module (KEDRON 11a/b/g/n), Model: 4965AGN & TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT installed in Fujitsu LifeBook, Model: T4220 This is a composite submission. Test results are recorded as follows: DSS Submission EMC Technologies Report – M070237_Cert_EYTF3CSFT_WLAN Test results - FCC Part 15.247 (Part C), RSS-210 - (Bluetooth results). Documents submitted: Report Number: M070237_Cert_EYTF3CSFT_WLAN & all appendices. Required FCC Forms: Agent Authority, Confidentiality Request and Form 731. The WLAN transmitter results are submitted separately under DTS & UNII submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRNs are 0009379173 and 0013134713. The FCC ID for this composite application is FCC ID: EJE-WB0047 Regards _____________ Donna Lennon Report Secretary EMC Technologies Pty Ltd

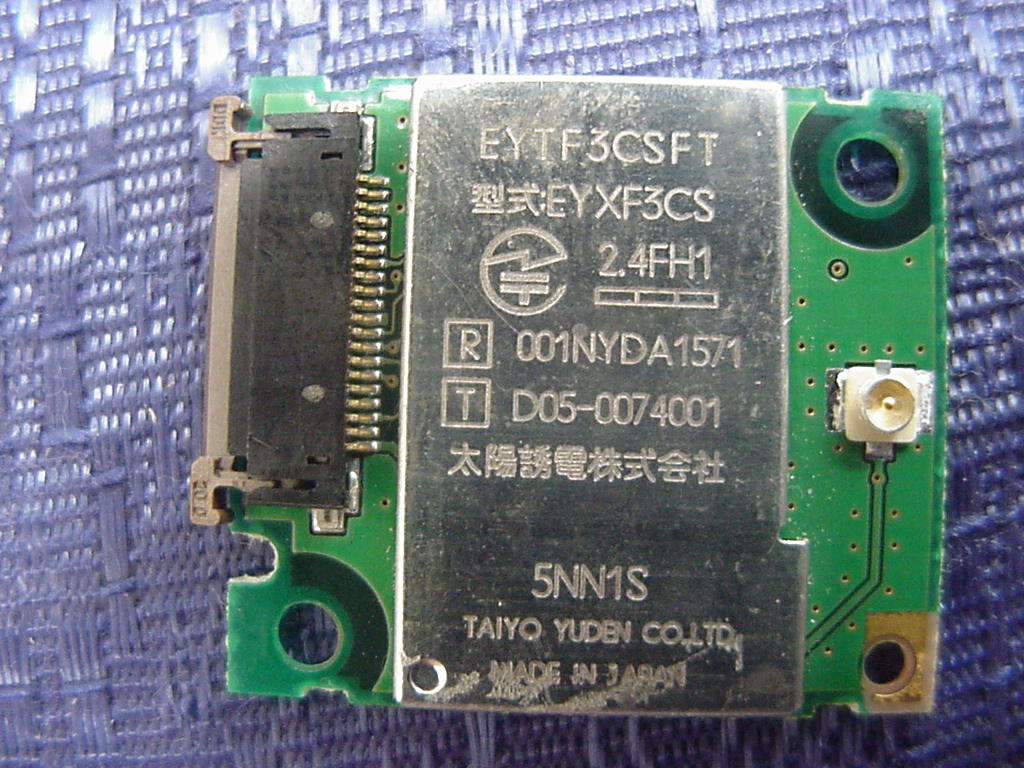

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX B1 Test Sample External Photographs FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au Bluetooth – EYTF3CSFT

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX H FCC LABELLING DETAILS

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX B4 Test Sample Internal Photographs FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Bluetooth Bluetooth – Shield removed

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN _________________________________________________________________ EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). Transmitter # 1 (WLAN): The antennas location: Top edge of LCD screen and projected distance of less than 20cm from user. Transmitter # 2 (Bluetooth): The antenna is located at the middle of top edge of LCD screen projected distance of less than 20cm from user. The separation distance between the WLAN and BT antennas is less than 20cm. Therefore, they are co-located transmitters. Testing was performed with both WLAN and BT transmitters transmitting continuously. In accordance with this section and also section 2.1093 this device has been defined as a portable device. SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M070238_Cert_4965AGN_SAR_2.4 and M070238_Cert_4965AGN_SAR_5.6. The highest SAR value is 1.11 mW/g which complies with the FCC human exposure requirements of 47 CFR 2.1093 (d).

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park, VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX A MEASUREMENT INSTRUMENTATION DETAILS EQUIPMENT TYPE MAKE, MODEL, SERIAL NUMBER LAST CAL. DD/MM/YY DUE CAL DD/MM/YY CAL. INTERVAL EMI RECEIVER Rohde & Schwarz, Model ESIB40 SN 1088 7490, 20 Hz – 40 GHz 22/06/06 22/06/07 1 YEAR *2 ANTENNAS EMCO 3115 DOUBLE RIDGED HORN 1 - 18 GHz Sn: 8908-3282 24/02/06 24/02/09 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-03 25/06/04 25/06/07 3 YEAR *1 Narda Standard Gain Horn, M/N: 644 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-04 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-06 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-07 25/06/04 25/06/07 3 YEAR *1 ETS Standard Gain Horn, M/N: 3160-08 25/06/04 25/06/07 3 YEAR *1 EMCO 3116 Double Ridged Guide Horn 18 - 40 GHz Sn: 2276 -------- -------- *3 Note *1. In-house calibration. Refer to Quality Manual. Note *2. NATA calibration by Vicom Note *3. Manufacturer’s Calibration

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX G Bluetooth Specifications

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX J 20dB Bandwidth FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au 20dB Bandwidth – Channel 1 FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au 20dB Bandwidth – Channel 40 FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au 20dB Bandwidth – Channel 79

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX K HARMONICS FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Harmonics – Channel 1, Range 1 (1 to 7 GHz) FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Harmonics – Channel 1, Range 2 (7 to 25 GHz) FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Harmonics – Channel 40, Range 1 (1 to 7 GHz) FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Harmonics – Channel 40, Range 2 (7 to 25 GHz) FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Harmonics – Channel 79, Range 1 (1 to 7 GHz) FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Harmonics – Channel 79, Range 2 (7 to 25 GHz)

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX L BAND EDGE FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Band Edge – Low FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Band Edge – High

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX M PEAK POWER FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Peak Power- Channel 1: 2402 MHz FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Peak Power - Channel 40: 2441 MHz FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Peak Power - Channel 79: 2480 MHz

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX N Channel Occupancy FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Number of Channels FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Carrier_Frequency_Separation FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Dwell Time

Page 1 of 16 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 FCC ID: EJE-WB0047 Industry Canada ID: 337J-WB0047 Test Sample: LifeBook T Series Model: T4220 Radio Modules: EYTF3CSFT Bluetooth Module & 4965AGN Kedron INTEL Mini-PCI WLAN Module Report Number: M070237_Cert_EYTF3CSFT_WLAN Tested for: Fujitsu Australia Ltd. Issue Date: 8 th May 2007 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. The certificate on page 3 may be reproduced in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN Page 2 of 16 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 EMC Technologies Report No. M070237_Cert_EYTF3CSFT_WLAN Issue Date: 8 th May 2007 CONTENTS 1.0 INTRODUCTION 2.0 GENERAL INFORMATION FCC 15.247 (DTS) RESULTS - Bluetooth 3.0 CONDUCTED EMI MEASUREMENTS 4.0 SPURIOUS EMI MEASUREMENTS 5.0 PEAK OUTPUT POWER 6.0 CHANNEL BANDWIDTH & CHANNEL OCCUPANCY 7.0 RADIO FREQUENCY EXPOSURE 8.0 ANTENNA REQUIREMENT 9.0 COMPLIANCE STATEMENT FCC 15.407 (U-NII) RESULTS - WLAN Refer to Report No: M070237_Cert_4965AGN_NII_BT FCC 15.247 (DTS) RESULTS – WLAN Refer to Report No: M070237_Cert_4965AGN_DTS_BT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: REPORT PHOTOGRAPHS APPENDIX C: OPERATIONAL DESCRIPTION APPENDIX D: BLOCK DIAGRAM APPENDIX E: SCHEMATICS APPENDIX F: ANTENNA DETAILS APPENDIX G: SPECIFICATIONS APPENDIX H: FCC LABELLING DETAILS APPENDIX I: USER MANUAL APPENDIX J: CHANNEL BANDWIDTH PLOTS APPENDIX K: HARMONICS PLOTS APPENDIX L: BANDEDGE PLOTS APPENDIX M: PEAK POWER OUTPUT PLOTS APPENDIX N: BLUETOOTH CHANNEL OCCUPANCY PLOTS Attachment 1: RF Exposure Information Attachment 2: FCC DOC for LifeBook T Series Attachment 3: FCC Part 15B Test Report (Report: FG07-059EAL) FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN Page 3 of 16 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 Report Number: M070237_Cert_EYTF3CSFT_WLAN Test Sample: LifeBook T Series Model: T4220 Radio Modules: Bluetooth Module, Model: EYTF3CSFT (TAIYO YUDEN) Kedron INTEL Mini-PCI WLAN Module, Model: 4965AGN (Intel Corp.) FCC ID: EJE-WB0047 Industry Canada ID: 337J-WB0047 Equipment Type: Intentional Radiator (Transceiver) LifeBook Manufacturer: Fujitsu Ltd - Mobile Computing Division Address: 1-1 Kamikodanaka 4-Chome, Nakahara-Ku, Kawasaki, Japan Contact: Mr. Tsuyoshi Uchihara Tested for: Fujitsu Australia Ltd Test Standards: FCC Part 15 – Radio Frequency Devices (August 2006) FCC Part 15 Subpart C - Intentional Radiators Section 15.247: 2400 – 2483.5 MHz & 5725 – 5850 MHz Operation Bands ANSI C63.4 – 2003 OET Bulletin No. 65 RSS-210 Issue 6 Low Power Licence-Exempt RadioCommunication Devices: 6.2.2 (o) 2400 – 2483.5 MHz Spread Spectrum RSS-102 Issue 1 (Provisional), Evaluation Procedure for Mobile and Portable Radio Transmitters with respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields Test Dates: 5 th to 17 th April 2007 Senior Test Engineer: Chieu Huynh - B.Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signatory: Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN Page 4 of 16 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15 Subpart C (Section 15.247) & RSS-210 1.0 INTRODUCTION EMI testing was performed on the Fujitsu notebook PC, Model: T4220 with TAIYO YUDEN Bluetooth Module, Model: EYTF3CSFT and INTEL Mini-PCI Wireless LAN Module (Kedron 802.11a/b/g/n), Model: 4965AGN. The Bluetooth module was originally certified by TAIYO YUDEN as a modular approval under FCC ID: RYYEYTF3CSFT (Canada ID: 4389AEYTF3CSFT). The Radio modules are installed in a controlled environment at the Fujitsu notebook production/assembly factory. The Kedron WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD94965AGN (Canada ID: 1000M-4965AGN). The Radio modules are installed in a controlled environment at the Fujitsu notebook production/assembly factory. Th…

Text truncated - open the document above for the full version.

FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au EMC Technologies Report Number: M070237_Cert_EYTF3CSFT_WLAN APPENDIX B2 Test Setup Photograph FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au Radiated Spurious Emissions Test Setup FCC ID: EJE-WB0047 (IC: 337J-WB0047) Report No. M070237_Cert_EYTF3CSFT_WLAN EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia www.emctech.com.au FCC Part 15 class B test set up photos Photos extracted from report FG07-059EAL #O7-O59E(1/6） Photo-L1Radiatedemissionmeasurement;３０１０００ＭＨｚ(]Front） 「 ■■且 ■ＬＡ ．.,.■ 『航...． ヅ ｢ ▼ 卜 ■ 園遷 罫 P 圃llu礫'''字も'嘩艤鬮 忰 Ｉ1１１ ＵＳＢＭ１ ＵＳＢ４ Ｉ Ｊ寡 中＄ －－ －－＝ 縦磯！ ~i詩： Ｐ -費－－ ．Ｐ02,ＨＵＢａｎｄＴＥＬｗｅｒｅｓｅｔａｔｏｕｔｓｉｄｅｏｆｔｈｅｃｈａｍｂｅ工 Photo-1.2Radiatedemissionmeasurement;30-1000ＭＨｚ(Back） -－－ －戸￣●■～～ 広醇刺ロ －ｍ ＬＣＤ-２ ｉＩｊｄＤＬ閨 淫 ＝－－－￣ －ヨ 一 一 一一 -雷毫冨圏 マーーーーマー■ ￣ ￣ 」 剤一 ,鋼 守 守 I 議 ベーゾ 川 可 ＝ 四 ■ #O7-059E(2/6） Photo-L3Radiatedemissionmeasurement;１－１２ＧＨｚ(Front） 〆」 ｜扇耐目 ＬＣＤ-２ Ｆｇ－＝■竺咄7■Ｔ ＢＵＴ:ＰＣ-１ ＢＵＴ:ＡＣ-1 饗ii董童i篝ii1i篝HLJiii戸三1iiZiliiiiiiii ＵＳ ￣UII1IlNIiWwU WiviTOwVY], ＵＳＢ－４ 盤や魎 魎 ｉＬ『 岱刈w、 ■■ wmI Ｗ ・願 Photo－２．１ConductedemiRsionmeaEll]remelnt 101,,噸ＡＣ-１ ■ U５ ＩｌｊｍｉＦ｢蔦 ’三舌’ｒ 麗鍾,u豐晉,鬮《ｌ::雲 ＵＳＢ－Ｍ１ ＵＳＢ－３ ■ 角侭早邑＝＿ ｌＬ ８ ＡＭＮｆｂｒＡＥ ～ －ザ ｡」 １ 画 磯 !■〆 ■「
