EJE-WB0081622ANHMW WLAN & BSMAN3 BT IN LIFEBOOK T SERIES

 User’s Guide Learn how to use your Fujitsu LifeBook T730 Tablet PC Copyright and Trademark Information Fujitsu America, Inc. has made every effort to ensure the accuracy and completeness of this document; however, as ongoing devel opment efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this do cument. We disclaim liability for errors, omissions, or future changes.Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited.Intel, Intel Core, Centrino, and Intel Centrino Pro are trademarks or registered trademarks of Intel Corporation or its subsidi aries in  the United States and other countries.Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a trademark of Bluetooth SIG, Inc., USA.PowerDirector, PowerDVD, MakeDisc, and YouCam are trademarks of CyberLink Corp.OmniPass is a trademark of Softex, Inc.Google and Picasa are trademarks or registered trademarks of Google Incorporated.Roxio is a trademark of Sonic Solutions.Energy Star and the Energy Star ma rk are registered U.S. marks. Wacom is a registered trade mark of Wacom Company Limited. Adobe, Acrobat, and Acrobat Reader are either a registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corporation in the United States and ot her countries.All other trademarks mentioned herein are the property of their respective owners. © Copyright 2010 Fujitsu America, Incorporated. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FJ- TBD -01ENZ0-00 W ARNING H ANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD , A CHEMICAL KNOWN TO THE S TATE OF C ALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM . W ASH HANDS AFTER HANDLING . DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Fujitsu America, Incorporated Address: 1250 E. Arques Avenue, Sunnyvale, CA 94085 Telephone: (408) 746-6000 Declares that product: Base Model Configuration: LifeBook T730 Tablet PC Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:  (1) This device may not cause harmful interference, (2) This device must accept any interference received,  including interference that may cause undesired operation. IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Class II Adapters with an output rating of 19 VDC, with a current of 4.22 A (80 W).When using your notebook equipment, basic safety precautions should always be followed to reduce the risk of fire, electric sho ck and injury to persons, including the following: • CAUTION - HOT SURFACE: The bottom of this notebook computer can become hot when used for long periods of time. When using this notebook, take caution to limit long term or continuous use while resting it on exposed skin, such as the lap. • CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. • Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or nea r a swimming pool. • Avoid using a modem during an electrical storm. There may be a remote risk of electric shock from lightning. • Do not use a modem to report a gas leak in the vicinity of the leak. • Use only the power cord and batteries indicated in thi s manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. • For TV tuner use: To protect from overvoltages and transients on the Cable Distribution System, make sure that the outer shield of the coaxial cable is connected to earth (grounded) at the building premise as close to the point of cable entrance as practicable, as required per NEC Article 820.93, ANSI/NFPA 70: 2005. If you have questions about your CATV installation, contact your service provider. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only D ANGER OF EXPLOSION IF L ITHIUM ( CLOCK ) BATTERY IS INCORRECTLY REPLACED . R EPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER . D ISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER ’ S INSTRUCTION . F OR CONTINUED PROTECTION AGAINST RISK OF FIRE , REPLACE ONLY WITH THE SAME TYPE AND RATING FUSE . + AC adapter output polarity: Recycling your batteryOver time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natu ral occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly. Fujitsu is very concerned with environmental protection, and has enl isted the services of th e Rechargeable Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by recycling old batteries at no cost to you.RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go to www.RBRC.org or call 1-800-822-8837.  If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website ( http://EIAE.org/ ) and search for a convenient disposal location.Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for …

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 176 Harrick VIC 3043 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: Federal Communications Commission Attention: Certification Manager No. of pages: 1 From: Chieu Huynh Date: 4 th March 2010 EMC Ref: M100213_FCC_622ANHMW_DTS_BT Subject: FCC APPROVAL – FCC ID: EJE-WB0081 Please receive EMC Technologies’ Report M100213_FCC_622ANHMW_DTS_BT for review. The EUT is a Fujitsu LifeBook T Series, Model: T730 / TH700 with Intel Centrino Advanced-N 6200 (Puma Peak 802.11a/b/g/n 2x2), Model: 622ANHMW & CSR Bluetooth Module, Model: BSMAN3. The Intel WLAN module was originally certified by Intel Corporation, as a modular approval under FCC ID: PD9622ANH (Canada ID: 1000M-622ANH). The Bluetooth module was originally certified by CSR as a modular approval under FCC ID: PIWBSMAN (Canada ID: 5255A-BSMAN). The intention of this application is to FCC certify Intel Centrino Advanced-N 6200 (Puma Peak 802.11a/b/g/n 2x2), Model: 622ANHMW & CSR Bluetooth Module, Model: BSMAN3 installed in Fujitsu LifeBook T Series, Model: T730 / TH700. DTS Documents submitted: Test Reports: SAR and EMC Appendixes: Measurement Instrumentations, Photographs, Operational Description, Block Diagram, Antenna Details, Schematics, Labelling Details and User Manual Attachments: RF Exposure Information, FCC DOC, FCC Part 15B and Intel FCC 15.247 Reports. FCC Forms: Confidentiality Letter and Form 731 Signatory & Agent Authorization Letter This is a composite submission. The NII (WLAN) and DSS (Bluetooth) are submitted separately under NII and DSS submissions. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. The FCC ID for this composite application is EJE-WB0081 Regards ______________ Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (EJE-WB0081). Pursuant to FCC DA 04-1705, this application includes a request for short term confidentiality for the following exhibits: Internal Photos Location Photos External Photos Test Setup Photos User Manual As the above information contains proprietary information which would be benefit to our competitors, we request that these exhibits be held from public view for 180 days from the issue date of the grant of approval. In addition, pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Operational Description Block Diagram Schematics Antenna Details The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Tsuyoshi Uchihara Title : Engineer Date: 5 th March 2010

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 AUTHORITY TO ACT AS AGENT & FORM 731 SIGNATORY I appoint EMC Technologies Pty Ltd to act as agent, on our behalf in this application for equipment authorization. I certify that the exhibits submitted properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will have affixed to it a label identical to that submitted for approval with this application. In addition, I authorize Mr. Chris Zombolas, Technical Director of EMC Technologies Pty Ltd to sign the Form 731 and Mr. Chieu Huynh (Senior EMC Test Engineer) to be listed as the technical and non-technical contact for this application. Sincerely, ____________________________ Name: Tsuyoshi Uchihara Title: Engineer Date: 4 th September 2009

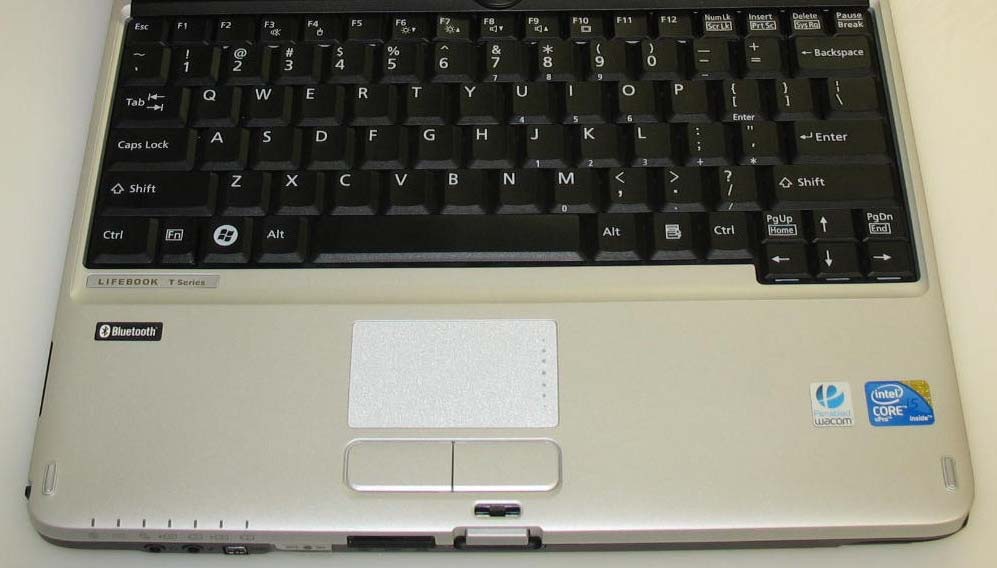

FCC ID: EJE-WB0081 (IC: 337J-WB0081) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS FCC ID: EJE-WB0081 (IC: 337J-WB0081) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS

FCC ID: EJE-WB0081 (IC: 337J-WB0081) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B3 LOCATION PHOTOS Antenna Locations WLAN Location

FCC ID: EJE-WB0081 (IC: 337J-WB0081) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS FCC ID: EJE-WB0081 (IC: 337J-WB0081) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS

FCC ID: EJE-WB0081 (IC: 337J-WB0081) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) and FCC Part 15.407(f). Spread spectrum transmitters operating in the 2400 - 2483.5 MHz & 5725 – 5850 MHz (15.247) and 5.15 – 5.35 GHz & 5.47 – 5.725 GHz (NII) bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with this section and also section 2.1093 this device has been defined as a portable device. Intel 622ANHMW WLAN - SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M100214_FCC_622ANHMW_SAR_2.4_BT (2.4 GHz) and M100214_FCC_622ANHMW_SAR_5.6_BT (5.18 – 5.825 GHz). SAR values of 1.47 mW/g (DTS) and 1.32 mW/g (NII) were measured which complied with the FCC human exposure requirements of 47 CFR 2.1093 (d). CSR BSMAN3 Bluetooth (FCC ID: PIWBSMAN) - SAR measurements were not required because the Bluetooth transmit power is very low and Bluetooth antenna is located at more than 5cm away from the other transmitting antennas.

PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 1 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au SAR Test Report Report Number: M100214_FCC_622ANHMW_SAR_2.4_BT Test Sample: Portable TABLET Computer Radio Modules: Intel Centrino 6200 Puma Peak 622ANHMW WLAN and CSR BSMAN3 Bluetooth Modules Host PC Model Number: T730 / TH700 PC System FCC ID: EJE-WB0081 PC System IC: 337J-WB0081 Date of Issue: 1 st March 2010 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 2 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au CONTENTS 1.0 GENERAL INFORMATION ................................................................................................................ 3 2.0 INTRODUCTION ............................................................................................................................... 4 3.0 TEST SAMPLE TECHNICAL INFORMATION ................................................................................... 4 3.1 EUT (WLAN) Details ..................................................................................................................... 4 3.2 EUT (Bluetooth) Details ............................................................................................................. 6 3.3 EUT (Notebook PC) Details ...................................................................................................... 7 3.4 Test sample Accessories .......................................................................................................... 7 3.4.1 Battery Types ........................................................................................................................ 7 4.0 TEST SIGNAL, FREQUENCY AND OUTPUT POWER ..................................................................... 8 4.1 Battery Status ............................................................................................................................ 8 5.0 DETAILS OF TEST LABORATORY .................................................................................................. 9 5.1 Location .................................................................................................................................... 9 5.2 Accreditations ............................................................................................................................ 9 5.3 Environmental Factors .............................................................................................................. 9 6.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ...................................................................... 10 6.1 Probe Positioning System ....................................................................................................... 10 6.2 E-Field Probe Type and Performance ..................................................................................... 10 6.4 Validation ................................................................................................................................ 10 6.4.1 Validation Results @ 2450MHz ........................................................................................... 10 6.4.2 Deviation from reference validation values .......................................................................... 10 6.4.3 Liquid Depth 15cm ............................................................................................................... 11 6.5 Phantom Properties ................................................................................................................ 11 6.6 Tissue Material Properties ....................................................................................................... 11 6.6.1 Liquid Temperature and Humidity ........................................................................................ 12 6.7 Simulated Tissue Composition Used for SAR Test ................................................................. 12 6.8 Device Holder for Laptops and P 10.1 Phantom ..................................................................... 12 7.0 SAR MEASUREMENT PROCEDURE USING DASY4 .................................................................... 13 8.0 MEASUREMENT UNCERTAINTY ................................................................................................... 14 9.0 EQUIPMENT LIST AND CALIBRATION DETAILS ......................................................................... 16 10.0 OET BULLETIN 65 – SUPPLEMENT C TEST METHOD ................................................................ 17 10.1 Positions ................................................................................................................................. 17 10.1.1 “Tablet” Position Definition (0mm spacing) .......................................................................... 17 10.1.2 “Edge On” Position (Portrait or Landscape) ....................…

Text truncated - open the document above for the full version.

PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 28 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table: 2450 MHz DSSS Band SAR Measurement Plot Numbers Table: 2450 MHz OFDM Band SAR Measurement Plot Numbers Table: 2450MHz Validation Plot Plot 11 Validation 2450 MHz 24 th Feb 2010 Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel Test Freq (MHz) Primary Portrait 1 A 1 - 06 2437 Test Position Plot No. Ant A or B Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel Test Freq (MHz) Primary Portrait 2 A HT0 20 06 2437 3 A HT0 40 06 2437 Primary Portrait 4 A 6 - 06 2437 Secondary Portrait 5 B 6 - 01 2412 6 06 2437 7 11 2462 Secondary Landscape 8 A 6 - 06 2437 9 B 6 - 06 2437 Tablet 10 A 6 - 06 2437 PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 29 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 February 2010 File Name: M100214 Primary Portrait DSSS 2.4 GHz Antenna A (1) 24-02-10.da4 DUT: Fujitsu Tablet Curlin with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0015005BE890 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 2 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.11, 4.11, 4.11) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.234 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.74 V/m; Power Drift = 0.055 dB Peak SAR (extrapolated) = 0.528 W/kg SAR(1 g) = 0.204 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.235 mW/g 0 dB = 0.235mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 20.3 Degrees Celsius Liquid Temperature 20.0 Degrees Celsius Humidity 53.0 % PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 30 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 31 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 February 2010 File Name: M100214 Primary Portrait MCS0-20MHz 2.4 GHz Antenna A (1) 24-02-10.da4 DUT: Fujitsu Tablet Curlin with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0015005BE890 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 2 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.11, 4.11, 4.11) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.256 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.28 V/m; Power Drift = -0.048 dB Peak SAR (extrapolated) = 0.549 W/kg SAR(1 g) = 0.226 mW/g; SAR(10 g) = 0.108 mW/g Maximum value of SAR (measured) = 0.257 mW/g 0 dB = 0.257mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 20.3 Degrees Celsius Liquid Temperature 20.0 Degrees Celsius Humidity 53.0 % PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 32 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 33 of 68 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 February 2010 File Name: M100214 Primary Portrait MCS0-40MHz 2.4 GHz Antenna A (1) 24-02-10.da4 DUT: Fujitsu Tablet Curlin with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0015005BE890 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 2 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.11, 4.11, 4.11) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.256 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.35 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.234 mW/g; SAR(10 g) = 0.110 mW/g Maximum value of SAR (measured) = 0.267 mW/g 0 dB = 0.267mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 20.3 Degrees Celsius Liquid Temperature 20.0 Degrees Celsius Humidity 53.0 % PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_2.4_BT Page 34 of 68 This document must not be copied or reproduced, except in full …

Text truncated - open the document above for the full version.

PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 95 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX C CALIBRATION DOCUMENTS 1. SN3563: EX3DV4 Probe Calibration Certificate 2. SN1008: D5GHzv2 Dipole Calibration Certificate PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 96 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 97 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 98 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 99 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 100 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 101 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 102 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 103 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 104 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 105 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 106 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 107 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 108 of 112 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WB0081 IC: 337J-WB0081 Report No. M100214_FCC_622ANHMW_SAR_5.6_BT Page 109 of 112 This document must not…
