EJE-WB0089FUJITSU LIFEBOOK T935/TH935

Operating Manual FUJITSU LIFEBOOK T935 System ### please provide document number ### Contact address in North America FUJITSU AMERICA INC. 1250 East Arques Avenue, Sunnyvale, CA 94085-3470, U.S.A. Telephone: 800 831 3183 or 408 746 6000 "http://solutions.us.fujitsu.com" "http://solutions.us.fujitsu.com/contact" Have a question? Email us at: "[email protected]" Copyright © 2014 Fujitsu Technology Solutions. All rights reserved FUJITSU LIFEBOOK T935 Index 113 Operating Manual Fujitsu Contact Information Notational conventions Ports and controls Important notes First-time setup of your device Working with the notebook Security functions Connecting external devices Removing and installing components during servicing Settings in BIOS Setup Utility Troubleshooting and tips Technical data Manufacturer’s notes Appendix 7 8 9 12 17 21 62 70 75 76 78 86 91 97 Copyright and Trademark Information Fujitsu America, Incorporated has made every effort to ensure the accuracy and completeness of this document; however, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo and LIFEBOOK are registered trademarks of Fujitsu Limited or its subsidiaries in the United States and other countries. Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. The ExpressCard word mark and logo are owned by the Personal Computer Memory Card International Association (PCMCIA) and any use of such marks by Fujitsu America, Incorporated is under license. Google is a trademark or registered trademark of Google Incorporated. Bluetooth is a trademark of Bluetooth SIG, Inc., USA. OmniPass is a t rademark of Softex, Inc. Roxio is a trademark of Roxio, a division of Sonic Solutions. PowerDirector, PowerDVD, Y ouCam, and MakeDisc are trademarks of CyberLink Corp. Adobe, Acrobat, and Adobe Reader are either a registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. The DVD player found in some models of the LIFEBOOK notebook incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. All other trademarks specified here are the property of their respective owners. miclem 2014-10-01 22:11:28 -------------------------------------------- according to Fujitsu Japan DTS Boost is not supported > not included here DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Address: Fujitsu America, Inc. 1250 E. Arques Avenue Telephone: Declares that product: Sunnyvale, CA 94085 (408) 7 46-6000 Base Model Config uration: LIFEBOOK T935 Notebook Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. Contents Contents Fujitsu Contact Information ........................................................................................................................ 7 Notational conventions ................................................................................................................................ 8 Ports and controls ........................................................................................................................................ 9 Important notes ........................................................................................................................................... 12 Safety instructions ......................................................................................................................................... 12 Additional safety notes for devices with radio components ..................................................................... 13 Energy saving ................................................................................................................................................ 13 Energy saving under Windows ............................................................................................................. 13 Traveling with your notebook ....................................................................................................................... 14 Before you travel .................................................................................................................................... 14 Transporting the Tablet PC ................................................................................................................... 15 Storing the Tablet PC .................................................................................................................................... 15 Cleaning the Tablet PC ................................................................................................................................. 16 Further information on cleaning the Tablet PC ................................................................................... 16 First-time setup of your device ................................................................................................................ 17 Unpacking and checking the device ...................................................…

Text truncated - open the document above for the full version.

Rev. 1/1/03 Fujitsu Limited 1- 1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: November 7, 2014 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: EJE-WB0089 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Operation Description  Tune up Procedure  7265NGW Hardware Operational Specification  7265NGW_BlockDiagram  7265NGW_Schematics  Bluetooth FHSS description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Tsuyoshi Uchihara [email protected]

Fujitsu Limited 1‐1, Kamikodanaka 4‐chome, Nakahara‐ku, Kawasaki 211‐8588, Japan Tel: +81‐44‐754‐3885 ; Fax: +81‐44‐754‐3769 To whom it may concern: This device with FCC ID: EJE‐WB0089/ IC: 337J‐WB0089 integrates a WiFi/BT module: Brand FCC ID IC ID WiFi/BT module Intel PD97265NG 1000M‐7265NG No hardware design changes are made on the modules, and the software has not been changed to increase the RF output power of the modules. Pursuant to KDB 996369 D01v01r04, the original modular report (Report Number: 41273RRF.001/ 41273RRF.002/ 41273RRF.003/ 41273RRF.004) are submitted to represent the compliance of FCC Part 15C/15E and IC RSS‐210 conducted RF testing items of this device. The radiated RF testing items are tested on this host device, and the test report is submitted additionally. Should you have any comments or questions, please feel free to contact me. Sincerely, Jones Tsai [email protected]

Fujitsu Limited 1- 1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: October 15, 2014 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: EJE-WB0089 To Whom It May Concern: We, Fujitsu Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Tsuyoshi Uchihara [email protected]

Fujitsu Limited 1- 1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel: +81-44-754-3885 ; Fax: +81-44-754-3769 Date: October 15, 2014 Power of Attorney To whom it may concern, Please be notified that I, Tsuyoshi Uchihara, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: EJE-WB0089 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Tsuyoshi Uchihara [email protected]

1/1 Fujitsu Limited 1- 1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Te l : +81-44-754-3885 ; Fax: +81-44-754-3769 Date: October 15, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : EJE-WB0089 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Tsuyoshi Uchihara [email protected]

Intel Corporation 100 Center Point Circle Columbia, SC 29210 February 25, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 USA Subject: Model 7265NGW Wireless LAN mini-PCIe Card FCC ID: PD97265NG and PD97265NGU IC: 1000M-7265NG Gentlemen: Please be advised that the Model 7265NGW 802.11a/b/g/n/ac + BT Wireless LAN mini- PCIe card is manufactured for the global market but when marketed in the U.S. under FCC IDs PD97265NG & PD97265NGU and in Canada under IC: 1000M-7265NG. The non- volatile memory (NVM) will be programmed at the factory to only actively scan and operate on these specific channels during normal WLAN operation. During Wi-Fi Direct mode the device may act as a group owner (GO) to establish a peer-to-peer (P2P) network including conditions when no master device is present on these specific channels. Channels 1-11, 2412-2462MHz 802.11b mode Channels 1-11, 2412-2462MHz 802.11g mode Channels 1-11, 2412-2462MHz 802.11n mode (20MHz channel) Channels 3-9, 2422-2452MHz 802.11n mode (40MHz channel) The device operates as a client without radar detection capability and will be programmed at the factory to passively scan on the following dynamic frequency selection (DFS) channels and will only listen for a master device and cannot send a probe request to initiate communication on these DFS channels. Accordingly passive scanning provides protection for TDWR operations and preventing transmission in the 5600MHz – 5650MHz frequency band. Client software and drivers will never enable the device to act as a master or GO for operation in DFS frequency bands and therefore ad-hoc mode is always disabled on these passive scan DFS channels. Channels 52-64, 5260-5320MHz 802.11a mode Channels 52-64, 5260-5320MHz 802.11n mode (20 MHz channel) Channels 52-64, 5260-5320MHz 802.11ac mode (20 MHz channel) Channels 54-62, 5270-5310MHz 802.11n mode (40MHz channel) Channels 54-62, 5270-5310MHz 802.11ac mode (40MHz channel) Channel 58, 5290MHz 802.11ac mode (80MHz channel) Channels 100-140, 5500-5700MHz 802.11a mode Channels 100-140, 5500-5700MHz 802.11n mode (20 MHz channel) Intel Corporation 100 Center Point Circle Columbia, SC 29210 Channels 100-144, 5500-5720MHz 802.11ac mode (20 MHz channel) Channels 102-134, 5510-5670MHz 802.11n mode (40MHz channel) Channels 102-142, 5510-5710MHz 802.11ac mode (40MHz channel) Channels 106 &138, 5540 & 5690MHz 802.11ac mode (80MHz channel) This device meets the requirements of FCC Part 15.202 and accordingly will be programmed at the factory to passively scan on the following non-DFS channels and will only listen for a master device and cannot send a probe request to initiate communication during normal WLAN operation. When operating in Wi-Fi Direct mode on these non-DFS channels, it may operate as a P2P client device or GO to establish a P2P network if, and only if, a master device is present and network communication is maintained between a master device and the GO. Channels 12 &13, 2467 & 2472MHz 802.11b mode Channels 12 &13, 2467 & 2472MHz 802.11g mode Channels 12 &13, 2467 & 2472MHz 802.11n mode (20MHz channel) Channels 10 &11, 2457 & 2462MHz 802.11n mode (40MHz channel) Channels 36-48, 5180-5240MHz 802.11a mode Channels 36-48, 5180-5240MHz 802.11n mode (20 MHz channel) Channels 36-48, 5180-5240MHz 802.11ac mode (20 MHz channel) Channels 38-46, 5190-5230MHz 802.11n mode (40MHz channel) Channels 38-46, 5190-5230MHz 802.11ac mode (40MHz channel) Channel 42, 5210MHz 802.11ac mode (80MHz channel) Channels 149-165, 5745-5825MHz 802.11a mode Channels 149-165, 5745-5825MHz 802.11n mode (20 MHz channel) Channels 149-165, 5745-5825MHz 802.11ac mode (20 MHz channel) Channels151-159, 5755-5795MHz 802.11n mode (40MHz channel) Channels151-159, 5755-5795MHz 802.11ac mode (40MHz channel) Channel 155, 5775MHz 802.11ac mode (80MHz channel) This information when programmed into the NVM will not be accessible and cannot be changed by the end user. The transmitter is approved as a non-software defined radio and OEMs and third party system integrators do not have the ability through software to allow configuration controls that would permit the device to operate outside the grant conditions per FCC KDB 594280. Sincerely, Steven C. Hackett Wireless Regulatory Engineer Intel Corporation – Mobile Wireless Group

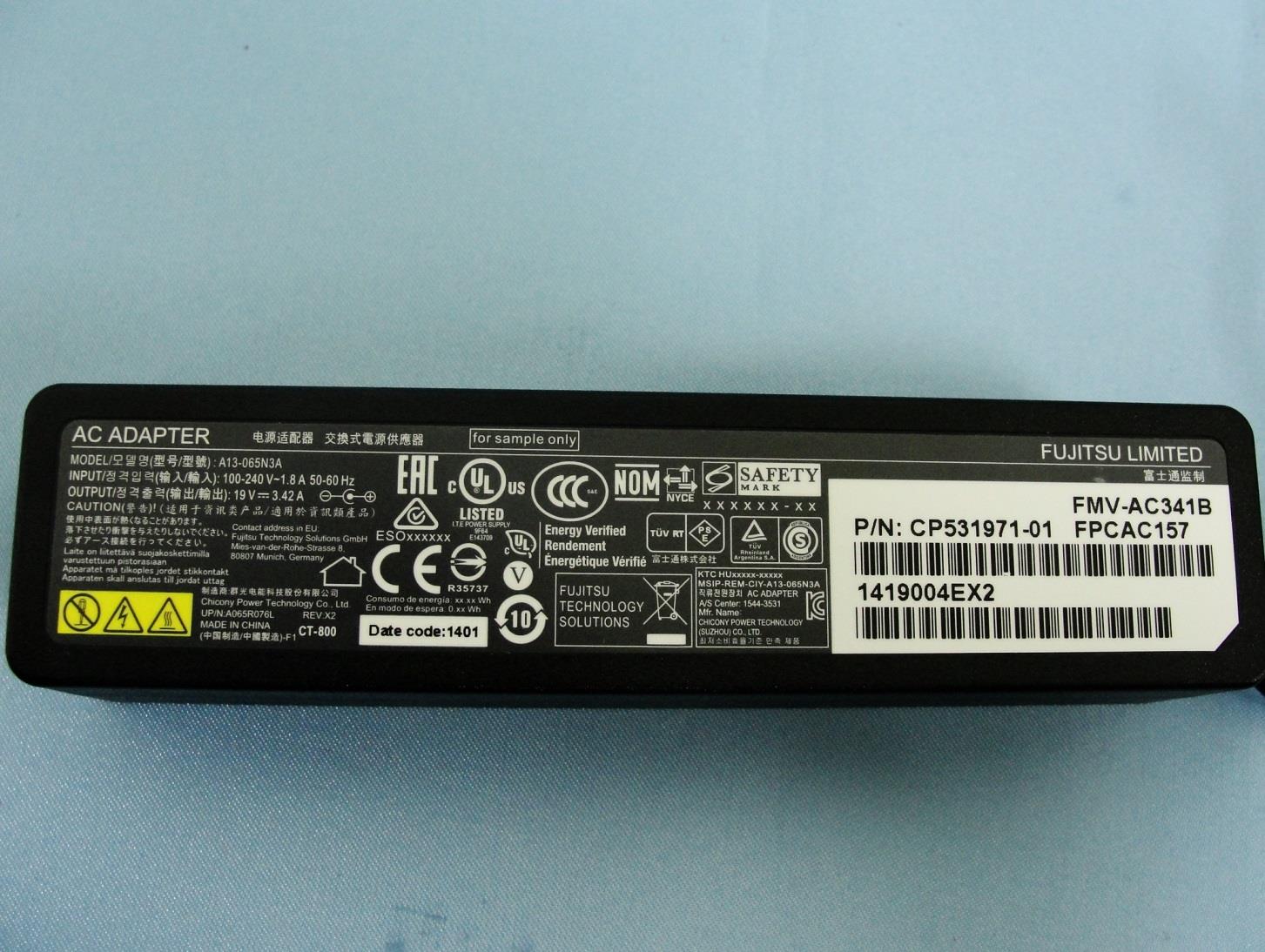

Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 720510 1. External Photograph of EUT Notebook Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Tablet Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Specification of Accessory AC Adapter Brand Name Delta Model Name A13-065N3A Battery Brand Name Fujitsu Model Name FPCBP425 WLAN Module Brand Name Intel Model Name 7265NGW Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 720510 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 AC Adapter Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Oct. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : EJE-WB0089 IC : 337J-WB0089 Battery

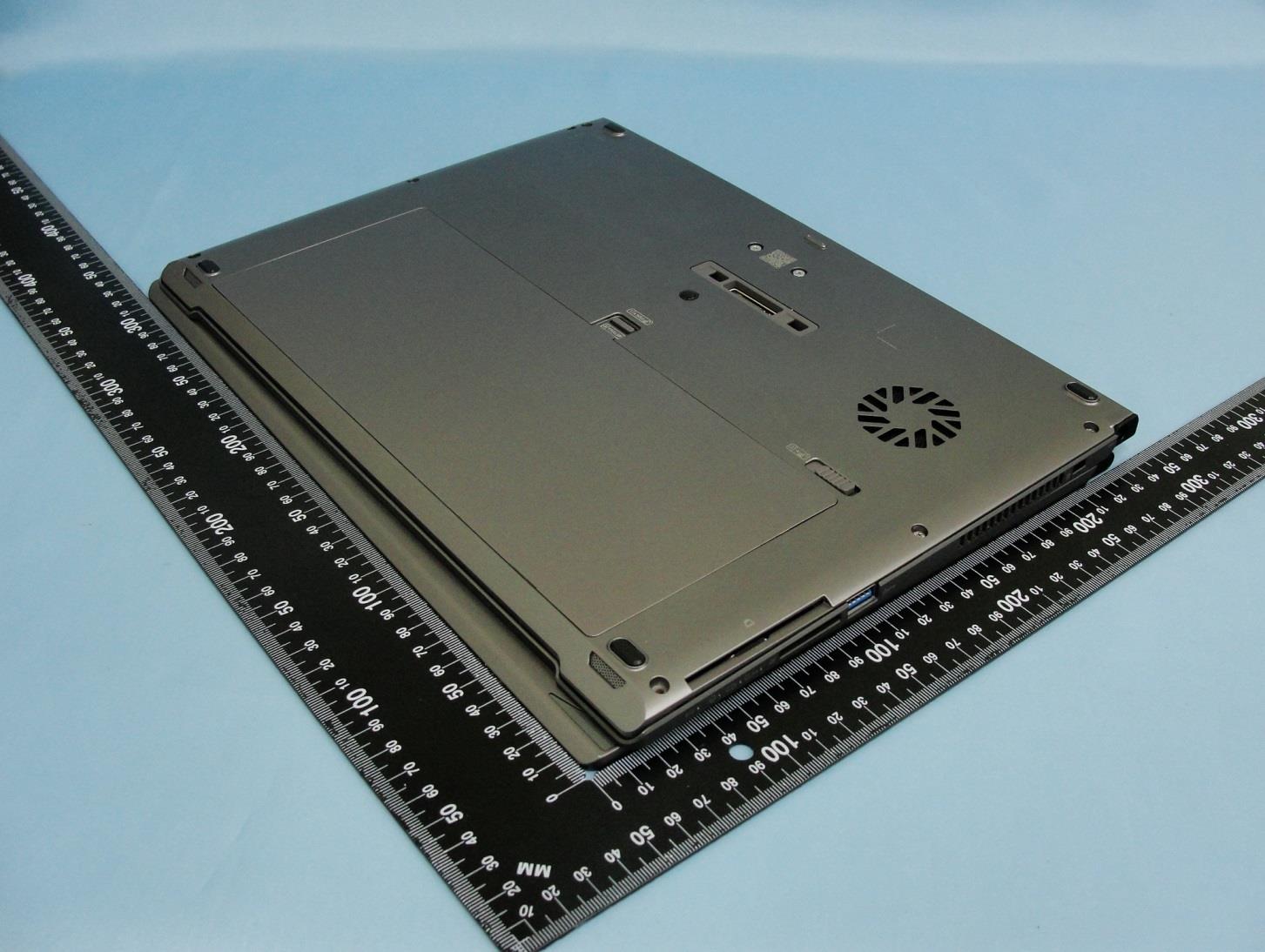

Bottom of the Device Label Location

Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 14 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 15 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 16 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 17 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 18 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 WLAN Module Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 19 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 20 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 21 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 22 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 WLAN TX 1 Antenna Photographs of EUT Report No.: EP491525 Brand Name: FUJITSU LIMITED / Model Name: T935;TH935 SPORTON INTERNATIONAL INC. Page Number : 23 of 23 TEL : 886-3-327-3456 Report Issued Date : Nov. 06, 2014 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : EJE-WB0089 IC : 337J-WB0089 WLAN TX 2 Antenna

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 03, 2014 FCC ID : EJE-WB0089 Page 1 of 36 Form version. : 140820 FCC SAR Test Report Report No. : FA491525 FCC SAR Test Report APPLICANT : FUJITSU LIMITED EQUIPMENT : FUJITSU LIFEBOOK T series BRAND NAME : FUJITSU MODEL NAME : T935;TH935 FCC ID : EJE-WB0089 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Nov. 03, 2014 FCC ID : EJE-WB0089 Page 2 of 36 Form version. : 140820 FCC SAR Test Report Report No. : FA491525 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 4 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 5 4.1 General Information ............................................................................................................................................... 5 4.2 Maximum Tune-up Limit ......................................................................................................................................... 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 8. Measurement Procedures ...........................................................................................................................................10 8.1 Spatial Peak SAR Evaluation ................................................................................................................................10 8.2 Power Reference Measurement............................................................................................................................ 11 8.3 Area Scan ............................................................................................................................................................. 11 8.4 Zoom Scan ............................................................................................................................................................12 8.5 Volume Scan Procedures ......................................................................................................................................12 8.6 Power Drift Monitoring ...........................................................................................................................................12 9. Test Equipment List .....................................................................................................................................................13 10. System Verification ....................................................................................................................................................14 10.1 Tissue Verification ...............................................................................................................................................14 10.2 System Performance Check Results ...................................................................................................................15 11. RF Exposure Positions ..............................................................................................................................................15 11.1 SAR Testing for Tablet .........................................................................................................................................15 12. Conducted RF Output Power (Unit: dBm) ................................................................................................................16 13. Bluetooth Exclusions Applied ..................................................................................................................................26 14. Antenna Location ......................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/10/14 System Check_Body_2450MHz_141014 DUT: D2450V2-736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_141014 Medium parameters used: f = 2450 MHz; σ = 1.925 S/m; ε r = 52.423; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: ES3DV3 - SN3296; ConvF(4.45, 4.45, 4.45); Calibrated: 2014/4/30; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2014/8/21 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 16.2 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.94 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 24.8 W/kg SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.74 W/kg Maximum value of SAR (measured) = 16.2 W/kg 0 dB = 16.2 W/kg = 12.10 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2014/10/14 System Check_Body_5200MHz_141014 DUT: D5GHzV2-1040 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_141014 Medium parameters used: f = 5200 MHz; σ = 5.284 S/m; ε r = 47.499; ρ = 1000 kg/m 3 23.3 22.3 DASY5 Configuration: - Probe: EX3DV4 - SN3935; ConvF(4.61, 4.61, 4.61); Calibrated: 2013/11/4; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2013/11/5 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.9 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 62.96 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 33.0 W…
