FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros_2.4 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Page 1 of 4 EMC Technologies Report Number M030949_Certfication_Ocampa_Atheros_2.4 APPENDIX P – USER MANUAL Copyright Fujitsu PC Corporation has made every effort to ensure the accuracy and completeness of this document. Because ongoing development efforts are made to continually improve the capabilities of our products, however, the data contained herein represents Fujitsu design objectives and is provided for comparative purposes; actual results may vary based on a variety of factors. This product data does not constitute a warranty. Specifications are subject to change without knowledge. Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited; Stylistic is a registered trademark of Fujitsu PC Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Associa- tion. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Atheros is a registered trademark of Atheros Communi- cations, Inc. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Wi-Fi is a trademark of the Wireless Ethernet Compati- bility Alliance (WECA). All other products are trademarks or registered trade- marks of their respective companies. Copyright 2002 - Fujitsu PC Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Fujitsu PC Corporation. No part of this publi- cation may be stored or transmitted in any electronic form without the prior consent of Fujitsu PC Corpora- tion B5FH-TBD-02EN-00 Note:For more detailed information about the FCC rules and their applicability to the Stylistic ST5000 Series Tablet PC, refer to Chapter 5 of this document. Warning Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling. DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu PC Corporation Address:5200 Patrick Henry Drive Santa Clara, CA 95054 Telephone:408-982-9500 Declares that product:Model Series: Stylistic® ST5000 Tablet PC Complies with Part 15 of the FCC Rules This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. Ocampa_UG_Active B.book Page i Monday, September 29, 2003 5:04 PM Stylistic ST5000 Series Tablet PC - User’s Guide Ocampa_UG_Active B.book Page ii Monday, September 29, 2003 5:04 PM Table of Contents Table of Contents PREFACE About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . v Fujitsu Contact Information . . . . . . . . . . . . . . . . . v Warranty Information . . . . . . . . . . . . . . . . . . . . . v 1 GETTING STARTED WITH YOUR TABLET PC In-box Items for the Stylistic ST5000 Series Tablet PC . . . . . . . . . . . . . . . . . 1 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2 Stylistic Tablet PC Features. . . . . . . . . . . . . . . . . . 3 Status Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Application Buttons . . . . . . . . . . . . . . . . . . . . . . 10 Navigation Buttons. . . . . . . . . . . . . . . . . . . . . . . 12 Tertiary Functions of Application and Navigation Buttons. . . . . . . . . . . . . . . . . 13 Security Functions of Application Buttons. . . . . . 14 Setting up the Security Panel . . . . . . . . . . . . . . . 14 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using Your Security Panel . . . . . . . . . . . . . . . . . 15 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Uninstalling the Security Panel Application . . . . . 15 Connectors and Peripheral Interfaces . . . . . . . . . 17 2 USING YOUR TABLET PC System States . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Powering Up the Tablet PC . . . . . . . . . . . . . . . . 22 Shutting Down the System. . . . . . . . . . . . . . . . . 22 Suspending System Operation . . . . . . . . . . . . . . 22 Resuming System Operation . . . . . . . . . . . . . . . 24 Adjusting the Display Brightness. . . . . . . . . . . . . 24 Using the Pen. . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Calibrating the Pen. . . . . . . . . . . . . . . . . . . . . . . 25 Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . 25 Replacing the Pen Tip . . . . . . . . . . . . . . . . . . . . 25 Charging the Battery . . . . . . . . . . . . . . . . . . . . . 26 Removing and Installing the Battery. . . . . . . . . . 26 Tips for Conserving Battery Power . . . . . . . . . . . 27 Modem Connection . . . . . . . . . . . . . . . . . . . . . 27 PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Removing and Installing Memory Modules . . . . 28 3 CARE AND MAINTENANCE Protecting the Display Screen. . . . . . . . . . . . . . . 31 Storing the Tablet PC . . . . . . . . . . . . . . . . . . . . . 32 Avoiding Overheating . . . . . . . . . . . . . . . . . . . . 32 Cleaning the Display Screen . . . . . . . . . . . . . . . . 32 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 32 Restoring Your Pre-Installed Software . . . . . . . . 33 Drive Image Special Edition (DISE) . . . . . . . . . . . 33 4 SPECIFICATIONS Physical Specifications . . . . . . . . . . . . . . . . . . . . 39 Processing Specifications . . . . . . . . . . . . . . . . . . 39 Memory/Storage Specifications . . . . . . . . . . . . . 39 Display Specifications . . . . . . . . . . . . . . . . . . . . . 39 Interface Specifications . . . . . . . . . . . …

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia Ph: +613 9335 3333 Fax: +613 9338 9260 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: Federal Communications Commission Attention: No. of pages: 1 From: Donna Cleary Date: 17th October 2003 EMC Ref: M030949_Certification_Ocampa_Atheros (FCC ID: EJE-WL0004) Subject: Mini-PCI Wireless LAN Module (Atheros, WLL4030) installed in Stylistic Pentablet PC, Model ST5010D (Ocampa) - Intentional Radiator, Low Power Transmitter Please receive EMC Technologies’ Report M030949_Certification_Ocampa_Atheros for review. The test sample covered in the report is a Mini-PCI Wireless LAN Module (Atheros, Model WLL4030 (11a+b/g)) – for Stylistic Pentablet PC, Model ST5010D, (Ocampa). The Atheros module is an OEM product from ASKEY Computer Corp., which is already certified by Modular certification by the manufacturer. This pre-certified Atheros module is installed in Fujitsu Tablet PC and tested again for FCC/IC compliance. The intention of this submission is to certify the Atheros WLAN module in - Pentablet PC, STYLISTIC ST Series, Model ST5010D (Ocampa). EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. Their corresponding FRN is 0009379173 & the FCC ID for this application is EJE-WL0004. The following documents have been sent for this review: • Report Number: M030949_Certification_Ocampa_Atheros • Appendix B: Test Sample/Setup Photographs/EUT & Antenna Location • Appendix C: Functional description • Appendix D: Block Diagram • Appendix E: Test Sample Schematics • Appendix F: PCB Layouts • Appendix G: EUT (WLAN) Specifications • Appendix H: EUT (WLAN) Bill of Materials • Appendix I: FCC Labelling details • Appendix J: Graphs of EMI measurement • Appendix K: Channel Bandwidth Plots • Appendix L: Bandedge Plots • Appendix M: Peak Power Spectral Density Plots • Appendix N: Power Excursion Plots . Best Regards Donna Cleary Report Secretary EMC Technologies Pty Ltd & all forms Please advise of any further requirements . Appendix O: Antenna Specifications (Monopole Ceramic Chip) Appendix P: EUT User Manual

Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Date: 17th October 2003 Reference: FCC ID: EJE-WL0004 Subject: Request for Confidentiality for FCC Certification Application Company: FUJITSU Ltd Test Sample: Mini-PCI Wireless LAN Module (Atheros (11a+b/g)) installed in Fujitsu's Stylistic Pentablet PC, Model ST5010D (Ocampa) Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), FUJITSU requests that prior to the equipment authorization grant for the (test sample), the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by FUJITSU and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to FUJITSU staff, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, post-grant confidentiality is requested for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits – Technical PCB Layouts, Technical Schematic Circuit Diagrams, Detailed Antenna Information Sincerely Yours, Kanbe Katsuhito Fujitsu Japan Mobile Computing Division FUJITSU LIMITED 1405 Ohmaru, Inagi-shi, Tokyo 206-8503, Japan Tel(+81-42)370-7632 FAX(+81-42)370-7708 Mobile Computing Division Product Type: - Low power transmitter (intentional radiator)

_____________________________________________________________________ EMC Technologies Pty Ltd 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au To: Federal Communications Commission Fax: +613 9338 9260 From: Donna Cleary Phone: +613 9335 3333 FCC ID: EJE-WL0004 No of pages: 1 EMC Ref: M030949_Certification_Ocampa_Atheros Date: 12 th December 2003 Subject: Form 731 Query (Confirmation No. EA211994) To Whom It May concern, Can you please assist and advise on the following: We submitted files to the FCC for product certification review - (Files uploaded Friday 24th October 2003, confirmation no. EA211994). The test sample is a Stylistic Pentablet PC with mini-PCI wireless LAN module (Atheros) operating at two frequencies - 2.4 GHz (FCC Pt 15C) and 5 GHz (FCC Pt 15E). All files were submitted with one Form 731 (listing the 2.4 GHz and 5 GHz bands tested and applicable FCC parts). Was it acceptable to send the submission under 1 Form 731 or should the submission have been treated as a composite Form 731 application – i.e 1 Form 731 for FCC Part 15C (2.4 GHz) and 1 Form 731 for FCC Part 15E (5 GHz (2 bands))? Is it necessary for me to take steps to ensure that the equipment authorization grant (when received) shows that testing was performed to two FCC parts and in two frequency bands? Our client is greatly concerned that final equipment authorization grant will not show that testing was performed to FCC Part 15C and FCC Part 15E (2.4 GHz and 5 GHz (two bands). I have previously e-mailed Bette Taube and Mr Praveen Rao from Fujitsu Australia Ltd (client), rang & discussed this matter with her 11 th December 2003. We have been advised to seek further clarification. Your prompt response and advice in this matter is greatly appreciated as our client is on an incredibly tight time frame. Regards _________ Donna Cleary Report Secretary EMC Technologies Pty Ltd EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected]

FEDERAL COMMUNICATIONS COMMISSION Approved by OMB 3060-0057 FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION For FCC use only SECTION I – ALL ITEMS IN THIS SECTION MUST BE COMPLETED 1. Applicant’s complete, legal business name FUJITSU LIMITED Check here if this is a change in name and/or address not previously reported (See 47 CFR §2.934) 2. Applicant’s mailing address (Line 1) Bureau Use Only 1405 OHMARU, INAGI-SHI Equipment Code: Applicant’s mailing address (Line 2) (if required) Engineer: City TOKYO Examiner: State or Country (if foreign address) ZIP/Postal Code 3. FCC ID: (a) Grantee Code (b) Equipment Product Code (14 characters maximum, show zeros as Ø) JAPAN 206-8503 E J E -WL0004 4. Name, Title and Mail Stop, if any, of person at the applicant’s address to receive grant, or for contact: (See instructions) MR KANBE KATSUHITO, ENGINEER 5. (a) Telephone No. (Area/Country/City code, No. and Ext.) (b) FAX No. (Area/Country/City code, No.) +81-42 370-7632 +81-42370-7708 (c) Internet e-mail address: SECTION II – See 47 CFR §1.1103 for Fee Type Codes and Fees. Fee Type Codes are listed in Paragraph C of the attached instructions. Enter in Column (A) the correct Fee Type Code for the service for which you are applying. Enter in Column (C) the result obtained from multiplying the Fee amount for the Fee Type Code in Column (A) by the number entered in Column (B). If requesting more the ONE service, enter additional Fee Type Code(s) in Section III below. (A) (B) (C) FEE TYPE CODE FEE MULTIPLE FEE DUE FOR FEE TYPE CODE IN COLUMN (A) FOR FCC USE ONLY (1) E G C 0 0 0 1 $ 1,040 SECTION III – Use when requesting more than one service. If only one service is requested, complete only Section II and Section III, Item (5). (A) (B) (C) FOR FCC USE ONLY FEE TYPE CODE FEE MULTIPLE FEE DUE FOR FEE TYPE CODE IN COLUMN (A) (2) E B C 0 0 0 1 $ 150 (3) 0 0 0 1 $ (4) 0 0 0 1 $ Add all amounts shown in column C, lines (1) through (4), and enter the total here. TOTAL AMOUNT REMITTED WITH THIS APPLICATION OR FILING FOR FCC USE ONLY (5) This amount should equal your enclosed remittance. $ 1190 The October 1992 edition of this form may be used until September 1, 1997. FCC Form 731 – Page 1 of 3 March, 1997 SECTION IV – Enter FCC ID from Page 1, Section I EJE-WL0004 1.(a) Instead of Applicant, FCC is authorized to mail original Grant to: (See instructions) EMC TECHNOLOGIES PTY LTD 57 ASSEMBLY DRIVE, TULLAMARINE VICTORIA AUSTRALIA Firm name, Number, street, City, State/Country, ZIP/Postal Code 3043 (b) Name, Title and Mail Stop, if any, of person at above address to receive Grant: (If 1.(a) is completed, this Item must be completed) MR CHRIS ZOMBOLAS - TECHNICAL DIRECTOR MR CHRIS ZOMBOLAS (b)Telephone No. (Area/Country/City code, No. and Ext.) EMCTECHNOLOGIES PTY LTD 57 ASSEMBLY DRIVE, TULLAMARINE +613 9335 3333 MELBOURNE, VICTORIA (c)FAX No. (Area/Country/City code and No.) AUSTRALIA 2.(a) Technical contact: Firm Name, Contact person, Number, street, City, State/Country, ZIP/Postal Code 3043 +613 9338 9260 (d) Internet e-mail address: [email protected] MR CHRIS ZOMBOLAS (f)Telephone No. (Area/Country/City code, No. and Ext.) EMCTECHNOLOGIES PTY LTD 57 ASSEMBLY DRIVE, TULLAMARINE +613 9335 3333 MELBOURNE, VICTORIA (g)FAX No. (Area/Country/City code and No.) AUSTRALIA (e) Non-Technical contact: Firm Name, Contact person, Number, street City, State/Country, ZIP/Postal Code 3043 +613 9338 9260 (h) Internet e-mail address: [email protected] 3. Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR §0.459 of the Commission’s Rules? If “Yes” see instructions. X Yes No 4. Does this applicant request that the Commission defer grant of this application pursuant to 47 CFR §0.457(d)(1)(ii)? (See instructions) Yes X No 5. Type of equipment authorization requested: (check one box only) X Certification Type Acceptance Notification 6.(a) Equipment Code and description: (See instructions, page 4) (b) Equipment will be operated under FCC Rule Part(s): D T S DIGITAL TRANSMISSION SYSTEM 15.247 7. Application is for: (Check one box only) 2. Change in identification of presently authorized equipment X 1. Original equipment (See instructions) ORIGINAL FCC ID Grant date 3. Class II permissive change or modification of presently authorized equipment (See instructions) 8. EQUIPMENT SPECIFICATIONS: (See instructions) (a) Frequency range in MHz (b) Rated RF power output in watts (c) Frequency tolerance %, Hz, ppm (d) Emission designator (See 47 CFR §2.201 and §2.202) (e) Microprocessor model number 2412-2462 0.064 9. Is the equipment in this application: (a) a composite device subject to more than one type of equipment authorization? X Yes No (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? Yes X No If either of the above questions is answered “Yes” complete items 10.(a) and (b). (See instructions) COMPLETE, SIGN and DATE Page 3 FCC Form 731 – Page 2 of 3 March, 1997 SECTION IV ( continued )– Enter FCC ID from Page 1, Section I EJE -WL0004 10.(a) Additional type of equipment authorization required: X Certification Type Acceptance Notification (b) The related application checked in item 10.(a) (Check one box only) X has been filed at the same time as this application under the FCC ID listed below has been granted under the FCC ID listed below is in the process of being filed under the FCC ID listed below is pending with the FCC under the FCC ID listed below FCC ID 11.(a) Name of test firm on file with the FCC, if different from applicant or contact person: (c)Telephone No. (Area/Country/City code, No. and Ext.) (d)FAX No. (Area/Country/City code and No.) (b) Mailing address, Number, street, City, State/Country, ZIP/Postal Code (e) Internet e-mail address: 12. Number of exhibits submitted with this application: SECTION V – Read each certification carefully before answering and signi…

Text truncated - open the document above for the full version.

EMC Technologies Pty Ltd, 57 Assembly Drive Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: Federal Communications Commission Attention: Stan Lyles Date: 18 th December 2003 From: Donna Cleary No of pages: 1 FCC ID: EJE-WL0004 (731 Confirmation Number: EA211994) EMC Ref: M030949_Certification_Ocampa_Atheros_2.4 Subject: Correspondence Ref. Number: 26100 (FCC Application) Dear Mr. Lyles, Please find attached all files required for above referenced FCC ID application for certification of the Stylistic ST Series Pentablet PC, Model ST5010D (Ocampa) with Mini-PCI Wireless LAN Module (Atheros, Model WL3040 (11a+b/g)). All files hereby submitted relate only to results for the application for the DTS (2.4 GHz). As we are acting as agent in this process can you please ensure that all correspondence is addressed to our representative only (Agent – Mr. Chris Zombolas ([email protected] ).) This will ensure that no duplication of information and required files occurs. I appreciate your assistance. Regards ________ Donna Cleary EMC Technologies Pty Ltd

___________________________________________________________________________________________ EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] To: Federal Communications Commission Attention: Mr. Stanley Lyles From: Donna Cleary No of pages: 1 FCC ID: EJE-WL0004 Date: 12 th January 2004 Correspondence Reference Number: 26187 Subject: Information Request (EJE-WL0004 application) Dear Mr. Lyles, In response to your queries regarding the above referenced submission, all relevant data has been uploaded today for your review. The application for equipment authorisation was originally uploaded to the FCC on 24 th October 2003 however due to a number of reasons, the turnaround time for the submission has now extended to over 10 weeks. As you can understand, our Client is very anxious to have this application completed and your urgent response in this matter would be greatly appreciated. Best Regards ___________ Donna Cleary EMC Technologies Pty Ltd

FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number M030949_Certification_Ocampa_Atheros APPENDIX B1 - TEST SAMPLE PHOTOGRAPHS FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample - STYLISTIC ST Series, Model ST5010D (Ocampa) FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – STYLISTIC ST Series, Model ST5010D (Ocampa) FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample – Mini PCI Wireless LAN Module Atheros, WLL3040 (11a+b/g)

The label is printed on Mylar material and fixed to the unit Fujitsu Stylistic ST series Model: ST5010D This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FCC ID: EJE-WL0004 IC: 337J-WL0004 Label Pentablet PC rear side of LCD screen See Next page for Actual Label FCC Label Sample SEE NEXT PAGE FOR ACTUAL LABEL FCC Label for Ocampa with Atheros WLL4030 WLAN

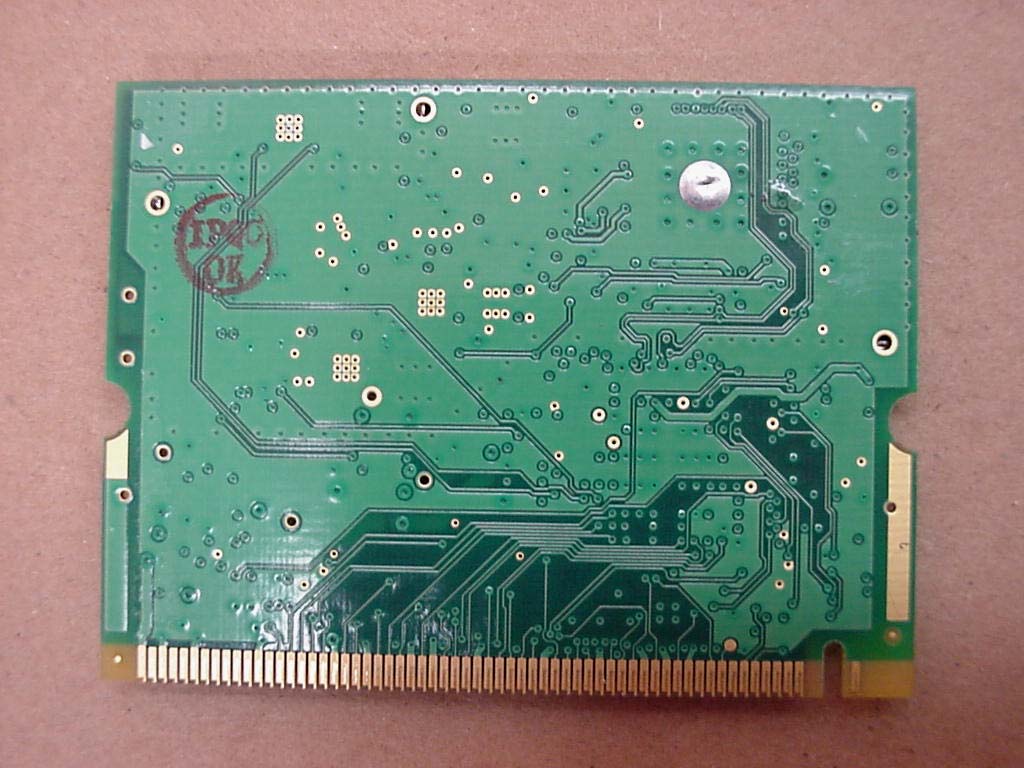

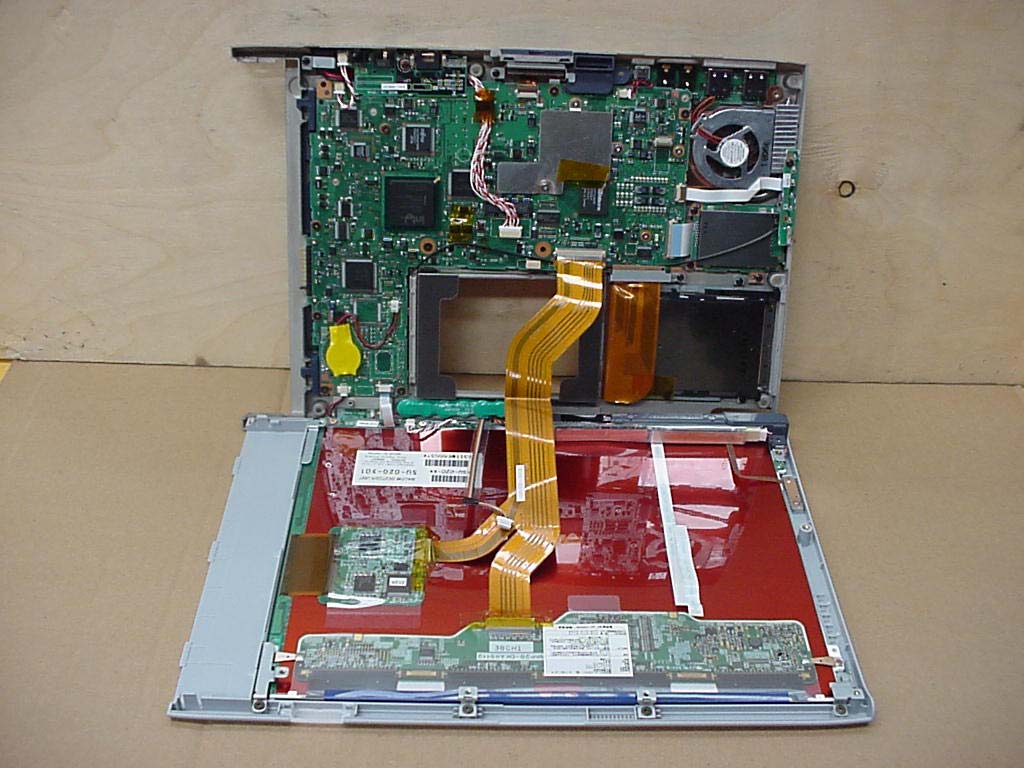

FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros_2.4 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number M030949_Certfication_Ocampa_Atheros_2.4 APPENDIX B3 - TEST SAMPLE & ANTENNA LOCATION PHOTOGRAPHS FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros_2.4 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au TEST SAMPLE & ANTENNA LOCATION Test Sample – STYLISTIC ST Series, Model ST5010D (Ocampa) Antenna W-LAN module FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros_2.4 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au TEST SAMPLE & ANTENNA LOCATION WLAN LOCATION FCC ID: EJE-WL0004 (IC: 337J-WL0004) Report No. M030949_Certification_Ocampa_Atheros_2.4 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au TEST SAMPLE & ANTENNA LOCATION ANTENNA LOCATION - EXPLODED VIEW

Page 1 of 7 Last printed 7/4/2003 6:05 PM Askey 802.11a/b/g, 802.11b/g WLAN card Functional Description The Askey 802.11a/b/g, 802.11b/g WLAN card Designs are based on Atheros AR5002X chip set which implements IEEE 802.11a, IEEE 802.11b, and IEEE 802.11g WLAN solutions or the AR5002G chipset for IEEE 802.11b/g-only solutions. The chipsets consist of the following: z AR5212An all-CMOS, IEEE 802.11a/802.11b/802.11g MAC/baseband processor, and CardBus/PCI bus interface. z AR5112 Radio-on-a-Chip (RoC) An all-CMOS IEEE 802.11a/802.11b/802.11g, single-chip radio transceiver that converts RF signals to the baseband range for use by the AR5212. The AR5112 offers fully integrated transmitter, receiver, and frequency synthesizer functions; eliminating the need for external voltage controlled oscillators (VCOs) and surface acoustic wave (SAW) filters. z AR2112 Radio-on-a-Chip (RoC) An all-CMOS IEEE 802.11b/802.11g, single-chip radio transceiver that converts RF signals to the baseband range for use by the AR5212. The AR2112 offers fully integrated transmitter, receiver, and frequency synthesizer functions; eliminating the need for external voltage controlled oscillators (VCOs) and surface acoustic wave (SAW) filters. When combined into a single design, the AR5002X (AR5112 and AR5212) chip set enables a low-cost, compact multi-mode solution that easily fits on a PC Card or Mini PCI design. For IEEE 802.11g-only implementations, the WLAN card may be used by not populating the IEEE 802.11a radio section, replacing the AR5002X chip set with a AR5002G (AR2112 and AR5212) chip set. By doing this, a single PCB may be used for triple band designs, and single band designs. AR5002 STA Block Diagram The AR5002X chipset provides a highly integrated IEEE 802.11a, IEEE 802.11b, and IEEE 802.11g solution, as shown by the block diagram in Figure 1-1. Page 2 of 7 Last printed 7/4/2003 6:05 PM Figure 1-1. AR5002 STA Radio Block Diagram The AR5212 is the origin and destination for all the front-end signals. Both transmit (Tx) and receive (Rx) signals are transferred by the AR5112 to either a 5 GHz front-end, or to a 2.4 GHz front end. The 5 GHz and the 2.4 GHz front ends share a single set of antennae, dual band switch, Rx diplexer, Tx diplexer/low pass filter, coupler, and power detect circuitry. The 5 GHz transmit signal is boosted with an output booster (OPB). The OPB drives a diplexer and a coupler/detector (PDET) assembly. The diplexers function is to combine the 5 GHz and 2.4 GHz signals, while the coupler/ detectors function is to sample the transmit signal and rectify it. The rectified signal is proportional to the output power and is used for power leveling and control. The RF transmit signal then passes through a dual band switch. This switch enables the connection of the input to either one of the two antennae. The 5 GHz receive signal is transferred in a reverse order from the antennae through the switch and receive diplexer. It is then boosted using a low noise amplifier (LNA) and fed back into the AR5112. The transmit and receive 2.4 GHz signals follow a similar path as the 5 GHz signals in the 2.4 GHz front-end. CardBus/PCI Interface The CardBus/PCI interface of the AR5212 is PCI 2.3 and PC Card 7.1 compatible. In the WLAN card design, this interface seamlessly connects to Page 3 of 7 Last printed 7/4/2003 6:05 PM the CardBus or Mini PCI interface provided by the host. MAC/Baseband Processor (AR5212) The AR5212 is a highly integrated chip containing a CardBus/PCI interface, media access control (MAC) and a baseband processor (PLCP/PHY). The AR5212 runs on 2.5 V (digital and analog) core and 3.3 V I/O, and is packaged in a 15x15x1.5 mm 196 plastic ball grid array (PBGA). 40 MHz Crystal The 40 MHz crystal provides the core clock for the AR5212 and ARx112, (AR5112/AR2112). This crystal is attached to the ARx112, which then internally forms an oscillator. The ARx112 then provides the output of the oscillator to its internal frequency synthesizer, and to the AR5212. The maximum frequency tolerance allowed by the IEEE 802.11a standard is +/ 20 ppm. Therefore, the crystal device needs to meet this requirement over all operating conditions. Atheros recommends a crystal device with an overall tolerance of 18 ppm that includes initial tolerance, tolerance over operating temperature range and aging tolerance. The crystal device used in the Reference Design is calibrated at 19.5 pF load. When designing the crystal circuit, care should be taken to include the board stray and other capacitances, such as those inherent with the oscillator circuits, in the overall calculation of the load capacitance. A significant shift in frequency can occur if the overall load capacitance presented to the crystal device is not the same as what the crystal was cut for. Excessive load capacitance on the crystal circuit, compared to the actual load that the crystal was designed for, shifts the frequency down. Conversely, lower load capacitance causes an increase in the frequency of the circuit. When the final circuit boards are available, the overall crystal circuit load capacitance should be calibrated by requesting known frequency crystals at a particular load from the crystal vendor. RF Front End Section This section provides information and design guidelines for the transmit and receive paths between the antennae and the ARx112. General Guidelines All RF, Rx, and Tx traces are to be 50 unless otherwise noted, and must have no sharp bends (90 ) unless otherwise noted. Atheros recommends that all RF components, traces, and the ARx112 be on the same side of the board. Vias should be avoided in the RF traces as much as possible. Do not use any test points on any RF trace or component. Minimize lengths of all RF traces because FR4 material is inherently lossy at RF frequencies. Minimizing the trace lengths reduces the overall signal loss. It is more important to keep the Tx path short than it is …
