EJE-WL0007LifeBook T Series Tablet PC w/WLAN WM3B2200BG

FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040223_Cert_Mace_Calexico2 APPENDIX N1 – Host PC - User Manual Copyright Copyright Fujitsu PC Corporation has made every effort to ensure the accuracy and completeness of this document. However, as ongoing development efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LifeBook are registered trademarks of Fujitsu Limited. The following are registered trademarks of Microsoft Corporation: MS, MS-DOS, Windows. PCMCIA is a trademark of the Personal Computer Memory Card International Association. Intel and Pentium are registered trademarks of Intel Corporation. Adobe Acrobat Reader is a registered trademark of Adobe System Inc. PowerQuest and Drive Image are registered trademarks of PowerQuest Corporation. All other trademarks mentioned herein are the property of their respective owners. © Copyright 2003 Fujitsu PC Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu PC Corporation. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu PC Corporation. B5FH-9011-01EN-00 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name:Fujitsu PC Corporation Address: 5200 Patrick Henry Drive Santa Clara, CA 95054 Telephone:(408) 982-9500 Declares that product:Model Configuration: LifeBook T3010 Tablet PC LifeBook T3010D Tablet PC Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. T Series.book Page 1 Thursday, July 31, 2003 10:49 AM LifeBook T Series Tablet PC T Series.book Page 2 Thursday, July 31, 2003 10:49 AM Table of Contents Fujitsu LifeBook ® T Series Tablet PC Table of Contents 1 PREFACE Preface About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . 3 FPC Contact Information . . . . . . . . . . . . . . . . . . . 3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 GETTING TO KNOW YOU R TABL ET PC Overview Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 8 Locating the Controls and Connectors Top and Front Components . . . . . . . . . . . . . . . . 10 Left-Side Panel Components . . . . . . . . . . . . . . . 11 Right-Side Panel Components . . . . . . . . . . . . . . 12 Rear Panel Components . . . . . . . . . . . . . . . . . . . 13 Bottom Components . . . . . . . . . . . . . . . . . . . . . 14 Status Indicator Panel Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 15 AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . . 15 Battery Level Indicators . . . . . . . . . . . . . . . . . . . 15 Battery Charging Indicator . . . . . . . . . . . . . . . . . 16 Hard Drive Access Indicator . . . . . . . . . . . . . . . . 16 NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . 16 CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . . . 16 ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Security Indicator . . . . . . . . . . . . . . . . . . . . . . . . 16 Display Panel Opening the Display Panel . . . . . . . . . . . . . . . . . 17 Using the System as a Tablet . . . . . . . . . . . . . . . 17 Adjusting Display Panel Brightness . . . . . . . . . . . 18 Keyboard Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . 19 Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . 19 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 LifeBook Security/Tablet PC Buttons Changing Tablet PC Button Functions . . . . . . . . 22 Setting up LifeBook Security Panel . . . . . . . . . . . 22 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using Your LifeBook Security Panel . . . . . . . . . . 23 Uninstalling the Security Panel Application . . . . . 24 Touchpad Pointing Device Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . 25 Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Touchpad Control Adjustment . . . . . . . . . . . . . . 26 Pen and Active Digitizer Using the Pen. . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Calibrating the Pen. . . . . . . . . . . . . . . . . . . . . . . 27 Replacing the Pen Tip . . . . . . . . . . . . . . . . . . . . . 28 Using the Active Digitizer . . . . . . . . . . . . . . . . . . 28 Volume Control Controlling the Volume . . . . . . . . . . . . . . . . . . . 29 3 USING YOUR TABLET PC Power Sources Connecting the Power Adapters . . . . . . . . . . . . . 33 Starting Your Tablet PC Power On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . 34 BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . 34 Booting the System . . . . . . . . . . . . . . . . . . . . . . 34 T Series.book Page 3 Thursday, July 31, 2003 10:49 AM LifeBook T Series Tablet PC Activating Additional Utilities . . . . . . . . . . . . . . . 35 Registering Your LifeBook T Series Tablet PC . . . 35 Power Management Suspend/Resume Button . . . . . . . . . . …

Text truncated - open the document above for the full version.

FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040223_Cert_Mace_Calexico2 APPENDIX N2 – WLAN USER MANUAL 49 Appendix Wireless LAN* User’s Guide * Optional device 50 51 Wir e le s s LAN Use r ’s Guide FC C R EG U LATO R Y IN FO R MATIO N Please note the following regulatory information related to the optional wireless LAN module. R egulatory N otes and Statements Wireless L AN , Health and Authorization for use R adio frequency electromagnetic energy is emitted from Wire- less LAN devices. T he energy levels of these emissions, however, are far much less than the electromagnetic energy emissions from wireless devices such as mobile phones. Wireless LAN devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and recommendations. T he use of Wireless LAN devices may be restricted in some situations or environments, such as:
On board an airplane, or
In an explosive environment, or
In situations where the interference risk to other devices or services is perceived or identified as harmful. I n cases in which the policy regarding use of Wireless LAN devices in specific environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operating the equipment. Regulatory I nformation/D isclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. T he manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than those specified by the manufacturer. It is the responsibility of the user to correct any interference caused by such unauthorized modifica- tion, substitution or attachment. T he manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines. This device must not be co-located or operating in conjunction with any other antenna or transmitter. For Atheros Wireless LAN: For operation within 5.15~5.25GHz frequency range, it is restricted to indoor environment, and the antenna of this device must be integral. Federal C ommunications C ommission statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and, ( 2) T his device must accept any interference, including interference that may cause undesired operation of this device. FC C Interference Statement T his equipment has been tested and found to comply with the limits for a C lass B digital device, pursuant to Part 15 of the FC C Rules. T hese limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. T his equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1.Reorient or relocate the receiving antenna. 2.Increase the distance between the equipment and the receiver. 3.Connect the equipment to an outlet on a circuit different from the one the receiver is connected to. 4.Consult the dealer or an experienced radio/TV technician for help. FC C R adio Frequency Exposure statement T his Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the requirements as set forth in C FR 47 Sections 2.1091, 2.1093, and 15.247 ( b) ( 4) addressing R F Exposure from radio frequency devices. T he radiated output power of this Wireless LAN device is far below the FC C radio frequency exposure limits. T he maximum SAR values measured from the devices are:
Intel PROSet Wireless LAN: 0.262 W/kg
Atheros Wireless LAN: 1.03 W/kg Export restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved U S Department of Commerce export license. T his device complies with Part 15 of FC C Rules., as well as ICES 003 B / NMB 003 B. Operation is subject to the following two conditions: ( 1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Modifications not expressly authorized by Fujitsu PC C orpora- tion may invalidate the user's right to operate this equipment. C anadian N otice To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment ( or its transmit antenna) that is installed outdoors is subject to licensing. 52 B efore U sing the Wireless LAN T he Integrated Wireless LAN is an optional device Types of Wireless LAN s C overed by this Document T his document is applicable to systems containing one of the following two wireless modules. Most of the procedures are identical. Sections that differ between the two devices have been noted in the text:
I ntel PROSet Wireless LAN
Atheros Wireless LAN If your system is a T 3010 model, your wireless module C h…

Text truncated - open the document above for the full version.

Calexico 2 Block Diagrams Option1 miniPCI Ramon2 Radio Transceiver Ardon 2 MAC AND ANALOG PHY Differential I and Q RF PA P2023 BAND PASS FILTER T/R-DIVERSITY RF SWITCH BANDPASS FIL TER BAND PASS FILTER BALUN BALUN EEPROM Rx Tx 1.2V2.8V3.3V 2.9V MainAux 40 MHz Xtal 40MHz Clock 1.8V 2.8V 3.3V LNA VCO 2.9V 2.8V Option2 mPCI Connector Page 4 Ardon 2 MAC & Analog PHY Page 5,6 & 7 Voltage Regulators & DC/ DC Converter Page 3 Ramon 2 Radio Transceiver Page 8 T/R- Diversity Switch Page 11 Main Aux Antenna Ports Tx RF Rx RF Tx BB Rx BB Transceiver Control Front End Control Front End Bias Transceiver Bias MAC Bias Bias Interface EEPROM Page 5 Tx PA Page 9 Rx LNA Page 10 Ext. VCO Page 13 BB Filter Loop Filter Xtal Circuit Page 12 Option 3 mPCI Connecto r Ardon 2 MAC & Analog PHY Voltage Regulators & DC/ DC Converter Ramon 2 Radio Transceiver RF Front End Main Aux Antenna Ports Tx RF Rx RF Tx BB Rx BB Transceiver Control Fron t En d Control Front End Bias Transceiver Bias MAC Bias Bias Inter face EEPROM

Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Date: 4 th March 2004 Reference: FCC ID: EJE-WL0007 Subject: Request for Confidentiality for FCC Certification Application Company: FUJITSU Ltd Test Sample: Mini-PCI Wireless LAN Module (Calexico2 (11b/g)) installed in Host - Fujitsu's LifeBook T Series PC, Model T3010 (Mace) Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), FUJITSU requests that prior to the equipment authorization grant for the (test sample), the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by FUJITSU and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to FUJITSU staff, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, post-grant confidentiality is requested for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits – Technical PCB Layouts, Technical Schematic Circuit Diagrams, Detailed Antenna Information Sincerely Yours, Kanbe Katsuhito Fujitsu Japan Mobile Computing Division FUJITSU LIMITED 1405 Ohmaru, Inagi-shi, Tokyo 206-8503, Japan Tel(+81-42)370-7632 FAX(+81-42)370-7708 Mobile Computing Division Product Type: - Low power transmitter (intentional radiator)

EMC Technologies Pty. Ltd., 57 Assembly Dve., Tullamarine, Vic., 3043, Australia. Phone : +61 3 9335 3333 Fax: +61 3 9338 9260 www.emctech.com.au FCC ID: EJE-WL0007 Date: 16 th March 2004 EMC Reference: M040214, M040223 Subject: Response to FCC Queries 1. Please supply Declaration of Conformity (DoC) form for the tablet PC. Please refer to required document attached. The Mace LifeBook is the same as the unit tested to DoC requirements in July 2003. 2.The antenna listed on Page 7 of the EMC report does not match the Part# in appendix M "Antenna Information". Please clarify. This is a typographical error and has been corrected. Please refer to corrected report attached. 3. Please specify the label material. The material is SS UPO and the label is glued to the product with permanent adhesive. It is the same label material and labelling method used as per our last approvals. 4. In Appendix A "Measurement Instrumentation" some of the equipment seems to be out of calibration. Have they been used during testing. Please clarify. Testing began before the calibration due dates. Equipment was all in cal. when testing began. 5. In the SAR report the antenna type is shown as Monopole Ceramic chip YCE-5008. This doesn't match the antenna information Appendix M. Please clarify. This is a typographical error and should read Monopole Dielectric Antenna, Part No DA120D-2545M- FJ01. 6. The conducted power readings listed in the EMC report and SAR report are significantly different from each other. Also the ratings listed on Page 4 of the SAR report is around 6dB higher than what's been measured (Section 2.3 - Page 5). Has the device not been configured for maximum power during SAR test? This power difference is a major concern. Please clarify. The EUT was configured for maximum power setting - 802.11b = 18 dBm and 802.11g = 15 dBm and the following tests were performed: As required by SAR Test Procedures, an Average Power measurement is required. An Average Power meter was used to measure the Average Power at the Antenna (source point) port. To address your query: a) If Average Power measured for both EMC & SAR, then the power levels would be the same For the same tune up procedure used. The power setting on the EUT was set to maximum rated peak (internally software limited maximum) – 802.11b = 18 dBm & 802.11g = 15 dBm for SAR AND EMC tests. This was confirmed by performing the conducted measurements at the antenna port before and after the SAR tests. EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] Page 2 of 2 EMC Technologies Pty. Ltd., 57 Assembly Dve., Tullamarine, Vic., 3043, Australia. Phone : +61 3 9335 3333 Fax: +61 3 9338 9260 www.emctech.com.au Regarding the SAR report, the ratings listed on page 4 are the maximum peak power output as advised by the manufacturer. The conducted output power table in section 2.3 lists the actual measured “average” power and therefore is different to the theoretical peak value. The laptop was configured for maximum rated output power for all SAR tests. 7. Please supply a description/data sheet of probe measurement errors and definitions. Probe calibration sheet does not address any probe measurement errors. See below data sheet for probe. A list of the probe errors can be found in table 16 “Uncertainty budget for DASY4”. These are the probe errors defined by the manufacturer and are listed as uncertainty components (E2.1-E2.8 and E6.2-E6.3). The definitions for these errors can be found in extract from IEEE P1528 (attached). ET3DV6 / ET3DV6R ISOTROPIC E-FIELD PROBE FOR DOSIMETRIC MEASUREMENTS Construction Symmetrical design with triangular core Built-in optical fiber for surface detection system (ET3DV6 only) Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g., DGBE) Calibration Basic Broad Band Calibration in air: 10-3000 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 Additional CF for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces (ET3DV6 only) Dimensions Overall length: 330 mm (Tip: 16 mm) Tip diameter: 6.8 mm (Body: 12 mm) Distance from probe tip to dipole centers: 2.7 mm Application General dosimetric measurements up to 2.5GHz Compliance tests of mobile phones Fast automatic scanning in arbitrary phantoms Page 3 of 3 EMC Technologies Pty. Ltd., 57 Assembly Dve., Tullamarine, Vic., 3043, Australia. Phone : +61 3 9335 3333 Fax: +61 3 9338 9260 www.emctech.com.au 8. Please specify probe tip diameter. The probe tip diameter is 6.8mm (see attached data sheet) 9. Plot 5 of the SAR report shows some hot spots in Arm Held Position with AUX antenna during pre- scan. When this plot is compared to Plot 1, it actually seems to be worse. Please justify the reason why this configuration has not been investigated during final SAR measurements. This configuration was investigated but was not included in the SAR report because the scans were performed with a zoom cube designated for 5GHz measurements (7x7x8). We took it upon ourselves to repeat only the worst-case SAR measurements with the traditional 7x7x7 cube (those listed in the SAR report) and found that there was little difference between the two (< 9%). These are the levels that appear in the report. Our supplier (SPEAG) has since confirmed that there is not a high error between the two cubes. These additional scans can be provided if necessary to show the low SAR values encountered.

EMC Technologies Pty. Ltd., 57 Assembly Dve., Tullamarine, Vic., 3043, Australia. Phone : +61 3 9335 3333 Fax: +61 3 9338 9260 www.emctech.com.au FCC ID: EJE-WL0007 Date: 16 th March 2004 EMC Reference: M040214 Subject: Response to FCC Queries 2. The antenna listed on Page 7 of the EMC report does not match the Part# in appendix M "Antenna Information". Please clarify. Corrected EMC Test Report attached. 4. In Appendix A "Measurement Instrumentation" some of the equipment seems to be out of calibration. Have they been used during testing. Please clarify. All equipment was used before the applicable due calibration dates. For example, testing using the EMI receiver HP8574B (due for cal 12 th Feb 2004) was completed with this instrument before the 12 th February. Any other similar tests were then performed using the second receiver listed in Appendix A (due for cal July 2004). This process was applicable for all instrumentation used. Equipment was only used provided that it was used while it was still calibrated. Q6. The conducted power readings listed in the EMC report and SAR report are significantly different from each other. Also the ratings listed on Page 4 of the SAR report is around 6dB higher than what's been measured (Section 2.3 - Page 5). Has the device not been configured for maximum power during SAR test? This power difference is a major concern. Please clarify. As required by EMC Test Procedures, A Peak Power measurement is required. A Spectrum Analyser was used to measure the Peak Power level at the same antenna port. As required by SAR Test Procedures, an average power measurement is required. A power meter was used to measure the average power level at the antenna port. The average power at the conducted port has since been verified with two power meters and is repeatable to within 5% of the original values measured. The peak power levels have also been verified using a spectrum analyser and the results are within 5%. The duty cycle of the WLAN in DSSS and OFDM mode was measured and found to be 1:1.075 for the lowest data rates in each mode. This change in duty cycle has minimal effect on the SAR values. See re- evaluated plot number 3 (Lap Arm Held Position – CH#11 – Ant Main). To ensure that the power levels satisfy the FCC requirements we will list the newly measured peak power levels in the SAR report. In future submissions we will use a peak power meter to ensure that the conducted power results are measured using the same method. See updated report. EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] Page 2 of 5 Q7. Please supply a description/data sheet of probe measurement errors and definitions. Probe calibration sheet does not address any probe measurement errors. See attached file. Q9. Plot 5 of the SAR report shows some hot spots in Arm Held Position with AUX antenna during pre-scan. When this plot is compared to Plot 1, it actually seems to be worse. Please justify the reason why this configuration has not been investigated during final SAR measurements. See plots 1 and 2. Page 3 of 5 Test Date: 17 th February 2004 File Name: Arm Held DSSS 2.45 GHz Mace 2 Calexico 11bg Antenna AUX Prescan 17-02-04.da4 DUT: Fujitsu Tablet MACE/MACE2 with Calexico 11bg Module; Type: WM3B2200BG; Serial: 00561E463ADC55373203 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium: Body 2450 MHz; Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.5, 4.5, 4.5) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 06 Test/Area Scan (131x161x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 7.04 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.244 mW/g Channel 06 Test/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Peak SAR (extrapolated) = 0.443 W/kg SAR(1 g) = 0.210 mW/g; SAR(10 g) = 0.093 mW/g Reference Value = 7.04 V/m Power Drift = 0.0 dB Maximum value of SAR = 0.254 mW/g 0 dB = 0.254mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.7 Degrees Celsius Liquid Temperature 20.1 Degrees Celsius Humidity 61 % Page 4 of 5 Test Date: 17 February 2004 File Name: Tablet DSSS 2.45 GHz Mace 2 Calexico 11bg Antenna MAIN Prescan 17-02-04.da4 DUT: Fujitsu Tablet MACE/MACE2 with Calexico 11bg Module; Type: WM3B2200BG; Serial: 00561E463ADC55373203 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium: Body 2450 MHz; (σ = 1.96768 mho/m, ε r = 52.9592, ρ = 1000 kg/m 3 ) - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.5, 4.5, 4.5) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 06 Test/Area Scan (131x161x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 1.26 V/m Power Drift = -5 dB Maximum value of SAR = 0.00402 mW/g Channel 06 Test/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Peak SAR (extrapolated) = 0.026 W/kg SAR(1 g) = 0.00133 mW/g; SAR(10 g) = 0.000967 mW/g Reference Value = 1.26 V/m Power Drift = -5 dB Maximum value of SAR = 0.0046 mW/g 0 dB = 0.0046mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.7 Degrees Celsius Liquid Temperature 20.1 Degrees Celsius Humidity 61 % Page 5 of 5 Test Date: 17th February 2004 File Name: Arm Held DSSS 2.45 GHz Mace 2 Calexico 11bg Antenna MAIN 17-02-04 #2.da4 DUT: Fujitsu Tablet MACE/MACE2 with Calexico 11bg Module; Type: WM3B2200BG; Serial: 00561E463ADC55373203 * Communication System: DSSS 2450 MHz; Frequency: 2462 MHz; Duty Cycle: 1:1.075 * Medium: Body 2450 MHz; Medium parameters used (interpolated): f = 2462 MHz; σ = 1.99 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn359; Probe: ET3DV6 - SN1380; ConvF(4.5, 4.5, 4.5) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 11 Test/Area Scan (6…

Text truncated - open the document above for the full version.

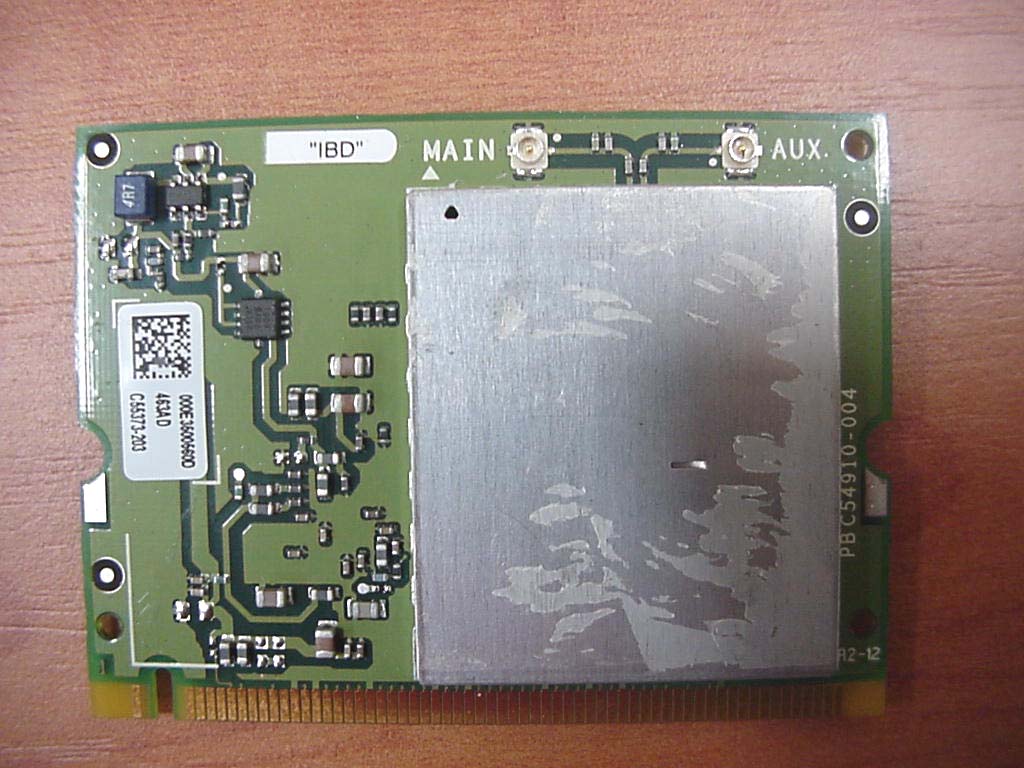

FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040223_Cert_Mace_Calexico2 APPENDIX B1 – Test Sample External Photographs FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Test Sample WLAN Module – Calexico2 (11b/g), Model WM3B220BG FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC LifeBook T Series, Model T3010 (Mace) FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Host PC LifeBook T Series, Model T3010 (Mace)

FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040223_Cert_Mace_Calexico2 APPENDIX G – FCC Labelling

FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040223_Cert_Mace_Calexico2 APPENDIX B3– WLAN Module & Antenna Location Photographs FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3– WLAN Module & Antenna Location Antenna (L) Location Antenna (R) Location Calexico2 WLAN FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au APPENDIX B3– WLAN & Antenna Location Antenna locations (L & R) CALEXICO2 WLAN FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au Antenna (R) location – exploded view Antenna (L) Location – exploded view

FCC ID: EJE-WL0007 (IC: 337J-WL0007) Report No. M040223_Cert_Mace_Calexico2 EMC Technologies Pty Ltd – 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com.au EMC Technologies Report Number: M040223_Cert_Mace_Calexico2 APPENDIX B4 – Test Sample Phot…
