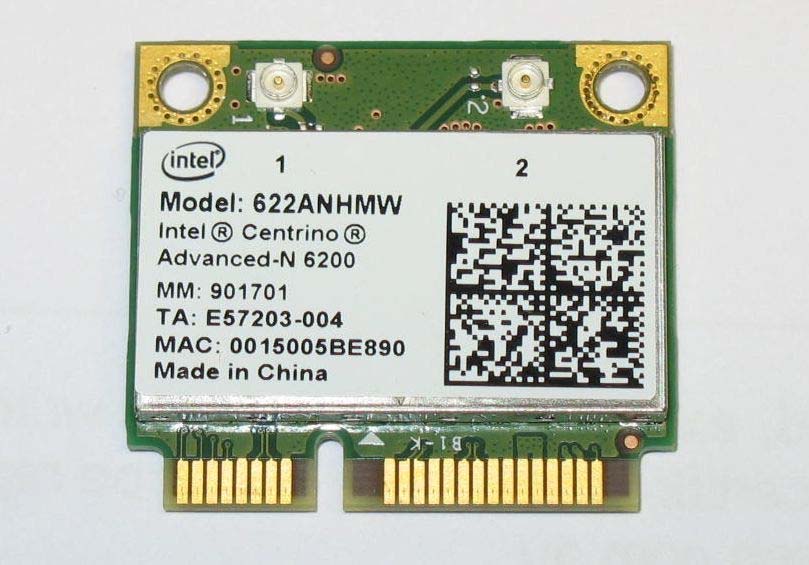

EMC Technologies Pty Ltd, 176 Harrick VIC 3043 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: Federal Communications Commission Attention: Certification Manager No. of pages: 1 From: Chieu Huynh Date: 27 th November 2009 EMC Ref: M091068_ Cert_622ANHMW_DTS Subject: FCC APPROVAL – FCC ID: EJE-WL0019 Please receive EMC Technologies’ Report M091068_Cert_622ANHMW_DTS for review. The EUT is a Fujitsu LifeBook T Series, Model: T900 / TH900 with Intel Centrino Advanced-N 6200 (Puma Peak 802.11a/b/g/n 2x2), Model: 622ANHMW. The Intel WLAN module was originally certified by Intel Corporation, as a modular approval under FCC ID: PD9622ANH (Canada ID: 1000M-622ANH). The intention of this application is to FCC certify Intel Centrino Advanced-N 6200 (Puma Peak 802.11a/b/g/n 2x2), Model: 622ANHMW installed in Fujitsu LifeBook T Series, Model: T900 / TH900. DTS Documents submitted: Test Reports: SAR and EMC Appendixes: Measurement Instrumentations, Photographs, Operational Description, Block Diagram, Antenna Details, Schematics, Labelling Details and User Manual Attachments: RF Exposure Information, FCC DOC and Intel FCC 15.247 Reports. FCC Forms: Confidentiality Letter and Form 731 Signatory & Agent Authorization Letter This is a composite submission. The NII (WLAN) is submitted separately under NII submission. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. The FCC ID for this composite application is EJE-WL0019 Regards ______________ Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (EJE-WL0019). Pursuant to FCC DA 04-1705, this application includes a request for short term confidentiality for the following exhibits: Internal Photos Location Photos External Photos Test Setup Photos User Manual As the above information contains proprietary information which would be benefit to our competitors, we request that these exhibits be held from public view for 180 days from the issue date of the grant of approval. In addition, pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Operational Description Block Diagram Schematics Antenna Details The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Tsuyoshi Uchihara Title : Engineer Date: 4 th September 2009

Tim Dwyer <[email protected]> 3 messages [email protected] <[email protected]>Wed, Dec 16, 2009 at 10:30 PM To: [email protected], [email protected] Cc: [email protected] Hello Chieu, This is a consolidated review notice for applications AN09T9887 (DTS) , AN09T9888 (NII) , and AN09T9889 (DSS). Replies will be applied to each application as applicable. Q1: DTS & NII Block diagram shows 2x2 MIMO configuration. Operation description describes a device with 3x3 MIMO capability. WLAN antenna exhibit indicates 3 Transmit antennas (TX1, TX2, and TX3/RX3) antennas. Please confirm that this application is for a 2x2 MIMO configuration and provide a brief explanation for the inconsistency in the documentation. Q2: DTS & NII WLAN antenna exhibit co-location drawing shows WAN antennas. WAN has not otherwise been addressed in this application. Please explain. Q3: DTS NII DSS. Tablet computers are devices that may be held in the hand and so according to ANSI C63.4:2003 must be tested in 3 orthogonal planes (axes) for radiated emissions. Please confirm that this was done. Q4: For information purposes, please see the FCC Public Notice regarding acceptance of ANSI C63.10:2009 and ANSI C63.4:2009 at http://hraunfoss.fcc.gov/ edocs_public/attachmatch/DA-09-2478A1.pdf Q5: DTS NII DSS Since this is an original filing for this configuration, conducted emissions measurements to demonstrate compliance with 15.207 are required. The emissions test report refers to the DoC exhibit, which states compliance but does not include test data. It is noted that conducted emissions measurements were reported in the FCCID: PD9622ANH modular application. However, since the current filing is not based on modular approval guidelines, conducted emissions for the configuration of the current filing is required within the application. If compliance with the 15.207 conducted emissions requirements is demonstrated by the DoC test report, please provide a copy of that report. Q6: DTS NII The cover pages of test reports: M091069_Cert_622ANHMW_SAR_2.4_BT and M091069_Cert_622ANHMW_SAR_5.6_BT show the issue date of 27 November 2006. This appears to be a typographical error. Please confirm. Q7: DSS No test report for the BT device was included. Please provide this exhibit. Q8: DSS Confidential exhibits Block Diagram, Operation Description, Antenna Description, and Schematic exhibits were not uploaded. The exhibits are referenced in the confidentiality request. Please provide these exhibits. Q9: DSS Short term confidential exhibits Internal Photos, External Photos, Test Setup Photos, were not uploaded. Please provide these exhibits for the DSS application. Q10. NII Please provide an attestation statement exhibit verifying that the device operates as a client only and that it does not have Ad Hoc capabilities on non-US frequencies and on DFS frequencies. In addition, the related IC applications will require an additional statement confirming that the device does on operate on channels with emissions in the 5600-5650 MHz band. If both statements are included and the attestation letter is addressed to both FCC and IC, it may be used for both applications. Reference to multiple FCCID and IC ID's should be included as applicable The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Tim Dwyer Technical Reviewer CHIEU <[email protected]>Fri, Dec 18, 2009 at 12:06 AM Reply-To: [email protected] To: [email protected], [email protected] Hello Tim, Please find answers below. Regards Chieu Huynh -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, 17 December 2009 2:30 PM To: [email protected] ; [email protected] Cc: [email protected] Subject: Fujitsu Limited, FCC ID: EJE-WB0080, Assessment NO.: AN09T9887 AN09T9888 AN09T9889, Notice#1 Hello Chieu, This is a consolidated review notice for applications AN09T9887 (DTS) , AN09T9888 (NII) , and AN09T9889 (DSS). Replies will be applied to each application as applicable. Q1: DTS & NII Block diagram shows 2x2 MIMO configuration. Operation description describes a device with 3x3 MIMO capability. WLAN antenna exhibit indicates 3 Transmit antennas (TX1, TX2, and TX3/RX3) antennas. Please confirm that this application is for a 2x2 MIMO configuration and provide a brief explanation for the inconsistency in the documentation. A1: Operational Description supplied is common document for 2x2 MIMO and 3x3 MIMO configurations. However, this application is for 2x2 MIMO configuration only. Therefore, only 2x2 MIMO specification/information is relevant to this application. Same applied for antenna document, only Tx1 and Tx2 antenna data is relevant for this application. Tx3 antenna will never be used Q2: DTS & NII WLAN antenna exhibit co-location drawing shows WAN antennas. WAN has not otherwise been addressed in this application. Please explain. A2: There is NO WAN or WAN antennas in this device. The Antenna document supplied is common document for many notebook models. Please ignore the mention of WAN in this document. Q3: DTS NII DSS. Tablet computers are devices that may be held in the hand and so according to ANSI C63.4:2003 must be tested in 3 orthogonal planes (axes) for radiated emissions. Please confirm that this was done. A3: Yes, all orientations (3 orthogonal planes) were investigated and tested (refer to section 4.3 of the test report). Worst results were reported. Q4: For information purposes, please see the FCC Public Notice regarding acceptance of ANSI C63.10:2009 and ANSI C63…

Text truncated - open the document above for the full version.

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 AUTHORITY TO ACT AS AGENT & FORM 731 SIGNATORY I appoint EMC Technologies Pty Ltd to act as agent, on our behalf in this application for equipment authorization. I certify that the exhibits submitted properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will have affixed to it a label identical to that submitted for approval with this application. In addition, I authorize Mr. Chris Zombolas, Technical Director of EMC Technologies Pty Ltd to sign the Form 731 and Mr. Chieu Huynh (Senior EMC Test Engineer) to be listed as the technical and non-technical contact for this application. Sincerely, ____________________________ Name: Tsuyoshi Uchihara Title: Engineer Date: 4 th September 2009

FCC ID: EJE-WL0019 (IC: 337J-WL0019) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS FCC ID: EJE-WB0080 (IC: 337J-WB0080) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS

FCC ID: EJE-WL0019 (IC: 337J-WL0019) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B3 LOCATION PHOTOS Antenna Locations WLAN Location

FCC ID: EJE-WL0019 (IC: 337J-WL0019) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS FCC ID: EJE-WL0019 (IC: 337J-WL0019) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS

FCC ID: EJE-WL0019 (IC: 337J-WL0019) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) Spread spectrum transmitters operating in the 2400 - 2483.5 MHz and 5725 – 5850 MHz bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with this section and also section 2.1093 this device has been defined as a portable device. Intel 622ANHMW WLAN - SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M091069_Cert_622ANHMW_SAR_2.4 (2.4 GHz) and M091069_Cert_622ANHMW_SAR_5.6 (5.18 – 5.825 GHz). SAR values of 0.182 mW/g (DTS) and 0.068 mW/g (NII) were measured which complied with the FCC human exposure requirements of 47 CFR 2.1093 (d).

PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 26 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table: 2450 MHz DSSS Band SAR Measurement Plot Numbers Table: 2450 MHz OFDM Band SAR Measurement Plot Numbers Table: 2450MHz Validation Plot Plot 11 Validation 2450 MHz 16 th November 2009 Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel Primary Portrait 1 B 1 - 06 Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel 2 B 6 - 06 3 B HT0 20 06 4 B HT0 40 03 5 B HT0 40 06 6 B HT0 40 09 Primary Portrait 7 A HT0 40 06 8 A HT0 40 06 Tablet 9 B HT0 40 06 Secondary Portrait 10 A HT0 40 06 PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 27 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 16 November 2009 File Name: M091069 Edge On Primary Portrait DSSS 2450 MHz Antenna B (2) 16-11-09.da4 DUT: Fujitsu Tablet Souther with Puma 11abgn; Type: 622ANHMW; Serial: MAC: 0015005BE890 * Communication System: DSSS 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 1.95 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(3.96, 3.96, 3.96) - Phantom: Flat Phantom 9.1; Serial: P 9.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.170 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.13 V/m; Power Drift = -0.044 dB Peak SAR (extrapolated) = 0.399 W/kg SAR(1 g) = 0.152 mW/g; SAR(10 g) = 0.066 mW/g Maximum value of SAR (measured) = 0.180 mW/g 0 dB = 0.180mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 20.0 Degrees Celsius Liquid Temperature 19.8 Degrees Celsius Humidity 60.0 % PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 28 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 29 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 16 November 2009 File Name: M091069 Edge On Primary Portrait OFDM 2450 MHz Antenna B (2) 16-11-09.da4 DUT: Fujitsu Tablet Souther with Puma 11abgn; Type: 622ANHMW; Serial: MAC: 0015005BE890 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 1.95 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(3.96, 3.96, 3.96) - Phantom: Flat Phantom 9.1; Serial: P 9.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.142 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.33 V/m; Power Drift = -0.490 dB Peak SAR (extrapolated) = 0.451 W/kg SAR(1 g) = 0.171 mW/g; SAR(10 g) = 0.074 mW/g Maximum value of SAR (measured) = 0.200 mW/g 0 dB = 0.200mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 20.0 Degrees Celsius Liquid Temperature 19.8 Degrees Celsius Humidity 60.0 % PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 30 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 31 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 16 November 2009 File Name: M091069 Edge On Primary Portrait OFDM HT0(20MHz) 2450 MHz Antenna B (2) 16-11-09.da4 DUT: Fujitsu Tablet Souther with Puma 11abgn; Type: 622ANHMW; Serial: MAC: 0015005BE890 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 1.95 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(3.96, 3.96, 3.96) - Phantom: Flat Phantom 9.1; Serial: P 9.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.181 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.02 V/m; Power Drift = -0.204 dB Peak SAR (extrapolated) = 0.462 W/kg SAR(1 g) = 0.172 mW/g; SAR(10 g) = 0.072 mW/g Maximum value of SAR (measured) = 0.187 mW/g 0 dB = 0.187mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 20.0 Degrees Celsius Liquid Temperature 19.8 Degrees Celsius Humidity 60.0 % PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 32 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies…

Text truncated - open the document above for the full version.

PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 49 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX C CALIBRATION DOCUMENTS 1. ET3DV6 (SN: 1380) Probe Calibration Certificate 2. D2450V2 (SN: 724) Dipole Calibration Certificate PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 50 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 51 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 52 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 53 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 54 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 55 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 56 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 57 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 58 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au

PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 59 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 60 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 61 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 62 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 63 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page 64 of 64 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au

PC System - FCC ID: EJE-WL0019 IC: 337J-WL0019 Report No. M091069_CERT_622ANHMW_SAR_2.4 Page…
