EJE-WL0023622ANHMW WLAN IN LIFEBOOK T SERIES

User’s Guide Learn how to use your Fujitsu LIFEBOOK ® T580 Tablet PC Sparrow T580.book Page 1 Friday, October 1, 2010 9:11 AM DRAFT Copyright and Trademark Information Fujitsu America, Inc. has made every effort to ensure the accuracy and comp leteness of this document; however, as ongoing devel opment efforts are continually improving the capabilities of our pr oducts, we cannot guarant ee the accuracy of the contents of this do cument. We disclaim liability for errors, omissions, or future changes. Fujitsu, the Fujitsu logo, and LIFEBOOK are registered trademarks of Fujitsu Limited. Intel, Intel Core, and Intel Centrino Pro ar e trademarks or registered trademarks of Intel Corporation or its subsidiaries in t he United States and other countries.Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corpor ation in the United States and/or other countries. Bluetooth is a trademark of Bluetooth SIG, Inc., USA. YouCam is a trademark of CyberLink Corp.OmniPass is a trademark of Softex, Inc.Google is a trademark or registered trademarks of Google Incorporated. Roxio is a trademark of Sonic Solutions.Energy Star and the Energy Star mark are registered U.S. marks.Adobe, Acrobat, and Adobe Reader are either a registered trademarks or trademarks of Adobe Systems Incorporated in the United S tates and/or other countries.Norton and Norton Internet Security are tradem arks or registered trademarks of Symant ec Corporation in the United States and ot her countries.All other trademarks mentioned herein are the propert y of their respective owners. © Copyright 2010 Fujitsu America, In corporated. All rights reserved. No part of this publication may be copied , reproduced, or translated, without prior wr itten consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu. B6FJ-5241-01ENZ0-00 Sparrow T580.book Page 2 Friday, October 1, 2010 9:11 AM DRAFT W ARNING H ANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD , A CHEMICAL KNOWN TO THE S TATE OF C ALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM . W ASH HANDS AFTER HANDLING . U SER G UIDE FOR W IRELESS B ROADBAND C ONNECTION T HE W IRELESS WAN U SER ’ S G UIDE IS LOCATED AT : http://solutions.us.fujit su.com/www/content/suppo rt/mobile/support_notices P LEASE CLICK “3G M INI -C ARD G OBI 2000 R EGULATORY AND S AFETY I NFORMATION ” TO OPEN THE FULL USER GUIDE CONTAINING WARNINGS AND PRECAUTIONS ASSOCIATED WITH RF SAFETY WHEN USING THE WWAN DEVICE . DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Fujit su America, Incorporated Address: 1250 E. Arques Avenue, Sunnyvale, CA 94085 Telephone: (408) 746-6000 Declares that product: Base Model C onfiguration: LIFEBOOK T580 Tablet PC Complies with Part 15 of the FCC Rules. This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:  (1) This device may not cau se harmful interferenc e, (2) This device must acce pt any interference received,  including interference that may cause undesired operation. Sparrow T580.book Page 3 Friday, October 1, 2010 9:11 AM DRAFT IMPORTANT SAFETY INSTRUCTIONS This unit requires an AC adapter to operate . Use only UL Listed I.T.E. Adapters with an output rating of 19 VDC, with a current of 3.16 A (60 W).When using your notebook equipment, basic safety precautions should al ways be followed to reduce the risk of fire, electric sho ck and injury to persons, including the following: • CAUTION - HOT SURFACE: The bottom of this notebook computer ca n become hot when used for l ong periods of time. When using this notebook, take caution to limit long term or conti nuous use while resting it on exposed skin, such as the lap. • Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or nea r a swimming pool. • Use only the power cord and batter ies indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. SAVE THESE INSTRUCTIONS For Authorized Repair Technicians Only D ANGER OF EXPLOSION IF L ITHIUM ( CLOCK ) BATTERY IS INCORRECTLY REPLACED . R EPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER . D ISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER ’ S INSTRUCTION . F OR CONTINUED PROTECTION AGAINST RISK OF FIRE , REPLACE ONLY WITH THE SAME TYPE AND RATING FUSE . + AC adapter output polarity: Sparrow T580.book Page 4 Friday, October 1, 2010 9:11 AM DRAFT Recycling your battery Over time, the batteries that r un your mobile computer will begin to hold a char ge for a shorter amount of time; this is a natu ral occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain materials that could cause environm ental damage if disposed of improperly. Fujitsu is very concerne d with environmental pr otection, and has enlisted the services of the Rechargeable Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to pr otecting our environment by recycling old batteries at no cost to you.RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go to www.RBRC.org or call 1-800-822-8837.  If there are no convenient RBRC locations near you, you can al so go to the EIA Consumer Education Initia tive website ( http://EIAE.org/ ) and search for a convenient disposal location.Remember – protecting the environm ent is a cooperative effort, and you should make every effort to protect it for current and f uture generations. * To order a new battery for your Fujitsu m obile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or www.fujitsu.ca/prod…

Text truncated - open the document above for the full version.

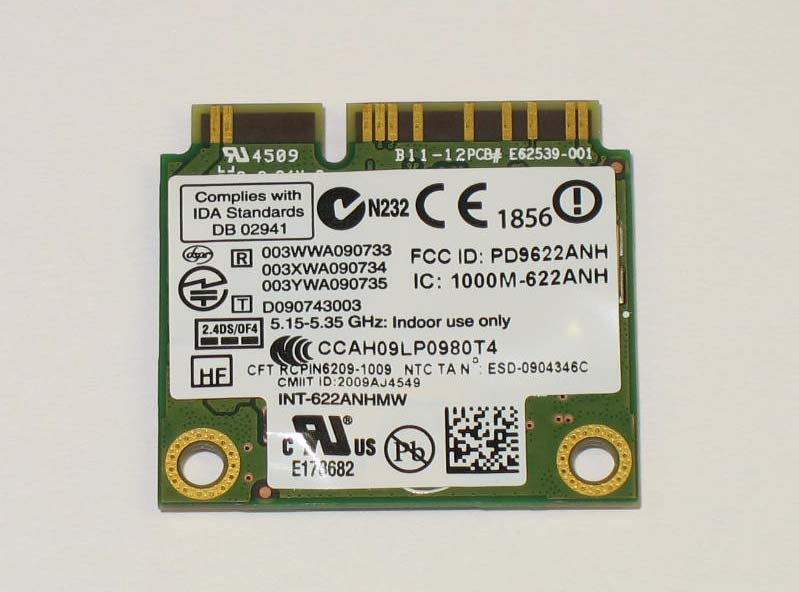

EMC Technologies Pty Ltd, 176 Harrick VIC 3043 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: Federal Communications Commission Attention: Certification Manager No. of pages: 1 From: Chieu Huynh Date: 4 th October 2010 EMC Ref: M100856_FCC_622ANHMW_NII Subject: FCC APPROVAL – FCC ID: EJE-WL0023 Please receive EMC Technologies’ Report M100856_FCC_622ANHMW_NII for review. The EUT is a Fujitsu LifeBook T Series, Model: T580 / TH550 with Intel Centrino Advanced-N 6200 (Puma Peak 802.11a/b/g/n 2x2), Model: 622ANHMW. The Intel WLAN module was originally certified by Intel Corporation, as a modular approval under FCC ID: PD9622ANH (Canada ID: 1000M-622ANH). The intention of this application is to FCC certify Intel Centrino Advanced-N 6200 (Puma Peak 802.11a/b/g/n 2x2), Model: 622ANHMW installed in Fujitsu LifeBook T Series, Model: T580 / TH550. NII Documents submitted: Test Reports: SAR and EMC Appendixes: Measurement Instrumentations, Photographs, Operational Description, Block Diagram, Antenna Details, Schematics, Labelling Details and User Manual Attachments: RF Exposure Information, FCC DOC, FCC Part 15B, Intel FCC 15.407 and Intel FCC 15.407 DFS Reports. FCC Forms: Confidentiality Letter and Form 731 Signatory & Agent Authorization Letter This is a composite submission. The DTS (WLAN) is submitted separately under DTS submission. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. The FCC ID for this composite application is EJE-WL0023 Regards ______________ Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 AUTHORITY TO ACT AS AGENT & FORM 731 SIGNATORY I appoint EMC Technologies Pty Ltd to act as agent, on our behalf in this application for equipment authorization. I certify that the exhibits submitted properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will have affixed to it a label identical to that submitted for approval with this application. In addition, I authorize Mr. Chris Zombolas, Technical Director of EMC Technologies Pty Ltd to sign the Form 731 and Mr. Chieu Huynh (Senior EMC Test Engineer) to be listed as the technical and non-technical contact for this application. Sincerely, ____________________________ Name: Tsuyoshi Uchihara Title: Engineer Date: 4 th October 2010

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (EJE-WL0023). Pursuant to FCC DA 04-1705, this application includes a request for short term confidentiality for the following exhibits: Internal Photos Location Photos External Photos Test Setup Photos User Manual As the above information contains proprietary information which would be benefit to our competitors, we request that these exhibits be held from public view for 180 days from the issue date of the grant of approval. In addition, pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Operational Description Block Diagram Schematics Antenna Details The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Tsuyoshi Uchihara Title : Engineer Date: 4 th October 2010

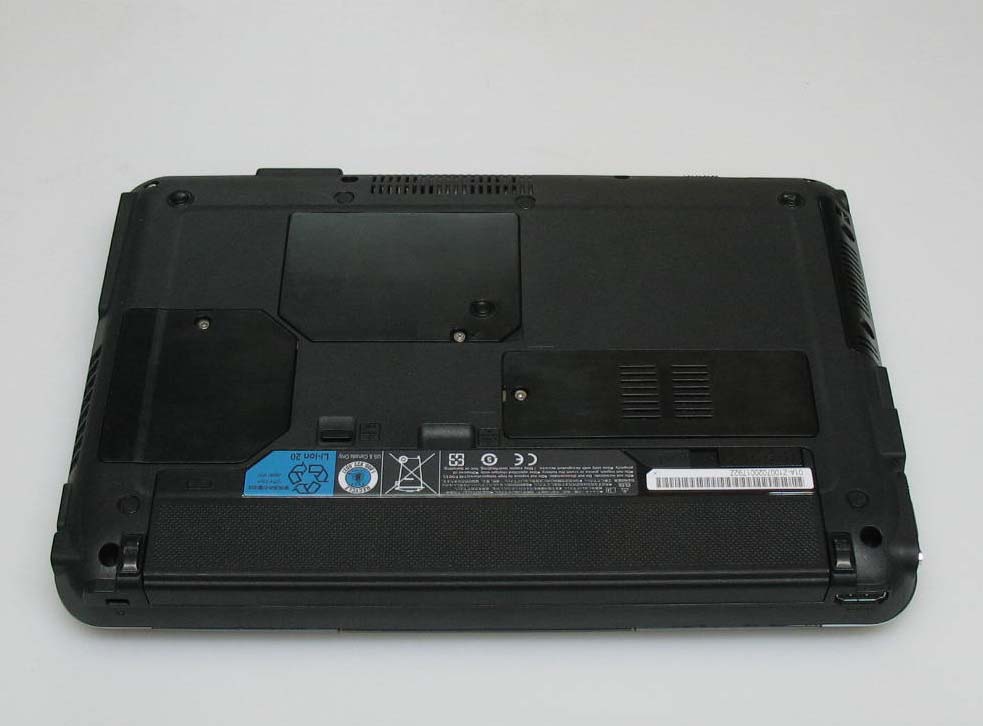

FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS

FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B3 LOCATION PHOTOS Antenna Locations FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B3 LOCATION PHOTOS WLAN Location WLAN Location

FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS

FCC ID: EJE-WL0023 (IC: 337J-WL0023) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) and FCC Part 15.407(f). Spread spectrum transmitters operating in the 2400 - 2483.5 MHz & 5725 – 5850 MHz (15.247) and 5.15 – 5.35 GHz & 5.47 – 5.725 GHz (NII) bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with this section and also section 2.1093 this device has been defined as a portable device. Intel 622ANHMW WLAN - SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M100859_FCC_622ANHMW_SAR_2.4 (2.4 GHz) and M100859_FCC_622ANHMW_SAR_5.6 (5.18 – 5.825 GHz). SAR values of 1.400 mW/g (5GHz) and 0.852 mW/g (2.4GHz) were measured which complied with the FCC human exposure requirements of 47 CFR 2.1093 (d).

Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 1 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au SAR Test Report Report Number: M100859_FCC_622ANHMW_SAR_5.6 Test Sample: Portable TABLET Computer Host PC Model Number: T580/TH550 Radio Modules: WLAN PUMA PEAK 622ANHMW & Bluetooth BSMAN3 PC System FCC ID: EJE-WB0083 (with Bluethooth variant) EJE-WL0023 (with No Bluethooth variant) PC System IC: 337J-WB0083 (with Bluethooth variant) 337J-WL0023 (with No Bluethooth variant) Date of Issue: 29 th September 2010 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 2 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au CONTENTS 1.0 GENERAL INFORMATION........................................................................................................... 3 2.0 INTRODUCTION........................................................................................................................... 4 3.0 TEST SAMPLE TECHNICAL INFORMATION.............................................................................. 4 3.1 DUT (WLAN) Details ............................................................................................................ 4 3.2 DUT (Bluetooth) Details ....................................................................................................... 7 3.3 DUT (Notebook PC) Details (client supplied info):................................................................ 8 3.4 Test sample Accessories ..................................................................................................... 8 3.4.1 Battery Types ...................................................................................................................8 4.0 TEST SIGNAL, FREQUENCY AND OUTPUT POWER................................................................ 9 4.1 Battery Status....................................................................................................................... 9 5.0 DETAILS OF TEST LABORATORY........................................................................................... 10 5.1 Location ............................................................................................................................. 10 5.2 Accreditations..................................................................................................................... 10 5.3 Environmental Factors ....................................................................................................... 10 6.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ................................................................. 11 6.1 Probe Positioning System .................................................................................................. 11 6.2 E-Field Probe Type and Performance ................................................................................ 11 6.4 System verification .............................................................................................................11 6.4.1 System verification results @ 5GHz ............................................................................... 11 6.4.2 Deviation from reference system verification values ....................................................... 12 6.4.3 Liquid Depth 15cm.......................................................................................................... 13 6.5 Phantom Properties ........................................................................................................... 13 6.6 Tissue Material Properties.................................................................................................. 13 6.6.1 Liquid Temperature and Humidity................................................................................... 14 6.7 Simulated Tissue Composition Used for SAR Test ............................................................ 15 6.8 Device Holder for Laptops and P 10.1 Phantom ................................................................ 15 7.0 SAR MEASUREMENT PROCEDURE USING DASY4 ............................................................... 15 8.0 MEASUREMENT UNCERTAINTY.............................................................................................. 16 9.0 EQUIPMENT LIST AND CALIBRATION DETAILS .................................................................... 18 10.0 TEST METHODOLOGY.............................................................................................................. 19 10.0 Position .............................................................................................................................. 19 10.1.1 “Tablet” Position Definition (0mm spacing) ..................................................................... 19 10.1.2 “Edge On” Position (Portrait or Landscape) .................................................................... 19 10.1.3 “Lap Held” Position (0mm spacing)................................................................................. …

Text truncated - open the document above for the full version.

Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 33 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. Table 26: 5200 MHz Band SAR Measurement Plot Numbers Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel Tablet 1 A 6 - 48 Tablet 2 B 6 - 48 Edge on Secondary Portrait - A 6 - 48 3 36 4 48 5 52 Edge on Primary Portrait 6 B 6 - 64 7 36 8 48 9 52 Edge on Secondary Landscape 10 A 6 - 64 11 36 12 48 13 52 Edge on Secondary Landscape 14 B 6 - 64 Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 34 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Table 27: 5600 MHz Band SAR Measurement Plot Numbers Table 28: 5800 MHz Band SAR Measurement Plot Numbers Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel 15 A 6 - 124 Tablet 16 B 6 - 124 - A 124 Lap held - B 6 - 124 Edge on Secondary Portrait - A 6 - 124 17 104 18 116 19 124 Edge on Primary Portrait 20 B 6 - 136 21 104 22 116 23 124 Edge on Secondary Landscape 24 A 6 - 136 25 104 26 116 27 124 Edge on Secondary Landscape 28 B 6 - 136 Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel 29 A 6 - 157 Tablet 30 B 6 - 157 Edge on Secondary Portrait 31 A 6 - 157 Edge on Primary Portrait 32 B 6 - 157 33 149 34 157 Edge on Secondary Landscape 35 A 6 - 165 36 149 37 157 Edge on Secondary Landscape 38 B 6 - 165 Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 35 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Table 29: System verification Plots Plot 39 System verification 5800 MHz 2 nd September 2010 Plot 40 System verification 5500 MHz 3 rd September 2010 Plot 41 System verification 5500 MHz 6 th September 2010 Plot 42 System verification 5200 MHz 8 th September 2010 Plot 43 System verification 5200 MHz 9 th September 2010 Plot 44 System verification 5500 MHz 17 th September 2010 Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 36 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 8 September 2010 File Name: M100859 Tablet OFDM 5.2 GHz WiFi Antenna A (1) 08-09-10.da4 DUT: Fujitsu Tablet Sparrow with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0023144B9B14 * Communication System: OFDM 5200 MHz; Frequency: 5240 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 5242.6 MHz; σ = 5.49 mho/m; ε r = 44.8; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.78, 3.78, 3.78) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 48 Test/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.140 mW/g Channel 48 Test/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 2.11 V/m; Power Drift = -0.489 dB Peak SAR (extrapolated) = 0.232 W/kg SAR(1 g) = 0.074 mW/g; SAR(10 g) = 0.025 mW/g Maximum value of SAR (measured) = 0.141 mW/g 0 dB = 0.141mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.7 Degrees Celsius Liquid Temperature 21.5 Degrees Celsius Humidity 36.0 % Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 37 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 38 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 8 September 2010 File Name: M100859 Tablet OFDM 5.2 GHz WiFi Antenna B (2) 08-09-10.da4 DUT: Fujitsu Tablet Sparrow with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0023144B9B14 * Communication System: OFDM 5200 MHz; Frequency: 5240 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 5242.6 MHz; σ = 5.49 mho/m; ε r = 44.8; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.78, 3.78, 3.78) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 48 Test/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.403 mW/g Channel 48 Test/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 8.94 V/m; Power Drift = -0.134 dB Peak SAR (extrapolated) = 0.619 W/kg SAR(1 g) = 0.222 mW/g; SAR(10 g) = 0.087 mW/g Maximum value of SAR (measured) = 0.395 mW/g 0 dB = 0.395mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.7 Degrees Celsius Liquid Temperature 21.5 Degrees Celsius Humidity 36.0 % Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 39 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 40 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 8 September 2010 File Name: M100859 Primary Portrait OFDM 5.2 GHz WiFi Antenna B (2) 08-09-10.da4 DUT: Fujitsu Tablet Sparrow with …

Text truncated - open the document above for the full version.

Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 74 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 3 September 2010 File Name: M100859 Primary Portrait OFDM 5.6 GHz WiFi Antenna B (2) 03-09-10.da4 DUT: Fujitsu Tablet Sparrow with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0023144B9B14 * Communication System: OFDM 5600 MHz; Frequency: 5680 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 5678.2 MHz; σ = 6 mho/m; ε r = 46.1; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.2, 3.2, 3.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 136 Test/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.34 mW/g Channel 136 Test/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 15.2 V/m; Power Drift = 0.162 dB Peak SAR (extrapolated) = 5.06 W/kg SAR(1 g) = 1.27 mW/g; SAR(10 g) = 0.435 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g SAR MEASUREMENT PLOT 20 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 21.0 Degrees Celsius Humidity 38.0 % Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 75 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 76 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 17 September 2010 File Name: M100859 Secondary Landscape (-1 dB) OFDM 5.6 GHz WiFi Antenna A (1) 17-09-10.da4 DUT: Fujitsu Tablet Sparrow with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0023144B9B14 * Communication System: OFDM 5600 MHz; Frequency: 5520 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 5519.8 MHz; σ = 5.79 mho/m; ε r = 44.3; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.2, 3.2, 3.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 104 Test/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.05 mW/g Channel 104 Test/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 6.28 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 4.04 W/kg SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.313 mW/g Maximum value of SAR (measured) = 2.20 mW/g 0 dB = 2.20mW/g SAR MEASUREMENT PLOT 21 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 21.0 Degrees Celsius Humidity 36.0 % Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 77 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 78 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 17 September 2010 File Name: M100859 Secondary Landscape (-1 dB) OFDM 5.6 GHz WiFi Antenna A (1) 17-09-10.da4 DUT: Fujitsu Tablet Sparrow with PP 11abgn; Type: 622ANHMW; Serial: MAC: 0023144B9B14 * Communication System: OFDM 5600 MHz; Frequency: 5580 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 5579.2 MHz; σ = 5.88 mho/m; ε r = 44.1; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: EX3DV4 - SN3563; ConvF(3.2, 3.2, 3.2) - Phantom: Flat Phantom 10.1; Serial: P 10.1; Phantom section: Flat 2.2 Section Channel 116 Test/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.98 mW/g Channel 116 Test/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 5.41 V/m; Power Drift = 0.068 dB Peak SAR (extrapolated) = 3.93 W/kg SAR(1 g) = 0.990 mW/g; SAR(10 g) = 0.290 mW/g Maximum value of SAR (measured) = 2.09 mW/g 0 dB = 2.09mW/g SAR MEASUREMENT PLOT 22 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 21.0 Degrees Celsius Humidity 36.0 % Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 79 of 143 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M100859_ FCC_622ANHMW_SAR_5.6 Page 80 of 143 This document must not be copied or…

Text truncated - open the document above for the full version.
