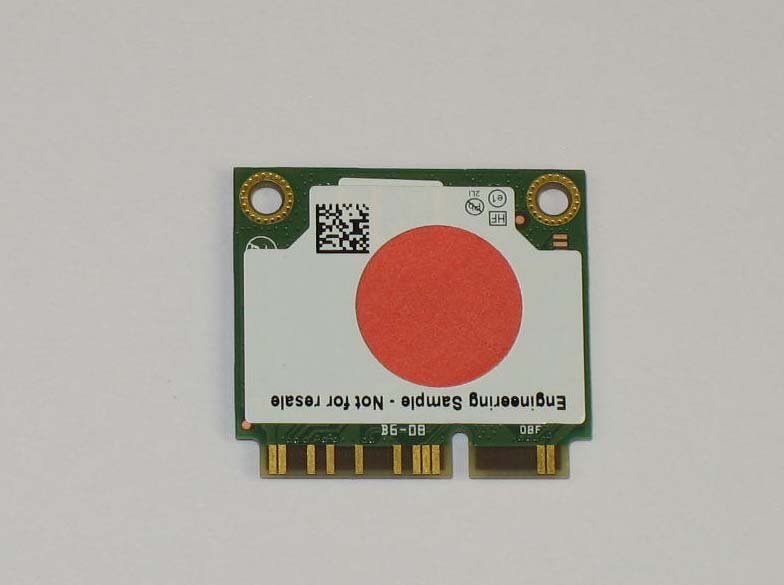

EMC Technologies Pty Ltd, 176 Harrick VIC 3043 Australia Ph: +613 9365 1000 Fax: +613 9331 7455 www.emctech.com.au EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road, Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] To: Federal Communications Commission Attention: Certification Manager No. of pages: 1 From: Chieu Huynh Date: 14 th February 2011 EMC Ref: M101140_FCC_62205ANHMW_DTS Subject: FCC APPROVAL – FCC ID: EJE-WL0024 Please receive EMC Technologies’ Report M101140_FCC_62205ANHMW_DTS for review. The EUT is a Portable PC, Fujitsu LifeBook T Series, Model: T901 with Intel Centrino Advanced-N 6205 (Taylor Peak 802.11a/b/g/n 2x2), Model: 62205ANHMW. The Taylor Peak 2x2 WLAN module was originally certified by INTEL as a modular approval under FCC ID: PD962205ANH (Canada ID: 1000M-62205ANH). The intention of this application is to FCC certify Intel Centrino Advanced-N 6205 (Taylor Peak 802.11a/b/g/n 2x2), Model: 62205ANHMW installed in Portable PC, Fujitsu LifeBook T Series, Model: T901. DTS documents submitted: Test Reports: SAR and EMC Appendixes: Measurement Instrumentations, Photographs, Operational Description, Block Diagram, Antenna Details, Schematics, Labelling Details and User Manual Attachments: RF Exposure Information, FCC DOC, FCC Part 15B and Intel FCC 15.247 Reports. FCC Forms: Confidentiality Letter and Form 731 Signatory & Agent Authorization Letter This is a composite submission. The NII (WLAN) is submitted separately under NII submission. EMC Technologies Pty Ltd is acting as agent for Fujitsu Ltd during this product approval. The FCC ID for this composite application is EJE-WL0024 Regards ______________ Chieu Huynh Senior EMC Engineer EMC Technologies Pty Ltd

FUJITSU LIMITED 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki 211-8588, Japan Tel : +81-44-754-3885 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (EJE-WL0024). Pursuant to FCC DA 04-1705, this application includes a request for short term confidentiality for the following exhibits: Internal Photos Location Photos External Photos Test Setup Photos User Manual As the above information contains proprietary information which would be benefit to our competitors, we request that these exhibits be held from public view for 180 days from the issue date of the grant of approval. In addition, pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Operational Description Block Diagram Schematics Antenna Details The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Tsuyoshi Uchihara Title : Engineer Date: 14 th February 2011

FCC ID: EJE-WL0024 (IC: 337J-WL0024) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS FCC ID: EJE-WL0024 (IC: 337J-WL0024) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B1 EXTERNAL PHOTOS

FCC ID: EJE-WL0024 (IC: 337J-WL0024) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B3 LOCATION PHOTOS Antenna Locations WLAN Location

FCC ID: EJE-WL0024 (IC: 337J-WL0024) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS FCC ID: EJE-WL0024 (IC: 337J-WL0024) ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au APPENDIX B4 INTERNAL PHOTOS

FCC ID: EJE-WL0024 (IC: 337J-WL0024 ______________________________________________________________________ EMC Technologies Pty. Ltd., 176 Harrick Road, Keilor Park, VIC, 3042, Australia. Phone: +61 3 9365 1000 Fax: +61 3 9331 7455 www.emctech.com.au Attachment 1 RF EXPOSURE INFORMATION RADIO FREQUENCY EXPOSURE (HAZARD) INFORMATION Testing was performed in accordance with the requirements of FCC Part 15.247(i) and FCC Part 15.407(f). Spread spectrum transmitters operating in the 2400 - 2483.5 MHz & 5725 – 5850 MHz (15.247) and 5.15 – 5.35 GHz & 5.47 – 5.725 GHz (15.407) bands are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with this section and also section 2.1093 this device has been defined as a portable device. Intel 62205ANHMW WLAN - SAR testing was performed in accordance with OET Bulletin 65 and reported under EMC Technologies reports M101142_FCC_62205ANHMW_SAR_2.4 (2.4GHz) and M101142_FCC_62205ANHMW_SAR_5.6 (5.18 – 5.825 GHz). SAR values of 1.53 mW/g (5GHz) and 0.404 mW/g (2.4GHz) were measured which complied with the FCC human exposure requirements of 47 CFR 2.1093 (d). Broadcom BCM92070MD_REF6 Bluetooth (FCC ID: QDS-BRCM1043) - SAR measurements were not required because the Bluetooth transmit power is very low and Bluetooth antenna is located at more than 5cm away from the other transmitting antennas.

Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 32 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. Table 20 2450 MHz OFDM Band SAR Measurement Plot Numbers Table 21 2450MHz System Verification Plot Plot 13 System Verification 2450 MHz 24 January 2011 Test Position Plot No. Ant Bit rate Mode (Mbps) Channel Bandwidth (MHz) Test Channel 1 A 6 - 06 Tablet 2 B 6 - 06 3 A 6 - 06 4 6 - 06 Edge On Secondary Landscape 5 B HT0 20 06 6 02 7 06 8 6 - 10 9 A HT0 20 06 Edge On Primary Portrait 10 B 6 - 06 11 A 6 - 06 Bystander 12 B 6 - 06 Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 33 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 January 2011 File Name: M101142 Tablet OFDM 2450 MHz Antenna A (1) 24-01-11.da4 EUT: Fujitsu Tablet Stork with Taylor 11abgn and Bluetooth; Type: 62205ANHMW; Serial: WFM: 001500647600 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 1.89 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.09, 4.09, 4.09) - Phantom: Flat Phantom 9.1; Serial: P 9.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.078 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.13 V/m; Power Drift = -0.194 dB Peak SAR (extrapolated) = 0.155 W/kg SAR(1 g) = 0.069 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.074 mW/g 0 dB = 0.074mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.1 Degrees Celsius Liquid Temperature 20.9 Degrees Celsius Humidity 63.0 % Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 34 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 35 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 January 2011 File Name: M101142 Tablet OFDM 2450 MHz Antenna B (2) 24-01-11.da4 EUT: Fujitsu Tablet Stork with Taylor 11abgn and Bluetooth; Type: 62205ANHMW; Serial: WFM: 001500647600 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 1.89 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.09, 4.09, 4.09) - Phantom: Flat Phantom 9.1; Serial: P 9.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.069 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.58 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 0.152 W/kg SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.035 mW/g Maximum value of SAR (measured) = 0.069 mW/g 0 dB = 0.069mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.1 Degrees Celsius Liquid Temperature 20.9 Degrees Celsius Humidity 63.0 % Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 36 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 37 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 January 2011 File Name: M101142 Edge On Secondary Landscape OFDM 2450 MHz Antenna A (1) 24-01-11.da4 EUT: Fujitsu Tablet Stork with Taylor 11abgn and Bluetooth; Type: 62205ANHMW; Serial: WFM: 001500647600 * Communication System: OFDM 2450 MHz; Frequency: 2437 MHz; Duty Cycle: 1:1 * Medium parameters used: f = 2438 MHz; σ = 1.89 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(4.09, 4.09, 4.09) - Phantom: Flat Phantom 9.1; Serial: P 9.1; Phantom section: Flat 2.2 Section Channel 6 Test/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.204 mW/g Channel 6 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 0.505 W/kg SAR(1 g) = 0.212 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.232 mW/g 0 dB = 0.232mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 21.1 Degrees Celsius Liquid Temperature 20.9 Degrees Celsius Humidity 63.0 % Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 38 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 39 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Test Date: 24 January 2011 File Name: M101142 Edge On Secondary Landscape OFDM 2450 MHz Antenna B (2) 24-01-11.da4 EUT: Fujitsu Tablet Stork with Taylor 11abgn and Bluetooth; Type:…

Text truncated - open the document above for the full version.

Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 57 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au APPENDIX C CALIBRATION DOCUMENTS 1. SN: 1380 Probe Calibration Certificate 2. SN: 724 Dipole Calibration Certificate Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 58 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 59 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 60 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 61 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 62 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 63 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 64 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 65 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 66 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 67 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 68 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 69 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 70 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 71 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 72 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 73 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 74 of 74 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au

Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 1 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au SAR Test Report Report Number: M101142_FCC_62205ANHMW_SAR_2.4 Test Sample: Portable TABLET Computer Radio Modules: WLAN INTEL CENTRINO ADVANCED-N 6205(TAYLOR PEAK) (11A/B/G/N) 62205ANHMW Host PC Model Number: T901 PC System FCC ID: EJE-WL0024 PC System IC: 337J-WL0024 Date of Issue: 17 th February 2011 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies Pty Ltd ABN 82 057 105 549 176 Harrick Road Keilor Park Victoria Australia 3042 Ph: + 613 9365 1000 Fax: + 613 9331 7455 email: [email protected] Report No. M101142 _FCC_62205ANHMW_SAR_2.4 Page 2 of 75 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 3 may be reproduced in full. www.emctech.com.au CONTENTS 1.0 GENERAL INFORMATION........................................................................................................... 4 2.0 INTRODUCTION .......................................................................................................................... 5 3.0 TEST SAMPLE TECHNICAL INFORMATION.............................................................................. 5 3.1 EUT (WLAN) Details ............................................................................................................ 5 3.2 EUT (Bluetooth) Details........................................................................................................8 3.3 EUT (Notebook PC) Details ................................................................................................. 9 3.4 Test sample Accessories ..................................................................................................... 9 3.4.1 Battery Types ...................................................................................................................9 4.0 TEST SIGNAL, FREQUENCY AND OUTPUT POWER.............................................................. 10 4.1 Battery Status..................................................................................................................... 10 5.0 DETAILS OF TEST LABORATORY........................................................................................... 11 5.1 Location ............................................................................................................................. 11 5.2 Accreditations..................................................................................................................... 11 5.3 Environmental Factors ....................................................................................................... 11 6.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM ................................................................. 12 6.1 Probe Positioning System .................................................................................................. 12 6.2 E-Field Probe Type and Performance ................................................................................ 12 6.3 System Verification ............................................................................................................12 6.3.1 System Verification Results @ 2450MHz ....................................................................... 12 6.3.2 Deviation from reference system verification values ....................................................... 12 6.3.3 Liquid Depth 15cm.......................................................................................................... 13 6.4 Phantom Properties ........................................................................................................... 13 6.5 Tissue Material Properties.................................................................................................. 14 6.5.1 Liquid Temperature and Humidity................................................................................... 14 6.6 Simulated Tissue Composition Used for SAR Test ............................................................ 14 6.7 Device Holder for Laptops and P 10.1 Phantom ................................................................ 14 7.0 SAR MEASUREMENT PROCEDURE USING DASY4 ............................................................... 15 8.0 MEASUREMENT UNCERTAINTY.............................................................................................. 16 9.0 EQUIPMENT LIST AND CALIBRATION DETAILS .................................................................... 18 10.0 TEST METHODOLOGY.............................................................................................................. 19 10.1 Positions ............................................................................................................................ 19 10.1.1 “Tablet” Position Definition (0mm spacing) ..................................................................... 19 10.1.2 “Edge On” Position (Portrait or Landscape) .................................................................... 19 10.1.3 “Bystander” Position ....................................................................................................... 19 10.2 List of All Test Cases (Antenna In/O…
