EJE-WL0025802.11n 1x1 Wireless LAN USB module

802.11n 1x1 Wireless LAN USB module WLU5110-D50(ROHS) User’s Manual Hardware Quick Installation Guide ......................... 3 INTRODUCTION ............................................. 4 SOFTWARE INSTALLATION .................................... 6 NETWORK CONNECTION ...................................... 10 Regulatory statement .................................... 32 Federal Communication Commission Interference Statement .. 32 Industry Canada Statement ............................... 34 NCC Statement ........................................... 36 Hardware Quick Installation Guide Installing the 802.11n 1x1 Wireless LAN USB module 1. Power down the computer. 2. Plug the 802.11n 1x1 Wireless LAN USB module board to motherboard slot 3. Connect antennas used I-PEX connector for WiFi antenna. 4. Power on the computer. Un-installing the 802.11n 1x1 Wireless LAN USB module Power down the computer 1. Removed WiFi antenna 2. Carefully removed the802.11n 1x1 Wireless LAN USB module from the motherboard slot. 3. Power on the computer. INTRODUCTION The 802.11n 1x1 Wireless LAN USB module is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. You can share files and printers between each PC and laptop. You can also use one computer as an Internet Server to connect to a wired global network and share files and information with other computers via a wireless LAN. The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With Wireless LAN Cards, you can connect wireless LAN to a wired global network via an Access Point. SOFTWARE INSTALLATION 1. Exit all Windows programs. Insert the included CD-ROM into your computer. The CD-ROM will run automatically. 2. When the License Agreement screen appears, please read the contents and select “I accept the terms of the license agreement “ then click Next to continue. 3. Select the check box to choose a Configuration Tool from the listed two choices. - Configuration Tool: Choose to use our configuration utility. - Microsoft Zero Configuration Tool: Choose to use Windows XP’s built-in Zero Configuration Utility (ZCU). Click Next to continue. 4. There are two modes for you to choose in this screen, either choose WiFi mode or performance mode (TxBurst mode). This mode selection screen is set for the default mode shown in the utility screen, you can still change its mode later in the utility screen. Click Next to continue. 5. When you are prompted the following message, please click Install to begin the installation. 6. When the following screen appears, click Finish to complete the software installation. NETWORK CONNECTION Once the device driver is well installed, a network setting described in the following should be also established. 1. (In Windows 2000) Go to Start  Settings  Control Panel  Network and Dial-up Connections Local Area Connection  Properties. 2. (In Windows XP) Go to Start  Control Panel  Network and Internet Connections  Network Connections  Wireless Network Connection  Properties. 2. Make sure that all the required components are installed. 3. If any components are missing, click on the Install... button to select the Client/Service/Protocol required. After selecting the component you need, click Add... to add it in. 4. For making your computer visible on the network, make sure you have installed File and Printer Sharing for Microsoft Networks. IP Address Note: When assigning IP Addresses to the computers on the network, remember to have the IP address for each computer set on the same subnet mask. If your Broadband Router use DHCP technology, however, it won’t be necessary for you to assign Static IP Address for your computer. 1. To configure a dynamic IP address (i.e. if your broadband Router has the DHCP technology), check the Obtain an IP Address Automatically option. 2. To configure a fixed IP address (if you broadband Router is not DHCP supported, or when you need to assign a static IP address), check the Use the following IP address option. Then, enter an IP address into the empty field; for example, enter 192.168.1.254 in the IP address field, and 255.255.255.0 for the Subnet Mask. CONFIGURATION UTILITY After the Wireless adapter has been successfully installed, users can use the included Configuration Utility to set their preference. Go to Start (All) Programs Ralink Wireless Ralink Wireless Utility. You can also open the Configuration Utility by double clicking the icon or right clicking to select Launch Config Utilities. Intelligent Wireless Utility Profile Profile can book keeping your favorite wireless setting among your home, office, and other public hot-spot. You may save multiple profiles, and activate the correct one at your preference. The Profile manager enables you to Add, Edit, Delete and Activate profiles. Network The Network page displays the information of surrounding APs from last scan result. The tab lists the information including SSID, Network type, Channel, Wireless mode, Security-Enabled and Signal. Regulatory statement Federal Communication Commission Interference Statement This equi…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 2106 Date: 23 February 2011 Subject: FCC Application for FCC ID: EJE-WL0025 / IC: 337J-WL0025 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Applicant : Fujitsu Limited Address : 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588, Japan Signature : _________________________________ Name and Job Title. : Mr. Tsuyoshi Uchihara / Engineer E-mail : [email protected] Tel. : +81-44-754-3885

Date: March 17, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: EJE-WL0025 IC: 337J-WL0025 To Whom it may concern, We, Fujitsu Limited, declare that the device (FCC ID: EJE-WL0025 /IC: 337J-WL0025) : 1. is able to be operated on client mode. 2. is a client without DFS detection capability. 3. will not operate in 5600~5650MHz. 4. Ad-hoc will be supported in 802.11bgn(2412~2462MHz) 5. does not have Ad-hoc function on channels within the frequency bands a. Band 1: 5150 – 5250MHz b. Band 2: 5250 – 5350MHz c. Band 3: 5470 – 5725MHz d. Band 4: 5725 – 5850MHz 6. is not able to operate in non-US/IC frequencies, country code selection will be disable. 7. In non associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. (KDB848637). Regards, Applicant : Fujitsu Limited Address : 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588, Japan Signature : _________________________________ Name and Job Title. : Mr. Tsuyoshi Uchihara / Engineer E-mail [email protected] Tel. +81-44-754-3885

Date: 2011/2/23 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: EJE-WL0025 Product name: 802.11n 1x1 Wireless LAN USB module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WLU5110-D50(ROHS) to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Fujitsu Limited Address : 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588, Japan Signature : _________________________________ Name and Job Title. : Mr. Tsuyoshi Uchihara / Engineer E-mail : [email protected] Tel. : +81-44-754-3885

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 3/7/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: 802.11n 1x1 Wireless LAN USB module . (FCC ID: EJE-WL0025) Model Num ber: WLU5110-D50(ROHS) We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

Confidentiality Request Letter Date: 2011/2/23 Federal Communications Commission Authorization and Evaluation Division FCC ID：EJE-WL0025 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Fujitsu Limited Applicant’s company address : 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588, Japan Signature : _________________________________ Job Title and Dept. : Mr. Tsuyoshi Uchihara / Engineer E-mail : [email protected] Te l . : +81-44-754-3885

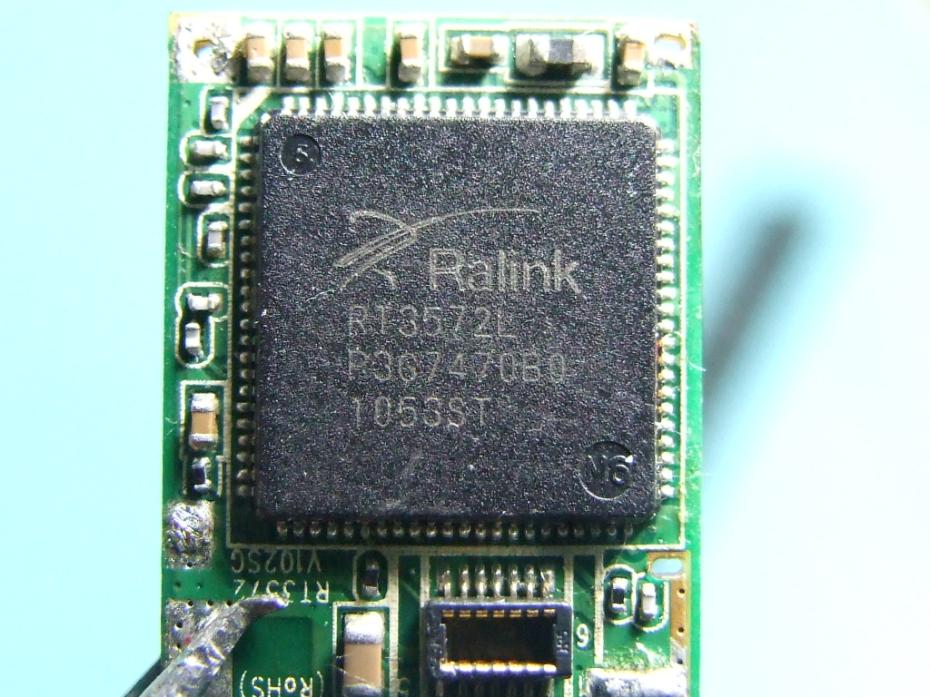

Limited Module Approval Request Letter Subject: Limited Module Approval Date: 23 February 2011 FCC ID: EJE-WL0025 Dear Reviewer, We, Fujitsu Limited would request 802.11n 1x1 Wireless LAN USB module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (RT3572). 3. The requirement of power supply regulation: None. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the user’s manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: The module complies with any applicable RF exposure requirement. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Fujitsu Limited Company Address : 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki, 211-8588, Japan Signature : _________________________________ Name and Job Title : Mr. Tsuyoshi Uchihara / Engineer

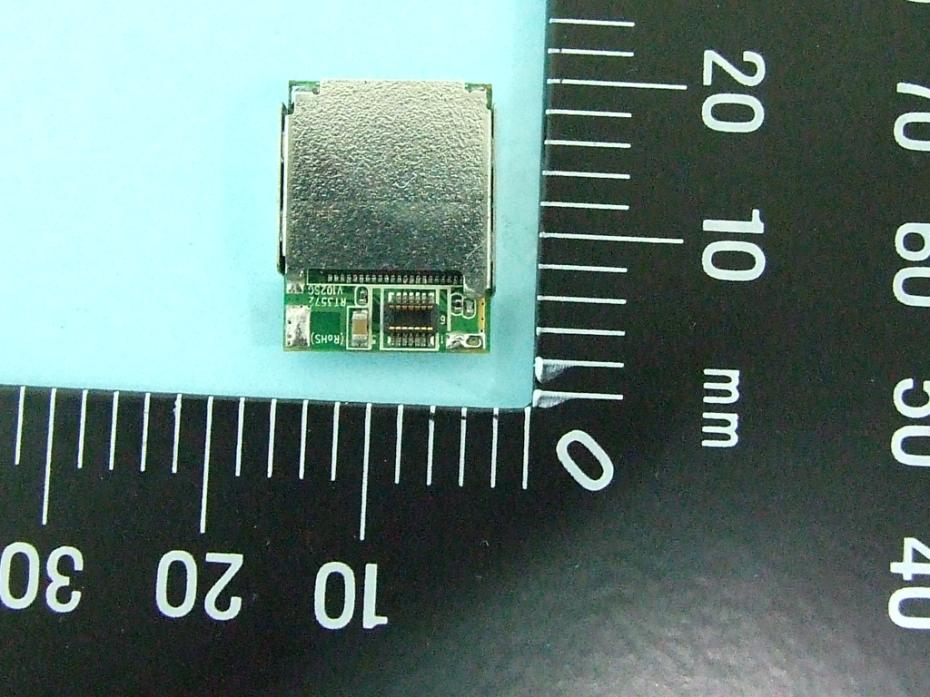

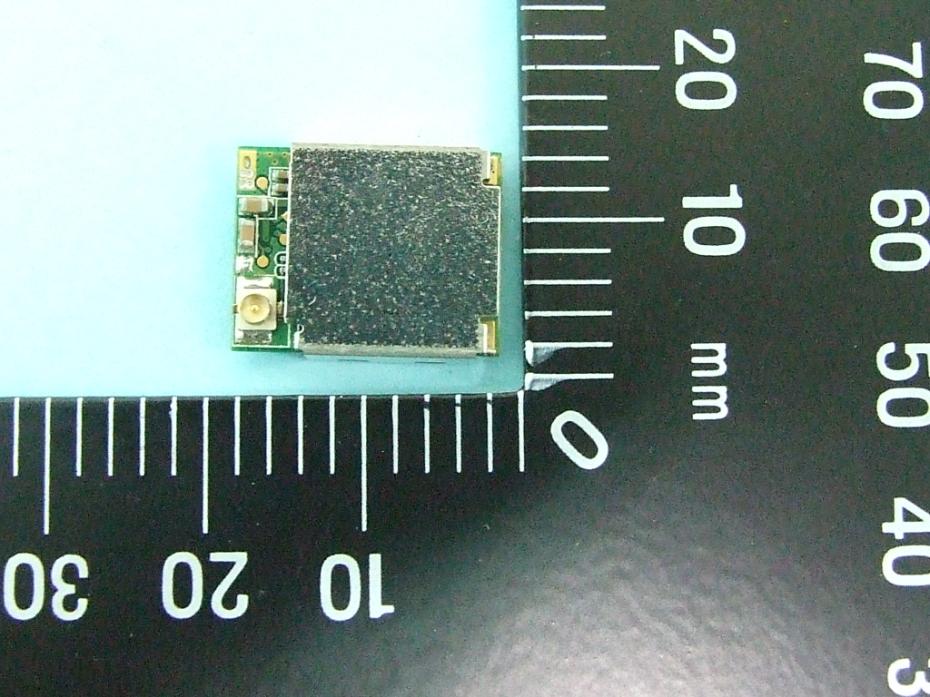

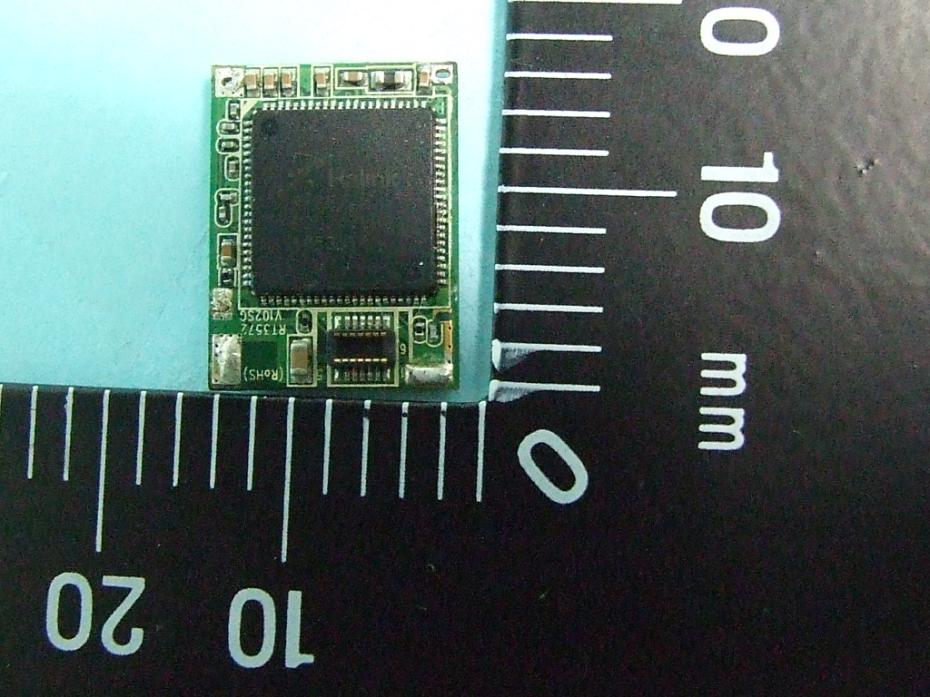

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 Model Name：CP492543 Model Name：CP492543 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 Model Name：CP492543 Model Name：CP492542

PTT label design Label will pasted on the top side of shield case

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2011 FAX : 886-2-2696-2255 Model Name：CP492543 Model Name：CP492542

Page No. : 1 of 4 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 Maximum Permissible Exposure Page No. : 2 of 4 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : 3 of 4 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b/g: 23.31dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 4.67 2.930893 23.31 214.2891 0.1250 Max Conducted Power for IEEE 802.11n (20MHz): 23.01dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 4.67 2.930893 23.01 199.9862 0.1167 Max Conducted Power for IEEE 802.11n (40MHz): 22.77dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 4.67 2.930893 22.77 189.2344 0.1104 (Band 4 : 5745~5825MHz) Max Conducted Power for IEEE 802.11a: 21.46dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.10 3.235937 21.46 139.9587 0.0901 Max Conducted Power for IEEE 802.11n (20MHz): 22.28dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.10 3.235937 22.28 169.0441 0.1089 Max Conducted Power for IEEE 802.11n (40MHz): 21.97dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.10 3.235937 21.97 157.3983 0.1014 Page No. : 4 of 4 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 (Band 1~3 : 5150~5725MHz) Max Conducted Power for IEEE 802.11a: 14.01dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.10 3.235937 14.01 25.1768 0.0162 Max Conducted Power for IEEE 802.11n (20MHz/40MHz): 12.99dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 5.10 3.235937 12.99 19.9067 0.0128

SPORTON INTERNATIONAL INC. Page Number : 1 of 120 TEL : 886-3-327-3456 Report Issued Date : Mar. 01, 2011 FAX : 886-3-327-0973 Report Version : Rev. 01 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 FCC / IC RF Test Report APPLICANT : Fujitsu Limited EQUIPMENT : 802.11n 1x1 Wireless LAN USB module BRAND NAME : Fujitsu Limited MODEL NAME : WLU5110-D50(ROHS) FCC ID : EJE-WL0025 IC ID : 337J-WL0025 STANDARD : FCC Part 15 Subpart C §15.247 IC RSS-210 Issue 8 CLASSIFICATION : Digital Transmission System (DTS) The product was received on Feb. 17, 2011 and completely tested on Feb. 21, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Vice Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 120 TEL : 886-3-327-3456 Report Issued Date : Mar. 01, 2011 FAX : 886-3-327-0973 Report Version : Rev. 01 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Table for Filed Antenna ..................................................................................................................... 6 1.5 Testing Site ........................................................................................................................................ 6 1.6 Applied Standards ............................................................................................................................. 6 1.7 Ancillary Equipment List .................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Carrier Frequency Channel ............................................................................................................... 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 RF Utility .......................................................................................................................................... 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 11 3.2 Output Power Measurement ............................................................................................................ 31 3.3 Band Edges Measurement .............................................................................................................. 35 3.4 Test Result of Conducted Band Edges ........................................................................................... 44 3.5 Power Spectral Density Measurement ............................................................................................ 51 3.6 AC Conducted Emission Measurement........................................................................................... 68 3.7 Radiated Emission Measurement .................................................................................................... 72 3.8 Antenna Requirements .................................................................................................................. 117 4 LIST OF MEASURING EQUIPMENT ...................................................................................................... 118 5 UNCERTAINTY OF EVALUATION ......................................................................................................... 119 APPENDIX A. SETUP PHOTOGRAPHS APPENDIX B. PHOTOGRAPHS OF EUT SPORTON INTERNATIONAL INC. Page Number : 3 of 120 TEL : 886-3-327-3456 Report Issued Date : Mar. 01, 2011 FAX : 886-3-327-0973 Report Version : Rev. 01 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR121820 Rev. 01 Initial issue of report Mar. 01, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 120 TEL : 886-3-327-3456 Report Issued Date : Mar. 01, 2011 FAX : 886-3-327-0973 Report Version : Rev. 01 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.1…

Text truncated - open the document above for the full version.

Page No. : A1 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 Appendix A. Test Photos Page No. : A2 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW EUT Page No. : A3 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 SIDE VIEW Page No. : A4 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : A5 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : A6 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 For radiated emissions above 1GHz FRONT VIEW REAR VIEW Page No. : A7 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 Test Fixture FRONT VIEW REAR VIEW Page No. : A8 of A8 FCC ID : EJE-WL0025 IC ID : 337J-WL0025 FCC/IC RF Test Report Report No. : FR121820 FRONT VIEW REAR VIEW
