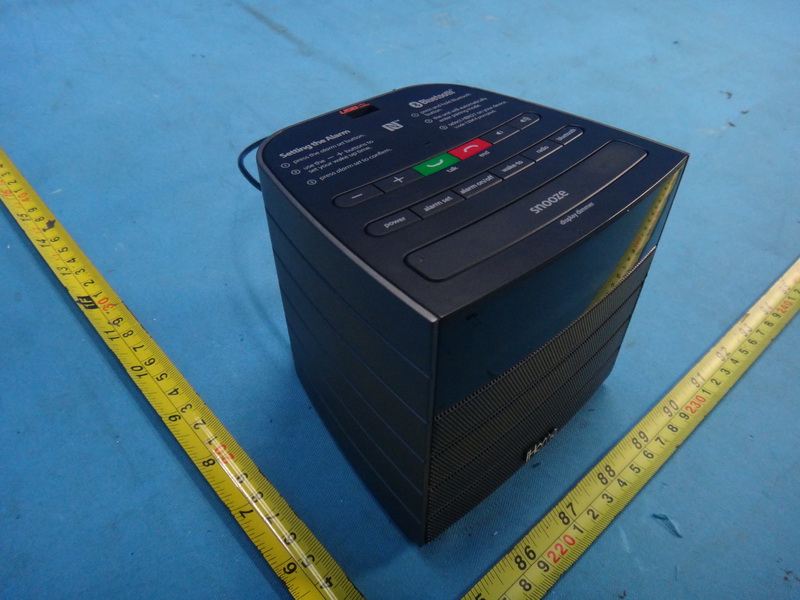

EMOHBN21Hotel Bluetooth FM Radio Alarm Clock with Line-in and USB Charging

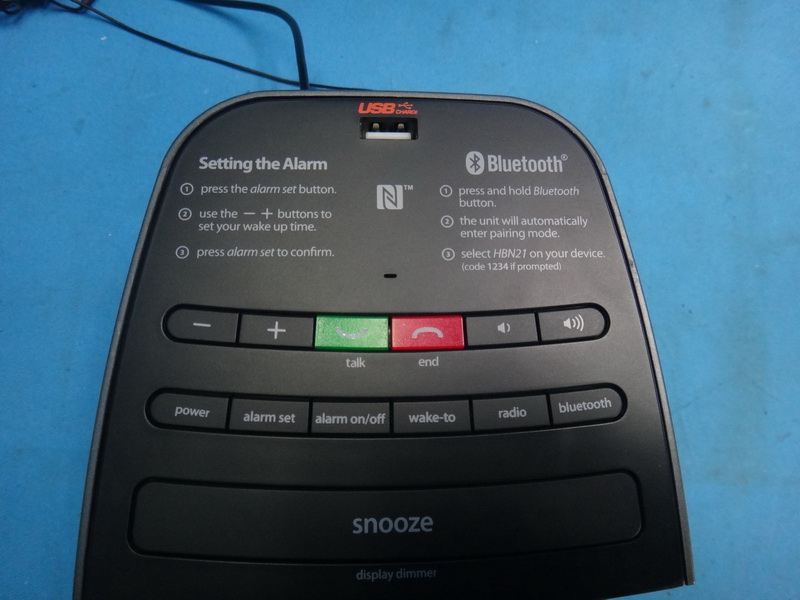

time set time set time set time set time zone time zone HBN21 Sta Quick Start Guide Included • HBN21 system • Universal AC adaptor Set Up Connect the universal voltage AC adapter to the wall outlet and the DC jack on the back panel of the radio When Low Battery Icon appears on display, replace backup battery with 1 fresh CR2450 battery. Keep unit connected to DC power when replacing battery or you will lose settings. The unit ships with the Daylight Saving Time (DST) switch in Auto position, and will automatically adjust when the time changes in March and November. Daylight Saving Time Press the time set button to conrm time Press the - or + button to adjust time Clock Setting Press and hold the time set button to enter clock setting mode Maintenance Once sta has completed setup, replace security cover on back of unit and tighten thumbscrew. HBN21 Quick Start Guide - Front Size: 432 x 140 mm Printing Color: Black Mat’l: 100 gsm WF paper April 17, 2015 HBN21 Quick Start Guide - Inside Size: 432 x 140 mm Printing Color: Black Mat’l: 100 gsm WF paper April 17, 2015 HBN21QSG-150417 © 2015 HTI Industries, LLC. All rights reserved Printed in China • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered nish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as thinner or similar materials can damage the surface of the unit. WARNING: Lithium batteries can explode or cause burns if disassembled, shorted, recharged, exposed to water, re, or high temperatures. Do not place loose batteries in a pocket, purse, or other container containing metal objects, mix with used or other battery types, or store with hazardous or combustible materials. Store in cool, dry, ventilated area. Follow applicable laws and regulations for transport and disposal. Setting the Time (Factory Preset Clock) Including Year, Date, Month: This step is only required if the pre-set time is lost Press the time set button to conrm year Press the - or + button to set year Press the - or + button to set date Press the time set button to conrm Clock Setting Press and hold the time zone button. The currently set time zone will ash. Press the - or + button to adjust for your time zone. Press the time zone button to conrm Time Zone Setting To set the Time Zone the unit should be in Power O Mode. Secure the attached Security Tether to a wall or other permanent surface. CAUTION: DO NOT attach to an AC outlet or cause it to become entangled with anything that can create a hazardous situation. time settime zone time settime zone Zones are: 00 - ATLANTIC 01 - EASTERN 02 - CENTRAL 03 - MOUNTAIN 04 - PACIFIC 05 - ALASKA 06 - HAWAII outlet DC 9V 2A Remove thumbscrew and remove back cover to access sta controls AUX in cable AUX in cable IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit. 1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. 2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings. 3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. 4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. 5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket. 6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleaning instructions. 7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. 8. Attachments – Do not use attachments not recommended by the product manufacturer. 9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges. 10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 11. Damage Requiring Service – The unit should be serviced by qualified service personnel when: A. the power supply cable or plug has been damaged. B. objects have fallen into or liquid has been spilled into the enclosure. C. the unit has been exposed to rain. D. the unit has been dropped or the enclosure damaged. E. the unit exhibits a marked change in performance or does not operate normally. 12. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable should be unplugged from the unit to prevent …

Text truncated - open the document above for the full version.

Project No.: 1504C151 Page 2 of 15 Project No.: 1504C151 Page 3 of 15 Project No.: 1504C151 Page 4 of 15

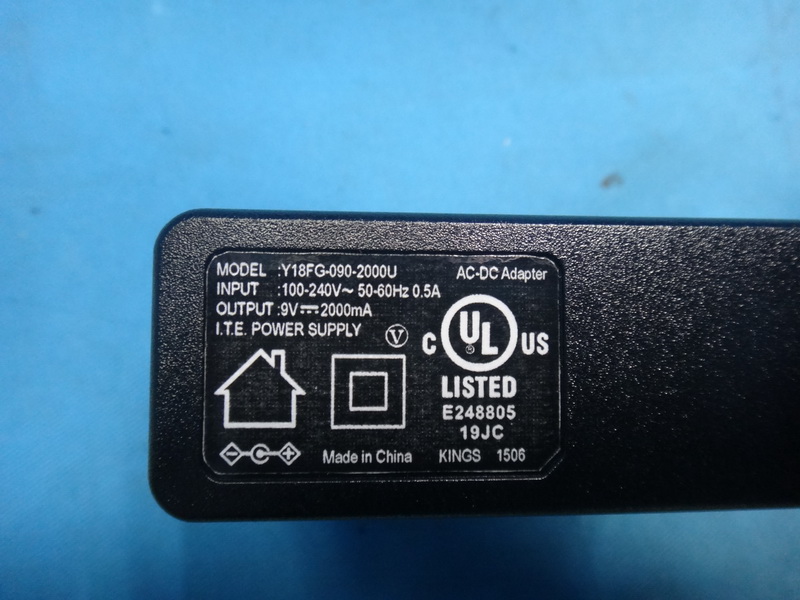

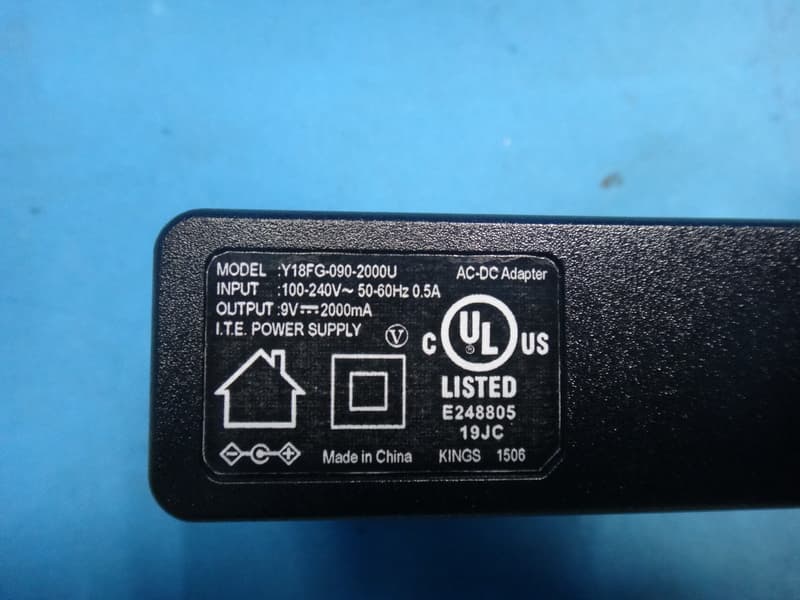

HBN21 model plate Print:White Material: PET sheet (black) Mar 11, 2015 Model: HBN21 EMOHBN21 986B-HBN21 Manufactured by HTI Industries LLC FM 87.5 - 108 MHz DC 3V, CR2450 x 1 DC 9V, 2A HBN21-A-A Frequency Range: Clock Backup: AC Adaptor: Service Number: www.hoteltech.com Made in China Patents: www.ihome.com/patents CAN ICES-3(B)/NMB-3(B) HBN21 model plate Print:White Material: PET sheet (black) Mar 11, 2015 CE logo 5mm height WEEE logo 7mm height

Project No.: 1504C151 Page 5 of 15 Project No.: 1504C151 Page 6 of 15 Project No.: 1504C151 Page 7 of 15 Project No.: 1504C151 Page 8 of 15 Project No.: 1504C151 Page 9 of 15 Project No.: 1504C151 Page 10 of 15 Project No.: 1504C151 Page 11 of 15 Project No.: 1504C151 Page 12 of 15 Project No.: 1504C151 Page 13 of 15 Project No.: 1504C151 Page 14 of 15 Project No.: 1504C151 Page 15 of 15

FCC RF EXPOSURE REPORT FCC ID: EMOHBN21 Project No. : 1504C151 Equipment : Hotel Bluetooth FM Radio Alarm Clock with Line-in and USB Charging Model : HBN21; HBN21X; HBN21XC (X denote as color of cabinet) Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A PCB N/A 0 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 2.94 1.97 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 1.97mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FICP-1-1504C151 Page 1 of 109 FCC&IC Radio Test Report FCC ID: EMOHBN21 IC: 986B-HBN21 This report concerns (check one): Original Grant Class II Change Project No. : 1504C151 Equipment : Hotel Bluetooth FM Radio Alarm Clock with Line-in and USB Charging Model Name for FCC : HBN21; HBN21X; HBN21XC (X denote as color of cabinet) Model Name for IC : HBN21 Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Date of Receipt : Apr. 15, 2015 Date of Test : Apr. 15, 2015~ Apr. 22, 2015 Issued Date : Apr. 23, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FICP-1-1504C151 Page 2 of 109 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Te st Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-1-1504C151 Page 3 of 109 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FICP-1-1504C151 Page 4 of 109 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT TEST CONDITIONS 24 7.1.5 TEST RESULTS 24 8 . BANDWIDTH TEST 25 8.1 APPLIED PROCEDURES 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . PEAK OUTPUT POWER TEST 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 26 9.1.4 EUT OPERATION CONDITIONS 26 9.1.5 EUT TEST CONDITIONS 26 9.1.6 TEST RESULTS 26 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 10.1 APPLIED PROCEDURES / LIMIT 27 10.1.1 TEST PROCEDURE 27 10.1.2 DEVIATION FROM STANDARD 27 10.1.3 TEST SETUP 27 10.1.4 EUT OPERATION CONDITIONS 27 10.1.5 EUT TEST CONDITIONS 27 10.1.6 TEST RESULTS 27 11 . MEASUREMENT INSTRUMENTS LIST 28 Report No.: BTL-FICP-1-1504C151 Page 5 of 109 Table of Contents Page 12 . EUT TEST PHOTO 30 ATTACHMENT A - CONDUCTED EMISSION 34 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 46 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 71 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 73 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 86 ATTACHMENT H - BANDWIDTH 91 ATTACHMENT I - PEAK OUTPUT POWER 96 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 101 Report No.: BTL-FICP-1-1504C151 Page 6 of 109 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-1-1504C151 Original Issue. Apr. 23, 2015 Report No.: BTL-FICP-1-1504C151 Page 7 of 109 1. CERTIFICATION Equipment : Hotel Bluetooth FM Radio Alarm Clock with Line-in and USB Charging Brand Name : iHome Model Name for FCC : HBN21; HBN21X; HBN21XC (X denote as color of cabinet) Model Name for IC : HBN21 Applicant SDI TECHNOLOGIES INC. Manufacturer : HTI Industries LLC Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Factory : Jadestar Electronics (Shenzhen) Co. Ltd. Address : Block 5, He Tai Industrial Zone, He Ping Community, Fu Yuan Town, Bao An D…

Text truncated - open the document above for the full version.

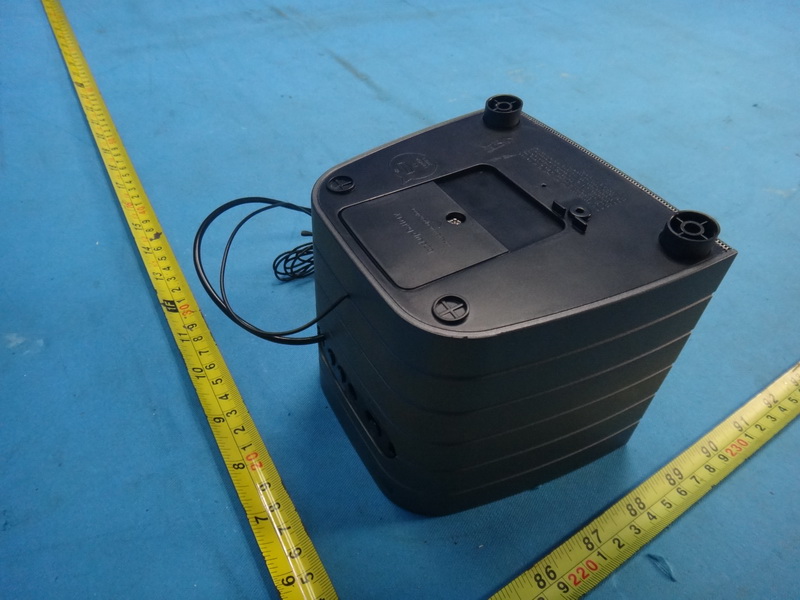

Report No.: BTL-FICP-1-1504C151 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1504C151 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1504C151 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1504C151 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
