EMOIB81Bluetooth Wireless Headphones

INSTRUCTION MANUAL Bluetooth Wireless Headphones Model:iB81 Warnnings This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non domestic use or in a commercial environment. Bluetooth Pairing Mode 1. Press and hold the Multi‐function button on your iB81 headphones for about 5 seconds until the LED flash rapidly in blue and red and with voice prompts “ Power on” and “ Pairing”, this indicates the headphones enter Bluetooth pairing mode. 2. Turn on the Bluetooth function of your device so it begins searching for a compatible device, ‘iB81’ should appear on your laptop, phone or music player’s compatible devices list. You may also see a message such as ‘Not Paired’. Tap on that message to complete the pairing process. If your device asks for a ‘ password’ to complete the pairing process, enter ‘0000’. 3. When pairing is successful the blue LED indicator on iB81 headphones will remain ‘On’. Your headphones are now ready for use. Tip: If no device is paired within 3 minutes, the iB81 will exit the pairing mode and power off. Bluetooth Auto‐Linking Mode 1. Press and hold the Multi‐function button on your iB81 headphones for about 3 seconds until the blue LED indicator flash slowly, this indicates the headphones enter Bluetooth Auto‐Linking Mode. 2. The headphones will pair with the last paired Bluetooth enabled device if there is any within the Bluetooth operation range. Tip: Tip: If no device is paired within 3 minutes, the iB81 will exit the pairing mode and power off. Switching the Power On and Off 1. Press and hold the Multi‐function button for approximately 3 seconds until the LED indicator turns solid blue if linked or blinking blue if not linked. This indicates that the power is ‘On’. 2. Press and hold the Multi‐function button for approximately 3 seconds until the LED indicator turns red and then shuts off. This indicates that the power is ‘Off’. Aux Playback 1. Insert one port of an audio cable to the headphone and the other port to any audio device such as laptop, phone or music player. Hands‐free Call 1. Press the multi‐function button shortly to answer the call when there is an incoming call. 2. Double press the multi‐function button to reject the call when there is an incoming call. 3. Double press the multi‐function button to redial last number you called.. 4. Press the multi‐function button shortly to end the call during a phone call. 5. Press the multi‐function button twice to transfer the call between headphones and mobile phones. 6. Push the multi‐function button up to volume up, vice versa. Tips: Hands‐free call functions only work when Bluetooth Connected. Hands‐free Call Waiting 1. Press the multi‐function button shortly to answer the 2 nd call when there is an incoming call during the phone call. 2. Press and hold the multi‐function button for approximately 2 seconds to reject the 2 nd call when there is an incoming call during the phone call. 3. Press the multi‐function button shortly to end the 2 nd call during the phone call. 4. Press and hold the multi‐function button to transfer the phone conversations during two phone calls. 5. Double press the multi‐function button to transfer the phone call between headphones and phone. 6. Push the multi‐function button up to volume up, vice versa. Charging the Headphones The headphones have a built‐in Lithium battery. The battery is rechargeable and provides approx 15‐hour continuous operation when fully charged. Use the charging cable to charge the speaker. The red indicator light will illuminate. The red indicator light will go out when the headphones are fully charged. N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In order to comply with RF exposure requirements, a minimum all persons distance of 5mm must be maintained between the antenna and

April 29, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : EMOIB81 Model Number: iB81, iB81BC, iB81LC, iB81WC, iB81×, iB81×× To Whom It May Concern: We, SDI Technologies Inc., hereby declare that the model : iB81BC, iB81LC, iB81WC, iB81×, iB81×× are identical with the model : iB81, except the model and color. Except for the different above, no other modification is performed. Sincerely, SDI Technologies Inc. Signature: Company Officer: Jasjit Singh Telephone Number: 732 574-9000 Email: [email protected]

Date (29/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: EMOIB81 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Dongguan Taide Industrial Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Jasjit Singh Telephone Number: 732 574-9000 Email: [email protected]

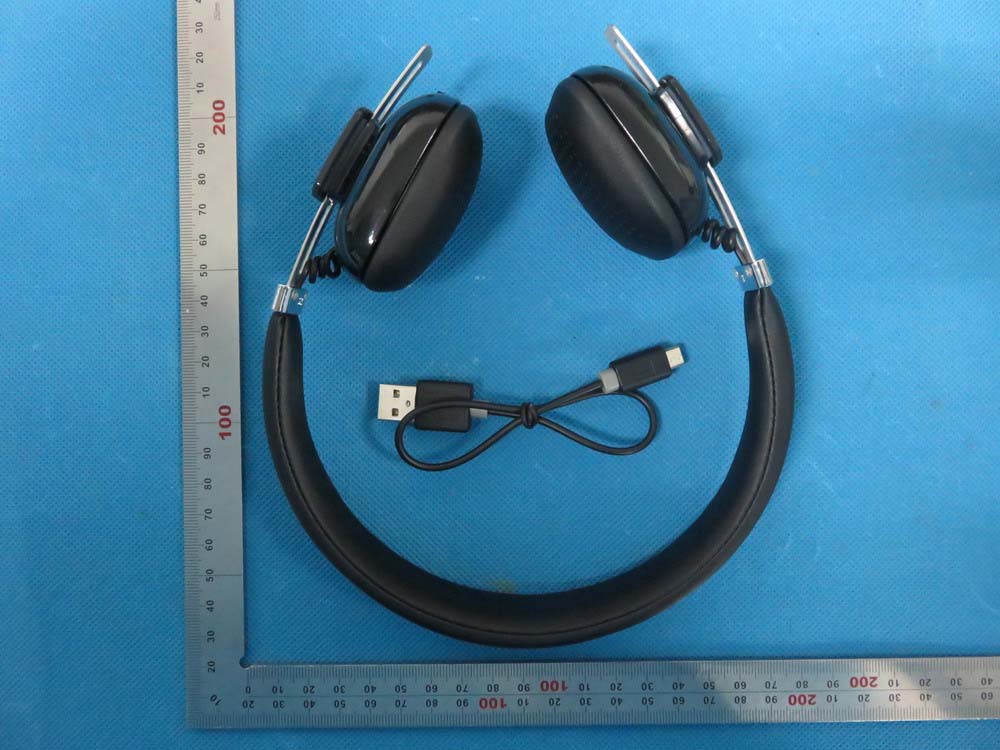

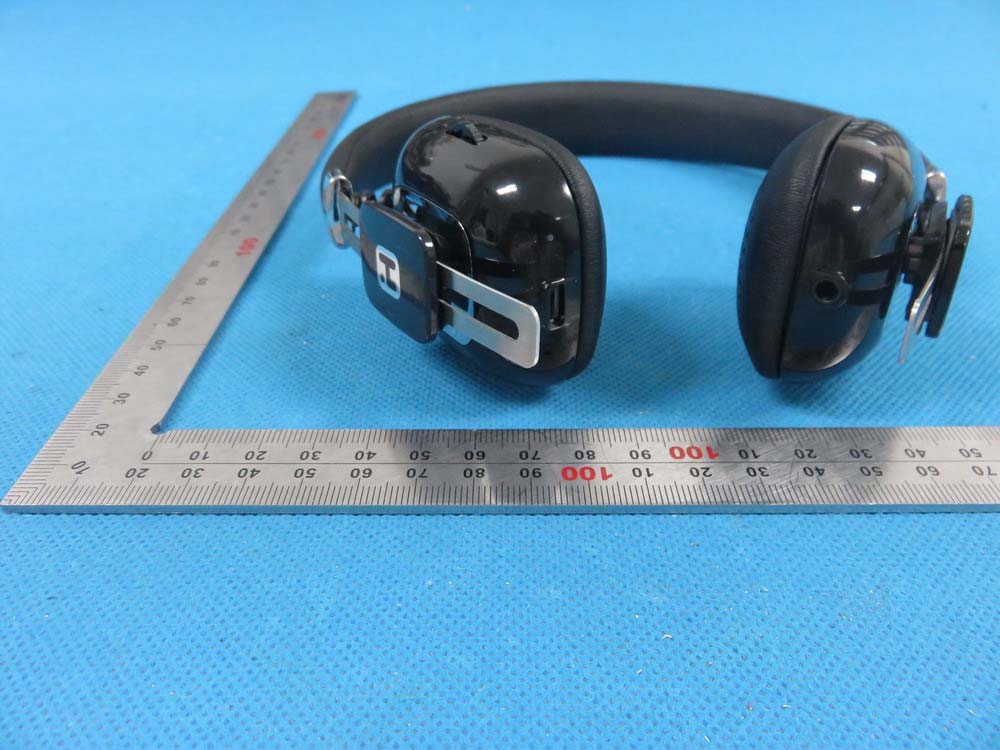

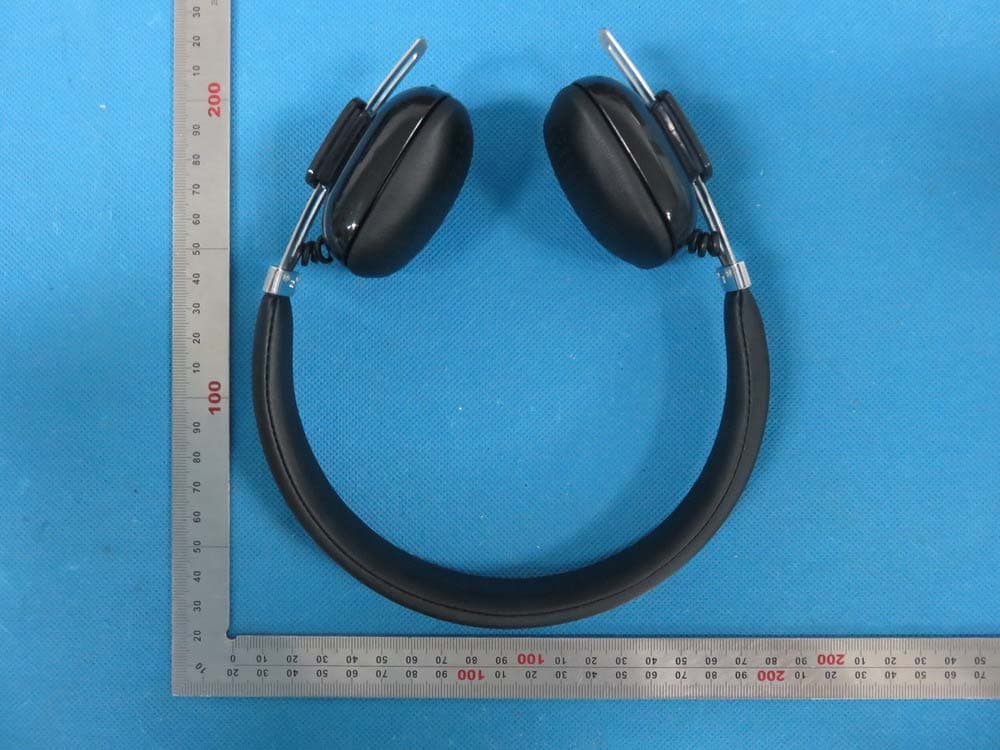

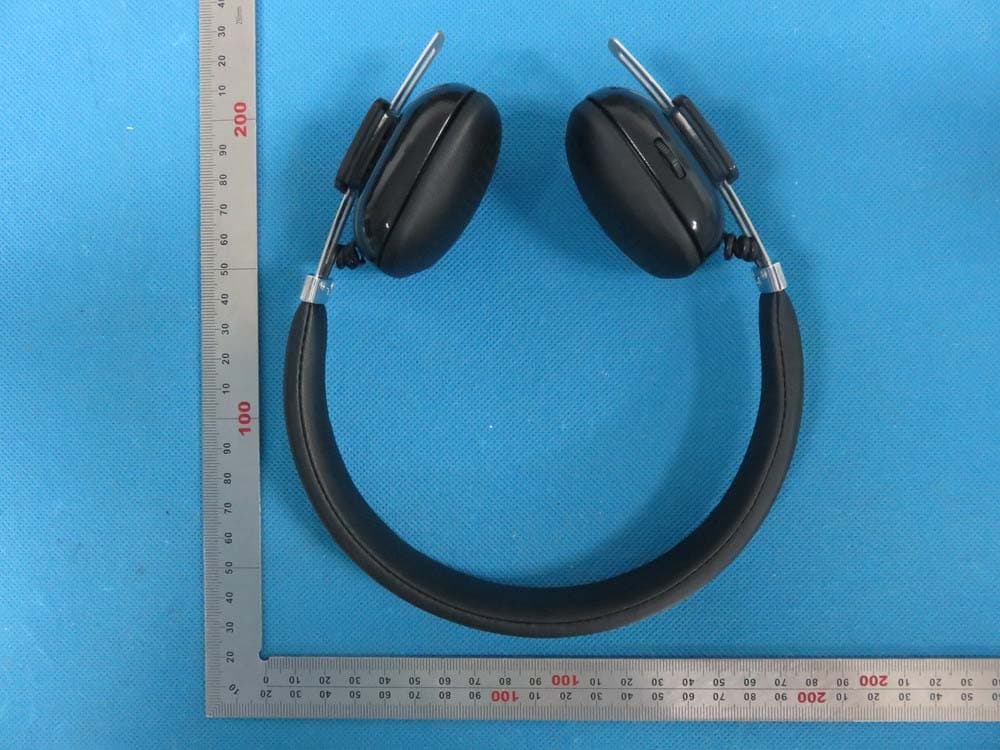

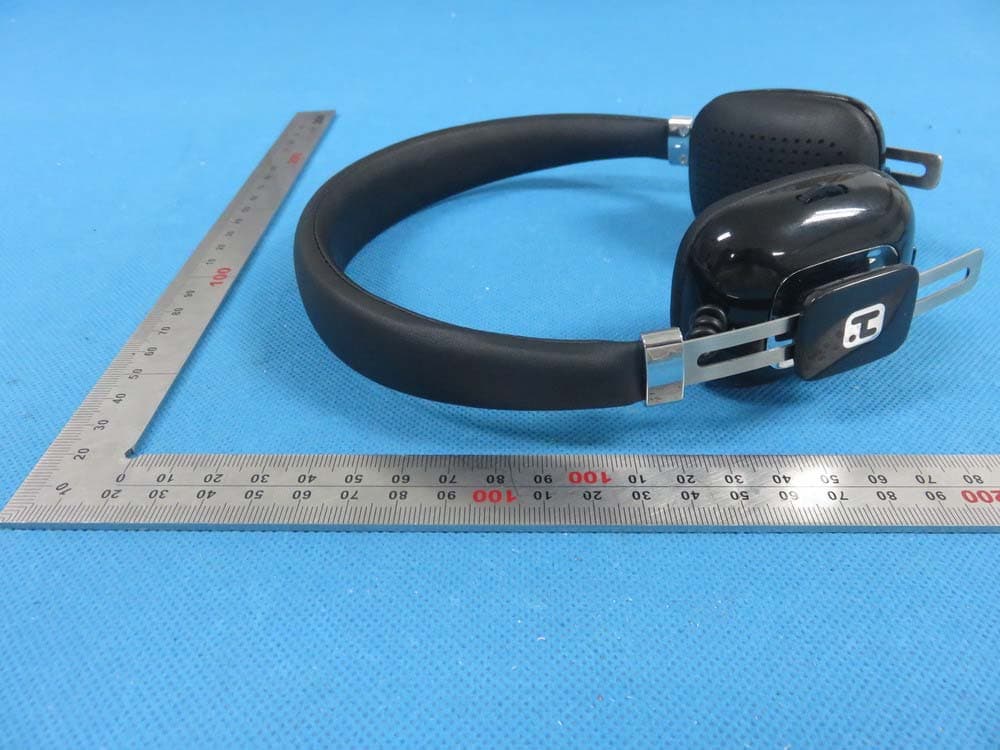

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: EMOIB81

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 Antenna

RF Exposure evaluation Product Description: Bluetooth Wireless Headphones Model Number: iB81 FCC ID: EMOIB81 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=99.28dBuv/m=0.092V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.092x3) 2 /(30x1)=0.002539W=2.54mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -2.54mW output power] (2.54mW /5mm) .[√2.480 (GHz)]= 0.80<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 74 FCC Test Report Report No.: AGC00931150312FE03 FCC ID : EMOIB81 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Wireless Headphones BRAND NAME : iHome MODEL NAME : iB81, iB81BC, iB81LC, iB81WC, iB81×, iB81×× CLIENT : SDI Technologies Inc. DATE OF ISSUE : Apr.09,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00931150312FE03 Page 2 of 74 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.09,2015 Valid Original Report Report No.: AGC00931150312FE03 Page 3 of 74 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE ................................................................................................ 41 9.2 TEST SETUP ............................................................................................................................... 41 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE .............................................................................................. 50 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 61 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 65 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 67 Report No.: AGC00931150312FE03 Page 4 of 74 1. VERIFICATION OF CONFORMITY Applicant SDI Technologies Inc. Address 1299 Main St. RahwayNJ 07065 United States Manufacturer Dongguan Taide Industrial Co., Ltd. Address Taide Technology Park, Jin Fenghuang Industrial District, Fenggang Town, Dongguan City, Guangdong Province, P.R.C. Product Designation Bluetooth Wireless Headphones Brand Name iHome Test Model iB81 Series Model iB81BC, iB81LC, iB81WC, iB81×, iB81×× Different Description All the same except for the color Date of test Apr.07,2015 to Apr.08,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Time Huang Apr.09,2015 Checked By Forrest Lei Apr.09,2015 Authorized By Solger Zhang Apr.09,20…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
