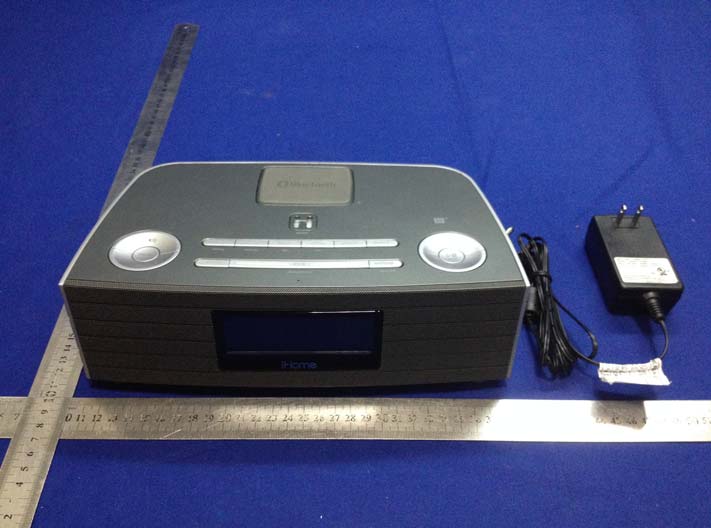

EMOIBN97ANFC Bluetooth Wireless FM Clock Radio with USB Charging

iBN97A instruction manual iBN97 IB Size: 153mm x 120mm Printing color: Black Aug. 6, 13. P1 NFC Bluetooth Wireless FM Clock Radio with USB Charging iBN97A Introduction Thank you for purchasing the iHome iBN97A. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device. The dual alarms on this iHome clock radio can be set and used independently, so you can program each alarm to wake you up to a paired Bluetooth device, 4 separate alarm tones, the FM stereo radio, or a buzzer alarm. You may set each alarm for weekday, weekend, or everyday operation, and even adjust the alarm volume separately from your normal listening volume. And best of all, even if the power is out at your selected wake up time, the SureAlarm battery backup system will still activate the electronic buzzer alarm to get you up on time. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep for future reference. This unit features NFC (near field communication) technology which allows you to wirelessly connect your NFC–enabled device to instantly ‘pair and play’. See your device’s user manual for details on how to interact with NFC devices. If your Bluetooth device does not support NFC, you can pair it manually with this unit. • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as benzene, thinner or similar materials can damage the surface of the unit. P2 Maintenance iBN97A FCC Information P3 FCC ID: EMOIBN97A IC: 986B-IBN97A • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. iBN97A Table of Contents P4 Meet Your iBN97A..........................................................................................................1-3 The Display/Setting Up the Unit..........................................................................................4 Setting the Clock/ FM Radio..............................................................................................5 Setting and Using FM Presets..............................................................................................6 Setting and Using the Alarm............................................................................................7-8 Previewing and Turning Alarm Off/Setting Gentle Wake Timer ................................................8 Snooze/Dimmer Button/Sleep and Nap Modes ..................................................................9 Using Bluetooth: Pairing & Playing Your Device Using NFC....................................................10 Pairing Your Device Using Standard Bluetooth.......................................................................11 Playing Audio Via Bluetooth/Using the Speakerphone...........................................................12 Playing Audio Via Aux-in/Charging Devices via USB Port .....................................................13 Using FM Radio in Other Countries....................................................................................14 Replacing and Installing Clock Backup Battery ....................................................................15 Troubleshooting..............................................................................................................16 Consumer Product Safety Guide...................................................................................17-18 Warranty.......................................................…

Text truncated - open the document above for the full version.

31mm 61.5mm 61.5x31mm model plate black prin ted st icker PMS cool grey 7 LIHONG 2013-06-27 gm13252 17.7.031.0014 iBN97(NCF) iBN97iBN97 iHOME A A A Bottom view Bottom view

Bluetooth module

FCC ID: EMOIBN97A Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) Result calculation 1-g SAR 2.402 GFSK 0.94 0.385 3.0 2.441 GFSK 2.46 0.551 3.0 2.480 GFSK 1.71 0.467 3.0 2.402 1/4ΠDQPSK -1.55 0.22 3.0 2.441 1/4ΠDQPSK 0.72 0.37 3.0 2.480 1/4ΠDQPSK -0.21 0.30 3.0 2.402 8DPSK -1.57 0.22 3.0 2.441 8DPSK 0.93 0.39 3.0 2.480 8DPSK -0.02 0.31 3.0 Conclusion: For the max result : 0.551≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

TRF No：FCC 15.247/A Page 1 of 53 Report No: ES131127219E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF NFC Bluetooth Wireless FM Clock Radio with USB Charging MODEL No.: iBN97, iBN97A, iBN97GC, iBN97X (X stand for A-Z) FCC ID: EMOIBN97A Trademark: iHome REPORT NO: ES131127219E ISSUE DATE: December 3, 2013 Prepared for SDI TECHNOLOGIES INC. 1299 Main Street, Rahway, NJ 07065, U.S.A. Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China. TEL : 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 2 of 53 Report No: ES131127219E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World VERIFICATION OF COMPLIANCE Applicant: SDI TECHNOLOGIES INC. 1299 Main Street, Rahway, NJ 07065, U.S.A. Manufacturer: SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China. Product Description: NFC Bluetooth Wireless FM Clock Radio with USB Charging Model Number: iBN97, iBN97A, iBN97GC, iBN97X (X stand for A-Z) (Note: all the models are the same, except their model number and appearance color. We take iBN97A to test.) Trademark: iHome Serial Number: N/A File Number: ES131127219E Date of Test: November 27, 2013 to December 2, 2013 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : November 27, 2013 to December 2, 2013 Prepared by : Jack.Li/Editor Reviewer : June xie/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.247/A Page 3 of 53 Report No: ES131127219E Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Ta b l e o f C o n t e n t s 1 GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 7 2.6 EQUIPMENT USED IN TESTED SYSTEM..................................................................................................... 11 2.7 DESCRIPTION OF TEST MODES................................................................................................................ 12 3 SUMMARY OF TEST RESULTS ............................................................................................... 13 4 CONDUCTED EMISSIONS TEST ..................................................................................... 14 4.1 MEASUREMENT PROCEDURE:................................................................................................................ 14 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 14 4.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 4.4 CONDUCTED EMISSION LIMIT.................................................................................................................... 14 4.5 MEASUREMENT RESULT:....................................................................................................................... 15 5 RADIATED EMISSION TEST ............................................................................................ 17 5.1 MEASUREMENT PROCEDURE................................................................................................................. 17 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 18 5.3 MEASUREMENT EQUIPMENT USED: ...........…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Radiated Emission Test
