EMOIBT18BT Alarm Clock Speaker with Speakerphone and USB charging

iBT18 instruction manual Bluetooth Alarm Clock Speaker with Speakerphone and USB charging iBT18 Introduction Thank you for purchasing the iHome iBT18. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device. This instruction booklet explains the basic operation and care of the unit. Please read carefully and keep for future reference. QDID: B020415 FCC/IC Information This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference received, including interference that may cause undesired operation • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAN ICES-3 (B)/NMB-3(B) The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. FCC ID:EMOIBT18 IC:986B-IBT18 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. iBT18 Maintenance • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as thinner or similar materials can damage the surface of the unit. Rinse unit with tap water and wipe dry after submersion in salt water or swimming pool. Long-term Storage of Your Product • Store in a cool, dry place. • Unit should be charged before storing. • If stored for a long period of time, unit may be unresponsive until charged for a number of hours (depending on discharge level) • Do not store for more than a year without charging as this can permanently harm the battery. • After long term storage, if unit is unresponsive after charging, RESET unit while connected to AC and recharge the unit. WARNING/DISPOSAL OF UNIT Do NOT attempt to change the battery. Doing so will void the warranty and could cause injury and damage to your device. To dispose of the unit, follow the instructions below: • Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances. • Always dispose of used batteries/electronics in accordance with the prevailing community regulations. • Many electronics retailers now recycle batteries and other electronic components at no charge. GENERAL BATTERY PRECAUTIONS • Never use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal. • Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substances. • Avoid charging a rechargeable battery when the temperature is not within 5°C - 35° C (41° - 95° Fahrenheit). • Never expose a battery to any liquid. • Never expose a battery to excessive heat such as direct sunlight or fire. Never use a battery pack in an unventilated vehicle where excessive internal temperatures may be encountered. • Always keep batteries out of the reach of infants and small children. iBT18 Table of Contents Meet Your iBT18 ........................................................................................................... 1-3 The Display/Setting Up the Unit ..........................................................................................4 Setting the Clock ..............................................................................................................5 Setting and Using the Alarm/Previewing Alarm ................................................................... 6-7 Snooz…

Text truncated - open the document above for the full version.

Project No.: 1512C056 Page 2 of 17 Project No.: 1512C056 Page 3 of 17 Project No.: 1512C056 Page 4 of 17 Project No.: 1512C056 Page 5 of 17

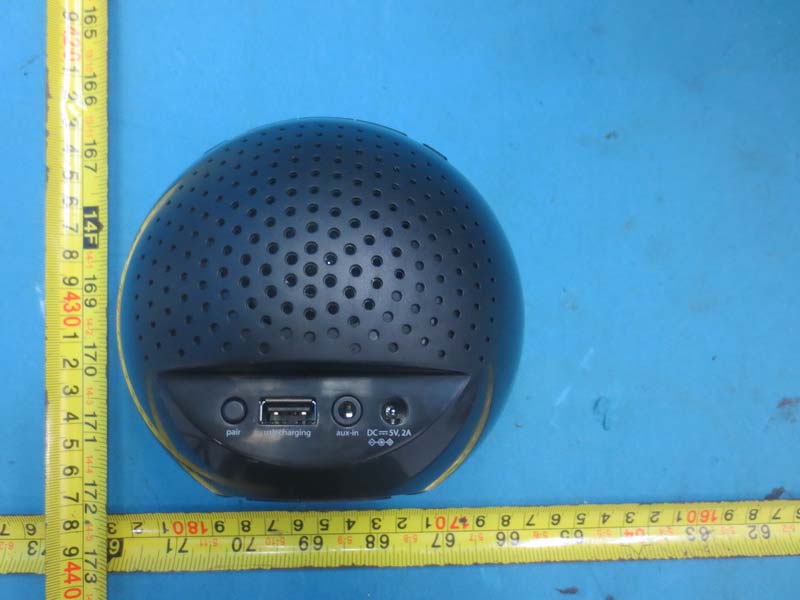

iBT18 GAW Dec. 23, 2015 BLACK = silkscreen (ref. to DL) RED = silkscreen (ref. to DL) GREEN = silkscreen (ref. to DL) Black = silkscreen (ref. to DL) BLACK = silkscreen (ref. to DL) clock adjalm reset usb chargingpairaux-inDC 5V, 2A MIC Clock Backup: DC 3V, CR2450 x 1 AC Adaptor: DC 5V, 2A Service Number: iBT18-A-A Mfd & Serviced by SDI Technologies Inc. www.ihome.com Toll Free: 1-800-288-2792 Patents: www.ihome.com/patents date code stamp Made in China Model: iBT18 IC: 986B-IBT18 FCC ID: EMOIBT18 RED = Engraving

Project No.: 1512C056 Page 6 of 17 Project No.: 1512C056 Page 7 of 17 Project No.: 1512C056 Page 8 of 17 Project No.: 1512C056 Page 9 of 17 Project No.: 1512C056 Page 10 of 17 Project No.: 1512C056 Page 11 of 17 Project No.: 1512C056 Page 12 of 17 Project No.: 1512C056 Page 13 of 17 Project No.: 1512C056 Page 14 of 17 Project No.: 1512C056 Page 15 of 17 Project No.: 1512C056 Page 16 of 17 Project No.: 1512C056 Page 17 of 17

FCC RF EXPOSURE REPORT FCC ID: EMOIBT18 Project No. : 1512C056 Equipment : BT Alarm Clock Speaker with Speakerphone and USB charging Model : iBT18, iBT18X, iBT18XC (“X”= a to Z; denote as color of cabinet) Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A PIFA N/A 0 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 5.65 3.7 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 3.7mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FICP-1-1512C056 Page 1 of 109 FCC&IC Radio Test Report FCC ID: EMOIBT18 IC: 986B-IBT18 This report concerns (check one): Original Grant Class I Change Class II Change Project No. : 1512C056 Equipment : BT Alarm Clock Speaker with Speakerphone and USB charging Model Name for FCC : iBT18, iBT18X, iBT18XC (“X”= a to Z; denote as color of cabinet) Model Name for IC : iBT18 Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Date of Receipt : Dec. 08, 2015 Date of Test : Dec. 08, 2015 ~ Dec. 15, 2015 Issued Date : Dec. 16, 2015 Tested by : BTL Inc. Testing Engineer : (Shawn Xiao) Technical Manager : (David Mao) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FICP-1-1512C056 Page 2 of 109 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-1-1512C056 Page 3 of 109 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FICP-1-1512C056 Page 4 of 109 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT TEST CONDITIONS 24 7.1.5 TEST RESULTS 24 8 . BANDWIDTH TEST 25 8.1 APPLIED PROCEDURES 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . PEAK OUTPUT POWER TEST 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 26 9.1.4 EUT OPERATION CONDITIONS 26 9.1.5 EUT TEST CONDITIONS 26 9.1.6 TEST RESULTS 26 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 10.1 APPLIED PROCEDURES / LIMIT 27 10.1.1 TEST PROCEDURE 27 10.1.2 DEVIATION FROM STANDARD 27 10.1.3 TEST SETUP 27 10.1.4 EUT OPERATION CONDITIONS 27 10.1.5 EUT TEST CONDITIONS 27 10.1.6 TEST RESULTS 27 11 . MEASUREMENT INSTRUMENTS LIST 28 Report No.: BTL-FICP-1-1512C056 Page 5 of 109 Table of Contents Page 12 . EUT TEST PHOTO 30 ATTACHMENT A - CONDUCTED EMISSION 34 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 46 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 71 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 73 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 86 ATTACHMENT H - BANDWIDTH 91 ATTACHMENT I - PEAK OUTPUT POWER 96 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 101 Report No.: BTL-FICP-1-1512C056 Page 6 of 109 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-1 -1512C056 Original Issue. Dec. 16, 2015 Report No.: BTL-FICP-1-1512C056 Page 7 of 109 1. CERTIFICATION Equipment : BT Alarm Clock Speaker with Speakerphone and USB charging Brand Name : iHome Model Name for FCC : iBT18, iBT18X, iBT18XC (“X”= a to Z; denote as color of cabinet) Model Name for IC : iBT18 Applicant : SDI TECHNOLOGIES INC. Manufacturer : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Factory : Jadestar Electronics (Shenzhen) Co. Ltd. Address : Block 5, He Tai Industr…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1512C056 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1512C056 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1512C056 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1512C056 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
