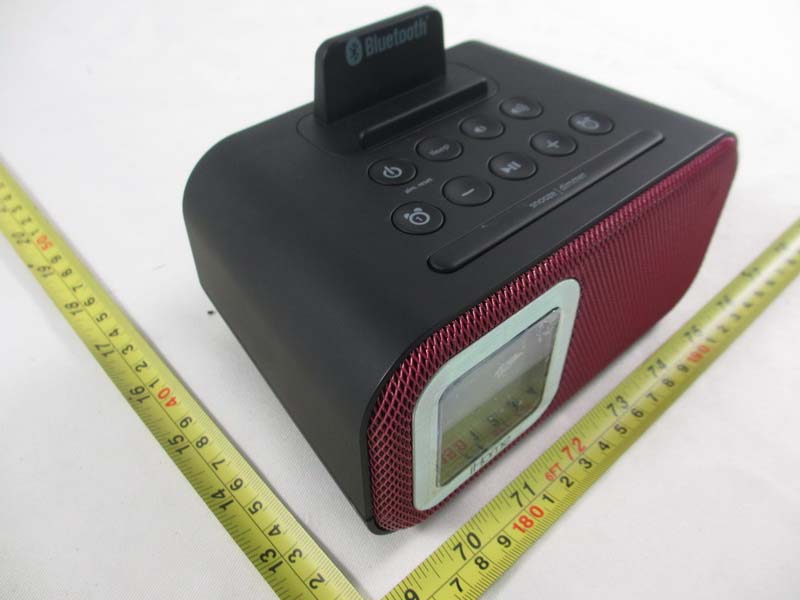

EMOIBT22Bluetooth Wireless Dual Alarm Clock

iBT22 instruction manual Model: iBT22 IB (English) Size: 153mm x 120mm Printing color: Black Date : Jan 15, 2013 P1 Bluetooth Wireless Dual Alarm Clock iBT22 Introduction Thank you for purchasing the iHome iBT22. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep for future reference. • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as benzene, thinner or similar materials can damage the surface of the unit. P2 Maintenance iBT22 FCC Information P3 FCC ID: EMOIBT22 IC: 986B-IBT22 QDID:B020340 • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference received, including interference that may cause undesired operation FCC ID: EMOIBT22 IC: 986B-IBT22 iBT22 QDID:B020340 Information FCC Cet appareil répond aux exigences du paragraphe 15 de la loi de la Commission Fédérale sur les Communications. L’utilisation de cet appareil doit répondre aux deux conditions suivantes: (1) Cet appareil ne doit pas provoquer d’interférences nuisibles, et (2) cet appareil doit accepter toutes les interférences reçues, y compris les interférences pouvant provoquer un fonctionnement non désiré P4 Déclaration FCC quant à l'exposition à la radiation Cet équipement est conforme aux limites FCC relatives à l'exposition à la radiation par radiofréquences établies pour les environnements non contrôlés. Cet émetteur ne doit pas être colocalisé ou utilisé en conjonction avec tout autre émetteur ou antenne. Cet appareil est conforme à la norme RSS-210 des règlements relatifs aux circuits intégrés. Le fonctionnement est sujet aux deux conditions suivantes : 1) Cet appareil ne doit pas causer d'interférences; et 2) Cet appareil doit accepter toute interférence reçue y compris les interférences qui peuvent occasionner un fonctionnement indésiré. • Avertissement : Tout changement ou modification apporté à cet appareil sans le consentement expresse de la partie responsable pour la conformité peut annuler le droit de l'utilisateur d'utiliser cet appareil. • Remarque : Cet équipement a été testé et jugé conforme aux limitations pour un appareil numérique de Classe B, selon la Section 15 de la règlementation FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre des fréquences radio et, s'il n'est pas installé et utilisé selon les instructions, peut causer des interférences nuisibles aux communications radio. Cependant, il n'existe aucune garantie que des interférences ne se produiront pas dans une installation particulière. Si cet équipement produit des interférences nuisibles sur la réception de la radio ou de la télévision, ce que vous pouvez facilement constater en éteignant et en rallumant l'équipement, nous vous encourageons à prendre l'une ou plusieurs des mesures correctives suivantes : • Réorienter ou déplacer l’antenne réceptrice, • Éloigner davantage l'appareil du récepteur. • Branchez l’équipement sur une prise ou un circuit auquel le récepteur n’est pas branché. • Consultez votre revendeur ou un technicien radio/télévision qualifié pour plus d’informations. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada iBT22 Table of Contents Included/ Meet Your iBT22.............................................................................................1-2 Installing Clock Backup Batteries ......................................................................…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1301C038 Page 2 of 13 Neutron Engineering Inc. Project No.: 1301C038 Page 3 of 13 Neutron Engineering Inc. Project No.: 1301C038 Page 4 of 13 Neutron Engineering Inc. Project No.: 1301C038 Page 5 of 13

MODEL: iBT22 REAR CABINET ENGRAVING 0.4mm SCALE: 1:1 DATE: JAN 14, 2013 DC 1.5V (R3) UM-4, ‘AAA ’ SIZE DC 1.5V (R3) UM-4, ‘AAA ’ SIZE DC 1.5V (R3) UM-4, ‘AAA ’ SIZE ENGRAVING 0.4mm ENGRAVING 0.7mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003.”Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.” MODEL: iBT22 MODEL PLATE (ALL COLOR) SCALE: 1:1 DATE: JAN 18, 2013 COLOR : BLACK BACKGROUND PRINTING WHITE Clock Backup: 4.5V ‘AAA’ (R03) x 3 Service No: iBT22-A-A Mfd & Serviced by SDI Technologies Inc. www.ihomeaudio.com Toll Free: 1-800-288-2792 Made in China Patents: www.ihomeaudio.com/patents AC Adaptor: DC 7.5V 2A Model: iBT22 FCC ID: EMOIBT22 IC: 986B-IBT22 Clock Backup: 4.5V ‘AAA’ (R03) x 3 Service No: iBT22-A-A Mfd & Serviced by SDI Technologies Inc. www.ihomeaudio.com Toll Free: 1-800-288-2792 Made in China Patents: www.ihomeaudio.com/patents AC Adaptor: DC 7.5V 2A Model: iBT22 FCC ID: EMOIBT22 IC: 986B-IBT22

Neutron Engineering Inc. Report No.: NEI-FICP-1-1301C038 Page 1 of 121 FCC/IC Radio Test Report FCC ID: EMOIBT22 IC: 986B-IBT22 This report concerns (check one) : Original Grant Class II Change Issued Date : Jan. 14, 2013 Project No. : 1301C038 Equipment : Bluetooth Wireless Dual Alarm Clock Model Name for FCC : iBT22; iBT22X (“X” denote as color of cabinet) Model Name for IC : iBT22 Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Manufacturer : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 04, 2013 Date of Test: Jan. 04, 2013 ~ Jan. 13, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1301C038 Page 2 of 121 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1301C038 Page 3 of 121 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 37 5 . NUMBER OF HOPPING CHANNEL 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 73 5.1.2 TEST PROCEDURE 73 5.1.3 DEVIATION FROM STANDARD 73 5.1.4 TEST SETUP 73 5.1.5 EUT OPERATION CONDITIONS 73 5.1.6 TEST RESULTS 74 6 . AVERAGE TIME OF OCCUPANCY 76 Neutron Engineering Inc. Report No.: NEI-FICP-1-1301C038 Page 4 of 121 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 76 6.1.1 MEASUREMENT INSTRUMENTS LIST 76 6.1.2 TEST PROCEDURE 76 6.1.3 DEVIATION FROM STANDARD 76 6.1.4 TEST SETUP 77 6.1.5 EUT OPERATION CONDITIONS 77 6.1.6 TEST RESULTS 78 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 90 7.1 APPLIED PROCEDURES / LIMIT 90 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 90 7.1.2 TEST PROCEDURE 90 7.1.3 DEVIATION FROM STANDARD 90 7.1.4 TEST SETUP 90 7.1.5 EUT OPERATION CONDITIONS 90 7.1.6 TEST RESULTS 91 8 . BANDWIDTH TEST 95 8.1 APPLIED PROCEDURES / LIMIT 95 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 95 8.1.2 TEST PROCEDURE 95 8.1.3 DEVIATION FROM STANDARD 95 8.1.4 TEST SETUP 95 8.1.5 EUT OPERATION CONDITIONS 95 8.1.6 TEST RESULTS 96 9 . PEAK OUTPUT POWER TEST 100 9.1 APPLIED PROCEDURES / LIMIT 100 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 100 9.1.2 TEST PROCEDURE 100 9.1.3 DEVIATION FROM STANDARD 100 9.1.4 TEST SETUP 100 9.1.5 EUT OPERATION CONDITIONS 100 9.1.6 TEST RESULTS 101 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 105 10.1 APPLIED PROCEDURES / LIMIT 105 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 105 10.1.2 TEST PROCEDURE 105 10.1.3 DEVIATION FROM STANDARD 105 10.1.4 TEST SETUP 105 10.1.5 EUT OPERATION CONDITIONS 105 10.1.6 TEST RESULTS 106 11 . EUT TEST PHOTO 118 Neutron Engineering Inc. Report No.: NEI-FICP-1-1301C038 Page 5 of 121 1. CERTIFICATION Equipment : Bluetooth Wireless Dual Alarm Clock Brand Name : iHome Model Name for FCC : iBT22; iBT22X (“X” denote as color of cabinet) Model Name for IC : iBT22 Applicant : SDI TECHNOLOGIES INC. Factory : Winty Industries Corporation (Shen Zhen) Co. Ltd. Address : San Lian Industry Zone. Shi Yan Town, Bao An District, ShenZhen, China Date of Test : Jan. 04, 2013 ~ Jan. 13, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evalu…
