EMOIBT97Bluetooth Wireless FM Clock Radio with USB Charging

iBT97 instruction manual iBT97 IB Size: 153mm x 120mm Printing color: Black Feb. 27, 13. P1 Bluetooth Wireless FM Clock Radio with USB Charging iBT97 Introduction Thank you for purchasing the iHome iBT97. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep for future reference. • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as benzene, thinner or similar materials can damage the surface of the unit. P2 Maintenance iBT97 FCC Information P3 FCC ID: EMOIBT97 IC: 986B-IBT97 • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This Device complies with RSS-210 of the IC Rules; Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference received, including interference that may cause undesired operation iBT97 Table of Contents Meet Your iBT97...........................................................................................................1-3 The Display/Setting Up the Unit..........................................................................................4 Setting the Clock/ FM Radio..............................................................................................5 Setting and Using FM Presets..............................................................................................6 Setting and Using the Alarm............................................................................................7-8 Previewing and Turning Alarm Off/Setting Gentle Wake Timer ................................................8 Snooze/Dimmer Button/Sleep and Nap Modes ..................................................................9 Using Bluetooth: Pairing Your Device..................................................................................10 Playing Audio Via Bluetooth/Using the Speakerphone...........................................................11 Playing Audio Via Aux-in/Charging Devices via USB Port .....................................................12 Using FM Radio in Other Countries....................................................................................13 Replacing and Installing Clock Backup Battery ....................................................................14 Troubleshooting..............................................................................................................15 Consumer Product Safety Guide...................................................................................15-16 Warranty......................................................................................................................17 P4 iBT97 1 P5 Included • iBT97 system • 100V-240V universal AC adaptor • 3.5mm audio cable • Backrest power adaptor audio cablebackrest iBT97 A removable backrest is included with the unit for best stability when resting a device on top of the unit in either portrait or landscape orientation. 1. To remove the flat rubberized rest, press down on the front of the rest and remove it. 2. To place the backrest, gently slide the front tabs into place. 12 iBT97 P6 Meet Your iBT97 Top Nap/Clock Set Button Mode Button Power Button Talk Button End Button Plus/Minus Settings Buttons Volume Up Button EQ/Pairing Button Volume Down Button Play/Pause and Presets Button Wakeup/alarm Skip Button Sleep Button Snooze/Dimmer Button Microphone Alarm 1 & Alarm 2 Buttons Backrest/Landscape insert DC Jack USB Charging Port Aux-in Jack iBT97 P7 Meet Your iBT97 Back Bottom 3 usb charging DC 12V 2.5A FM Antenna Backup Battery Compartment iBT97 Using the Setting …

Text truncated - open the document above for the full version.

FCC ID: EMOIBT97

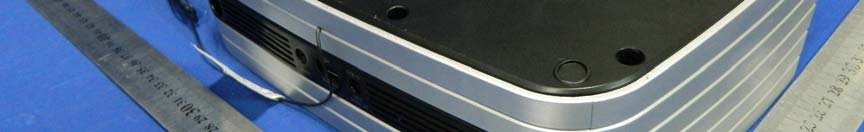

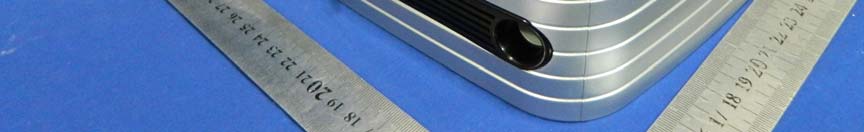

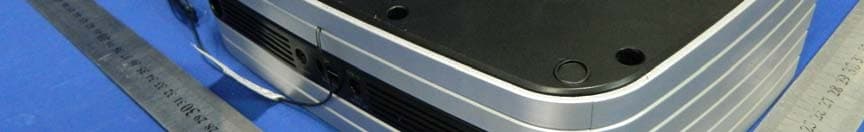

31mm 61.5mm Bottom view Bottom view

Antenna BT module

FCC ID : EMOIBT97 BT (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) SAR Limitation (mw) 2402 2480 2441 10 Maximum measured transmitter power Conducted Power (dBm) Conducted Power (mw) Max Antenna Gain (dBi) EIRP (mw) 2.31 1.702 0 1.702 Threshold at which no SAR required is 10 mw. Maximum Tx power is 1.702 mw EIRP Conclusion: No SAR is required. Sincerely, Signature: Date: 03-27-2013 Name and Title (Please print or type): David lee/ General manager

TRF NoFCC 15.247/A Page 1 of 61 Report No: ES121226188E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPARTC REQUIREMENT OF Bluetooth Wireless FM Clock Radio with USB Charging MODEL No.: iBT97 FCC ID: EMOIBT97 Trade Mark: iHome REPORT NO: ES121226188E ISSUE DATE: March 18, 2013 Prepared for SDI Technologies Inc 1299 Main Street, Rahway, NJ 07065, U.S.A Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF NoFCC 15.247/A Page 2 of 61 Report No: ES121226188E VERIFICATION OF COMPLIANCE Applicant: SDI Technologies Inc 1299 Main Street, Rahway, NJ 07065, U.S.A Manufacturer: SHENZHEN FENDA TECHNOLOGY CO., LTD. Fenda Hi-Tech Park, Zhoushi Road, Shiyan Town, Baoan District, Shenzhen City, Guangdong, China Product Description: Bluetooth Wireless FM Clock Radio with USB Charging Model Number: iBT97 Trade Mark: iHome Serial Number: N/A File Number: ES121226188E Date of Test: December 28, 2012 to March 18, 2013 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Date of Test : December 28, 2012 to March 18, 2013 Prepared by : Jessie Hu/Editor Reviewer : King Wang/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF NoFCC 15.247/A Page 3 of 61 Report No: ES121226188E Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 7 2.6 DESCRIPTION OF TEST MODES................................................................................................................ 12 3. SUMMARY OF TEST RESULTS ....................................................................................... 13 4. CONDUCTED EMISSIONS TEST ..................................................................................... 14 4.1 MEASUREMENT PROCEDURE:................................................................................................................ 14 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 14 4.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 4.4 CONDUCTED EMISSION LIMIT............................................................................................................... 14 4.5 MEASUREMENT RESULT:....................................................................................................................... 16 5. RADIATED EMISSION TEST ............................................................................................ 17 5.1 MEASUREMENT PROCEDURE................................................................................................................. 17 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 18 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 19 5.4 MEASUREMENT RESULT........................................................................................................................ 20 6. CHANNEL SEPARATION TEST ....................................................................................... 35 6.1 MEASUREMENT PROCEDURE................................................................................................................. 35 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 35 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 35 6.4 MEASUREMENT RESULTS:..................................................................................................................... 35 7. 20DB BANDWIDTH TE…

Text truncated - open the document above for the full version.

Radiated test setup Conducted test setup
