EMOIBTW20Compact Bluetooth Bedside Alarm Clock with Upright Wireless and USB Charging

iBTW20 - Instruction Sheet - English Color: Black text on white paper (1C + 1C) Size: 102 W x 150 H mm Material: 85gsm wood free paper Oct 29, 2019 Connect AC adapter to DC Jack, and plug into outlet. WIRELESS CHARGING Supports: • Qi compatible phones (also works with plastic cases up to 3mm thick) Place Qi compatible device facing forward on the charging rest. Charging status will be indicated on display: Rapid blinking LED: Device is not charging (reposition device) Slow blinking LED: Device is charging Solid LED: Device is fully charged Note: LED may continue to blink slowly when iOS devices are fully charged. CAUTION: Remove phone’s metal protective case before charging. Do not place magnetic or metal objects on charger during charging. REAR CONTROLS OVERVIEW iBTW20_FCC_102919-A Printed in China © 2020 SDI Technologies, Inc. All rights reserved FCC ID: EMOIBTW20 IC: 986B-IBTW20 DST Switch (Daylight Savings) USB Charging (5V/1A) DC Jack for power supply (9V/3A) Bluetooth Pairing Button/LED - Press & Hold to enter pairing mode - Select ‘iHome TimeBase’ on your device to connect Battery Backup Compartment (for clock accuracy) TIME SET ALARM SET *Before use, remove battery pull tab from bottom panel. - Press to Preview - Press Again to Arm/Disarm Alarm - Press & Hold to Set Alarm (adjust with +/- and press alarm to confirm) - Press & Hold to Set Clock (adjust with +/- and press time to confirm) - Repeat for year, month, and date POWER Wireless Charging - Press to Turn ON/OFF PLUS | MINUS - Press + to increase time & settings - Press - to decrease time & settings PLAY/PAUSE - Press to Play/Pause Audio or Answer/End Calls - Press & Hold to activate Google/Siri Alarm Indicator Low Backup Battery Indicator PM Indicator Wireless Charging Status LED - Press to Snooze Alarm - Press & Hold to Adjust Snooze Duration (adjust with +/- and press ZZZ to confirm) - Press to Adjust Display Brightness Levels Snooze (ZZZ) -1 +1 Auto usb charging DC 9V, 3A Model: iBTW20 Wireless Charging + Speaker For questions, full instructions, warranty, and additional safety information, please scan the QR code or visit: www.ihome.com/help/iBTW20 or call 1-800-288-2792 Toll Free FCC Information This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAN ICES-3 (B) / NMB-3(B), CAN RSS216 / CNR-216 IC Statement This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. WARNING • Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. • Keep new and used batteries…

Text truncated - open the document above for the full version.

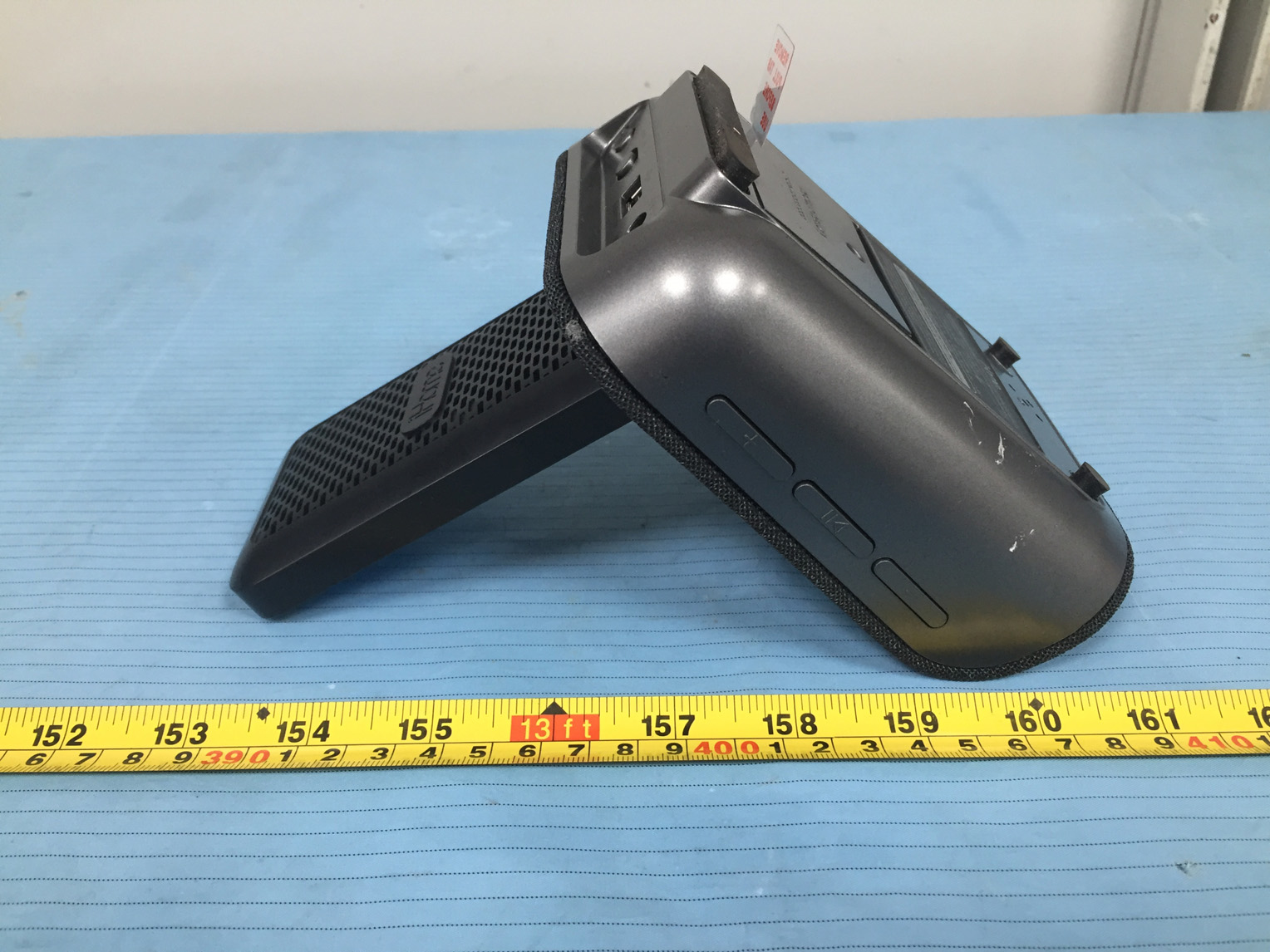

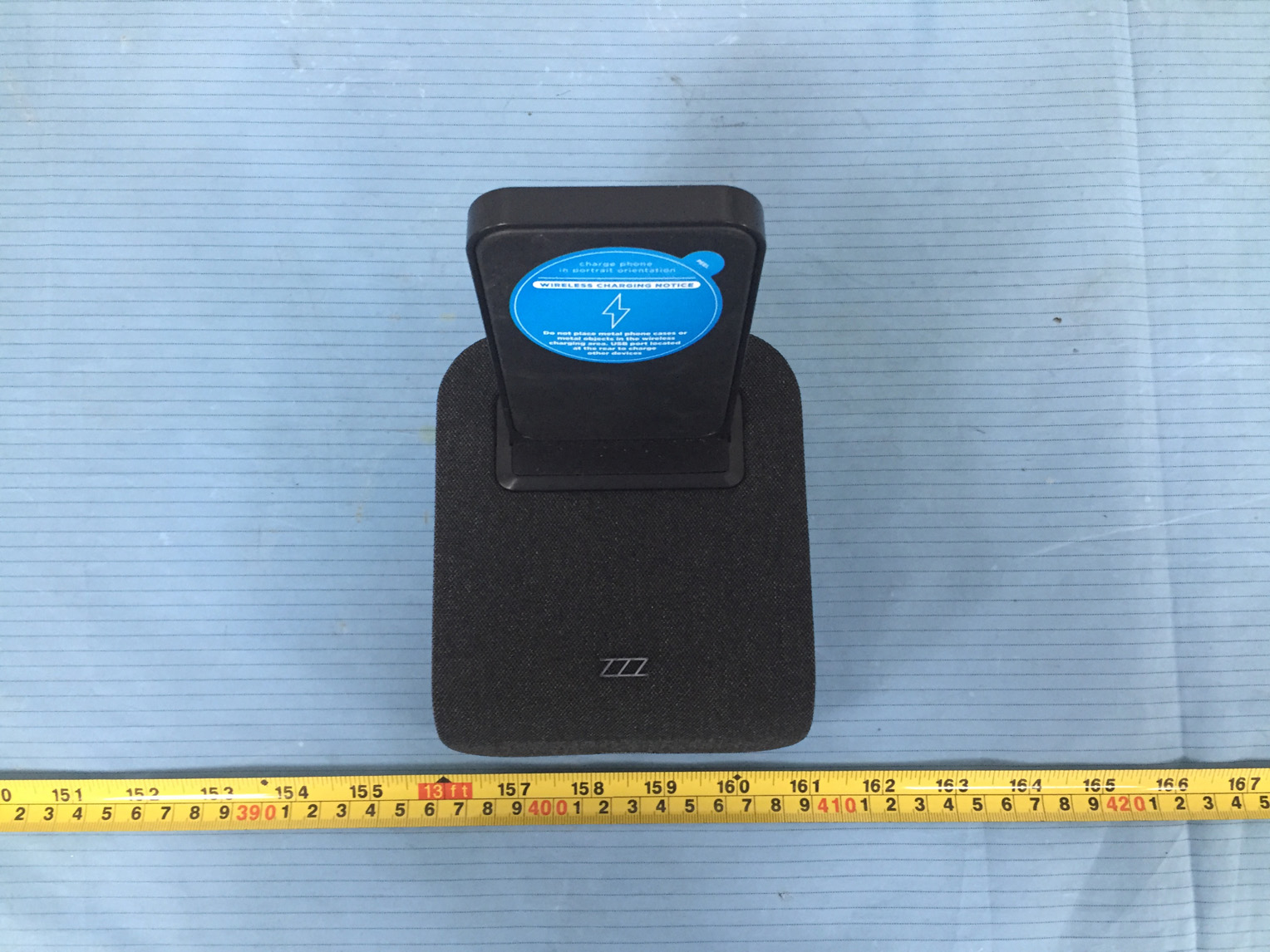

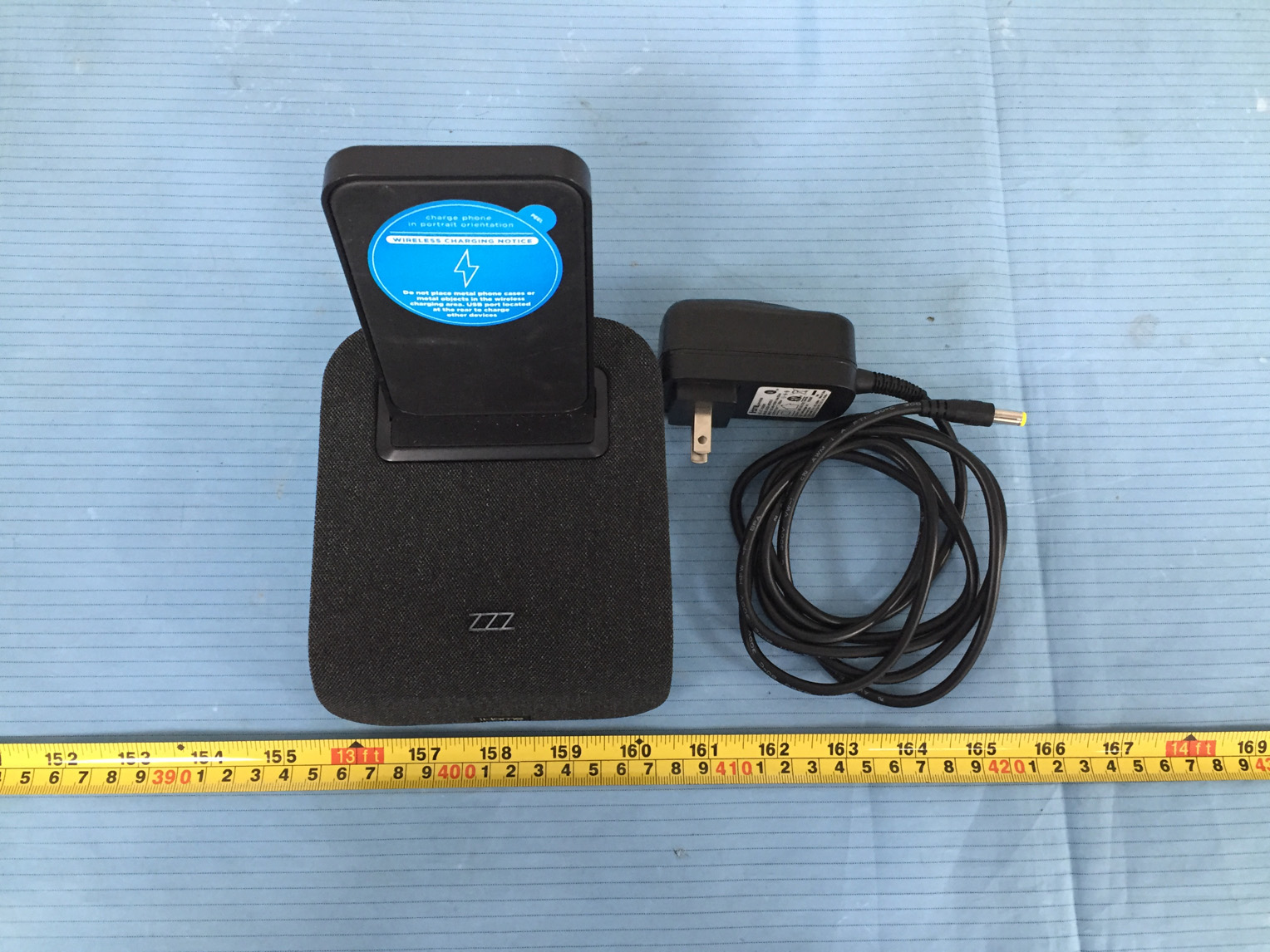

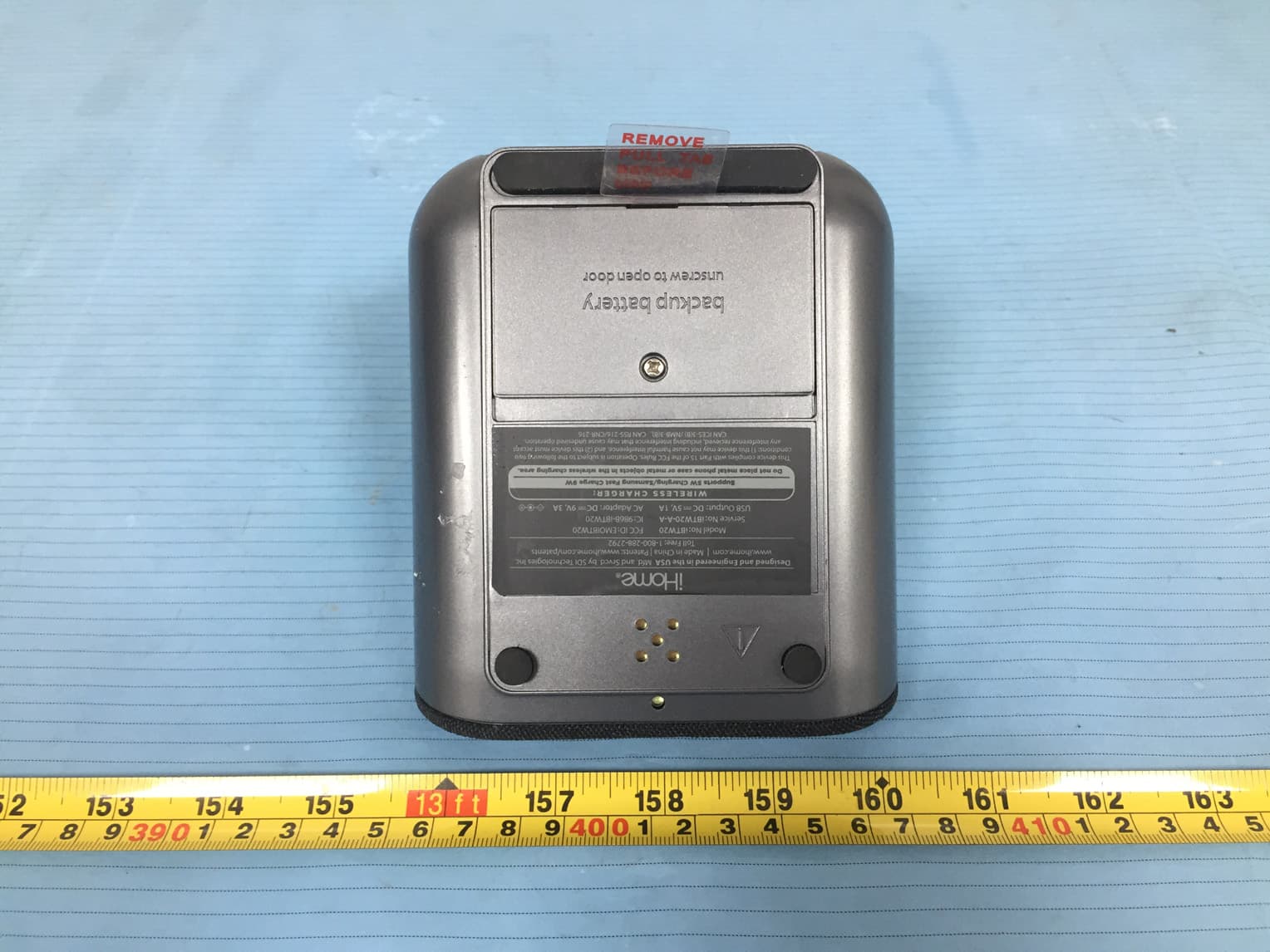

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS BT Antenna Wireless Charge Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For SDI Technologies Inc. 1299 Main St. Rahway, New Jersey 07065, United States FCC ID: EMOIBTW20 Report Type: Original Report Product Type: Compact Bluetooth Bedside Alarm Clock with Upright Wireless and USB Charging Re port Number: RSZ191108K58-00C Re port Date: 2019-12-12 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ191108K58-00C FCC Part 15.247 Page 2 of 28 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 DUTY CYCLE ................................................................................................................................................................ 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................…

Text truncated - open the document above for the full version.

Item A: DTS Bandwidth Test Result TestMode AntennaChannel DTS BW [MHz] Limit[MHz]Verdict BLE_BT4.0 Ant1 2402 0.684 0.5 PASS 2440 0.684 0.5 PASS 2480 0.684 0.5 PASS Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 BLE_BT4.0_Ant1_2480 Item B: Occupied Channel Bandwidth Test Result TestMode AntennaChannel OCB [MHz] Limit[MHz]Verdict BLE_BT4.0 Ant1 2402 1.051 --- PASS 2440 1.047 --- PASS 2480 1.047 --- PASS Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 BLE_BT4.0_Ant1_2480 Item C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_BT4.0 Ant1 2402 -1.94 <=30 PASS 2440 -0.50 <=30 PASS 2480 0.62 <=30 PASS Item D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_BT4.0 Ant1 2402 -13.78 <=8 PASS 2440 -12.21 <=8 PASS 2480 -11.19 <=8 PASS Test Graphs BLE_BT4.0_Ant1_2402 BLE_BT4.0_Ant1_2440 BLE_BT4.0_Ant1_2480 Item E:Band edge measurements Test Result TestMode AntennaChName ChannelRefLevel[dBm]Result[dBm]Limit[dBm] Verdict BLE_BT4.0 Ant1 Low 2402 -0.57 -48.52 <=-20.57 PASS High 2480 2.07 -24.24 <=-17.93 PASS Test Graphs BLE_BT4.0_Ant1_Low_2402 BLE_BT4.0_Ant1_High_2480 Item F: Duty Cycle Test Result TestMode AntennaChannel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] BLE_BT4.0 Ant1 2440 0.385 0.389 98.97 Test Graphs BLE_BT4.0_Ant1_2440 Att 20 dB * * A 3DB RBW 10 MHz VBW 10 MHz SWT 2.5 ms TRG MAXH Ref 13 dBm Offset 10.5 dB Center 2.44 GHz250 μs/ LVL 1 PK -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -37.85 dBm 1.157853 ms 2 Delta 2 [T1 ] 13.16 dB 388.621795 μs 1 Delta 1 [T1 ] -0.53 dB 384.615385 μs TRG -12.7 dBm Date: 12.DEC.2019 15:29:49

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
