EMOICVBT4AFlat Panel Vanity Mirror with Bluetooth Downward firing Mono Speaker

CONNECTING TO BLUETOOTH • Press the Power Button to turn the unit ON. • Press and hold the Bluetooth Pairing Button (on the back of the unit) for 3 seconds. The blinking icon on the front panel will indicate the unit is in pairing mode. • Select ‘iHome Reflect TRIFOLD’ on your device’s Bluetooth menu to connect. The icon will glow solid to confirm your device is connected. SETUP OVERVIEW Open the left and right side panels of the REFLECT TRIFOLD and adjust the angles as needed. CONNECTING MIRROR TO POWER Connect included AC adapter to DC jack on back of mirror and the other end to a working wall outlet. 2 6 FCC INFORMATION This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IC Statement This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The device comply with ISEDC RF exposure requirement, users can obtain Canadian information on RF exposure and compliance. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. L'appareil est conforme aux exigences d'exposition RF ISEDC, les utilisateurs peuvent obtenir des informations canadiennes sur l'exposition aux RF et la conformité. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Tout changement ou modification non expressément approuvé par la partie responsable de la conformité peut annuler l'autorité de l'utilisateur à utiliser l'équipement. CAN ICES 3(B) / NMB-3(B) 8 1 Model: iC VBT4 5 WHAT’S INCLUDED: iCVBT4 Vanity Speaker REFLECT TRIF OLD AC Adapter USB o utlet USB Charging Port (1A) Bluetooth Pairing Button DC Jack 9V/2A 7 IMPORTANT SAFETY INSTRUCTIONS Please heed all warnings, read and follow all instructions and keep these instructions handy for future reference. 1. Do not use this product near water, and clean only with dry cloth. 2. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 3. Heat – This product should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat. 4. Only use attachments/accessories specified by the manufacturer. 5. Unplug this product during lightning storms or when unused for long periods of time. 6. Damage Requiring Service – This product should be serviced by qualified service personnel when: - Plug has been damaged. - Objects have fallen into or liquid has been spilled into the enclosure. - The unit has been exposed to rain. The unit has been dropped or the enclosure damaged. - The unit exhibits a marked change in performance or does not operate normally. 7. No naked flame sources, such as lighted candles, should be placed on this product. 8. Attention should be drawn to the environmental aspects of battery disposal. 9. This product is suitable for use in tropical and/or moderate climates. 10. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. 11. The mains plug of power adaptor is used as the disconnect device, it shall remain readily operable. 12. Never place the mirror in or expose the mirror to direct sunligh…

Text truncated - open the document above for the full version.

SDI Technologies Inc. Address: 1299 Main St. Rahway, NJ 07065, United States Email: [email protected] Tel: 732 5749000‐ Fax: 735 5742634‐ Date: 2020/06/11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, model ATS2819S, which installed in our product Flat Panel Vanity Mirror with Bluetooth Downward firing Mono Speaker, Model: iCVBT4, FCC ID: EMOICVBT4A, supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), and BLE functions. For use in America and this chip will not support/enable BLE. The BLE function has been shielded by the manufacturer using the software. Sincerely Yours, Signature: David Stetin Compliance Officer

SDI Technologies Inc. ADD: 1299 Main St. Rahway NJ 07065, United States Tel: 732 574-9000 Fax: 732 574-2634 Email: [email protected] Product Similarity Declaration 2020-06-11 To Whom It May Concern, We, SDI Technologies Inc., hereby declare that we have a product named as Flat Panel Vanity Mirror with Bluetooth Downward firing Mono Speaker (Model number: iCVBT4) (FCC ID: EMOICVBT4A) was tested by BACL, meanwhile, for our marketing purpose, we would like to list series models (iCVBT4W, iCVBT4X (where X is any 1-2 alphabet(s) combination denoted different color of cabinet)) on reports and certificate, all the models are electrically identical. The only difference is the color and model number. No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: David Stetin Compliance Officer

SDI Technologies Inc. ADD: 1299 Main St. Rahway NJ 07065, United States Tel: 732 574-9000 Fax: 732 574-2634 Email: [email protected] FCC Confidential Authorization Date: 2020-06-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: EMOICVBT4A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, SDI Technologies Inc. , hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: David Stetin Compliance Officer

QA-FR-170-B 7/29/2014 SDI Technologies Inc. ADD: 1299 Main St. Rahway NJ 07065, United States Tel: 732 574-9000 Fax: 732 574-2634 Email: [email protected] FCC Authorization Date: 2020-06-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, SDI Technologies Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corp to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: David Stetin Compliance Officer

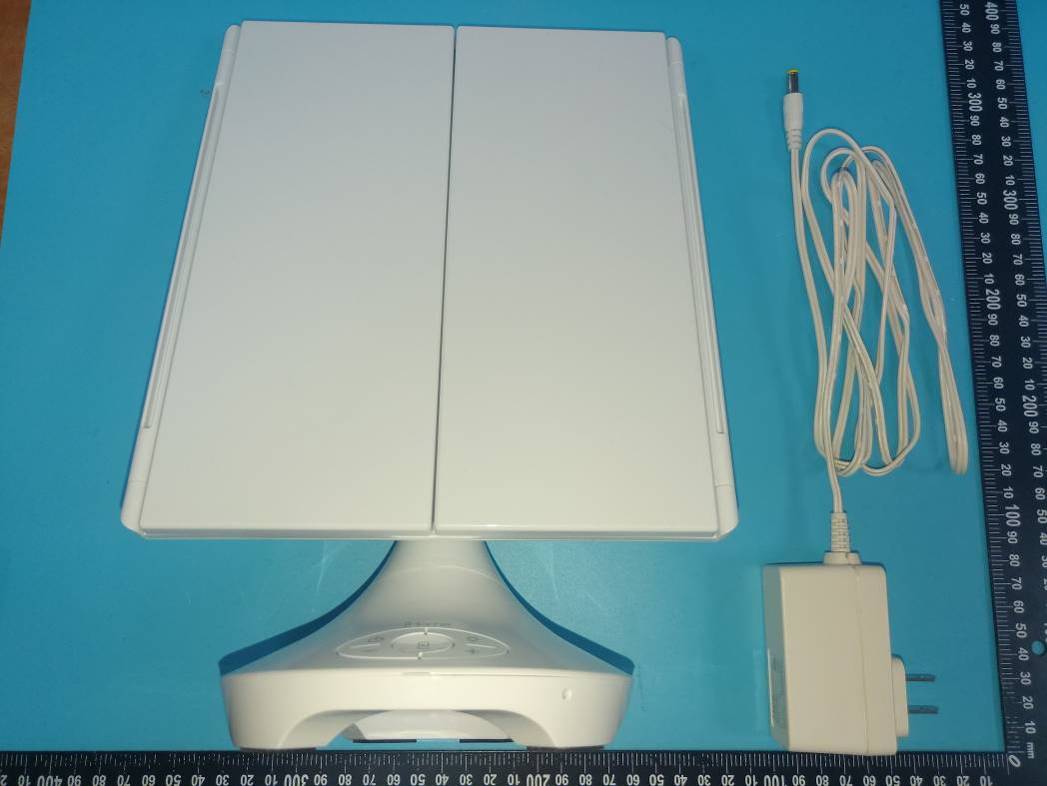

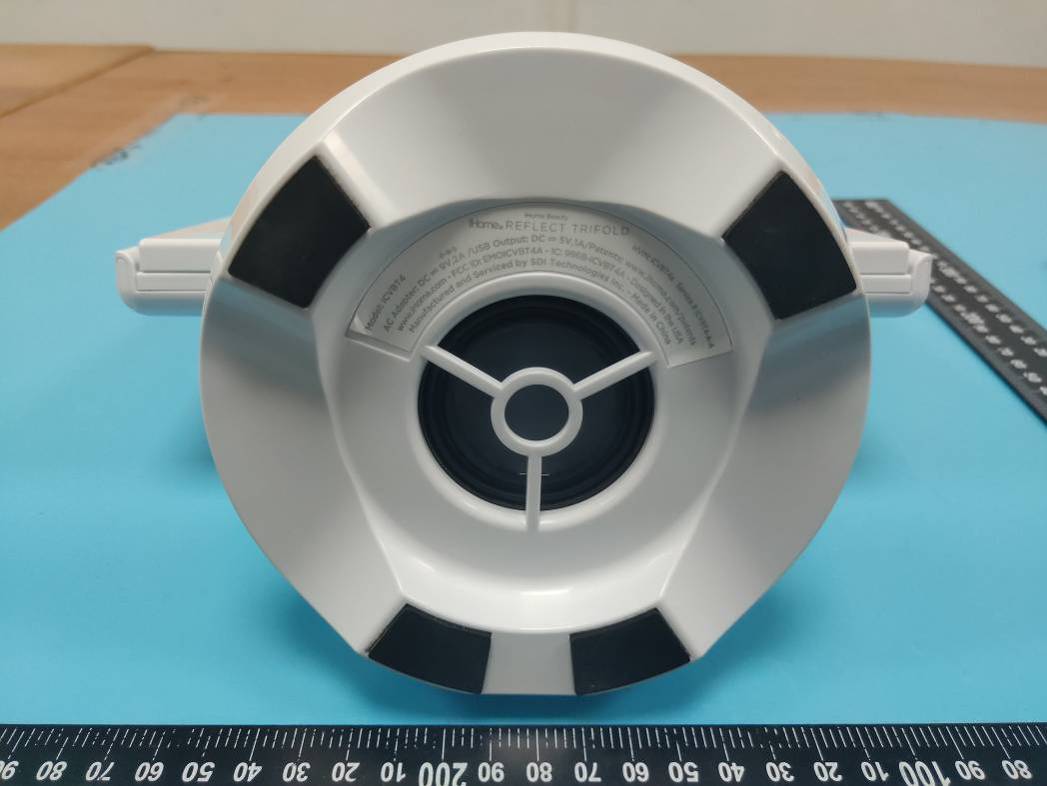

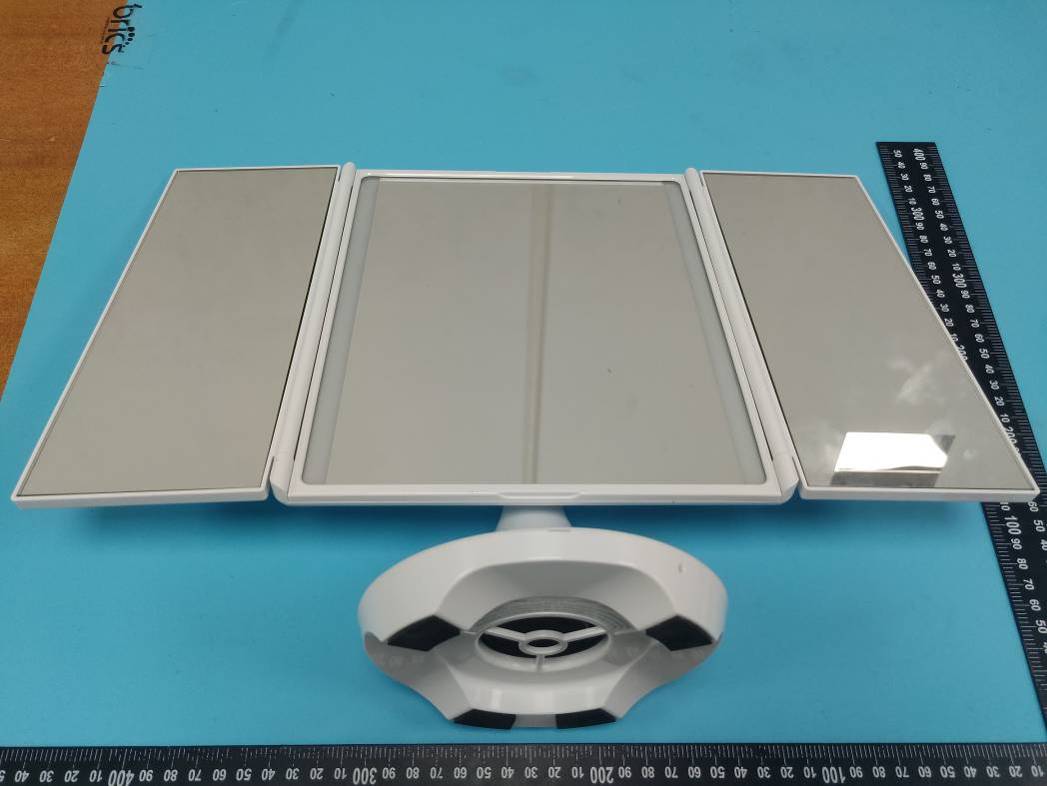

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Antenna

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For SDI Technologies Inc. 1299 Main St. Rahway, New Jersey 07065, United States FCC ID: EMOICVBT4A Report Type: Original Report Product Type: Flat Panel Vanity Mirror with Bluetooth Downward firing Mono Speaker Re port Number: RSZ200515K11-00 Re port Date: 2020-07-06 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 FCC Part 15.247 Page 2 of 29 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 RESULT ...................................................................................................................................................................... 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ......................................................................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 1 of 25 AppendixA: 20dBEmission Bandwidth Test Result TestMode Antenna Channel 20db EBW[MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.936 --- PASS 2441 0.939 --- PASS 2480 0.876 --- PASS 2DH1 Ant1 2402 1.287 --- PASS 2441 1.287 --- PASS 2480 1.287 --- PASS 3DH1 Ant1 2402 1.257 --- PASS 2441 1.257 --- PASS 2480 1.260 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 2 of 25 Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 3 of 25 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 4 of 25 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 5 of 25 AppendixB: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] Limit[MHz] Verdict DH1 Ant1 2402 0.884 --- PASS 2441 0.887 --- PASS 2480 0.881 --- PASS 2DH1 Ant1 2402 1.193 --- PASS 2441 1.193 --- PASS 2480 1.190 --- PASS 3DH1 Ant1 2402 1.172 --- PASS 2441 1.172 --- PASS 2480 1.169 --- PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 6 of 25 Test Graphs DH1_Ant1_2402 DH1_Ant1_2441 DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 7 of 25 2DH1_Ant1_2402 2DH1_Ant1_2441 2DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 8 of 25 3DH1_Ant1_2402 3DH1_Ant1_2441 3DH1_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 9 of 25 AppendixC: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict DH1 Ant1 2402 2.99 <=20.97 PASS 2441 2.97 <=20.97 PASS 2480 3.73 <=20.97 PASS 2DH1 Ant1 2402 5.53 <=20.97 PASS 2441 5.56 <=20.97 PASS 2480 6.36 <=20.97 PASS 3DH1 Ant1 2402 6.12 <=20.97 PASS 2441 6.06 <=20.97 PASS 2480 6.79 <=20.97 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 10 of 25 AppendixD: Carrier frequency separation Test Result TestMode Antenna Channel Result[MHz] Limit[MHz] Verdict DH1 Ant1 Hop 1.000 >=0.584 PASS 2DH1 Ant1 Hop 1.000 >=0.858 PASS 3DH1 Ant1 Hop 1.003 >=0.838 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 11 of 25 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 12 of 25 AppendixE: Time of occupancy Test Result TestMode AntennaChannel BurstWidth [ms] TotalHops [Num] Result[s]Limit[s] Verdict DH1 Ant1 Hop 0.40 310 0.124 <=0.4 PASS DH3 Ant1 Hop 1.65 130 0.215 <=0.4 PASS DH5 Ant1 Hop 2.89 90 0.260 <=0.4 PASS 2DH1 Ant1 Hop 0.40 310 0.123 <=0.4 PASS 2DH3 Ant1 Hop 1.64 120 0.197 <=0.4 PASS 2DH5 Ant1 Hop 2.88 70 0.202 <=0.4 PASS 3DH1 Ant1 Hop 0.49 330 0.161 <=0.4 PASS 3DH3 Ant1 Hop 1.64 120 0.197 <=0.4 PASS 3DH5 Ant1 Hop 2.88 70 0.202 <=0.4 PASS Note 1：A period time=0.4*79=31.6(S), Result=BurstWidth*Totalhops Note 2: Totalhops=Hopping Number in 3.16s*10 Note 3: Hopping Number in 3.16s=Total of highest signals in 3.16s (Second high signals were other channel) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 13 of 25 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 14 of 25 DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 15 of 25 2DH1_Ant1_Hop 2DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 16 of 25 2DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 17 of 25 3DH1_Ant1_Hop 3DH3_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 18 of 25 3DH5_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 19 of 25 AppendixF: Number of hopping channels Test Result TestMode Antenna Channel Result[Num] Limit[Num] Verdict DH1 Ant1 Hop 79 >=15 PASS 2DH1 Ant1 Hop 79 >=15 PASS 3DH1 Ant1 Hop 79 >=15 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 20 of 25 Test Graphs DH1_Ant1_Hop 2DH1_Ant1_Hop 3DH1_Ant1_Hop Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 21 of 25 AppendixG:Band edge measurements Test Graphs DH1_Ant1_Low_2402 DH1_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 22 of 25 DH1_Ant1_Low_Hop_2402 DH1_Ant1_High_Hop_2480 2DH1_Ant1_Low_2402 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 23 of 25 2DH1_Ant1_High_2480 2DH1_Ant1_Low_Hop_2402 2DH1_Ant1_High_Hop_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 24 of 25 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 3DH1_Ant1_Low_Hop_2402 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200515K11-00 Page 25 of 25 3DH1_Ant1_High_Hop_2480
