EMOIP47iHome Bluetooth Alarm Clock Radio for iPhone/ iPod

Model iP47 Bluetooth Alarm Clock Radio for iPhone / iPod ® Questions? Visit www.ihomeaudio.com P1 Table of Contents Quick Start Controls and Indicators iP47 Display Using the iP47 Using the Alarms Listening to iPod Listening to Radio Listening to Bluetooth Music Listening to other portable audio devices Install Clock Backup Battery Replacing the Remote Control Battery Sleep Operation Dimmer Operation Making Call with Bluetooth Mobile Phone Remote Control A Consumer Guide to Product Safety Trouble Shooting Warranty Maintenance • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner or similar materials can damage the surface of the unit. NOTE : The iP47 is designed for use with Bluetooth wireless devices compatible with the HFP, HSP, A2DP and AVRCP streaming audio profiles. Refer to your Bluetooth device’s user manual or technical support to determine if your Bluetooth device supports these profiles. P2 1-2 3 3 4 5 6 6 7 7 8 8 9 9 9 10 11 12-15 16 FCC Information Getting Started Thanks you for purchasing the iP47. Designed specifically to play music through Bluetooth from your mobile phone or computer (through Bluetooth or line-in cord). This system provides high quality audio performance that brings out the best in your music and lets you wake or sleep to it. Please read this instruction carefully before the appliance is operated and keep it for future reference. P3 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide resonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RESET RESET TEST TEST 1 Quick Start Attach AC adaptor cable to jack on back of the iP47 and plug the other end into a wall socket 1: Power 2: Pair Your Bluetooth-enabled Phone With The iP47 iPod mode 3: Making And Answering Calls h e l l o o o o 10:09 Off On SelectBack 10:09 Connectivity Infrared Packet data Data transfer Bluetooth SelectBack B 4: Setting theTime Zone and Clock Press the Mode button as needed to select iPod, Bluetooth, FM1, FM2, AM or Line in. Press UP or DOWN button to tune to desired station. Press and hold a preset button to set current station as a preset. Time is preset to Eastern Standard Time. Press and hold the Time Zone button until the display flashes. Press UP or DOWN buttons to set your Time zone. Press and hold the Time Zone button again to confirm. To adjust clock, press Clock Adjust button then UP or DOWN button to set. Pr ess and hold for 2 sec. time zone 5: Setting Alarms 6: iPod/Bluetooth/ Radio/Line in P4 a) Select Bluetooth/discover mode on your phone (see your user manual) b) Press and hold the Play/Pause button on the iP47. The unit will enter Auto-pairing mode and begin searching for a device to pair with, indicated by flashing Bluetooth and pairing icons. c) When prompted, enter pass code for iP47 on your device: 1234 d) A screen (on phone) should confirm successful pairing. A Wake to iPod or Bluetooth: Press and hold Alarm 1 Button until the hour flashes. Press UP or DOWN button to set Hour. Press Alarm 1 again then press UP or DOWN to set minutes. Press Alarm 1 again then press Mode Button to select iPod or Bluetooth device to wake to. Wake to radio: Press and hold Alarm 2 Button and adjust as above. end Once the iP47 is linked with your phone: a) To dial, open the keypad on front of the unit. Dial the number then press the Talk Button. b) To answer the phone, press the Talk Button. Press the End Button to end the call. NOTE: If you have call waiting, press the Talk Button to answer a second call and place the first on hold. 7: inserts 2 Quick Start P5 NOTE: If the insert for your iPod isn’t listed, please visit an Apple store or www.ihomeaudio.com to purchase the proper insert. iPod Touch thin iPod with video (30 GB) Insert 9 3rd Gen nano insert 13 3rd Gen nano iPod with video (60,80 GB) Insert 10 thin (30 GB) iPod with video thin (80GB) iPod classic thick (60, 80 GB) iPod with video thick (160 GB) iPod classic iPod Touch insert 14 For this iPod Use this insert Select the dock insert for your iPod model from the table below and place insert in dock. Never dock an iPod without an insert in place. Please advise update chart for iPhone too radio iPod 3 Controls and Indicators iP47 Display  Time Zone Button Alarm 1, Alarm 2 Indicators Daylight Saving Time Indicato…

Text truncated - open the document above for the full version.

I/O MB0302MM Block Diagram Regulator 1.8V 2.4GHz Radio 8Mb Flash 32KB RAM B/B DSP Kalimba DSP MCU 26Mhz X-Tal SPI UARTPCMPIO Audio IN/OUT 8Mbit Flash RF Layer Band Pass Filter Balun Filter Antenna MB0302MM Band Pass Filter Lcb21b2459q1 (2.4 to 2.5GHz) Balun Filter AMB1608C2450Z RF 2.402 to 2.480GHz IF 1.5MHz IF 1.5MHz VCO1.2GHz Antenna Synthesizer generate Frequency2.402 to 2.480GHz For TX(2.402GHz – 1.5MHz ) to (2.480GHz – 1.5MHz) for RX 2.4GHz 2.4GHz-1.5MHz NOR Flash 26MHz Crystal Differential RF Signal

SDI Technologies Inc. 1299 Main Street, Rahway, N.J. 07065-0901 Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. 27 Dec 07 LETTER OF AGENCY “I, am officer of SDI TECHNOLOGIES INC. do hereby authorize Intertek Testing Services (Mr. Ben Ho) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Dated this 1 day of Feb. 2008 By Signature Mr. Jasjit Singh Printed Name Safety of all matter Title

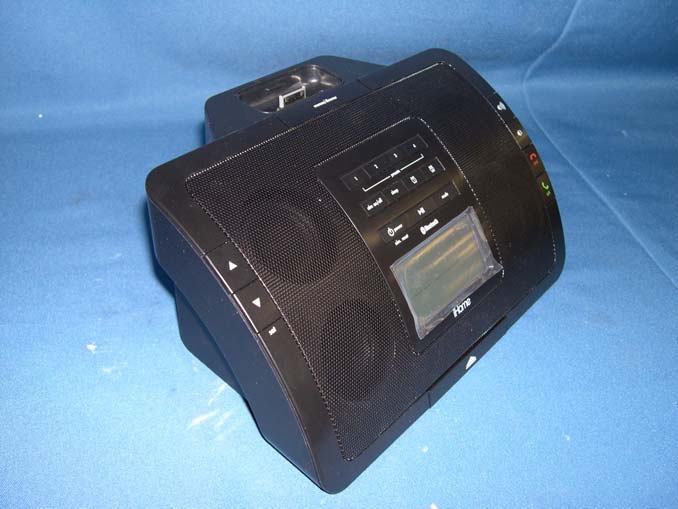

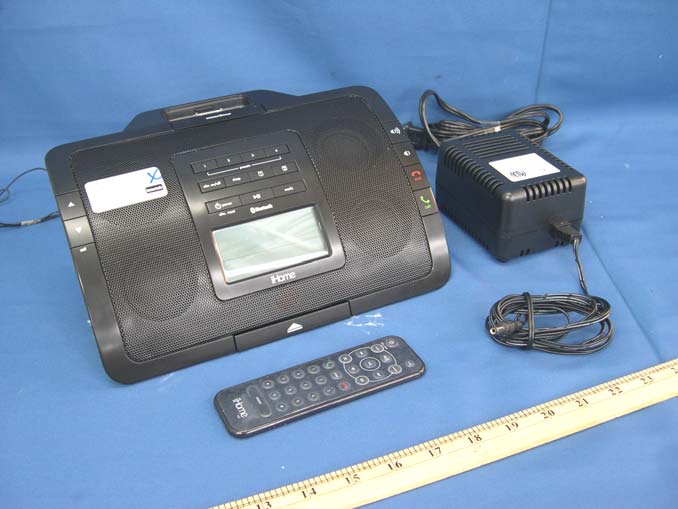

INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (External) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (External) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (External) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (External)

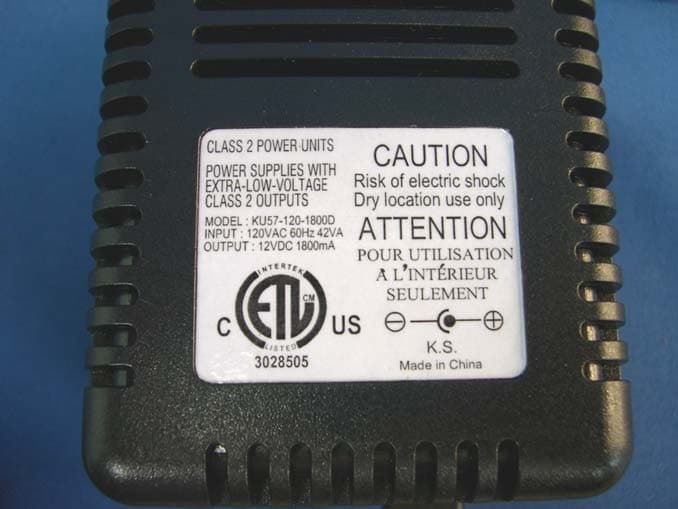

iP47 - rear of unit battery compartment emboss: 0.3mm Oct 30,07 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: EMOIP47 61mmW x 18mmH LR6LR6 LR6 Model : iP47B Frequency Range: AM 520 - 1710 kHz FM 87.5 - 107.90 MHz Clock Backup: DC 1.5V “AA” (LR6) Size x 3 AC Adaptor: DC 12V 1800mA Service No: iP47-A-A-(3) Mfd & Serviced by SDI Technologies Inc. www.ihomeaudio.com Toll Free: 1 (800) 288 2792 Made in China iP47B model plate for silver color model Jan 17,08 material: Black plate color: PMS 428c text SCALE: 100% Patents Pending

INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal) INTERTEK TESTING SERVICE Report No.: HK08011045-2 FCC ID: EMOIP47 Equipment Photographs Model : iP47X (Internal)

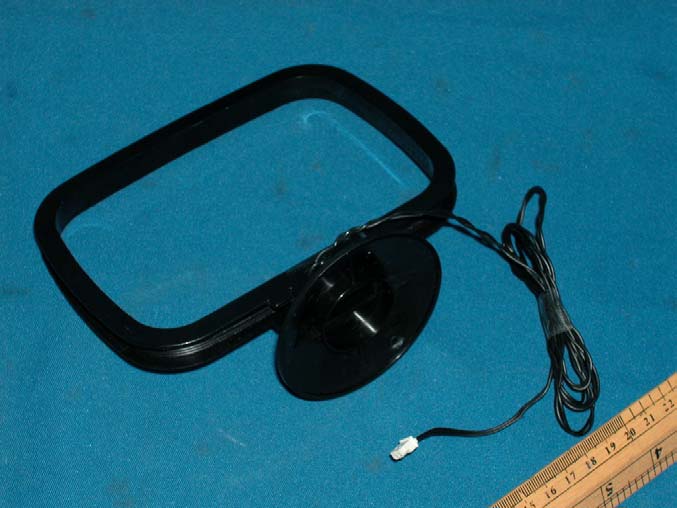

Introduction of iP47 Block Diagram AM ANT: Function: AM loop antenna FM ANT: Function: Pigtail type FM antenna BPF: Part Name: FF853 Location: U313 Function: Band Pass Filter for FM signal AM FM TUNER: Part Name: NS9542 Location: U308 External Crystal: 19.2MHz Function: AM/FM stereo decoder LINE IN: Function: 3.5mm line in jack iPHONE / iPOD: Function: Playback the files stored in iPhone or iPod and charge iPhone or iPod BT MODULE: Part Name: MB0302 Location: U204 External Crystal 26MHz Function: Bluetooth audio multimedia application module. MIC IN: Function: Microphone for Bluetooth headset mode IR SENOR: Part Name: RPM7140 Location: IC104 Function: Infrared senor KEY: Function: Key control OP AMP: Part Name: NJM4580 Location: U311, U203 Function: Preamps of the audio signals from iPhone / iPod and Bluetooth channels SOUND PROCESSOR: Part Name: BD3490FV Location: U306 Function: It is a 4 inputs and 1 output multiplexer to select the desired channel. And it supports volume control function. ANALOG SWITCH: Part Name: BU4066BCF Location: U312 Function: Select whether iPhone / iPod or Bluetooth audio output is being detected. QUAD OP AMP: Part Name: LMV324 Location: U307 Function: Detect the sound level of the selected channel. MAIN MCU: Part Name: UPD78F0533 Location: U201 Internal Oscillating Frequency: 8MHz Function: Control the whole system. APPLE_AUTH: Part Name: iPod Authentication Coprocessor 2.0B Location: U202 Function: This is the apple authentication IC. Once an iPhone or iPod is docked, the authentication progresses. Authentication must be passed so as to allow to control iPhone and iPod. OP AMP: Part Name: NJM4580 Location: U3 04 Function: High pass filter pre amp before power amplifier. POWER AMPLIFIER: Part Name: TDA1517P Location: U305 Function: Stereo power amplifier. I/O EXPANDER: Part Name: GPBA02A Location: IC103 Function: Provide extra I/O ports for LCD MCU. LCD MCU: Part Name: GPLB27A Location: IC101 External Crystal: 32.768kHz Function: Control the LCD display and provide the clock alarm function. BACKLIGHT: Location: D101 Function: Backlight for the LCD display LCD: Function: LCD module BUZZER: Function: Buzzer for alarm and key sound 12V: Function: DC output of AC adaptor BATTERY: Function: DC supply by 3 X AA size batteries 1.5V: Function: Supply bias voltage for microphone 5V REGULATOR: Part Name: KIA7805 Location: U303 Function: Supply 5V to charge iPhone or iPod ADJ REGULATOR: Part Name: LM317DCYG3 Location: U310 Function: Adjustable regulator for 6.0V DC supply 3.3V LDO: Part Name: AP130 Location: U302, U301 Function: 3.3V low dropout linear regulator for 3.3V DC supply Description of Functional Blocks - Bluetooth Module MB0302 2.1 RF Receiver The receiver features a near-zero Intermediate Frequency (IF = 1.5MHz) architecture that allows the channel filters to be integrated on to the die. Sufficient out-of-band blocking specification at the Low Noise Amplifier (LNA) input allows the radio to be used in close proximity to Global System for Mobile Communications (GSM) and Wideband Code Division Multiple Access (W- CDMA) cellular phone transmitters without being desensitised. The use of a digital Frequency Shift Keying (FSK) discriminator means that no discriminator tank is needed and its excellent performance in the presence of noise allows BlueCore3-Multimedia External to exceed the Bluetooth requirements for co-channel and adjacent channel rejection. 2.1.1 Low Noise Amplifier The Low Noise Amplifier (LNA) can be configured to operate in single-ended or differential mode. Single-ended mode is used for Class 1 Bluetooth operation; differential mode is used for Class 2 operation. 2.1.2 Analogue to Digital Converter The Analogue to Digital Converter (ADC) is used to implement fast Automatic Gain Control (AGC). The ADC samples the Received Signal Strength Indicator (RSSI) voltage on a slot-by- slot basis. The front-end LNA gain is changed according to the measured RSSI value, keeping the first mixer input signal within a limited range. This improves the dynamic range of the receiver, improving performance in interference limited environments. 2.2 RF Transmitter 2.2.1 IQ Modulator The transmitter features a direct IQ modulator to minimise the frequency drift during a transmit timeslot, which results in a controlled modulation index. Digital baseband transmit circuitry provides the required spectral shaping. 2.2.2 Power Amplifier The internal Power Amplifier (PA) has a maximum output power of +6dBm allowing BlueCore3-Multimedia External to be used in Class 2 and Class 3 radios without an external RF PA. Support for transmit power control allows a simple implementation for Class 1 with an external RF PA. 2.2.3 Auxiliary DAC An 8-bit voltage Auxiliary DAC is provided for power control of an external PA for Class 1 operation or any other customer specific application. 2.3 RF Synthesiser The radio synthesiser is fully integrated onto the die with no requirement for an external Voltage Controlled Oscillator (VCO) screening can, varactor tuning diodes, LC resonators or loop filter. RF Synthesiser have Internal Clock Generator(VCO) that it’s Frequency is 1.2GHz. The synthesiser is guaranteed to lock in sufficient time across the guaranteed temperature range to meet the Bluetooth v1.2 specification. FCC ID: EMOIP47 2.4 RF Operation. RF signal can get through Band Pass Filter(Lcb21b2459q1) which have 2.4GHz to 2.5GHz Bandwidth, MB0302 IC only support differential RF, Balun Filter is going to process for differential signal, 79Ch number is going to operate between Balun Filter and TX_A/TX_B- RF Frequency Range 2.402 to 2.480, It means that bandwidth of 1 Ch is 1MHz, as Receiver 2.4GHz Bandwidth, It is going to reach LNA (Low Noise Amplifier) then get IF(1.5MHz) through MIXER. Internal Synthesiser generate 2.402 to 2.480GHz minus 1.5Mhz to get 1.5MHz IF. Finally it will be demodulated by Demodulator (64xOverSample). As transmit data from DSP, it will generate 1.5 MHz and get RF…

Text truncated - open the document above for the full version.

− The test report only allows to be revised within three years from its original issued date unless further standard or the requirement was noticed. − This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SDI Technologies Inc. Application For Certification (FCC ID: EMOIP47) Transceiver HK08011045-2 TC/el March 12, 2008 INTERTEK TESTING SERVICES FCC ID: EMOIP47 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: EMOIP47 ii MEASUREMENT / TECHNICAL REPORT SDI Technologies Inc. MODEL: iHome iP47X ('X' denoted as the color of the cabinet) FCC ID: EMOIP47 March 12, 2008 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXT - Part 15 Low Power Transceiver, Receiver Verified (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [05-04-07 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: EMOIP47 iii Table of Contents 1.0 General Description......................................................................................... 2 1.1 Product Description................................................................................... 2 1.2 Related Submittal(s) Grants ...................................................................... 2 1.3 Test Methodology...................................................................................... 3 1.4 Test Facility ............................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ............................................................................................... 5 2.2 EUT Exercising Software .......................................................................... 5 2.3 Special Accessories .................................................................................. 5 2.4 Equipment Modification............................................................................. 6 2.5 Measurement Uncertainty ......................................................................... 6 2.6 Support Equipment List and Description ................................................... 6 3.0 Emission Results ............................................................................................. 8 3.1 Field Strength Calculation ......................................................................... 9 3.2 Radiated Emission Configuration Photograph ........................................ 11 3.3 Radiated Emission Data.......................................................................... 12 3.4 Conducted Emission Configuration Photograph...................................... 15 3.5 Conducted Emission Data....................................................................... 16 4.0 Equipment Photographs ............................................................................... 18 5.0 Product Labelling .......................................................................................... 20 6.0 Technical Specifications ............................................................................... 22 7.0 Instruction Manual ......................................................................................... 24 8.0 Miscellaneous Information ........................................................................... 26 8.1 Bandedge Plot ........................................................................................ 27 8.2 Discussion of Pulse Desensitization........................................................ 28 8.3 Emissions Test Procedures .................................................................... 29 INTERTEK TESTING SERVICES FCC ID: EMOIP47 iv List of attached file Exhibit Type File Description Filename Cover Letter Letter of Agency letter.pdf Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Setup Photo Conducted Emission conducted photos.pdf Test Report Conducted Emission Test Result conducted.pdf Test Report Bandedge Plot be.pdf External Photo External Photo external photos.pdf Internal Photo Internal P…

Text truncated - open the document above for the full version.

Report No.: HK08011045-2 Bluetooth Mode AC Mains Ctrl No.: N/A PAGE 1 Report No.:HK08011045-2 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: HK08011045-2 Bluetooth Mode AC Mains Ctrl No.: N/A Report No.:HK08011045-2 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

INTERTEK TESTING SERVICE Report No: HK08011045-2 FCC ID: EMOIP47 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : iP47X Fig.1 RADIATED Model No.: iP47X Job No.: HK08011045-2 INTERTEK TESTING SERVICE Report No: HK08011045-2 FCC ID: EMOIP47 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : iP47X Fig.2 RADIATED Model No.: iP47X Job No.: HK08011045-2

INTERTEK TESTING SERVICE Report No: HK08011045-2 FCC ID: EMOIP47 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : iP47X INTERTEK TESTING SERVICE Report No: HK08011045-2 FCC ID: EMOIP47 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : iP47X INTERTEK TESTING SERVICE Report No: HK08011045-2 FCC ID: EMOIP47 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : iP47X
