EMOLIB56E7Bluetooth Rechargeable Speaker

Maintenance • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture. • Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents such as thinner or similar materials can damage the surface of the unit. Limited 1 Year Warranty Information eKids, LLC warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase. Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, eKids will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized by Customer Service. If service is required, please call Customer Service at 1-800-288-2792 to obtain a Return Authorization Number and shipping instructions. Disclaimer of Warranty NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner. This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will eKids or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your eKids product. Questions? Visit www.ekids.com For any other questions: 1-800-288-2792 Toll Free © & ™ Lucasfilm Ltd. Used Under License. eKids, LLC The Li-B56 is powered by a rechargeable battery in the speaker. Make sure to charge speaker before use, using supplied combination cable. • Connect the micro-USB plug to the Audio/Charging jack on the speaker. • Connect the standard USB plug to a powered USB port, such as that on a computer. Your computer should be connected to a wall outlet when speaker is charging. The light on the speaker will turn to solid red while charging and turn off when fully charged. • When the battery is low, the red LED light will turn on. If you start to notice sound distortion at higher volumes, it's time to recharge the batteries. NOTE: The charging LED light will override the pairing LED light pattern. Li-B56-061915-A Printed in China FCC ID: EMOLIB56E7 IC: 986B-LIB56E7 Model: Li-B56E7 (Front) IB (English) Size: 432Wmm x 400Hmm Color: Print in Black color Date: June 19, 2015 Questions? Visit www.ekids.com Model: Li-B56E7 Bluetooth Rechargeable Speaker CHARGE BEFORE USE Charging the Li-B56 CHARGE BEFORE USE Bluetooth Mode Computer USB port USB AC adaptor (not included) USB AC adaptor connected to working outlet Computer connected to working outlet Press and hold to pair Micro USB plug 3.5mm audio plug Standard USB plug Combination cable Aux-in Mode Mobile Phone Game Devices iPod Laptop PC/Tablet MP3/MP4 • Whenever the unit is set to Bluetooth ( ) mode, the Li-B56 will attempt to autolink a previously paired device for 3 minutes. If no device is paired, or to pair a new device, follow the steps below: • Make sure your Bluetooth device and the Li-B56 are fully charged. Turn on your Bluetooth device and turn on Bluetooth mode (check in Options or Settings). • Slide the of /OFF/AUX Switch on the speaker to the Bluetooth position ( ). Press and hold the Bluetooth Pairing Button for 3 seconds. The red LED light will flash quickly, and a tone will sound as the speaker enters pairing mode. • “StarWarsLi-B56” should appear on your device. If “Not Connected” or similar message appears, select “StarWarsLi-B56” to connect. If your device asks for a passcode, enter ‘1234’. • Once paired, a confirmation tone will sound and the red LED will shut off. You can then stream audio to the speaker. • Control Bluetooth audio from your device. Remember to turn off the speaker and your device after listening. • If no device is paired within 3 minutes, a failure tone will sound, the red light will flash slowly and the unit will revert to standby mode. To retry pairing, press and hold the Bluetooth Pairing Button for 3 seconds. If pairing is not success- ful, turn the power “OFF” on the speaker and repeat pairing procedure. NOTE: To cancel current pairing mode, quickly press the Bluetooth Pairing Button for 1 second. • Connect the micro-USB plug to the Audio/Charging jack on the speaker. • Connect the stereo 3.5mm audio plug to the headphone jack or line-out of any audio device. • Slide the /OFF/AUX Switch on the speaker to the “AUX” position. • Press play on your audio device and adjust its volume to listen to audio. • When done listening, move the /OFF/AUX…

Text truncated - open the document above for the full version.

Project No.: 1506C206 Page 2 of 10 Project No.: 1506C206 Page 3 of 10

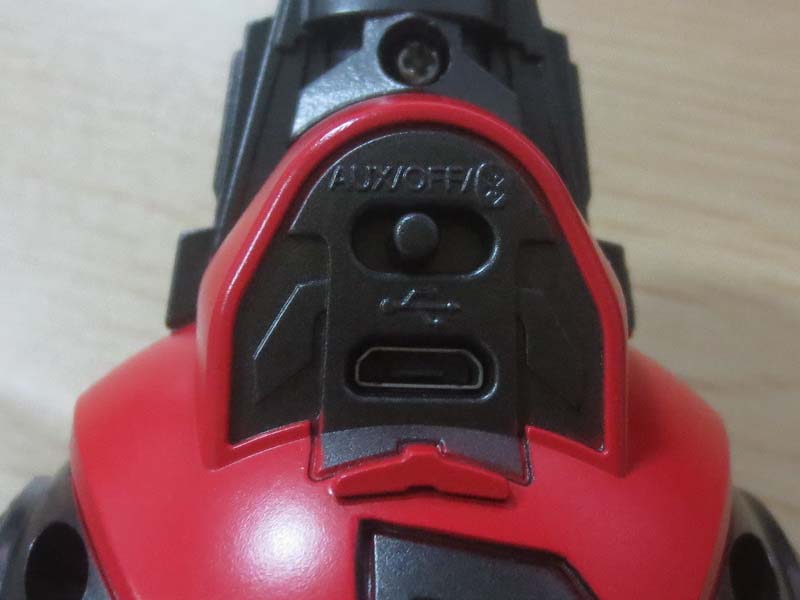

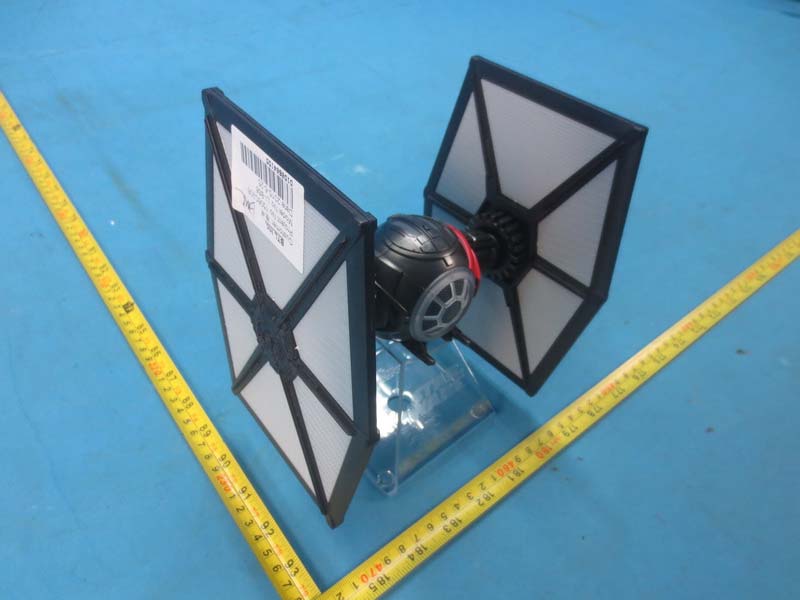

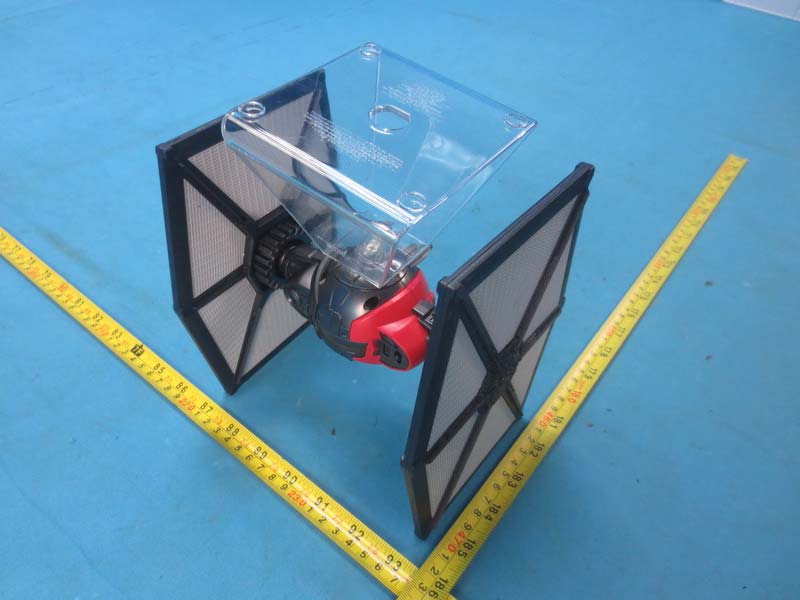

Unit top Stand frontStand backStand bottom Unit back Model: Li-B56E7 FCC ID: EMOLIB56E7 IC: 986B-LIB56E7 Charging Voltage: DC 5V, 500mA Service No: LiB56E7-A-A 1-800-288-2792 Patents: www.ekids.com/patents Made in China iHome ® is a registered trademark of SDI Technologies Inc., used under license  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B) LI-B56E7 Engraving

Project No.: 1506C206 Page 4 of 10 Project No.: 1506C206 Page 5 of 10 Project No.: 1506C206 Page 6 of 10 Project No.: 1506C206 Page 7 of 10 Project No.: 1506C206 Page 8 of 10 Project No.: 1506C206 Page 9 of 10 Project No.: 1506C206 Page 10 of 10

FCC RF EXPOSURE REPORT FCC ID: EMOLIB56E7 Project No. : 1506C206 Equipment : Bluetooth Rechargeable Speaker Model : Li-B56E7, Li-B56 Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Table for Filed Antenna Ant. Brand Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A PIFA N/A 0 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) 4.27 2.67 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 2.67mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FICP-1-1506C206 Page 1 of 109 FCC&IC Radio Test Report FCC ID: EMOLIB56E7 IC: 986B-LIB56E7 This report concerns (check one): Original Grant Class II Change Project No. : 1506C206 Equipment : Bluetooth Rechargeable Speaker Model Name for FCC : Li-B56E7, Li-B56 Model Name for IC : Li-B56E7 Applicant : SDI TECHNOLOGIES INC. Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Date of Receipt : Jun. 19, 2015 Date of Test : Jun. 19, 2015~. Jul. 06, 2015 Issued Date : Jul. 07, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FICP-1-1506C206 Page 2 of 109 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority 's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-1-1506C206 Page 3 of 109 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FICP-1-1506C206 Page 4 of 109 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT TEST CONDITIONS 24 7.1.5 TEST RESULTS 24 8 . BANDWIDTH TEST 25 8.1 APPLIED PROCEDURES 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . PEAK OUTPUT POWER TEST 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 26 9.1.4 EUT OPERATION CONDITIONS 26 9.1.5 EUT TEST CONDITIONS 26 9.1.6 TEST RESULTS 26 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 10.1 APPLIED PROCEDURES / LIMIT 27 10.1.1 TEST PROCEDURE 27 10.1.2 DEVIATION FROM STANDARD 27 10.1.3 TEST SETUP 27 10.1.4 EUT OPERATION CONDITIONS 27 10.1.5 EUT TEST CONDITIONS 27 10.1.6 TEST RESULTS 27 11 . MEASUREMENT INSTRUMENTS LIST 28 Report No.: BTL-FICP-1-1506C206 Page 5 of 109 Table of Contents Page 12 . EUT TEST PHOTO 30 ATTACHMENT A - CONDUCTED EMISSION 34 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 46 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 71 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 73 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 86 ATTACHMENT H - BANDWIDTH 91 ATTACHMENT I - PEAK OUTPUT POWER 96 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 101 Report No.: BTL-FICP-1-1506C206 Page 6 of 109 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-1-1506C206 Original Issue. Jul. 07, 2015 Report No.: BTL-FICP-1-1506C206 Page 7 of 109 1. CERTIFICATION Equipment : Bluetooth Rechargeable Speaker Brand Name : iHome; Star Wars Model Name for FCC : Li-B56E7, Li-B56 Model Name for IC : Li-B56E7 Applicant : SDI TECHNOLOGIES INC. Manufacturer : KIDdesigns Inc. / eKids Address : 1299 Main Street, Rahway, NJ 07065, U.S.A Factory : Dongguan Homania Electronic Products Co., Ltd. Address : Chung Kou Manage Area, Shijie Town, Dongguan City, Guangdong, China Date of Test : Jun. 19, 2015~. Jul. 06, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : F…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1506C206 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1506C206 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1506C206 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1506C206 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
