EMOT248Weather Band Receiver

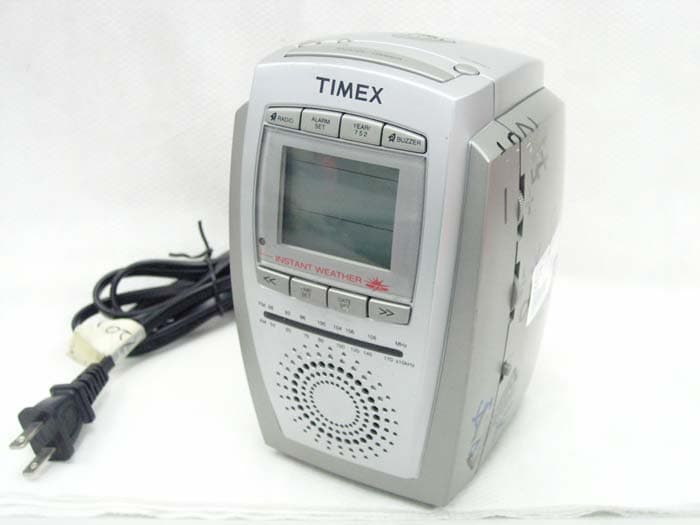

INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (External) INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (External)

FCC ID Label and Location

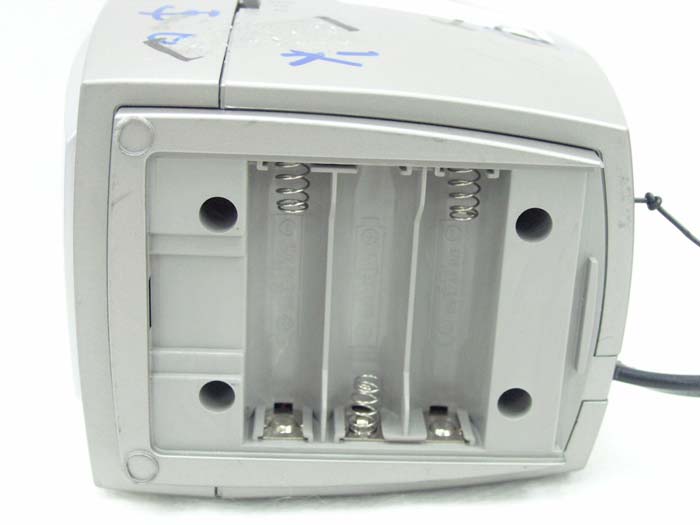

INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (Internal) INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (Internal) INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs M Model : T248’X’ (Internal) INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (Internal) INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (Internal) INTERTEK TESTING SERVICE Report No.: 05081142 FCC ID: EMOT248 Equipment Photographs Model : T248’X’ (Internal)

COMTRAD INDUSTRIES LTD. Technical Description Page 1 / 1 pages /df09 T248TD.doc Model: T-248’ Date: Jun. 10, 05 The T-248 AM/FM , Weather ,Alarm Clock radio is contents into 3 parts which are Weather Band Receiver, AM/FM Receiver, Real Time Clock Controller.. 1. Weather Band Receiver: Power on press SW3 will cutoff AM/FM radio. Weather band signal passed from antenna into the RF amplifier Q1 to amplify it. Local oscillation frequency is derived from a dingle 162.020MHz crystal by means of coil/capacitor. So the location oscillation can be changed from 161.945MHz to 162.095MHz which depend on the weather band channel selector (SW1) setting. Both weather band signal and local oscillation frequency will feed to the Mixer (Q7) to generate 455 KHz IF signal. The 455 KHz IF signal will be amplifier and feed to narrow band FM demodulated by demodulator circuit formed by Q3, Q4, Q5 then pass to audio amplifier (U2) then output to Speaker. 2. AM/FM Radio U1 single chip for AM/FM RF/IF ,AM/FM MIXER,AM/FM DEMODULATOR. 3. Real Time Clock Controller The CPU (U3) has 32.768KHz crystal oscillator (X3) to generate real time clock. It also including LCD driver to show real time clock, alarm time and others on the LCD panel. At the unit is powered AC including battery low detection circuit which Q16 and Q17 for UM-3 back up battery. U3 also control back light LEDs by Q10, Q11 and Q12 for 3 steps dimming. AM/FM receiver will be turning on or off by electronics switch formed by Q19, Q23 and Q22, and sleep with sleep volume Q8,Q9,Q20 and Q21 when press ON/SLEEP (S17) .switch. or alarm wakeup . .

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com June 20, 2005 SDI Technologies Inc. 1299 Main Street, Rahway, NJ 07065, U.S.A. Dear Mr. Jasjit Singh: Enclosed you will find your file copy of a Part 15 report (FCC ID: EMOT248). For your reference, TCB will normally take another 15-20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Billy Chow Senior Supervisor Enclosure FCC ID: EMOT248 • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SDI Technologies Inc. Application For Certification (FCC ID: EMOT248) Receiver 05081142 TC/el June 20, 2005 FCC ID: EMOT248 INTERTEK TESTING SERVICES FCC ID: EMOT248 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: EMOT248 ii MEASUREMENT/TECHNICAL REPORT SDI Technologies Inc. - MODEL: Timex T248'X' FCC ID: EMOT248 This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superheterodyne Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [12- 08-03 Edition] provision. Report prepared by: Billy Chow Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong Phone: 852-2173-8491 Fax: 852-2371-0914 INTERTEK TESTING SERVICES FCC ID: EMOT248 iii Table of Contents 1.0 General Description.................................................................................................. 2 1.1 Product Description .............................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ....................................................................................... 5 2.1 Justification........................................................................................................... 5 2.2 EUT Exercising Software...................................................................................... 5 2.3 Special Accessories ............................................................................................. 5 2.4 Equipment Modification ........................................................................................ 6 2.5 Measurement Uncertainty .................................................................................... 6 2.6 Support Equipment List and Description............................................................... 6 3.0 Emission Results ...................................................................................................... 8 3.1 Field Strength Calculation..................................................................................... 9 3.1 Field Strength Calculation (cont’d) ...................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 3.4 Conducted Emission Configuration Photograph ............................................... 15 3.5 Conducted Emission Data ................................................................................. 17 4.0 Equipment Photographs.............................................................................................. 19 5.0 Product Labelling .......................................................................................................... 21 6.0 Technical Specifications ............................................................................................. 23 7.0 Instruction Manual ........................................................................................................ 25 8.0 Miscellaneous Information .......................................................................................... 27 8.1 Discussion of Pulse Desensitization ....................................................................... 28 8.2 Calculation of Average Factor................................................................................. 29 8.3 Emissions Test Procedures .................................................................................... 30 8.3 Emissions Test Procedures (cont'd) .................................…

Text truncated - open the document above for the full version.

Report No.: 05081142 FM mode AC mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0508114 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 05081142 FM mode AC mains Ctrl No.: NA Tested By:Hong, Report No.:0508114 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results Report No.: 05081142 Weather Band AC mains Ctrl No.: NA PAGE 1 Tested By:Hong, Report No.:0508114 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 05081142 Weather Band AC mains Ctrl No.: NA Tested By:Hong, Report No.:0508114 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

INTERTEK TESTING SERVICE Report No:05081142 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : T248’X’ Fig.1 FCC ID: EMOT248 INTERTEK TESTING SERVICE Report No:05081142 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : T248’X’ Fig.2 FCC ID: EMOT248

INTERTEK TESTING SERVICE Report No:05081142 FCC ID: EMOT248 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : T248’X’ INTERTEK TESTING SERVICE Report No:05081142 FCC ID: EMOT248 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : T248’X’ INTERTEK TESTING SERVICE Report No:05081142 FCC ID: EMOT248 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : T248’X’
