EMOTW500ACompact Bedside Alarm Clock Radio with Wireless Charging with USB Charging

TW500 IB (English version) Size: 399 x 266 mm paper sheet, 133 x 133 mm (fold) Color: Black Mat’l: 85gsm WF paper Mar. 2, 2020. * Front 3 2 Controls Overview Table of Contents What’s in the Box Model TW500 For additional information, online registration, and exclusive special offers visit our website: This product ships with the following items. Make sure all are present. 1. TW500 Alarm Clock (phone not included) 2. Instruction book 4 Connecting to Power Source Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet. Set Up Setting the Time 5 1 Display Backup Battery Your new Timex Clock includes a built-in battery backup system that will maintain the time and alarm settings during a temporary power interruption. Remove the battery pull tab located on the bottom of the unit. When the Low Backup Battery Icon glows on the display, it is time to the replace the backup battery. To silence a sounding alarm and reset it come on the next day at the same time, press and release the Power/Alarm Reset Button. RESETTING AN ALARM TO COME ON THE NEXT DAY DUAL ALARM FM CLOCK RADIO WITH WIRELESS + USB CHARGING For additional information, online registration, Questions? Contact Customer Service at 1-800-888-4491 3. Power adapter What’s in the Box.................................................................................................................................. 1 Controls Overview ................................................................................................................................ 2 Display.................................................................................................................................................. 3 Backup Battery ..................................................................................................................................... 3 Set-Up .................................................................................................................................................. 3 Product Care ........................................................................................................................................ 4 Setting the Time ................................................................................................................................... 4 Setting and Using Alarms/Sleep Mode .............................................................................................. 5-6 Wireless Charging ................................................................................................................................ 7 Charging Devices via USB Port ........................................................................................................... 7 FM Radio and Presets.......................................................................................................................... 8 Troubleshooting .................................................................................................................................... 8 Safety Information ........................................................................................................................... 9-10 Warranty Information ...........................................................................................................................11 Top Panel Model TW500 DUAL ALARM FM CLOCK RADIO WITH WIRELESS + USB CHARGING ON / OFFDIMMERTIME SETSLEEP ALARM ONEALARM TWOVOLUMESET Battery Backup Compartment DC Jack (5V/3A) USB Charging Port (5V/1A) FM Antenna (extend for best reception) Back Panel WIRELESS CHARGING AREA PLUS Press to increase settings MINUS Press to decrease settings ALARM ONE & TWO VOLUME SETTINGS POWER/ DISPLAY DIMMER Press to Adjust Display Brightness (cycle for 3 brightness levels, including OFF) SNOOZE Press to Snooze Alarm SLEEP When the radio is on, press Sleep repeatedly to select a sleep period: (10-90 minutes or OFF) TIME SET/FM PRESETS Wireless Charging Status PM Indicator Low Backup Battery Alarm 1 (Wake to Buzzer/Radio) Setting and Using Alarms 1 Press and hold Alarm One OR Alarm Two. Each alarm can be set in the same way. 2 3 ALARM ONEALARM TWO OR Press and release the Minus Button (-) as needed to adjust the hour. Press and release the Plus Button (+) as needed to adjust the minute. Press Alarm One or Alarm Two to confirm the alarm time. NOTE: The PM indicator will light on the display when the hour is set for PM. There is no AM indicator. SET SET ALARM ONEALARM TWO OR Press and release the Minus Button (-) or Plus Button (+) to select your wake to source: buzzer or radio. The or icon will light on the display to confirm your selection. Press Alarm One or Alarm Two to confirm settings. ALARM ONEALARM TWO OR SET Press and release the Snooze Button when the alarm sounds to silence it for 9 minutes. Snooze can be used several times during an alarm cycle. SNOOZING THE ALARM ON / OFF 1. Keep unit connected to AC power when replacing the battery, or you will lose settings. 2. Use a Phillips screwdriver to open the battery backup compartment door located on the bottom of the unit. 3. Remove exhausted battery and replace with a fresh CR-2032 battery, making sure the ‘+’ side is facing up. 4. Replace the battery compartment door. Do not overtighten the screw. 3 1 Press and hold the Time Set Button. 2 Press and release the Minus Button (-) repeatedly to adjust the hour. Press and release the Plus Button (+) repeatedly to adjust the minute. NOTE: The PM indicator will light on the display when the hour is set for PM. There is no AM indicator. SET Press the Time Set Button to confirm settings. SET Alarm 2 (Wake to Buzzer/Radio) ALARM RESET/ FM RADIO Product Care • Place the unit on a level surface away from sources of direct sunlight or excessive heat. • Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed b…

Text truncated - open the document above for the full version.

SDI Technologies Inc. ADD: 1299 Main St. Rahway NJ 07065, United States Tel: 732 574-9000 Fax: 732 574-2634 Email: [email protected] Product Similarity Declaration 2020-03-18 To Whom It May Concern, We, SDI Technologies Inc., hereby declare that we have a product named as Compact Bedside Alarm Clock Radio with Wireless Charging with USB Charging (Model number: TW500) (FCC ID: EMOTW500A) was tested by BACL, meanwhile, for our marketing purpose, we would like to list series models (TW500B, TW500X (where X could be any 1 or 2 alphabets combination denote different color of cabinet)) on reports and certificate, all the models are electrically identical. The only difference is the color. No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: David Stetin Compliance Officer

QA-FR-170-B 7/29/2014 SDI Technologies Inc. ADD: 1299 Main St. Rahway NJ 07065, United States Tel: 732 574-9000 Fax: 732 574-2634 Email: [email protected] FCC Authorization Date: 2020-03-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, SDI Technologies Inc., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corp to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: David Stetin Compliance Officer

SDI Technologies Inc. ADD: 1299 Main St. Rahway NJ 07065, United States Tel: 732 574-9000 Fax: 732 574-2634 Email: [email protected] FCC Confidential Authorization Date: 2020-03-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: EMOTW500A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, SDI Technologies Inc. , hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: David Stetin Compliance Officer

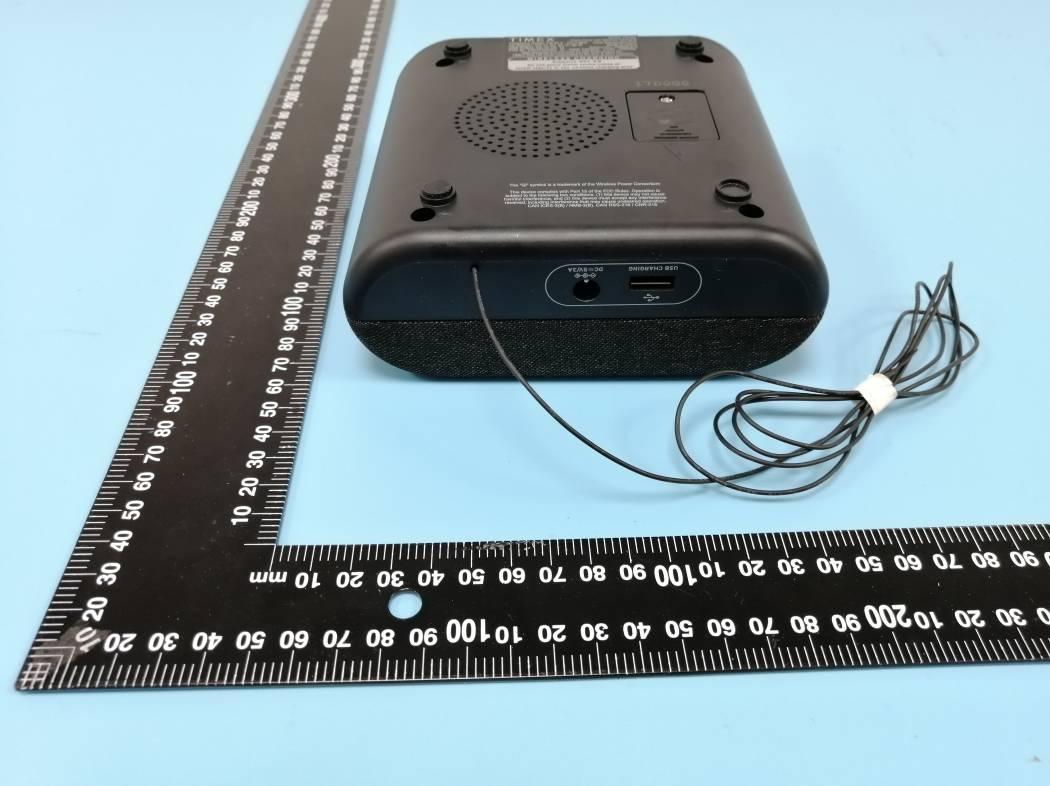

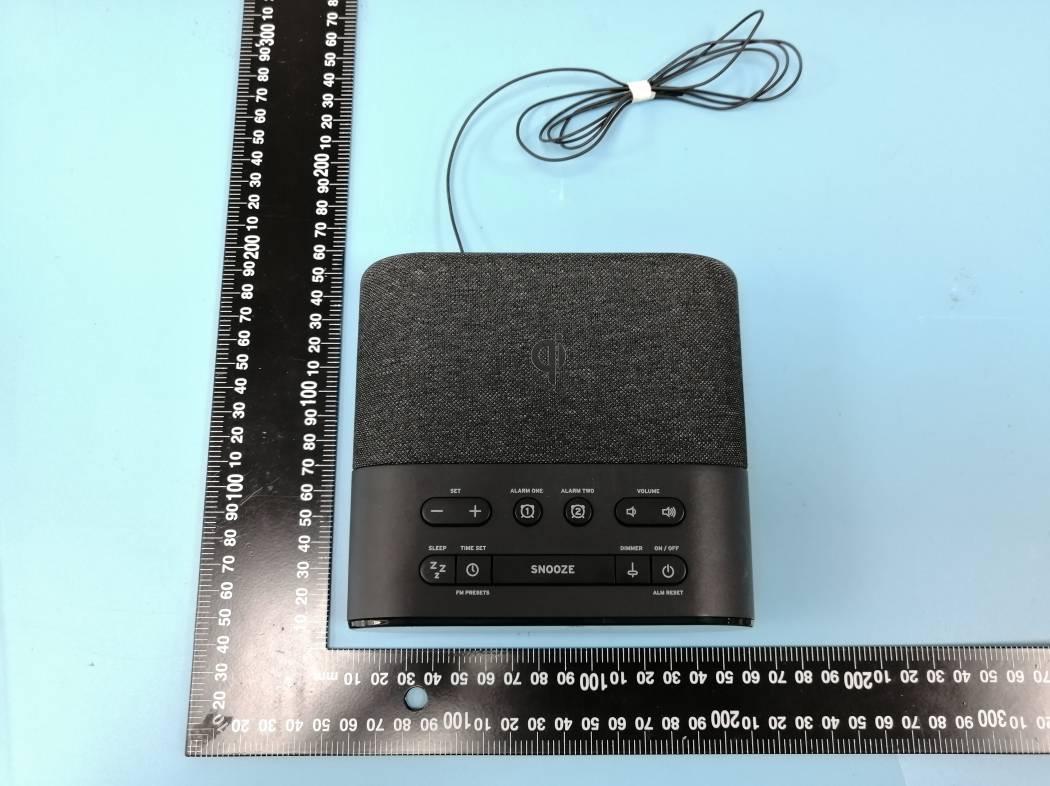

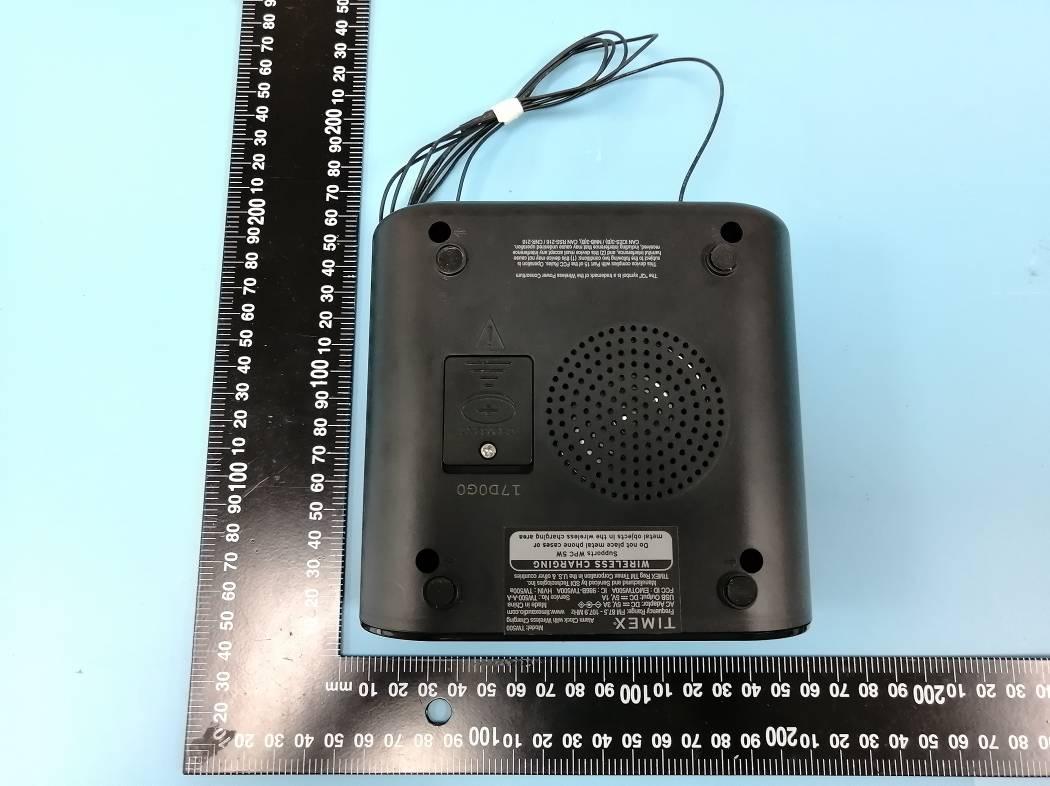

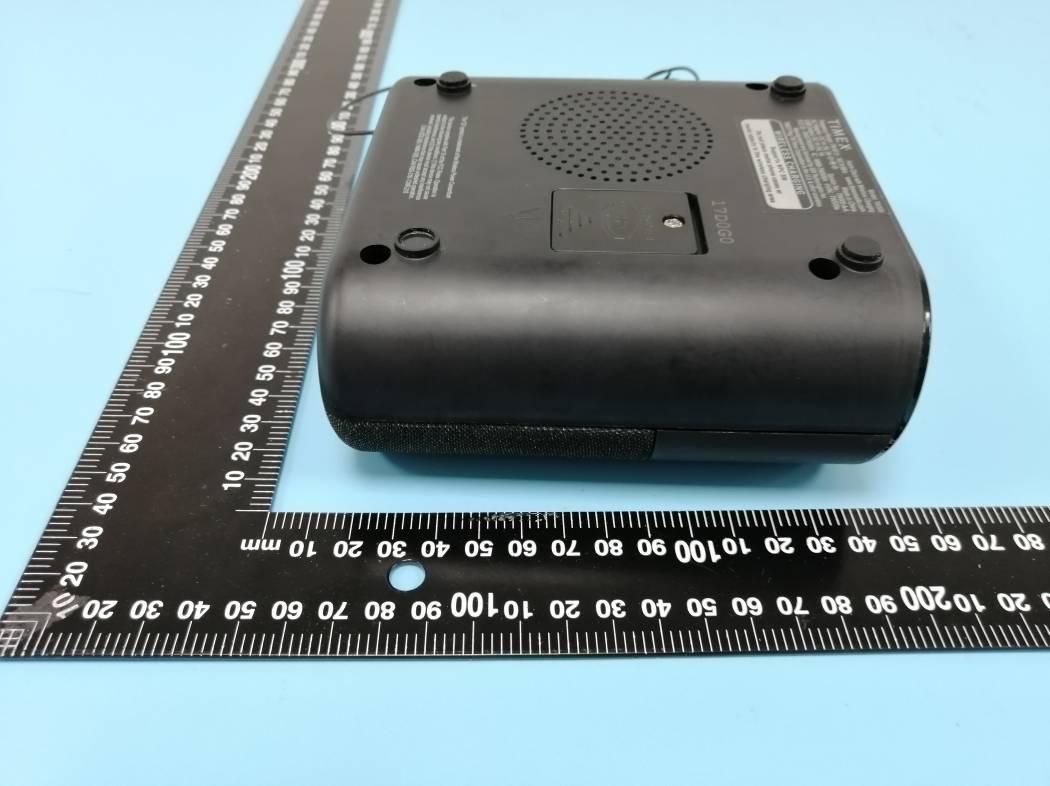

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Label

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS ba FM Receive Antenna Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200318K03-00A FCC Part 15C Page 9 of 21 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According with KDB 680106 D01 RF Exposure Wireless Charging Apps v03 clause 3 c) According to KDB 680106 D01 RF Exposure Wireless Charging App v03 clause 5 b) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200318K03-00A FCC Part 15C Page 10 of 21 Block Diagram of Test Setup Note: 20 cm for Top test. Test Data Environmental Conditions Temperature: 25C Relative Humidity: 65 % ATM Pressure: 101.0 kPa The testing was performed by Black Chen on 2020-03-31. Test mode: Transmitting & Charging (full load) 15cm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200318K03-00A FCC Part 15C Page 11 of 21 H-Filed Strength Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit Test (A/m) 110-205 0.618 0.612 0.622 0.620 0.618 0.815 1.63 E-Filed Strength Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit Test (V/m) 110-205 1.358 1.294 1.383 1.382 1.254 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20cm for the top test. Result: Compliance Considerations of compliance 680106 D01 RF Exposure Wireless Charging App v03 clause 5 b: (1) Power transfer frequency is less than 1 MHz. Yes, the operation frequency is 110-205 kHz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of primary coil is 5 Watts, less than 15 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The transfer system includes only single primary coils to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes, the test result for H and E-filed strength less than 50% of the MPE limit.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. FCC PART 15C TEST REPORT For SDI Technologies Inc. 1299 Main St. Rahway, NJ 07065, United States FCC ID: EMOTW500A R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : C o mp a c t B e d s i d e A l a r m C l o c k R a d i o w i t h W i r e l e s s C h a r gi n g w i t h U S B C h a r gi n g Report Number: RSZ200318K03-00A Report Date: 2020-05-07 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200318K03-00A FCC Part 15C Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE.................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 TEST DATA ................................................................................................................................................................ 10 FCC§15.203 – ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 12 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST RESULTS SUMMARY .............................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (9 kHz ~ 30 MHz) Radiated Emissions View (30 MHz ~ 1 GHz) H-Filed Strength View Position A Position B Position C Position D Position E E-Filed Strength View Position A Position B Position C Position D Position E
