ENGLISH 372-095000 7.6.15 Register your product at www.timex.com METROPOLITAN+ USER GUIDE 2 ENGLISH 052-095000 Register your product at www.timex.com REVISED 4.24.15 EXTENDED WARRANTY Available in U.S. only. Extend your warranty for an additional 4 years from date of purchase for $5. You can pay with AMEX, Discover, Visa or MasterCard by calling 1 800-448-4639 during normal business hours. Payment must be made within 30 days of purchase. Name, address, telephone number, purchase date, and 5-digit model number required. You can also mail a check for $5 to: Timex Extended Warranty, P.O. Box 1676, Dept. EF, Little Rock, AR 72203. Please read instructions carefully to understand how to operate your Timex ® watch. Your model may not have all of the features described in this booklet. METROPOLITAN+ Your Metropolitan+ timepiece is the best of both worlds. The beauty of a classic analog watch with the ability to track your daily activity in both steps and distance! FEATURES • Classic Analog design • BLE connection with Smartphone application (iOS and Android formats) • Activity tracking displayed on watch dial in both steps and distance. • Percent to goal achievement displays on the watch dial in both steps and distance • Smartphone application displays actual count and percent to set goal achieved for Steps, Distance and Calories • Smartphone application retains activity data and displays activity by day, week, month or year. • INDIGLO ® night-light • Estimated battery life of 1.5 years SMARTPHONE APPLICATION AND MINIMUM REQUIREMENTS This watch requires the use of the Smartphone application which is available in both iOS and Android formats. iTunes iOS: https://itunes.apple.com/us/app/timex-connected/id919212774?mt=8 Android Store: https://play.google.com/store/apps/details?id=com.timex. TimexConnected&hl=en These links embedded in the timex.com/classic-50.com page. Please download the application for use prior to starting the watch. CURRENT LIST OF RECOMMENDED PHONES: iPhone: iPhone 5 and up running iOS 8.1.2 and up. Android: Note 3, Note 4, Samsung S4, Samsung S5, Nexus 5, Nexus 6, HTC One M8 and Moto X HOW TO START YOUR WATCH To start your watch remove the plastic guard from under the crown, set the time, and then press the crown in to the closed position. You will need to synchronize the watch with the Smartphone application to activate the activity tracking function. Press button A and the upper sub-dial hand will move to the Bluetooth symbol. Perform the synchronization of the watch and Smartphone application. Once the watch has been synchronized with the Smartphone, the activity tracking function is ready for use. TIME SETTING NOTE: The watch crown has four positions: one temporary push position used to activate the INDIGLO ® night-light, and three indexing positions: closed, middle and outer. To familiarize yourself with the difference between the various positions extend the crown to its outer position and then push the crown very lightly until you feel it click into the middle position. To set the time: Pull the crown to its outer position and turn it until the correct time is shown. Once the dial reflects the correct time, return the crown to the closed position. INDIGLO ® NIGHT-LIGHT: Press the crown to activate the INDIGLO ® night-light. The light will remain on for 2-3 seconds after releasing the crown. 4TH CENTER HAND ADJUSTMENT: To readjust a misaligned 4th center hand: 1. Pull the crown out to the outer position. The upper and lower hands will move in a counter clock-wise direction and automatically calibrate. The 4th center hand will make up to one revolution and stop at 12 o’clock. 2. If the 4th center hand does not point to 12 o’clock then, press button A to move the hand in a clockwise direction until it points to 12 o’clock. Pressing and holding button A will make the hand move at a fast rate. 3. Push crown in to the closed position when finished. MODE SELECTION Press button A to advance the upper hand to the desired function. NOTE: The mode cannot be advanced unless the crown is in the closed position. Steps / Distance: You may switch between the Steps and Distance modes by pressing button A. If the upper sub-dial hand is on “S” the lower sub-dial hand will reflect the percentage of your daily Steps goal currently achieved and the 4th center hand will reflect the actual number of steps (in thousands) you have taken today, when compared against the scale along the outer edge of the dial. If the upper sub-dial hand is on “D” the lower sub-dial hand will reflect the percentage of your daily Distance goal currently achieved and the 4th center hand will reflect the actual distance (in Miles or Kilometers as selected on the Smartphone application) you have achieved, based on your activity today, when compared against the scale along the outer edge of the dial. Bluetooth mode: No pairing is required, but you must prepare the watch for the sync process. To enter the Bluetooth mode push and hold button A until the upper hand points to Bluetooth symbol on the upper dial. The watch is now ready for Bluetooth synchronization with the Smartphone application. During the synchronization the lower sub-dial hand and center hand will move to zero, but the activity tracking is still active (assuming it was not “off” prior to entering the Bluetooth mode). After completing the sync process on the Smartphone application, both of the sub-dial hands return to their positions previous to entering the Bluetooth mode. OFF mode: If desired you may turn off the activity tracking function. The bat- tery life is extended, due to less energy demand, when the activity tracking function is suspended. Please note: the memory holds the activity tracking data for the last 7 calendar days. When you turn off the activity tracking mode it is advised that you synchronize the watch and the Smartphone application to prevent any loss of activity tracking data. To enter the OFF mode push and hold button A until the …

Text truncated - open the document above for the full version.

2-Jul-15 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Timex Group USA Inc FCC ID: EP9-TMXM372 To Whom It May Concern: We, Timex Group USA Inc, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number EP9-TMXM372 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 2-Jul-15. The Limited Agency Agreement expires on 2-Jul-16, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Sam Everett Quality Regulatory Engineer

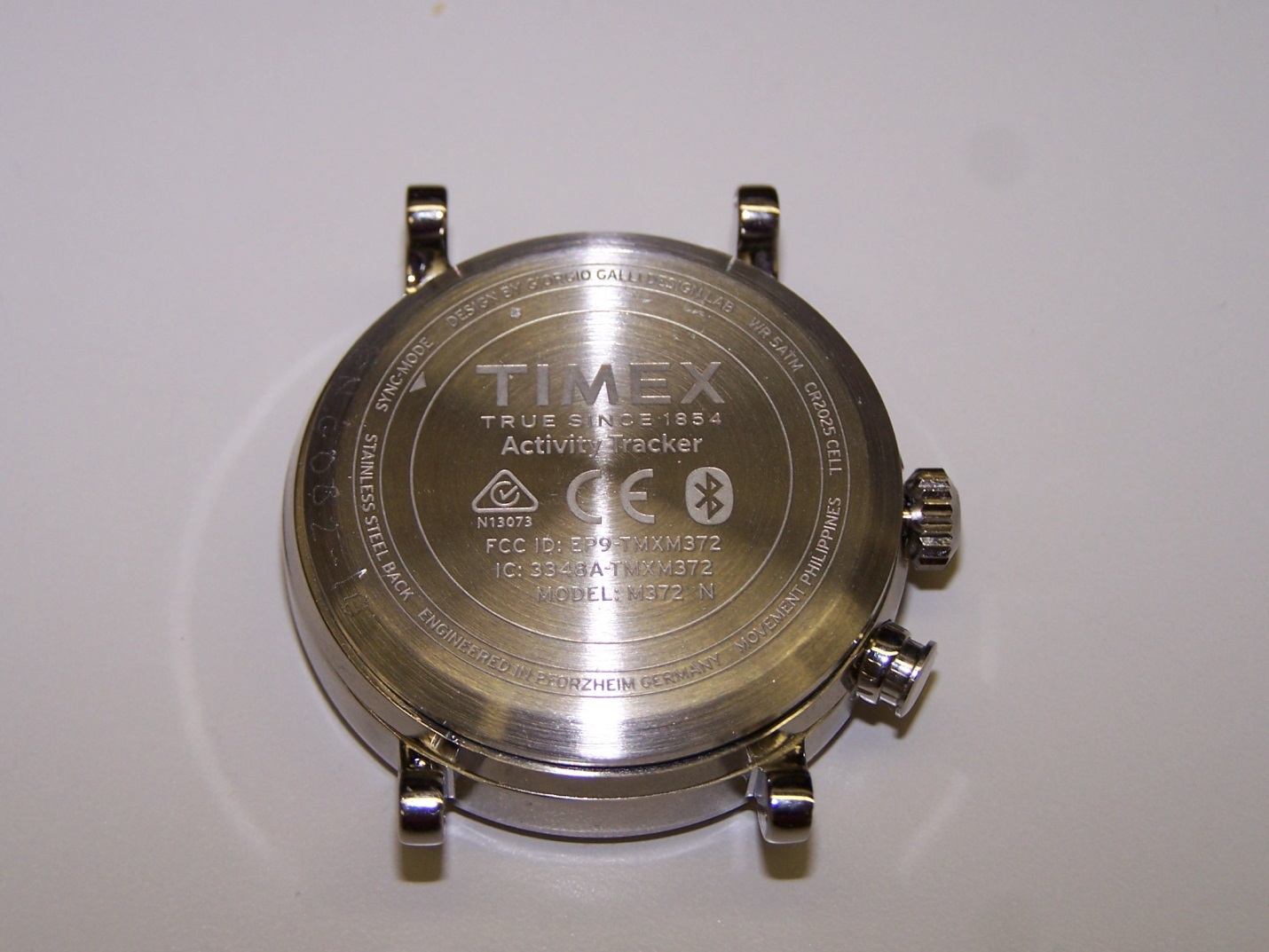

External Photos FCC ID: EP9 -TMXM372 / IC: 3348A- TMXM372

Designer/Location: G.Galli/Milan Drawn by/Location: LW Fung/HK Program Name: Activity Tracker Analog Date: March 31 2015 Project Number: 14080Dev. Number: 14080A Model Number: 372 Business Group: Style Brand Name: TIMEX Issue: 01 Part Description: caseback artwork TIMEX CONFIDENTIAL AND PROPRIETARY INFORMATION. This document and the information it gives, are the property of TIMEX Corporation. The information is given in confidence for a limited purpose. It is not to be divulged and is not to be used beyond that purpose. *Blue indicates reference lines/center marks and they are NOT part of the artwork. File Scale 1:1 Print Scale 4:1 This is a GENERIC ARTWORK intended for the purpose of providing necessary graphics. The colors shown on this Artwork do NOT reflect the actual printing colors. Please see Aesthetic Specifications for color information. Mark date code as per engineering specifications within the indicated area Mark vendor code within the indicated area Mark style number as per Watch Parts List within the indicated area.

External Photos FCC ID: EP9 -TMXM372 / IC: 3348A- TMXM372

Non-Specific Radio Report Shell Rev. August 2015 Page 1 of 73 Timex Group USA, Inc. / M372 EMC TEST REPORT (FULL COMPLIANCE) Report Number: 102218261BOX-001b Project Number: G102218261 Report Issue Date: 09/16/2015 Model(s) Tested: M372 Model(s) Partially Tested: None Model(s) Not Tested but declared equivalent by the client: TW2P81700 & TWG012600 Standards: FCC 47CFR Part 15 Subpart C 15.247 (8/2015), FCC 47CFR Part 15 Subpart B (8/2015) Tested by: Client: Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 USA Timex Group USA, Inc. 555 Christian Road Middlebury, CT 06762 USA Report prepared by Report reviewed by Kouma Sinn / Staff Engineer, EMC Michael F. Murphy / Sr. Staff Engineer, EMC This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Report Number: 102218261BOX-001b Issued: 09/16/2015 Non-Specific Radio Report Shell Rev. August 2015 Page 2 of 73 Timex Group USA, Inc. / M372 Table of Contents 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Client Information ................................................................................................................................ 4 4 Description of Equipment Under Test and Variant Models ............................................................. 4 5 System Setup and Method .................................................................................................................. 6 6 Maximum Peak Output Power, Human RF Exposure, & Duty Cycle ............................................... 7 7 Transmitter Radiated Spurious Emissions ..................................................................................... 24 8 6 dB Bandwidth & 99% Power Bandwidth ....................................................................................... 42 9 Power Spectral Density ..................................................................................................................... 50 10 Band-edge Compliance ................................................................................................................. 59 11 Digital Devices Radiated Spurious Emissions ............................................................................ 65 12 Revision History ............................................................................................................................. 73 Intertek Report Number: 102218261BOX-001b Issued: 09/16/2015 Non-Specific Radio Report Shell Rev. August 2015 Page 3 of 73 Timex Group USA, Inc. / M372 1 Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complies with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. Intertek does not make any claims of compliance for samples or variants which were not tested. 2 Test Summary Section Test full name Result 3 Client Information -- 4 Description of Equipment Under Test -- 5 System Setup and Method -- 6 Maximum Peak Output Power, Human RF Exposure, & Duty Cycle CFR47 FCC Part 15:2015 Subpart C, Section 15.247 (b)(3) Pass 7 Transmitter Radiated Spurious Emissions CFR47 FCC Part 15:2015 Subpart C Section 15.247 (d) CFR47 FCC Part 15:2015 Subpart C Section 15.209 Pass 8 6 dB Bandwidth & 99% Power Bandwidth CFR47 FCC Part 15:2015 Subpart C Section 15.247 (a)(2) Pass 9 Power Spectral Density CFR47 FCC Part 15:2015 Subpart C Section 15.247 (e) Pass 10 Band-edge Compliance CFR47 FCC Part 15:2015 Subpart C Section 15.247 (d) Pass 11 Digital Devices Radiated Spurious Emissions CFR47 FCC Part 15:2015 Subpart B Section 15.109 Pass -- Receiver Radiated Spurious Emissions CFR47 FCC Part 15:2015 Subpart B Section 15.109 Exempt, above 960 MHz -- AC Mains Conducted Emissions CFR47 FCC Part 15:2013 Subpart B Section 15.207 N/A 12 Revision History -- Intertek Report Number: 102218261BOX-001b Issued: 09/16/2015 Non-Specific Radio Report Shell Rev. August 2015 Page 4 of 73 Timex Group USA, Inc. / M372 3 Client Information This EUT was tested at the request of: Client: Timex Group USA, Inc. 555 Christian Road Middlebury, CT 06762 USA Contact: Sam Everett Telephone: 203-346-5603 Fax: 203-573-5139 Email: [email protected] 4 Description of Equipment Under Test and Variant Models Manufacturer: Timex Group USA, Inc. 555 Christian Road Middlebury, CT 06762 USA Equipment Under Test Description Manufacturer Model Number Serial Number Watch …

Text truncated - open the document above for the full version.

Setup Photographs: X-axis Y-axis Z-axis
