ESX4000437Portable Bluetooth Speakers

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

MC U CA6818 12 MHZ OSC BLU E TOOTH MODULE Audio Processor PT2314 4558 BT_R BT_L BT_L BT_ R SD A Line IN _L L ine IN _R Amplifier TDA7491LP L_OUT AN T 2402-2480MHz L R SCL R_ OUT Line IN AD KEY KEY MI C DC IN 12V2.5A ADS9369 MP26123 BATT CHARGE BATT (4000mAH) MP1470 TG1802 USB5V TG4409 MOSFET TG4409 MOSFET HT7533 DC TO DC MUT E STU DBY AUVIO 4000437 STM8S005K6 BTA51 U15 MP65150 Q24 U11 Q6 U7 Q2 U1 U30 U30 BL1 U2 U5 IC1 U3 Synchronous Step -Down Converter Inverting DC/DC Synchronous Step -Down Converter RF 2.4 GHZ Radio I/O ROM RAM MCU Kalimba DSP XTAL CSR BC57F687A05 Balun Filter Fil I2c EEPROM PIO Audio In/Output 16MHz AN T 2402-2480MHz

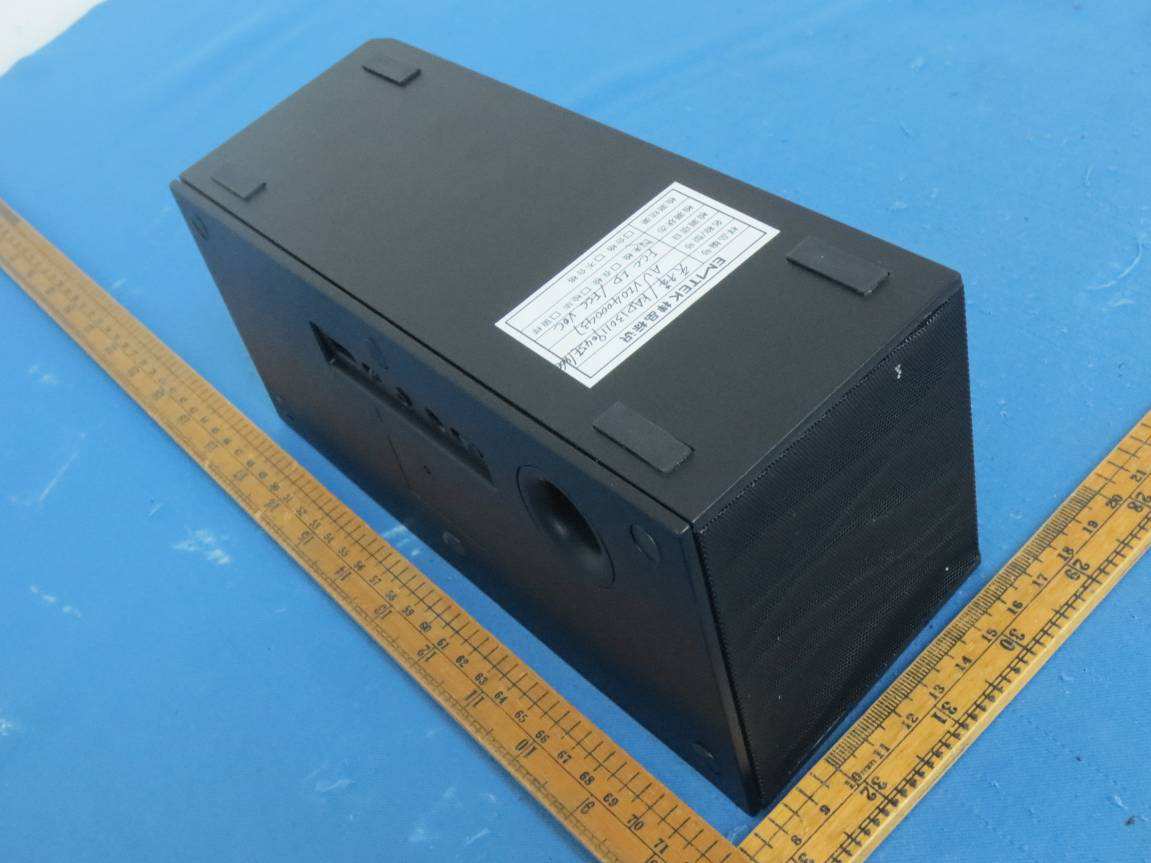

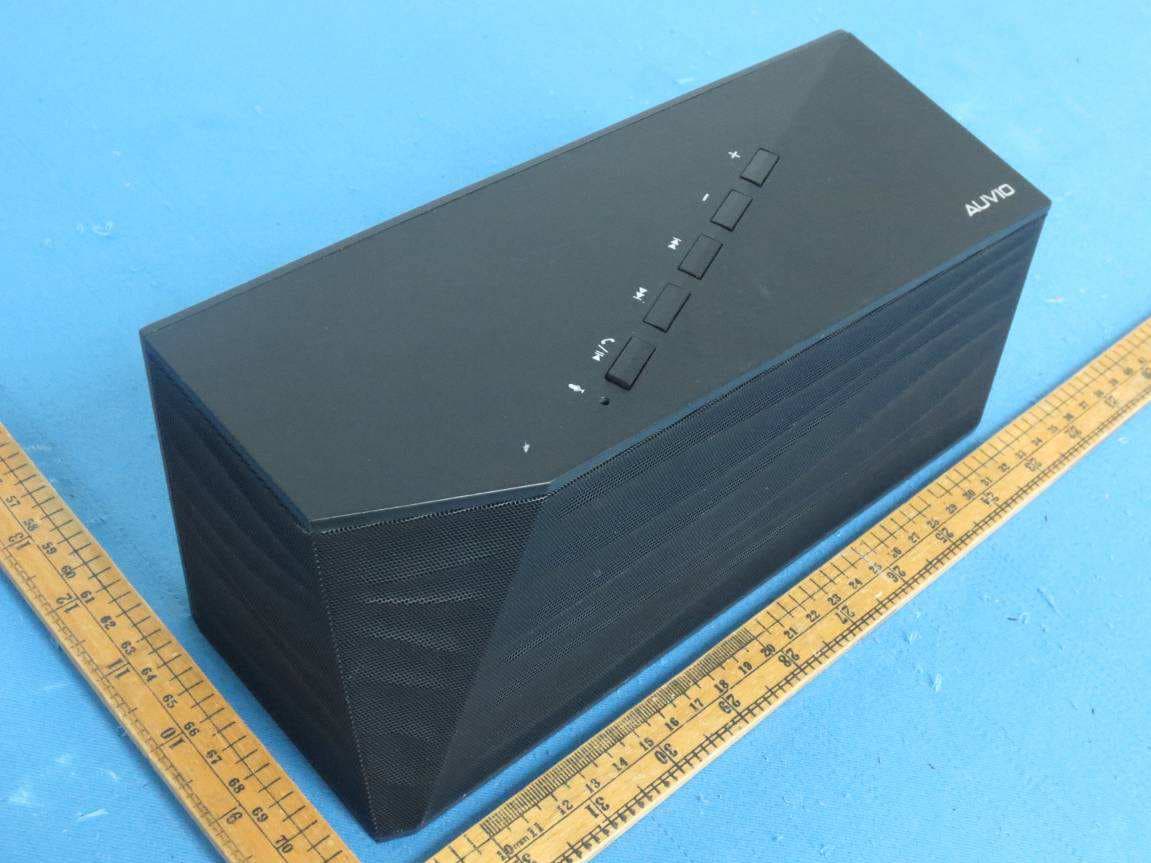

External photos

FCC ID: ESX4000437 USB Output: 5V DC, 1A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Custom Manufactured in China for lgnition L.P. 3102 Maple Ave., Suite 450, Dallas, TX 75201 Portable Bluetooth Speaker Cat. No.: 4000437 40.6mm 2 5 . 0 m m BC Power lnput: 12V DC, 2.5A FCC ID: ESX4000437 USB Output: 5V DC, 1A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Custom Manufactured in China for lgnition L.P. 3102 Maple Ave., Suite 450, Dallas, TX 75201 Portable Bluetooth Speaker Cat. No.: 4000437 BC Power lnput: 12V DC, 2.5A

Internal photos

Technical Description The equipment under test (EUT) is a Portable Bluetooth Speaker. The EUT can be powered by AC/DC adapter (Input 100-240, 50/60Hz, 1A; Output: 12Vdc, 2.5A). For more detail information pls. refer to the user manual. Channel List 2402 2403 2404 2405 2406 2407 2408 2409 2410 2411 2412 2413 2414 2415 2416 2417 2418 2419 2420 2421 2422 2423 2424 2425 2426 2427 2428 2429 2430 2431 2432 2433 2434 2435 2436 2437 2438 2439 2440 2441 2442 2443 2444 2445 2446 2447 2448 2449 2450 2451 2452 2453 2454 2455 2456 2457 2458 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2470 2471 2472 2473 2474 2475 2476 2477 2478 2479 2480 Modulation Type: GFSK, ∏ ∏∏ ∏/4DQPSK, 8DPSK Bluetooth Version: 2.1 with EDR function and disable the AFH mode An tenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 0dBm ( Tolerance: +/- 4dB) The nominal conducted output power specified: 0dBm ( Tolerance: +/- 4dB) Th e function of main IC is mentioned as below. 1) IC1 acts POWER Amplifier IC. 2) U1 acts Battery Charger IC. 3) U2 acts AUDIO Amplifier IC. 4) U3 acts MCU. 5) U5 acts channel switch IC. 6) U7 acts Inverting DC/DC Converter. 7) U15 acts Synchronous Step -Down Converter 8) Q24 acts Current-Limited Power Distribution Switch 9) BL1 Bluetooth Module In Bluetooth Module: 1) U1 acts as Bluetooth Chip. 2) Y1 is a 16MHz oscillator for Bluetooth Chip. 3) U3 acts as EEPROM. 4) T1 is a filter.

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Portable Bluetooth Speaker. The EUT can be powered by AC/DC adapter (Input 100-240, 50/60Hz, 1A; Output: 12Vdc, 2.5A). For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4DQPSK, 8DPSK Bluet o oth Version: 2.1 with EDR function and disable the AFH mode Antenn a Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 0dBm ( Tolerance: +/- 4dB) The nominal conducted output power specified: 0dBm ( Tolerance: +/- 4dB) Accord ing to the KDB 447498: The worst-case radiated emission for the EUT is 98.5dBμV/m at 3m in the frequency 2.480GHz = [(FS*D) ^2 / 30] mW = 3.27dBm which is within the production variation. The maximun conducted output power specified is 4dBm = 2.5mW The source- based time-averaging conducted output power = 2.5 * Duty cycle mW= 2.1 m W The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1), transmitter duty cycle is dependent of packet type (DH1, DH3 and DH5). For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: ESX4000437

AN T 2402-2480MHz U2 BL1 U5 IC1 U3 U1 U7 U15 Q24 U11

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Application For Certification FCC ID: ESX4000437 Portable Bluetooth Speaker Model: 4000437 2.4GHz Transceiver Report No.: 130118008SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-12] Prepared and Checked by: Approved by: Sign on file William Chen Engineer Billy Li Supervisor Date: 20 March 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000437 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000437 ii MEASUREMENT/TECHNICAL REPORT Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. - MODEL: 4000437 FCC ID: ESX4000437 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0645 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000437 iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation ................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions ......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs ................................................................................... 19 5.0 Product Labelling .............................................................................................. 21 6.0 Technical Specifications…
