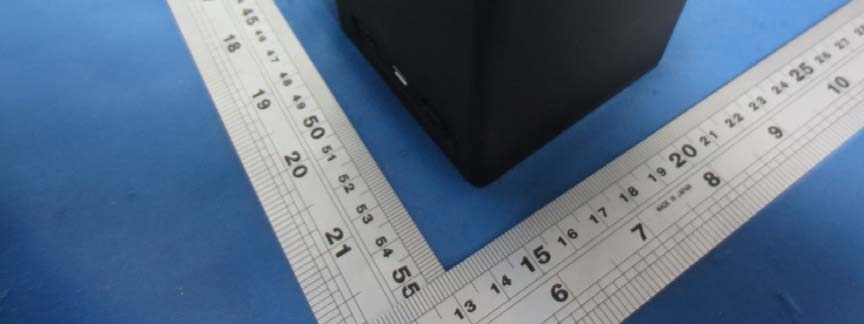

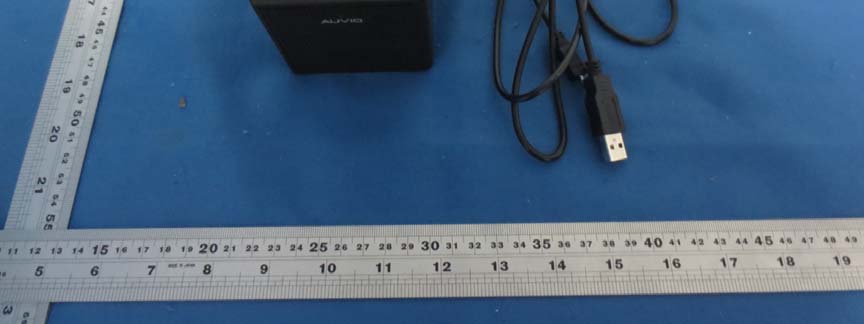

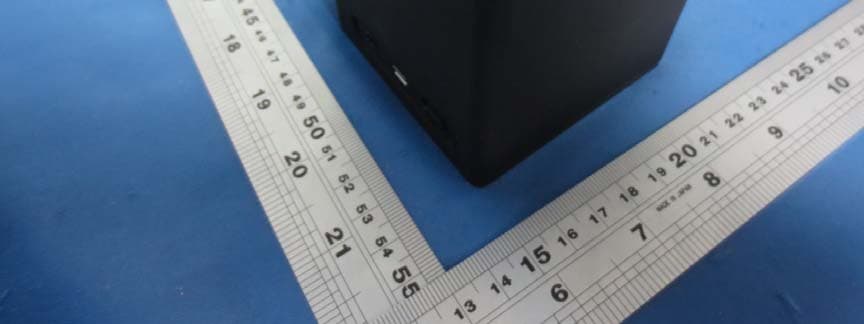

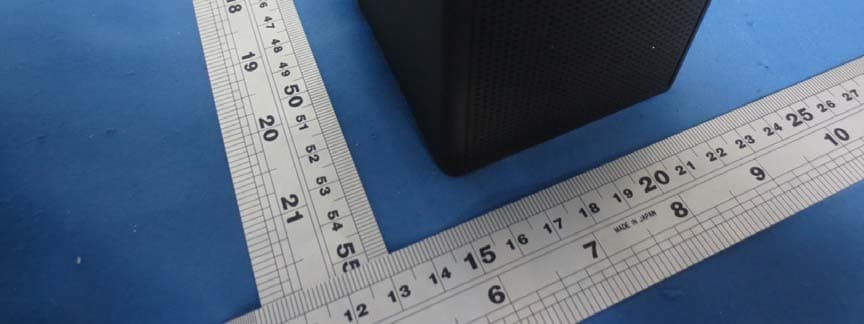

ESX4000446BBluetooth speakers

THE P ERFORMANCE YOU NEED ® ® Portable Bluetooth ® Speaker User’s Guide 4000446, 4000447, 4000448, 4000449 Please read this user’s guide before using your new speaker. 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 Package Contents „Bluetooth Speaker „USB Charging Cable „User’s Guide Features „Play your music wirelessly up to 30 feet (9.14m) away „Make and receive hands-free calls „Play a non-Bluetooth device through the speaker Specifications Battery Charge Time ............approx. 2 hours Operation Time ....................approx. 6 hours Frequency Response ............150Hz – 15kHz Output Power .........................................2W Impedance ..........................................4ohm S/N ratio ........................................... ≥ 65dB Battery charging voltage ..........................5V Driver .....................................1.5 in. (38mm) Bluetooth protocol .......................V4.0+EDR Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Use Your Speaker Pairing Bluetooth devices 1. Turn on the speaker, the indicator flashes blue. Your speaker searches for Bluetooth devices. 2. Follow the instructions for your Bluetooth device to pair it with the speaker. After successful pairing, the indicator flashes blue every 2 seconds. 3. Use the playback controls on the speaker or your audio device. 4. Turn off the speaker after using. n Note: You can download Auvio EQ App for free from the App Store SM and Google Play™ to customize your calls and music. Enter password 0000 for Bluetooth connection if your device uses Bluetooth 2.1 or below. Connect with AUX IN 1. Connect an audio cable (not included) to your audio device, then connect to your speaker’s AUX IN jack. 2. The speaker will play your audio source and disconnect the Bluetooth connection automatically. 3. Use the playback controls on your audio device. 4. Unplug your audio device, the speaker will return to the previous Bluetooth connection. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty Ignition L.P. warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P. Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase. Ignition L.P. will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. IGNITION L.P. EXPRESSLY DISCLAIMS ALL WAR- RANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY © 2014 Ignition L.P. All rights reserved. Auvio is a registered trademark used…

Text truncated - open the document above for the full version.




      2402-2480MHz 1.8V 3.3V 1.8V audio in/out PIO0 ~ PIO21AIO0 ~ AIO1 CSR8615 Balun/ Filter (RFBPF1608070A0T) 2.4GHz Radio Regulator Stereo Audio Codec Baseband DS P RAM Kalimba DSP PIO MCU Crystal 26MHz/10ppm EEPROM (T24C64A-1V8) JS-BTM8615 Block Diagram RF in/out 2402 ~ 2480MHz

4 APPENDIX B Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Vtrek Dewei Industrial Garden, Shibei Industrial Road, Dashi Town, Panyu Borough,Guangzhou City, Guangdong Province, China 2013-05-17 To whom it may concern, Letter of Agency I, an officer of Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Name]：Liao Xiaofei [Title]： Engineer

0.1mmPVC, 0.1mmPVC, B 4000446B B 4000446B B 4000446B

Technical Description The equipment under test (EUT) is a Bluetooth Speaker. The EUT will operate from a 3.7Vdc lithium battery which is charged by USB Port. For more detail information pls. refer to the user manual. Bluetooth V2.1 with EDR Channel List 2402 2403 2404 2405 2406 2407 2408 2409 2410 2411 2412 2413 2414 2415 2416 2417 2418 2419 2420 2421 2422 2423 2424 2425 2426 2427 2428 2429 2430 2431 2432 2433 2434 2435 2436 2437 2438 2439 2440 2441 2442 2443 2444 2445 2446 2447 2448 2449 2450 2451 2452 2453 2454 2455 2456 2457 2458 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2470 2471 2472 2473 2474 2475 2476 2477 2478 2479 2480 Bluetooth V4.0 Channel List 2402 2404 2406 2408 2410 2412 2414 2416 2418 2420 2422 2424 2426 2428 2430 2432 2434 2436 2438 2440 2442 2444 2446 2448 2450 2452 2454 2456 2458 2460 2462 2464 2466 2468 2470 2472 2474 2476 2478 2480 Modulation Type: GFSK for BT 4.0 and GFSK, π ππ π/4DQPSK, 8DPSK for BT 2.1+EDR Bluetooth Version: 4.0 and 2.1 with EDR Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 4dBm (Tolerance: +/- 3dB) The nominal conducted output power specified: 4dBm (Tolerance: +/- 3dB) The function of main IC is mentioned as below. 1) U1 acts Battery Charger. 2) U2 acts Inverting DC-DC. 3) U4-A acts AUDIO Amplifier. 4) U4-B acts AUDIO Amplifier. 5) U5 acts POWER Amplifier. 6) BT3 acts Bluetooth Module In Bluetooth Module: 1) U1 acts as Bluetooth Chip. 2) U2 is a filter. 3) U3 acts as EEPROM. 4) Y1 is a 26MHz oscillator for Bluetooth Chip.

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Bluetooth speaker. The EUT was powered by DC 3.7V Internal Lithium battery and can be charged by USB Port. For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4DQPSK, 8DPSK for BT2.1 with EDR and GFSK for BT4.0. Bluetooth Version: 4.0 and 2.1 with EDR Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 4dBm (Tolerance: +/- 3dB) The nominal conducted output power specified: 4dBm (Tolerance: +/- 3dB) According to the KDB 447498: The maximum radiated emission for the EUT is 101.9dBμV/m for BT2.1 at 3m in the frequency 2.441GHz = [(FS*D) ^2 / 30] mW = 6.7dBm which is within the production variation. The minimum radiated emission for the EUT is 99.1dB μV/m at 3m for BT4.0 in the frequency 2.480GHz = [(FS*D) ^2 / 30] mW = 3.9dBm which is within the production variation. The maximun conducted output power specified is 7dBm = 5.0mW The source- based time-averaging conducted output power = 5.0 * Duty cycle mW <= 5.0 mW (Duty Cycle<=100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: ESX4000446B


   !"  #$%  &'  () *"+,"",-
