ESX4000448Bluetooth speaker

THE PERFORMANCE YOU NEE D ® ® Portable Bluetooth ® Speaker User’s Guide 4000448 Please read this user’s guide before using your new speaker. 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 Package Contents Bluetooth Speaker USB Charging Cable User’s Guide Features Play your music wirelessly up to 30 feet (9.14m) away Make and receive hands-free calls Play a non-Bluetooth device through the speaker SpecificationsBattery Charge Time ............ approx. 2 hoursOperation Time .................................6 hoursFrequency Response ............ 150Hz – 15kHzOutput Power .......................................1.5WImpedance .......................................... 4ohmS/N ratio ........................................... 65dB Battery charging voltage .......................... 5VDriver ..................................... 1.5 in. (38mm)Bluetooth protocol ....................... V3.0+EDRSpecifications are subject to change and improvement without notice. Actual product may vary from the im ages found in this document. Use Your SpeakerPairing Bluetooth devices 1. Turn on the speaker, the indicator flashes blue. Your speaker searches for Bluetooth devices. 2. Follow the instructions for your Bluetooth device to pair it with the speaker. After successful pairing, the indicator flashes blue every 2 seconds. 3. Use the playback controls on the speaker or your audio device. 4. Turn off the speaker after using. n Note: You can download Auvio EQ App for free from the App Store SM and Google Play to customize your calls and music. Enter password 0000 for Bluetooth connection if your device uses Android™ 2.1 or below. Connect with AUX IN 1. Connect an audio cable (not included) to your audio device, then connect to your speaker’s AUX IN jack. 2. The speaker will play your audio source and disconnect the Bluetooth connection automatically. 3. Use the playback controls on your audio device. 4. Unplug your audio device, the speaker will return to the previous Bluetooth connection. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursu ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This eq uipment generates, uses and can radiate radio frequency ene rgy and, if not installed and used in accordance with t he instructions, may cause harmful interference to rad io communications. However, there is no guarantee that interference will not occur in a particular install ation. If this equipment does cause harmful interference to r adio or television reception, which can be determined by turning the equipment off and on, the user is encou raged to try to correct the interference by one or more o f the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Ignition L.P. could void the user’s authority to op erate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condition s: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation . Limited WarrantyIgnition L.P. warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES.This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maint enance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) impro per or incorrectly performed repairs by persons who are no t a Ignition L.P. Authorized Service Facility; (c) cons umables such as fuses or batteries; (d) ordinary wear and t ear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, inst allation, set-up service, adjustment or reinstallation; and ( g) claims by persons other than the original purchaser . Should a problem occur that is covered by this warr anty, take the product and the sales receipt as proof of purchase date to the place of purchase. Ignition L .P. will, at its option, unless otherwise provided by l aw: (a) repair the product without charge for parts and lab or; (b) replace the product with the same or a comparab le product; or (c) refund the purchase price. All repl aced parts and products, and products on which a refund is made, become the property of Ignition L.P. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or repla ced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.IGNITION L.P. EXPRESSLY DISCLAIMS ALL WAR-RANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P. SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND © 2013. Ignition L.P. All rights reserved. Auvio is a registered trademark used by I…

Text truncated - open the document above for the full version.

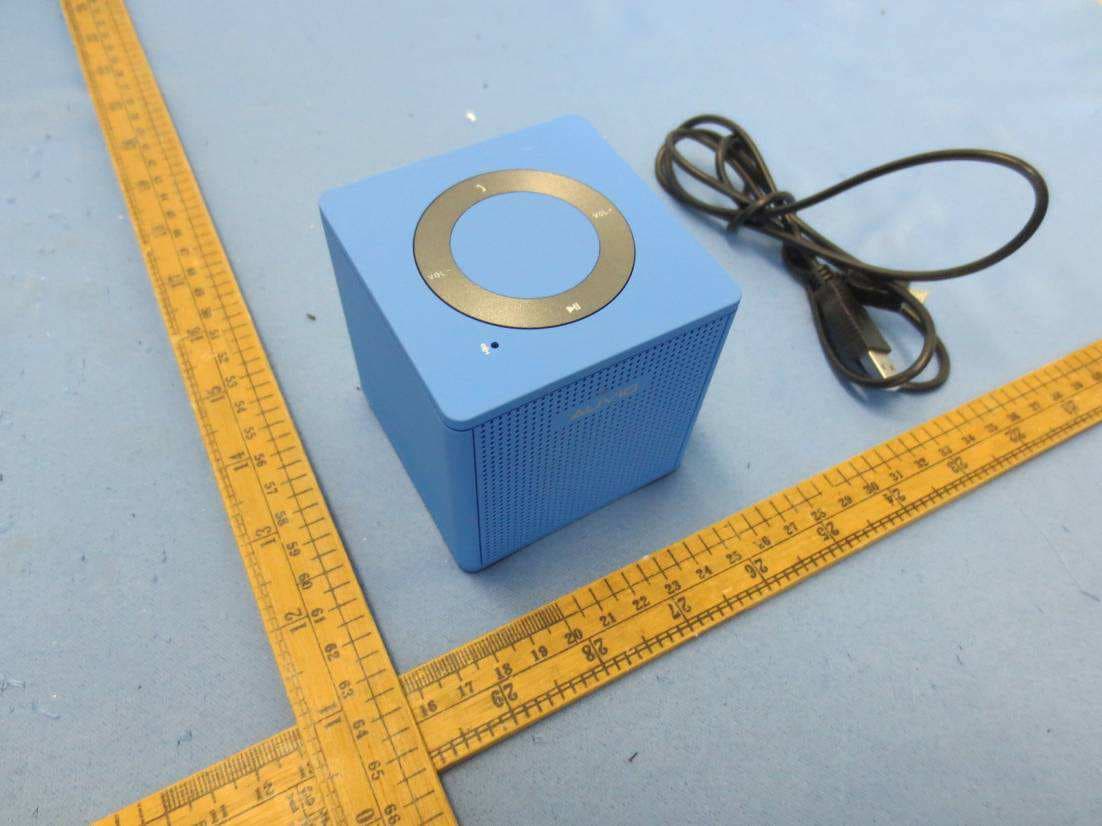

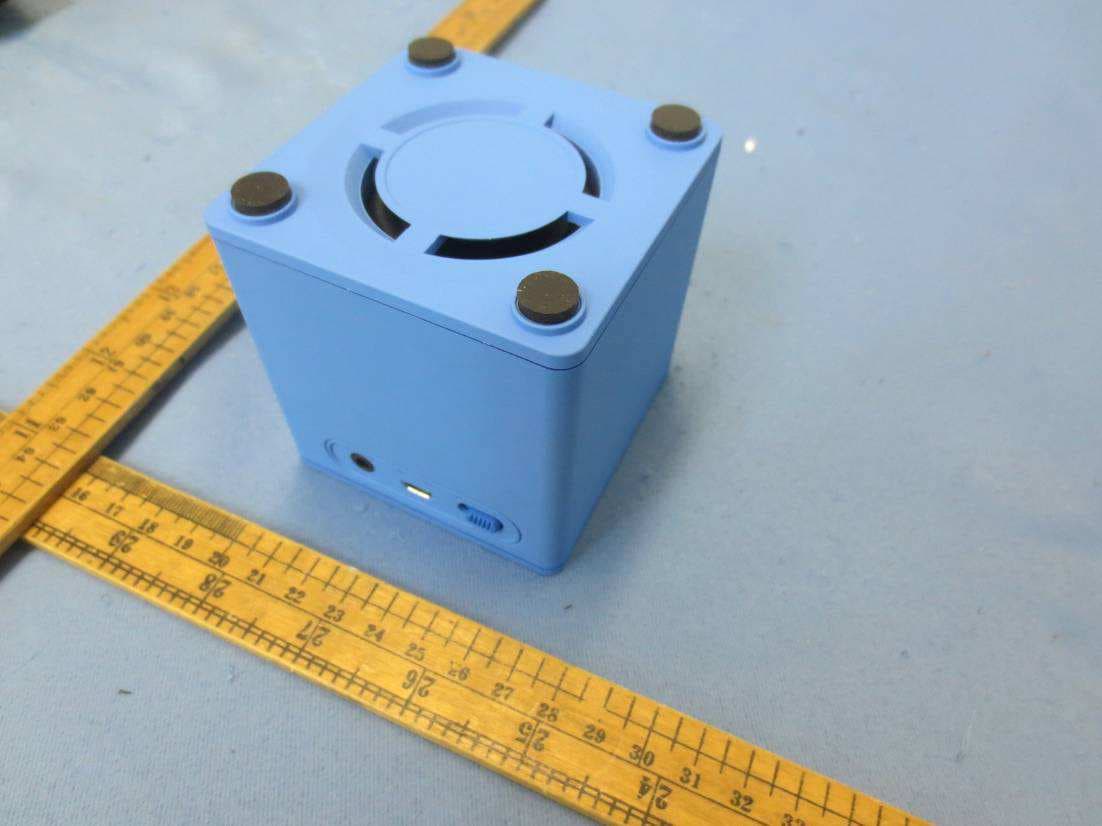

External photos

0.1mmPVC, 0.1mmPVC, 4.12.8.L2612021RR

Internal photos

Technical Description The equipment under test (EUT) is a Bluetooth Portable Speakers. The EUT will operate from a 3.7Vdc lithium battery which is charged by USB Port. When the EUT play the music from AUX IN jack, the Bluetooth will stop operation. For more detail information pls. refer to the user manual. Channel List 2402 2403 2404 2405 2406 2407 2408 2409 2410 2411 2412 2413 2414 2415 2416 2417 2418 2419 2420 2421 2422 2423 2424 2425 2426 2427 2428 2429 2430 2431 2432 2433 2434 2435 2436 2437 2438 2439 2440 2441 2442 2443 2444 2445 2446 2447 2448 2449 2450 2451 2452 2453 2454 2455 2456 2457 2458 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2470 2471 2472 2473 2474 2475 2476 2477 2478 2479 2480 Modulation Type: GFSK, ∏ ∏∏ ∏/4DQPSK, 8DPSK Bluetooth Version: 3.0 with EDR function, without the AFH mode Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 0dBm (Tolerance: +/- 3dB) The nominal conducted output power specified: 0dBm (Tolerance: +/- 3dB) The function of main IC is mentioned as below. 1) U5 acts POWER Amplifier IC. 2) U1 acts Battery Charger IC. 3) U4 acts AUDIO Amplifier IC. 4) U2 acts Inverting DC/DC converter. 5) U3 acts Bluetooth Module In Bluetooth Module: 1) U2 acts as Bluetooth Chip. 2) X1 is a 16MHz oscillator for Bluetooth Chip. 3) U3 acts as EEPROM.

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Portable Bluetooth speaker. The EUT was powered by DC 3.7V Internal Lithium battery and charging by USB Port. For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4DQPSK, 8DPSK Bluetooth Ver sion: 3.0 with EDR function (without AFH mode) Antenna Typ e: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 0dBm ( Tolerance: +/- 3dB) The nominal conducted output power specified: 0dBm ( Tolerance: +/- 3dB) According to the KDB 447498: The worst-case radiated emission for the EUT is 96.6dBμV/m at 3m in the frequency 2.402GHz = [(FS*D) ^2 / 30] mW = 1.4dBm which is within the production variation. The maximun conducted output power specified is 3dBm = 2.0mW The source- based time-averaging conducted output power = 2.0 * Duty cycle mW= 1.7 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW S in ce the sou rce-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 3.0+EDR) , transmitter duty cycle is dependent of packet type (DH1, DH3 and DH5). For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hopset consists of 5 TX slot and 1 RX slot. Duty cycle = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: ESX4000448

Design: Vtrek Check: Approve: Guangzhou Panyu Juda Car Mode: Block: Date: 4000448 Audio Equipment Co.,Ltd fjeng 2013-1-26 ADS8054 1 2 3 U4-A 4558 PT2308 4 5 6 7 8 U4-B 4558 PT2308 R13 15K C3 100PF R15 5.1K 546 123 7 8 SW1 C14 0.1UF R710Ω R39 100K R40 100K C21 0.1UF R41 10K R21 470R 5:GND 1:VCC 1 2 3 4 5 67 USB1 C15 C0603 4.7UF R46 24K R22 5.6K C48 0.1UF CON14 2pin,2.0mm R60 1K MFB VOL+ VOL- NC1 NC2 PLAY/PAUSE V1.8 GND BAT LED1 LED2 +5V AOL GND2 AOR MICN MICP MICB TX RX MUTE1 P20 F-3076 11 10 9 8 7 6 5 4 3 2 1 12 13 14 15 16 17 18 19 20 21 22 U3 F-3076 1 OUTP 2 VDD 3 VDD 8 OUTN 7 GND 6 SD_B 4 INN 5 INP U5 BA16857 1 2 CON2 2pin,2.0mm FB3 600R FB4 600R C60 330PF C61 330PF B CE Q1 8550 R20R R3 47K R8 2K 1 2 R57 10K 1 2 C6 30PF R5 470R C7 470PF R1 100KR4 75K R62 1.65K 1 CHRG 2 GND 3 BAT 4 VCC 5 PROG U1 R9 100R R10 10K R33 1K 1 23 Q4 SOT-23-1511 1511 R32 1M 1 23 Q5 3906 R31 1K R11 100K R54 30k R55 220k C13 C0805 22UF C23 C0805 22UF 21 D4 SS24 FB2LC0603DSFB/7R C28 C0805 22UF 1 SW 2 GND 3 FB 4 EN 5 IN 6 IN U2 SS6640STR 123 45 67 8 9 10 11 JK1 JK_ST3507 R6NC/0R 21 D3 RED C27 100NF C24 100NF + EC322uF,10V + EC4 22uF,10V 1 3 2 Q2 SOT-23-BV99 BAV99 R19 0R + EC547uF,10V + C29NC/22uF,10V C5 1UF C35 1UF C62 0.1UF + EC2 47uF,10V + EC6 47uF,10V C11 1UF C1 1UF FB1LC0603DSFB/7R R20 0R R23 NC 1 2 C8 NC 12 43 VOL+ 12 43 PLAY/PAUSE 12 43 VOL- R12 470R 21 D2 BLUE C9 473 C10 473 C12 220PF C16 475PF C17 475PF R16 1KR24 1K R25 2K 1 +5V 1 TX 1RX 1 RFGND C4 1000PF R17 10K 12 43 21 D5 4148 21 D6 4148 21 D7 4148 C18 104PF MIC_6 C19 1UF 12 L14.7uh C2 1UF FB5 80R C64 102PF C63 102PF BT_AUDIO +VDD +VDD VEF VEF VDD BATT+ POWER CONTROL CONTROL VDD5V OUT OUT MUTE BATT+ VDD5V VDD5V MUTE VDD VDD5V VDD AUX_IN RFGNDRFGNDRFGNDRFGND RFGND RFGND AUX_IN VDD5V VDD5V-IN VDD5V-IN POWER RFGND RFGND RFGND BT_AUDIO RFGND MUTE1 MUTE1 POWER AUXIN AUXIN Answer/hang up IS1685S 1 AOHPM 2 AOHPL 3 VDDA 4 VCOM 5 MIC_P1 6 MIC_N1 7 MIC_BIAS 8 VDD_IO 9 P2_3 10 P1_5 11 RST_N 12 P1_2 36 XO_N 35 XO_P 34 VDD_IO 33 P1_6 32 HCI_RXD 31 HCI_TXD P30 P0_5 29 P2_2 28 P2_4 27 LED2 26 LED1 25 MFB 37 VCC_RF 38 RX_CLASS1 39 RTX 40 P0_1 41 P0_3 42 P3_0 43 P2_0 44 P0_0 45 P0_4 46 VDD_IO 47 EAN 48 VDDAO 24 BK_OUT 23 BK_LX 22 BK_VDD 21 SYS_PWR 20 SAR_AVDD 19 BAT_IN 18 ADAP_IN 17 3V1_IN 16 CODEC_VO 15 3V1_O 14 1V8 13 P1_3 49 GND 50 GND U1 IS1685N C1 NC FB1 10UF 24C32 EEPROM A0 A1 A2 GND VCC WP SCL SDA U3 C2 10UF C3 1UF C4 0.1UF C5 1UF C6 10UF R7 1K C7 10uf L3 10UH R4 1R R5 1R C8 1UF C9 1UF C10 0.1UF R8 NC C11 18PF C12 18PF C13 10UF C14 1UF R1 0R L1 2.2NH C15 2PF C16 1PF C17 1.8PF C18 1PF C21 0.1uf R3 4k7 R6 1K XTAL_IN XTAL_OUT GND GND X1 16MHZ 4 NC1 5 NC2 6 PALY/PAUSE 7 1V8 8 GND 9 VBAT 10 LED2 11 LED1 3 VOL- 2 VOL+ 1 MFB 12 ADAP 13 AOR 14 GND 15 AOL 16 MIC_N 17 MIC_P 18 MIC_BIAS 19 TX 20 RX 21 MUTE 22 P20 U4 F-3076 1V8 VDD_IO P20 VOL+ VOL- PLAY/PAUSE BAT_IN 1V8 1V8 ADAP_IN 1V8 MFB MFB 1V8 BK_OUT VDD_IO LED1 R8 NC and R6 1K +5V MUTE RXD TXD MIC_P MIC_N MIC_BIAS VDD_IO SPK+ VDD_IO CODEC_VO CODEC_VO GND P13 P12 P12 P13 VDD_IO BK_OUT MFB VOL+ VOL- PALY/PAUSE 1V8 GND VBAT_IN LED2 LED1 ADAP_IN GND MIC_N MIC_P MIC_BIAS TX RX MUTE P20 SPK+ U2

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China T el: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Application For Certification FCC ID: ESX4000448 Bluetooth Speaker Model: 4000448 2.4GHz Transceiver Report No.: 130409017SZN-001 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-12] Prepared and Checked by: Approved by: Sign on file William Chen Project Engineer Billy Li Supervisor Date: 09 April 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000448 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000448 ii MEASUREMENT/TECHNICAL REPORT Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. - MODEL: 4000448 FCC ID: ESX4000448 This report concerns (check one :) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: William Chen Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0627 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000448 iii Table of Contents 1.0 General Description............................................................................................2 1.1 Product Description............................................................................................2 1.2 Related Submittal(s) Grants ...............................................................................2 1.3 Test Methodology...............................................................................................2 1.4 Test Facility........................................................................................................2 2.0 System Test Configuration .................................................................................4 2.1 Justification ........................................................................................................4 2.2 EUT Exercising Software....................................................................................4 2.3 Special Accessories ...........................................................................................4 2.4 Equipment Modification ......................................................................................4 2.5 Measurement Uncertainty ..................................................................................5 2.6 Support Equipment List and Description.............................................................5 3.0 Emission Results ................................................................................................7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation................................................................................8 3.1.2 Radiated Emission Configuration Photograph..................................................9 3.1.3 Radiated Emissions.........................................................................................9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs...................................................................................19 5.0 Product Labelling..............................................................................................21 6.0 Technical Specifications........................…

Text truncated - open the document above for the full version.
