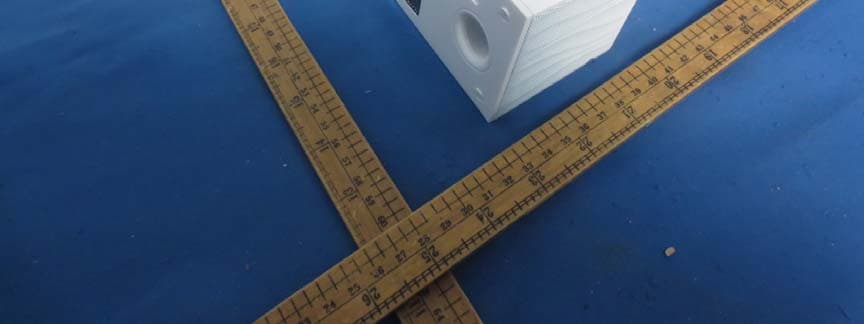

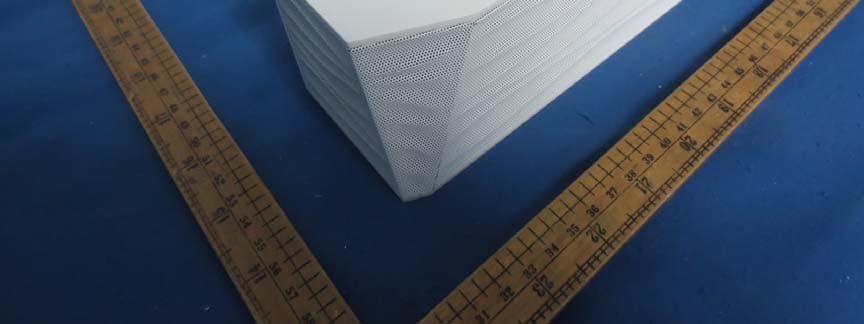

ESX4000451CBluetooth speaker

KS-2300CD ᮍḚ೒ Bluetooth Module (BTM8635 +U4033E) Crystalloid: 26MHz Step-up DC/DC Converter (EUP2624A) Step-up DC/DC Converter (EUP2624A) BT ANT 1.8V 3.3V 1.8V audio in/out PIO0 ~ PIO21 AIO0 ~ AIO1 CSR8635 Balun/ Filter (RFBPF1608070A0T) 2.4GHz Radio Regulator Stereo Audio Codec Baseband DS P RAM Kalimba DSP PIO MCU Crystal 26MHz/10ppm Flash JS-BTM8635 Block Diagram RF in/out 2402 ~ 2480MHz KH25U4033EZU1-12G

4 APPENDIX B Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Vtrek Dewei Industrial Garden, Shibei Industrial Road, Dashi Town, Panyu Borough,Guangzhou City, Guangdong Province, China 2013-05-17 To whom it may concern, Letter of Agency I, an officer of Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Name]：Liao Xiaofei [Title]： Engineer

̧üÐÂÉú²úÈÕÆÚ£¬È¡Ïû A °æ Éú²úÈÕÆÚΪ£º0 9A13£¬½öÔÚÅúºÅ/ ÅúÁ¿ S13081508-25030 ʹ Óà £» ÿ ́ÎÅúÁ¿Ðè ̧üÐÂÉú²úÈÕÆÚ£¬ÄÚÈݼû¶©μ¥£º

Technical Description The equipment under test (EUT) is a Bluetooth Speaker. The EUT will operate from a 3.7Vdc lithium battery which is charged by USB Port. For more detail information pls. refer to the user manual. BT2.1 Channel List 2402 2403 2404 2405 2406 2407 2408 2409 2410 2411 2412 2413 2414 2415 2416 2417 2418 2419 2420 2421 2422 2423 2424 2425 2426 2427 2428 2429 2430 2431 2432 2433 2434 2435 2436 2437 2438 2439 2440 2441 2442 2443 2444 2445 2446 2447 2448 2449 2450 2451 2452 2453 2454 2455 2456 2457 2458 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2470 2471 2472 2473 2474 2475 2476 2477 2478 2479 2480 BT4.0 Channel List 2402 2404 2406 2408 2410 2412 2414 2416 2418 2420 2422 2424 2426 2428 2430 2432 2434 2436 2438 2440 2442 2444 2446 2448 2450 2452 2454 2456 2458 2460 2462 2464 2466 2468 2470 2472 2474 2476 2478 2480 Modulation Type: GFSK for BT 4.0 and GFSK, π/4DQPSK, 8DPSK for BT 2.1+EDR Bluetooth Version: 4.0 and 2.1 with EDR Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 4dBm ( Tolerance: +/- 3dB) The nominal conducted output power specified: 4dBm ( Tolerance: +/- 3dB) The function of main IC is mentioned as below. 1) IC1-A acts AUDIO Amplifier. 2) IC1-B acts AUDIO Amplifier. 3) IC2 acts POWER Amplifier. 4) IC3 acts Inverting DC/DC. 5) IC4 acts Batt Charger. 6) BU1 acts Bluetooth Module In Bluetooth Module: 1) U1 acts as Bluetooth chip. 2) U2 is a filter. 3) U5 acts as Flash. 4) Y1 is a 26MHz oscillator for Bluetooth chip.

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a Bluetooth speaker. The EUT was powered by 3.7 VDC fully charged rechargeable battery charged by an USB Power Adapter with AC 120V, 60Hz input or PC during the test. For more detail information pls. refer to the user manual. Modulation Type: GFSK, ∏/4DQPSK, 8DPSK for BT 2.1 with EDR and GFSK for BT 4.0 Bluetooth Version: 2.1 with EDR and 4.0 Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 4dBm (Tolerance: +/- 3dB) The nominal conducted output power specified: 4dBm (Tolerance: +/- 3dB) According to the KDB 447498: The maximum radiated emission for the EUT is 101.4dBμV/m for BT 2.1 with EDR at 3m in the frequency 2.441GHz = [(FS*D) ^2 / 30] mW = 6.2dBm which is within the production variation. The minimum radiated emission for the EUT is 98.9dB μV/m for BT 4.0 at 3m in the frequency 2.440GHz = [(FS*D) ^2 / 30] mW = 3.7dBm which is within the production variation. The maximun conducted output power specified is 7dBm = 5.0mW The source- based time-averaging conducted output power = 5.0 * Duty cycle mW <= 5.0 mW (Duty Cycle<=100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: ESX4000451C

Bluetooth Module Amplifier Preamplifier Design: Vtrek Check: Approve: Guangzhou Panyu Juda Car Mode: Block: Date: AUVIO 4000451/4000474 Audio Equipment Co.,Ltd REST ADS8054 Blue Red A AA C B 4000623/4000624 SPK1 SPK2 12 R28 1.65K -+ IC1-A PT2308 4 5 + 6 - 7 8 IC1-B PT2308 12 R14 12K 1 2 C2 100PF 12 R13 12K 1 2 C3 100PF 12 R15 10K 12 R17 10K 12 R18 10K 12 R19 10K 1 2 C4 4.7UF 1 2 C5 4.7UF 1 2 C7 4.7UF 1 2 C8 4.7UF 1 2 C9 2.2UF 1 2 C10 2.2UF + 12 EC2 1000uF,10V 12 R24 1.2K 12 R25 1.2K 1 2 C11 1UF 1 2 C12 1UF 12 R4 18K 12 R5 18K 1 PVDDR 2 -OUTL 3 PGNDL 4 +OUTL 5 SHDN/ 6 VREF 7 INL 8 GND 9 VDD 10 INR 11 GND 12 NC 13 +OUTR 14 PGNDR 15 -OUTR 16 PVDDR IC2 PAM8004 12 C140.1UF 1 2 R7 10Ω 1 2 R39 100K 12 R40 100K 12 C21 0.1UF 12 R4110K 12 R4210K 12 C13 1UF 12 C24 0.1UF 12 C27 10UF 12 C23 0.1UF 12 C28 10UF 12 C20 224PF 12 C29 224PF 12 C31 224PF 12 C32 224PF 1 2 C33 4.7UF 1 2 C121 2.2UF 1 2 C120 2.2UF 12 R21 3K 12 R26 3K 8 3 1 4 2 7 6 5 IC3 EUP2624A 12 C37 2200pF 12 R27 10k 12 R29 100k 12 C38 0.022UF 12 R30 1k 12 R3130k 12 R32 9.1k 12 C40 22UF D1 SS24 FB5 FB/7R 12 C42 0.1UF 12 C46 22UF LX5 4.7uh 1 CHRG 2 GND 3 BAT 4 VCC 5 PROG IC4 12 C1510UF 12 R36 10k 1 2 R46 6.2K 1 2 R45 6.2K 1 2 C51 1UF 1 2 C53 1UF 12 C26 100PF 12 C25100PF 12 R22 10K 1 2 R64 22K 1 2 R63 22K D2 1N4148 1 1 2 2 CON6 1 2 R33 22K 1 2 R34 22K 12 C6 102P 12 C54 104P 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 CON1 10pin,2.0mm FB4 FB/80R FB1 0R FB0603 TP TP TP TP TP FB3 15nHFB0603 R56 1K R0603 C48 102PF C0603 R55 2K2 R0603 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 CON2 10pin,2.0mm R20 6.2K R23 6.2K R47 6.2K R83 6.2K R49 6.2K R11 10K R9 75K + EC4 22uF,10V 13 2 Q2 BAV99 1 23 Q3 3906 + EC6 220uF,10V R44 2K R51 0R 1 2 3 Q1 QSOT23_BCE 8050 R52 560R R53 1M + 12 EC7 220uF,10V R54 560R 1 1 ANT1 PCB-ANT 12 C1 22UF 12 C16 NC 12 C17 NC C50 2.2UF C0603 LX1 22UH LX2 22UH LX3 22UH LX4 22UH R1 560R R2 560R 1 1 2 2 3 3 4 4 5 5 6 6 CON4 CON6D2.0-V 12 C18 272PF 12 C19 272PF R3 560R 1 23 Q4 3904 R62 150K R0603 1 2 C30 1UF R61 100K R0603 R84 18K 12 R480R 1 2 C35 1UF 1 GND 2 AIO_0 3 UART_TX 4 UART_RX 5 UART_RTS 6 UART_CTS 7 NC 8 NC 9 NC 10 NC 11 NC 12 SPI_EN 13 GND 14 SPI_MISO 15 SPI_MOSI 16 SPI_CLK 17 SPI_CSB 18 GND 19 GND 20 BT_RESET 21 GND 22 LED_1 23 LED_0 24 PWR 25 GND 26 VBUS 27 CHG_EXT 28 VBAT_SENSE 29 BVAT 30 GND 31 1V8 32 VDD_PADS 33 3V3_USB 34 GND 35 USB_N 36 USB_P 37 GND 38 PIO_9 39 PIO_0 40 PIO_1 41 PIO_8 42 PIO_7 43 PIO_6 44 PIO_21 45 PIO_18 46 LED_2 47 GND 48 MIC_BIAS 49 LINE/MIC_AN 50 LINE/MIC_AP 51 LINE_BN 52 LINE_BP 53 AGND 54 SPK_RN 55 SPK_RP 56 SPK_LN 57 SPK_LP 58 GND 59 RF 60 GND BU1 BTM8635 EC1 100uF C45 0.1uF C22 2.2uF D7 D8 + EC3 220uF R86 9.1K R0603 C441uF C34 1002PF 1 2 C36 102P R88 1K C56 1uF C55 1uF 1 2 C67 4.7UF 1 2 C66 4.7UF 1 2 C69 4.7UF 1 2 C68 4.7UF 12 R91 NC 12 R90 NC 12 R93 NC 12 R92 NC BL_R R_COM BL_L L_COM +VDD +VDD D5V VEF VEF VEF VDD5V VDD5V VDD5V SHDN INL INR VDD VDD5V GND INL INR CHRG USB_IN AUX_RIN AUX_LIN BATT+ INR INL AUX_RIN D5VUSB_INVDDBATT+VDD5VPOW AUX_LIN L_COM BL_L R_COM BL_R +1_8V MIC_APMIC_AN MIC_BIAS PLAY-PAUSE/HF VOL+VOL- UP DOWN +1_8V VDD5V SHDN D5V 5V USB_IN BATT+ LED2 LED1 BATT+ CHRG RSTB 5V MIC+ MIC+ POW BATT+USB_IN LED2 LED1 RSTB MIC_BIAS MIC_AN MIC_AP VOL+VOL-DOWNUPPLAY-PAUSE/HF BL_COMBL_LINBR_COMBR_RIN BL_COMBL_LIN BR_COMBR_RIN 2402-2480MHz Design: Vtrek Check: Approve: Guangzhou Panyu Juda Car Mode: Block: Date: Audio Equipment Co.,Ltd Microphone Polymerlithiumion Battery Key Board LED Board VOL- VOL+ DOWN UP ONKKEY D AUVIO 4000451/4000474 4000623/4000624 E 1 + 2 - BATT 54 6123 78 SW1 SW_POWER 1 2 3 4 5 6 7 8 91011 JK2 JK_ST3507 5:GND1:VCC 12345 USB1 USB-1 USB MIC1 MIC 1 1 2 2 JP6 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 JP1 10pin,2.0mm LED1 R_G_LED 1 1 2 2 3 3 4 4 5 5 6 6 JP4 CON6D2.0-V 12 LED2 LED SW2 SW3 SW5 SW4 SW6 FB9 600R FB8 600R FB7 600R FB6 600R FB5_ 600R FB2_ 600R 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 JP1_ 10pin,2.0mm 1 2 R1002.7K R22_ 3.3K R23_ 3.3K R24_ 3.3K R25_ 3.3K R26_ 3.3K FB3_ 0.22uh FB4_ 0.22uh FB2 FB/80R FB107 FB/7R POW AUX_RINAUX_LIN D5V USB_IN VDD BATT+ D5V VDD5V AUX_RIN AUX_LIN VDD5V POW LED_1BATT+LED_2NCCHGUSB_IN VDDBATT+POW GND VDD USB_IN

BT 2.1+EDR BT 4.0

BT 2.1+EDR BT 4.0

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China T el: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Application For Certification FCC ID: ESX4000451C Bluetooth Speaker Model: 4000474 (C Version) Additional Model: 4000451 (C Version), 4000623, 4000624, 4000626 2.4GHz Transceiver Report No.: 140225023SZN -002 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] Prepared and Checked by: Approved by: Si gn on file William Chen Project Engineer Billy Li Supervisor Date: 31 March 2014 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000451C i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000451C ii MEASUREMENT/TECHNICAL REPORT Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. - MODEL: 4000474 (C Version) FCC ID: ESX4000451C This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: William Chen Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0627 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000451C iii Table of Contents 1.0 General Description ............................................................................................................................................ 2 1.1 Product Description ........................................................................................................................................... 2 1.2 Related Submittal(s) Grants ............................................................................................................................. 2 1.3 Test Methodology .............................................................................................................................................. 2 1.4 Test Facility ....................................................................................................................................................... 2 2.0 System Test Configuration ................................................................................................................................ 4 2.1 Justification ......................................................................................................................................................... 4 2.2 EUT Exercising Software .................................................................................................................................. 4 2.3 Special Accessories .......................................................................................................................................... 4 2.4 Equipment Modification ..................................................................................................................................... 4 2.5 Measurement Uncertainty ................................................................................................................................. 5 2.6 Support Equipment List and Description ......................................................................................................... 5 3.0 Emission Results ................................................................................................................................................ 7 3.1 Radiated Test Results ....................................................................................................................................... 8 3.1.1 Field Strength Calculation .............................................................................................................................. 8 3.1.2 Radiated Emission Configuration Photog…
