ESX40004572.1 SOUNDBAR

THE P ERFORMANCE YOU NEED ® ® 32” Soundbar SBT32210 User’s Guide 4000457 Please read this user’s guide before using your new soundbar. 2 2 3 3 4 4 5 5 6 6 7 7 Important Safety Instructions 1. Read these instructions. Keep these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this soundbar near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 7. Do not install near any heat sources such as radiators,heat registers,stoves,or other apparatus (including amplifiers) that produce heat. 8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit the soundbar. 9. Use only attachments/accessories specified by the manufacturer. 10 . Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the soundbar. When a cart is used, use caution when moving the cart/soundbar combination to avoid injury from tip-over. 11 . Unplug this soundbar during lightning storms or when unused for long periods of time. 12 . Refer all servicing to qualified service personnel. Servicing is required when the soundbar has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the soundbar, it has been exposed to rain or moisture, it does not operate normally, or it has been dropped. Package Contents „Soundbar „AC-to-DC Power Adapter „RCA Cable „AC Power Cord „Remote Control „Mounting Template „User’s Guide Features „Provides powerful sound to enhance your listening experience „Compatible with most Bluetooth ® -enabled tablets, laptops, MP3 players, and smartphones with iOS or Android TM platform „Remote for convenient controlling from a distance Connections Mounting Holes (Optionally) DC IN Use the AC-to-DC power adapter and AC power cord to connect to a wall outlet. To a coaxial port (coaxial cable not supplied) To an optical port (optical cable not supplied) (G) Power On/Off LINE IN Port Connection Use a 3.5mm audio cable (not supplied) to connect to an additional audio device. AUX IN Ports Connection Use the RCA cable to connect to a TV, DVD player, game system, etc. INPUT Switch to LINE, AUX, OPTICAL, COAXIAL, or BLUETOOTH. EQ Switch to MUSIC, MOVIE, NEWS, or GAME. Volume Control (+/–) Warnings and Precautions „To reduce the risk of electric shock, do not remove cover (or back). There are no user-serviceable parts inside. „Do not expose the soundbar to dripping or splashing liquids. Do not place objects filled with liquids (such as vases) on the soundbar. „The mains plug is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To completely disconnect the soundbar from supply mains, the main plug of the product shall be disconnected from the mains socket outlet completely. „Using the soundbar near fluorescent lighting may cause interference with the remote. If the soundbar is behaving erratically, move away from any fluorescent lighting. Mounting the Soundbar (Optional) 1. Locate a place for mounting the soundbar. Make sure you have enough room for both ends of the soundbar to present unobstructed sound transmission. 2. Use the supplied mounting template to mark two screw hole positions. Use two screws (not supplied) with heads no bigger than the soundbar’s mounting holes. 3. Align the soundbar’s mounting holes with the screw heads and slide down to secure the soundbar. Using the Soundbar 1. Turn on your device and turn down its volume. 2. Press G to turn on the soundbar, and turn down its volume. 3. Press INPUT to switch to LINE, AUX, OPTICAL, COAXIAL , or BLUETOOTH mode. You can also press BLUETOOTH on the remote to go to Bluetooth mode directly. 4. Press EQ to choose a sound option or press MUSIC, MOVIE, NEWS, or GAME on the remote. You can customize each option by adjusting the bass and treble sound levels, BASS +/– and TREBLE +/–. 5. After starting playback on your device, adjust the volume of the device and soundbar to a comfortable level. n Note: The soundbar enters standby mode if you pause it for more than 15 minutes or if the Bluetooth connection is broken for 15 minutes. Using the Bluetooth Function 1. After you turn on the soundbar and switch to Bluetooth mode (BLUETOOTH scrolls on the display), the soundbar searches for a Bluetooth-enabled device ( BT PAIRING scrolls on the display). 2. Activate your device’s Bluetooth function (refer to your device’s user’s guide). If your device uses 4000457_UG_EN_070913.indd 1-77/10/2013 2:39:39 PM 8 8 9 9 10 10 11 11 12 12 13 13 14 14 Printed in China 07A13 4000457 © 2013. Ignition L.P. All rights reserved. Auvio is a registered trademark used by Ignition L.P. Package and user documentation are recyclable. User documentation contains recycled material. The Bluetooth ® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Ignition L.P. is under license. Other trademarks and trade names are those of their respective owners. Android is a trademark of Google Inc. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encou…

Text truncated - open the document above for the full version.

1.8V 3.3V 1.8V BlueTunes ROM audio in/out PIO0 ~ PIO14 AIO0 ~ AIO1 (BC57F687A05) RF in/out Balun/ Filter (BBF-2012-2G4S1-A6) 2.4GHz Radio Regulator Stereo Audio Codec Baseband DSP RAM Kalimba DSP PIO MCU Crystal 26MHz/10ppm EEPROM (T24C32A) JS-BTM521 Block Diagram ANT: 2402-2480 MHz Block Diagram 55 44 33 22 11 D D C C B B A A L （ 15W/8 Ω ) Bluetooth CS8416 CS4344 COAX_IN MCUSTM8S005K6 Audio Processor PT2033 BU4052 SCL SCL DATA LIVE_IN OPTI_IN AUX_IN L/R AMPTDA7491LP15W X 2SUB AMPTDA7492MV25W X 1 R(15W/8 Ω ) SUB （ 15W/3 Ω ） SUB （ 15W/3 Ω ） Touch thekeys LED 5* 8Displayscreen CR302 CT1623 ThepoweradapterDC18V DC+18V/3.6A +5V MCU_3V3+12VAMP+19V DC TO DC 100-240V/50-60HZ OUT_R+OUT_R- OUT_L+OUT_R-OUT_SUB+OUT_SUB- AMP_RAMP_LAMP_SUB+ AMP_SUB- Blue_RBlue_L AUDIO_RAUDIO_L RL LRLR SCL STB IO control Design:WeiShiLie Block: Check: 4000457System BlockDiagram Model: 2013-2-23 Date: Approve: 4000457 Rev A Sheet 0 Guangzhou pany u car audio equipm ent co., LTD AB LR LR 4558 4558 4558 4558 SCKLRCKMDLK SDA SDA SDA SCLKDATA

Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Vtrek Dewei Industrial Garden, Shibei Industrial Road, Dashi Town, Panyu Borough,Guangzhou City, Guangdong Province, China 2013-05-17 To whom it may concern, Letter of Agency I, an officer of Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Name]：Liao Xiaofei [Title]：Safety Engineer

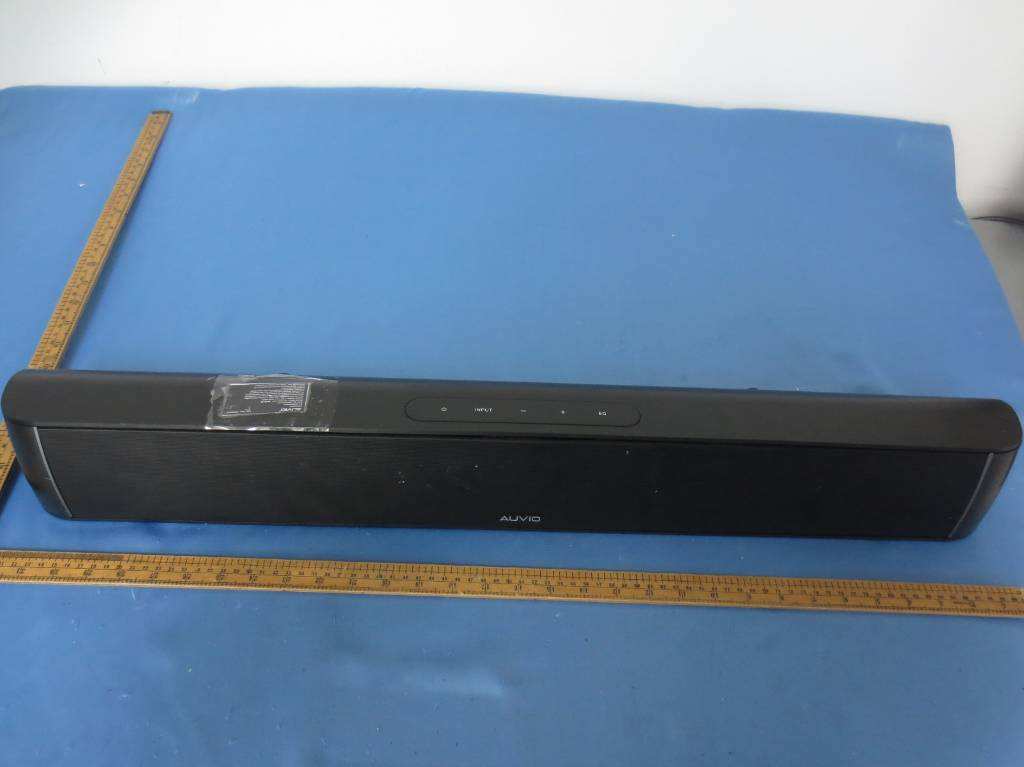

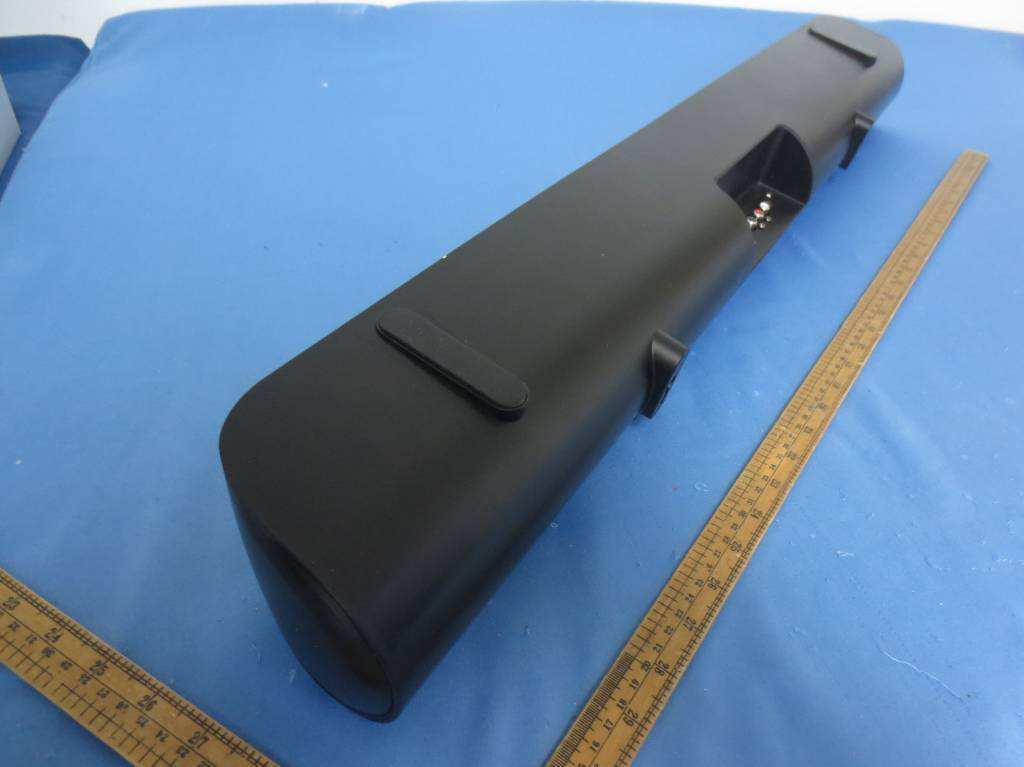

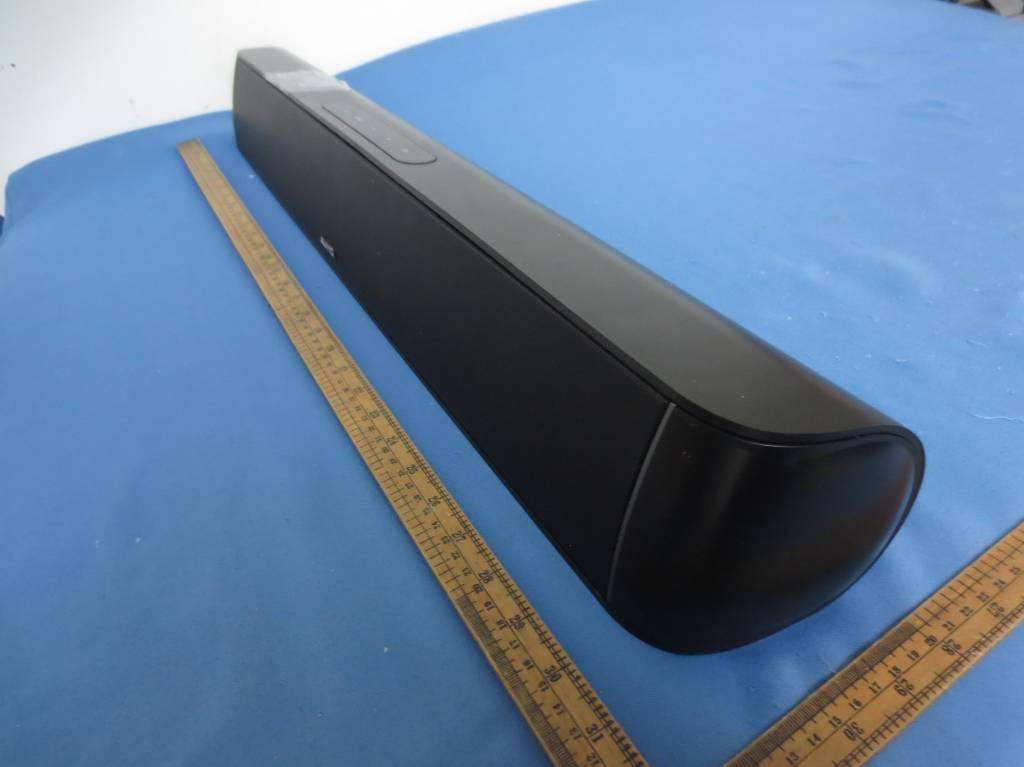

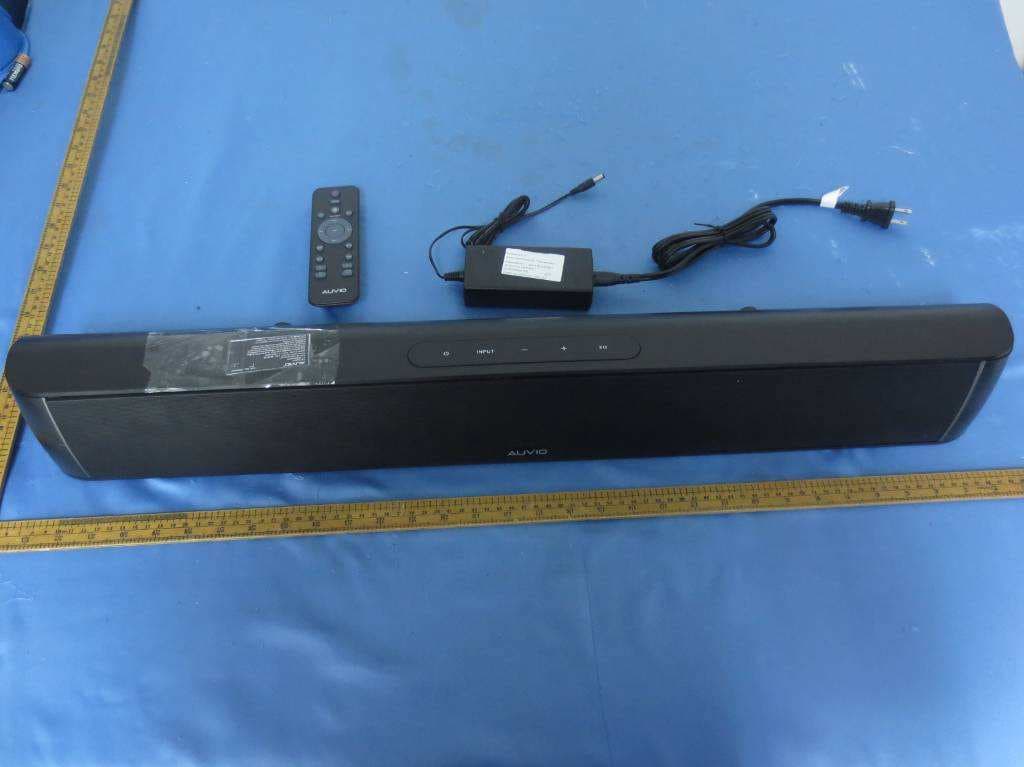

External Photo

MMAYY 3 4 . 0 60.0

Internal Photo

Technical Description The equipment under test (EUT) is a 2.1 SOUNDBAR with Bluetooth function. The EUT will operate from external power adapter. For more detail information pls. refer to the user manual. Channel List 2402 2403 2404 2405 2406 2407 2408 2409 2410 2411 2412 2413 2414 2415 2416 2417 2418 2419 2420 2421 2422 2423 2424 2425 2426 2427 2428 2429 2430 2431 2432 2433 2434 2435 2436 2437 2438 2439 2440 2441 2442 2443 2444 2445 2446 2447 2448 2449 2450 2451 2452 2453 2454 2455 2456 2457 2458 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2470 2471 2472 2473 2474 2475 2476 2477 2478 2479 2480 Modulation Type: GFSK, π ππ π/4 –DQPSK and 8-DPSK Bluetooth Version: 2.1 with EDR function Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal radiated output power (e.i.r.p) specified: 0dBm ( Tolerance: +/- 3dB) The nominal conducted output power specified: 0dBm ( Tolerance: +/- 3dB) The function of main IC is mentioned as below. 1） U1 acts as Touch the keys 2） IC301 acts as Display driver 3） IC101 acts as MCU. 4） IC701 acts as POWER Amplifier. 5） IC702 acts as POWER Amplifier 6） IC1 acts as Inverting DC/DC. 7） U2 acts as Inverting DC/DC. 8） IC105A acts as Audio - the operational amplifier. 9） IC105B acts as Audio - the operational amplifier. 10） IC501A acts as Audio - the operational amplifier 11） IC501B acts as Audio - the operational amplifier 12） IC703 acts as Audio - the operational amplifier 13） IC704 acts as Audio - the operational amplifier. 14） IC705 acts as Audio Input channel selection and audio control 15） IC706 acts as Audio input channel selection。 。。 。 16） IC803 acts as Decoding the coaxial optical fiber 17） IC804 acts as Fiber coaxial/audio D/A conversion 18） BL501 acts as Bluetooth Module In Bluetooth Module: 1） ）） ） U1 acts as bluetooth chip. 2） ）） ） Y1 is a 26MHz oscillator for Bluetooth chip. 3） ）） ） U3 acts as EEPROM. 4） ）） ） U2 is a filter.

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a 2.1 SOUNDBAR with Bluetooth function. The EUT was powered by adapter. For more detail information pls. refer to the user manual. Modulation Type: GFSK, π/4 –DQPSK and 8-DPSK. Bluetooth Version: 2.1 with EDR function. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The nominal conducted output power specified: 0Bm +/-3dB. The nominal radiated output power (e.i.r.p) specified: 0Bm (+/- 3dB) According to the KDB 447498: The minimum peak radiated emission for the EUT is 92.9dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -2.3dBm which is within the production variation. The maximun peak radiated emission for the EUT is 93.4dBμ V/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -1.8dBm which is within the production variation. The maximun conducted output power specified is 3dBm = 2 .0mW The source- based time-averaging conducted output power = 2.0 * Duty Cycle mW= 1.7 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation Based on the Bluetooth Specification (BT version: 2.1 + EDR), the duty cycle is dependent of packet type (DH1, DH3 and DH5).For one period for a pseudo-random hopping through all 79 RF channels, for DH5: One hop set consists of 5 TX slot and 1 RX slot. Duty factor = 5 / 6 = 0.833 This requirement is according to KDB 865664 D02 FCC ID: ESX4000457

1 2 3 4 5 6 7 8 ABCD 8 7 6 5 4 3 2 1 D CBA BTM521-VO1A Schematic Diagram Sheet:1of1 Drawn: Checked By: Date:2012-05-25 Fihonest Communication Co,Ltd Approver By: C1 15pF L1 15n C14 47nF MIC_A_P MIC_A_N MIC_B_N MIC_B_P MIC_BIAS C1322nF C116p8 C12 18pF LED_(0)LED_(1) +1V8 C1022nF 1V5_AUDIO C922nF R2 2R2 C8 2u2 +1V8 PWR VBAT C72u2 CHG L2 22uH C64u7 +1V8 C5 22nF C4 2u2 R1 2R2 C315p +1V5 C2 15p PIO_1 R3 2K2 R4 2K2 R5 2K2 C15 100nF +1V8 SCL SCL SDA SDAWP WP AO 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U3 T24C32A RF_P 64 RF_N 65 VSS_CNTR_PAD 69 NC 8 NC 40 NC 41 NC 42 NC 43 NC 44 NC 49 AU_REF_DCPL 55 SPKR_A_P 57 SPKR_A_N 56 SPK_B_N(NC) 53 SPK_B_P(NC) 54 MIC_A_P 51 MIC_A_N 52 MIC_B_N 50 MIC_B_P 48 MIC_BIAS 45 RST# 26 TEST_EN 27 LO_REF 5 AIO(1) 6 AIO(0) 7 UART_RTS 12 UART_CTS 11 UART_RX 10 UART_TX 9 SPI_CS# 30 SPI_CLK 29 SPI_MIS0 31 SPI_MOS1 28 PIO(0) 61 PIO(1) 60 PIO(2) 59 PIO(3) 58 PIO(4) 25 PIO(5) 24 PIO(6) 23 PIO(7) 22 PIO(8) 21 PIO(9) 14 PIO(11) 15 PIO(12) 18 PIO(13) 19 PIO(14) 20 LED(0) 32 LED(1) 33 XTAL_OUT 4 XTAL_IN 3 VDD_PADS 16 VDD_USB 13 VDD_PIO 62 VDD_AUDIO 47 VREGIN_L_AUDIO 46 VREGENABLE_L 68 VREGENABLE_H 35 BAT_P 38 VDD_CHG 39 VDD_BUCK_CORE 36 LX 37 VREGIN_L 1 VDD_ANA 2 VDD_CORE 34 VDD_CORE 17 VDD_RADIO 63 VDD_RADIO 66 VDD_LO 67 U1 BC57F687A05 UNBAL 1 DC 2 NC 3 BAL 4 GND 5 GND 8 GND 7 BAL 6 U2 BBF-2012-2G4S1-A6 1 2 3 4 Y1 26M PIO_12PIO_11PIO_14 TP1 RF R&D Rev No:A1 PIO_4 SPK_A_P SPK_A_N SPK_B_N SPK_B_P PIO_2PIO_5 PIO_13 PIO_9PIO_0PIO_3 Reset AIO_0UART_RTSUART_CTSUART_RXUART_TXSPI_CSBSPI_MOSISPI_MISOSPI_CLKAIO_1 RF_IN ANT: 2402-2480 MHz Circuit Diagram 55 44 33 22 11 D D C C B B A A 2013-2-23 Design:WeiShiLieCheck:Approve: Model:Block: Date: 4000457 MCU Sheet 3 of 7 Rev A Blutooth pin name function11121314151617181920212223242526272829303132 PB1PB2PB0PB3PB4PB5PE5PC5PC6PC4PC7PC2PC1PC3PD3PD6PD0PD4PD7PD5PD2PD1 BL_MUT IIC_SCLIIC_SDA DET POWERBT_POWER SWIM SP-POWER LED_SCL BACKWARD Audio_Mute LED_STB CR302_RESET 4052_B BL_PLAYLED_SDA 4052_A REM LED1 CR302_SDACR302_SCA LED KEY POWER AUDIO FORWARD PF4 8 pwr Guangzhou pany u car audio equipm ent co., LTD NRST Audio_Mute LED_STB STANDBY LED_SDA MCU_3V3 SCASDAREMLED_SCL 4052_A REM LED_STB IIC_SDA LED_SCL PD5 TX IIC_SCL 4052_B LED_SDA SP-POWER DET 4052_B TX BT_POWER RX LED1 SWIM FORWARD BACKWARD BL_PLAY CR302_RESET IIC_SDA SWIM NRST SCA SDA CR302_RESET SP-POWER SP-POWER PD1 SWIM BL_MUT REMLED_STBLED_SCLLED_SDA Audio_Mute BL_PLAY BL_MUT BACKWARD POWERSTANDBY POWER IIC_SCL IIC_SDA4052_B 4052_A CR302_RESET IIC_SCL DET SDA SCA FORWARD RXDET LED_OUT POWER LED_OUT 4052_A pwr pwr pwr LED1BT_POWER Audio_Mute [7]STANDBY [5,7] MCU_3V3 [2,6,7] CR302_RESET [6] BL_P [1,5] FORWARD [5] BACKWARD [5] SDA [6] SCA [6] SP-POWER [2] BL_MUT [5] REM [6] LED_STB [6] LED_SCL [6] LED_SDA [6] IIC_SDA [3,4]IIC_SCL[3,4]4052_A [3]4052_B [3] DET [3] LED_OUT [6] pwr [5] LED1 [5] BT_POWER [5] MCU_3V3 MCU_3V3 MCU_3V3 MCU_3V3 MCU_3V3 MCU_3V3 MCU_3V3 MCU_3V3 MCU_3V3 R32 10K R118 10K C135 0.1uF R10910K C1180.1uF R105 10K R116 10K R130 100R R110 NC R33 100R IC103 TG1909 RST VCC GND Q6 8050 1 32 R115 10K R119 10K R13310K PN102 4x1W/HOUSING 1234 Q103 8050 1 32 C119 0.1uF R107 10K R126 47K R12310K C106 nc R106 NC IC101 STM8S005K6 12345678 9 10 11 12 13 14 15 16 1718192021222324 25 26 27 28 29 30 31 32 NRSTOSCINOSCOUTVSSVCAPVDDVDDIOPF4 VDDA VSSA PB5 PB4 PB3 PB2 PB1 PB0 PE5 PC1PC2PC3PC4PC5PC6PC7 PD0 PD1 PD2 PD3 PD4 PD5 PD6 PD7 R31 10K R125 4.7K R136 10K C13410uF C13310uF R113 NC R121 10K R112 NC R158 470R R135 10K R117 10K + C121 100uF/10V R122 10K R29 10K C1310.1uF R120 10K R13410K C107 nc C120 0.1uF R124 10K 55 44 33 22 11 D D C C B B A A Design:WeiShiLieCheck:Approve: Model:Block: Date: 4000457 Sheet 2 of 7 2013-2-23 POWER 1.22V FB LIN_L AXU_RAXU_L GNDA5VGNDOPTCOAX LIN_R Power Supply Rev A Guangzhou panyu car audio equipment co., LTD MCU_3V3+12V PVDD PVDD PVD_5 +5V A3V3 M_POWER +5V OPTI AXU_RLIN_RAXU_L COAX LIN_L V+5V LIN_RLIN_LCOAXA5VOPT AXU_RAXU_L PVD_5 +12V V+5V A3V3 PVD MCU_3V3 PVD MCU_3V3 [1,6,7] +12V [3,5,7] PVDD [7]A3V3 [4,5,7] SP-POWER [1] +5V [3,4,5,6] OPTI [4] COAX [4] LIN_R [3] LIN_L [3] AU_L [3] AU_R [3] V+5V [6] MCU_3V3 PVDD +5V DCIN PVD +5V PVD PVD PVDDV+5V+12V +5V A3V3 R312K1% 103PC11 M7 M3.2-6.1 1 104PC101 + C23100uF,25V Q24 MDD3854 TO252_2L 1 2 3 Q5 8050 QSOT 23_BCE 1 23 R5NC/47K + C17470uF,16V 3300PFC13 + C18 470uF/10V R9 47K CON19x2.0W/HOUSING 123456789 Q11117-3.3 1 2 3 GND OUT VIN U2ADS5210 1 2 3 GND OUT VIN R410K D1SS14 1 2 R2NC IC1 SSY1920M 1234 5678 BSVINVswGND FB comp EN NC Q4 3904 QSOT 23_BCE 1 23 M8 M3.2-6.1 1 C1020.1uF R2422k + C104 47uF/50V 104PC1 104PC16 R2147K M9 M3.2-6.1 1 Q37812 1 2 3 GND OUT VIN PN15x2.0W/HOUSING 1234 R156K1% R3410K Q10 1525sot-23 1 23 L122UH LCD54 + C103 470uF/10V R2310K R2268k 100PC2 FB103 220R/100MHz R26 10K + C7A1 220uF/10V D2SS14 12 R16 100R C7990.1uF 104PC15 FB1 220R/100MHz R392.2R M6 M3.2-6.1 1 103P C859 NCC12 M_POWER [2,5] M_POWER [2,5] 55 44 33 22 11 D D C C B B A A Design:WeiShiLieCheck:Approve: Model:Block: Date: 4000457 AUDIO Sheet 3 of 7 Rev A 2012-2-23 POWER Guangzhou panyu car audioequipment co., LTD AUDIO_L ROUT AU_R AMP_L AMP_SUB AUDIO_R LOUT +12VD +12V SP_R AMP_SUB AMP_L LIN_L AMP_R AUDIO_L AUDIO_R AU_L SP_L AOP-VREF AOP-VREF AOP-VREF +12VD +5V AOP-VREF LIN_R 4052_BIIC_SDAIIC_SCL4052_ADETBlue_RBlue_L AMP_R SP_LSP_RLIN_LAU_LLIN_RAU_R Blue_RBlue_L IIC_SCL [1] IIC_SDA [1] AMP_SUB [7]AMP_L [7] LOUT ROUT +12V [2,5,7] DET AMP_R [7] +5V [2,4,5,6] AOP-VREF [5,7] IIC_SCL [1,4]IIC_SDA [1,4]4052_B [1]4052_A [1] DET [1] Blue_R [5]Blue_L [5] SP_L [4]SP_R [4] LIN_L [2] AU_L [2] AU_R [2] LIN_R [2] 4052_B 4052_A +12V +12V +12V +12V R148 1K R778nc C7A210uF R7A1 470R C791 4.7uF C7C40.1uF R788 0R C132 100pF Q8 8050 1 32 C797 0.22UF R797 220R R777 10K R5218K C7D3330pF R776 10K C789 10uF C7E4 0.1uF C7B80.1uF C79610uF + C785 22uF/16V R7B4 0R R795 120R C110 2.2uF R7B1NC R7B3 100K C788 10uF C7B60.1uF R144150K ZD702 8.2V/0.5W R7A7 100R C794 0.047uF R150100K R146 220K R15220R ZD704 7.5V/0.5W C7D2330pF R7A5 100R C826 1000pF R137 10K R7935.6K FB7…

Text truncated - open the document above for the full version.

Bandedge Plot

20dB BW Plot

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Guangzhou Panyu Juda Car Audio Equipment Co., Ltd. Application For Certification FCC ID: ESX4000457 2.1 SOUNDBAR Brand Name: AUVIO Model: 4000457 2.4GHz Transceiver Report No.: 130529003SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-12] Prepared and Checked by: Approved by: Sign on file Leo Lai Project Engineer Billy Li Supervisor Date: July 29, 2013 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000457 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000457 ii MEASUREMENT/TECHNICAL REPORT FCC ID: ESX4000457 Brand Name: AUVIO Model: 4000457 July 29, 2013 This report concerns (check one :) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-12 Edition] provision. Report prepared by: Billy Li Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0645 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: ESX4000457 iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation ................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph .................................................. 9 3.1.3 Radiated Emissions ......................................................................................... 9 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 11 3.2 Conducted Emission at Mains Terminal................................................... 15 3.2.1 Conducted Emissions Configuration Photograph......................................15 3.2.2 Conducted Emissions........................................................................15 4.0 Equipment Photographs ................................................................................... 19 5.0 Product Labelling .............................................................................................. 21 6.0 Technical Specifications .............…

Text truncated - open the document above for the full version.

Test Setup Photo - Conducted Emission

Test Setup Photo –Radiated Emission
