ESXSPB4MBluetooth Speaker

USER MANUAL UB-SPB4M-101 BLUETOOTH SPEAKER Features .....................................................................................................................2 For your Attention.....................................................................................................3-4 Panel.......................................................................................................................5-6 Connections...............................................................................................................7 Trouble shooting.........................................................................................................8 Specifications.............................................................................................................9 Contents Contents -1- Features -2- Thanks for your purchase of our product. Please read through this manual before making connections and operating this product. Retain this manual for future reference. Bluetooth playback AUX input With USB charge port Built-in rechargeable battery Package Contents: User manual Us er m an ua l DC adaptor IMPORTANT NOTES For Your Attention Please read through this manual before making connections and operating this product. Retain this manual for future reference. Don't open the cabinet of this unit. No user-serviceable parts inside. Refer servicing to qualified personnel only. Switch off the unit when you don't use it. Switch off the unit and disconnect it from the AC power supply when it is not being used for a long time. Don't install the unit in a place exposed to heating sources or direct sunshine. Don't install the unit in a place exposed to moisture or rain. The apparatus shall not be exposed to dripping or splashing and any object filled with liquids, such as vases shall not be placed on it. Install the unit on a horizontal, flat and firm surface with good ventilation. Never block the vents which will cause malfunction resulted from overheating. Use a soft and clean rag to clean the outside of the unit . Never clean it with chemicals or detergent. This book is only a guide for user's operation, not a criterion for configuration. Only use attachments/accessories specified by the manufacturer. Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type. -3- For Your Attention -4- Panel -5- 1. POWER ON/OFF 2. DC IN (10V) 3. AUX INPUT 4. USB CHARGE PORT (5V) (Note:You can plug the USB power cable that came with your phone, mp3 player, or other mobile device into the USB port for charging.) TOP PANEL: 1 2 3 REAR PANEL: 4 1 2 3456 1. MICROPHONE 2. CHARGING-INDICATOR(red indicator) 3. BLUETOOTH (blue indicator) TOUCH KEYS: 4. PLAY/PAUSE/HANDS FREE 5. PREVIOUS/NEXT 6. VOLUME+/- Panel -6- FRONT PANEL: 111 1. SPEAKER Connections -7- AUX IN This unit has a audio input terminal. You can input the analogue stereo audio signals from extra devices such as VCD, CD, VCR,MP3 player, etc. Use the audio cable to connect the input terminal AUX IN on the rear panel of this player, when the player connect the AUX input terminal, the player will disconnect the bluetooth connection automatically . Bluetooth Connection The model of the player is URBAN BEATZ SPB4M,power on the speaker, the red and blue indicator flashing alternately, use your smart phone to search the bluetooth signal of the speaker, select on the list, then input the password 0000, the speaker will synchronize to play songs on your smart phone while they connected successfully. isconnected the bluetooth on the smart phone to switched off the bluetooth connection. The bluetooth is connected to your smart phone successfully for the first time, disconnect the bluetooth on your smart phone then reconnected it, the player will memories your smart phone and repaired automatically.Press [PLAY/PAUSE] to resume the playback. URBAN BEATZ SPB4M In bluetooth mode,[PLAY/PAUSE],[NEXT], [PREVIOUS], [VOLUME+/-] etc. are also active. URBAN BEATZ SPB4M The blue indicator fladhiing means bluetooth was connected, d Note:Bluetooth connection range in 10 meters. The model in your device was not deleted. Bluetooth Model:URBAN BEATZ SPB4M -8- Troubleshooting Before resorting to maintenance service, please kindly check by yourself with the following chart. Sound There is no sound or the sound is distorted. The volume is set to the minimum level. Turn up the volume. SymptomCause(s) Remedy The buttons on the unit doesn't work. Switch off and unplug the unit. Then connect the plug to the power supply and switch it on again. The unit is being interfered with static electricity etc. The DC power cord is not connected to the power supply or is not connected to a power supply securely. Please check that the DC power cord is connected securely. No Power 2WX2+5W -9- Specifications Power supply DC 10V 1.5A Working environment Temperature -10~+35 Relative humidity 5%~90% Speaker output (Max) 5V, 500mA USB output (Max)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0 Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. 2014.08.11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd.____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description： Bluetooth Speaker model name: UB-SPB4M-101 FCC ID: ESXSPB4M Sincerely, Client’s signature Client’s name / title ：Liao. xiaofei / Quality Director Contact information / address ：Vtrek Dewei Industrial Garden,Shibei Industrial Road, Dashi Town, Panyu Borough, Guangzhou , Guangdong, China SCS-F18: Project and Product Certification Representative Authorization Letter Page 3 of 3 Rev 4.0 Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. 2014.08.11 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ___ Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. _hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description： Bluetooth Speaker model name: UB-SPB4M-101 FCC ID: ESXSPB4M We affirm that between SIEMIC, Inc. and __ Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd.. _, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title ：Liao. xiaofei /Quality Director Contact information / address ：Vtrek Dewei Industrial Garden,Shibei Industrial Road, Dashi Town, Panyu Borough, Guangzhou , Guangdong , China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. 2014/08/11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ESXSPB4M We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Liao. xiaofei / Quality Director Contact information / address: Vtrek Dewei Industrial Garden,Shibei Industrial Road, Dashi Town, Panyu Borough, Guangzhou , Guangdong , China

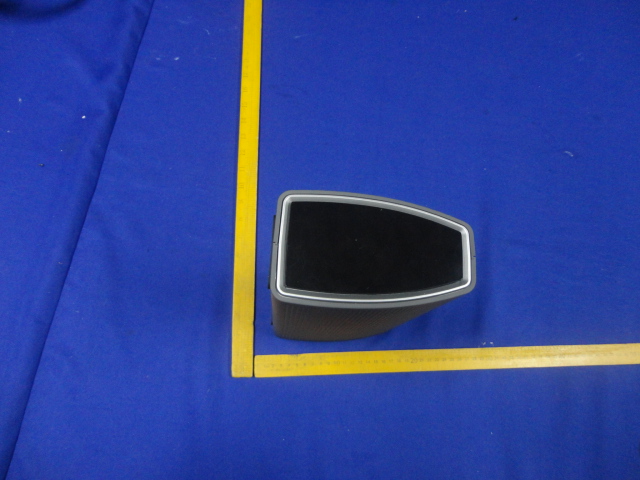

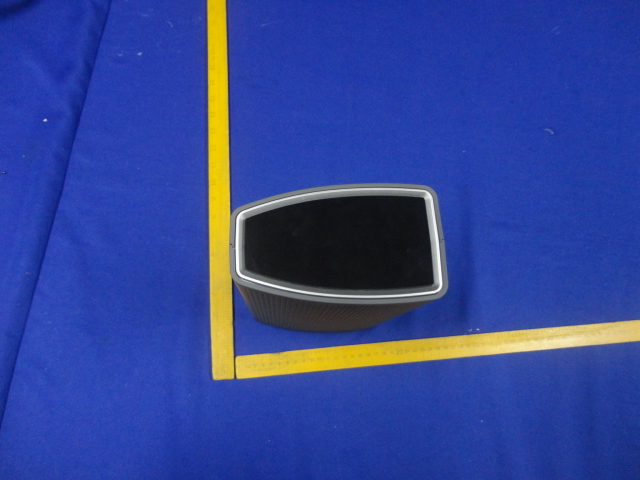

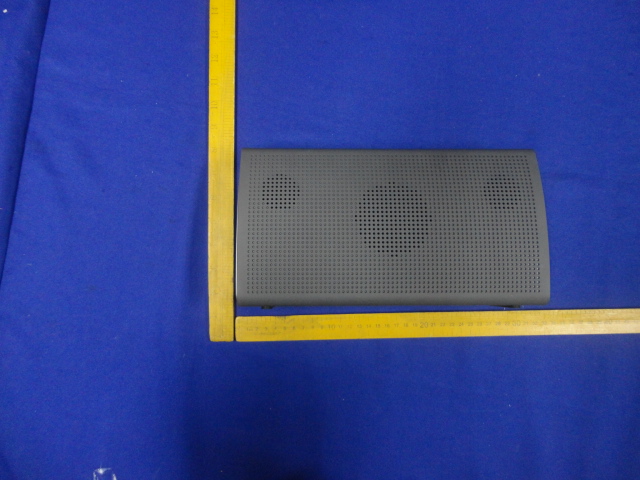

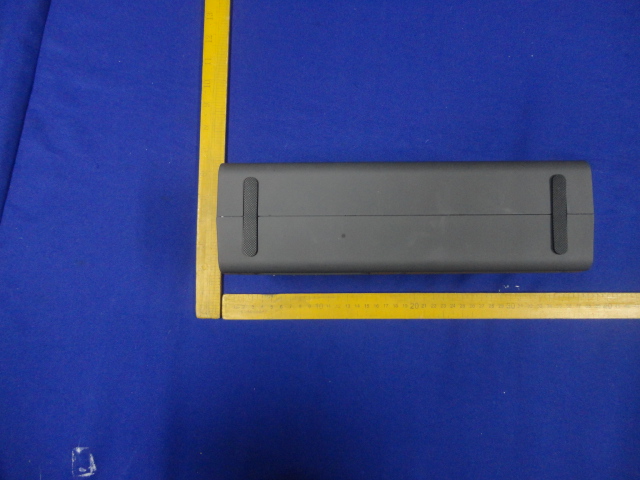

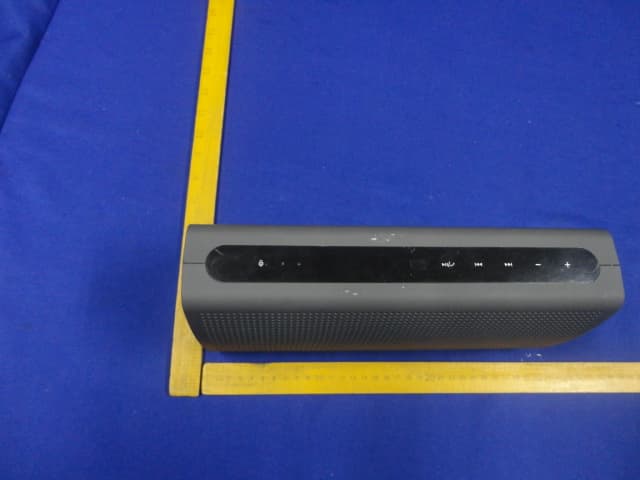

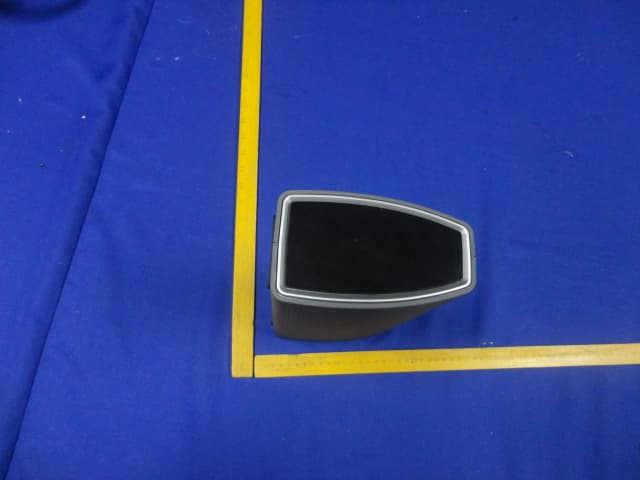

FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 98 of 106 13. PHOTOS OF EUT External Photos M/N: UB-SPB4M-101 FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 99 of 106 External Photos M/N: UB-SPB4M-101 FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 100 of 106 External Photos M/N: UB-SPB4M-101

FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 101 of 106 Internal Photos M/N: UB-SPB4M-101 FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 102 of 106 Internal Photos M/N: UB-SPB4M-101 Bluetooth Antenna FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 103 of 106 Internal Photos M/N: UB-SPB4M-101 FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 104 of 106 Internal Photos M/N: UB-SPB4M-101 FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 105 of 106 Internal Photos M/N: UB-SPB4M-101 FCC ID:ESXSPB4M EST Technology Co.,Ltd Report No. ESTE-R1408004 Page 106 of 106 Adapter Photos

FCC ID:ESXSPB4M FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. Bluetooth Speaker Model Number: UB-SPB4M-101 FCC ID: ESXSPB4M Prepared for : Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. Vtrek Dewei Industrial Garden,Shibei Industrial Road, Dashi Town, Panyu Borough, Guangzhou , Guangdong , China Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1408005 Date of Test : July 24,2014~ Aug 10, 2014 Date of Report : Aug 11, 2014 FCC ID:ESXSPB4M 1. EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 2．SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and ≤50mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID:ESXSPB4M 3. EVALUATION RESULTS Maximum measured transmitter power. Mode CH Peak output Power （dBm） Peak output Power （mW） Results 2402 2.054 1.61 0.50 2441 2.532 1.79 0.56 GFSK 2480 3.589 2.29 0.72 2402 -0.766 0.84 0.26 2441 2.246 1.68 0.53 8-DPSK 2480 3.558 2.27 0.72 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0 SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. ====END====
