EVCACRASKAccess Control Proximity Reader

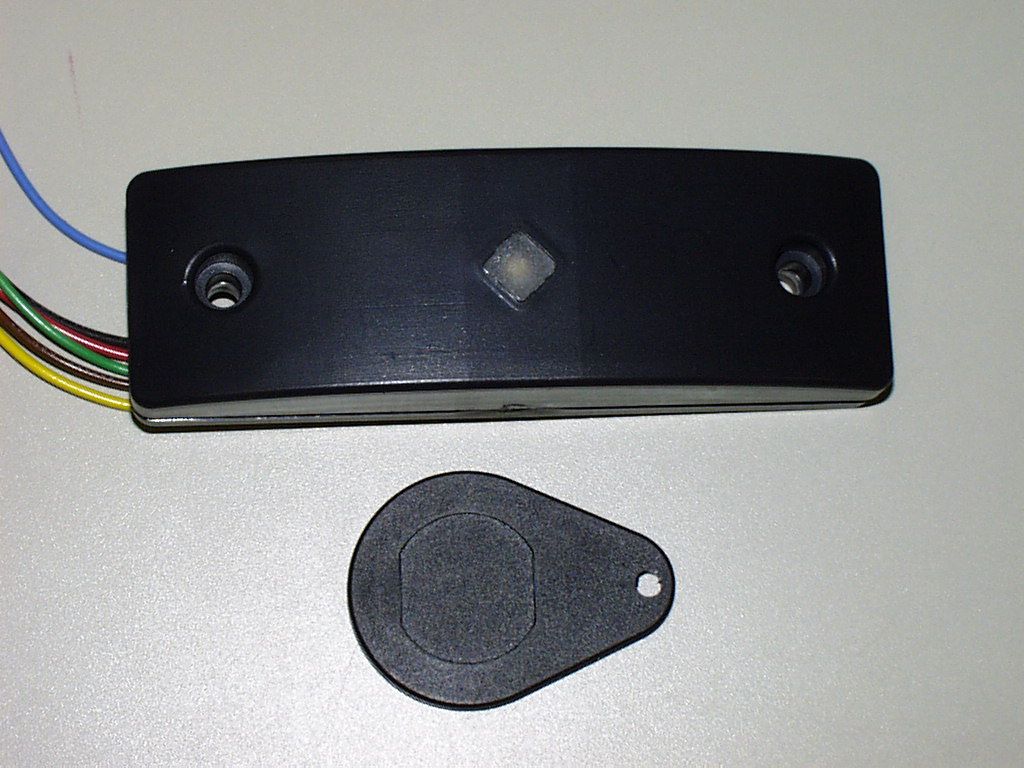

ProductProduct InformationInformation SheetSheet P.O. Box 4423 Englewood, Colorado USA 80155-4423 Telephone: 303.522.8877 Facsimile: 303.727.7683 E-Mail [email protected] ALL INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE  1999, TELSOR CORPORATION Easyprox Proximity Reader Connections: TerminalWire ColorConnection 1YellowWiegand Data “0” 2GreenWiegand Data “1” 3BrownLED Control from Panel 4Black- VDC (4.75-18 VDC range) 5Red+VDC (4.75-18 VDC range) 6BlankNOT USED 7BlueFACTORY USE ONLY Outputs Wiegand26 BitData 0 Terminal 1 Data 1 Terminal 2 LEDPower up (LED flashes Red), Power on (LED Solid Red), Tag Read indication (LED Out), LED Control from panel (LED flashes green) BeeperTag Read indication and LED Control from panel Mounting#10 self tapping screws Power is applied as shown above to power the unit. Hold one of the cards over the antenna area. The read range is @ 2”. When the tag is read the red LED will go out and Wiegand data is transmitted to the control panel. When the LED Control line from the panel is detected the green LED will flash and the beeper will give audible indication for 1 second. After audible indication, the red LED will go back to solid red and another card can be read by the reader. Call, fax or e-mail TELSOR with questions, comments, recommendations or concerns regarding the Easyprox mullion mount reader. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Michael Andrew Vice President TELSOR Corporation Radio Frequency IDentification Systems P.O. Box 4423 Englewood, Colorado USA 80155-4423 Telephone: 303.522.8877Facsimile: 978.383.6032 E-Mail [email protected] AUTHORIZATION AGREEMENT FCC Part 15 Submission TELSOR Corporation appoints TUV Product Service, Inc., to act as the authorized representative in the preparation of applications for registration of equipment under Part 15 of Rules and Regulations of the Federal Communications Commission. I certify that the information provided to TUV Product Service, Inc., properly describes the device or system for which equipment authorization is requested. APPLICANT ANTI-DRUG ABUSE CERTIFICATION The applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853 (a), or, in the case of a non-individual applicant (e.g. corporation, partnership, or other unincorporated association) no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a “party” for these purposes see 47 CFR 1.2002(b). This Authorization, dated this 7 th day of December, 1999 expires on the 1st day of March, 2000 . By Michael Andrew Vice President

Michael Andrew Vice President TELSOR Corporation Radio Frequency IDentification Systems P.O. Box 4423 Englewood, Colorado USA 80155-4423 Telephone: 303.522.8877Facsimile: 978.383.6032 E-Mail [email protected] December 15, 1999 Request for Confidentiality FCC ID : EVCACRASK Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 TELSOR Corporation requests that the theory of operation, block diagram, circuit board photos, and schematic diagram submitted within this application for Certification be witheld from public inspection pursuant to the provisions of section 0.457(d). The information contained within this application is confidential to TELSOR Corporation and took considerable time, effort, and expertise to develop. If the information were available to other potential competing companies, they could forgo most of the development time and expense, providing them with a potentially damaging and unfair competitive advantage. Thank you, Michael Andrew Vice President

FCC ID: EVCACRASK ENGINEERING STATEMENT For Certification of TELSOR Corporation Access Control Proximity Reader FCC ID: EVCACRASK Model No. EasyProx Proximity Reader I am an Electromagnetic Compatibility Test Engineer with TUV Product Service, Boulder, Colorado. My education and experience are a matter of record with the Federal Communications Commission. TUV Product Service Corporation has been authorized by TELSOR Corporation, P.O. BOX 4423, Englewood, Colorado 80144-4423, to make FCC Part 15 Certification measurements on the Access Control Proximity Reader. These tests were made by me or under my supervision at our Pinewood Springs Laboratory which is registered with the FCC under Paragraph 15 of the FCC Rules. Test data required by the FCC for FCC Part 15 Certification is included in this report. It is submitted that the above equipment meets FCC requirements and FCC Part 15 Certification is hereby requested. ________________________ Shawn Singh EMC Engineer TUV Product Service Dated: 21 December 1999

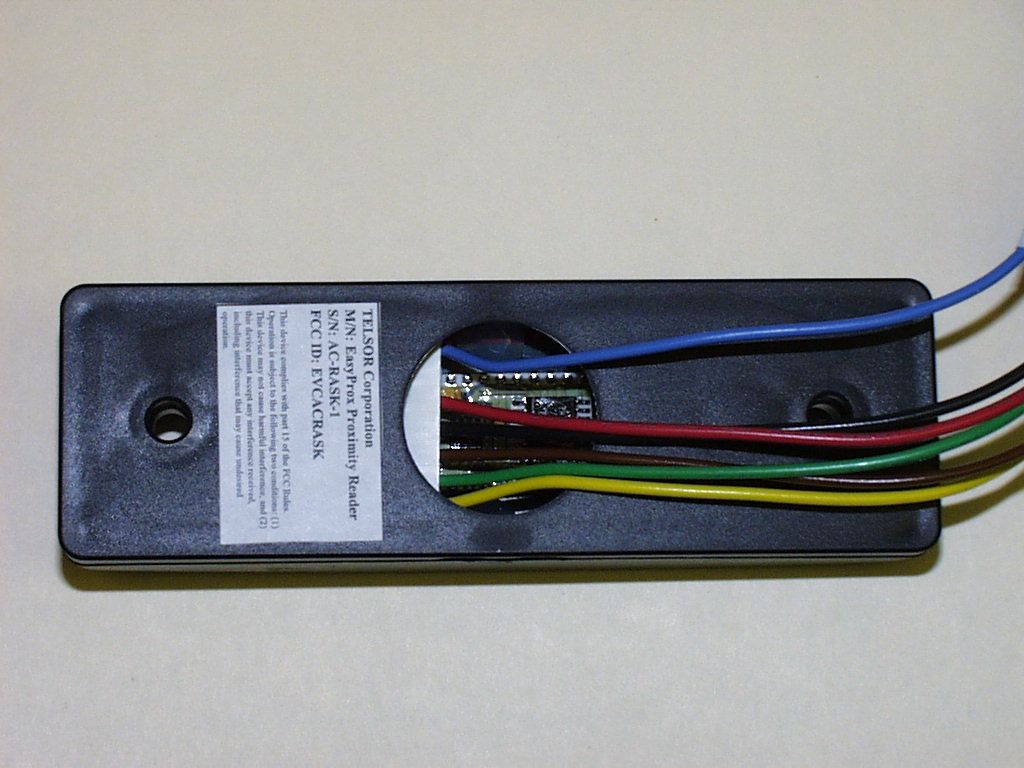

TELSOR Corporation M/N: EasyProx Proximity Reader S/N: AC-RASK-1 FCC ID: EVCACRASK This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

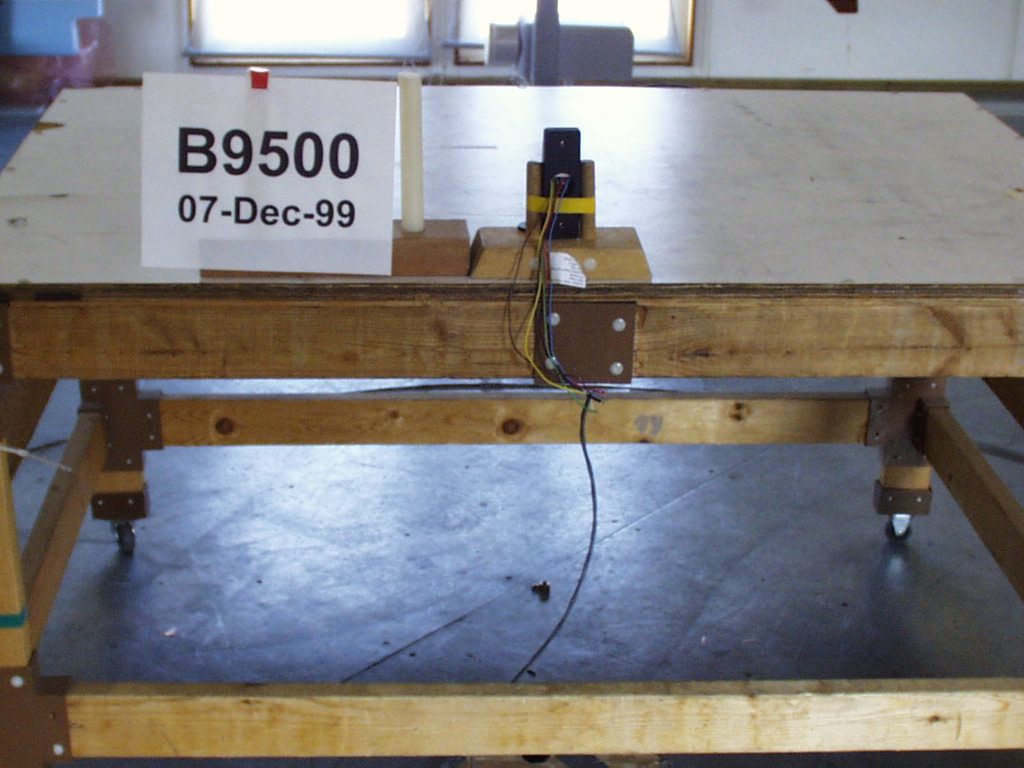

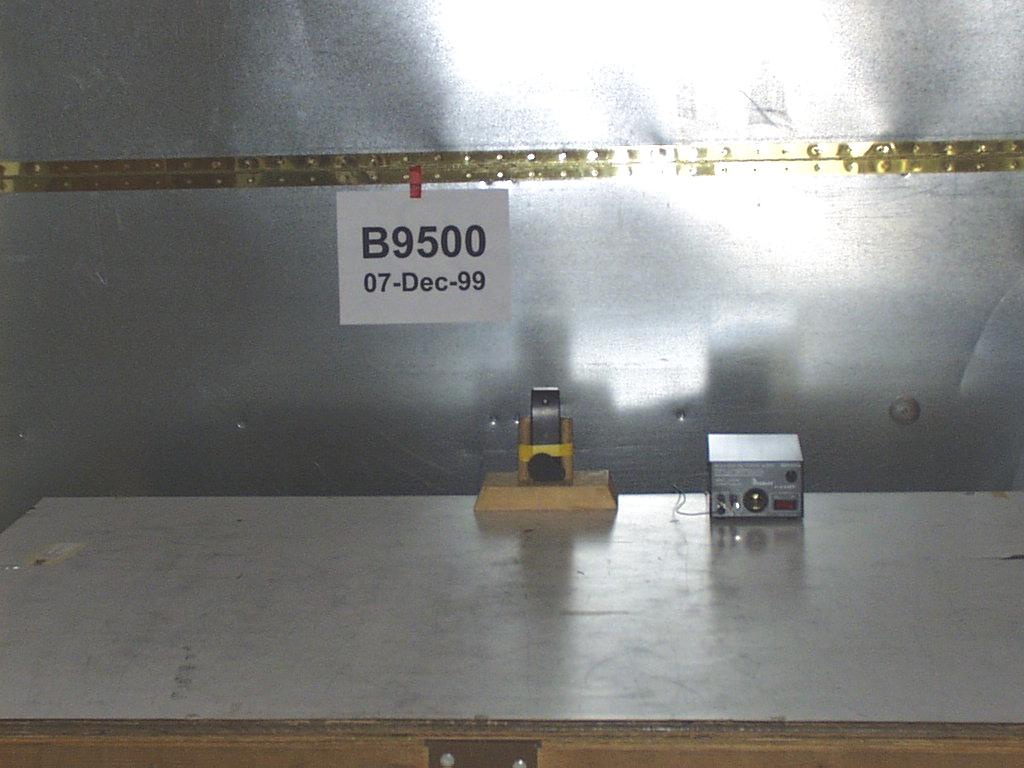

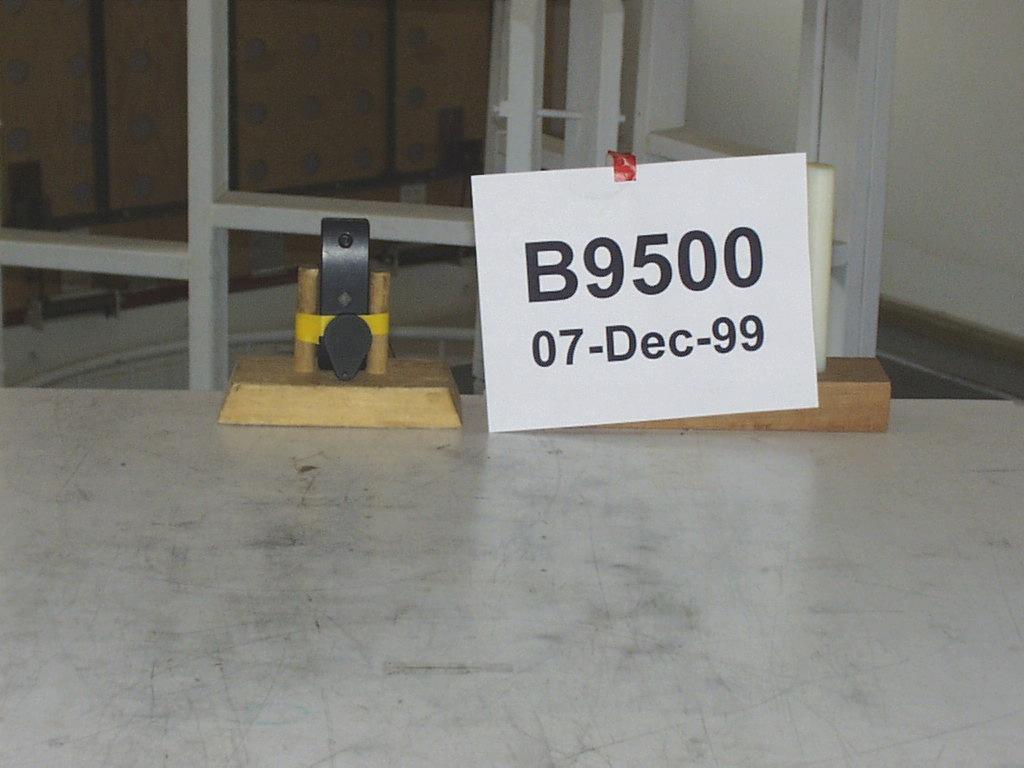

FCC ID: EVCACRASK File No. BC1G950001, Page 1 of 5 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 EMC EMISSION - TEST REPORT Test Report No. B950001 Issue Date20 December 1999 Model / Serial No.EasyProx Proximity Reader / AC-RASK-1 Product TypeAccess Control Proximity Reader ClientTELSOR Corporation ManufacturerTELSOR Corporation License holderTELSOR Corporation AddressP.O. Box 4423 Englewood, CO 80144-4423 Test Criteria AppliedFCC Part 1515.209C Test Start Date:07 December 1999 Test End Date:07 December 1999 Test Result nn PASSoo FAIL Test Report Project No. BC1G950001 Total Pages including Appendices 35 Reviewed By : Shawn SinghReviewed By : Jeffrey V. Doolittle TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of TÜV Product Service. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI PRODUCT SERVICE FCC ID: EVCACRASK File No. BC1G950001, Page 2 of 5 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 DIRECTORY - EMISSIONS DocumentationPage(s) Test report1 - 3 Directory2 Test Regulations3 General Remarks3 Test Equipment Used4 - 5 Appendix A Intentional and Unintentional Data SheetsA1 – A15 Appendix B Test Plan and Constructional Data FormB1 – B8 Appendix C Measurement of ProtocolC1 – C3 Appendix D Test Setup PhotographsD1 – D4 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ±4 dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. PRODUCT SERVICE FCC ID: EVCACRASK File No. BC1G950001, Page 3 of 5 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 EMISSIONS TEST REGULATIONS : The tests were performed according to following regulations : n - Federal Communication Commission part 15o - Class An - Class B n - Federal Communication Commission part 15, Subpart Cn - 15.207n - 15.209 -------------------------------------------------------------------------------- All tests performed according to ANSI C63.4. Emission Test Results: Conducted emissions 150 kHz - 30 MHz Test Resultnn - PASS oo - FAILoo - Not Applicable Passing Margin11dBat0.450MHz Failing MargindBatMHz Remarks: Radiated emissions (electric field) 30 MHz - 1000 MHz (Unintentional Radiator) Test Resultnn - PASS oo - FAILoo - Not Applicable Passing Margin11.2dBat38.1MHz Failing MargindBatMHz Remarks: Radiated emissions (Magnetic field) 0.125 MHz - 1.250 MHz (Intentional Radiator) Test Resultnn - PASS oo - FAILoo - Not Applicable Passing Margin25.7dBat0.125MHz Failing MargindBatMHz Remarks: GENERAL REMARKS: Modifications required to pass: None Test Specification Deviations: Additions to or Exclusions from: None PRODUCT SERVICE FCC ID: EVCACRASK File No. BC1G950001, Page 4 of 5 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 Test Equipment Used PRODUCT SERVICE FCC ID: EVCACRASK File No. BC1G950001, Page 5 of 5 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 Equipment ReportEquipment Report 21-Dec-1999 Project Number:Project Number:B950001Project Date:07-Dec-1999 Company Name:Company Name:TELSOR Corporation Equip ModelSerialCalibrationCal IDManufacturerNumberNumberDescriptionDateIntervalDueCode Test PerformedC Conducted Emissions 2679HEWLETT-PACKARD85650A2430A00550Quasi Peak Adapter07-Jun-19991206-Jun-2000G 8004Rhode & Schwarz ESH3872318/036Low Frequency 13-Sep-19991212-Sep-2000G Receiver (9 kHz - 30 MHz) 8038HEWLETT PACKARD11947A3107A01975Transient Limiter18-Jun-19991217-Jun-2000G 8184RHODE & SCHWARZESH2-Z5830364/002LISN 50 ohm/50uH 3 22-Mar-19991221-Mar-2000G line (1kHz - 30 MHz) 8213HEWLETT PACKARD8566B2410A00154Spectrum Analyzer 15-Apr-19991214-Apr-2000G (dc-22 GHz) 8214HEWLETT PACKARD85662A2403A08749Display Section15-Apr-19991214-Apr-2000G 8258Polorad ElectronicsESH3-Z2357.881J.32Transient Limiter12Y Test PerformedRRadiated Emissions 2679HEWLETT-PACKARD85650A2430A00550Quasi Peak Adapter07-Jun-19991206-Jun-2000G 7514A.H.SYSTEMSSAS-200/512104Log Periodic Antenna28-Jul-19991227-Jul-2000G (200-1500 MHz) 8004Rhode & Schwarz ESH3872318/036 Low Frequency 13-Sep-19991212-Sep-2000G Receiver (9 kHz - 30 MHz) 8137RADIO SHACK63-867005Temperature / 12G Humidity Indicator 8164GISHARD600-1040 mb002Altimeter12G 8169EMCO65029205-2738Magnetic loop30-Oct-19973629-Oct-2000G 8179EMCO31082149Biconical Dipole 28-Jun-19991227-Jun-2000G Antenna (30-300 MHz) 8212MINI CIRCUITSZHL-1042J-SMAD020499-5Amplifier12-Feb-19991212-Feb-2000Y 8213HEWLETT PACKARD8566B2410A00154Spectrum Analyzer 15-Apr…
