EVOKL1920BM19" LCD MONITOR

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX H : USER’S MANUAL ’ ....................................... ................................................... ................................................ ................................................ ...................................................... ............................................................... ...................................................... ................................................... ................................................... ................................................ ......................................................... ...................................................... ......................................................... ...................................................... • • • ’ • • • • ”” • ‘‘ ‘’ ‘’ ‘’‘’ ‘’ ‘’‘’ ‘’‘’ ‘’ “” “” “” “” “” “” ’ ’ ””” ” • • • • •“” •“” “” • • • • • • ’ • •’ • • • • •

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT January 27, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely,

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM KL 1920BM Block Diagram PANEL I N V E R T E R SCALER RTD2522 MCU MTV 412 OSD KEY DVI IN TPA6011A4 SPEAKER R/L AUDIO OUT X-TAL 24.576MHz EEPROM 24WC16 INV. ON DIM. LVDS DCDC Converter,REGULATOR 3.3V 2.5V PC SOUND ANALOG IN VOL. / MUTE Control (I2C) 5 V 12V DC X-TAL 12.000MHz EEPROM 24WC02

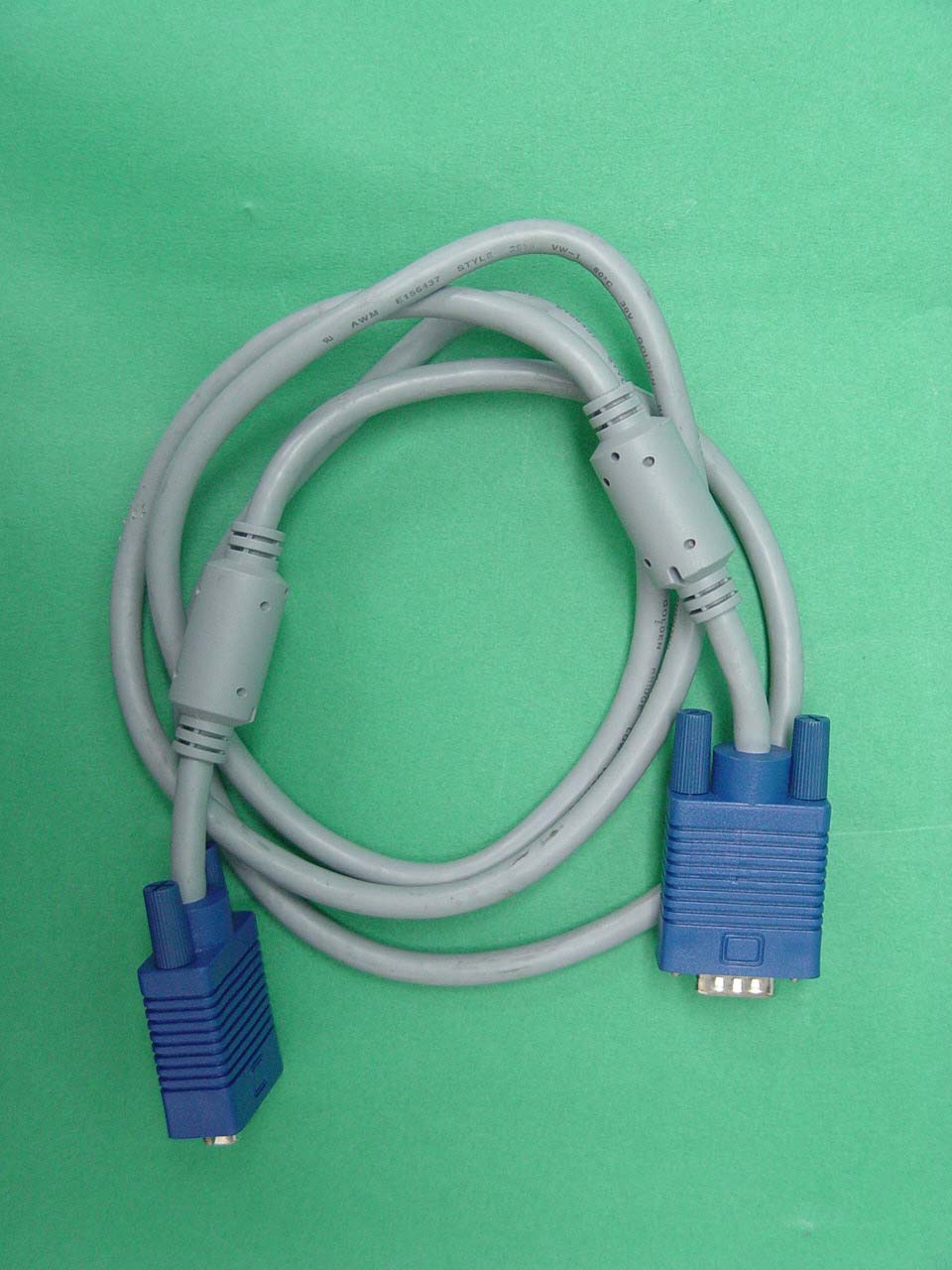

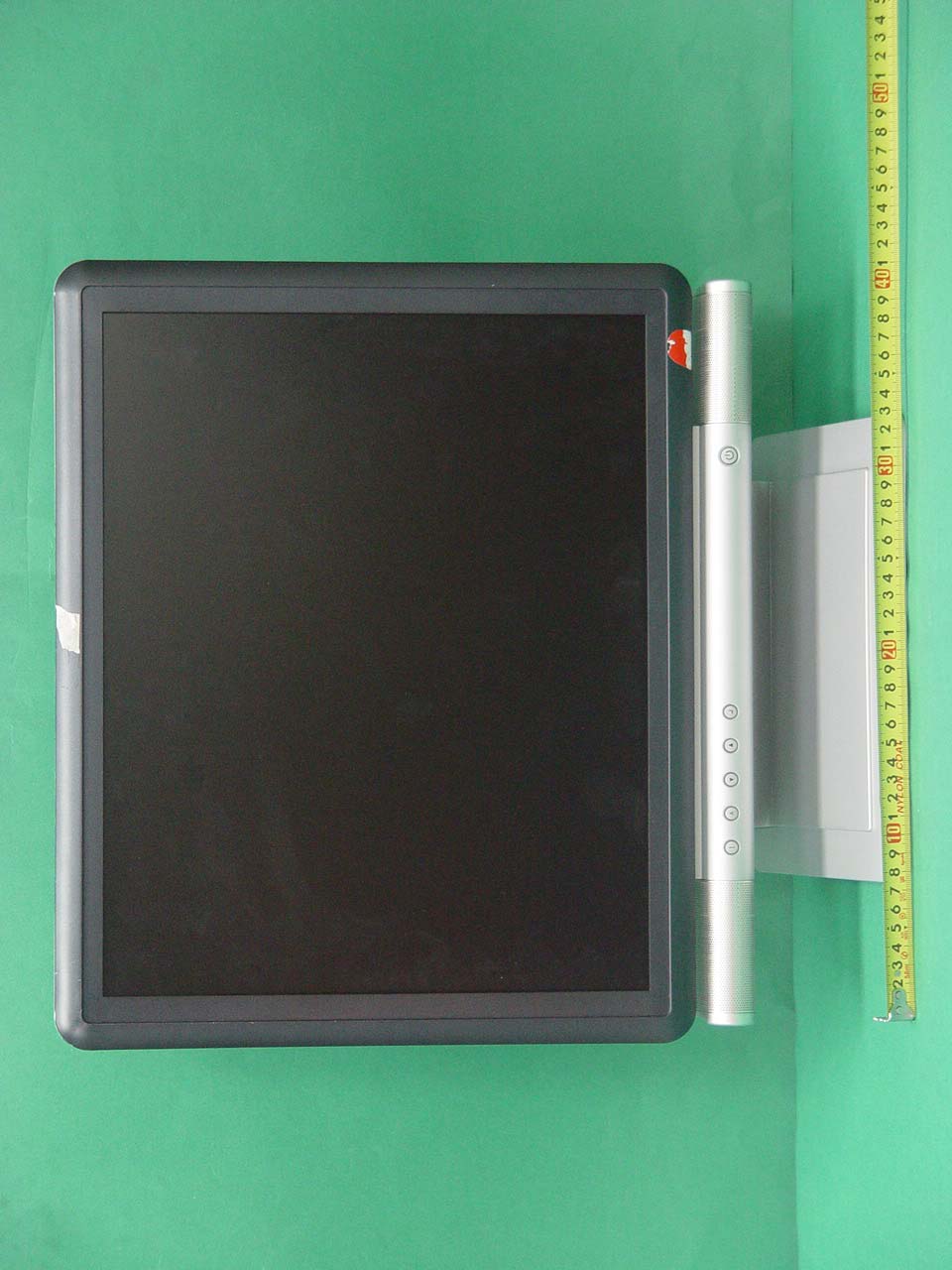

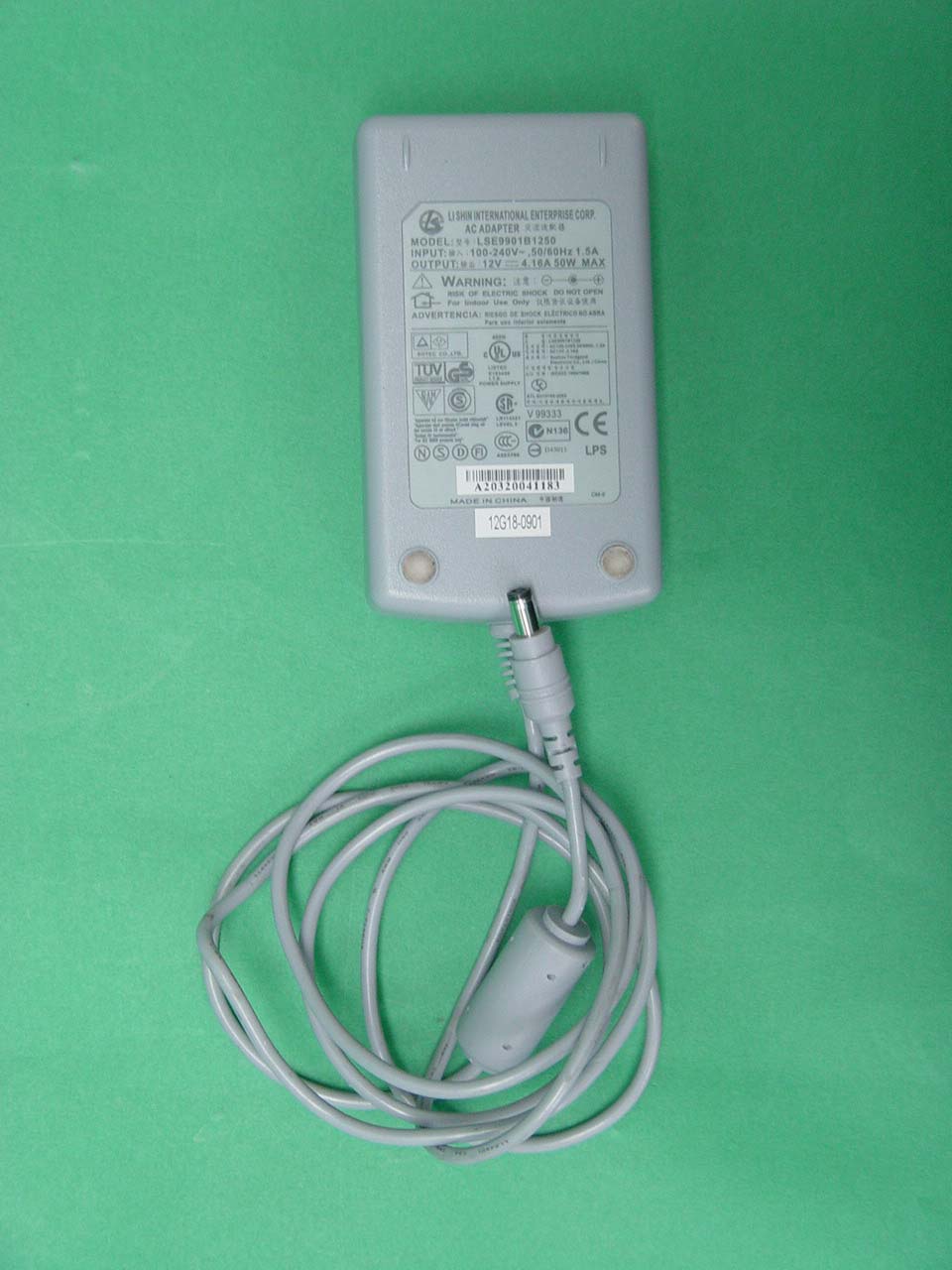

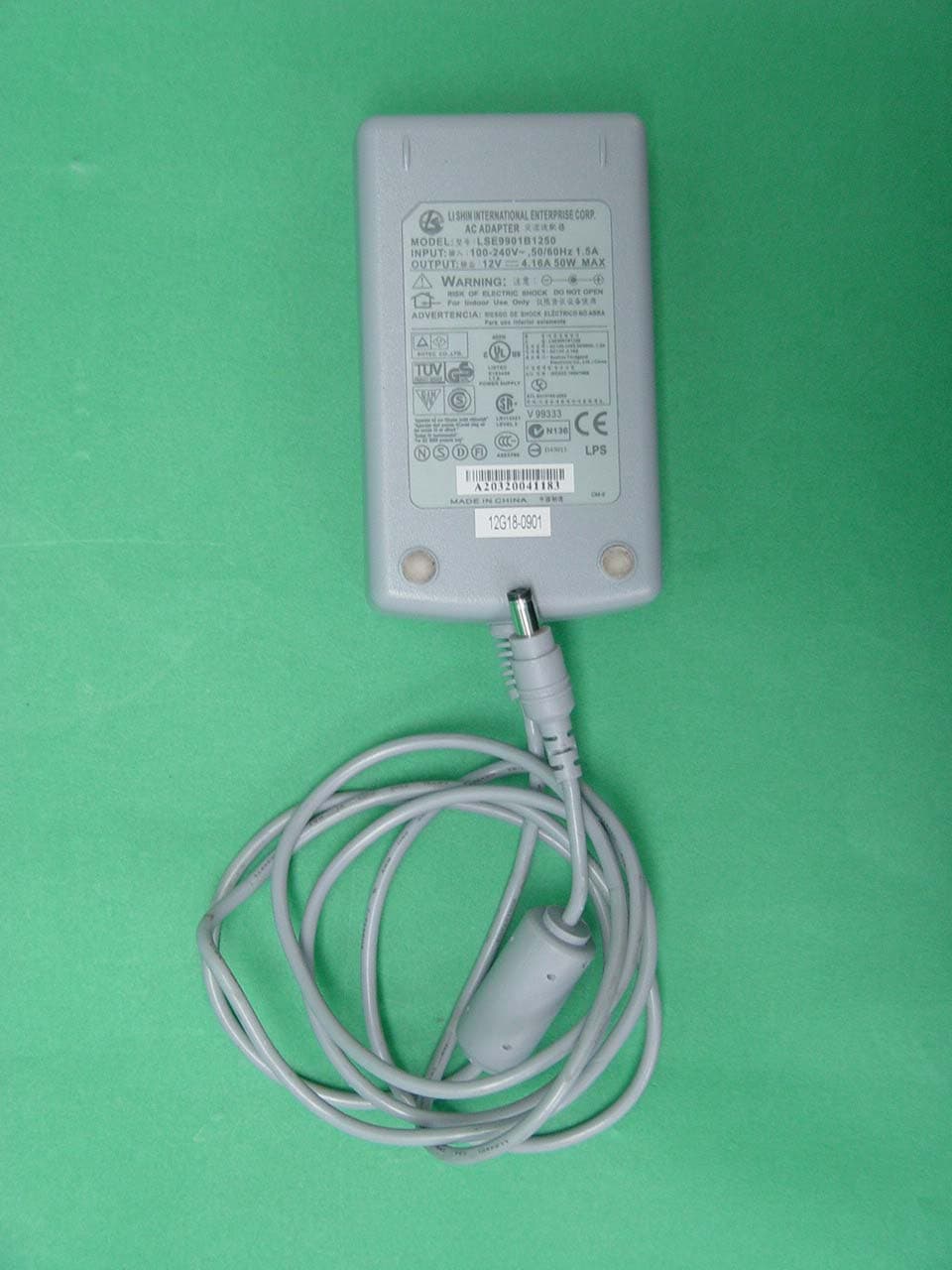

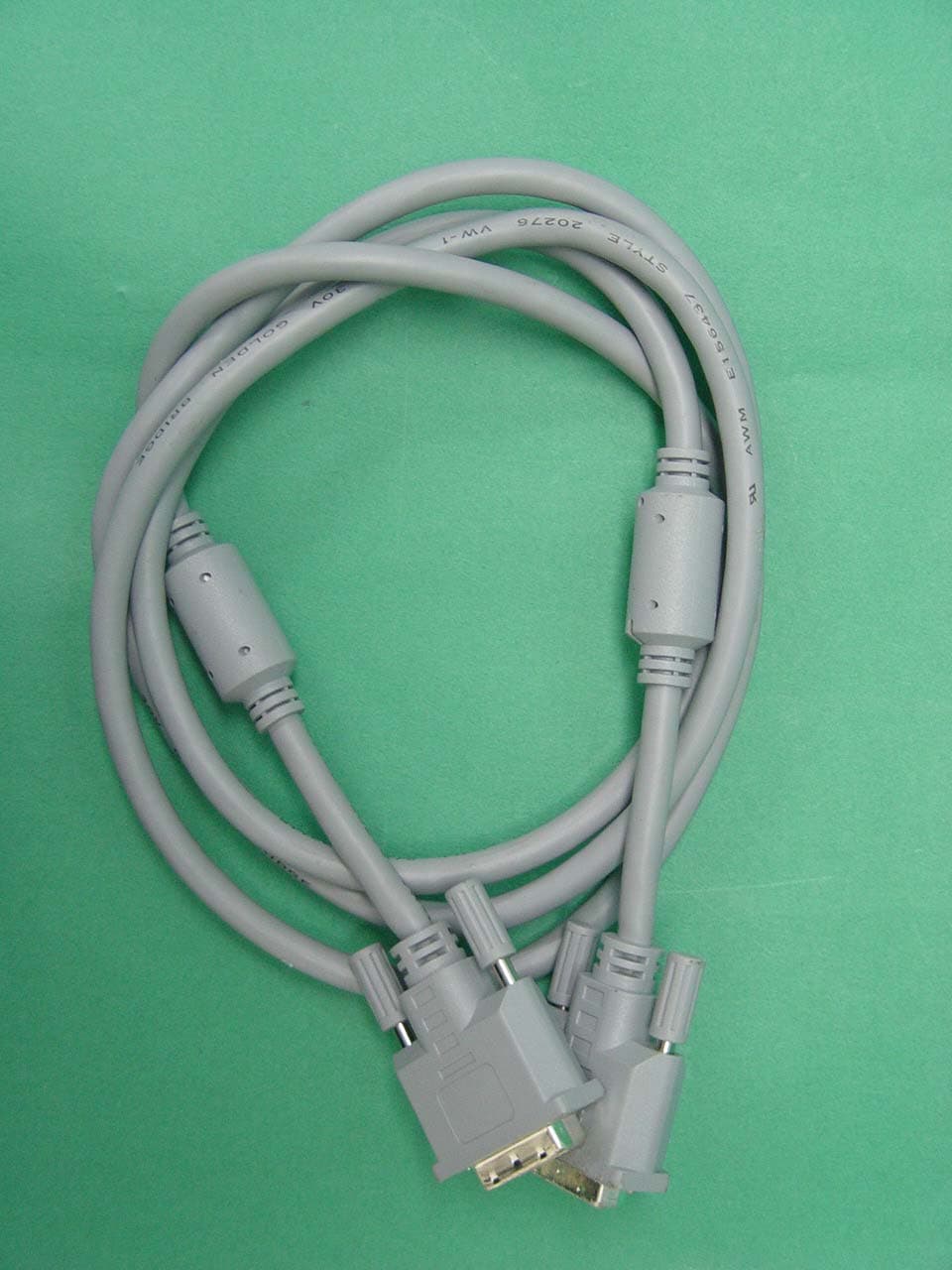

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Page 2 of 18 Test Report No.: GETEC-E3-04-002 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSIONS..............................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................ 11 6. RADIATED EMISSION ............................................................................................................................................13 6.1 OPERATING ENVIRONMENT...................................................................................................................................13 6.2 TEST SET-UP............................................................................................................................................................13 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................13 6.4 LIMIT......................................................................................................................................................................14 6.5 TEST EQUIPMENT USED..........................................................................................................................................14 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................15 7. SAMPLE CALCULATIONS.....................................................................................................................................17 7.1 EXAMPLE 1 :...........................................................................................................................................................17 7.2 EXAMPLE 2 :...........................................................................................................................................................17 8. RECOMMENDATION & CONCLUSION..............................................................................................................18 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Page 3 of 18 Test Report No.: GETEC-E3-04-002 FCC Class B Certification
3. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID EVOKL1920BM z EUT Type 19” LCD Monitor z Model No. KL1920BM z Tra de Na me KDS z Rule Part(s) FCC Part 15 Subpart B z Test Procedure(s) ANSI C63.4 (1992) z Standard(s) EN55022:1998 (CISPR22:1997) z Dates of Test January 14~15, 2004 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-04-002 Responsible Party: KOREA DATA SYSTEMS CO., LTD. Contact Person: Mr. Jae-Hyun Joo/ Chief research engineer Manufacturer: 43-16 Gobong-ri, Sungsan-myun, Gunsan-si, Chollabuk-do, 573-840 Korea Tel No.: +82-63-450-5571 Fax No.: +82-63-450-5572 EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Page 4 of 18 Test Report No.: GETEC-E3-04-002 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 1992) was used in determining radiated and conducted emissions emanating fr…

Text truncated - open the document above for the full version.

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification „ Test Mode: 1280*1024 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification „ Test Mode: 1280*1024 / 75Hz (Digital) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification „ Test Mode: 1024*768 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification „ Test Mode: 800*600 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification „ Test Mode: 640*480 / 75Hz < Hot line > < Neutral line >

EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 19” LCD Monitor FCC ID : EVOKL1920BM Test Report No.: GETEC-E3-04-002 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
